RecyclerView预加载机制源码分析

RecyclerView预加载机制分析

预加载原理简介

原理分析

SDK>=21,支持RenderThread

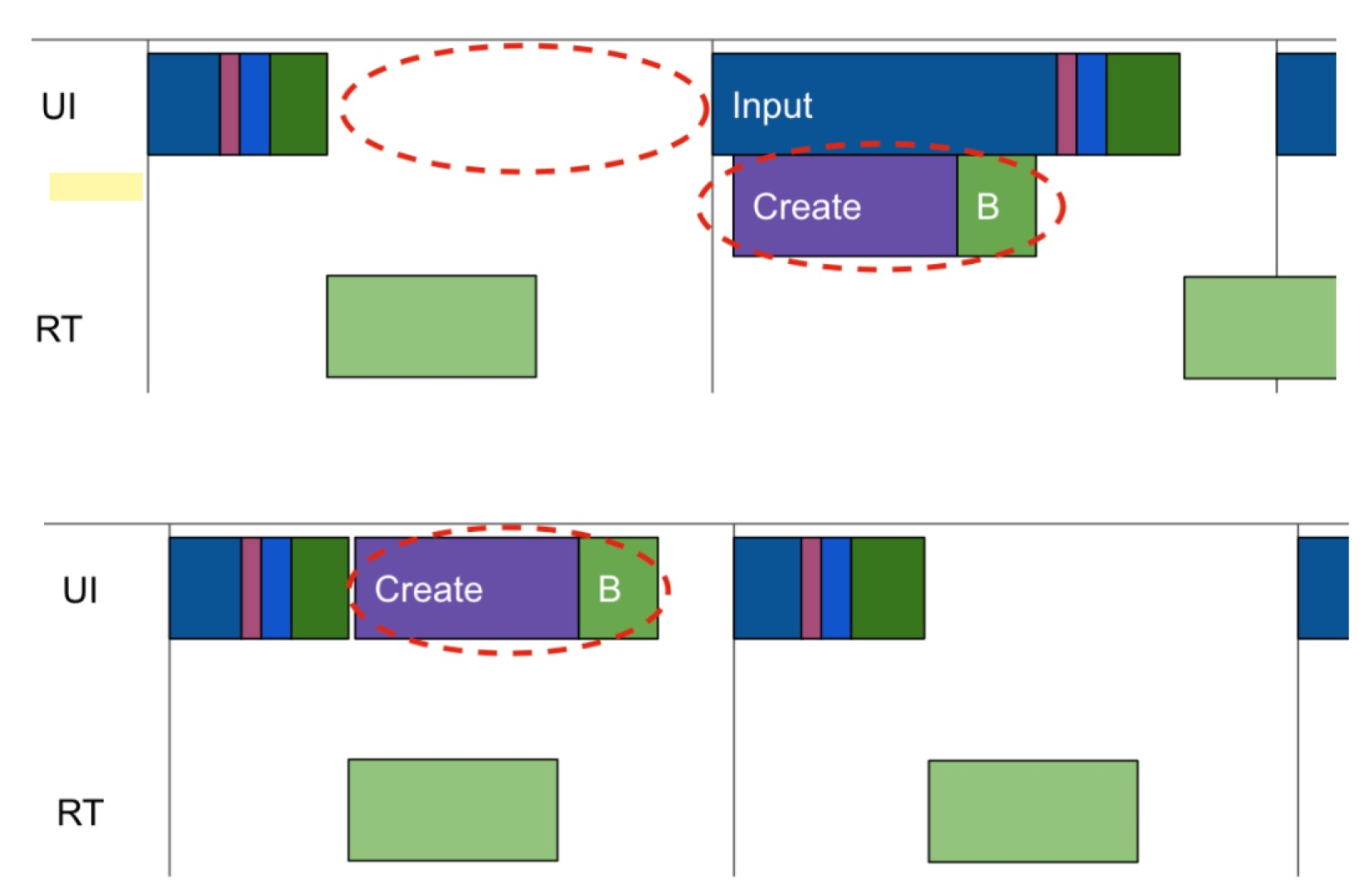

UI Thread：将UI（xml，输入，动画）转化为FrameBuffer
RenderThread：将FrameBuffer转化为显示器显示的指令
核心思想：将闲置的UI Thead利用起来，提前加载计算下一帧的FrameBuffer

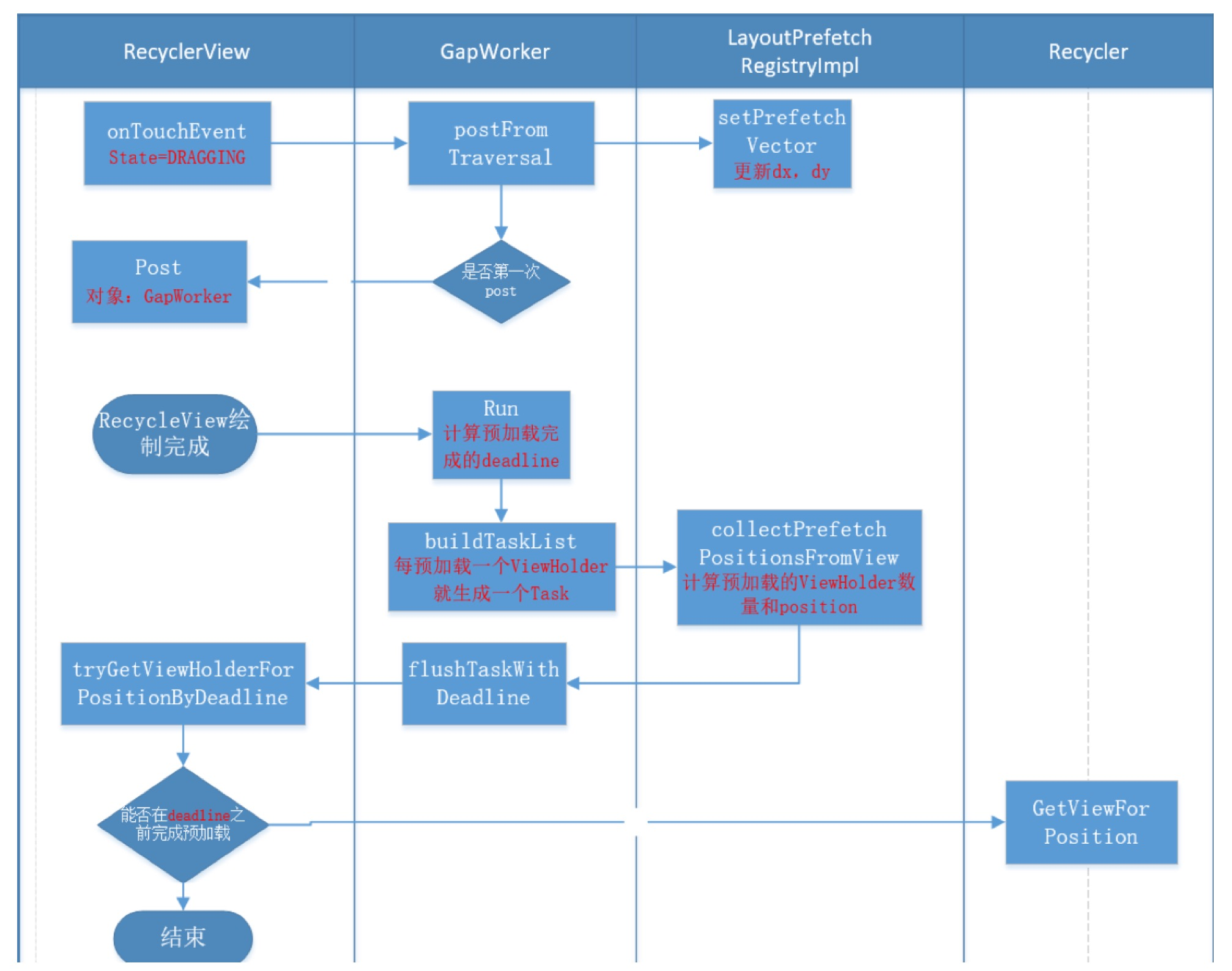

预加载流程总览

RecyclerView
- dragging的时候提交预加载任务
GapWorkder
- 执行预加载任务，运行在主线程
LayoutPrefetchRegistryImpl
- 根据touch的位置计算预加载的数量和position
Recycler
- 创建ViewHolder

问题
- 什么时候开始预加载
- 预加载几个，哪几个
- 预加载超时怎么计算

预加载源码分析

RecyclerView.onTouchEvent

在View拖动的时候通过mGapWorker.postFromTraversal，提交预加载的任务


    @Override
    public boolean onTouchEvent(MotionEvent e) {
            case MotionEvent.ACTION_MOVE: {

                if (mScrollState != SCROLL_STATE_DRAGGING) {

                    if (mGapWorker != null && (dx != 0 || dy != 0)) {
                       mGapWorker.postFromTraversal(this, dx, dy);
                    }
                }
            } break;
            }

GapWorker.postFromTraversal

void postFromTraversal(RecyclerView recyclerView, int prefetchDx, int prefetchDy) {
        if (recyclerView.isAttachedToWindow()) {
            if (RecyclerView.DEBUG && !mRecyclerViews.contains(recyclerView)) {
                throw new IllegalStateException("attempting to post unregistered view!");
            }
            // 第一次触发拖动的是否将该runnable提交到Mainhandler里面，等待UI thread执行完成再执行prefetch
            if (mPostTimeNs == 0) {
                mPostTimeNs = recyclerView.getNanoTime();
                recyclerView.post(this);
            }
        }
        // 后续的动作触发去更新最新的dx和dy，prefect会按照这个最新的dx和dy计算prefetch的item的position
        recyclerView.mPrefetchRegistry.setPrefetchVector(prefetchDx, prefetchDy);
    }

GapWorker.run

@Override
    public void run() {
        try {
            TraceCompat.beginSection(RecyclerView.TRACE_PREFETCH_TAG);
            // mRecyclerViews的原因是存在嵌套的recyclerView的情况
            if (mRecyclerViews.isEmpty()) {
                // abort - no work to do
                return;
            }

            // Query most recent vsync so we can predict next one. Note that drawing time not yet
            // valid in animation/input callbacks, so query it here to be safe.
            final int size = mRecyclerViews.size();
            long latestFrameVsyncMs = 0;
            // 获取RecyclerView最进一次开始RenderThread的时间
            for (int i = 0; i < size; i++) {
                RecyclerView view = mRecyclerViews.get(i);
                if (view.getWindowVisibility() == View.VISIBLE) {
                    latestFrameVsyncMs = Math.max(view.getDrawingTime(), latestFrameVsyncMs);
                }
            }

            if (latestFrameVsyncMs == 0) {
                // abort - either no views visible, or couldn't get last vsync for estimating next
                return;
            }
            // 计算预加载的最后时间，如果能在截止日期之前完成预加载，那么就能成功完成ViewHolder的预加载，如果不能那么就预加载失败
            long nextFrameNs = TimeUnit.MILLISECONDS.toNanos(latestFrameVsyncMs) + mFrameIntervalNs;

            prefetch(nextFrameNs);

            // TODO: consider rescheduling self, if there's more work to do
        } finally {
            mPostTimeNs = 0;
            TraceCompat.endSection();
        }
    }

GapWorker.prefetch

 void prefetch(long deadlineNs) {
        // 计算任务列表
        buildTaskList();
        // 开始预加载
        flushTasksWithDeadline(deadlineNs);
    }

private void buildTaskList() {
        // Update PrefetchRegistry in each view
        final int viewCount = mRecyclerViews.size();
        int totalTaskCount = 0;
        for (int i = 0; i < viewCount; i++) {
            RecyclerView view = mRecyclerViews.get(i);
            if (view.getWindowVisibility() == View.VISIBLE) {
         // 计算每一个RecyclerView预加载的数量，保存在LayoutPrefetchRegistryImpl.count里面
                view.mPrefetchRegistry.collectPrefetchPositionsFromView(view, false);
                totalTaskCount += view.mPrefetchRegistry.mCount;
            }
        }

        // Populate task list from prefetch data...
        mTasks.ensureCapacity(totalTaskCount);
        int totalTaskIndex = 0;
        for (int i = 0; i < viewCount; i++) {
            RecyclerView view = mRecyclerViews.get(i);
            if (view.getWindowVisibility() != View.VISIBLE) {
                // Invisible view, don't bother prefetching
                continue;
            }

            LayoutPrefetchRegistryImpl prefetchRegistry = view.mPrefetchRegistry;
            final int viewVelocity = Math.abs(prefetchRegistry.mPrefetchDx)
                    + Math.abs(prefetchRegistry.mPrefetchDy);
            for (int j = 0; j < prefetchRegistry.mCount * 2; j += 2) {
                final Task task;
                if (totalTaskIndex >= mTasks.size()) {
                // 针对每一个预加载的ViewHolder创建一个Task
                    task = new Task();
                    mTasks.add(task);
                } else {
                    task = mTasks.get(totalTaskIndex);
                }
                final int distanceToItem = prefetchRegistry.mPrefetchArray[j + 1];

                task.immediate = distanceToItem <= viewVelocity;
                task.viewVelocity = viewVelocity;
                task.distanceToItem = distanceToItem;
                task.view = view;
                task.position = prefetchRegistry.mPrefetchArray[j];

                totalTaskIndex++;
            }
        }

        // ... and priority sort
        Collections.sort(mTasks, sTaskComparator);
    }

GapWorker.flushTasksWithDeadline

private void flushTasksWithDeadline(long deadlineNs) {
// 便利所有Task开始预加载
        for (int i = 0; i < mTasks.size(); i++) {
            final Task task = mTasks.get(i);
            if (task.view == null) {
                break; // done with populated tasks
            }
            flushTaskWithDeadline(task, deadlineNs);
            task.clear();
        }
    }

GapWorker.flushTaskWithDeadline

private void flushTaskWithDeadline(Task task, long deadlineNs) {
        long taskDeadlineNs = task.immediate ? RecyclerView.FOREVER_NS : deadlineNs;
        // 如果没能在deadlineNs之前构造好ViewHolder，那么次次预加载就失败了
        RecyclerView.ViewHolder holder = prefetchPositionWithDeadline(task.view,
                task.position, taskDeadlineNs);
        if (holder != null
                && holder.mNestedRecyclerView != null
                && holder.isBound()
                && !holder.isInvalid()) {
            prefetchInnerRecyclerViewWithDeadline(holder.mNestedRecyclerView.get(), deadlineNs);
        }
    }

RecyclerView.tryGetViewHolderForPositionByDeadline

根据dx和dy，以及当前滑动的方案计算预加载的position
dx和dy是通过Gapworker.postFromTraversal在滑动的时候来更新的

// 如果不能在预测的预加载时间内预加载出来，那么就不会去预加载
if (holder == null) {
                    long start = getNanoTime();
                    if (deadlineNs != FOREVER_NS
                            && !mRecyclerPool.willCreateInTime(type, start, deadlineNs)) {
                        // abort - we have a deadline we can't meet
                        return null;
                    }

RecyclerView.willCreateInTime

预测的时间=当前开始执行时间+历史该Type的ViewHolder创建的平均时间

boolean willCreateInTime(int viewType, long approxCurrentNs, long deadlineNs) {
            long expectedDurationNs = getScrapDataForType(viewType).mCreateRunningAverageNs;
            return expectedDurationNs == 0 || (approxCurrentNs + expectedDurationNs < deadlineNs);
        }

预加载哪个和具体的位置是怎么计算的

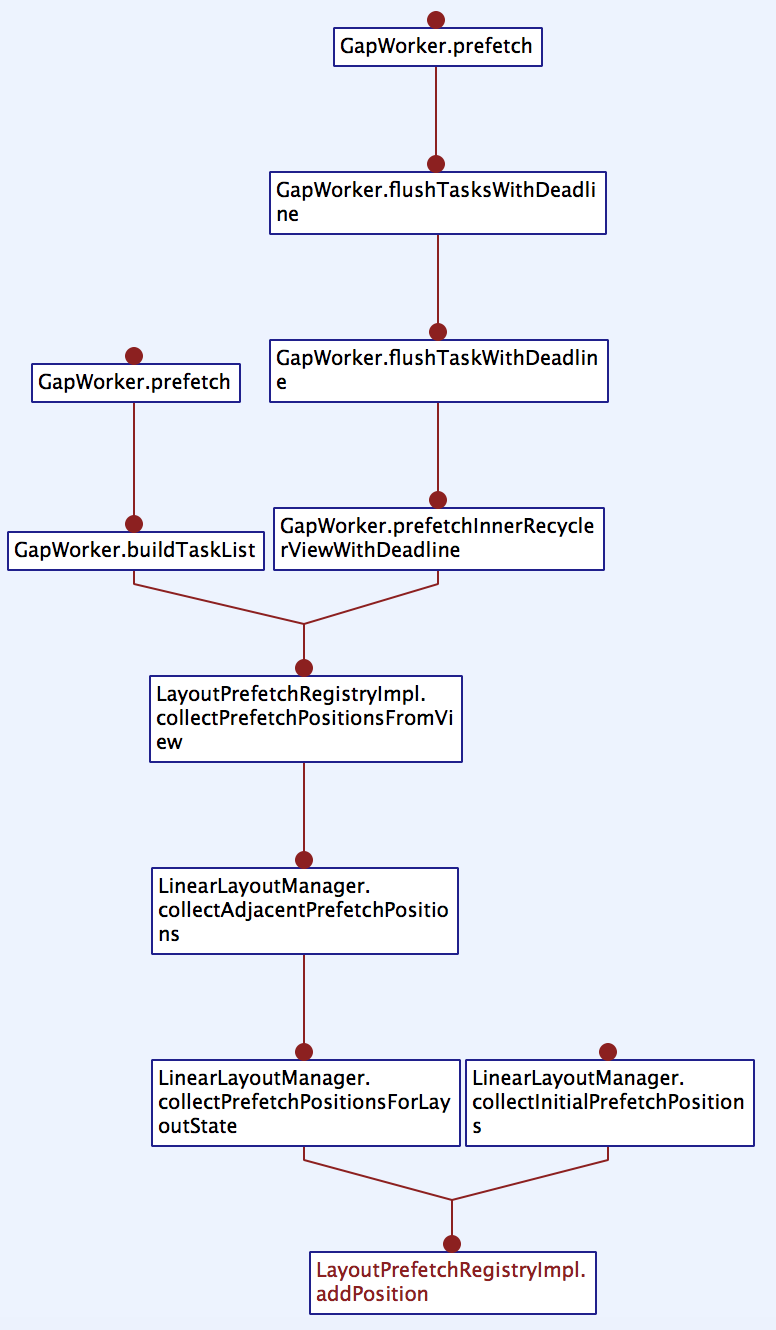

collectPrefetchPositionsFromView的调用流程图

在buildTaskList的时候根据LayoutPrefetchRegistryImpl记录的滑动的位置，计算预加载的数量和位置

LayoutPrefetchRegistryImpl.collectPrefetchPositionsFromView

// nested：是否嵌套的，执行RecyclerView里面嵌套的RecyclerView的预加载
void collectPrefetchPositionsFromView(RecyclerView view, boolean nested) {
            mCount = 0;
            if (mPrefetchArray != null) {
                Arrays.fill(mPrefetchArray, -1);
            }

            final RecyclerView.LayoutManager layout = view.mLayout;
            if (view.mAdapter != null
                    && layout != null
                    && layout.isItemPrefetchEnabled()) {
                if (nested) {
                    // nested prefetch, only if no adapter updates pending. Note: we don't query
                    // view.hasPendingAdapterUpdates(), as first layout may not have occurred
                    if (!view.mAdapterHelper.hasPendingUpdates()) {
                        layout.collectInitialPrefetchPositions(view.mAdapter.getItemCount(), this);
                    }
                } else {
                    // momentum based prefetch, only if we trust current child/adapter state
                    if (!view.hasPendingAdapterUpdates()) {
                        layout.collectAdjacentPrefetchPositions(mPrefetchDx, mPrefetchDy,
                                view.mState, this);
                    }
                }

                if (mCount > layout.mPrefetchMaxCountObserved) {
                    layout.mPrefetchMaxCountObserved = mCount;
                    layout.mPrefetchMaxObservedInInitialPrefetch = nested;
                    view.mRecycler.updateViewCacheSize();
                }
            }
        }

LinearLyoutManager.collectInitialPrefetchPositions

计算预加载的位置

@Override
    public void collectInitialPrefetchPositions(int adapterItemCount,
            LayoutPrefetchRegistry layoutPrefetchRegistry) {
        final boolean fromEnd;
        final int anchorPos;
        if (mPendingSavedState != null && mPendingSavedState.hasValidAnchor()) {
            // use restored state, since it hasn't been resolved yet
            fromEnd = mPendingSavedState.mAnchorLayoutFromEnd;
            anchorPos = mPendingSavedState.mAnchorPosition;
        } else {
            resolveShouldLayoutReverse();
            fromEnd = mShouldReverseLayout;
            if (mPendingScrollPosition == NO_POSITION) {
                anchorPos = fromEnd ? adapterItemCount - 1 : 0;
            } else {
                anchorPos = mPendingScrollPosition;
            }
        }

        final int direction = fromEnd
                ? LayoutState.ITEM_DIRECTION_HEAD
                : LayoutState.ITEM_DIRECTION_TAIL;
                // 计算目标预加载位置=当前方向最后一个位置+方向
        int targetPos = anchorPos;
        for (int i = 0; i < mInitialPrefetchItemCount; i++) {
            if (targetPos >= 0 && targetPos < adapterItemCount) {
                layoutPrefetchRegistry.addPosition(targetPos, 0);
            } else {
                break; // no more to prefetch
            }
            targetPos += direction;
        }
    }

LayoutPrefetchRegistryImpl.addPosition

保存预先加载的位置到mPrefetchArray之中

@Override
        public void addPosition(int layoutPosition, int pixelDistance) {
            if (layoutPosition < 0) {
                throw new IllegalArgumentException("Layout positions must be non-negative");
            }

            if (pixelDistance < 0) {
                throw new IllegalArgumentException("Pixel distance must be non-negative");
            }

            // allocate or expand array as needed, doubling when needed
            final int storagePosition = mCount * 2;
            if (mPrefetchArray == null) {
                mPrefetchArray = new int[4];
                Arrays.fill(mPrefetchArray, -1);
            } else if (storagePosition >= mPrefetchArray.length) {
                final int[] oldArray = mPrefetchArray;
                mPrefetchArray = new int[storagePosition * 2];
                System.arraycopy(oldArray, 0, mPrefetchArray, 0, oldArray.length);
            }

            // add position
            // 数组元素2个为一组，第一保存预加载位置，第二个保存pixelDistance
            mPrefetchArray[storagePosition] = layoutPosition;
            mPrefetchArray[storagePosition + 1] = pixelDistance;

            mCount++;
        }

超时怎么计算
