线程的6种状态以及转变

321 阅读2分钟

线程的6种状态以及转变:

java的线程一共6种状态。具体代码见:

    java.lang.Thread.State

1 NEW

新建状态 Thread state for a thread which has not yet started. 线程还没有调用start的时候

2 RUNNABLE

可运行状态 Thread state for a runnable thread. A thread in the runnable state is executing in the Java virtual machine but it may be waiting for other resources from the operating system such as processor. 调用start之后,jvm启动了这个任务,但是可能被其他资源占用线程变成WAITING

3 BLOCKED

阻塞状态 Thread state for a thread blocked waiting for a monitor lock. A thread in the blocked state is waiting for a monitor lock to enter a synchronized block method or reenter a synchronized block method after calling {@link Object#wait() Object.wait}. 线程被锁的时候,线程等待进去一个synchronized块方法或者可重入锁的时候

4 WAITING

等待状态 Thread state for a waiting thread. A thread is in the waiting state due to calling one of the following methods:

  • {@link Object#wait() Object.wait} with no timeout< li>
  • {@link #join() Thread.join} with no timeout< li>
  • {@link LockSupport#park() LockSupport.park}< li> < ul>

    A thread in the waiting state is waiting for another thread to perform a particular action. For example, a thread that has called Object.wait() on an object is waiting for another thread to call Object.notify() or Object.notifyAll() on that object A thread that has called Thread.join()

线程调用object.wait thread.join LockSupport.park 的时候变成 WAITING

5 TIMED_WAITING,

时间等待状态 Thread state for a waiting thread with a specified waiting time. A thread is in the timed waiting state due to calling one of the following methods with a specified positive waiting time:

  • {@link #sleep Thread.sleep}< li>
  • {@link Object#wait(long) Object.wait} with timeout< li>
  • {@link #join(long) Thread.join} with timeout< li>
  • {@link LockSupport#parkNanos LockSupport.parkNanos}< li>
  • {@link LockSupport#parkUntil LockSupport.parkUntil}< li> < ul> sleep 或者wait,join带时间参数等方法时

6 TERMINATED

终止状态 Thread state for a terminated thread. The thread has completed execution. 线程执行完成 或者被中断的时候变成TERMINATED TERMINATED;

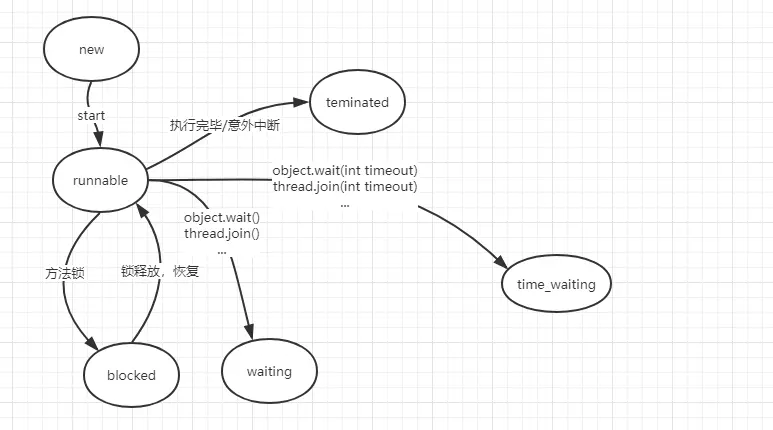

状态流转图

线程创建出来就是new的状态。

start方法调用之后状态变成runnable,可以执行,如果cpu把时间片切过来就可以执行。

runnable执行完成则变成terminated,或者中断的时候。

runnable如果遇到有锁的方法,在等待的时候则是阻塞blocked的状态

如果调用wait或者join的方法,则变成waiting状态,

如果调用带时间参数的wait或者join,则变成time_waiting。
