摘要：

很久没有分享自己工作上的心得了，而这篇文章也是来源于工作中，目的是升级微服务版本，由于eureka或许“感冒了”，打算用consul，虽然该文章没有用到，然后zuul打算改为gateway。由于为人比较懒，所以不想单独去写开发文档，所以webflux与swagger2.x就成了我该篇主题！

注意事项：

如果是一个负责人的分享者，他的代码一定会尽可能的通熟易懂，如果你跑不起来项目，首先是自己环境搭建好了么？然后在怀疑作者的上传是不是又点儿问题？所以希望大家一定要有自己探索知识的欲望才可以，经过自己的改造是肯定可以ok的，一个完全有问题的代码，我相信没有一个作者敢分享出来吧！为为什么谈这点问题呢？因为接下来的环境和项目依赖十分头疼，一句话，依赖和版本一定别搞错了，我很负责的告诉大家，这周花了2天时间，期间研究到晚上4点，然后8点继续起来干，有朋友很想我立即分享给大家，所以今晚将以前的finchley改造了一下，不过本着浅显易懂的原则，相信大家很容易掌握的！

eureka：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.github.dqqzj</groupId>
    <artifactId>registry</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>registry</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <docker.image.prefix>qzj</docker.image.prefix>
        <spring-cloud.version>Finchley.RELEASE</spring-cloud.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>com.spotify</groupId>
                <artifactId>dockerfile-maven-plugin</artifactId>
                <version>1.3.6</version>
                <configuration>
                    <repository>${docker.image.prefix}/${project.artifactId}</repository>
                    <buildArgs>
                        <JAR_FILE>target/${project.build.finalName}.jar</JAR_FILE>
                    </buildArgs>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

注意点： 一定要添加web依赖哦！后面的cloud版本就不会贴出来了，代码会上传github供大家参考的！

spring gateway环境搭建：

核心依赖如下：

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.7.0</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.7.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

application.yml 配置文件如下：

server:
  port: 8764
spring:
  application:
    name: gateway
#  zipkin:
#     base-url: http://localhost:9411
#  sleuth:
#    sampler:
#      probability: 1.0
  cloud:
      gateway:
        discovery:
          locator:
            enabled: true
        routes:
        - id: account
          uri: lb://account
          predicates:
          - Path=/account/**
          filters:
          - SwaggerHeaderFilter
          - StripPrefix=1
        - id: common
          uri: lb://common
          predicates:
          - Path=/common/**
          filters:
          - SwaggerHeaderFilter
          - StripPrefix=1
eureka:
  client:
    service-url:
      defaultZone: http://localhost:8763/eureka/

如果大家看了前一个项目版本就可以运行zipkin，这里直接忽略掉即可！

因为Gateway里没有配置SwaggerConfig，而运行Swagger-ui又需要依赖一些接口，所以我的想法是自己建立相应的swagger-resource端点。

package com.github.dqqzj.gateway.swagger.config;

import com.github.dqqzj.gateway.swagger.handler.SwaggerResourceHandler;
import com.github.dqqzj.gateway.swagger.handler.SwaggerSecurityHandler;
import com.github.dqqzj.gateway.swagger.handler.SwaggerUiHandler;
import lombok.AllArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.MediaType;
import org.springframework.web.reactive.function.server.RequestPredicates;
import org.springframework.web.reactive.function.server.RouterFunction;
import org.springframework.web.reactive.function.server.RouterFunctions;

/**
 * @author qinzhongjian
 * @date created in 2018/7/21 15:20
 * @since 1.0.0
 */
@Slf4j
@Configuration
@AllArgsConstructor
public class SwaggerRouterFunction {

    private final SwaggerResourceHandler swaggerResourceHandler;
    private final SwaggerSecurityHandler swaggerSecurityHandler;
    private final SwaggerUiHandler swaggerUiHandler;

    @Bean
    public RouterFunction<?> routerFunction() {
        return RouterFunctions.route(
                RequestPredicates.GET("/swagger-resources")
                .and(RequestPredicates.accept(MediaType.ALL)),swaggerResourceHandler)
                .andRoute(RequestPredicates.GET("/swagger-resources/configuration/ui")
                        .and(RequestPredicates.accept(MediaType.ALL)), swaggerUiHandler)
                .andRoute(RequestPredicates.GET("/swagger-resources/configuration/security")
                        .and(RequestPredicates.accept(MediaType.ALL)), swaggerSecurityHandler);


    }
}

然后便是SwaggerResourceHandler,SwaggerSecurityHandler,SwaggerUiHandler处理器配置如下：

package com.github.dqqzj.gateway.swagger.handler;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.stereotype.Component;
import org.springframework.web.reactive.function.BodyInserters;
import org.springframework.web.reactive.function.server.HandlerFunction;
import org.springframework.web.reactive.function.server.ServerRequest;
import org.springframework.web.reactive.function.server.ServerResponse;
import reactor.core.publisher.Mono;
import springfox.documentation.swagger.web.SwaggerResourcesProvider;

/**
 * @author qinzhongjian
 * @date created in 2018/7/21 15:44
 * @since 1.0.0
 */

@Component
public class SwaggerResourceHandler implements HandlerFunction {

    private final SwaggerResourcesProvider swaggerResources;

    @Autowired
    public SwaggerResourceHandler(SwaggerResourcesProvider swaggerResources) {
        this.swaggerResources = swaggerResources;
    }

    @Override
    public Mono<ServerResponse> handle(ServerRequest request) {
        return ServerResponse.status(HttpStatus.OK)
                .contentType(MediaType.APPLICATION_JSON_UTF8)
                .body(BodyInserters.fromObject(swaggerResources.get()));
    }

}

package com.github.dqqzj.gateway.swagger.handler;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.stereotype.Component;
import org.springframework.web.reactive.function.BodyInserters;
import org.springframework.web.reactive.function.server.HandlerFunction;
import org.springframework.web.reactive.function.server.ServerRequest;
import org.springframework.web.reactive.function.server.ServerResponse;
import reactor.core.publisher.Mono;
import springfox.documentation.swagger.web.ApiKeyVehicle;
import springfox.documentation.swagger.web.SecurityConfiguration;

import java.util.Optional;

/**
 * @author qinzhongjian
 * @date created in 2018/7/21 15:47
 * @since 1.0.0
 */
@Component
public class SwaggerSecurityHandler implements HandlerFunction {

    @Autowired(required = false)
    private SecurityConfiguration securityConfiguration;

    @Override
    public Mono<ServerResponse> handle(ServerRequest request) {
        return ServerResponse.status(HttpStatus.OK)
                .contentType(MediaType.APPLICATION_JSON_UTF8)
                .body(BodyInserters.fromObject(
                        Optional.ofNullable(securityConfiguration)
                                .orElse(new SecurityConfiguration(null,null,null,null,null,ApiKeyVehicle.HEADER,"api_key",","))));
    }

}

package com.github.dqqzj.gateway.swagger.handler;

import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.stereotype.Component;
import org.springframework.web.reactive.function.BodyInserters;
import org.springframework.web.reactive.function.server.HandlerFunction;
import org.springframework.web.reactive.function.server.ServerRequest;
import org.springframework.web.reactive.function.server.ServerResponse;
import reactor.core.publisher.Mono;
import springfox.documentation.swagger.web.UiConfiguration;


/**
 * @author qinzhongjian
 * @date created in 2018/7/21 15:51
 * @since 1.0.0
 */
@Component
public class SwaggerUiHandler implements HandlerFunction {

    @Override
    public Mono<ServerResponse> handle(ServerRequest request) {
        return ServerResponse.status(HttpStatus.OK)
                .contentType(MediaType.APPLICATION_JSON_UTF8)
                .body(BodyInserters.fromObject(
                        new UiConfiguration(null)));//这个地方如果不是null后果是什么？请大家看看swager-ui-html的右下角就知道了！在springmvc模式的"/"中很好的解释了这一点
    }

}

重点：

其实这3个处理器可以用另外一种方式实现，即传统的springmvc处理器模式，代码如下：

package com.github.dqqzj.gateway.swagger.handler;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import reactor.core.publisher.Mono;
import springfox.documentation.swagger.web.SecurityConfiguration;
import springfox.documentation.swagger.web.SwaggerResourcesProvider;
import springfox.documentation.swagger.web.UiConfiguration;

import java.util.Optional;

/**
 * @author qinzhongjian
 * @date created in 2018/7/22 09:22
 * @since 1.0.0
 */
//@RestController
//@RequestMapping("/swagger-resources")
public class SwaggerHandler {
    @Autowired(required = false)
    private SecurityConfiguration securityConfiguration;
    @Autowired(required = false)
    private UiConfiguration uiConfiguration;
    private final SwaggerResourcesProvider swaggerResources;

    @Autowired
    public SwaggerHandler(SwaggerResourcesProvider swaggerResources) {
        this.swaggerResources = swaggerResources;
    }


    @GetMapping("/configuration/security")
    public Mono<ResponseEntity<SecurityConfiguration>> securityConfiguration() {
        return Mono.just(new ResponseEntity<>(
                Optional.ofNullable(securityConfiguration).orElse(null), HttpStatus.OK));
    }

    @GetMapping("/configuration/ui")
    public Mono<ResponseEntity<UiConfiguration>> uiConfiguration() {
        return Mono.just(new ResponseEntity<>(
                Optional.ofNullable(uiConfiguration).orElse(new UiConfiguration("/")), HttpStatus.OK));
    }

    @GetMapping("")
    public Mono<ResponseEntity> swaggerResources() {
        return Mono.just((new ResponseEntity<>(swaggerResources.get(), HttpStatus.OK)));
    }
}

由于我用的第一种webflux的路由函数模式，所以这个方式被我注释了，如果你想尝试另一个方式直接将webflux路由函数的3个处理器注释掉即可！废话不多说，继续贴代码如下！
配置SwaggerProvider，获取Api-doc，即SwaggerResources。

package com.github.dqqzj.gateway.swagger.config;

import lombok.AllArgsConstructor;
import org.springframework.cloud.gateway.config.GatewayProperties;
import org.springframework.cloud.gateway.route.RouteLocator;
import org.springframework.cloud.gateway.support.NameUtils;
import org.springframework.context.annotation.Primary;
import org.springframework.stereotype.Component;
import springfox.documentation.swagger.web.SwaggerResource;
import springfox.documentation.swagger.web.SwaggerResourcesProvider;

import java.util.ArrayList;
import java.util.List;

/**
 * @author qinzhongjian
 * @date created in 2018/7/21 15:09
 * @since 1.0.0
 */
@Component
@Primary
@AllArgsConstructor
public class SwaggerProvider implements SwaggerResourcesProvider {
    public static final String API_URI = "/v2/api-docs";
    private final RouteLocator routeLocator;
    private final GatewayProperties gatewayProperties;


    @Override
    public List<SwaggerResource> get() {
        List<SwaggerResource> resources = new ArrayList<>();
        List<String> routes = new ArrayList<>();
        //取出gateway的route
        routeLocator.getRoutes().subscribe(route -> routes.add(route.getId()));
        //结合配置的route-路径(Path)，和route过滤，只获取有效的route节点
        gatewayProperties.getRoutes().stream().filter(routeDefinition -> routes.contains(routeDefinition.getId()))
                .forEach(routeDefinition -> routeDefinition.getPredicates().stream()
                        .filter(predicateDefinition -> ("Path").equalsIgnoreCase(predicateDefinition.getName()))
                        .forEach(predicateDefinition -> resources.add(swaggerResource(routeDefinition.getId(),
                                predicateDefinition.getArgs().get(NameUtils.GENERATED_NAME_PREFIX + "0")
                                        .replace("/**", API_URI)))));
        return resources;
    }

    private SwaggerResource swaggerResource(String name, String location) {
        SwaggerResource swaggerResource = new SwaggerResource();
        swaggerResource.setName(name);
        swaggerResource.setLocation(location);
        swaggerResource.setSwaggerVersion("2.0");
        return swaggerResource;
    }
}

如果你在try it out！失败，那就是这个问题了：断点源码时发现在Swagger中会根据X-Forwarded-Prefix这个Header来获取BasePath，将它添加至接口路径与host中间，这样才能正常做接口测试，而Gateway在做转发的时候并没有这个Header添加进Request，所以发生接口调试的404错误。解决思路是在Gateway里加一个过滤器来添加这个header。

package com.github.dqqzj.gateway.swagger.filter;

import com.github.dqqzj.gateway.swagger.config.SwaggerProvider;
import org.springframework.cloud.gateway.filter.GatewayFilter;
import org.springframework.cloud.gateway.filter.factory.AbstractGatewayFilterFactory;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;
import org.springframework.web.server.ServerWebExchange;

/**
 * @author qinzhongjian
 * @date created in 2018/7/21 19:43
 * @since 1.0.0
 */
@Component
public class SwaggerHeaderFilter extends AbstractGatewayFilterFactory {

    private static final String HEADER_NAME = "X-Forwarded-Prefix";

    @Override
    public GatewayFilter apply(Object config) {
        return (exchange, chain) -> {
            ServerHttpRequest request = exchange.getRequest();
            String path = request.getURI().getPath();
            if (!StringUtils.endsWithIgnoreCase(path, SwaggerProvider.API_URI)) {
                return chain.filter(exchange);
            }
            String basePath = path.substring(0, path.lastIndexOf(SwaggerProvider.API_URI));
            ServerHttpRequest newRequest = request.mutate().header(HEADER_NAME, basePath).build();
            ServerWebExchange newExchange = exchange.mutate().request(newRequest).build();
            return chain.filter(newExchange);
        };
    }
}

网关的集成到此结束了，然后看看微服务的集成吧！我改造了2哥微服务，一个是common，一个是account.
举例说名其中一个即可。

common微服务集成

核心依赖如下：

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.7.0</version>
        </dependency>

application.yml配置文件如下：

server:
  port: 8765
spring:
  application:
    name: common
eureka:
  client:
    service-url:
      defaultZone: http://localhost:8763/eureka/

swagger2.x集成配置SwaggerConfiguration如下：

package com.github.dqqzj.common.swagger;

import com.fasterxml.classmate.TypeResolver;
import io.swagger.annotations.Api;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.RequestMethod;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.builders.ResponseMessageBuilder;
import springfox.documentation.schema.AlternateTypeRules;
import springfox.documentation.schema.WildcardType;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.ResponseMessage;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.Collection;
import java.util.LinkedList;
import java.util.List;


/**
 * @author qinzhongjian
 * @date created in 2018/6/26 12:52
 * @since 1.0.0
 */
@EnableSwagger2
@Configuration
public class SwaggerConfiguration {

    @Bean
    public Docket configure(TypeResolver typeResolver) {
        return new Docket(DocumentationType.SWAGGER_2)
                .select()
                .apis(RequestHandlerSelectors.withClassAnnotation(Api.class))
                .paths(PathSelectors.any())
                .build()
                .pathMapping("/")
                .useDefaultResponseMessages(false)
                .apiInfo(apiInfo())
                .alternateTypeRules(
                        AlternateTypeRules.newRule(
                                typeResolver.resolve(Collection.class, WildcardType.class),
                                typeResolver.resolve(List.class, WildcardType.class))
                )
                .enableUrlTemplating(true)
                .forCodeGeneration(false);
    }

    @Bean
    public ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("Common MicroService")  //标题
                .description("Springfox petstore API")  //描述
                .termsOfServiceUrl("https://github.com/dqqzj/finchley")  //超链接
                .contact(new Contact("qinzhongjian","https://github.com/dqqzj","798078824@qq.com"))   // 联系方式
                .version("2.0")
                .license("Apache License Version 2.0")
                .licenseUrl("https://github.com/springfox/springfox/blob/master/LICENSE")
                .build();
    }

}

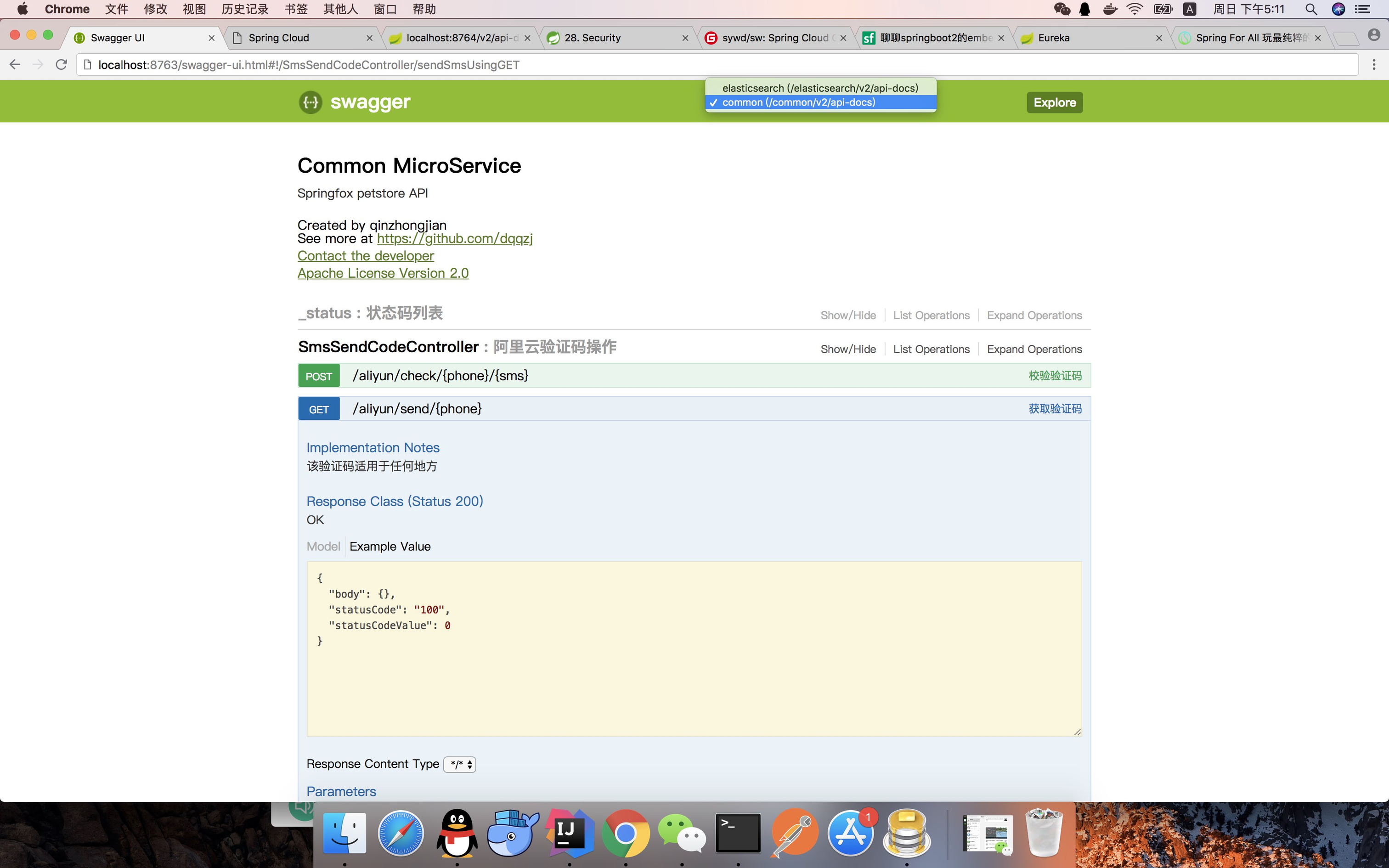

整体效果图如下：

总结：

在社区中我发现有人总结了该篇文章内容，但是不想分享出来，貌似要加群付费199？？？，本着分享开源技术的初心，废寝忘食研究技术，希望能够与大家一起分享java的快乐！

源码链接：

github.com/dqqzj/finch…

关注社区公号，加入社区纯技术微信群
