序言:

最近在慕课网学了一些视频,顺便整理下css盒模型知识点

感觉视频还可以,如果也想看视频的话,可以留言或者私信

CSS盒模型

  • 基本概念:标准模型+IE模型
  • 标准模型和E模型区别
  • CSS如何设置这两种模型
  • JS如何设置获取盒模型对应的宽和高
  • 实例题(根据盒模型解释边距重叠)
  • BFC(边距重叠解决方案)


区别:

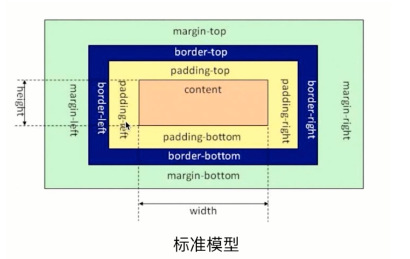

标准模型中,盒模型的宽高只是内容(content)的宽高

而在IE模型中盒模型的宽高是内容(content)+填充(padding)+边框(border)的总宽高。

css如何设置两种模型

CSS3 的属性 box-sizing

    /* 标准模型 */

box-sizing:content-box;

    /*IE模型*/

box-sizing:border-box;

JS如何设置获取盒模型对应的宽和高

dom.style.width/height    //局限在内联样式

dom.currentStyle.width/height    //渲染后的样式,局限IE支持

window.getComputedStyle(dom).width/height    兼容Firefox、chrome会好一些

dom.getBoundingClientRect().width/height    // 根据元素在视窗中的绝对位置来获取宽高的

dom.offsetWidth/offsetHeight

边距重叠解决方案

BFC(简称:块级格式化上下文)

BFC原理(BFC的渲染机制)

  • 元素的垂直方向的间距会发生重叠
  • bfc的区域不会与浮动区域的box重叠用来清除浮动的,
  • bfc是一个页面上的独立的容器,外面的元素不会影响bfc里的元素,反过来,里面的也不会影响外面的
  • 计算bfc高度的时候,浮动元素也会参与计算

如何创建BFC

  • float属性不为none(脱离文档流)
  • position为absolute或fixed
  • display为inline-block,table-cell,table-caption,flex,inine-flex
  • overflow不为visible
  • 根元素

BFC使用场景

  • 自适应多栏布局
  • 清除内部浮动
  • 垂直margin重叠

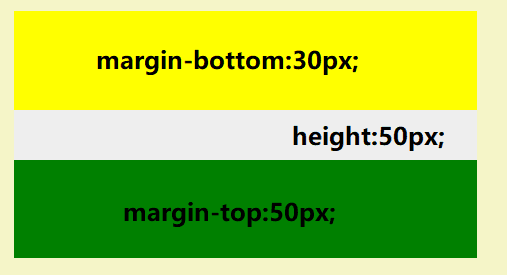

例子---两个相邻box的margin会发生重叠,取最大值

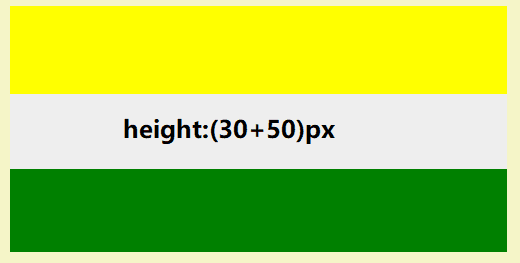

创建BFC后

<article style="overflow: hidden;"></article>


源码css

            .child1 {
                height: 100px;
                margin-bottom: 30px;
                background: yellow;
            }

            .child2 {
                height: 100px;
                margin-top: 50px;
                background: green;
            }

源码html

        <article>
            <div class="child1"></div>
        </article>
        <article>
            <div class="child2"></div>
        </article>

例二

看完代码,想下父盒子的高度到底是100px还是110px;

<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8">
    <title>CSS盒模型</title>
    <style media="screen">
        html * {
            margin: 0;
            padding: 0;
        }
    </style>
</head>

<body>
    <section class="box" id="sec">
        <style media="screen">
            #sec {
                background: #f00;
            }

            .child {
                height: 100px;
                margin-top: 10px;
                background: yellow;
            }
        </style>
        <article class="child"></article>
    </section>
</body>

</html>

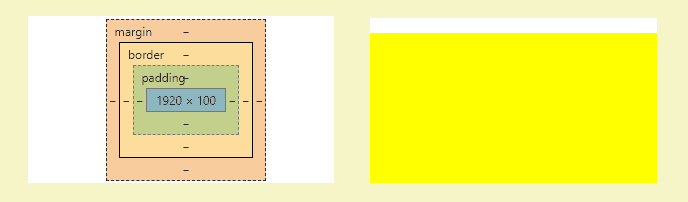

创建BFC后

 #sec {
                background: #f00;
                overflow:hidden;
      }

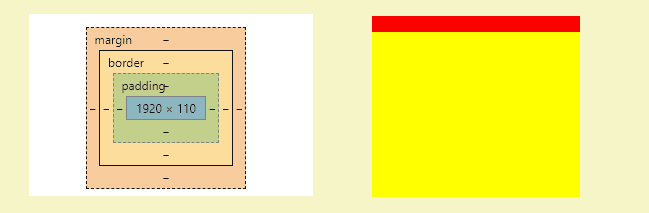

可见在没有创建bfc 的情况下:存在边距重叠问题,显示110px的高度但实际父盒子高度只有100px;
