一句话总结

Middleware就是增强了dispatch

开始调用createStore发生了什么

//调用
const store = createStore(rootReducer, applyMiddleware(...middlewares));
//createStore
export default function createStore(reducer, preloadedState, enhancer)
  //如果第二个参数是function,并且没传第三个参数,则将第二个参数赋值给第三个参数,然后将第二个参数设为undefined
  if (typeof preloadedState === 'function' && typeof enhancer === 'undefined') {
    enhancer = preloadedState
    preloadedState = undefined
  }

  if (typeof enhancer !== 'undefined') {
    if (typeof enhancer !== 'function') {
      throw new Error('Expected the enhancer to be a function.')
    }
    //返回一个高阶函数
    return enhancer(createStore)(reducer, preloadedState)
  }
}

通过调用createStore 返回的结果可以解析为

applyMiddleware(...middlewares)(createStore)(reducer, initialState)

applyMiddleware源码里发生了什么

//调用applyMiddleware,可以传入多个中间件
export default function applyMiddleware(...middlewares) {
  return (createStore) => (reducer, initialState, enhancer) => {
    var store = createStore(reducer, initialState, enhancer)

    var dispatch = store.dispatch
    var chain = []
    //将state和dispatch所指向的函数绑定到middlewareAPI
    var middlewareAPI = {
      getState: store.getState,
      dispatch: (action) => dispatch(action)
    }
    //迭代中间件数组,并执行一遍,将middlewareAPI作为最外层的store,并返回一个相当于next函数的数组
    chain = middlewares.map(middleware => middleware(middlewareAPI))

    //将数组整理成嵌套的函数体,并将store.dispatch传入最内侧的函数的next,并返回经过处理的dispatch
    //dispatch是一个函数,是一个嵌套了多层的函数,其最里面调用的是store.dispatch
    dispatch = compose(...chain)(store.dispatch)
    //返回一个新的store
    return {
      ...store,
      dispatch
    }
  }
}

大致看下,其实就是通过一些操作,然后返回一个经过处理的store,dispatch

具体做了些什么

var middlewareAPI = {
    getState: store.getState,
    dispatch: (action) => dispatch(action)
}
chain = middlewares.map(middleware => middleware(middlewareAPI))
dispatch = compose(...chain)(store.dispatch)

定义了一个对象(middlewareAPI) ,并将 store.state和store.dispatch绑定到这个对象中(都是引用)
然后循环这些中间件,并将middlewareAPI作为参数执行middleware,因为都是高级函数,所以返回的是next数组,并保存到chain中
最重要的是下一步的compose函数

export default function compose(...funcs) {
  if (funcs.length === 0) {
    return arg => arg
  }
  if (funcs.length === 1) {
    return funcs[0]
  }
  return funcs.reduce((a, b) => (...args) => a(b(...args)))
}

这里有必要解释下funcs.reduce((a, b) => (...args) => a(b(...args))) 这一坨做了些什么?

reduce 是专门为累加操作设计的,啥意思呢

先把funcs.reduce((a, b) => (...args) => a(b(...args))) 翻译一下

假如说 funcs[a,b,c,d,e,f]
那么执行之后的结果就是a(b(c(d(e(f(...args)))
因为是compose(...chain)(store.dispatch)调用,所以...args就是store.dispatch,原生的dispatch,就是说最内层,调用的是原生的dispatch

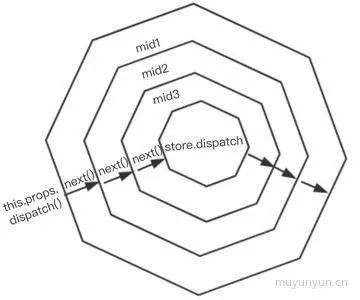

这个有个洋葱模型,网上复制一个

所以最后返回的dispatch是经过处理的dispatch:a(b(c(d(e(f(store.dispatch)))

解释下chain是什么?

  //以redux-saga为例
  //看参数,就知道为什么定义middlewareAPI对象了
  function sagaMiddleware({ getState, dispatch }) {
    ...
    return next => action => {
      if (sagaMonitor && sagaMonitor.actionDispatched) {
        sagaMonitor.actionDispatched(action)
      }
      const result = next(action) // hit reducers
      channel.put(action)
      return result
    }
  }

从源码上可以分析出当执行chain = middlewares.map(middleware => middleware(middlewareAPI))时直接返回了next()函数
当有一堆middleware时,执行middleware都返回一个next()函数
所以chain就是一个next()数组
而这个next()其实就是下一个middleware
一直next到最里面的执行store.dispatch

流程

调用applyMiddleware传入n个 middleware
用 middlewareAPI 保存了当前的store.state,store.dispatch(每个middleware共享)
迭代middlewares,执行每个middleware并携带middlewareAPI,返回一个next()
将chain整理成嵌套的函数,最里层调用store.dispatch
返回一个经过处理的dispatch

用一个最恶心的方式总结

//模拟三个middleware
function A(next){
    return function A1(action){
        next(action)
    }
}
function B(next){
    return function B1(action){
        next(action)
    }
}
function C(next){
    return function C1(action){
        next(action)
    }
}

假设 dispatch = A(B(C(store.dispatch))),开始执行

function A1(action){
    function B1(action){
        return function C1(action){
            store.dispatch(action)
        }
    }
}(action)

一个action的执行顺序:A(action) -> B(action) -> C(action) -> store.dispatch(action),先从内到外生成新的func,然后由外向内执行.
