spring NamespaceHandler源码解析

用途

• spring标签解析
• spring自定义标签

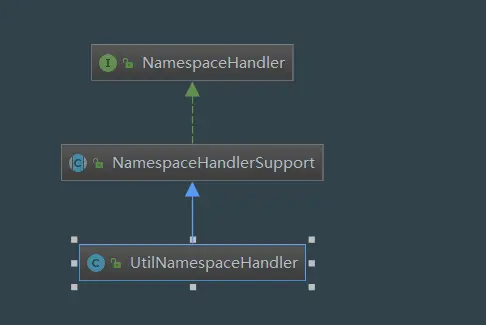

继承结构

源码解析

@Test
public void testResolvedMappedHandler() {
	DefaultNamespaceHandlerResolver resolver = new DefaultNamespaceHandlerResolver();
	NamespaceHandler handler = resolver.resolve("http://www.springframework.org/schema/util");
}

• 构造方法解析

public DefaultNamespaceHandlerResolver() {
    this(null, DEFAULT_HANDLER_MAPPINGS_LOCATION);
    //DEFAULT_HANDLER_MAPPINGS_LOCATION="META-INF/spring.handlers" ，
    //在classpash中寻找spring.handlers,这是k,v结构，具体解析k,v是通过
    //org.springframework.beans.factory.xml.DefaultNamespaceHandlerResolver
    //#getHandlerMappings方法
    //存储在Map中
}

• resolve()解析

public NamespaceHandler resolve(String namespaceUri) {
    //解析spring.handler，类似于properties的k,v解析
    Map<String, Object> handlerMappings = getHandlerMappings();
    //获取对应的Handler
    Object handlerOrClassName = handlerMappings.get(namespaceUri);

    ... 省略

    String className = (String) handlerOrClassName;
    Class<?> handlerClass = ClassUtils.forName(className, this.classLoader);
    NamespaceHandler namespaceHandler = (NamespaceHandler)；
    //实例化Handler
    BeanUtils.instantiateClass(handlerClass);
    //调用Handler的init()方法，稍后解析
    namespaceHandler.init();
    handlerMappings.put(namespaceUri, namespaceHandler);
    return namespaceHandler;

}

• init()解析

@Override
public void init() {
    // 通过自定义的Passer解析bean标签
    registerBeanDefinitionParser("constant", new ConstantBeanDefinitionParser());
    ... 省略
}

演示

demo

所用到的类结构
