自定义横向颜色渐变ProgressBar

//完整代码

package com.thb.view;

import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.LinearGradient;
import android.graphics.Paint;
import android.graphics.RectF;
import android.graphics.Shader;
import android.util.AttributeSet;
import android.view.View;


/**
 * Created by thbpc on 2016/1/21 0021.
 */

public class ProgressView extends View {
    private int mWidth, mHeight;
    private float maxCount;
    private float mProgress;
    private Paint mPaint;
    private float mSection;
    private int mBackgroundColor;
    /**
     * 分段颜色
     */
    private static final int[] SECTION_COLORS = new int[3];

public ProgressView(Context context) {
    this(context, null);
}

public ProgressView(Context context, AttributeSet attrs) {
    this(context, attrs, 0);
}

public ProgressView(Context context, AttributeSet attrs, int defStyleAttr) {
    super(context, attrs, defStyleAttr);
    init(context, attrs);
}

private void init(Context context, AttributeSet attrs) {
    TypedArray mTypedArray = context.obtainStyledAttributes(attrs, R.styleable.ProgressView);
    try {
        mProgress = mTypedArray.getFloat(R.styleable.ProgressView_progress, 0);
        maxCount = mTypedArray.getFloat(R.styleable.ProgressView_max, 100);
        mSection = mTypedArray.getFloat(R.styleable.ProgressView_section, 0);
        mBackgroundColor = mTypedArray.getColor(R.styleable.ProgressView_backgroundColor, Color.TRANSPARENT);
        SECTION_COLORS[0] = mTypedArray.getColor(R.styleable.ProgressView_startColor, Color.RED);
        SECTION_COLORS[1] = mTypedArray.getColor(R.styleable.ProgressView_centerColor, Color.GREEN);
        SECTION_COLORS[2] = mTypedArray.getColor(R.styleable.ProgressView_endColor, Color.BLUE);
    } finally {
        mTypedArray.recycle();
    }

    mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
}

/**
 * @param canvas
 */
@Override
protected void onDraw(Canvas canvas) {
    super.onDraw(canvas);
    mPaint.reset();
    mPaint.setAntiAlias(true);// 设置画笔的锯齿效果
    mPaint.setStyle(Paint.Style.FILL);//设置填满
    float mCircleRadius = mHeight / 2;
    float mRatio = mProgress / maxCount;

    mPaint.setColor(mBackgroundColor);
    RectF mCircleRectF = new RectF(0, 0, 0, 0);
    //画背景矩形
    RectF backgroudRect = new RectF(0, 0, mWidth - mCircleRadius, mHeight);
    canvas.drawRect(backgroudRect, mPaint);

    //画背景半圆
    mCircleRectF.left = mWidth - mCircleRadius * 2;
    mCircleRectF.top = 0;
    mCircleRectF.right = mWidth;
    mCircleRectF.bottom = mHeight;
    canvas.drawArc(mCircleRectF, -90, 180, false, mPaint);

    if (mProgress != 0) {
        LinearGradient shader = new LinearGradient(mWidth * mRatio * mSection, mHeight / 2,
                mWidth * mRatio, mHeight / 2, SECTION_COLORS, null, Shader.TileMode.CLAMP);
        mPaint.setShader(shader);
        RectF progressOval = new RectF(0, 0, mWidth * mRatio < mWidth - mCircleRadius ?
                mWidth * mRatio : mWidth - mCircleRadius, mHeight);
        canvas.drawRect(progressOval, mPaint);
        if (mRatio * mWidth > mWidth - mCircleRadius) {//当前进度大于宽度减半径
            mCircleRectF.left = mWidth - mCircleRadius * 2;
            mCircleRectF.top = 0;
            mCircleRectF.right = mRatio * mWidth;
            mCircleRectF.bottom = mHeight;
            canvas.drawArc(mCircleRectF, -90, 180, false, mPaint);
        }
    }
}

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    int widthSpecMode = View.MeasureSpec.getMode(widthMeasureSpec);
    int widthSpecSize = View.MeasureSpec.getSize(widthMeasureSpec);
    int heightSpecMode = View.MeasureSpec.getMode(heightMeasureSpec);
    int heightSpecSize = View.MeasureSpec.getSize(heightMeasureSpec);
    if (widthSpecMode == View.MeasureSpec.EXACTLY || widthSpecMode == View.MeasureSpec.AT_MOST) {
        mWidth = widthSpecSize;
    } else {
        mWidth = 0;
    }
    if (heightSpecMode == View.MeasureSpec.AT_MOST || heightSpecMode == View.MeasureSpec.UNSPECIFIED) {
        mHeight = dipToPx(15);
    } else {
        mHeight = heightSpecSize;
    }
    setMeasuredDimension(mWidth, mHeight);
}

private int dipToPx(int dip) {
    float scale = getContext().getResources().getDisplayMetrics().density;
    return (int) (dip * scale + 0.5f * (dip >= 0 ? 1 : -1));
}

/***
 * 设置最大的进度值
 *
 * @param maxCount
 */
public void setMax(float maxCount) {
    this.maxCount = maxCount;
}

/***
 * 设置当前的进度值
 *
 * @param currentCount
 */
public void setProgress(float currentCount) {
    this.mProgress = currentCount > maxCount ? maxCount : currentCount;
    invalidate();
}

public float getProgress() {
    return mProgress;
}

public float getMax() {
    return maxCount;
}
}
复制代码

//attr文件

    <declare-styleable name="ProgressView">
    <attr name="startColor" format="color" />
    <attr name="endColor" format="color" />
    <attr name="centerColor" format="color" />
    <attr name="backgroundColor" format="color" />
    <attr name="max" format="float" />
    <attr name="progress" format="float" />
    <attr name="section" format="float" />
    </declare-styleable>
复制代码

//xml引用

   <com.thb.view.ProgressView
        android:id="@+id/mview"
        android:layout_width="match_parent"
        android:layout_height="20dp"
        app:backgroundColor="#e4e4e4"
        app:centerColor="@color/CenterColor"
        app:endColor="@color/endColor"
        app:max="500"
        app:progress="0"
        app:section="0.1"
        app:startColor="@color/startColor" />
复制代码

//效果图

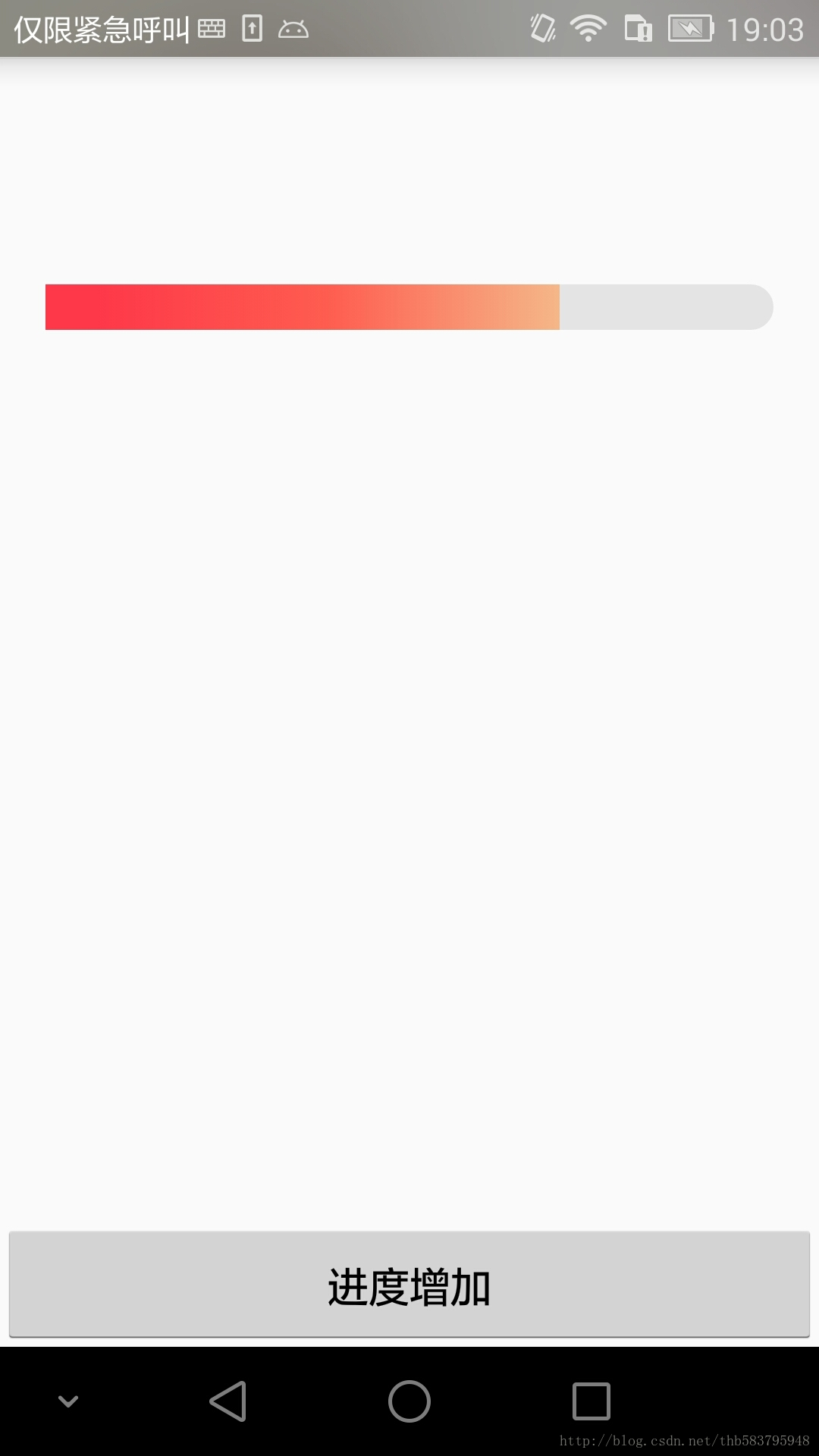

正在加载中...

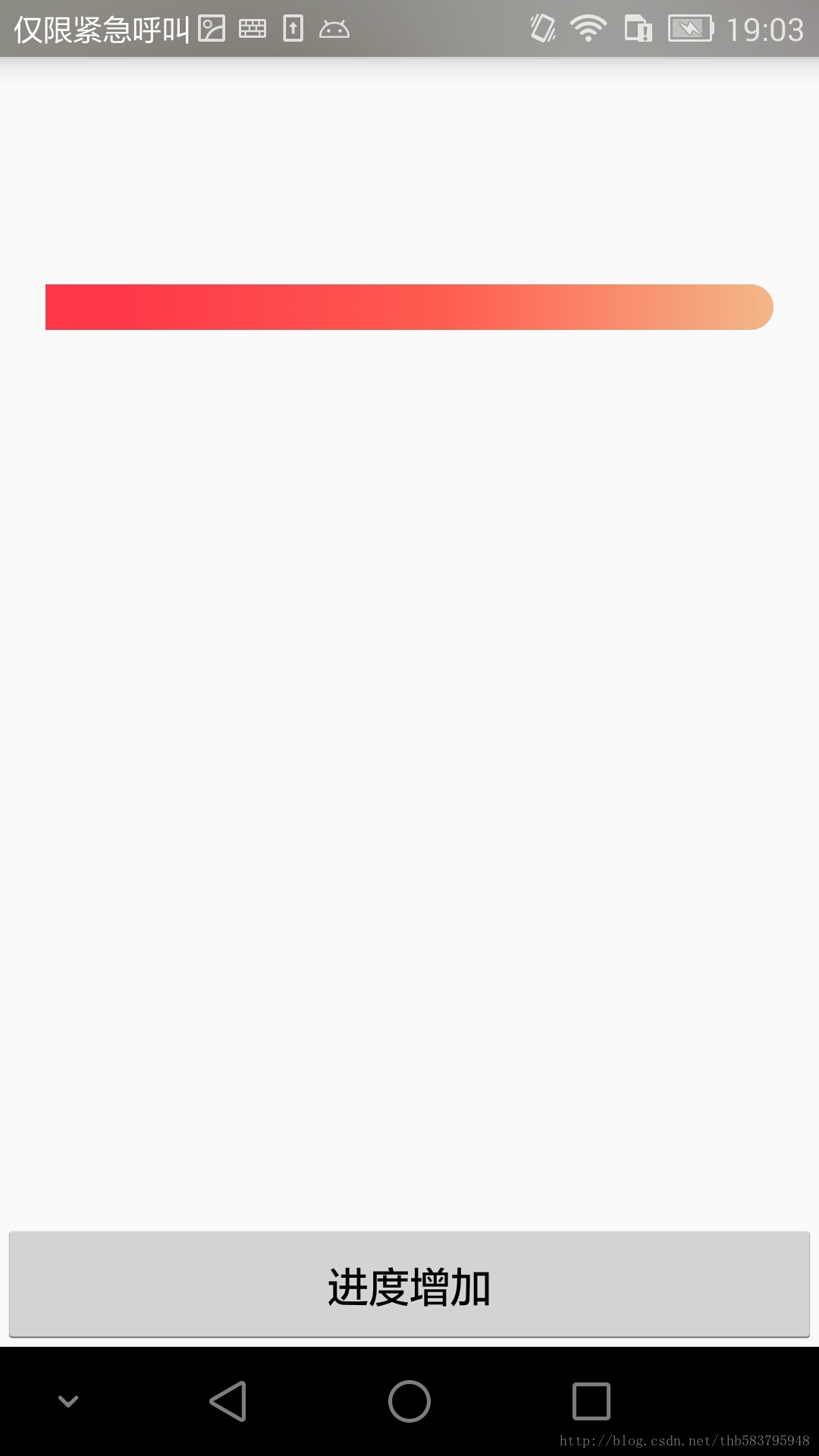

加载完成。
