分享一个功能很全的视频播放器

SJVideoPlayer

基于AVPlayer.

极速初始化, 不阻塞主线程.

这个应该是目前基于AVPlayer的播放器中, 功能最全的一个吧.


使用

pod 'SJVideoPlayer'
复制代码

功能

  1. 支持 全屏手势返回
  2. 支持 网络状态变更提示
  3. 支持 随心所欲的控制旋转
  4. 支持 导出片段 + 截屏 + 生成GIF
  5. 支持 自定义控制层(实现协议方法即可)
  6. 支持 显示提示文本(如: 现有的网路状态切换提示)
  7. 支持 调整亮度/声音/调速/静音/捏合, 播放 本地/网络视频
  8. 支持 在TableView的HeaderView或者Cell上播放, 在CollectionView的Cell中播放
  9. 支持 续播, 跳入下一个界面可以使用上一个界面的资源初始化
  10. 本地化处理. 支持简体/繁体/英文
  11. 可以 在后台播放视频
  12. 无缝切换您自定义的控制层

全屏手势返回

只需pod到项目中即可带全屏手势

为啥自定义手势?

在使用原生手势返回时, 当前播放的视频会出现卡帧的问题. 原因我不太清楚. 我查看了腾讯视频和爱奇艺等App均为自己实现的手势返回.

当时使用了一个全屏返回的三方库. 是截屏返回的, 发现存在两个问题: 一是截屏耗时, 二是视频部分截取不了(黑色的) 由于我们起步8.0, 我便使用了新的APIsnapshotViewAfterScreenUpdates:(这个接口其实7.0就有了)来替换截屏的方式, 直接使用视图快照, 这个接口一举两得, 不仅速度快, 而且视频播放也可以截取到. 但是快照是一个view, 并不是image, 原来的三方库截屏方式无法使用, 于是我重新撸了一个全屏手势.

手势使用

pod 'SJFullscreenPopGesture'
复制代码

手势功能介绍

  1. 可设置手势类型: 全屏手势 || 边缘手势.
// default is `SJFullscreenPopGestureType_EdgeLeft`.
typedef NS_ENUM(NSUInteger, SJFullscreenPopGestureType) {
    SJFullscreenPopGestureType_EdgeLeft,    // 默认, 屏幕左边缘触发手势
    SJFullscreenPopGestureType_Full,        // 全屏触发手势
};
复制代码
  1. 可设置Pop返回时的动画效果 目前有两种:

  2. 可在某个ViewController禁用手势

  3. 可兼容 WKWebView 手势返回

  4. 可设置盲区, 在这个区域不触发手势

  5. 可设置手势触发过程中的回调

/// 将要拖拽
@property (nonatomic, copy, readwrite, nullable) void(^sj_viewWillBeginDragging)(__kindof UIViewController *vc);
/// 拖拽中
@property (nonatomic, copy, readwrite, nullable) void(^sj_viewDidDrag)(__kindof UIViewController *vc);
/// 结束拖拽
@property (nonatomic, copy, readwrite, nullable) void(^sj_viewDidEndDragging)(__kindof UIViewController *vc);
复制代码
  1. 可设置返回界面的显示模式, 目前有两种: 1. 使用快照(也可称截屏) 2. 使用原始视图(默认) 等 ...

网络状态切换提示

网络状态提示就是当网络状态变更时, 播放器显示一行字或者图片等, 提示用户网络变更了.

对于默认提示的内容(可自定义), 我做了本地化处理, 根据 localLanguage 自动选择一种语言提示(中文/繁体/英文), 如下:



随心所欲的控制旋转

关于旋转我想吐槽一下: 大部分三方库的旋转是直接把播放器添加到window的中心, 再做一个transform动画.. . 旋转过程中, 界面会闪一下, 这个体验几次眼就会累... 为了解决这个问题, 我又写了一个旋转的库在添加之前, 我做了相应的坐标转换, 使播放器添加到window上时, 还处于原始位置. 然后去做transform动画并更新bounds和center.

播放器除了自动旋转之外, 您可以随意的控制旋转. 支持的方向如下:

/// 竖屏 || (左右)横屏
/// Auto rotate supported orientation
typedef NS_ENUM(NSUInteger, SJAutoRotateSupportedOrientation) {
    SJAutoRotateSupportedOrientation_All,
    SJAutoRotateSupportedOrientation_Portrait = 1 << 0,
    SJAutoRotateSupportedOrientation_LandscapeLeft = 1 << 1,  // UIDeviceOrientationLandscapeLeft
    SJAutoRotateSupportedOrientation_LandscapeRight = 1 << 2, // UIDeviceOrientationLandscapeRight
};
复制代码

关于旋转的一些方法:

/**
 Autorotation. Animated.
 */
- (void)rotate;

/**
 Rotate to the specified orientation.

 @param orientation     Any value of SJOrientation.
 @param animated        Whether or not animation.
 */
- (void)rotate:(SJOrientation)orientation animated:(BOOL)animated;

/**
 Rotate to the specified orientation.

 @param orientation     Any value of SJOrientation.
 @param animated        Whether or not animation.
 @param block           The block invoked when player rotated.
 */
- (void)rotate:(SJOrientation)orientation animated:(BOOL)animated completion:(void (^ _Nullable)(__kindof SJBaseVideoPlayer *player))block;
复制代码

旋转的一些设置

/**
 The block invoked When player will rotate.

 readwrite.
 */
@property (nonatomic, copy, nullable) void(^willRotateScreen)(__kindof SJBaseVideoPlayer *player, BOOL isFullScreen);

/**
 The block invoked when player rotated.

 readwrite.
 */
@property (nonatomic, copy, nullable) void(^rotatedScreen)(__kindof SJBaseVideoPlayer *player, BOOL isFullScreen);
复制代码

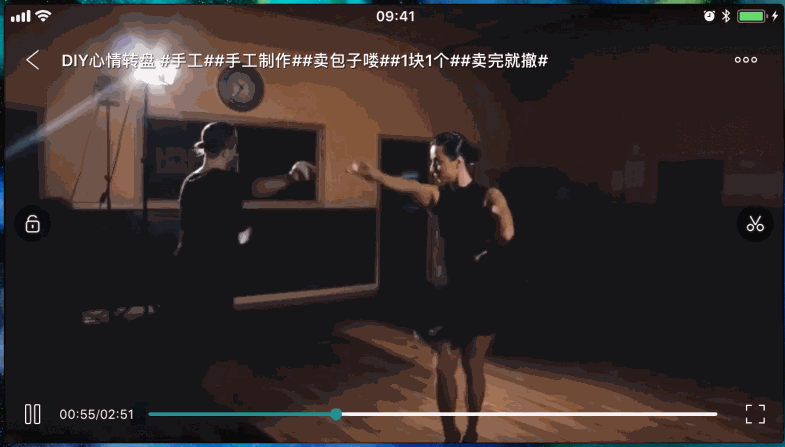

导出片段 + 截屏 + 生成GIF

这几个功能都已封装在默认的控制层中, 并且相应的提示文本也做了本地化处理

方法如下:

- (UIImage * __nullable)screenshot;

- (void)screenshotWithTime:(NSTimeInterval)time
                completion:(void(^)(__kindof SJBaseVideoPlayer *videoPlayer, UIImage * __nullable image, NSError *__nullable error))block;

- (void)screenshotWithTime:(NSTimeInterval)time
                      size:(CGSize)size
                completion:(void(^)(__kindof SJBaseVideoPlayer *videoPlayer, UIImage * __nullable image, NSError *__nullable error))block;

/**
 export session.

 @param beginTime           unit is sec.
 @param endTime             unit is sec.
 @param presetName 	        default is `AVAssetExportPresetMediumQuality`.
 @param progressBlock       progressBlock
 @param completion 	        completion
 @param failure 	        failure
 */
- (void)exportWithBeginTime:(NSTimeInterval)beginTime
                    endTime:(NSTimeInterval)endTime
                 presetName:(nullable NSString *)presetName
                   progress:(void(^)(__kindof SJBaseVideoPlayer *videoPlayer, float progress))progressBlock
                 completion:(void(^)(__kindof SJBaseVideoPlayer *videoPlayer, NSURL *fileURL, UIImage *thumbnailImage))completion
                    failure:(void(^)(__kindof SJBaseVideoPlayer *videoPlayer, NSError *error))failure;

- (void)cancelExportOperation;

- (void)generateGIFWithBeginTime:(NSTimeInterval)beginTime
                        duration:(NSTimeInterval)duration
                        progress:(void(^)(__kindof SJBaseVideoPlayer *videoPlayer, float progress))progressBlock
                      completion:(void(^)(__kindof SJBaseVideoPlayer *videoPlayer, UIImage *imageGIF, UIImage *thumbnailImage, NSURL *filePath))completion
                         failure:(void(^)(__kindof SJBaseVideoPlayer *videoPlayer, NSError *error))failure;

- (void)cancelGenerateGIFOperation;
复制代码

显示提示文本

目前提示文本支持 NSString(可自定义字体) 以及 NSAttributedString. 正如前面看到的网路状态提示, 就是使用的这些方法, 方法如下:

/**
 The middle of the player view shows the specified title. duration default is 1.0.
 @param title       prompt.
 */
- (void)showTitle:(NSString *)title;

/**
 The middle of the view shows the specified title.
 @param title       prompt.
 @param duration    prompt duration. duration if value set -1, prompt will always show.
 */
- (void)showTitle:(NSString *)title duration:(NSTimeInterval)duration;

- (void)showTitle:(NSString *)title duration:(NSTimeInterval)duration hiddenExeBlock:(void(^__nullable)(__kindof SJBaseVideoPlayer *player))hiddenExeBlock;

- (void)showAttributedString:(NSAttributedString *)attributedString duration:(NSTimeInterval)duration;

- (void)showAttributedString:(NSAttributedString *)attributedString duration:(NSTimeInterval)duration hiddenExeBlock:(void(^__nullable)(__kindof SJBaseVideoPlayer *player))hiddenExeBlock;

/**
 Hidden Prompt.
 */
- (void)hiddenTitle;
复制代码

播放器的手势介绍

  • 默认会存在四种手势: Single Tap, double Tap, Pan, Pinch.
  1. SingleTap 单击手势 当用户单击播放器时, 播放器会调用显示或隐藏控制层的相关代理方法. 见 controlLayerDelegate

  2. DoubleTap 双击手势 双击会触发暂停或播放的操作

  3. Pan 移动手势 当用户水平滑动时, 会触发控制层相应的代理方法. 见 controlLayerDelegate 当用户垂直滑动时, 如果在屏幕左边, 则会触发调整亮度的操作, 并显示亮度提示视图. 如果在屏幕右边, 则会触发调整声音的操作, 并显示系统音量提示视图

  4. Pinch 捏合手势 当用户做放大或收缩触发该手势时, 会设置播放器显示模式AspectAspectFill.


关于自定义控制层的相关协议

下面介绍如何自定义一个控制层, 相关的方法后面, 我都会跟上一个相应实现.

数据源介绍

@protocol SJVideoPlayerControlLayerDataSource <NSObject>

@required
- (UIView *)controlView;
- (BOOL)controlLayerDisappearCondition;
- (BOOL)triggerGesturesCondition:(CGPoint)location;

@optional
- (void)installedControlViewToVideoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer;

@end
复制代码

代理介绍

控制层的显示与隐藏
@required
/**Objective-C
 This method will be called when the control layer needs to be appear. You should do some appear work here.
 */
- (void)controlLayerNeedAppear:(__kindof SJBaseVideoPlayer *)videoPlayer;

/**
 This method will be called when the control layer needs to be disappear. You should do some disappear work here.
 */
- (void)controlLayerNeedDisappear:(__kindof SJBaseVideoPlayer *)videoPlayer;
复制代码

播放器会接管控制层的显示与隐藏, 也就是当SingleTap时播放器会调用controlLayerNeedAppear: 播放器会在一段时间后调用隐藏controlLayerNeedDisappear:.

在UITableView或者CollectionView中播放时的代理回调
- (void)videoPlayerWillAppearInScrollView:(__kindof SJBaseVideoPlayer *)videoPlayer;
- (void)videoPlayerWillDisappearInScrollView:(__kindof SJBaseVideoPlayer *)videoPlayer;
复制代码
准备播放一个资源时以及播放状态/播放进度的回调
- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer prepareToPlay:(SJVideoPlayerURLAsset *)asset;

- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer stateChanged:(SJVideoPlayerPlayState)state;

- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer
        currentTime:(NSTimeInterval)currentTime currentTimeStr:(NSString *)currentTimeStr
          totalTime:(NSTimeInterval)totalTime totalTimeStr:(NSString *)totalTimeStr;
复制代码
缓存的状态回调
- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer loadedTimeProgress:(float)progress;

- (void)startLoading:(__kindof SJBaseVideoPlayer *)videoPlayer;

- (void)cancelLoading:(__kindof SJBaseVideoPlayer *)videoPlayer;

- (void)loadCompletion:(__kindof SJBaseVideoPlayer *)videoPlayer;
复制代码
锁屏的回调以及一个只有在锁屏状态下才触发的单击手势
- (void)lockedVideoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer;

- (void)unlockedVideoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer;

- (void)tappedPlayerOnTheLockedState:(__kindof SJBaseVideoPlayer *)videoPlayer;
复制代码
屏幕旋转的回调
- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer willRotateView:(BOOL)isFull;

- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer didEndRotation:(BOOL)isFull;
复制代码
静音 / 音量 / 亮度 / 调速的回调
- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer muteChanged:(BOOL)mute;

- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer volumeChanged:(float)volume;

- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer brightnessChanged:(float)brightness;

- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer rateChanged:(float)rate;
复制代码
水平方向手势触发的回调
/// 水平方向开始拖动.
- (void)horizontalDirectionWillBeginDragging:(__kindof SJBaseVideoPlayer *)videoPlayer;

/**
 @param progress drag progress
 */
- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer horizontalDirectionDidMove:(CGFloat)progress;

/// 水平方向拖动结束.
- (void)horizontalDirectionDidEndDragging:(__kindof SJBaseVideoPlayer *)videoPlayer;
复制代码
Network
/// 网络状态变更
- (void)videoPlayer:(__kindof SJBaseVideoPlayer *)videoPlayer reachabilityChanged:(SJNetworkStatus)status;
复制代码

Demo

项目地址: https://github.com/changsanjiang/SJVideoPlayer

我的邮箱: changsanjiang@gmail.com

如果您有什么建议, 望请联系我!
