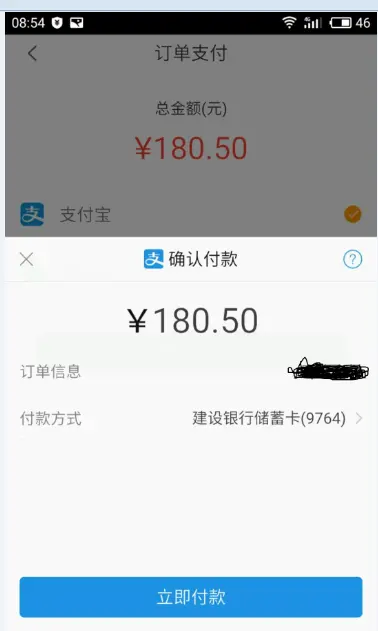

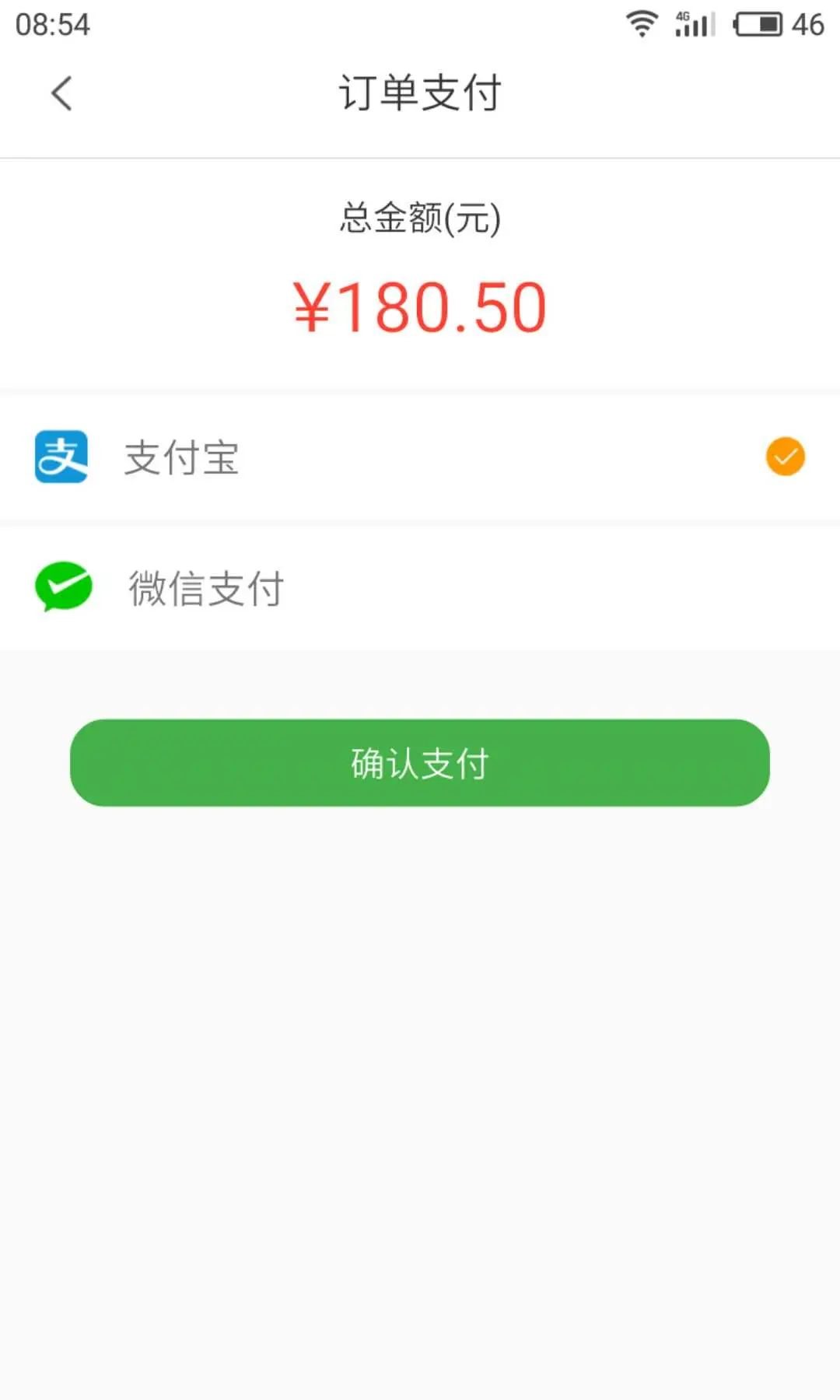

开源生鲜电商平台支付目前支持支付宝与微信。针对的是APP端（android or IOS）

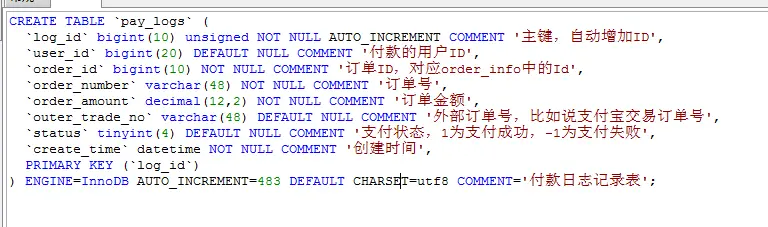

1. 数据库表设计

说明：

无论是支付宝还是微信支付，都会有一个服务端的回调，业务根据回调的结果处理相应的业务逻辑。

pay_logs这个表主要是记录相关的用户支付信息。是一个日志记录。

比如：谁付款的，什么时候付款的，订单号多少，是支付宝还是微信，支付状态是支付成功还是支付失败，还是未支付。

特别注意：订单主表也有类似的回调信息。这样用多张表记录相应的信息，可以统计相应的业务指标，包括用户的行为分析等。

 关于表的设计，我的经验分享是：如果可以，核心业务表一定要有一个日志记录表，如果可以，可以用时间轴等方式进行数据的插入，与时间轴的显示。时间轴可以清楚的知道用户的行为点，帮助更加清晰的设计业务流程与系统架构。

相应的支付宝回调代码如下：（注意，这个业务模块属于买家。）

APP调用后端的业务代码

[java] view plain copy print?

1. /***
2.  * APP端调用请求支付宝
3.  */
4. @RestController
5. @RequestMapping("/buyer")
6. public class AlipayController extends BaseController
7. {
8.     private static final Logger logger = LoggerFactory.getLogger(AlipayController. class);
9.     /**
10.      * 服务器通知地址
11.      */
12.     private static final String NOTIFY_URL= "";
13.
14.     /**待支付*/
15.     private static final int PAY_LOGS_READY= 0;
16.
17.     @Autowired
18.     private OrderInfoService orderInfoService;
19.
20.     @Autowired
21.     private BuyerService buyerService;
22.
23.     @Autowired
24.     private PayLogsService payLogsService;/**
25.      * APP端请求调用支付宝
26.      * @param request
27.      * @param response
28.      * @return
29.      */
30.     @RequestMapping(value="/alipay/invoke",method={RequestMethod.GET,RequestMethod.POST})
31.     public JsonResult alipayInvoke(HttpServletRequest req, HttpServletResponse resp)
32.     {
33.         String result="";
34.         try
35.         {
36.             /**订单号*/
37.             String orderNumber=this.getNotNull("orderNumber", req);
38.
39.             /**金额*/
40.             String money=this.getNotNull("money", req);
41.
42.             /**优惠券id*/
43.             String couponReceiveId = req.getParameter("couponReceiveId");
44.
45.             if(StringUtils.isBlank(orderNumber) || StringUtils.isBlank(money))
46.             {
47.                 return new JsonResult(JsonResultCode.FAILURE, "请求参数有误,请稍后重试","");
48.             }
49.
50.             //对比金额
51.             OrderInfo orderInfo=this.orderInfoService.getOrderInfoByOrderNumber(orderNumber);
52.             if(orderInfo==null)
53.             {
54.                 return new JsonResult(JsonResultCode.FAILURE, "订单号不存在，请稍后重试","");
55.             }
56.
57.             //获取订单的金额
58.             BigDecimal orderAmount=orderInfo.getOrderAmount();
59.
60.             //减余额
61.             Long buyerId=orderInfo.getBuyerId();
62.
63.             Buyer buyer=this.buyerService.getBuyerById(buyerId);
64.
65.             //用户余额
66.             BigDecimal balanceMoney=buyer.getBalanceMoney();
67.
68.             //计算最终需要给支付宝的金额
69.             BigDecimal payAmount=orderAmount.subtract(balanceMoney);
70.
71.             //买家支付时抵扣优惠券
72.             if(StringUtils.isNotBlank(couponReceiveId)){
73.                 Long id = Long.parseLong(couponReceiveId);
74.                 payAmount = couponReceiveService.deductionCouponMoney(id, orderNumber, payAmount);
75.             }
76.
77.             logger.info("[AlipayController][alipayInvoke] orderNumber:" +orderNumber + " money:" +money+" orderAmount:"+orderAmount+" balanceMoney:"+balanceMoney+ " payAmount:" +payAmount);
78.
79.             //考虑重复订单的问题，会产生重复日志
80.             PayLogs payLogs=this.payLogsService.getPayLogsByOrderNumber(orderNumber);
81.
82.             if(payLogs==null)
83.             {
84.                 //创建订单日志
85.                 PayLogs logs=new PayLogs();
86.                 logs.setUserId(buyerId);
87.                 logs.setOrderId(orderInfo.getOrderId());
88.                 logs.setOrderNumber(orderNumber);
89.                 logs.setOrderAmount(payAmount);
90.                 logs.setStatus(PAY_LOGS_READY);
91.                 logs.setCreateTime(new Date());
92.                 int payLogsResult=payLogsService.addPayLogs(logs);
93.                 logger.info("[AlipayController][alipayInvoke] 创建订单日志结果:" + (payLogsResult> 0));
94.             }else
95.             {
96.                 logger.info("[AlipayController][alipayInvoke] 创建重复订单");
97.             }
98.
99.
100.             AlipayClient alipayClient = new DefaultAlipayClient("https://openapi.alipay.com/gateway.do", "","", "json","UTF-8","", "RSA2");
101.             AlipayTradeAppPayRequest request = new AlipayTradeAppPayRequest();
102.             AlipayTradeAppPayModel model = new AlipayTradeAppPayModel();
103.             model.setBody("");
104.             model.setSubject("xxx");
105.             model.setOutTradeNo(orderNumber);
106.             model.setTimeoutExpress("15m");
107.             model.setTotalAmount(payAmount.toString());
108.             model.setProductCode("QUICK_MSECURITY_PAY");
109.             request.setBizModel(model);
110.             request.setNotifyUrl(NOTIFY_URL);
111.
112.             AlipayTradeAppPayResponse response = alipayClient.sdkExecute(request);
113.             result=response.getBody();
114.             logger.info("[AlipayController][alipayNotify] result: " +result);
115.         } catch (AlipayApiException ex)
116.         {
117.             logger.error("[AlipayController][alipayNotify] exception:",ex);
118.             return new JsonResult(JsonResultCode.FAILURE, "系统错误,请稍后重试","");
119.         }
120.         return new JsonResult(JsonResultCode.SUCCESS,"操作成功",result);
121.     }
122. }

/***
 * APP端调用请求支付宝
 */
@RestController
@RequestMapping("/buyer")
public class AlipayController extends BaseController
{
    private static final Logger logger = LoggerFactory.getLogger(AlipayController.class);
    /**
     * 服务器通知地址
     */
    private static final String NOTIFY_URL="";

    /**待支付*/
    private static final int PAY_LOGS_READY=0;

    @Autowired
    private OrderInfoService orderInfoService;

    @Autowired
    private BuyerService buyerService;

    @Autowired
    private PayLogsService payLogsService;/**
     * APP端请求调用支付宝
     * @param request
     * @param response
     * @return
     */
    @RequestMapping(value="/alipay/invoke",method={RequestMethod.GET,RequestMethod.POST})
    public JsonResult alipayInvoke(HttpServletRequest req, HttpServletResponse resp)
    {
        String result="";
        try
        {
            /**订单号*/
            String orderNumber=this.getNotNull("orderNumber", req);

            /**金额*/
            String money=this.getNotNull("money", req);

            /**优惠券id*/
            String couponReceiveId = req.getParameter("couponReceiveId");

            if(StringUtils.isBlank(orderNumber) || StringUtils.isBlank(money))
            {
                return new JsonResult(JsonResultCode.FAILURE,"请求参数有误,请稍后重试","");
            }

            //对比金额
            OrderInfo orderInfo=this.orderInfoService.getOrderInfoByOrderNumber(orderNumber);
            if(orderInfo==null)
            {
                return new JsonResult(JsonResultCode.FAILURE,"订单号不存在，请稍后重试","");
            }

            //获取订单的金额
            BigDecimal orderAmount=orderInfo.getOrderAmount();

            //减余额
            Long buyerId=orderInfo.getBuyerId();

            Buyer buyer=this.buyerService.getBuyerById(buyerId);

            //用户余额
            BigDecimal balanceMoney=buyer.getBalanceMoney();

            //计算最终需要给支付宝的金额
            BigDecimal payAmount=orderAmount.subtract(balanceMoney);

            //买家支付时抵扣优惠券
            if(StringUtils.isNotBlank(couponReceiveId)){
                Long id = Long.parseLong(couponReceiveId);
                payAmount = couponReceiveService.deductionCouponMoney(id, orderNumber, payAmount);
            }

            logger.info("[AlipayController][alipayInvoke] orderNumber:" +orderNumber +" money:" +money+" orderAmount:"+orderAmount+" balanceMoney:"+balanceMoney+" payAmount:" +payAmount);

            //考虑重复订单的问题，会产生重复日志
            PayLogs payLogs=this.payLogsService.getPayLogsByOrderNumber(orderNumber);

            if(payLogs==null)
            {
                //创建订单日志
                PayLogs logs=new PayLogs();
                logs.setUserId(buyerId);
                logs.setOrderId(orderInfo.getOrderId());
                logs.setOrderNumber(orderNumber);
                logs.setOrderAmount(payAmount);
                logs.setStatus(PAY_LOGS_READY);
                logs.setCreateTime(new Date());
                int payLogsResult=payLogsService.addPayLogs(logs);
                logger.info("[AlipayController][alipayInvoke] 创建订单日志结果:" + (payLogsResult>0));
            }else
            {
                logger.info("[AlipayController][alipayInvoke] 创建重复订单");
            }


            AlipayClient alipayClient = new DefaultAlipayClient("https://openapi.alipay.com/gateway.do","","", "json","UTF-8","","RSA2");
            AlipayTradeAppPayRequest request = new AlipayTradeAppPayRequest();
            AlipayTradeAppPayModel model = new AlipayTradeAppPayModel();
            model.setBody("");
            model.setSubject("xxx");
            model.setOutTradeNo(orderNumber);
            model.setTimeoutExpress("15m");
            model.setTotalAmount(payAmount.toString());
            model.setProductCode("QUICK_MSECURITY_PAY");
            request.setBizModel(model);
            request.setNotifyUrl(NOTIFY_URL);

            AlipayTradeAppPayResponse response = alipayClient.sdkExecute(request);
            result=response.getBody();
            logger.info("[AlipayController][alipayNotify] result: " +result);
        } catch (AlipayApiException ex)
        {
            logger.error("[AlipayController][alipayNotify] exception:",ex);
            return new JsonResult(JsonResultCode.FAILURE,"系统错误,请稍后重试","");
        }
        return new JsonResult(JsonResultCode.SUCCESS,"操作成功",result);
    }
}

支付宝服务端回调代码

[java] view plain copy print?

1. import java.io.IOException;
2. import java.math.BigDecimal;
3. import java.util.Date;
4. import java.util.Enumeration;
5. import java.util.HashMap;
6. import java.util.Iterator;
7. import java.util.Map;
8.
9. import javax.servlet.ServletOutputStream;
10. import javax.servlet.http.HttpServletRequest;
11. import javax.servlet.http.HttpServletResponse;
12.
13. import org.apache.commons.lang3.StringUtils;
14. import org.slf4j.Logger;
15. import org.slf4j.LoggerFactory;
16. import org.springframework.beans.factory.annotation.Autowired;
17. import org.springframework.stereotype.Controller;
18. import org.springframework.web.bind.annotation.RequestMapping;
19. import org.springframework.web.bind.annotation.RequestMethod;
20.
21. import com.alipay.api.AlipayApiException;
22. import com.alipay.api.internal.util.AlipaySignature;
23. /**
24.  * alipay 支付宝服务端回调
25.  * 参考文档：https://docs.open.alipay.com/204/105301/
26.  * 对于App支付产生的交易，支付宝会根据原始支付API中传入的异步通知地址notify_url，通过POST请求的形式将支付结果作为参数通知到商户系统。
27.  */
28. @Controller
29. @RequestMapping("/buyer")
30. public class AlipayNotifyController extends BaseController {
31.
32.     private static final Logger logger = LoggerFactory.getLogger(AlipayNotifyController. class);
33.
34.     private static final String ALIPAYPUBLICKEY =  "";
35.
36.     private static final String CHARSET =  "UTF-8";
37.
38.     /**支付成功*/
39.     private static final int PAY_LOGS_SUCCESS= 1;
40.
41.     @Autowired
42.     private OrderInfoService orderInfoService;
43.
44.
45.     @RequestMapping(value = "/alipay/notify", method = { RequestMethod.GET, RequestMethod.POST })
46.     public void alipayNotify(HttpServletRequest request, HttpServletResponse response)  throws IOException
47.     {
48.         String url=request.getRequestURL().toString();
49.
50.         logger.info("AlipayNotifyController.alipayNotify.s+tart");
51.
52.         logger.info("[AlipayNotifyController][alipayNotify] url:" +url);
53.
54.         ServletOutputStream out = response.getOutputStream();
55.         //支付宝交易号
56.         String alipayTradeNo=this.getNotNull("trade_no", request);
57.
58.         //商户订单号
59.         String outerTradeNo=this.getNotNull("out_trade_no", request);
60.
61.         //买家支付宝用户号
62.         String buyerId=this.getNotNull("buyer_id", request);
63.
64.         //买家支付宝账号
65.         String buyerLogonId=this.getNotNull("buyer_logon_id", request);
66.
67.         //交易状态
68.         String tradeStatus=this.getNotNull("trade_status", request);
69.
70.         //订单金额,精确到小数点后2位
71.         String money=getNotNull("total_amount", request);
72.
73.         logger.info("[AlipayNotifyController][alipayNotify] tradeStatus:" +tradeStatus+" money:"+money);
74.
75.         StringBuffer buf = new StringBuffer();
76.         if (request.getMethod().equalsIgnoreCase("POST"))
77.         {
78.             Enumeration<String> em = request.getParameterNames();
79.             for (; em.hasMoreElements();)
80.             {
81.                 Object o = em.nextElement();
82.                 buf.append(o).append("=").append(request.getParameter(o.toString())).append( ",");
83.             }
84.             logger.info("回调 method:post]http://" + request.getServerName() + request.getServletPath() +  " [<prams:" + buf + ">]");
85.         } else
86.         {
87.             buf.append(request.getQueryString());
88.             logger.info("回调 method:get]http://" + request.getServerName() + request.getServletPath() +  "?" + request.getQueryString());
89.         }
90.
91.         //检验支付宝参数
92.         if(!verifyAlipay(request))
93.         {
94.                out.print("fail");
95.                return;
96.         }
97.
98.         //交易成功
99.         if("TRADE_SUCCESS".equalsIgnoreCase(tradeStatus))
100.         {
101.             try
102.             {
103.                 if(StringUtils.isNotBlank(outerTradeNo))
104.                 {
105.                     //查询当前订单信息
106.                     OrderInfo info=this.orderInfoService.getOrderInfoByOrderNumber(outerTradeNo);
107.
108.                     if(info==null)
109.                     {
110.                         logger.error("[AlipayNotifyController][alipayNotify] info:" +info);
111.                         out.print("fail");
112.                            return;
113.                     }
114.
115.                     //订单信息
116.                     OrderInfo orderInfo=new OrderInfo();
117.                     orderInfo.setOrderNumber(outerTradeNo);
118.                     orderInfo.setCardCode("alipay");
119.                     orderInfo.setCardName("支付宝");
120.                     orderInfo.setCardNumber(buyerLogonId);
121.                     orderInfo.setCardOwner(buyerId);
122.                     orderInfo.setPayTime(new Date());
123.                     orderInfo.setOuterTradeNo(alipayTradeNo);
124.                     orderInfo.setPayStatus(PayStatus.PAY_SUCCESS);
125.                     orderInfo.setTradeStatus(TradeStatus.TRADE_PROGRESS);
126.                     orderInfo.setPayAmount(new BigDecimal(money));
127.                     orderInfo.setBuyerId(info.getBuyerId());
128.
129.                     //付款日志
130.                     PayLogs payLogs=new PayLogs();
131.                     payLogs.setOrderNumber(outerTradeNo);
132.                     payLogs.setOuterTradeNo(alipayTradeNo);
133.                     payLogs.setStatus(PAY_LOGS_SUCCESS);
134.
135.                     orderInfoService.payReturn(orderInfo,payLogs);
136.                     out.print("success");
137.                     return;
138.                 }
139.             }catch(Exception ex)
140.             {
141.                 logger.error("[AlipayNotifyController][payReturn] 出现了异常:",ex);
142.                 out.print("success");
143.                 return;
144.             }
145.         }else
146.         {
147.             out.print("fail");
148.             return;
149.         }
150.     }
151.     /**
152.      * 检验支付宝
153.      * @param request
154.      * @return
155.      */
156.     @SuppressWarnings("rawtypes")
157.     public boolean verifyAlipay(HttpServletRequest request)
158.     {
159.         boolean flag=true;
160.
161.         // 获取支付宝POST过来反馈信息
162.         Map<String, String> params = new HashMap<String, String>();
163.         Map requestParams = request.getParameterMap();
164.         for (Iterator iter = requestParams.keySet().iterator(); iter.hasNext();) {
165.             String name = (String) iter.next();
166.             String[] values = (String[]) requestParams.get(name);
167.             String valueStr = "";
168.             for (int i = 0; i < values.length; i++) {
169.                 valueStr = (i == values.length - 1) ? valueStr + values[i] : valueStr + values[i] +  ",";
170.             }
171.             params.put(name, valueStr);
172.         }
173.         try
174.         {
175.             flag= AlipaySignature.rsaCheckV1(params, ALIPAYPUBLICKEY, CHARSET, "RSA2");
176.         } catch (AlipayApiException e) {
177.             e.printStackTrace();
178.             flag=false;
179.         }
180.         return flag;
181.     }
182. }

import java.io.IOException;
import java.math.BigDecimal;
import java.util.Date;
import java.util.Enumeration;
import java.util.HashMap;
import java.util.Iterator;
import java.util.Map;

import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

import com.alipay.api.AlipayApiException;
import com.alipay.api.internal.util.AlipaySignature;
/**
 * alipay 支付宝服务端回调
 * 参考文档：https://docs.open.alipay.com/204/105301/
 * 对于App支付产生的交易，支付宝会根据原始支付API中传入的异步通知地址notify_url，通过POST请求的形式将支付结果作为参数通知到商户系统。
 */
@Controller
@RequestMapping("/buyer")
public class AlipayNotifyController extends BaseController {

    private static final Logger logger = LoggerFactory.getLogger(AlipayNotifyController.class);

    private static final String ALIPAYPUBLICKEY = "";

    private static final String CHARSET = "UTF-8";

    /**支付成功*/
    private static final int PAY_LOGS_SUCCESS=1;

    @Autowired
    private OrderInfoService orderInfoService;


    @RequestMapping(value = "/alipay/notify", method = { RequestMethod.GET, RequestMethod.POST })
    public void alipayNotify(HttpServletRequest request, HttpServletResponse response) throws IOException
    {
        String url=request.getRequestURL().toString();

        logger.info("AlipayNotifyController.alipayNotify.s+tart");

        logger.info("[AlipayNotifyController][alipayNotify] url:" +url);

        ServletOutputStream out = response.getOutputStream();
        //支付宝交易号
        String alipayTradeNo=this.getNotNull("trade_no", request);

        //商户订单号
        String outerTradeNo=this.getNotNull("out_trade_no", request);

        //买家支付宝用户号
        String buyerId=this.getNotNull("buyer_id", request);

        //买家支付宝账号
        String buyerLogonId=this.getNotNull("buyer_logon_id", request);

        //交易状态
        String tradeStatus=this.getNotNull("trade_status", request);

        //订单金额,精确到小数点后2位
        String money=getNotNull("total_amount", request);

        logger.info("[AlipayNotifyController][alipayNotify] tradeStatus:" +tradeStatus+" money:"+money);

        StringBuffer buf = new StringBuffer();
        if (request.getMethod().equalsIgnoreCase("POST"))
        {
            Enumeration<String> em = request.getParameterNames();
            for (; em.hasMoreElements();)
            {
                Object o = em.nextElement();
                buf.append(o).append("=").append(request.getParameter(o.toString())).append(",");
            }
            logger.info("回调 method:post]http://" + request.getServerName() + request.getServletPath() + " [<prams:" + buf + ">]");
        } else
        {
            buf.append(request.getQueryString());
            logger.info("回调 method:get]http://" + request.getServerName() + request.getServletPath() + "?" + request.getQueryString());
        }

        //检验支付宝参数
        if(!verifyAlipay(request))
        {
               out.print("fail");
               return;
        }

        //交易成功
        if("TRADE_SUCCESS".equalsIgnoreCase(tradeStatus))
        {
            try
            {
                if(StringUtils.isNotBlank(outerTradeNo))
                {
                    //查询当前订单信息
                    OrderInfo info=this.orderInfoService.getOrderInfoByOrderNumber(outerTradeNo);

                    if(info==null)
                    {
                        logger.error("[AlipayNotifyController][alipayNotify] info:" +info);
                        out.print("fail");
                           return;
                    }

                    //订单信息
                    OrderInfo orderInfo=new OrderInfo();
                    orderInfo.setOrderNumber(outerTradeNo);
                    orderInfo.setCardCode("alipay");
                    orderInfo.setCardName("支付宝");
                    orderInfo.setCardNumber(buyerLogonId);
                    orderInfo.setCardOwner(buyerId);
                    orderInfo.setPayTime(new Date());
                    orderInfo.setOuterTradeNo(alipayTradeNo);
                    orderInfo.setPayStatus(PayStatus.PAY_SUCCESS);
                    orderInfo.setTradeStatus(TradeStatus.TRADE_PROGRESS);
                    orderInfo.setPayAmount(new BigDecimal(money));
                    orderInfo.setBuyerId(info.getBuyerId());

                    //付款日志
                    PayLogs payLogs=new PayLogs();
                    payLogs.setOrderNumber(outerTradeNo);
                    payLogs.setOuterTradeNo(alipayTradeNo);
                    payLogs.setStatus(PAY_LOGS_SUCCESS);

                    orderInfoService.payReturn(orderInfo,payLogs);
                    out.print("success");
                    return;
                }
            }catch(Exception ex)
            {
                logger.error("[AlipayNotifyController][payReturn] 出现了异常:",ex);
                out.print("success");
                return;
            }
        }else
        {
            out.print("fail");
            return;
        }
    }
    /**
     * 检验支付宝
     * @param request
     * @return
     */
    @SuppressWarnings("rawtypes")
    public boolean verifyAlipay(HttpServletRequest request)
    {
        boolean flag=true;

        // 获取支付宝POST过来反馈信息
        Map<String, String> params = new HashMap<String, String>();
        Map requestParams = request.getParameterMap();
        for (Iterator iter = requestParams.keySet().iterator(); iter.hasNext();) {
            String name = (String) iter.next();
            String[] values = (String[]) requestParams.get(name);
            String valueStr = "";
            for (int i = 0; i < values.length; i++) {
                valueStr = (i == values.length - 1) ? valueStr + values[i] : valueStr + values[i] + ",";
            }
            params.put(name, valueStr);
        }
        try
        {
            flag= AlipaySignature.rsaCheckV1(params, ALIPAYPUBLICKEY, CHARSET, "RSA2");
        } catch (AlipayApiException e) {
            e.printStackTrace();
            flag=false;
        }
        return flag;
    }
}

APP支付成功后，其实支付宝或者微信都会告诉你是否成功，只是这种通知是不可靠的，最可靠的的一种方式是支付宝或者微信的服务端回调。

根据回调处理相关的业务。

相应的微信回调代码如下：（注意，这个业务模块属于买家。）

APP调用微信：

[java] view plain copy print?

1. /***
2.  * APP端调用请求微信
3.  */
4. @RestController
5. @RequestMapping("/buyer")
6. public class WeiXinController extends BaseController
7. {
8.     private static final Logger logger = LoggerFactory.getLogger(WeiXinController. class);
9.
10.     /**待支付*/
11.     private static final int PAY_LOGS_READY= 0;
12.
13.     @Autowired
14.     private OrderInfoService orderInfoService;
15.
16.     @Autowired
17.     private BuyerService buyerService;
18.
19.     @Autowired
20.     private PayLogsService payLogsService;
21.
22.     @Autowired
23.     private CouponReceiveService couponReceiveService;
24.
25.     /**
26.      * APP端请求调用微信
27.      * @param request
28.      * @param response
29.      * @return
30.      */
31.     @RequestMapping(value="/weixin/invoke",method={RequestMethod.GET,RequestMethod.POST})
32.     public JsonResult weixinInvoke(HttpServletRequest req, HttpServletResponse resp)
33.     {
34.         try
35.         {
36.             /**订单号*/
37.             String orderNumber=this.getNotNull("orderNumber", req);
38.
39.             /**金额*/
40.             String money=this.getNotNull("money", req);
41.
42.             /**优惠券id*/
43.             String couponReceiveId = req.getParameter("couponReceiveId");
44.
45.             if(StringUtils.isBlank(orderNumber) || StringUtils.isBlank(money))
46.             {
47.                 return new JsonResult(JsonResultCode.FAILURE, "请求参数有误,请稍后重试","");
48.             }
49.
50.             //对比金额
51.             OrderInfo orderInfo=this.orderInfoService.getOrderInfoByOrderNumber(orderNumber);
52.             if(orderInfo==null)
53.             {
54.                 return new JsonResult(JsonResultCode.FAILURE, "订单号不存在，请稍后重试","");
55.             }
56.
57.             //获取订单的金额
58.             BigDecimal orderAmount=orderInfo.getOrderAmount();
59.
60.             //减余额
61.             Long buyerId=orderInfo.getBuyerId();
62.
63.             Buyer buyer=this.buyerService.getBuyerById(buyerId);
64.
65.             //用户余额
66.             BigDecimal balanceMoney=buyer.getBalanceMoney();
67.
68.             //计算最终需要给微信的金额
69.             BigDecimal payAmount=orderAmount.subtract(balanceMoney);
70.
71.             //买家支付时抵扣优惠券
72.             if(StringUtils.isNotBlank(couponReceiveId)){
73.                 Long id = Long.parseLong(couponReceiveId);
74.                 payAmount = couponReceiveService.deductionCouponMoney(id, orderNumber, payAmount);
75.             }
76.
77.             logger.info("[WeiXinController][weixinInvoke] orderNumber:" +orderNumber + " money:" +money+" orderAmount:"+orderAmount+" balanceMoney:"+balanceMoney+ " payAmount:" +payAmount);
78.
79.             //考虑重复订单的问题，会产生重复日志
80.             PayLogs payLogs=this.payLogsService.getPayLogsByOrderNumber(orderNumber);
81.
82.             if(payLogs==null)
83.             {
84.                 //创建订单日志
85.                 PayLogs logs=new PayLogs();
86.                 logs.setUserId(buyerId);
87.                 logs.setOrderId(orderInfo.getOrderId());
88.                 logs.setOrderNumber(orderNumber);
89.                 logs.setOrderAmount(payAmount);
90.                 logs.setStatus(PAY_LOGS_READY);
91.                 logs.setCreateTime(new Date());
92.                 int payLogsResult=payLogsService.addPayLogs(logs);
93.                 logger.info("[WeiXinController][weixinInvoke] 创建订单日志结果:" + (payLogsResult> 0));
94.             }else
95.             {
96.                 logger.info("[WeiXinController][weixinInvoke] 创建重复订单");
97.             }
98.
99.             //微信开始
100.             SortedMap<Object,Object> paramMap = new TreeMap<Object,Object>();
101.             paramMap.put("appid", WeiXinUtil.APPID);
102.             paramMap.put("mch_id", WeiXinUtil.MCHID);
103.
104.             String nonceStr=RandomUtil.generateString(8);
105.             // 随机字符串
106.             paramMap.put("nonce_str", nonceStr);
107.             paramMap.put("body","魔笛食材");// 商品描述
108.             paramMap.put("out_trade_no", orderNumber);// 商户订单编号
109.             paramMap.put("total_fee",Math.round(payAmount.doubleValue()*100));
110.             //IP地址
111.             String ip=IpUtils.getIpAddr(req);
112.             paramMap.put("spbill_create_ip",ip);
113.             paramMap.put("notify_url", WeiXinUtil.NOTIFYURL);// 回调地址
114.             paramMap.put("trade_type",WeiXinUtil.TRADETYPE);// 交易类型APP
115.             String sign=createSign(paramMap);
116.             paramMap.put("sign", sign);// 数字签证
117.
118.             logger.info("weixin支付请求IP:" +ip+ " sign:" +sign);
119.
120.             String xml = getRequestXML(paramMap);
121.
122.             String content = HttpClientUtil.getInstance().sendHttpPost(WeiXinUtil.URL,xml,"UTF-8");
123.
124.             logger.info("weixin支付请求的内容content:" +content);
125.
126.             JSONObject jsonObject = JSONObject.fromObject(XmltoJsonUtil.xml2JSON(content));
127.
128.             JSONObject resultXml = jsonObject.getJSONObject("xml");
129.
130.             //返回的编码
131.             JSONArray returnCodeArray =resultXml.getJSONArray("return_code");
132.
133.             //返回的消息
134.             JSONArray returnMsgArray =resultXml.getJSONArray("return_msg");
135.
136.             //结果编码
137.             JSONArray resultCodeArray =resultXml.getJSONArray("result_code");
138.
139.             String returnCode= (String)returnCodeArray.get(0);
140.
141.             String returnMsg= (String)returnMsgArray.get(0);
142.
143.             String resultCode = (String)resultCodeArray.get(0);
144.
145.             logger.info("[WeiXinController][weixinInvoke] returnCode: " +returnCode+ " returnMsg:"+returnMsg +" resultCode:"+resultCode);
146.
147.             if(resultCode.equalsIgnoreCase("FAIL"))
148.             {
149.                 return new JsonResult(JsonResultCode.FAILURE, "微信统一订单下单失败","");
150.             }
151.
152.             if(resultCode.equalsIgnoreCase("SUCCESS"))
153.             {
154.                 JSONArray prepayIdArray =resultXml.getJSONArray("prepay_id");
155.
156.                 String prepayId= (String)prepayIdArray.get(0);
157.
158.                 WeiXinBean weixin=new WeiXinBean();
159.                 weixin.setAppid(WeiXinUtil.APPID);
160.                 weixin.setPartnerid(WeiXinUtil.MCHID);
161.                 weixin.setNoncestr(nonceStr);
162.                 weixin.setPrepayid(prepayId);
163.                 String timestamp=System.currentTimeMillis()/1000+"";
164.                 weixin.setTimestamp(timestamp);
165.                 //最终返回签名
166.                 SortedMap<Object,Object> apiMap = new TreeMap<Object,Object>();
167.                 apiMap.put("appid", WeiXinUtil.APPID);
168.                 apiMap.put("partnerid", WeiXinUtil.MCHID);
169.                 apiMap.put("prepayid", prepayId);
170.                 apiMap.put("package","Sign=WXPay");
171.                 apiMap.put("noncestr",nonceStr);
172.                 apiMap.put("timestamp", timestamp);
173.                 //再次签名
174.                 weixin.setSign(createSign(apiMap));
175.                 return new JsonResult(JsonResultCode.SUCCESS, "微信统一订单下单成功",weixin);
176.             }
177.             return new JsonResult(JsonResultCode.FAILURE, "操作失败","");
178.         } catch (Exception ex)
179.         {
180.             logger.error("[WeiXinController][weixinInvoke] exception:",ex);
181.             return new JsonResult(JsonResultCode.FAILURE, "系统错误,请稍后重试","");
182.         }
183.     }
184.     //拼接xml 请求路径
185.     @SuppressWarnings({"rawtypes"})
186.     private String getRequestXML(SortedMap<Object, Object> parame){
187.         StringBuffer buffer = new StringBuffer();
188.         buffer.append("<xml>");
189.         Set set = parame.entrySet();
190.         Iterator iterator = set.iterator();
191.         while(iterator.hasNext()){
192.             Map.Entry entry = (Map.Entry) iterator.next();
193.             String key =String.valueOf(entry.getKey());
194.             String value = String.valueOf(entry.getValue());
195.             //过滤相关字段sign
196.             if("sign".equalsIgnoreCase(key)){
197.                 buffer.append("<"+key+">"+ "<![CDATA["+value+"]]>"+"</"+key+">");
198.             }else{
199.                 buffer.append("<"+key+">"+value+ "</"+key+">");
200.             }
201.         }
202.         buffer.append("</xml>");
203.         return buffer.toString();
204.     }
205.
206.     //创建md5 数字签证
207.     @SuppressWarnings({"rawtypes"})
208.     private String createSign(SortedMap<Object, Object> param){
209.          StringBuffer buffer = new StringBuffer();
210.             Set set = param.entrySet();
211.             Iterator<?> iterator = set.iterator();
212.             while(iterator.hasNext()){
213.                 Map.Entry entry = (Map.Entry) iterator.next();
214.                 String key = String.valueOf(entry.getKey());
215.                 Object value =String.valueOf(entry.getValue());
216.                 if(null != value && ! "".equals(value) && !"sign".equals(key) && !"key".equals(key)){
217.                     buffer.append(key+"="+value+"&");
218.                 }
219.             }
220.             buffer.append("key="+WeiXinUtil.APIKEY);
221.             String sign =EncryptUtil.getMD5(buffer.toString()).toUpperCase();
222.             return sign;
223.     }
224. }

/***
 * APP端调用请求微信
 */
@RestController
@RequestMapping("/buyer")
public class WeiXinController extends BaseController
{
    private static final Logger logger = LoggerFactory.getLogger(WeiXinController.class);

    /**待支付*/
    private static final int PAY_LOGS_READY=0;

    @Autowired
    private OrderInfoService orderInfoService;

    @Autowired
    private BuyerService buyerService;

    @Autowired
    private PayLogsService payLogsService;

    @Autowired
    private CouponReceiveService couponReceiveService;

    /**
     * APP端请求调用微信
     * @param request
     * @param response
     * @return
     */
    @RequestMapping(value="/weixin/invoke",method={RequestMethod.GET,RequestMethod.POST})
    public JsonResult weixinInvoke(HttpServletRequest req, HttpServletResponse resp)
    {
        try
        {
            /**订单号*/
            String orderNumber=this.getNotNull("orderNumber", req);

            /**金额*/
            String money=this.getNotNull("money", req);

            /**优惠券id*/
            String couponReceiveId = req.getParameter("couponReceiveId");

            if(StringUtils.isBlank(orderNumber) || StringUtils.isBlank(money))
            {
                return new JsonResult(JsonResultCode.FAILURE,"请求参数有误,请稍后重试","");
            }

            //对比金额
            OrderInfo orderInfo=this.orderInfoService.getOrderInfoByOrderNumber(orderNumber);
            if(orderInfo==null)
            {
                return new JsonResult(JsonResultCode.FAILURE,"订单号不存在，请稍后重试","");
            }

            //获取订单的金额
            BigDecimal orderAmount=orderInfo.getOrderAmount();

            //减余额
            Long buyerId=orderInfo.getBuyerId();

            Buyer buyer=this.buyerService.getBuyerById(buyerId);

            //用户余额
            BigDecimal balanceMoney=buyer.getBalanceMoney();

            //计算最终需要给微信的金额
            BigDecimal payAmount=orderAmount.subtract(balanceMoney);

            //买家支付时抵扣优惠券
            if(StringUtils.isNotBlank(couponReceiveId)){
                Long id = Long.parseLong(couponReceiveId);
                payAmount = couponReceiveService.deductionCouponMoney(id, orderNumber, payAmount);
            }

            logger.info("[WeiXinController][weixinInvoke] orderNumber:" +orderNumber +" money:" +money+" orderAmount:"+orderAmount+" balanceMoney:"+balanceMoney+" payAmount:" +payAmount);

            //考虑重复订单的问题，会产生重复日志
            PayLogs payLogs=this.payLogsService.getPayLogsByOrderNumber(orderNumber);

            if(payLogs==null)
            {
                //创建订单日志
                PayLogs logs=new PayLogs();
                logs.setUserId(buyerId);
                logs.setOrderId(orderInfo.getOrderId());
                logs.setOrderNumber(orderNumber);
                logs.setOrderAmount(payAmount);
                logs.setStatus(PAY_LOGS_READY);
                logs.setCreateTime(new Date());
                int payLogsResult=payLogsService.addPayLogs(logs);
                logger.info("[WeiXinController][weixinInvoke] 创建订单日志结果:" + (payLogsResult>0));
            }else
            {
                logger.info("[WeiXinController][weixinInvoke] 创建重复订单");
            }

            //微信开始
            SortedMap<Object,Object> paramMap = new TreeMap<Object,Object>();
            paramMap.put("appid", WeiXinUtil.APPID);
            paramMap.put("mch_id", WeiXinUtil.MCHID);

            String nonceStr=RandomUtil.generateString(8);
            // 随机字符串
            paramMap.put("nonce_str", nonceStr);
            paramMap.put("body","魔笛食材");// 商品描述
            paramMap.put("out_trade_no", orderNumber);// 商户订单编号
            paramMap.put("total_fee",Math.round(payAmount.doubleValue()*100));
            //IP地址
            String ip=IpUtils.getIpAddr(req);
            paramMap.put("spbill_create_ip",ip);
            paramMap.put("notify_url", WeiXinUtil.NOTIFYURL);// 回调地址
            paramMap.put("trade_type",WeiXinUtil.TRADETYPE);// 交易类型APP
            String sign=createSign(paramMap);
            paramMap.put("sign", sign);// 数字签证

            logger.info("weixin支付请求IP:" +ip+ " sign:" +sign);

            String xml = getRequestXML(paramMap);

            String content = HttpClientUtil.getInstance().sendHttpPost(WeiXinUtil.URL,xml,"UTF-8");

            logger.info("weixin支付请求的内容content:" +content);

            JSONObject jsonObject = JSONObject.fromObject(XmltoJsonUtil.xml2JSON(content));

            JSONObject resultXml = jsonObject.getJSONObject("xml");

            //返回的编码
            JSONArray returnCodeArray =resultXml.getJSONArray("return_code");

            //返回的消息
            JSONArray returnMsgArray =resultXml.getJSONArray("return_msg");

            //结果编码
            JSONArray resultCodeArray =resultXml.getJSONArray("result_code");

            String returnCode= (String)returnCodeArray.get(0);

            String returnMsg= (String)returnMsgArray.get(0);

            String resultCode = (String)resultCodeArray.get(0);

            logger.info("[WeiXinController][weixinInvoke] returnCode: " +returnCode+" returnMsg:"+returnMsg +" resultCode:"+resultCode);

            if(resultCode.equalsIgnoreCase("FAIL"))
            {
                return new JsonResult(JsonResultCode.FAILURE,"微信统一订单下单失败","");
            }

            if(resultCode.equalsIgnoreCase("SUCCESS"))
            {
                JSONArray prepayIdArray =resultXml.getJSONArray("prepay_id");

                String prepayId= (String)prepayIdArray.get(0);

                WeiXinBean weixin=new WeiXinBean();
                weixin.setAppid(WeiXinUtil.APPID);
                weixin.setPartnerid(WeiXinUtil.MCHID);
                weixin.setNoncestr(nonceStr);
                weixin.setPrepayid(prepayId);
                String timestamp=System.currentTimeMillis()/1000+"";
                weixin.setTimestamp(timestamp);
                //最终返回签名
                SortedMap<Object,Object> apiMap = new TreeMap<Object,Object>();
                apiMap.put("appid", WeiXinUtil.APPID);
                apiMap.put("partnerid", WeiXinUtil.MCHID);
                apiMap.put("prepayid", prepayId);
                apiMap.put("package","Sign=WXPay");
                apiMap.put("noncestr",nonceStr);
                apiMap.put("timestamp", timestamp);
                //再次签名
                weixin.setSign(createSign(apiMap));
                return new JsonResult(JsonResultCode.SUCCESS,"微信统一订单下单成功",weixin);
            }
            return new JsonResult(JsonResultCode.FAILURE,"操作失败","");
        } catch (Exception ex)
        {
            logger.error("[WeiXinController][weixinInvoke] exception:",ex);
            return new JsonResult(JsonResultCode.FAILURE,"系统错误,请稍后重试","");
        }
    }
    //拼接xml 请求路径
    @SuppressWarnings({"rawtypes"})
    private String getRequestXML(SortedMap<Object, Object> parame){
        StringBuffer buffer = new StringBuffer();
        buffer.append("<xml>");
        Set set = parame.entrySet();
        Iterator iterator = set.iterator();
        while(iterator.hasNext()){
            Map.Entry entry = (Map.Entry) iterator.next();
            String key =String.valueOf(entry.getKey());
            String value = String.valueOf(entry.getValue());
            //过滤相关字段sign
            if("sign".equalsIgnoreCase(key)){
                buffer.append("<"+key+">"+"<![CDATA["+value+"]]>"+"</"+key+">");
            }else{
                buffer.append("<"+key+">"+value+"</"+key+">");
            }
        }
        buffer.append("</xml>");
        return buffer.toString();
    }

    //创建md5 数字签证
    @SuppressWarnings({"rawtypes"})
    private String createSign(SortedMap<Object, Object> param){
         StringBuffer buffer = new StringBuffer();
            Set set = param.entrySet();
            Iterator<?> iterator = set.iterator();
            while(iterator.hasNext()){
                Map.Entry entry = (Map.Entry) iterator.next();
                String key = String.valueOf(entry.getKey());
                Object value =String.valueOf(entry.getValue());
                if(null != value && !"".equals(value) && !"sign".equals(key) && !"key".equals(key)){
                    buffer.append(key+"="+value+"&");
                }
            }
            buffer.append("key="+WeiXinUtil.APIKEY);
            String sign =EncryptUtil.getMD5(buffer.toString()).toUpperCase();
            return sign;
    }
}

微信回调接口：

[java] view plain copy print?

1. /**
2.  * weixin 微信服务端回调
3.  */
4. @Controller
5. @RequestMapping("/buyer")
6. public class WeiXinNotifyController extends BaseController {
7.
8.     private static final Logger logger = LoggerFactory.getLogger(WeiXinNotifyController. class);
9.
10.     /**支付成功*/
11.     private static final int PAY_LOGS_SUCCESS= 1;
12.
13.     @Autowired
14.     private OrderInfoService orderInfoService;
15.
16.     @Autowired
17.     private CouponReceiveService couponReceiveService;
18.
19.     @Autowired
20.     private GroupsService groupsService;
21.
22.     @RequestMapping(value = "/weixin/notify", method = { RequestMethod.GET, RequestMethod.POST })
23.     public void weixinNotify(HttpServletRequest request, HttpServletResponse response)  throws IOException
24.     {
25.         String url=request.getRequestURL().toString();
26.         logger.info("WeiXinNotifyController.weixinNotify.start-->url:" +url);
27.         try
28.         {
29.             StringBuffer buf = new StringBuffer();
30.             if (request.getMethod().equalsIgnoreCase("POST"))
31.             {
32.                 Enumeration<String> em = request.getParameterNames();
33.                 for (; em.hasMoreElements();)
34.                 {
35.                     Object o = em.nextElement();
36.                     buf.append(o).append("=").append(request.getParameter(o.toString())).append( ",");
37.                 }
38.                 logger.info("回调 method:post]http://" + request.getServerName() + request.getServletPath() +  " [<prams:" + buf + ">]");
39.             } else
40.             {
41.                 buf.append(request.getQueryString());
42.                 logger.info("回调 method:get]http://" + request.getServerName() + request.getServletPath() +  "?" + request.getQueryString());
43.             }
44.
45.             request.setCharacterEncoding("UTF-8");
46.             response.setCharacterEncoding("UTF-8");
47.             response.setContentType("text/html;charset=UTF-8");
48.             response.setHeader("Access-Control-Allow-Origin", "*");
49.             InputStream in=request.getInputStream();
50.             ByteArrayOutputStream out=new ByteArrayOutputStream();
51.             byte[] buffer =new byte[ 1024];
52.             int len=0;
53.             while((len=in.read(buffer))!=-1){
54.                 out.write(buffer, 0, len);
55.             }
56.             out.close();
57.             in.close();
58.             String content=new String(out.toByteArray(),"utf-8"); //xml数据
59.
60.             logger.info("[WeiXinNotifyController][weixinNotify] content:" +content);
61.
62.             //日志显示，存在为空的情况.
63.             if(StringUtils.isBlank(content))
64.             {
65.                 logger.error("[WeiXinNotifyController][weixinNotify] content is blank,please check it");
66.                 response.getWriter().write(setXml("FAIL", "ERROR"));
67.                 return;
68.             }
69.
70.             JSONObject jsonObject = JSONObject.fromObject(XmltoJsonUtil.xml2JSON(content));
71.
72.             JSONObject resultXml = jsonObject.getJSONObject("xml");
73.             JSONArray returnCode =  resultXml.getJSONArray("return_code");
74.             String code = (String)returnCode.get(0);
75.
76.             if(code.equalsIgnoreCase("FAIL"))
77.             {
78.                 response.getWriter().write(setXml("SUCCESS", "OK"));
79.                 return;
80.             }else if(code.equalsIgnoreCase("SUCCESS"))
81.             {
82.                 //商户订单号即订单编号
83.                 String outerTradeNo =String.valueOf(resultXml.getJSONArray("out_trade_no").get( 0));
84.
85.                 //微信交易订单号
86.                 String tradeNo = String.valueOf(resultXml.getJSONArray("transaction_id").get( 0));
87.
88.                 //交易状态
89.                 String resultCode = String.valueOf(resultXml.getJSONArray("result_code").get( 0));
90.
91.                 //金额
92.                 String money =String.valueOf(resultXml.getJSONArray("total_fee").get( 0));
93.
94.                 //微信的用户ID
95.                 String openId =String.valueOf(resultXml.getJSONArray("openid").get( 0));
96.
97.                 logger.info("[WeiXinNotifyController][weixinNotify] resultCode:" +resultCode+ " money:"+money);
98.
99.                 //根据这个判断来获取订单交易是否OK
100.                 if(!resultCode.equalsIgnoreCase("SUCCESS"))
101.                 {
102.                     response.getWriter().write(setXml("FAIL",  "ERROR"));
103.                     return;
104.                 }
105.
106.                 try
107.                 {
108.                     if(StringUtils.isNotBlank(outerTradeNo))
109.                     {
110.                         //查询当前订单信息
111.                         OrderInfo info=this.orderInfoService.getOrderInfoByOrderNumber(outerTradeNo);
112.
113.                         if(info==null)
114.                         {
115.                             logger.error("[WeiXinNotifyController][weixinNotify] info:" +info);
116.                             response.getWriter().write(setXml("FAIL",  "ERROR"));
117.                             return;
118.                         }
119.
120.                         //订单信息
121.                         OrderInfo orderInfo=new OrderInfo();
122.                         orderInfo.setOrderNumber(outerTradeNo);
123.                         orderInfo.setCardCode("weixin");
124.                         orderInfo.setCardName("微信支付");
125.                         orderInfo.setCardNumber(openId);
126.                         orderInfo.setCardOwner(openId);
127.                         orderInfo.setPayTime(new Date());
128.                         orderInfo.setOuterTradeNo(tradeNo);
129.                         orderInfo.setPayStatus(PayStatus.PAY_SUCCESS);
130.                         orderInfo.setTradeStatus(TradeStatus.TRADE_PROGRESS);
131.                         orderInfo.setPayAmount(new BigDecimal(money).divide( new BigDecimal(100)));
132.                         orderInfo.setBuyerId(info.getBuyerId());
133.
134.                         //付款日志
135.                         PayLogs payLogs=new PayLogs();
136.                         payLogs.setOrderNumber(outerTradeNo);
137.                         payLogs.setOuterTradeNo(tradeNo);
138.                         payLogs.setStatus(PAY_LOGS_SUCCESS);
139.
140.                         orderInfoService.payReturn(orderInfo,payLogs);
141.
142.                         //回写团购成功状态
143.                         groupsService.updateGbStatusByOrderNumber(outerTradeNo);
144.                         response.getWriter().write(setXml("SUCCESS",  "OK"));
145.                         try
146.                         {
147.                             //更新优惠券状态为已用
148.                             couponReceiveService.updateStatus(outerTradeNo);
149.                         }catch(Exception ex){
150.                             logger.error("[AlipayNotifyController][payReturn] 更新优惠券状态异常:",ex);
151.                         }
152.                         return;
153.                     }
154.                 }catch(Exception ex)
155.                 {
156.                     logger.error("[WeiXinNotifyController][payReturn] 出现了异常:",ex);
157.                     response.getWriter().write(setXml("SUCCESS",  "OK"));
158.                     return;
159.                 }
160.             }
161.         }catch(Exception e){
162.             logger.error("[WeiXinNotifyController][weixinNotify] exception:" ,e);
163.             response.getWriter().write(setXml("SUCCESS",  "OK"));
164.             return;
165.         }
166.     }
167.     //返回微信服务
168.     private String setXml(String returnCode,String returnMsg)
169.     {
170.        return "<xml><return_code><![CDATA["+returnCode+ "]]></return_code><return_msg><![CDATA["+returnMsg+"]]></return_msg></xml>";
171.     }
172. }

/**
 * weixin 微信服务端回调
 */
@Controller
@RequestMapping("/buyer")
public class WeiXinNotifyController extends BaseController {

    private static final Logger logger = LoggerFactory.getLogger(WeiXinNotifyController.class);

    /**支付成功*/
    private static final int PAY_LOGS_SUCCESS=1;

    @Autowired
    private OrderInfoService orderInfoService;

    @Autowired
    private CouponReceiveService couponReceiveService;

    @Autowired
    private GroupsService groupsService;

    @RequestMapping(value = "/weixin/notify", method = { RequestMethod.GET, RequestMethod.POST })
    public void weixinNotify(HttpServletRequest request, HttpServletResponse response) throws IOException
    {
        String url=request.getRequestURL().toString();
        logger.info("WeiXinNotifyController.weixinNotify.start-->url:" +url);
        try
        {
            StringBuffer buf = new StringBuffer();
            if (request.getMethod().equalsIgnoreCase("POST"))
            {
                Enumeration<String> em = request.getParameterNames();
                for (; em.hasMoreElements();)
                {
                    Object o = em.nextElement();
                    buf.append(o).append("=").append(request.getParameter(o.toString())).append(",");
                }
                logger.info("回调 method:post]http://" + request.getServerName() + request.getServletPath() + " [<prams:" + buf + ">]");
            } else
            {
                buf.append(request.getQueryString());
                logger.info("回调 method:get]http://" + request.getServerName() + request.getServletPath() + "?" + request.getQueryString());
            }

            request.setCharacterEncoding("UTF-8");
            response.setCharacterEncoding("UTF-8");
            response.setContentType("text/html;charset=UTF-8");
            response.setHeader("Access-Control-Allow-Origin", "*");
            InputStream in=request.getInputStream();
            ByteArrayOutputStream out=new ByteArrayOutputStream();
            byte[] buffer =new byte[1024];
            int len=0;
            while((len=in.read(buffer))!=-1){
                out.write(buffer, 0, len);
            }
            out.close();
            in.close();
            String content=new String(out.toByteArray(),"utf-8");//xml数据

            logger.info("[WeiXinNotifyController][weixinNotify] content:" +content);

            //日志显示，存在为空的情况.
            if(StringUtils.isBlank(content))
            {
                logger.error("[WeiXinNotifyController][weixinNotify] content is blank,please check it");
                response.getWriter().write(setXml("FAIL", "ERROR"));
                return;
            }

            JSONObject jsonObject = JSONObject.fromObject(XmltoJsonUtil.xml2JSON(content));

            JSONObject resultXml = jsonObject.getJSONObject("xml");
            JSONArray returnCode =  resultXml.getJSONArray("return_code");
            String code = (String)returnCode.get(0);

            if(code.equalsIgnoreCase("FAIL"))
            {
                response.getWriter().write(setXml("SUCCESS", "OK"));
                return;
            }else if(code.equalsIgnoreCase("SUCCESS"))
            {
                //商户订单号即订单编号
                String outerTradeNo =String.valueOf(resultXml.getJSONArray("out_trade_no").get(0));

                //微信交易订单号
                String tradeNo = String.valueOf(resultXml.getJSONArray("transaction_id").get(0));

                //交易状态
                String resultCode = String.valueOf(resultXml.getJSONArray("result_code").get(0));

                //金额
                String money =String.valueOf(resultXml.getJSONArray("total_fee").get(0));

                //微信的用户ID
                String openId =String.valueOf(resultXml.getJSONArray("openid").get(0));

                logger.info("[WeiXinNotifyController][weixinNotify] resultCode:" +resultCode+" money:"+money);

                //根据这个判断来获取订单交易是否OK
                if(!resultCode.equalsIgnoreCase("SUCCESS"))
                {
                    response.getWriter().write(setXml("FAIL", "ERROR"));
                    return;
                }

                try
                {
                    if(StringUtils.isNotBlank(outerTradeNo))
                    {
                        //查询当前订单信息
                        OrderInfo info=this.orderInfoService.getOrderInfoByOrderNumber(outerTradeNo);

                        if(info==null)
                        {
                            logger.error("[WeiXinNotifyController][weixinNotify] info:" +info);
                            response.getWriter().write(setXml("FAIL", "ERROR"));
                            return;
                        }

                        //订单信息
                        OrderInfo orderInfo=new OrderInfo();
                        orderInfo.setOrderNumber(outerTradeNo);
                        orderInfo.setCardCode("weixin");
                        orderInfo.setCardName("微信支付");
                        orderInfo.setCardNumber(openId);
                        orderInfo.setCardOwner(openId);
                        orderInfo.setPayTime(new Date());
                        orderInfo.setOuterTradeNo(tradeNo);
                        orderInfo.setPayStatus(PayStatus.PAY_SUCCESS);
                        orderInfo.setTradeStatus(TradeStatus.TRADE_PROGRESS);
                        orderInfo.setPayAmount(new BigDecimal(money).divide(new BigDecimal(100)));
                        orderInfo.setBuyerId(info.getBuyerId());

                        //付款日志
                        PayLogs payLogs=new PayLogs();
                        payLogs.setOrderNumber(outerTradeNo);
                        payLogs.setOuterTradeNo(tradeNo);
                        payLogs.setStatus(PAY_LOGS_SUCCESS);

                        orderInfoService.payReturn(orderInfo,payLogs);

                        //回写团购成功状态
                        groupsService.updateGbStatusByOrderNumber(outerTradeNo);
                        response.getWriter().write(setXml("SUCCESS", "OK"));
                        try
                        {
                            //更新优惠券状态为已用
                            couponReceiveService.updateStatus(outerTradeNo);
                        }catch(Exception ex){
                            logger.error("[AlipayNotifyController][payReturn] 更新优惠券状态异常:",ex);
                        }
                        return;
                    }
                }catch(Exception ex)
                {
                    logger.error("[WeiXinNotifyController][payReturn] 出现了异常:",ex);
                    response.getWriter().write(setXml("SUCCESS", "OK"));
                    return;
                }
            }
        }catch(Exception e){
            logger.error("[WeiXinNotifyController][weixinNotify] exception:" ,e);
            response.getWriter().write(setXml("SUCCESS", "OK"));
            return;
        }
    }
    //返回微信服务
    private String setXml(String returnCode,String returnMsg)
    {
       return "<xml><return_code><![CDATA["+returnCode+"]]></return_code><return_msg><![CDATA["+returnMsg+"]]></return_msg></xml>";
    }
}

Java开源生鲜电商平台-支付表的设计与架构(源码可下载），如果需要下载的话，可以在我的github下面进行下载。

相关的运营截图如下：
