函数计算对进行自动化运维的一些姿势

rsong 2018-04-12 11:21:38 浏览69 评论0

摘要： 函数计算是一个事件驱动的全托管计算服务。通过函数计算，您无需管理服务器等基础设施，只需编写代码并上传。函数计算会为您准备好计算资源，以弹性、可靠的方式运行您的代码，这就给用户极大的自由来实现自定义的功能，一旦和自定义自动化运维相遇，会擦出不一样的火花

什么是函数计算

阿里云函数计算是一个事件驱动的全托管计算服务。通过函数计算，您无需管理服务器等基础设施，只需编写代码并上传。函数计算会为您准备好计算资源，以弹性、可靠的方式运行您的代码，并提供日志查询，性能监控，报警等功能。借助于函数计算，您可以快速构建任何类型的应用和服务，无需管理和运维。更棒的是，您只需要为代码实际运行消耗的资源付费，而代码未运行则不产生费用。

函数计算遇见自动化运维

函数计算给用户极大的自由来实现自定义的功能，一旦和自定义自动化运维相遇，会擦出不一样的火花

示例场景1

某些账号ak需要定期更换，以确保ak安全

示例场景2

定期检查自己ecs对应暴露的端口，确保安全，比如你的ecs是一个网站服务器，可能只需要对外暴露80端口就行，如果出现0.0.0.0/0这种允许所有人访问的，需要出现报警或者自动修复

示例具体实现

定期更换ak，函数计算结合定时器

创建函数,函数创建可参考函数计算helloworld

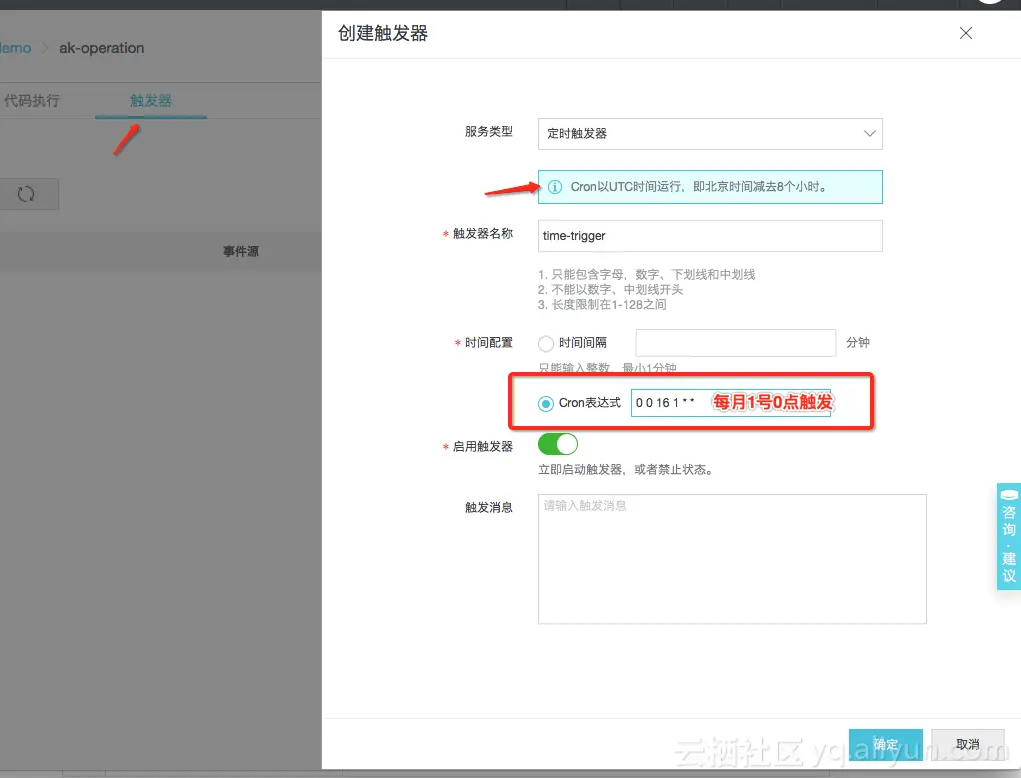

给函数配置定时器，详情可参考定时触发函数
核心代码，可去附件下载完整代码

# -*- coding: utf-8 -*-
import logging, time, json
from aliyunsdkcore import client
from aliyunsdkram.request.v20150501.CreateAccessKeyRequest import CreateAccessKeyRequest
from aliyunsdkram.request.v20150501.DeleteAccessKeyRequest import DeleteAccessKeyRequest
from aliyunsdkkms.request.v20160120.EncryptRequest import EncryptRequest
from aliyunsdkkms.request.v20160120.DecryptRequest import DecryptRequest
from aliyunsdkcore.auth.credentials import StsTokenCredential

# ak Encrypt content
AK_CiphertextBlob = "NmQyY2ZhODMtMTlhYS00MTNjLTlmZjAtZTQxYTFiYWVmMzZmM1B1NXhTZENCNXVWd1dhdTNMWVRvb3V6dU9QcVVlMXRBQUFBQUFBQUFBQ3gwZTkzeGhDdHVzMWhDUCtZeVVuMWlobzlCa3VxMlErOXFHWWdZMSt1MkdZYlgwL1NSZTFvUURYSW9lak5Hak1lMnF0R2I1TWUxMEJiYmkzVnBwZHlrWGYzc3kyK2tQbGlKb2lHQ3lrZUdieHN2eXZwSVYzN2Qyd1cydz09"

USER_NAME = "ls-test" # sub-account name

LOGGER = logging.getLogger()

def handler(event, context):
  creds = context.credentials
  sts_token_credential = StsTokenCredential(creds.access_key_id, creds.access_key_secret, creds.security_token)
  # this demo ecs and function in same region, if not in same region, you need change region_id to your ecs instance's region_id
  clt = client.AcsClient(region_id=context.region, credential=sts_token_credential)
  request = DecryptRequest()
  request.set_CiphertextBlob(AK_CiphertextBlob)
  response = _send_request(clt, request)
  ak_info = json.loads(response.get("Plaintext","{}"))
  if not ak_info:
    return "KMS Decrypt ERROR"
  ak_id = ak_info["ak_id"]
  ak_secret = ak_info["ak_secret"]
  LOGGER.info("Decrypt sucessfully with key id: {}".format(response.get("KeyId","{}")))

  clt2 = client.AcsClient(ak_id, ak_secret, context.region)
  request = CreateAccessKeyRequest()
  request.set_UserName(USER_NAME) # 给子账号ls-test创建AK
  response = _send_request(clt2, request)
  create_ak_id = response.get("AccessKey",{}).get("AccessKeyId")
  if not create_ak_id:
    return
  LOGGER.info("create ak {} sucess!".format(create_ak_id))

  time.sleep(10)

  request = DeleteAccessKeyRequest()
  request.set_UserName(USER_NAME)
  request.set_UserAccessKeyId(create_ak_id)
  response = _send_request(clt2, request)
  LOGGER.info("delete ak {} sucess!".format(create_ak_id))

  return "OK"

# send open api request
def _send_request(clt, request):
    request.set_accept_format('json')
    try:
        response_str = clt.do_action_with_exception(request)
        LOGGER.debug(response_str)
        response_detail = json.loads(response_str)
        return response_detail
    except Exception as e:
        LOGGER.error(e)

定期检查ecs对外暴露端口，函数计算结合定时器

过程如上一下函数操作过程

核心代码片段

# -*- coding: utf-8 -*-
import logging
import json, random, string, time
from aliyunsdkcore import client
from aliyunsdkecs.request.v20140526.DescribeInstancesRequest import DescribeInstancesRequest
from aliyunsdkecs.request.v20140526.DescribeSecurityGroupAttributeRequest import DescribeSecurityGroupAttributeRequest
from aliyunsdkcore.auth.credentials import StsTokenCredential

LOGGER = logging.getLogger()
clt = None

# 需要检查的ecs列表, 修改成你的ecs id 列表
ECS_INST_IDS = ["i-uf6h07zdscdg9g55zkxx", "i-uf6bwkxfxh847a1e2xxx"]

def handler(event, context):
  creds = context.credentials
  global clt
  sts_token_credential = StsTokenCredential(creds.access_key_id, creds.access_key_secret, creds.security_token)
  # this demo ecs and function in same region, if not in same region, you need change region_id to your ecs instance's region_id
  clt = client.AcsClient(region_id=context.region, credential=sts_token_credential)
  invalid_perssions = {}
  for ecs_id in ECS_INST_IDS:
    ret = check_and_modify_security_rule(ecs_id)
    if ret:
      invalid_perssions[ecs_id] = ret
  return invalid_perssions

def check_and_modify_security_rule(instance_id):
  LOGGER.info("check_and_modify_security_rule, instance_id  is %s ", instance_id)
  request = DescribeInstancesRequest()
  request.set_InstanceIds(json.dumps([instance_id]))
  response = _send_request(request)
  SecurityGroupIds = []
  if response is not None:
    instance_list = response.get('Instances', {}).get('Instance')
    for item in instance_list:
      SecurityGroupIds = item.get('SecurityGroupIds', {}).get("SecurityGroupId", [])
      break
  if not SecurityGroupIds:
    LOGGER.error("ecs {} do not have SecurityGroupIds".format(instance_id))
    return

  invalid_perssions = []

  for sg_id in SecurityGroupIds:
    request = DescribeSecurityGroupAttributeRequest()
    request.set_SecurityGroupId(sg_id)
    response = _send_request(request)
    LOGGER.info("Find a securityGroup id {}".format(sg_id))
    permissions = response.get("Permissions", {}).get("Permission",[])
    if not permissions:
      continue
    for permission in permissions:
      if permission["Direction"] == "ingress" and permission["SourceCidrIp"] == "0.0.0.0/0":
        LOGGER.error("ecs {0} , SecurityGroup id {1}, have a risk, need fix; permission = {2}".format(instance_id, sg_id, permission))
        invalid_perssions.append(permission)

  return invalid_perssions

# send open api request
def _send_request(request):
    request.set_accept_format('json')
    try:
        response_str = clt.do_action_with_exception(request)
        LOGGER.debug(response_str)
        response_detail = json.loads(response_str)
        return response_detail
    except Exception as e:
        LOGGER.error(e)

附件下载： code.zip[rsong].1523503335.zip
