多层感知机
动机
在用机器学习解决问题的时候，我们会发现，真实世界中事物的类别，很多都不是线性可分的。即不存在任何一条线，在这条线的一边全是属于某一类的点，而另一边全是属于另一个类的点。
举个例子：
import numpy as np
import matplotlib.pyplot as plt
points_origin = np.random.randn(25, 2) * 0.22
points_i = np.random.randn(25, 2) * 0.22 + np.ones((25, 2))
red_points = np.append(points_origin, points_i, 0)
points_origin[:,0] += 1
points_i[:,0] -= 1
blue_points = np.append(points_origin, points_i, 0)
# 在图上标出红蓝点
plt.scatter(red_points[:,0], red_points[:,1], color='red')
plt.scatter(blue_points[:,0], blue_points[:,1], color='blue')
可以看到，要分开蓝点和红点，用一条线是不可能的了。因此，我们的决策边界必须是个相当复杂的形状。
在这里，多层感知机就该派上用场了：通过多层感知机，我们能训练出一个比直线更复杂的决策边界。
计算图
顾名思义，多层感知器（MLP）是由层层叠加的多个感知器组成的。

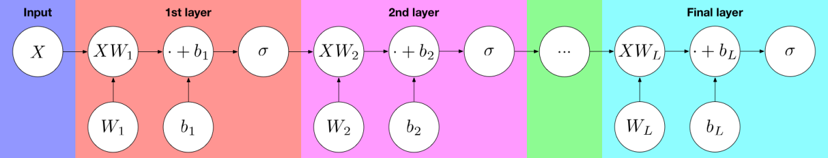

来看看计算图：
可以看到，输入（input）被传递到第一层（1st layer），第一层是一个多维感知机，它有一个权矩阵 和一个偏置向量
。然后，该层的输出被传递到第二层，作为第二层的输入。第二层又是一个感知机，有另一个权矩阵
，另一个偏置向量
。往后总共
层，每一层都会进行这个过程，一直到输出层为止。
我们将最后一层称为输出层，将其他的每一层都称为隐藏层。
只有一个隐藏层的 MLP 的计算函数：
有两个隐藏层的 MLP 的计算函数：
以及推广到有 个隐藏层的 MLP 的计算函数：
实现
利用我们建立的库，我们现在可以轻松地执行多层感知器，而无需进一步的工作。
import numpy as np
import matplotlib.pyplot as plt
from queue import Queue
import time
# A dictionary that will map operations to gradient functions
_gradient_registry = {}
class RegisterGradient:
"""A decorator for registering the gradient function for an op type.
"""
def __init__(self, op_type):
"""Creates a new decorator with `op_type` as the Operation type.
Args:
op_type: The name of an operation
"""
self._op_type = eval(op_type)
def __call__(self, f):
"""Registers the function `f` as gradient function for `op_type`."""
_gradient_registry[self._op_type] = f
return f
class Operation(object):
"""Represents a graph node that performs a computation.
An `Operation` is a node in a `Graph` that takes zero or
more objects as input, and produces zero or more objects
as output.
"""
def __init__(self, input_nodes = []):
"""Construct Operation
"""
self.input_nodes = input_nodes
# Initialize list of consumers (i.e. nodes that receive this operation's output as input)
self.consumers = []
# Append this operation to the list of consumers of all input nodes
for input_node in input_nodes:
input_node.consumers.append(self)
# Append this operation to the list of operations in the currently active default graph
_default_graph.operations.append(self)
def compute(self):
"""Computes the output of this operation.
"" Must be implemented by the particular operation.
"""
pass
class add(Operation):
"""Returns x + y element-wise.
"""
def __init__(self, x, y):
"""Construct add
Args:
x: First summand node
y: Second summand node
"""
super().__init__([x, y])
def compute(self, x_value, y_value):
"""Compute the output of the add operation
Args:
x_value: First summand value
y_value: Second summand value
"""
self.inputs = [x_value, y_value]
return x_value + y_value
class matmul(Operation):
"""Multiplies matrix a by matrix b, producing a * b.
"""
def __init__(self, a, b):
"""Construct matmul
Args:
a: First matrix
b: Second matrix
"""
super().__init__([a, b])
def compute(self, a_value, b_value):
"""Compute the output of the matmul operation
Args:
a_value: First matrix value
b_value: Second matrix value
"""
self.inputs = [a_value, b_value]
return a_value.dot(b_value)
class sigmoid(Operation):
"""Returns the sigmoid of x element-wise.
"""
def __init__(self, a):
"""Construct sigmoid
Args:
a: Input node
"""
super().__init__([a])
def compute(self, a_value):
"""Compute the output of the sigmoid operation
Args:
a_value: Input value
"""
return 1 / (1 + np.exp(-a_value))
class softmax(Operation):
"""Returns the softmax of a.
"""
def __init__(self, a):
"""Construct softmax
Args:
a: Input node
"""
super().__init__([a])
def compute(self, a_value):
"""Compute the output of the softmax operation
Args:
a_value: Input value
"""
return np.exp(a_value) / np.sum(np.exp(a_value), axis = 1)[:,None]
class log(Operation):
"""Computes the natural logarithm of x element-wise.
"""
def __init__(self, x):
"""Construct log
Args:
x: Input node
"""
super().__init__([x])
def compute(self, x_value):
"""Compute the output of the log operation
Args:
x_value: Input value
"""
return np.log(x_value)
class multiply(Operation):
"""Returns x * y element-wise.
"""
def __init__(self, x, y):
"""Construct multiply
Args:
x: First multiplicand node
y: Second multiplicand node
"""
super().__init__([x, y])
def compute(self, x_value, y_value):
"""Compute the output of the multiply operation
Args:
x_value: First multiplicand value
y_value: Second multiplicand value
"""
return x_value * y_value
class reduce_sum(Operation):
"""Computes the sum of elements across dimensions of a tensor.
"""
def __init__(self, A, axis = None):
"""Construct reduce_sum
Args:
A: The tensor to reduce.
axis: The dimensions to reduce. If `None` (the default), reduces all dimensions.
"""
super().__init__([A])
self.axis = axis
def compute(self, A_value):
"""Compute the output of the reduce_sum operation
Args:
A_value: Input tensor value
"""
return np.sum(A_value, self.axis)
class negative(Operation):
"""Computes the negative of x element-wise.
"""
def __init__(self, x):
"""Construct negative
Args:
x: Input node
"""
super().__init__([x])
def compute(self, x_value):
"""Compute the output of the negative operation
Args:
x_value: Input value
"""
return -x_value
@RegisterGradient("add")
def _add_gradient(op, grad):
"""Computes the gradients for `add`.
Args:
op: The `add` `Operation` that we are differentiating
grad: Gradient with respect to the output of the `add` op.
Returns:
Gradients with respect to the input of `add`.
"""
a = op.inputs[0]
b = op.inputs[1]
grad_wrt_a = grad
while np.ndim(grad_wrt_a) > len(a.shape):
grad_wrt_a = np.sum(grad_wrt_a, axis=0)
for axis, size in enumerate(a.shape):
if size == 1:
grad_wrt_a = np.sum(grad_wrt_a, axis=axis, keepdims=True)
grad_wrt_b = grad
while np.ndim(grad_wrt_b) > len(b.shape):
grad_wrt_b = np.sum(grad_wrt_b, axis=0)
for axis, size in enumerate(b.shape):
if size == 1:
grad_wrt_b = np.sum(grad_wrt_b, axis=axis, keepdims=True)
return [grad_wrt_a, grad_wrt_b]
@RegisterGradient("matmul")
def _matmul_gradient(op, grad):
"""Computes the gradients for `matmul`.
Args:
op: The `matmul` `Operation` that we are differentiating
grad: Gradient with respect to the output of the `matmul` op.
Returns:
Gradients with respect to the input of `matmul`.
"""
A = op.inputs[0]
B = op.inputs[1]
return [grad.dot(B.T), A.T.dot(grad)]
@RegisterGradient("sigmoid")
def _sigmoid_gradient(op, grad):
"""Computes the gradients for `sigmoid`.
Args:
op: The `sigmoid` `Operation` that we are differentiating
grad: Gradient with respect to the output of the `sigmoid` op.
Returns:
Gradients with respect to the input of `sigmoid`.
"""
sigmoid = op.output
return grad * sigmoid * (1-sigmoid)
@RegisterGradient("softmax")
def _softmax_gradient(op, grad):
"""Computes the gradients for `softmax`.
Args:
op: The `softmax` `Operation` that we are differentiating
grad: Gradient with respect to the output of the `softmax` op.
Returns:
Gradients with respect to the input of `softmax`.
"""
softmax = op.output
return (grad - np.reshape(
np.sum(grad * softmax, 1),
[-1, 1]
)) * softmax
@RegisterGradient("log")
def _log_gradient(op, grad):
"""Computes the gradients for `log`.
Args:
op: The `log` `Operation` that we are differentiating
grad: Gradient with respect to the output of the `log` op.
Returns:
Gradients with respect to the input of `log`.
"""
x = op.inputs[0]
return grad/x
@RegisterGradient("multiply")
def _multiply_gradient(op, grad):
"""Computes the gradients for `multiply`.
Args:
op: The `multiply` `Operation` that we are differentiating
grad: Gradient with respect to the output of the `multiply` op.
Returns:
Gradients with respect to the input of `multiply`.
"""
A = op.inputs[0]
B = op.inputs[1]
return [grad * B, grad * A]
@RegisterGradient("reduce_sum")
def _reduce_sum_gradient(op, grad):
"""Computes the gradients for `reduce_sum`.
Args:
op: The `reduce_sum` `Operation` that we are differentiating
grad: Gradient with respect to the output of the `reduce_sum` op.
Returns:
Gradients with respect to the input of `reduce_sum`.
"""
A = op.inputs[0]
output_shape = np.array(A.shape)
output_shape[op.axis] = 1
tile_scaling = A.shape // output_shape
grad = np.reshape(grad, output_shape)
return np.tile(grad, tile_scaling)
@RegisterGradient("negative")
def _negative_gradient(op, grad):
"""Computes the gradients for `negative`.
Args:
op: The `negative` `Operation` that we are differentiating
grad: Gradient with respect to the output of the `negative` op.
Returns:
Gradients with respect to the input of `negative`.
"""
return -grad
class placeholder:
"""Represents a placeholder node that has to be provided with a value
when computing the output of a computational graph
"""
def __init__(self):
"""Construct placeholder
"""
self.consumers = []
# Append this placeholder to the list of placeholders in the currently active default graph
_default_graph.placeholders.append(self)
class Variable:
"""Represents a variable (i.e. an intrinsic, changeable parameter of a computational graph).
"""
def __init__(self, initial_value = None):
"""Construct Variable
Args:
initial_value: The initial value of this variable
"""
self.value = initial_value
self.consumers = []
# Append this variable to the list of variables in the currently active default graph
_default_graph.variables.append(self)
class Graph:
"""Represents a computational graph
"""
def __init__(self):
"""Construct Graph"""
self.operations = []
self.placeholders = []
self.variables = []
def as_default(self):
global _default_graph
_default_graph = self
class Session:
"""Represents a particular execution of a computational graph.
"""
def run(self, operation, feed_dict = {}):
"""Computes the output of an operation
Args:
operation: The operation whose output we'd like to compute.
feed_dict: A dictionary that maps placeholders to values for this session
"""
# Perform a post-order traversal of the graph to bring the nodes into the right order
nodes_postorder = traverse_postorder(operation)
# Iterate all nodes to determine their value
for node in nodes_postorder:
if type(node) == placeholder:
# Set the node value to the placeholder value from feed_dict
node.output = feed_dict[node]
elif type(node) == Variable:
# Set the node value to the variable's value attribute
node.output = node.value
else: # Operation
# Get the input values for this operation from node_values
node.inputs = [input_node.output for input_node in node.input_nodes]
# Compute the output of this operation
node.output = node.compute(*node.inputs)
# Convert lists to numpy arrays
if type(node.output) == list:
node.output = np.array(node.output)
# Return the requested node value
return operation.output
def traverse_postorder(operation):
"""Performs a post-order traversal, returning a list of nodes
in the order in which they have to be computed
Args:
operation: The operation to start traversal at
"""
nodes_postorder = []
def recurse(node):
if isinstance(node, Operation):
for input_node in node.input_nodes:
recurse(input_node)
nodes_postorder.append(node)
recurse(operation)
return nodes_postorder
class GradientDescentOptimizer:
def __init__(self, learning_rate):
self.learning_rate = learning_rate
def minimize(self, loss):
learning_rate = self.learning_rate
class MinimizationOperation(Operation):
def compute(self):
# Compute gradients
grad_table = compute_gradients(loss)
# Iterate all variables
for node in grad_table:
if type(node) == Variable:
# Retrieve gradient for this variable
grad = grad_table[node]
# Take a step along the direction of the negative gradient
node.value -= learning_rate * grad
return MinimizationOperation()
def compute_gradients(loss):
# grad_table[node] will contain the gradient of the loss w.r.t. the node's output
grad_table = {}
# The gradient of the loss with respect to the loss is just 1
grad_table[loss] = 1
# Perform a breadth-first search, backwards from the loss
visited = set()
queue = Queue()
visited.add(loss)
queue.put(loss)
while not queue.empty():
node = queue.get()
#print("CurrNode: " + str(node))
# If this node is not the loss
if node != loss:
#
# Compute the gradient of the loss with respect to this node's output
#
grad_table[node] = 0
# Iterate all consumers
for consumer in node.consumers:
#print("\t Consumer: " + str(consumer))
#print("\t GradTable: " + str(grad_table))
# Retrieve the gradient of the loss w.r.t. consumer's output
lossgrad_wrt_consumer_output = grad_table[consumer]
# Retrieve the function which computes gradients with respect to
# consumer's inputs given gradients with respect to consumer's output.
consumer_op_type = consumer.__class__
bprop = _gradient_registry[consumer_op_type]
# Get the gradient of the loss with respect to all of consumer's inputs
lossgrads_wrt_consumer_inputs = bprop(consumer, lossgrad_wrt_consumer_output)
if len(consumer.input_nodes) == 1:
# If there is a single input node to the consumer, lossgrads_wrt_consumer_inputs is a scalar
grad_table[node] += lossgrads_wrt_consumer_inputs
else:
# Otherwise, lossgrads_wrt_consumer_inputs is an array of gradients for each input node
# Retrieve the index of node in consumer's inputs
node_index_in_consumer_inputs = consumer.input_nodes.index(node)
# Get the gradient of the loss with respect to node
lossgrad_wrt_node = lossgrads_wrt_consumer_inputs[node_index_in_consumer_inputs]
# Add to total gradient
grad_table[node] += lossgrad_wrt_node
#
# Append each input node to the queue
#
if hasattr(node, "input_nodes"):
for input_node in node.input_nodes:
if not input_node in visited:
visited.add(input_node)
queue.put(input_node)
# Return gradients for each visited node
return grad_table
import matplotlib.pyplot as plt
points_origin = np.random.randn(25, 2) * 0.22
points_i = np.random.randn(25, 2) * 0.22 + np.ones((25, 2))
red_points = np.append(points_origin, points_i, 0)
points_origin[:,0] += 1
points_i[:,0] -= 1
blue_points = np.append(points_origin, points_i, 0)
# 创建一个新的 graph
Graph().as_default()
# 创建输入 placeholder
X = placeholder()
# 创建训练类别 placeholder
c = placeholder()
# 创建隐藏层
W_hidden = Variable(np.random.randn(2, 2))
b_hidden = Variable(np.random.randn(2))
p_hidden = sigmoid(add(matmul(X, W_hidden), b_hidden))
# 创建输出层
W_output = Variable(np.random.randn(2, 2))
b_output = Variable(np.random.randn(2))
p_output = softmax(add(matmul(p_hidden, W_output), b_output))
# 写出交叉熵损失
J = negative(reduce_sum(reduce_sum(multiply(c, log(p_output)), axis=1)))
# 写一个最小化损失的 operation
minimization_op = GradientDescentOptimizer(learning_rate=0.03).minimize(J)
# 构建 placeholder 输入
feed_dict = {
X: np.concatenate((blue_points, red_points)),
c:
[[1, 0]] * len(blue_points)
+ [[0, 1]] * len(red_points)
}
# 创建 session
session = Session()
# 进行 100 次梯度下降迭代
for step in range(1000):
J_value = session.run(J, feed_dict)
if step % 100 == 0:
print("Step:", step, " Loss:", J_value)
session.run(minimization_op, feed_dict)
# 打印最终结果
W_hidden_value = session.run(W_hidden)
print("Hidden layer weight matrix:\n", W_hidden_value)
b_hidden_value = session.run(b_hidden)
print("Hidden layer bias:\n", b_hidden_value)
W_output_value = session.run(W_output)
print("Output layer weight matrix:\n", W_output_value)
b_output_value = session.run(b_output)
print("Output layer bias:\n", b_output_value)
# 可视化分类边界
xs = np.linspace(-2, 2)
ys = np.linspace(-2, 2)
pred_classes = []
for x in xs:
for y in ys:
pred_class = session.run(p_output,
feed_dict={X: [[x, y]]})[0]
pred_classes.append((x, y, pred_class.argmax()))
xs_p, ys_p = [], []
xs_n, ys_n = [], []
for x, y, c in pred_classes:
if c == 0:
xs_n.append(x)
ys_n.append(y)
else:
xs_p.append(x)
ys_p.append(y)
plt.plot(xs_p, ys_p, 'ro', xs_n, ys_n, 'bo')
可以看到，我们已经学习得到了相当复杂的决策边界。我们使用的层越多，决策边界就会变得越复杂，从而使我们能够学习得到人类所不可能发现的分类模式，尤其是维度更高的情况下。
## 概括
恭喜你！从零开始走到这一步，你已经完成了土法神经网络的基础部分，与大多数机器学习从业者不同，你现在知道了其背后的工作原理，以及为什么它是这样做的。
我们来回顾一下。一开始我们介绍了计算图，学习了它们的构建，以及输出的计算。之后，我们介绍了感知机，即线性分类器，它通过 sigmoid 压缩 的输出，来得出属于各个分类的概率（在多分类的情况下可能使用 softmax 而非 sigmoid）。
紧接着，我们学习了如何通过损失函数来判断分类器的好坏，最小化交叉熵损失，与最大似然是相同的。随后，我们看到了如何通过梯度下降来实现损失函数的最小化：通过向梯度的反方向迭代。
然后，我们引入了反向传播，用来计算每个节点损失的导数，具体是通过广度优先搜索和链式法则实现的。我们用全部所学的内容，为红色/蓝色示例数据集训练了一个良好的线性分类器。
最后，我们学习了以多层感知机，用来作为学习非线性决策边界的一种方法。多层感知机是通过一个隐藏层实现的。通过多层感知机，我们在一个非线性可分的数据集上成功地训练出了理想的决策边界。
下一步
接下来的章节将着重介绍在神经网络的训练方面的实际经验。
