Runtime源码阅读分享之对象的生命周期这篇文章主要介绍的内容包括根据源码来理解对象从“出生”到“消亡”的整个生命周期

简介

这篇文章主要介绍的内容包括根据源码来理解对象从“出生”到“消亡”的整个生命周期。

对象的出生

alloc 方法做了什么？

// 由源码可知
+ (id)alloc {
    return _objc_rootAlloc(self);
}

// 接着👇
id _objc_rootAlloc(Class cls)
{
    return callAlloc(cls, false/*checkNil*/, true/*allocWithZone*/);
}

// 接着👇
static ALWAYS_INLINE id callAlloc(Class cls, bool checkNil, bool allocWithZone=false)
{
    if (checkNil && !cls) return nil;

#if __OBJC2__
  // 首先判断当前类是否 hasCustomAWZ ，该方法定义如下
  /**
   	bool hasCustomAWZ() {
       return ! bits.hasDefaultAWZ();
    }

    bool hasDefaultAWZ() {
       return data()->flags & RW_HAS_DEFAULT_AWZ;
    }

    而 RW_HAS_DEFAULT_AWZ 的定义如下：表示是否拥有默认创建方法
    // class or superclass has default alloc/allocWithZone: implementation
	// Note this is is stored in the metaclass.
	#define RW_HAS_DEFAULT_AWZ    (1<<16)
  */

  // 无默认创建方法
    if (! cls->ISA()->hasCustomAWZ()) {
        // No alloc/allocWithZone implementation. Go straight to the allocator.
        // fixme store hasCustomAWZ in the non-meta class and
        // add it to canAllocFast's summary
        if (cls->canAllocFast()) {
            // No ctors, raw isa, etc. Go straight to the metal.
          // 判断是否有析构函数
            bool dtor = cls->hasCxxDtor();
          // 直接初始化，并且置为 0
            id obj = (id)calloc(1, cls->bits.fastInstanceSize());
          // 创建失败，则被 badHandler 捕获
            if (!obj) return callBadAllocHandler(cls);
          // 然后初始化
            obj->initInstanceIsa(cls, dtor);

            return obj;
        } else {
            // Has ctor or raw isa or something. Use the slower path.

         /**
         // 如果无法进行快速创建，则直接在 zone 中分配一块空间来创建
         id
		class_createInstance(Class cls, size_t extraBytes)
		{
   			 return _class_createInstanceFromZone(cls, extraBytes, nil);
		}
         */
            id obj = class_createInstance(cls, 0);
            if (!obj) return callBadAllocHandler(cls);
            return obj;
        }
    }
#endif

    // No shortcuts available.
    if (allocWithZone) return [cls allocWithZone:nil];
    return [cls alloc];
}

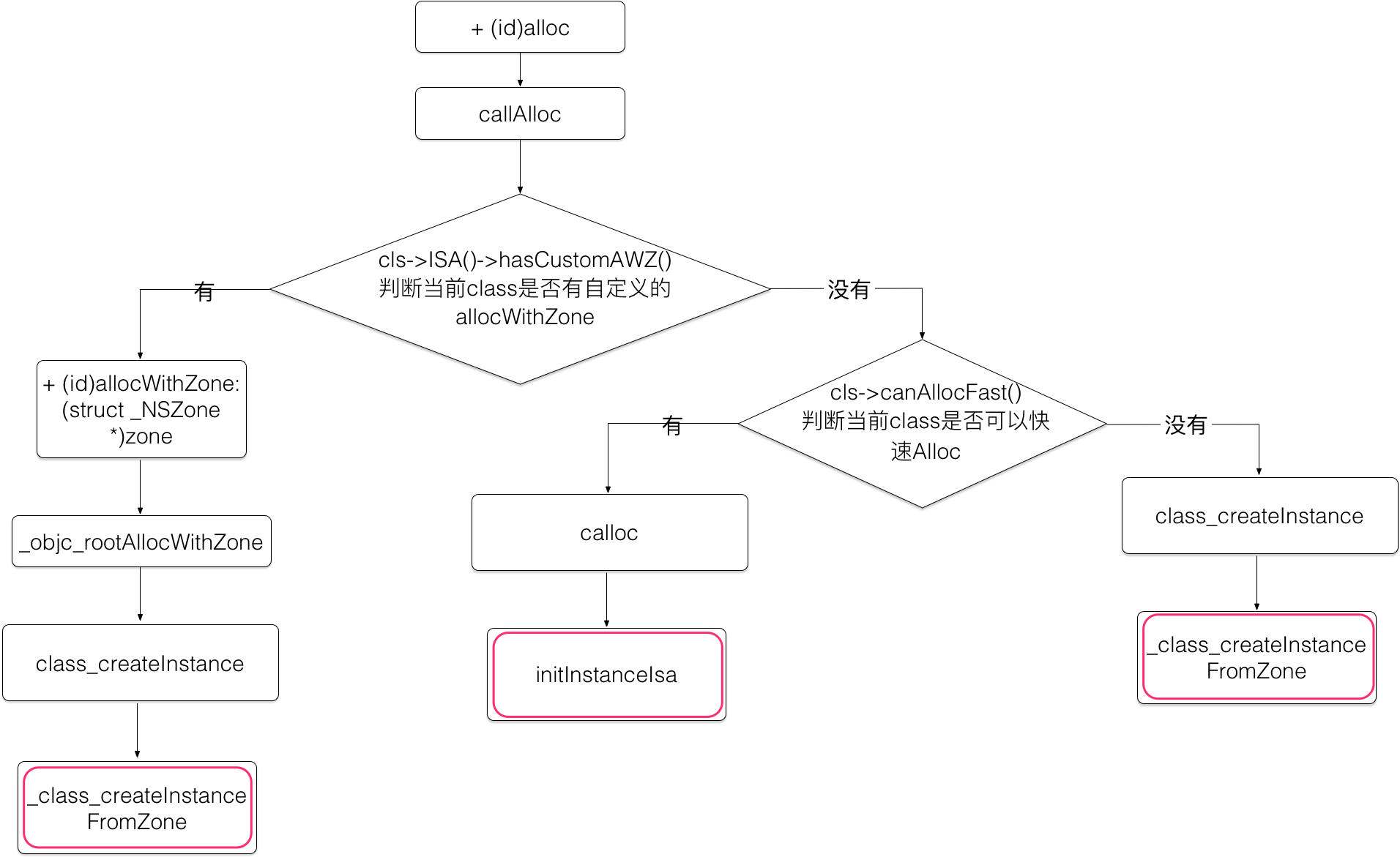

最终都调用了 _class_createInstanceFromZone 方法

// 现在我们来看一下这个方法
static __attribute__((always_inline))
id
_class_createInstanceFromZone(Class cls, size_t extraBytes, void *zone,
                              bool cxxConstruct = true,
                              size_t *outAllocatedSize = nil)
{
    if (!cls) return nil;

    assert(cls->isRealized());

    // Read class's info bits all at once for performance
  // 判断是否有析构函数
    bool hasCxxCtor = cls->hasCxxCtor();
    bool hasCxxDtor = cls->hasCxxDtor();
  // 判断是否能够快速初始化
    bool fast = cls->canAllocNonpointer();

  // 计算当前实例的大小
    size_t size = cls->instanceSize(extraBytes);

    if (outAllocatedSize) *outAllocatedSize = size;

    id obj;
    if (!zone  &&  fast) {
      // 如果 zone 为空 并且可以快速构造，则直接使用 calloc 函数快速构造一个 size 大小的位置
        obj = (id)calloc(1, size);
        if (!obj) return nil;
      // 初始化数据
        obj->initInstanceIsa(cls, hasCxxDtor);
    }
    else {
      // 如果不支持快速构造并且有 zone，则直接在 zone 上分配一个 size 大小的存储空间
        if (zone) {
            obj = (id)malloc_zone_calloc ((malloc_zone_t *)zone, 1, size);
      // 如果不支持快速构造并且无 zone，则直接使用 calloc 分配一个 size 大小的存储空间
        } else {
            obj = (id)calloc(1, size);
        }
        if (!obj) return nil;

        // Use raw pointer isa on the assumption that they might be
        // doing something weird with the zone or RR.
        obj->initIsa(cls);
    }

    if (cxxConstruct && hasCxxCtor) {
        obj = _objc_constructOrFree(obj, cls);
    }

    return obj;
}

而我们之后，需要调用 init 方法，来实现对象真正的完成出生过程

- (id)init {
    return _objc_rootInit(self);
}

_objc_rootInit(id obj)
{
    // In practice, it will be hard to rely on this function.
    // Many classes do not properly chain -init calls.
    return obj;
}

至此，对象的出生真正完成

对象的生长

首先定义如下类

#import <Foundation/Foundation.h>

@interface LYObject : NSObject

@property (nonatomic, strong) NSString *name;

- (void)study;
+ (void)sleep;

@end

@implementation LYObject

- (void)study {
    NSLog(@"studying");
}

+ (void)sleep {
    NSLog(@"sleeping");
}

@end

然后在 viewController 中调用它

- (void)testSuperClass {
    LYObject *obj = [[LYObject alloc] init];

    NSLog(@"class - %@", [obj class]);
    NSLog(@"superClass - %@", [obj superclass]);
    NSLog(@"metaClass -- %@", object_getClass([obj class]));
    NSLog(@"metaClass's metaClass -- %@", object_getClass(object_getClass([obj class])));
    NSLog(@"metaClass's superClass -- %@", [object_getClass([obj class]) superclass]);

    // 打印结果
    /**
     2017-12-28 21:16:43.972104+0800 RuntimeTest[60981:11200702] class - LYObject
     2017-12-28 21:16:43.972300+0800 RuntimeTest[60981:11200702] superClass - NSObject
     2017-12-28 21:16:43.972417+0800 RuntimeTest[60981:11200702] metaClass -- LYObject
     2017-12-28 21:16:43.972530+0800 RuntimeTest[60981:11200702] metaClass's metaClass -- NSObject
     2017-12-28 21:16:43.972626+0800 RuntimeTest[60981:11200702] metaClass's superClass -- NSObject
     */
}

- (void)testPoiter {
    Class currentClass = [LYObject class];
    for (int i = 1; i < 5; i++)
    {
        NSLog(@"Following the isa pointer %d times gives %p %@", i, currentClass,currentClass);
        currentClass = object_getClass(currentClass);
    }

    NSLog(@"NSObject's class is %p", [NSObject class]);
    NSLog(@"NSObject's meta class is %p", object_getClass([NSObject class]));
    NSLog(@"NSObject's meta class's meta class is %p", object_getClass(object_getClass([NSObject class])));

    /**
     2017-12-28 21:18:58.430792+0800 RuntimeTest[61004:11204340] Following the isa pointer 1 times gives 0x1036f3060 LYObject
     // 表明此时指向 LYObject 的类

     2017-12-28 21:18:58.430971+0800 RuntimeTest[61004:11204340] Following the isa pointer 2 times gives 0x1036f3038 LYObject
     // 此时指向 LYObject 的 meta class

     2017-12-28 21:18:58.431090+0800 RuntimeTest[61004:11204340] Following the isa pointer 3 times gives 0x1046aae58 NSObject
     // 此时指向 LYObject 的 meta class 的 superClass

     2017-12-28 21:18:58.431185+0800 RuntimeTest[61004:11204340] Following the isa pointer 4 times gives 0x1046aae58 NSObject
     // 表面实际上 NSObject 类的 meta class 指针指向自己

     2017-12-28 21:18:58.431277+0800 RuntimeTest[61004:11204340] NSObject's class is 0x1046aaea8
     2017-12-28 21:18:58.431501+0800 RuntimeTest[61004:11204340] NSObject's meta class is 0x1046aae58
     2017-12-28 21:18:58.431793+0800 RuntimeTest[61004:11204340] NSObject's meta class's meta class is 0x1046aae58
     */
}

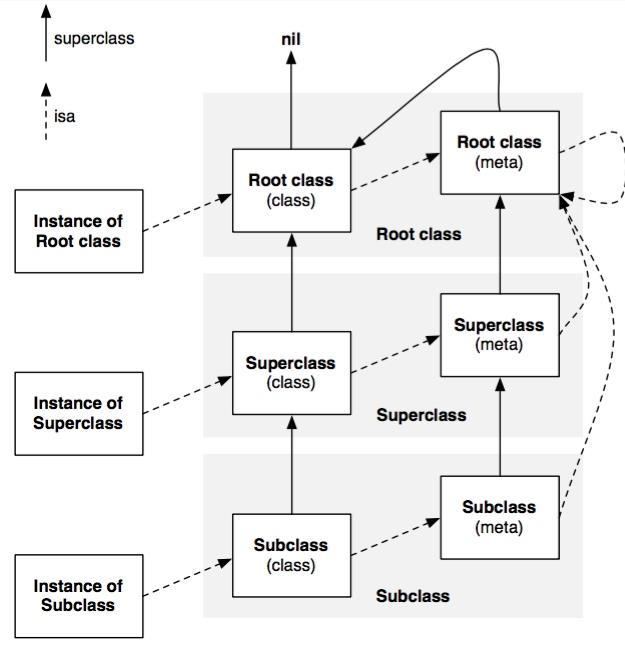

由这两个方法可以看出，实际上 LYObject 对象的 class 为 LYObject， LYObject 类的 class（即metaClass）为 LYObject，但是 LYObject 的 metaClass 的 superClass 为 NSObject，如图

我们进一步可以看到，在黑框中的两个 class 实际上是一对 classPair，在 Runtime 的代码定义中如下：

  /**
@param superclass 表示这个方法首先指明新建 class 的 superclass，如果新建的 class 是一个 rootclass，则直接传递 nil
@param name 表示新创建的 class 的 name， 这个 name 的修饰符为 copy
@param extraBytes 表示 The number of bytes to allocate for indexed ivars at the end of
   the class and metaclass objects. This should usually be \c 0. 通常为 0

   创建一对新的 class pair 的步骤，
   	首先，调用 objc_allocateClassPair 方法
   	然后，调用 class_addMethod or class_addIvars 来给当前的类添加编译时的属性
   	然后，调用 objc_registerClassPair 来注册这个 class ，此时这个新的 class 就准备好了！
   	最后，在 Runtime 时期，动态的为类添加 实例变量和 实例方法，而类方法应该被添加到 metaclass 中
*/

Class objc_allocateClassPair(Class superclass, const char *name,
                             size_t extraBytes)
{
    Class cls, meta;

    rwlock_writer_t lock(runtimeLock);

    // Fail if the class name is in use.
    // Fail if the superclass isn't kosher.
    if (getClass(name)  ||  !verifySuperclass(superclass, true/*rootOK*/)) {
        return nil;
    }

    // Allocate new classes.
    cls  = alloc_class_for_subclass(superclass, extraBytes);
    meta = alloc_class_for_subclass(superclass, extraBytes);

    // fixme mangle the name if it looks swift-y?
    objc_initializeClassPair_internal(superclass, name, cls, meta);

    return cls;
}

// 在上述方法中给 cls 和 meta 指针赋值时， 调用了 alloc_class_for_subclass 方法，这个方法实际上就是创建了一个类的地址空间给它使用。
static Class
alloc_class_for_subclass(Class supercls, size_t extraBytes)
{
    if (!supercls  ||  !supercls->isSwift()) {
        return _calloc_class(sizeof(objc_class) + extraBytes);
    }
}

// 也调用了另一个方法 objc_initializeClassPair_internal， 在这个方法中👇

// &UnsetLayout is the default ivar layout during class construction
static const uint8_t UnsetLayout = 0;

static void objc_initializeClassPair_internal(Class superclass, const char *name, Class cls, Class meta)
{
    runtimeLock.assertWriting();

  // 首先声明两个储存类信息的指针
    class_ro_t *cls_ro_w, *meta_ro_w;

  // 为 class_rw_t 结构体创建控件，然后初始化为 0
    cls->setData((class_rw_t *)calloc(sizeof(class_rw_t), 1));
    meta->setData((class_rw_t *)calloc(sizeof(class_rw_t), 1));
    cls_ro_w   = (class_ro_t *)calloc(sizeof(class_ro_t), 1);
    meta_ro_w  = (class_ro_t *)calloc(sizeof(class_ro_t), 1);
  // 然后使 data() 返回的 class_rw_t 指针的 ro 变量指向刚刚声明的两个指针 cls_ro_w 和 meta_ro_w
    cls->data()->ro = cls_ro_w;
    meta->data()->ro = meta_ro_w;

// 接着设置初始化信息
  /**
  // class allocated but not yet registered
	#define RW_CONSTRUCTING       (1<<26)

	// class_rw_t->ro is heap copy of class_ro_t
	#define RW_COPIED_RO          (1<<27)

	// Values for class_rw_t->flags
	// These are not emitted by the compiler and are never used in class_ro_t.
	// Their presence should be considered in future ABI versions.
	// class_t->data is class_rw_t, not class_ro_t
	#define RW_REALIZED           (1<<31)

	// available for use
	// #define RW_20       (1<<20)
	// class has started realizing but not yet completed it
	#define RW_REALIZING          (1<<19)
  */
    cls->data()->flags = RW_CONSTRUCTING | RW_COPIED_RO | RW_REALIZED | RW_REALIZING;
    meta->data()->flags = RW_CONSTRUCTING | RW_COPIED_RO | RW_REALIZED | RW_REALIZING;

  // 设置 version， 7 表示 meta class
    cls->data()->version = 0;
    meta->data()->version = 7;

  // 设置 flag RO_META 表示 meta class
    cls_ro_w->flags = 0;
    meta_ro_w->flags = RO_META;

  // 如果都没有 superclass， 则为 rootclass
    if (!superclass) {
        cls_ro_w->flags |= RO_ROOT;
        meta_ro_w->flags |= RO_ROOT;
    }

    if (superclass) {
        cls_ro_w->instanceStart = superclass->unalignedInstanceSize();
        meta_ro_w->instanceStart = superclass->ISA()->unalignedInstanceSize();
        cls->setInstanceSize(cls_ro_w->instanceStart);
        meta->setInstanceSize(meta_ro_w->instanceStart);
    } else {
        cls_ro_w->instanceStart = 0;
        meta_ro_w->instanceStart = (uint32_t)sizeof(objc_class);
        cls->setInstanceSize((uint32_t)sizeof(id));  // just an isa
        meta->setInstanceSize(meta_ro_w->instanceStart);
    }

    cls_ro_w->name = strdupIfMutable(name);
    meta_ro_w->name = strdupIfMutable(name);

    cls_ro_w->ivarLayout = &UnsetLayout;
    cls_ro_w->weakIvarLayout = &UnsetLayout;

    meta->chooseClassArrayIndex();
    cls->chooseClassArrayIndex();

    // Connect to superclasses and metaclasses
    cls->initClassIsa(meta);
    if (superclass) {
        meta->initClassIsa(superclass->ISA()->ISA());
        cls->superclass = superclass;
        meta->superclass = superclass->ISA();
        addSubclass(superclass, cls);
        addSubclass(superclass->ISA(), meta);
    } else {

对象的销毁

当我们对一个对象发送 dealloc 消息时

// Replaced by NSZombies
- (void)dealloc {
    _objc_rootDealloc(self);
}

// 内部调用
void
_objc_rootDealloc(id obj)
{
    assert(obj);

    obj->rootDealloc();
}

inline void
objc_object::rootDealloc()
{
    if (isTaggedPointer()) return;  // fixme necessary?

  /**
  nonpointer代表是否开启isa指针优化。
  weakly_referenced代表对象被指向或者曾经指向一个 ARC 的弱变量。
  has_assoc代表对象含有或者曾经含有关联引用。
  has_cxx_dtor之前提到过了，是析构器。
  has_sidetable_rc判断该对象的引用计数是否过大。
  */
    if (fastpath(isa.nonpointer  &&
                 !isa.weakly_referenced  &&
                 !isa.has_assoc  &&
                 !isa.has_cxx_dtor  &&
                 !isa.has_sidetable_rc))
    {
        assert(!sidetable_present());
        free(this);
    }
    else {
        object_dispose((id)this);
    }
}

// 又调用
id
object_dispose(id obj)
{
    if (!obj) return nil;

    objc_destructInstance(obj);
    free(obj);

    return nil;
}

/***********************************************************************
* objc_destructInstance
* Destroys an instance without freeing memory.
* Calls C++ destructors.
* Calls ARC ivar cleanup.
* Removes associative references.
* Returns `obj`. Does nothing if `obj` is nil.
**********************************************************************/
void *objc_destructInstance(id obj)
{
    if (obj) {
        // Read all of the flags at once for performance.
        bool cxx = obj->hasCxxDtor();
        bool assoc = obj->hasAssociatedObjects();

        // This order is important.
      // 判断是否有析构器，如果有，就直接调用👇方法
        if (cxx) object_cxxDestruct(obj);
        if (assoc) _object_remove_assocations(obj);
        obj->clearDeallocating();
    }

    return obj;
}

当调用 object_cxxDestruct 方法时，后续调用如下：

/***********************************************************************
* object_cxxDestruct.
* Call C++ destructors on obj, if any.
* Uses methodListLock and cacheUpdateLock. The caller must hold neither.
**********************************************************************/
void object_cxxDestruct(id obj)
{
    if (!obj) return;
    if (obj->isTaggedPointer()) return;
    object_cxxDestructFromClass(obj, obj->ISA());
}
/***********************************************************************
* object_cxxDestructFromClass.
* Call C++ destructors on obj, starting with cls's
*   dtor method (if any) followed by superclasses' dtors (if any),
*   stopping at cls's dtor (if any).
* Uses methodListLock and cacheUpdateLock. The caller must hold neither.
    **********************************************************************/
      static void object_cxxDestructFromClass(id obj, Class cls)
      {
    void (*dtor)(id);

    // Call cls's dtor first, then superclasses's dtors.

    for ( ; cls; cls = cls->superclass) {
        if (!cls->hasCxxDtor()) return;
        dtor = (void(*)(id))
            lookupMethodInClassAndLoadCache(cls, SEL_cxx_destruct);
        if (dtor != (void(*)(id))_objc_msgForward_impcache) {
            if (PrintCxxCtors) {
                _objc_inform("CXX: calling C++ destructors for class %s",
                             cls->nameForLogging());
            }
            (*dtor)(obj);
        }
    }
      }

/***********************************************************************
* object_cxxDestructFromClass.
* Call C++ destructors on obj, starting with cls's
*   dtor method (if any) followed by superclasses' dtors (if any),
*   stopping at cls's dtor (if any).
* Uses methodListLock and cacheUpdateLock. The caller must hold neither.
    **********************************************************************/
      static void object_cxxDestructFromClass(id obj, Class cls)
      {
    void (*dtor)(id);

    // Call cls's dtor first, then superclasses's dtors.

    for ( ; cls; cls = cls->superclass) {
        if (!cls->hasCxxDtor()) return;
        dtor = (void(*)(id))
          // 从子类开始沿着继承链一直找到父类，向上搜寻 SEL_cxx_destruct 这个selector，找到函数实现(void (*)(id)(函数指针)并执行。实现垃圾回收
            lookupMethodInClassAndLoadCache(cls, SEL_cxx_destruct);
        if (dtor != (void(*)(id))_objc_msgForward_impcache) {
            if (PrintCxxCtors) {
                _objc_inform("CXX: calling C++ destructors for class %s",
                             cls->nameForLogging());
            }
            (*dtor)(obj);
        }
    }
      }

当调用 _object_remove_assocations 方法时，后续调用如下：

void _object_remove_assocations(id object) {
    vector< ObjcAssociation,ObjcAllocator<ObjcAssociation> > elements;
    {
        AssociationsManager manager;
        AssociationsHashMap &associations(manager.associations());
        if (associations.size() == 0) return;
        disguised_ptr_t disguised_object = DISGUISE(object);
        AssociationsHashMap::iterator i = associations.find(disguised_object);
        if (i != associations.end()) {
            // copy all of the associations that need to be removed.
            ObjectAssociationMap *refs = i->second;
            for (ObjectAssociationMap::iterator j = refs->begin(), end = refs->end(); j != end; ++j) {
                elements.push_back(j->second);
            }
            // remove the secondary table.
            delete refs;
            associations.erase(i);
        }
    }
    // the calls to releaseValue() happen outside of the lock.
    for_each(elements.begin(), elements.end(), ReleaseValue());
}

至此，对象被销毁

总结

此次关于对象生命周期的源码分析到这里就结束了，由于时间和精力有限，这里只做了一个大概的了解，并没有特别深入的研究，希望有不同意见和建议的大佬们能够不吝赐教，谢谢！

Runtime源码阅读分享之对象的生命周期

简介

对象的出生

对象的生长

对象的销毁

总结

参考资料
