最近我开始学习framework，不想一上来就研究到c/c++层进程启动原理什么的，首先得从四大组件的启动流程入手学习，所以我决定写几篇博文，来记录整个过程的学习心得。

关于Activity的启动流程，我准备分成两个部分来写：app进程篇和system进程篇，作为一个应用层开发者，其实掌握前者已经够用了，第二篇作为提高，毕竟多了解一点也没有坏处，就这样吧。

本文主要基于android8.1.0_r15代码分支调试分析；

需要掌握的知识：

Activity生命周期
AIDL原理
Handler机制

一、从startActivity到AMS

我们都知道，打开一个新的Activity需要调用startActivity方法，该方法定义在Context中的，并且在Activity中做了重写，如果是在Service中开启一个Activity呢，Service的实现来自Context，先分析在Context中的实现。

1.1 在ContextImpl中startActivity实现；

ContextImpl#startActivity

@Override
public void startActivity(Intent intent) {
    warnIfCallingFromSystemProcess();
    startActivity(intent, null);
}

@Override
public void startActivity(Intent intent, Bundle options) {
    warnIfCallingFromSystemProcess();
    if ((intent.getFlags()&Intent.FLAG_ACTIVITY_NEW_TASK) == 0
            && options != null && ActivityOptions.fromBundle(options).getLaunchTaskId() == -1) {
        throw new AndroidRuntimeException(
                "Calling startActivity() from outside of an Activity "
                + " context requires the FLAG_ACTIVITY_NEW_TASK flag."
                + " Is this really what you want?");
    }
    //真正的调用在这里
    mMainThread.getInstrumentation().execStartActivity(
            getOuterContext(), mMainThread.getApplicationThread(), null,
            (Activity) null, intent, -1, options);
}
复制代码

顺手看一眼Activity中是怎样实现的(fk，你到底眼看的还是手看的)；

1.2 Activity中是startActivity实现

Activity#startActivity

@Override
public void startActivity(Intent intent) {
    this.startActivity(intent, null);
}

@Override
public void startActivity(Intent intent, @Nullable Bundle options) {
    if (options != null) {
        startActivityForResult(intent, -1, options);
    } else {
        startActivityForResult(intent, -1);
    }
}

public void startActivityForResult(@RequiresPermission Intent intent, int requestCode,
        @Nullable Bundle options) {
    if (mParent == null) {
        options = transferSpringboardActivityOptions(options);
        //真正的调用在这里
        Instrumentation.ActivityResult ar =
            mInstrumentation.execStartActivity(
                this, mMainThread.getApplicationThread(), mToken, this,
                intent, requestCode, options);
        if (ar != null) {
            mMainThread.sendActivityResult(
                mToken, mEmbeddedID, requestCode, ar.getResultCode(),
                ar.getResultData());
        }
        if (requestCode >= 0) {
            mStartedActivity = true;
        }
        cancelInputsAndStartExitTransition(options);
    } else {
        if (options != null) {
            mParent.startActivityFromChild(this, intent, requestCode, options);
        } else {
            mParent.startActivityFromChild(this, intent, requestCode);
        }
    }
}
复制代码

比较Activity和ContextImpl的区别：

最终都是调用Instrumentation.execStartActivity(Context, IBinder, IBinder, Activity, Intent, int, Bundle)方法，然后就是ContextImpl下有几个参数传null。

此外，Context还定义startActivityAsUser方法，该方法对应用层是隐藏的，最终也调用Instrumentation.execStartActivity另一个重载方法，暂不追踪另一个方法。那我们继续跟进Instrumentation代码。

1.3 Instrumentation中execStartActivity

注意：Instrumentation下，execStartActivity有几个重载方法，我们这里只分析有七个参数，且第四个参数为Activity类型的execStartActivity方法。

Instrumentation#execStartActivity

public ActivityResult execStartActivity(
       Context who, IBinder contextThread, IBinder token, Activity target,
       Intent intent, int requestCode, Bundle options) {
   IApplicationThread whoThread = (IApplicationThread) contextThread;
   Uri referrer = target != null ? target.onProvideReferrer() : null;
   if (referrer != null) {
       intent.putExtra(Intent.EXTRA_REFERRER, referrer);
   }
   if (mActivityMonitors != null) {
       synchronized (mSync) {
           final int N = mActivityMonitors.size();
           for (int i=0; i<N; i++) {
               final ActivityMonitor am = mActivityMonitors.get(i);
               ActivityResult result = null;
               if (am.ignoreMatchingSpecificIntents()) {
                   result = am.onStartActivity(intent);
               }
               if (result != null) {
                   am.mHits++;
                   return result;
               } else if (am.match(who, null, intent)) {
                   am.mHits++;
                   if (am.isBlocking()) {
                       return requestCode >= 0 ? am.getResult() : null;
                   }
                   break;
               }
           }
       }
   }
   try {
       intent.migrateExtraStreamToClipData();
       intent.prepareToLeaveProcess(who);
       //真正的调用在这里
       int result = ActivityManager.getService()
           .startActivity(whoThread, who.getBasePackageName(), intent,
                   intent.resolveTypeIfNeeded(who.getContentResolver()),
                   token, target != null ? target.mEmbeddedID : null,
                   requestCode, 0, null, options);
       checkStartActivityResult(result, intent);
   } catch (RemoteException e) {
       throw new RuntimeException("Failure from system", e);
   }
   return null;
}
复制代码

我们先捋清每个参数的意义

参数名	参数类型	意义
who	Context	上下文对象
contextThread	IBinder	ApplicationThread对象
token	IBinder	当前Activity的Token，可能为空
target	Activity	当前Activity，可能为空
intent	Intent	intent
requestCode	int	startActivityforResult传的requestCode
options	Bundle	传递的数据

这七个参数最不熟悉的就是token和contextThread，这两个是IBinder类型，这个问题先放一放，带着疑问，我们继续往下看ActivityManager.getService()是什么鬼。

1.4 ActivityManager和AMS

ActivityManager#getService

//获取的是一个单例对象
public static IActivityManager getService() {
    return IActivityManagerSingleton.get();
}

private static final Singleton<IActivityManager> IActivityManagerSingleton =
        new Singleton<IActivityManager>() {
            @Override
            protected IActivityManager create() {
                final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);
                //正在的IActivityManager在这里
                final IActivityManager am = IActivityManager.Stub.asInterface(b);
                return am;
            }
        };
复制代码

getService()返回是从IActivityManagerSingleton单例对象中得到，真正的操作是IActivityManager.Stub，就这两行代码

final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);
final IActivityManager am = IActivityManager.Stub.asInterface(b);
复制代码

Stub这货是AIDL生成的，关于AIDL原理自行学习，我们从AIDL生成的代码里拿到了IActivityManager代理对象，然后再回到Instrumentation.execStartActivity继续看

真正调用的是IActivityManager.startActivity()方法，AIDL应该该有的东西。我们还是分析一下IActivityManager.aidl文件怎样定义该方法的。

frameworks/base/core/java/android/app/IActivityManager.aild

int startActivity(in IApplicationThread caller, in String callingPackage, in Intent intent,
            in String resolvedType, in IBinder resultTo, in String resultWho, int requestCode,
            int flags, in ProfilerInfo profilerInfo, in Bundle options);
复制代码

这个方法一共十个参数，但是没有注释，我们看看调用端Instrumentation怎么传参的吧。

参数名	传参值	意义
caller	whoThread	ApplicationThread对象
callingPackage	who.getBasePackageName()	应用包名
intent	intent
resolvedType	intent.resolveTypeIfNeeded(who.getContentResolver())	Return the MIME data type of this intent
resultTo	token	调用者，也就是结果将要返给谁
resultWho	target != null ? target.mEmbeddedID : null	调用者的另一种标识吧
requestCode	requestCode
flags	0
ProfilerInfo	null
Bundle	options

写的马马虎虎凑合看一下吧，其实很好理解。

那么IActivityManager真正的Stub是谁呢，按照AIDL的惯例，肯定是继承它的IActivityManager.Stub，一番搜索，我们找到了ActivityManagerService这个类。

frameworks/base/service/core/java/com/android/server/am/ActivityManagerService.java

@Override
public final int startActivity(IApplicationThread caller, String callingPackage,
        Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
        int startFlags, ProfilerInfo profilerInfo, Bundle bOptions) {
    return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
            resultWho, requestCode, startFlags, profilerInfo, bOptions,
            UserHandle.getCallingUserId());
}
复制代码

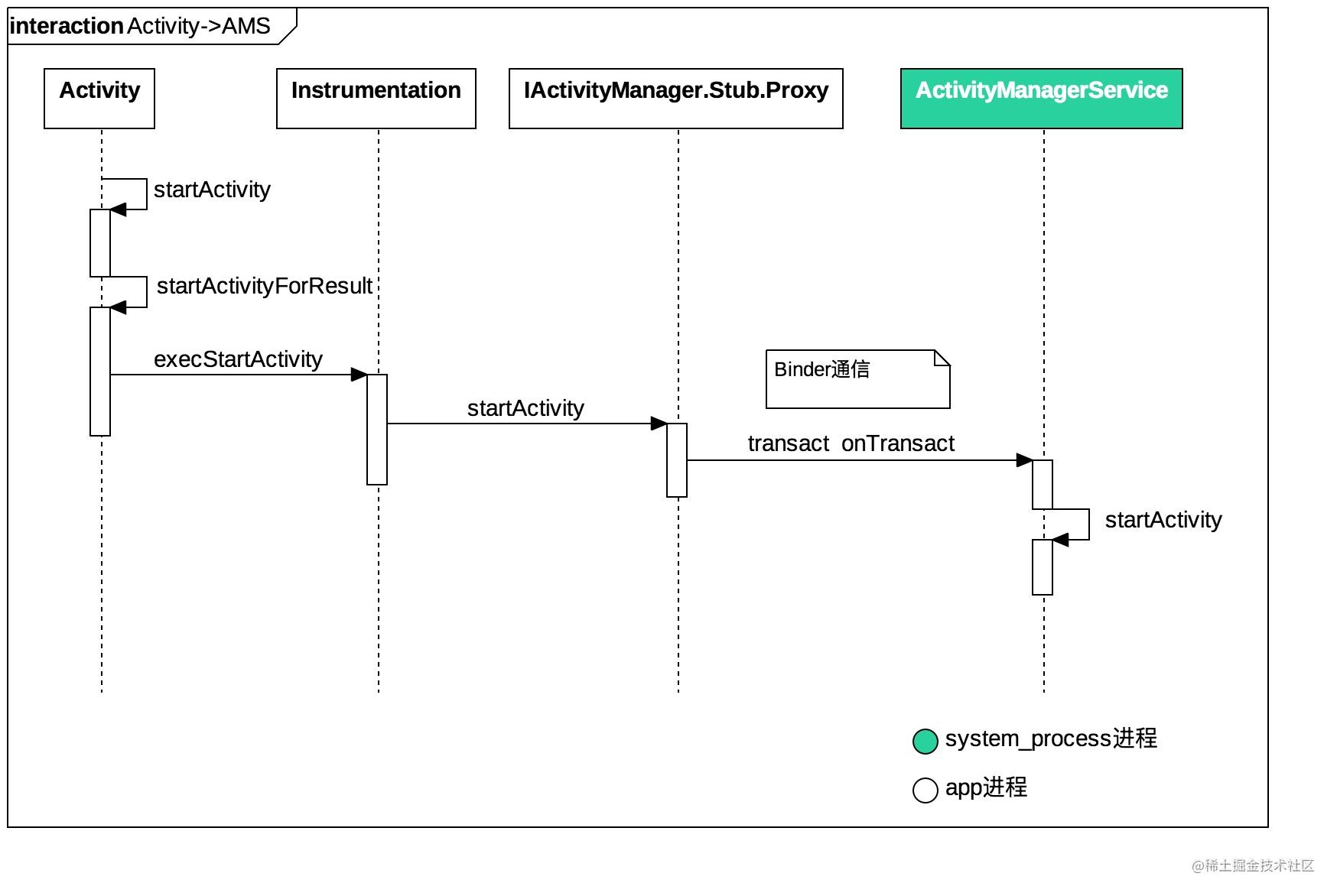

WMS我们暂时不再往下追踪，因为已经超出这篇文章的提纲了，先记住这个类方法入口，我们下篇将要从这里分析，到这我画一张图，总结一下上面说的这些。

图画的很简单，值得注意的是绿色代表运行在system_process进程，system_process就是AMS所在的进程。

二、ActivityThread分析

上文我们一直提到一个类型IApplicationThread，在Activity和ContextImpl中传值是mMainThread.getApplicationThread()，mMainThread是ActivityThread类型，getApplicationThread得到了ApplicationThread，那我们重点分析ApplicationThread和ActivityThread这两个对象。

2.1 main方法入口

首先，ActivityThread并没有继承Thread，那它就不是线程的子类，那它代表了什么，从官方的注释的来看，他是一个应用进程主线程执行的管理者，负责调度和执行四大组件，着手分析他，我们从main方法入口。

ActivityThread#main

    public static void main(String[] args) {
        Looper.prepareMainLooper();
        ActivityThread thread = new ActivityThread();
        thread.attach(false);
        if (sMainThreadHandler == null) {
            sMainThreadHandler = thread.getHandler();
        }
        if (false) {
            Looper.myLooper().setMessageLogging(new
                    LogPrinter(Log.DEBUG, "ActivityThread"));
        }
        Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
        Looper.loop();
    }
复制代码

精简完代码可以看出，main方法中调用Looper.prepareMainLooperf方法，该方法创建主线程的Looper对象，紧接着创建ActivityThread对象并调用attach方法，attach方法参数system用来区分是否是系统进程，我们先不考虑系统进程

2.2 attach方法

ActivityThread#attach

private void attach(boolean system) {
    sCurrentActivityThread = this;
    mSystemThread = system;
    if (!system) {
        //获取IActivityManager代理对象
        final IActivityManager mgr =ActivityManager.getService();
        try {
            //调用attachApplication方法
            mgr.attachApplication(mAppThread);
        } catch (RemoteException ex) {
            throw ex.rethrowFromSystemServer();
        }
    }
}
复制代码

上面关于system的和ViewRootImpl相关的代码已经精简掉，可以清楚的看到调用IActivityManager的attachApplication方法，上文已经提到过startActivity方法也是类似，但是巧合的是两个方法都传递了IApplicationThread对象作为第一个参数，上面传递的是mAppThread，那么这个mAppThread和IApplicationManager何种关系？

2.3 ApplicationThread分析

ApplicationThread继承自IApplicationThread.Stub，说到这里大家可能就尬笑了，又是AIDL，先看一下它定义哪些参数，放眼望去大部分是schedule开头的方法 ApplicationThread#scheduleLaunchActivity

@Override
public final void scheduleLaunchActivity(Intenintent, IBinder token, int ident,
        ActivityInfo info, Configuration curConfigConfiguration overrideConfig,
        CompatibilityInfo compatInfo, Strinreferrer, IVoiceInteractor voiceInteractor,
        int procState, Bundle statePersistableBundle persistentState,
        List<ResultInfo> pendingResultsList<ReferrerIntent> pendingNewIntents,
        boolean notResumed, boolean isForwardProfilerInfo profilerInfo) {
    updateProcessState(procState, false);
    ActivityClientRecord r = neActivityClientRecord();
    r.token = token;
    r.ident = ident;
    r.intent = intent;
    r.referrer = referrer;
    r.voiceInteractor = voiceInteractor;
    r.activityInfo = info;
    r.compatInfo = compatInfo;
    r.state = state;
    r.persistentState = persistentState;
    r.pendingResults = pendingResults;
    r.pendingIntents = pendingNewIntents;
    r.startsNotResumed = notResumed;
    r.isForward = isForward;
    r.profilerInfo = profilerInfo;
    r.overrideConfig = overrideConfig;
    updatePendingConfiguration(curConfig);
    sendMessage(H.LAUNCH_ACTIVITY, r);
}
复制代码

方法太多不粘贴了，但是有个类有必要留意一下，那就是ActivityClientRecord

2.3.1 ActivityClientRecord.token意义：

ActivityClientRecord名字为啥带个client，我认为是为了区别AMS的，ActivityThread相对于AMS就是client；

再顾名思义，这个类是客户端记录Activity信息的，有个关键属性token,token在前文出现过，但是这里出现意义不一样，为啥，因为这个从WMS传递过来的，这是来源，其实在system_process中并不会生成正在的Activity对象，那如何在app端和system_process中共同标识唯一的Activity呢，就是这个token。

再回归到scheduleLaunchActivity方法，最后调用了 sendMessage()方法;追踪该方法，最终调用mH的sendMessage方法 ApplicationThread#sendMessage

private void sendMessage(int what, Object obj, int arg1, int arg2, boolean async) {
    Message msg = Message.obtain();
    msg.what = what;
    msg.obj = obj;
    msg.arg1 = arg1;
    msg.arg2 = arg2;
    if (async) {
    msg.setAsynchronous(true);
    }
    //真正的大佬
    mH.sendMessage(msg);
}
复制代码

那么mH又是谁，是H，继承自Handler，一个H单字母好风骚，H是干啥的呢，主要进行线程间通信，主要看它的handleMessage方法

2.4 H类

ActivityThread.H

 public static final int LAUNCH_ACTIVITY         = 100;
 public static final int PAUSE_ACTIVITY          = 101;
 public static final int PAUSE_ACTIVITY_FINISHING= 102;
 ...

 public void handleMessage(Message msg) {
     if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));
     switch (msg.what) {
         case LAUNCH_ACTIVITY: {
             Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
             final ActivityClientRecord r = (ActivityClientRecord) msg.obj;

             r.packageInfo = getPackageInfoNoCheck(
                     r.activityInfo.applicationInfo, r.compatInfo);
             handleLaunchActivity(r, null, "LAUNCH_ACTIVITY");
             Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
         } break;
}
复制代码

代码太长少粘贴为妙，反正是定义一堆常量，然后handleMessage一路的switch case，很有规律的最终调用ActivityThread下名字handleXXX()的方法；

随便进入一个比如handleLaunchActivity方法，下面貌似是创建Activity的代码，对创建Activity的代码就是这里。既然找到了Activity的创建入口，我们是不是趁着兴奋一路进入handleLaunchActivity看个究竟；说得对，但是我想回过头来捋一下这几个类的关系ActivityThread，H，ApplicationThread，IApplicationThread,IActivityManager;

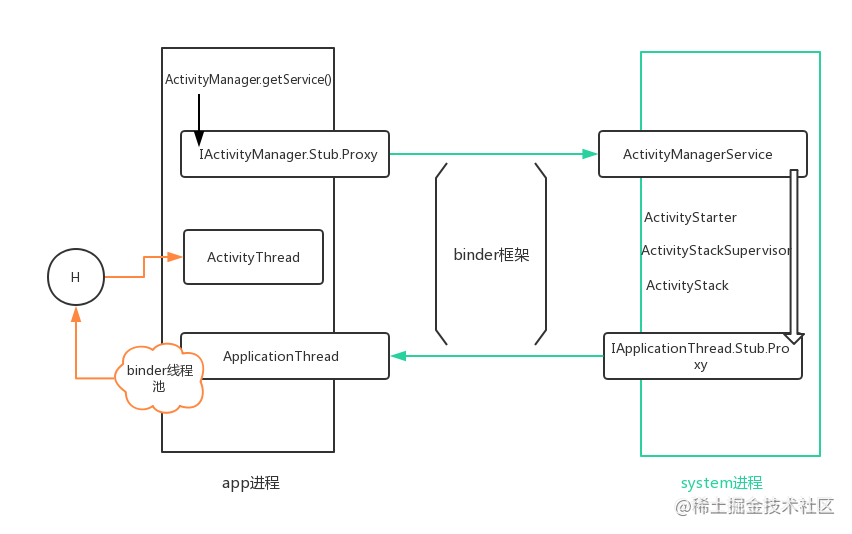

2.5 ActivityThread & ApplicationThread & ActivityManagerService关系

先说ApplicationThread和ActivityManagerService进程间双向通信：

分析这两个之前，必须得了解AIDL的Proxy/Stub模式，Proxy作为客户端的代理对象，Stub作为服务端的存根(真正实现)，IActivityManager和IApplicationThread两者实现binder双向通信。

当app进程向system_process进程请求startActivity事，app进程从ActivityManager得到IActivityManager的Proxy对象，system_process进程正真的Stub是ActivityManagerService；

当system_process向app进程答复这个请求时，此时app进程作为服务端，system_process调用IApplicationThread的proxy对象，app进程正真的Stub是ApplicationThread，从而实现了两者的双向通信。

再说ActivityThread和ApplicationThread线程间通信：

为什么说这两个哥们是需要线程通信，上文得知ActivityThread是代码主线程，ApplicationThread代表app进程的IApplicationThread.Stub；

这两者跟线程有什么关系，这就涉及到binder的另一个知识binder线程池，具体不在这里描述，记住一点ApplicationThrea里面的方法都是在binder线程中执行的，所以H这个类应运而生，接管这两者之间的线程通信。呵呵我有图。

三、Activity从创建到显示经历了什么

接前文所讲，我们继续从handleLaunchActivity方法分析，探究Activity的创建和启动。

3.1 分析handleLaunchActivity()

ActivityThread#handleLaunchActivity

private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent, String reason) {
    // If we are getting ready to gc after going to the background, well
    // we are back active so skip it.
    unscheduleGcIdler();
    mSomeActivitiesChanged = true;
    if (r.profilerInfo != null) {
        mProfiler.setProfiler(r.profilerInfo);
        mProfiler.startProfiling();
    }
    // Make sure we are running with the most recent config.
    handleConfigurationChanged(null, null);
    if (localLOGV) Slog.v(
    TAG, "Handling launch of " + r);
    // Initialize before creating the activity
    if (!ThreadedRenderer.sRendererDisabled) {
    GraphicsEnvironment.earlyInitEGL();
    }
    WindowManagerGlobal.initialize();
    //调用performLaunchActivity方法返回Activity对象
    Activity a = performLaunchActivity(r, customIntent);
    if (a != null) {
        r.createdConfig = new Configuration(mConfiguration);
        reportSizeConfigurations(r);
        Bundle oldState = r.state;
        //调用resume方法
        handleResumeActivity(r.token, false, r.isForward,
                !r.activity.mFinished && !r.startsNotResumed, r.lastProcessedSeq, reason);
    if (!r.activity.mFinished && r.startsNotResumed) {
            performPauseActivityIfNeeded(r, reason);
            if (r.isPreHoneycomb()) {
                r.state = oldState;
            }
        }
    } else {
        // If there was an error, for any reason, tell the activity manager to stop us.
        try {
            ActivityManager.getService()
                .finishActivity(r.token, Activity.RESULT_CANCELED, null,
                        Activity.DONT_FINISH_TASK_WITH_ACTIVITY);
        } catch (RemoteException ex) {
            throw ex.rethrowFromSystemServer();
        }
    }
    }
复制代码

流程解析：

真正创建Activity的地方是在performLaunchActivity方法中
如果a不为空，调用handleResumeActivity执行resume，如果需要，调用performPauseActivityIfNeeded
如果a为空，通知AMS关闭该Activity

3.2 分析performLaunchActivity()

ActivityThread#performLaunchActivity

private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
    ActivityInfo aInfo = r.activityInfo;
    if (r.packageInfo == null) {
        r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
                Context.CONTEXT_INCLUDE_CODE);
    }
    ComponentName component = r.intent.getComponent();
    if (component == null) {
        component = r.intent.resolveActivity(
            mInitialApplication.getPackageManager());
        r.intent.setComponent(component);
    }
    if (r.activityInfo.targetActivity != null) {
        component = new ComponentName(r.activityInfo.packageName,
                r.activityInfo.targetActivity);
    }
    //创建ContextImpl
    ContextImpl appContext = createBaseContextForActivity(r);
    Activity activity = null;
    try {
        //类加载器
        java.lang.ClassLoader cl = appContext.getClassLoader();
        //创建Activity
        activity = mInstrumentation.newActivity(
                cl, component.getClassName(), r.intent);
        StrictMode.incrementExpectedActivityCount(activity.getClass());
        r.intent.setExtrasClassLoader(cl);
        r.intent.prepareToEnterProcess();
        if (r.state != null) {
            r.state.setClassLoader(cl);
        }
    } catch (Exception e) {
        if (!mInstrumentation.onException(activity, e)) {
            throw new RuntimeException(
                "Unable to instantiate activity " + component
                + ": " + e.toString(), e);
        }
    }
    try {
        //得到Application
        Application app = r.packageInfo.makeApplication(false, mInstrumentation);
        if (localLOGV) Slog.v(TAG, "Performing launch of " + r);
        if (localLOGV) Slog.v(
                TAG, r + ": app=" + app
                + ", appName=" + app.getPackageName()
                + ", pkg=" + r.packageInfo.getPackageName()
                + ", comp=" + r.intent.getComponent().toShortString()
                + ", dir=" + r.packageInfo.getAppDir());
        if (activity != null) {
            CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
            Configuration config = new Configuration(mCompatConfiguration);
            if (r.overrideConfig != null) {
                config.updateFrom(r.overrideConfig);
            }
            if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
                    + r.activityInfo.name + " with config " + config);
            Window window = null;
            if (r.mPendingRemoveWindow != null && r.mPreserveWindow) {
                window = r.mPendingRemoveWindow;
                r.mPendingRemoveWindow = null;
                r.mPendingRemoveWindowManager = null;
            }
            //ContextImpl和Activity绑定
            appContext.setOuterContext(activity);
            //调用Activity的attath方法
            activity.attach(appContext, this, getInstrumentation(), r.token,
                    r.ident, app, r.intent, r.activityInfo, title, r.parent,
                    r.embeddedID, r.lastNonConfigurationInstances, config,
                    r.referrer, r.voiceInteractor, window, r.configCallback);
            if (customIntent != null) {
                activity.mIntent = customIntent;
            }
            r.lastNonConfigurationInstances = null;
            checkAndBlockForNetworkAccess();
            activity.mStartedActivity = false;
            int theme = r.activityInfo.getThemeResource();
            if (theme != 0) {
                activity.setTheme(theme);
            }
            activity.mCalled = false;
            //调用Instrumentation.callActivityOnCreate()
            if (r.isPersistable()) {
                 mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
            } else {
                mInstrumentation.callActivityOnCreate(activity, r.state);
            }
            if (!activity.mCalled) {
                throw new SuperNotCalledException(
                    "Activity " + r.intent.getComponent().toShortString() +
                    " did not call through to super.onCreate()");
            }
            r.activity = activity;
            r.stopped = true;
            if (!r.activity.mFinished) {
                //调用performStart
                activity.performStart();
                r.stopped = false;
            }
            //条件调用Instrumentation.callActivityOnRestoreInstanceState()
            if (!r.activity.mFinished) {
                if (r.isPersistable()) {
                    if (r.state != null || r.persistentState != null) {
                        mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state,
                                r.persistentState);
                    }
                } else if (r.state != null) {
                    mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state);
                }
            }
            //条件调用Instrumentation.callActivityOnPostCreate()
            if (!r.activity.mFinished) {
                activity.mCalled = false;
                if (r.isPersistable()) {
                    mInstrumentation.callActivityOnPostCreate(activity, r.state,
                            r.persistentState);
                } else {
                    mInstrumentation.callActivityOnPostCreate(activity, r.state);
                }
                if (!activity.mCalled) {
                    throw new SuperNotCalledException(
                        "Activity " + r.intent.getComponent().toShortString() +
                        " did not call through to super.onPostCreate()");
                }
            }
        }
        r.paused = true;
        //讲Activity放到集合中
        mActivities.put(r.token, r);
    } catch (SuperNotCalledException e) {
        throw e;
    } catch (Exception e) {
        if (!mInstrumentation.onException(activity, e)) {
            throw new RuntimeException(
                "Unable to start activity " + component
                + ": " + e.toString(), e);
        }
    }
    return activity;
}
复制代码

在performLaunchActivity方法中做的工作挺多，我们整理一下关键的流程

创建ContextImpl
调用mInstrumentation.newActivity()返回Activity对象
得到Application对象
将Activity关联到ContextImpl
调用Activity的attach()方法
调用Instrumentation.callActivityOnCreate()
!mFinished调用activity.performStart();
!mFinished调用Instrumenation.callActivityOnRestoreInstanceState
!mFinished调用Instrumentation.callActivityOnPostCreate()
把Activity对象加入到集合中我们逐一分析

3.3 ContextImpl创建

ActivityThread#createBaseContextForActivity

private ContextImpl createBaseContextForActivity(ActivityClientRecord r) {
    final int displayId;
    try {
        displayId = ActivityManager.getService().getActivityDisplayId(r.token);
    } catch (RemoteException e) {
        throw e.rethrowFromSystemServer();
    }
    //创建ContextImpl
    ContextImpl appContext = ContextImpl.createActivityContext(
            this, r.packageInfo, r.activityInfo, r.token, displayId, r.overrideConfig);
    final DisplayManagerGlobal dm = DisplayManagerGlobal.getInstance();
    String pkgName = SystemProperties.get("debug.second-display.pkg");
    if (pkgName != null && !pkgName.isEmpty()
            && r.packageInfo.mPackageName.contains(pkgName)) {
        for (int id : dm.getDisplayIds()) {
            if (id != Display.DEFAULT_DISPLAY) {
                Display display =
                        dm.getCompatibleDisplay(id, appContext.getResources());
                appContext = (ContextImpl) appContext.createDisplayContext(display);
                break;
            }
        }
    }
    return appContext;
}
复制代码

ContextImpl的真正创建是调用ContextImpl.createActivityContext,接下来又要分析Instrumentation这个家伙了

3.4 再次分析Instrumentation

Instrumentation#newActivity

public Activity newActivity(ClassLoader cl, String className,
        Intent intent)
        throws InstantiationException, IllegalAccessException,
        ClassNotFoundException {
        //反射调用
    return (Activity)cl.loadClass(className).newInstance();
}
复制代码

Instrumentation#callActivityOnCreate

 public void callActivityOnCreate(Activity activity, Bundle icicle) {
     prePerformCreate(activity);
     activity.performCreate(icicle);
     postPerformCreate(activity);
 }
复制代码

Instrumentation#callActivityOnRestoreInstanceState

public void callActivityOnRestoreInstanceState(Activity activity, Bundle savedInstanceState) {
    activity.performRestoreInstanceState(savedInstanceState);
}
复制代码

Instrumentation#callActivityOnPostCreate

public void callActivityOnPostCreate(Activity activity, Bundle icicle) {
    activity.onPostCreate(icicle);
}
复制代码

Instrumentation大部分起到一个中转作用，真正还是调用了Activity的相关方法，所以最终代码归结到Activity身上。

3.5 分析performResumeActivity()

再回到handleLaunchActivity的第二步调用handleResumeActivity，handleResumeActivity方法会继续调用performResumeActivity

ActivityThread#performResumeActivity

public final ActivityClientRecord performResumeActivity(IBinder token,
        boolean clearHide, String reason) {
    ActivityClientRecord r = mActivities.get(token);
    if (localLOGV) Slog.v(TAG, "Performing resume of " + r
            + " finished=" + r.activity.mFinished);
    if (r != null && !r.activity.mFinished) {
        if (clearHide) {
            r.hideForNow = false;
            r.activity.mStartedActivity = false;
        }
        try {
            r.activity.onStateNotSaved();
            r.activity.mFragments.noteStateNotSaved();
            checkAndBlockForNetworkAccess();
            if (r.pendingIntents != null) {
                deliverNewIntents(r, r.pendingIntents);
                r.pendingIntents = null;
            }
            if (r.pendingResults != null) {
                deliverResults(r, r.pendingResults);
                r.pendingResults = null;
            }
            //调用在这里
            r.activity.performResume();

            synchronized (mResourcesManager) {
                for (int i = mRelaunchingActivities.size() - 1; i >= 0; i--) {
                    final ActivityClientRecord relaunching = mRelaunchingActivities.get(i);
                    if (relaunching.token == r.token
                            && relaunching.onlyLocalRequest && relaunching.startsNotResumed) {
                        relaunching.startsNotResumed = false;
                    }
                }
            }
            EventLog.writeEvent(LOG_AM_ON_RESUME_CALLED, UserHandle.myUserId(),
                    r.activity.getComponentName().getClassName(), reason);
            r.paused = false;
            r.stopped = false;
            r.state = null;
            r.persistentState = null;
        } catch (Exception e) {
            if (!mInstrumentation.onException(r.activity, e)) {
                throw new RuntimeException(
                    "Unable to resume activity "
                    + r.intent.getComponent().toShortString()
                    + ": " + e.toString(), e);
            }
        }
    }
    return r;
}
复制代码

这里关键点是调用Activity.performResume方法；继续解析handleResumeActivity()方法

3.6 分析handleResumeActivity()

ActivityTread#handleResumeActivity

final void handleResumeActivity(IBinder token,
        boolean clearHide, boolean isForward, boolean reallyResume, int seq, String reason) {
    ActivityClientRecord r = mActivities.get(token);
    if (!checkAndUpdateLifecycleSeq(seq, r, "resumeActivity")) {
        return;
    }
    // If we are getting ready to gc after going to the background, well
    // we are back active so skip it.
    unscheduleGcIdler();
    mSomeActivitiesChanged = true;
    // TODO Push resumeArgs into the activity for consideration
    //最终会调用activity的performResume()
    r = performResumeActivity(token, clearHide, reason);
    if (r != null) {
        final Activity a = r.activity;
        if (localLOGV) Slog.v(
            TAG, "Resume " + r + " started activity: " +
            a.mStartedActivity + ", hideForNow: " + r.hideForNow
            + ", finished: " + a.mFinished);
        final int forwardBit = isForward ?
                WindowManager.LayoutParams.SOFT_INPUT_IS_FORWARD_NAVIGATION : 0;
        // If the window hasn't yet been added to the window manager,
        // and this guy didn't finish itself or start another activity,
        // then go ahead and add the window.
        boolean willBeVisible = !a.mStartedActivity;
        if (!willBeVisible) {
            try {
                willBeVisible = ActivityManager.getService().willActivityBeVisible(
                        a.getActivityToken());
            } catch (RemoteException e) {
                throw e.rethrowFromSystemServer();
            }
        }
        if (r.window == null && !a.mFinished && willBeVisible) {
            //获取到window
            r.window = r.activity.getWindow();
            //docor设置成INVISIBLE状态
            View decor = r.window.getDecorView();
            decor.setVisibility(View.INVISIBLE);
            ViewManager wm = a.getWindowManager();
            WindowManager.LayoutParams l = r.window.getAttributes();
            a.mDecor = decor;
            l.type = WindowManager.LayoutParams.TYPE_BASE_APPLICATION;
            l.softInputMode |= forwardBit;
            if (r.mPreserveWindow) {
                a.mWindowAdded = true;
                r.mPreserveWindow = false;
                ViewRootImpl impl = decor.getViewRootImpl();
                if (impl != null) {
                    impl.notifyChildRebuilt();
                }
            }
            if (a.mVisibleFromClient) {
                if (!a.mWindowAdded) {
                    a.mWindowAdded = true;
                    //把decorView假如wm
                    wm.addView(decor, l);
                } else {
                    a.onWindowAttributesChanged(l);
                }
            }
        } else if (!willBeVisible) {
            if (localLOGV) Slog.v(
                TAG, "Launch " + r + " mStartedActivity set");
            r.hideForNow = true;
        }
        // Get rid of anything left hanging around.
        cleanUpPendingRemoveWindows(r, false /* force */);
        // The window is now visible if it has been added, we are not
        // simply finishing, and we are not starting another activity.
        if (!r.activity.mFinished && willBeVisible
                && r.activity.mDecor != null && !r.hideForNow) {
            if (r.newConfig != null) {
                performConfigurationChangedForActivity(r, r.newConfig);
                if (DEBUG_CONFIGURATION) Slog.v(TAG, "Resuming activity "
                        + r.activityInfo.name + " with newConfig " + r.activity.mCurrentConfig);
                r.newConfig = null;
            }
            if (localLOGV) Slog.v(TAG, "Resuming " + r + " with isForward="
                    + isForward);
            WindowManager.LayoutParams l = r.window.getAttributes();
            if ((l.softInputMode
                    & WindowManager.LayoutParams.SOFT_INPUT_IS_FORWARD_NAVIGATION)
                    != forwardBit) {
                l.softInputMode = (l.softInputMode
                        & (~WindowManager.LayoutParams.SOFT_INPUT_IS_FORWARD_NAVIGATION))
                        | forwardBit;
                if (r.activity.mVisibleFromClient) {
                    //decorView更新wm
                    ViewManager wm = a.getWindowManager();
                    View decor = r.window.getDecorView();
                    wm.updateViewLayout(decor, l);
                }
            }
            r.activity.mVisibleFromServer = true;
            mNumVisibleActivities++;
            if (r.activity.mVisibleFromClient) {
                r.activity.makeVisible();
            }
        }
        if (!r.onlyLocalRequest) {
            r.nextIdle = mNewActivities;
            mNewActivities = r;
            if (localLOGV) Slog.v(
                TAG, "Scheduling idle handler for " + r);
            Looper.myQueue().addIdleHandler(new Idler());
        }
        r.onlyLocalRequest = false;
        // Tell the activity manager we have resumed.
        if (reallyResume) {
            try {
                //通知AMS这个activity更新了状态
               ActivityManager.getService().activityResumed(token);
            } catch (RemoteException ex) {
                throw ex.rethrowFromSystemServer();
            }
        }
    } else {
        //异常情况，干掉AMS的记录
        try {
            ActivityManager.getService()
                .finishActivity(token, Activity.RESULT_CANCELED, null,
                        Activity.DONT_FINISH_TASK_WITH_ACTIVITY);
        } catch (RemoteException ex) {
            throw ex.rethrowFromSystemServer();
        }
    }
}
复制代码

3.7 Activity显示和WindowManager继承

activity真正的显示是逻辑是windowManager.add(View,WindowManager.LayoutParams)，WindowManager从Activity获取，Activity从Window得到，分析Window代码得到WindowManagerImpl是真正的实现，确定么？

在看WindowManagerImpl代码，我曹真正的实现是WindowManagerGlobal，顺藤摸瓜到WindowManagerGlobal.addView方法，发现WindowManagerGlobal也只是记录记录view的信息，真正处理View的ViewRootImpl对象。

WindowManager.addView追踪： Activity->Window->WindowManagerImpl->WindowManagerGlobal->ViewRootImpl.setView()，END；

3.8 小结

回到主题，总结一下Activity相关方法被调用的顺序 0. 反射构造

attach()
performCreate()
performStart()
performRestoreInstanceState()
onPostCreate()
performResume()

Activity显示关键代码顺序:

activity.performResume()
ViewRootImpl.setView() 发问，Activity执行onResume的时候，真是已经展示在屏幕上了吗？

现在我们可以很轻松的得到从AMS到Activity的启动时序图：

总结

洋洋洒洒写了一篇，整体没有多大的深度，是以Activity的启动为主线，记录了在app进程中Activity启动的调用过程，但是没有讲到Activity其他生命周期的相关调用，没有讲到Activity自身调用的流程，算是遗憾吧。

另外：近期想写两篇VirtualApk的源码解析(包括gradle_plugin)，到时应该会涉及到更详细更具体的知识点了，加油吧！

Activity启动流程源码分析
