Faceu脸萌一定是有一套自己的核心算法，所以它会说“有人模仿我的脸...”
最近在研究一些图像处理的技术，其中最常见的应用就要数 “Faceu 脸萌” 了，为了展示更清晰，我选择拆分功能的方式来实现 Demo。
🎨 测试 UI 什么样子？

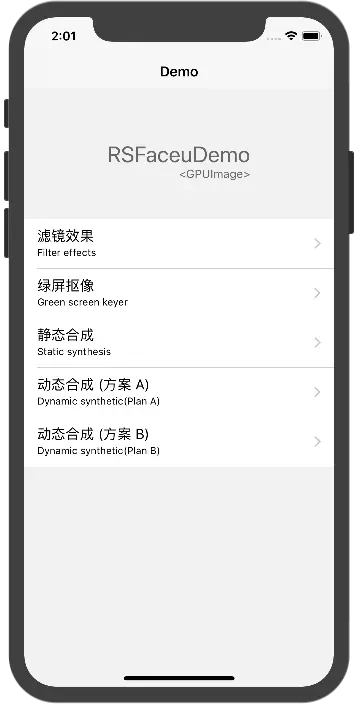

| 1.列表页 | 2.滤镜效果页 | 3.绿屏抠像页 | 4.静态合成页 |
|---|---|---|---|
| 搭建基本框架 | 几种滤镜效果 | 实现绿屏抠像 | 静态合成Gif |
🚀 框架的优势
- 1.文件少，代码简洁，功能新颖
- 2.功能整合度高，体验好，结构精
- 3.单纯依赖 GPUImage 来实现
- 4.具备较高自定义性
🤖 要求
- iOS 7+
- Xcode 8+
🛠 使用方法

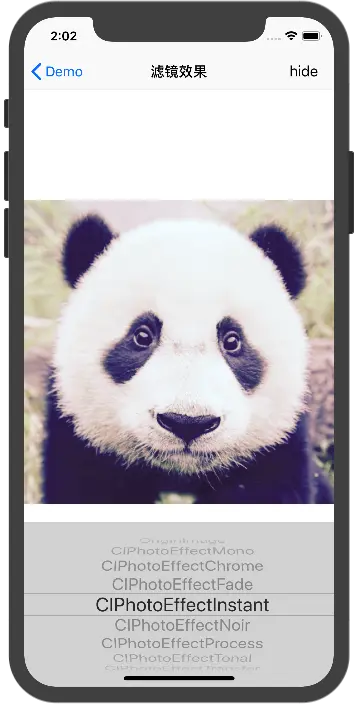

滤镜效果
核心代码展示：
//将UIImage转换成CIImage
CIImage *ciImage = [[CIImage alloc] initWithImage:self.originImage];
//创建滤镜
CIFilter *filter = [CIFilter filterWithName:filterName
keysAndValues:kCIInputImageKey,ciImage, nil];
//已有的值不改变，其他的设为默认值
[filter setDefaults];
//获取绘制上下文
CIContext *context = [CIContext contextWithOptions:nil];
//渲染并输出CIImage
CIImage *outputImage = [filter outputImage];
//创建CGImage句柄
CGImageRef cgImage = [context createCGImage:outputImage fromRect:[outputImage extent]];
//获取图片
UIImage *image = [UIImage imageWithCGImage:cgImage];
//释放CGImage句柄
CGImageRelease(cgImage);
self.imageView.image = image;

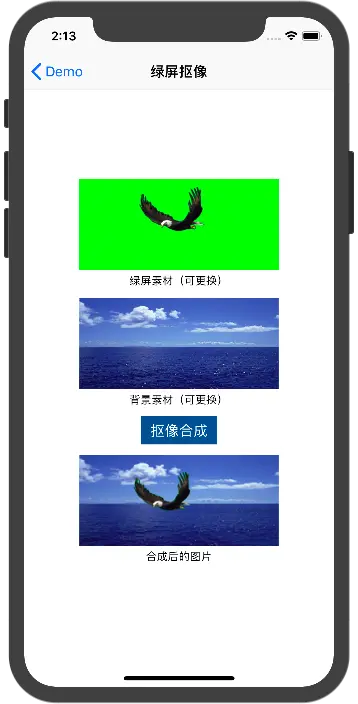

绿屏抠像
引用头文件：
#import "RSChromaKeyFilter.h"
工具方法：
RSChromaKeyFilter *filter=[[RSChromaKeyFilter alloc] initWithInputImage:self.greenImageView.image
backgroundImage:self.resultBgImageView.image];
self.resultImageView.image=[[UIImage imageWithCIImage:filter.outputImage] copy];

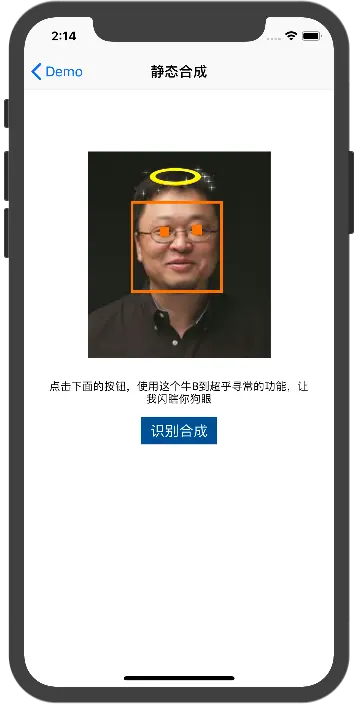

静态合成
效果演示：
引用头文件：
#import <CoreImage/CoreImage.h>
#import "UIImageView+Gif.h"
核心方法：
// 图像识别能力：可以在CIDetectorAccuracyHigh(较强的处理能力)与CIDetectorAccuracyLow(较弱的处理能力)中选择，因为想让准确度高一些在这里选择CIDetectorAccuracyHigh
NSDictionary *opts = [NSDictionary dictionaryWithObject:CIDetectorAccuracyHigh
forKey:CIDetectorAccuracy];
CIDetector *detector=[CIDetector detectorOfType:CIDetectorTypeFace context:nil options:opts];
// CIDetector *detector = [CIDetector detectorOfType:CIDetectorTypeFace
// context:nil
// options:nil];
CIImage *image=[[CIImage alloc] initWithImage:self.oldImageView.image];
NSArray *faceArray = [detector featuresInImage:image
options:nil];
/** 将 Core Image 坐标转换成 UIView 坐标 **/
//得到图片的尺寸
CGSize ciImageSize = [image extent].size;;
//将image沿y轴对称
CGAffineTransform transform = CGAffineTransformScale(CGAffineTransformIdentity, 1, -1);
//y轴负方向平移
transform = CGAffineTransformTranslate(transform,0,-ciImageSize.height);
for (CIFeature *f in faceArray){
if ([f.type isEqualToString:CIFeatureTypeFace]) {
CIFaceFeature *faceFeature=(CIFaceFeature *)f;
// 实现坐标转换
CGSize viewSize = self.oldImageView.bounds.size;
CGFloat scale = MIN(viewSize.width / ciImageSize.width,
viewSize.height / ciImageSize.height);
CGFloat offsetX = (viewSize.width - ciImageSize.width * scale) / 2;
CGFloat offsetY = (viewSize.height - ciImageSize.height * scale) / 2;
// 缩放
CGAffineTransform scaleTransform = CGAffineTransformMakeScale(scale, scale);
//获取人脸的frame
CGRect faceViewBounds = CGRectApplyAffineTransform(faceFeature.bounds, transform);
// 修正
faceViewBounds = CGRectApplyAffineTransform(faceViewBounds,scaleTransform);
faceViewBounds.origin.x += offsetX;
faceViewBounds.origin.y += offsetY;
UIView *faceView=[[UIView alloc] initWithFrame:faceViewBounds];
faceView.layer.borderWidth=3;
faceView.layer.borderColor=[UIColor orangeColor].CGColor;
[self.oldImageView addSubview:faceView];
/** 加光环 **/
UIImageView *imageView=[UIImageView new];
CGFloat haloWidth= faceViewBounds.size.width;
CGFloat haloHeight= haloWidth * 159 / 351;
...
}
}

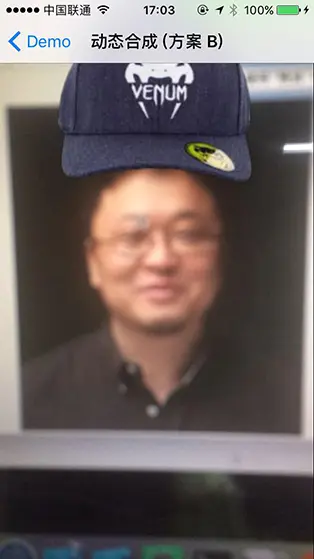

动态合成
效果演示：
引用头文件：
#import <GPUImage/GPUImage.h>
核心方法：
_faceThinking = YES;
CVPixelBufferRef pixelBuffer = CMSampleBufferGetImageBuffer(sampleBuffer);
CFDictionaryRef attachments = CMCopyDictionaryOfAttachments(kCFAllocatorDefault, sampleBuffer, kCMAttachmentMode_ShouldPropagate);
CIImage *convertedImage = [[CIImage alloc] initWithCVPixelBuffer:pixelBuffer options:(__bridge NSDictionary *)attachments];
if (attachments)
CFRelease(attachments);
NSDictionary *imageOptions = nil;
UIDeviceOrientation curDeviceOrientation = [[UIDevice currentDevice] orientation];
int exifOrientation;
enum {
PHOTOS_EXIF_0ROW_TOP_0COL_LEFT = 1, // 1 = 0th row is at the top, and 0th column is on the left (THE DEFAULT).
PHOTOS_EXIF_0ROW_TOP_0COL_RIGHT = 2, // 2 = 0th row is at the top, and 0th column is on the right.
PHOTOS_EXIF_0ROW_BOTTOM_0COL_RIGHT = 3, // 3 = 0th row is at the bottom, and 0th column is on the right.
PHOTOS_EXIF_0ROW_BOTTOM_0COL_LEFT = 4, // 4 = 0th row is at the bottom, and 0th column is on the left.
PHOTOS_EXIF_0ROW_LEFT_0COL_TOP = 5, // 5 = 0th row is on the left, and 0th column is the top.
PHOTOS_EXIF_0ROW_RIGHT_0COL_TOP = 6, // 6 = 0th row is on the right, and 0th column is the top.
PHOTOS_EXIF_0ROW_RIGHT_0COL_BOTTOM = 7, // 7 = 0th row is on the right, and 0th column is the bottom.
PHOTOS_EXIF_0ROW_LEFT_0COL_BOTTOM = 8 // 8 = 0th row is on the left, and 0th column is the bottom.
};
BOOL isUsingFrontFacingCamera = FALSE;
AVCaptureDevicePosition currentCameraPosition = [self.videoCamera cameraPosition];
...
