所有入口均在EventBus.java中：
public void post(Object event)public void register(Object subscriber)public synchronized void unregister(Object subscriber) 分析register
public void register(Object subscriber) {
Class<?> subscriberClass = subscriber.getClass();//获取注册对象的类型
List<SubscriberMethod> subscriberMethods = subscriberMethodFinder.findSubscriberMethods(subscriberClass);
synchronized (this) {
for (SubscriberMethod subscriberMethod : subscriberMethods) {
subscribe(subscriber, subscriberMethod);
}
}
}先来看findSubscriberMethods：
List<SubscriberMethod> findSubscriberMethods(Class<?> subscriberClass) {
//首先从缓存中取出subscriberMethodss，如果有则直接返回该已取得的方法
List<SubscriberMethod> subscriberMethods = METHOD_CACHE.get(subscriberClass);
if (subscriberMethods != null) {
return subscriberMethods;
}
//从EventBusBuilder可知，ignoreGenerateIndex一般为false
if (ignoreGeneratedIndex) {
subscriberMethods = findUsingReflection(subscriberClass);
} else {
subscriberMethods = findUsingInfo(subscriberClass);
}
if (subscriberMethods.isEmpty()) {
throw new EventBusException("Subscriber " + subscriberClass
+ " and its super classes have no public methods with the @Subscribe annotation");
} else {
//将获取的subscriberMeyhods放入缓存中
METHOD_CACHE.put(subscriberClass, subscriberMethods);
return subscriberMethods;
}
}上面代码的作用是查找class是否有标识为观察者的方法，首先从缓存METHOD_CACHE中查找，如果没有再通过反射或者注解的方式来查找。由于ignoreGeneratedIndex默认为false，所以默认是通过注解查找。（当然也可以通过new EventBus(new EventBusBuilder().ignoreGeneratedIndex(true));）来设置用反射来查找观察方法。
所以以下着重看通过注解查找的方法，即findUsingInfo
private List<SubscriberMethod> findUsingInfo(Class<?> subscriberClass) {
//准备一个FindState，该FindState保存了订阅者类的信息
FindState findState = prepareFindState();
//对FindState初始化
findState.initForSubscriber(subscriberClass);
while (findState.clazz != null) {
//获得订阅者的信息，一开始会返回null
findState.subscriberInfo = getSubscriberInfo(findState);
if (findState.subscriberInfo != null) {
SubscriberMethod[] array = findState.subscriberInfo.getSubscriberMethods();
for (SubscriberMethod subscriberMethod : array) {
if (findState.checkAdd(subscriberMethod.method, subscriberMethod.eventType)) {
findState.subscriberMethods.add(subscriberMethod);
}
}
} else {
//1 、到了这里
findUsingReflectionInSingleClass(findState);
}
//移动到父类继续查找
findState.moveToSuperclass();
}
return getMethodsAndRelease(findState);
}最终会走到findUsingReflectionInSingleClass(findState);
private void findUsingReflectionInSingleClass(FindState findState) {
Method[] methods;
try {
// This is faster than getMethods, especially when subscribers are fat classes like Activities
methods = findState.clazz.getDeclaredMethods();
} catch (Throwable th) {
// Workaround for java.lang.NoClassDefFoundError, see https://github.com/greenrobot/EventBus/issues/149
methods = findState.clazz.getMethods();
findState.skipSuperClasses = true;
}
for (Method method : methods) {
//获取方法的修饰符
int modifiers = method.getModifiers();
if ((modifiers & Modifier.PUBLIC) != 0 && (modifiers & MODIFIERS_IGNORE) == 0) {
//获取方法的参数类型
Class<?>[] parameterTypes = method.getParameterTypes();
//如果参数个数为一个，则继续
if (parameterTypes.length == 1) {
//获取该方法的@Subscribe注解
Subscribe subscribeAnnotation = method.getAnnotation(Subscribe.class);
if (subscribeAnnotation != null) {
//参数类型 即为 事件类型
Class<?> eventType = parameterTypes[0];
// 2 、调用checkAdd方法
if (findState.checkAdd(method, eventType)) {
//从注解中提取threadMode
ThreadMode threadMode = subscribeAnnotation.threadMode();
//新建一个SubscriberMethod对象，并添加到findState的subscriberMethods这个集合内
findState.subscriberMethods.add(new SubscriberMethod(method, eventType, threadMode,
subscribeAnnotation.priority(), subscribeAnnotation.sticky()));
}
}
//如果开启了严格验证，同时当前方法又有@Subscribe注解，对不符合要求的方法会抛出异常
} else if (strictMethodVerification && method.isAnnotationPresent(Subscribe.class)) {
String methodName = method.getDeclaringClass().getName() + "." + method.getName();
throw new EventBusException("@Subscribe method " + methodName +
"must have exactly 1 parameter but has " + parameterTypes.length);
}
} else if (strictMethodVerification && method.isAnnotationPresent(Subscribe.class)) {
String methodName = method.getDeclaringClass().getName() + "." + method.getName();
throw new EventBusException(methodName +
" is a illegal @Subscribe method: must be public, non-static, and non-abstract");
}
}
}这里面的逻辑就是通过发射拿到class下所有的所有方法，然后遍历所有方法，当方法入参数量为1，且含有Subscribe.class的注解时候，解析注解内容，保存至findState.subscriberMethods中。
最终会回到return getMethodsAndRelease(findState);
private List<SubscriberMethod> getMethodsAndRelease(FindState findState) {
//从findState获取subscriberMethods，放进新的ArrayList
List<SubscriberMethod> subscriberMethods = new ArrayList<>(findState.subscriberMethods);
//把findState回收
findState.recycle();
synchronized (FIND_STATE_POOL) {
for (int i = 0; i < POOL_SIZE; i++) {
if (FIND_STATE_POOL[i] == null) {
FIND_STATE_POOL[i] = findState;
break;
}
}
}
return subscriberMethods;
}至此，SubscriberMethodFinder这个类走完了，回到EventBus#rigister
public void register(Object subscriber) {
new EventBus(new EventBusBuilder().ignoreGeneratedIndex(true));
Class<?> subscriberClass = subscriber.getClass();
List<SubscriberMethod> subscriberMethods = subscriberMethodFinder.findSubscriberMethods(subscriberClass);
//继续往下
synchronized (this) {
for (SubscriberMethod subscriberMethod : subscriberMethods) {
subscribe(subscriber, subscriberMethod);
}
}
}继续看subscribe方法：
private void subscribe(Object subscriber, SubscriberMethod subscriberMethod) {
Class<?> eventType = subscriberMethod.eventType;
//将subscriber和subscriberMethod封装成 Subscription
Subscription newSubscription = new Subscription(subscriber, subscriberMethod);
//根据事件类型获取特定的 Subscription,subscriptionsByEventType 是以event事件作为key，CopyOnWriteArrayList<Subscription>作为value的map，
CopyOnWriteArrayList<Subscription> subscriptions = subscriptionsByEventType.get(eventType);
if (subscriptions == null) {
subscriptions = new CopyOnWriteArrayList<>();
subscriptionsByEventType.put(eventType, subscriptions);
} else {
if (subscriptions.contains(newSubscription)) {
throw new EventBusException("Subscriber " + subscriber.getClass() + " already registered to event "
+ eventType);
}
}
//根据优先级来设置放进subscriptions的位置，优先级高的会先被通知
int size = subscriptions.size();
for (int i = 0; i <= size; i++) {
if (i == size || subscriberMethod.priority > subscriptions.get(i).subscriberMethod.priority) {
subscriptions.add(i, newSubscription);
break;
}
}
//根据subscriber(订阅者)来获取它的所有订阅事件，以订阅的类为value，类订阅方法list作为value的map
List<Class<?>> subscribedEvents = typesBySubscriber.get(subscriber);
if (subscribedEvents == null) {
subscribedEvents = new ArrayList<>();
//把订阅者、事件放进typesBySubscriber这个Map中
typesBySubscriber.put(subscriber, subscribedEvents);
}
subscribedEvents.add(eventType);
//下面是对粘性事件的处理
if (subscriberMethod.sticky) {
if (eventInheritance) {
// Existing sticky events of all subclasses of eventType have to be considered.
// Note: Iterating over all events may be inefficient with lots of sticky events,
// thus data structure should be changed to allow a more efficient lookup
// (e.g. an additional map storing sub classes of super classes: Class -> List<Class>).
Set<Map.Entry<Class<?>, Object>> entries = stickyEvents.entrySet();
for (Map.Entry<Class<?>, Object> entry : entries) {
Class<?> candidateEventType = entry.getKey();
if (eventType.isAssignableFrom(candidateEventType)) {
Object stickyEvent = entry.getValue();
checkPostStickyEventToSubscription(newSubscription, stickyEvent);
}
}
} else {
Object stickyEvent = stickyEvents.get(eventType);
checkPostStickyEventToSubscription(newSubscription, stickyEvent);
}
}
}可以看到最终会保存到2个map中去。
一个map是Map<Class<?>, CopyOnWriteArrayList<Subscription>> subscriptionsByEventType;
另外一个是Map<Object, List<Class<?>>> typesBySubscriber；
subscriptionsByEventType是以event事件作为key，CopyOnWriteArrayList<Subscription>作为value的map，其中CopyOnWriteArrayList<Subscription>作用是保存各个优先级不同Subscription。
typesBySubscriber是以订阅者及注册类作为key，类订阅方法list作为value的map。
至此，所有调用即已结束。

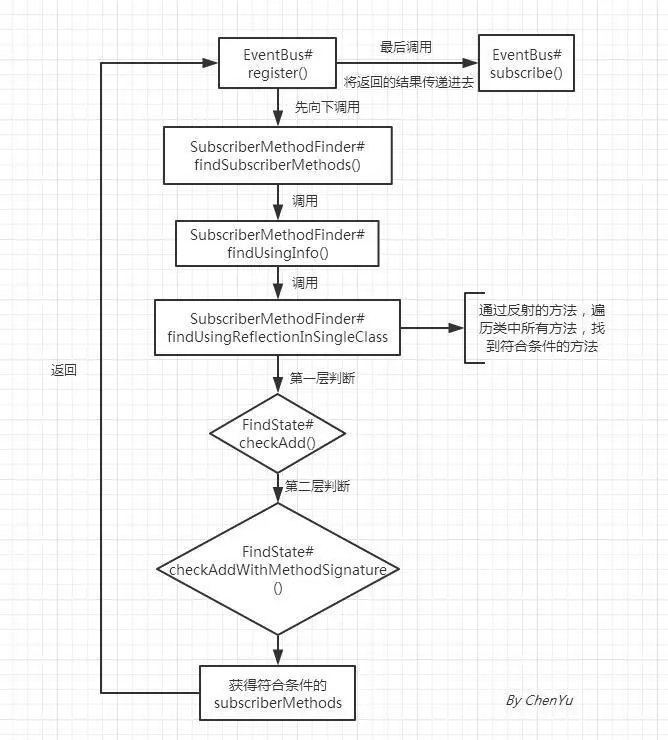

下面盗一张别人的图来展示整个过程：
分析unRegister
public synchronized void unregister(Object subscriber) {
//根据当前的订阅者来获取它所订阅的所有事件
List<Class<?>> subscribedTypes = typesBySubscriber.get(subscriber);
if (subscribedTypes != null) {
//遍历所有订阅的事件
for (Class<?> eventType : subscribedTypes) {
unsubscribeByEventType(subscriber, eventType);
}
//从typesBySubscriber中移除该订阅者
typesBySubscriber.remove(subscriber);
} else {
Log.w(TAG, "Subscriber to unregister was not registered before: " + subscriber.getClass());
}
}上面调用了EventBus#unsubscribeByEventType,把订阅者以及事件作为参数传递了进去，那么应该是解除两者的联系。
private void unsubscribeByEventType(Object subscriber, Class<?> eventType) {
//根据事件类型从subscriptionsByEventType中获取相应的 subscriptions 集合
List<Subscription> subscriptions = subscriptionsByEventType.get(eventType);
if (subscriptions != null) {
int size = subscriptions.size();
//遍历所有的subscriptions，逐一移除
for (int i = 0; i < size; i++) {
Subscription subscription = subscriptions.get(i);
if (subscription.subscriber == subscriber) {
subscription.active = false;
subscriptions.remove(i);
i--;
size--;
}
}
}
}可以看到，上面两个方法的逻辑是非常清楚的，都是从typesBySubscriber或subscriptionsByEventType移除相应与订阅者有关的信息，注销流程相对于注册流程简单了很多，其实注册流程主要逻辑集中于怎样找到订阅方法上。
分析post：
发送事件调用：
EventBus.getDefault().post(new MessageEvent("Hello !....."));/** Posts the given event to the event bus. */
public void post(Object event) {
PostingThreadState postingState = currentPostingThreadState.get();
List<Object> eventQueue = postingState.eventQueue;
eventQueue.add(event);
if (!postingState.isPosting) {
postingState.isMainThread = isMainThread();
postingState.isPosting = true;
if (postingState.canceled) {
throw new EventBusException("Internal error. Abort state was not reset");
}
try {
while (!eventQueue.isEmpty()) {
postSingleEvent(eventQueue.remove(0), postingState);
}
} finally {
postingState.isPosting = false;
postingState.isMainThread = false;
}
}
}其中currentPostingThreadState是
private final ThreadLocal<PostingThreadState> currentPostingThreadState = new ThreadLocal<PostingThreadState>() {
@Override
protected PostingThreadState initialValue() {
return new PostingThreadState();
}
};为什么需要用ThreadLoacl来保存，目前还不清楚。（线程安全？）
ThreadLoacl保存的PostingThreadState是如下结构
final static class PostingThreadState {
final List<Object> eventQueue = new ArrayList<>();
boolean isPosting;
boolean isMainThread;
Subscription subscription;
Object event;
boolean canceled;
}过程是先从线程中拿到PostingThreadState对象，并往PostingThreadState.eventQueued队列中添加当前event事件。做一些是否状态设置，然后最终调用postSingleEvent。
private void postSingleEvent(Object event, PostingThreadState postingState) throws Error {
Class<?> eventClass = event.getClass();
boolean subscriptionFound = false;
//该eventInheritance上面有提到，默认为true，即EventBus会考虑事件的继承树
//如果事件继承自父类，那么父类也会作为事件被发送
if (eventInheritance) {
//查找该事件的所有父类
List<Class<?>> eventTypes = lookupAllEventTypes(eventClass);
int countTypes = eventTypes.size();
//遍历所有事件
for (int h = 0; h < countTypes; h++) {
Class<?> clazz = eventTypes.get(h);
subscriptionFound |= postSingleEventForEventType(event, postingState, clazz);
}
} else {
subscriptionFound = postSingleEventForEventType(event, postingState, eventClass);
}
//如果没找到订阅该事件的订阅者
if (!subscriptionFound) {
if (logNoSubscriberMessages) {
Log.d(TAG, "No subscribers registered for event " + eventClass);
}
if (sendNoSubscriberEvent && eventClass != NoSubscriberEvent.class &&
eventClass != SubscriberExceptionEvent.class) {
post(new NoSubscriberEvent(this, event));
}
}
}可以看到会查找event的所有父类，一起发送给订阅者。接着调用了
EventBus#postSingleEventForEventType
private boolean postSingleEventForEventType(Object event, PostingThreadState postingState, Class<?> eventClass) {
CopyOnWriteArrayList<Subscription> subscriptions;
synchronized (this) {
//从subscriptionsByEventType获取响应的subscriptions
subscriptions = subscriptionsByEventType.get(eventClass);
}
if (subscriptions != null && !subscriptions.isEmpty()) {
for (Subscription subscription : subscriptions) {
postingState.event = event;
postingState.subscription = subscription;
boolean aborted = false;
try {
//发送事件
postToSubscription(subscription, event, postingState.isMainThread);
aborted = postingState.canceled;
}
//...
}
return true;
}
return false;
}postToSubscription
private void postToSubscription(Subscription subscription, Object event, boolean isMainThread) {
switch (subscription.subscriberMethod.threadMode) {
case POSTING:
invokeSubscriber(subscription, event);
break;
case MAIN:
if (isMainThread) {
invokeSubscriber(subscription, event);
} else {
mainThreadPoster.enqueue(subscription, event);
}
break;
case BACKGROUND:
if (isMainThread) {
backgroundPoster.enqueue(subscription, event);
} else {
invokeSubscriber(subscription, event);
}
break;
case ASYNC:
asyncPoster.enqueue(subscription, event);
break;
default:
throw new IllegalStateException("Unknown thread mode: " + subscription.subscriberMethod.threadMode);
}
}首先获取threadMode，即订阅方法运行的线程，如果是POSTING，那么直接调用invokeSubscriber()方法即可，如果是MAIN，则要判断当前线程是否是MAIN线程，如果是也是直接调用invokeSubscriber()方法，否则会交给mainThreadPoster来处理，其他情况相类似。而EventBus#invokeSubscriber的实现也很简单，主要实现了利用反射的方式来调用订阅方法，这样就实现了事件发送给订阅者，订阅者调用订阅方法这一过程。如下所示：
invokeSubscriber
void invokeSubscriber(Subscription subscription, Object event) {
try {
subscription.subscriberMethod.method.invoke(subscription.subscriber, event);
}
//...
}到目前为止，事件的发送流程也讲解完毕，为了方便理解，整个发送流程也给出相应的流程图：
结语
至此，EventBus的主要源码分析完毕。完成了订阅、反订阅、发送及响应消息的过程的源码细解析。
EventBus实质上是观察者模式的实现，观察者是订阅类，被观察者是Event事件，随着Event事件发出或者改变时候，会通过EventBus通知订阅类，然后通过发射调用订阅类的方法。
核心数据是2个map，一个用来保存所有Event事件所对应的注解和操作数据，一个用来保存所有订阅者所对应的方法数据。
核心流程就是贴出的2张图。
核心方法包括反射和注解：
反射有2处：1、用于查找订阅类的所有需要通知的方法，2、用于调用订阅类的订阅方法。
注解：注解用于解析订阅类的方法所包含的订阅信息（包括订阅的线程、所订阅的优先级）。
