Xcode 7 制作 framework

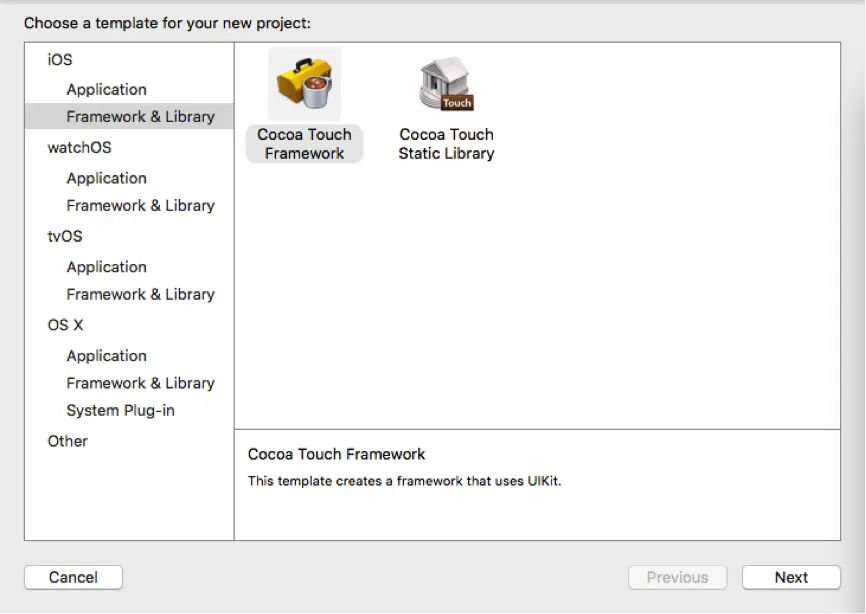

创建工程

添加源代码

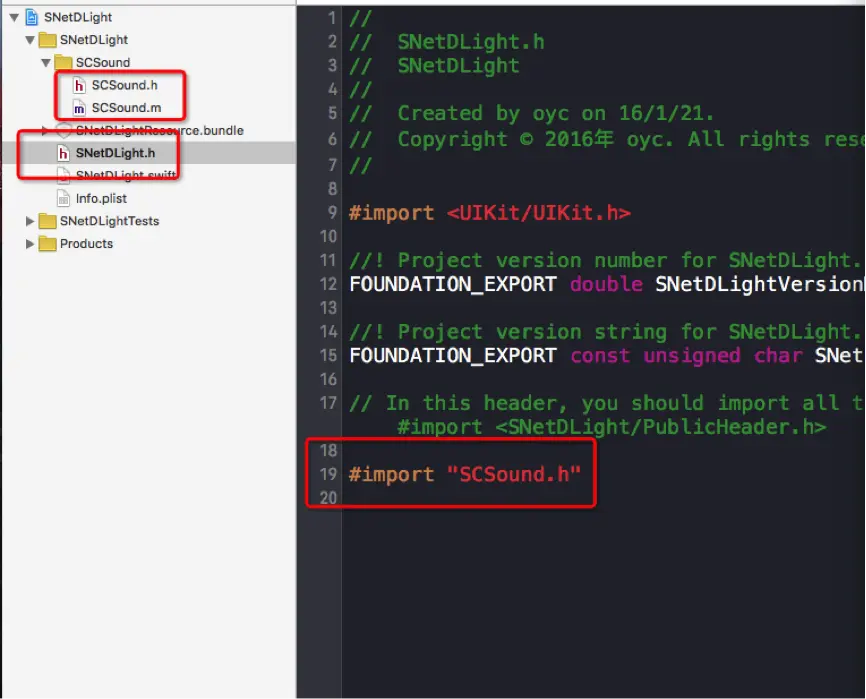

1. 添加OC源文件 在 swift 制作 framework 添加 OC文件时，不能设置桥接文件，而是将 OC头文件放到框架的头文件中，如下图：

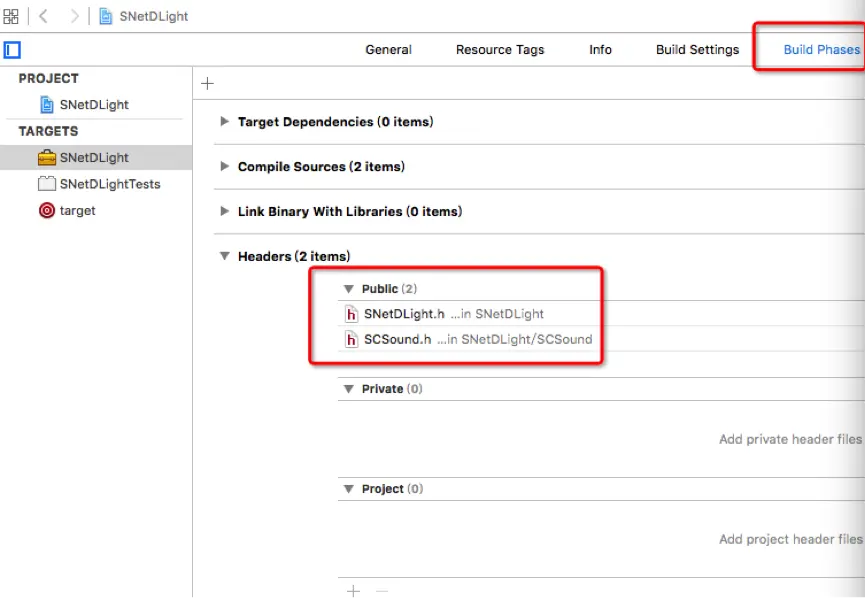

   同时将该OC头文件设置为 public（默认添加到Private，可拖动到Public）：

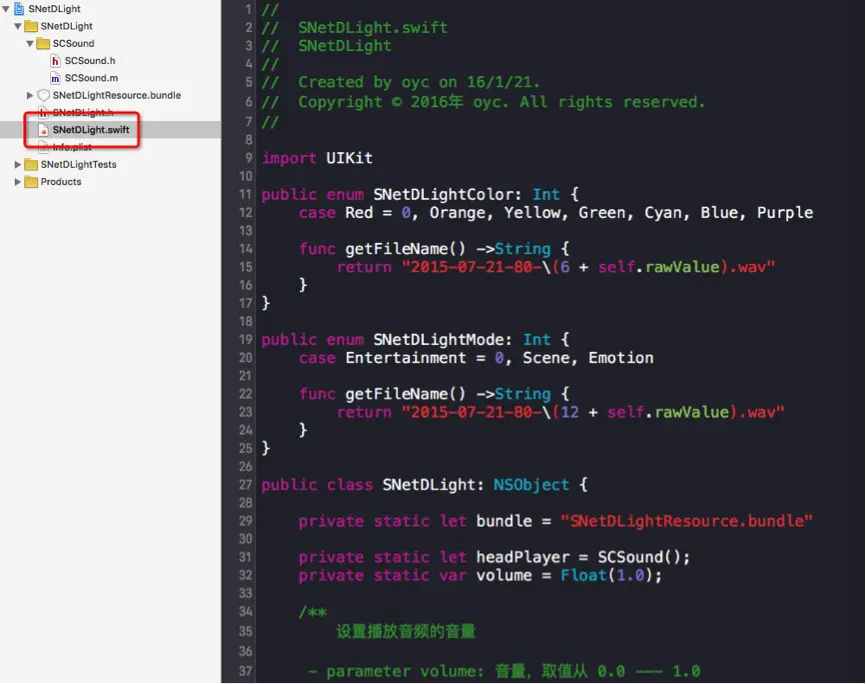

2. 添加框架源代码



添加脚本

添加生成模拟器与真机都可使用的 framework 的运行脚本。

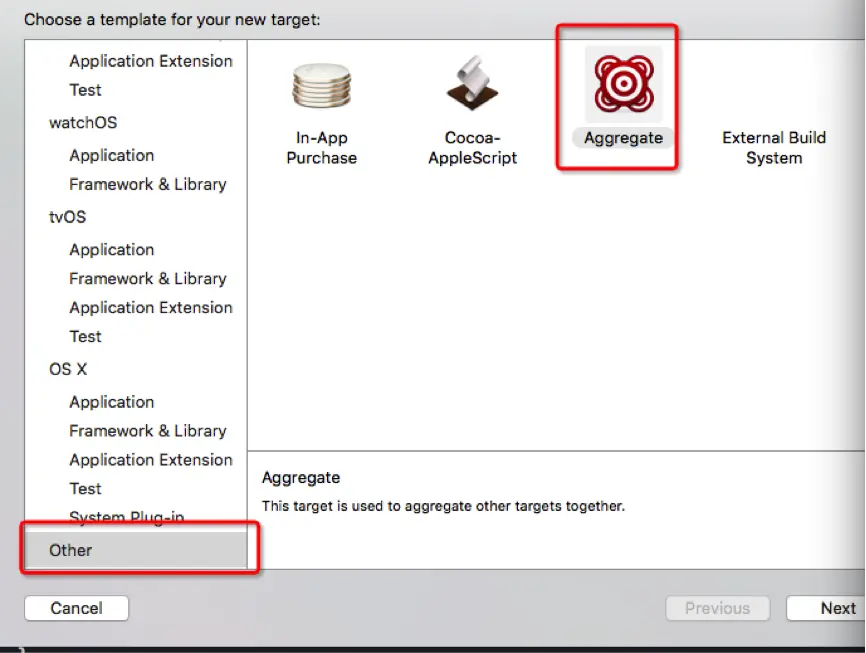

1. 给框架工程添加Target：File/New/Target





   脚本内容如下（脚本内容是从网上搜索到的，但在工程中一直出现问题，无法用于模拟器，后来发现是缺少了cp -R "${SIMULATOR_DIR}/" "${INSTALL_DIR}/"）：

# Sets the target folders and the final framework product.
# 如果工程名称和Framework的Target名称不一样的话，要自定义FMKNAME
# 例如: FMK_NAME = "MyFramework"
FMK_NAME=${PROJECT_NAME}
# Install dir will be the final output to the framework.
# The following line create it in the root folder of the current project.
INSTALL_DIR=${SRCROOT}/Products/${FMK_NAME}.framework
# Working dir will be deleted after the framework creation.
WRK_DIR=build
DEVICE_DIR=${WRK_DIR}/Release-iphoneos/${FMK_NAME}.framework
SIMULATOR_DIR=${WRK_DIR}/Release-iphonesimulator/${FMK_NAME}.framework
# -configuration ${CONFIGURATION}
# Clean and Building both architectures.
xcodebuild -configuration "Release" -target "${FMK_NAME}" -sdk iphoneos clean build
xcodebuild -configuration "Release" -target "${FMK_NAME}" -sdk iphonesimulator clean build
# Cleaning the oldest.
if [ -d "${INSTALL_DIR}" ]
then
rm -rf "${INSTALL_DIR}"
fi
mkdir -p "${INSTALL_DIR}"
cp -R "${DEVICE_DIR}/" "${INSTALL_DIR}/"
cp -R "${SIMULATOR_DIR}/" "${INSTALL_DIR}/"
# Uses the Lipo Tool to merge both binary files (i386 + armv6/armv7) into one Universal final product.
lipo -create "${DEVICE_DIR}/${FMK_NAME}" "${SIMULATOR_DIR}/${FMK_NAME}" -output "${INSTALL_DIR}/${FMK_NAME}"
rm -r "${WRK_DIR}"
open "${INSTALL_DIR}"

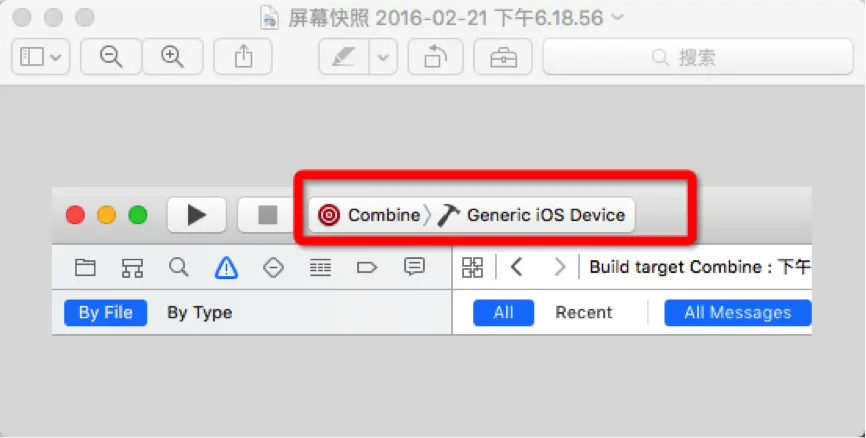

2. 编译脚本：Product/Build For/Profiling



   编译完脚本会自动弹出生成的framework的文件夹。

添加framework到工程

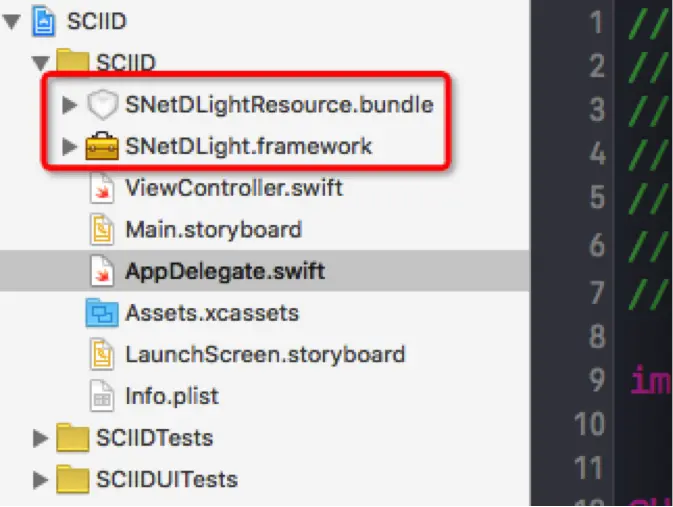

1. 将目标 framework 和其所用到的资源文件拖到目标工程中

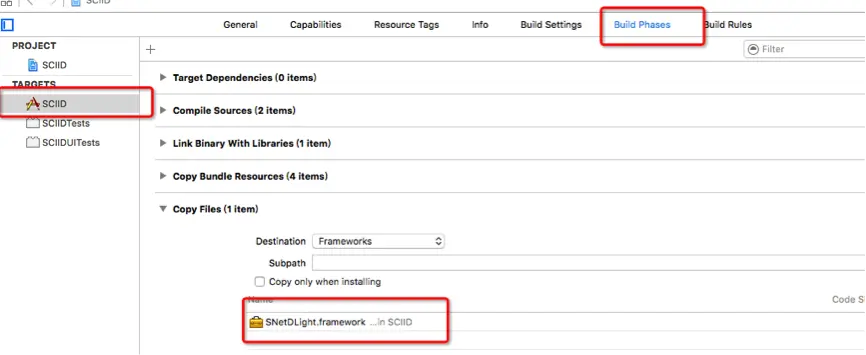

2. 添加目标框架到复制文件中去



打包提交到 App Store

在使用自制的 Framework 的应用程序打包提交到 App Store 的时候，可能会遇到以下问题“Unsupported architectures. Your executable contains unsupported architectures '[x86_64, i386]'”，此时在你要打包提交的目标程序的Build Phases下添加Run Script，并将以下内容复制进去：

APP_PATH="${TARGET_BUILD_DIR}/${WRAPPER_NAME}"
# This script loops through the frameworks embedded in the application and
# removes unused architectures.
find "$APP_PATH" -name '*.framework' -type d | while read -r FRAMEWORK
do
FRAMEWORK_EXECUTABLE_NAME=$(defaults read "$FRAMEWORK/Info.plist" CFBundleExecutable)
FRAMEWORK_EXECUTABLE_PATH="$FRAMEWORK/$FRAMEWORK_EXECUTABLE_NAME"
echo "Executable is $FRAMEWORK_EXECUTABLE_PATH"
EXTRACTED_ARCHS=()
for ARCH in $ARCHS
do
echo "Extracting $ARCH from $FRAMEWORK_EXECUTABLE_NAME"
lipo -extract "$ARCH" "$FRAMEWORK_EXECUTABLE_PATH" -o "$FRAMEWORK_EXECUTABLE_PATH-$ARCH"
EXTRACTED_ARCHS+=("$FRAMEWORK_EXECUTABLE_PATH-$ARCH")
done
echo "Merging extracted architectures: ${ARCHS}"
lipo -o "$FRAMEWORK_EXECUTABLE_PATH-merged" -create "${EXTRACTED_ARCHS[@]}"
rm "${EXTRACTED_ARCHS[@]}"
echo "Replacing original executable with thinned version"
rm "$FRAMEWORK_EXECUTABLE_PATH"
mv "$FRAMEWORK_EXECUTABLE_PATH-merged" "$FRAMEWORK_EXECUTABLE_PATH"
done

到此就结束了
