Spring MVC4+maven3+MyBatis3+Oracle11项目搭建

Luoooo
194 阅读24分钟
原文链接： blog.csdn.net

环境

MyEclipse 10、JDK 1.7、Tomcat 7.0

搭建

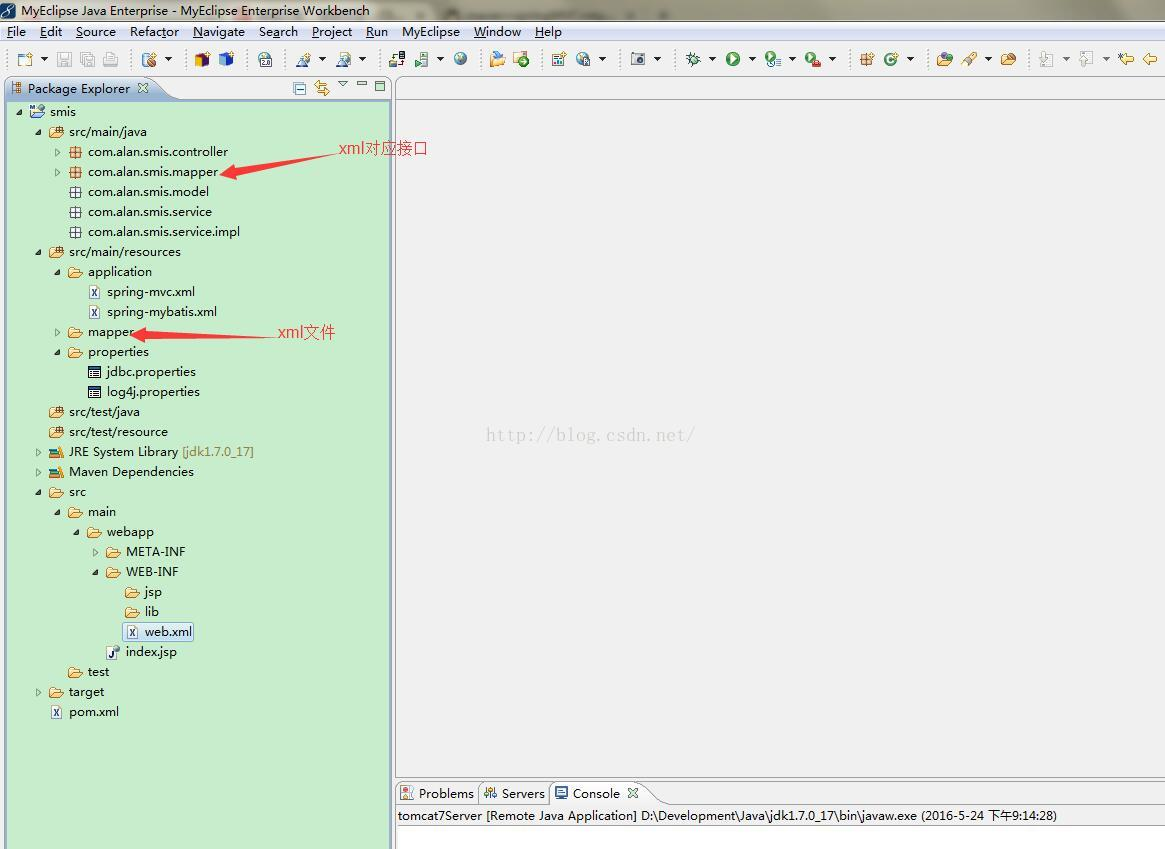

一、新建maven工程，步骤略，建好后目录结构如下图：


二、pom文件配置

[html] view plain copy print?
  1. <project xmlns="http://maven.apache.org/POM/4.0.0"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  2.   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  3.   <modelVersion>4.0.0</modelVersion>
  4.   <groupId>com.alan</groupId>
  5.   <artifactId>smis</artifactId>
  6.   <packaging>war</packaging>
  7.   <version>1.0-SNAPSHOT</version>
  8.   <name>smis</name>
  9.   <url>http://maven.apache.org</url>
  10.
  11.    <properties>
  12.         <!-- spring版本号 -->
  13.         <spring.version>4.0.6.RELEASE</spring.version >
  14.         <!-- mybatis版本号 -->
  15.         <mybatis.version>3.2.7</mybatis.version >
  16.         <!-- log4j日志文件管理包版本 -->
  17.         <slf4j.version>1.7.21</slf4j.version >
  18.         <log4j.version>1.2.17</log4j.version >
  19.         <sitemesh.version>3.0.0</sitemesh.version >
  20.     </properties>
  21.
  22.   <dependencies>
  23.         <!-- spring核心包 -->
  24.         <dependency>
  25.             <groupId>org.springframework</ groupId>
  26.             <artifactId>spring-core</ artifactId>
  27.             <version>${spring.version}</ version>
  28.         </dependency>
  29.         <dependency>
  30.             <groupId>org.springframework</ groupId>
  31.             <artifactId>spring-web</ artifactId>
  32.             <version>${spring.version}</ version>
  33.         </dependency>
  34.         <dependency>
  35.             <groupId>org.springframework</ groupId>
  36.             <artifactId>spring-oxm</ artifactId>
  37.             <version>${spring.version}</ version>
  38.         </dependency>
  39.         <dependency>
  40.             <groupId>org.springframework</ groupId>
  41.             <artifactId>spring-tx</ artifactId>
  42.             <version>${spring.version}</ version>
  43.         </dependency>
  44.         <dependency>
  45.             <groupId>org.springframework</ groupId>
  46.             <artifactId>spring-jdbc</ artifactId>
  47.             <version>${spring.version}</ version>
  48.         </dependency>
  49.         <dependency>
  50.             <groupId>org.springframework</ groupId>
  51.             <artifactId>spring-webmvc</ artifactId>
  52.             <version>${spring.version}</ version>
  53.         </dependency>
  54.         <dependency>
  55.             <groupId>org.springframework</ groupId>
  56.             <artifactId>spring-aop</ artifactId>
  57.             <version>${spring.version}</ version>
  58.         </dependency>
  59.         <dependency>
  60.             <groupId>org.springframework</ groupId>
  61.             <artifactId>spring-context-support</ artifactId>
  62.             <version>${spring.version}</ version>
  63.         </dependency>
  64.         <dependency>
  65.             <groupId>org.springframework</ groupId>
  66.             <artifactId>spring-test</ artifactId>
  67.             <version>${spring.version}</ version>
  68.         </dependency>
  69.
  70.         <!-- mybatis核心包 -->
  71.         <dependency>
  72.             <groupId>org.mybatis</ groupId>
  73.             <artifactId>mybatis</ artifactId>
  74.             <version>${mybatis.version}</ version>
  75.         </dependency>
  76.         <!-- mybatis/spring包 -->
  77.         <dependency>
  78.             <groupId>org.mybatis</ groupId>
  79.             <artifactId>mybatis-spring</ artifactId>
  80.             <version>1.2.2</ version>
  81.         </dependency>
  82.         <dependency>
  83.             <groupId>commons-dbcp</ groupId>
  84.             <artifactId>commons-dbcp</ artifactId>
  85.             <version>1.4</ version>
  86.         </dependency>
  87.         <!-- Oracle驱动包 -->
  88.         <dependency>
  89.             <groupId>com.oracle</ groupId>
  90.             <artifactId>ojdbc6</ artifactId>
  91.             <version>11.2.0.1.0</ version>
  92.         </dependency>
  93.
  94.         <!-- junit测试包 -->
  95.         <dependency>
  96.             <groupId>junit</ groupId>
  97.             <artifactId>junit</ artifactId>
  98.             <version>4.11</ version>
  99.             <scope>test</ scope>
  100.         </dependency>
  101.
  102.         <!-- 阿里巴巴数据源包 -->
  103.         <dependency>
  104.             <groupId>com.alibaba</ groupId>
  105.             <artifactId>druid</ artifactId>
  106.             <version>1.0.20</ version>
  107.         </dependency>
  108.
  109.         <!-- json数据 -->
  110.         <dependency>
  111.             <groupId>org.codehaus.jackson</ groupId>
  112.             <artifactId>jackson-mapper-asl</ artifactId>
  113.             <version>1.9.13</ version>
  114.         </dependency>
  115.
  116.         <!-- 上传下载 -->
  117.         <dependency>
  118.             <groupId>commons-fileupload</ groupId>
  119.             <artifactId>commons-fileupload</ artifactId>
  120.             <version>1.3.1</ version>
  121.         </dependency>
  122.         <dependency>
  123.             <groupId>commons-io</ groupId>
  124.             <artifactId>commons-io</ artifactId>
  125.             <version>2.4</ version>
  126.         </dependency>
  127.         <dependency>
  128.             <groupId>commons-codec</ groupId>
  129.             <artifactId>commons-codec</ artifactId>
  130.             <version>1.9</ version>
  131.         </dependency>
  132.
  133.         <!-- JSTL标签包开始 -->
  134.         <dependency>
  135.             <groupId>jstl</ groupId>
  136.             <artifactId>jstl</ artifactId>
  137.             <version>1.2</ version>
  138.         </dependency>
  139.         <dependency>
  140.             <groupId>taglibs</ groupId>
  141.             <artifactId>standard</ artifactId>
  142.             <version>1.1.2</ version>
  143.         </dependency>
  144.
  145.         <!-- 日志文件管理包 -->
  146.         <dependency>
  147.             <groupId>log4j</ groupId>
  148.             <artifactId>log4j</ artifactId>
  149.             <version>${log4j.version}</ version>
  150.         </dependency>
  151.         <dependency>
  152.             <groupId>org.slf4j</ groupId>
  153.             <artifactId>slf4j-api</ artifactId>
  154.             <version>${slf4j.version}</ version>
  155.         </dependency>
  156.         <dependency>
  157.             <groupId>org.slf4j</ groupId>
  158.             <artifactId>slf4j-log4j12</ artifactId>
  159.             <version>${slf4j.version}</ version>
  160.         </dependency>
  161.
  162.         <!-- sitemesh -->
  163.         <dependency>
  164.              <groupId>org.sitemesh</ groupId>
  165.              <artifactId>sitemesh</ artifactId>
  166.              <version>${sitemesh.version}</ version>
  167.         </dependency>
  168.   </dependencies>
  169.   <build>
  170.     <finalName>smis</finalName >
  171.   </build>
  172. </project>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.alan</groupId>
  <artifactId>smis</artifactId>
  <packaging>war</packaging>
  <version>1.0-SNAPSHOT</version>
  <name>smis</name>
  <url>http://maven.apache.org</url>

   <properties>
		<!-- spring版本号 -->
		<spring.version>4.0.6.RELEASE</spring.version>
		<!-- mybatis版本号 -->
		<mybatis.version>3.2.7</mybatis.version>
		<!-- log4j日志文件管理包版本 -->
		<slf4j.version>1.7.21</slf4j.version>
		<log4j.version>1.2.17</log4j.version>
		<sitemesh.version>3.0.0</sitemesh.version>
	</properties>

  <dependencies>
  		<!-- spring核心包 -->
    	<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-oxm</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-tx</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- mybatis核心包 -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>${mybatis.version}</version>
		</dependency>
		<!-- mybatis/spring包 -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.2.2</version>
		</dependency>
		<dependency>
		    <groupId>commons-dbcp</groupId>
		    <artifactId>commons-dbcp</artifactId>
		    <version>1.4</version>
		</dependency>
		<!-- Oracle驱动包 -->
		<dependency>
			<groupId>com.oracle</groupId>
			<artifactId>ojdbc6</artifactId>
			<version>11.2.0.1.0</version>
		</dependency>

		<!-- junit测试包 -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.11</version>
			<scope>test</scope>
		</dependency>

		<!-- 阿里巴巴数据源包 -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid</artifactId>
			<version>1.0.20</version>
		</dependency>

		<!-- json数据 -->
		<dependency>
			<groupId>org.codehaus.jackson</groupId>
			<artifactId>jackson-mapper-asl</artifactId>
			<version>1.9.13</version>
		</dependency>

		<!-- 上传下载 -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.4</version>
        </dependency>
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.9</version>
        </dependency>

        <!-- JSTL标签包开始 -->
        <dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>
		<dependency>
		    <groupId>taglibs</groupId>
		    <artifactId>standard</artifactId>
			<version>1.1.2</version>
		</dependency>

		<!-- 日志文件管理包 -->
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>${log4j.version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${slf4j.version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${slf4j.version}</version>
		</dependency>

		<!-- sitemesh -->
		<dependency>
			 <groupId>org.sitemesh</groupId>
			 <artifactId>sitemesh</artifactId>
			 <version>${sitemesh.version}</version>
		</dependency>
  </dependencies>
  <build>
    <finalName>smis</finalName>
  </build>
</project>

三、web.xml配置
[html] view plain copy print?
  1. <?xml version="1.0" encoding= "UTF-8"?>
  2. <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  3.     xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web= "http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
  4.     xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
  5.     id="WebApp_ID" version="2.5" >
  6.     <display-name>smis</display-name >
  7.
  8.     <!-- 读取spring配置文件 -->
  9.     <context-param>
  10.         <param-name>contextConfigLocation</ param-name>
  11.         <param-value>
  12.             classpath:application/spring-mybatis.xml
  13.         </param-value>
  14.     </context-param>
  15.
  16.     <!-- Spring字符集过滤器 -->
  17.     <filter>
  18.         <filter-name>SpringEncodingFilter</ filter-name>
  19.         <filter-class>org.springframework.web.filter.CharacterEncodingFilter </filter-class>
  20.         <init-param>
  21.             <param-name>encoding</ param-name>
  22.             <param-value>UTF-8</ param-value>
  23.         </init-param>
  24.         <init-param>
  25.             <param-name>forceEncoding</ param-name>
  26.             <param-value>true</ param-value>
  27.         </init-param>
  28.     </filter>
  29.     <filter-mapping>
  30.         <filter-name>SpringEncodingFilter</ filter-name>
  31.         <url-pattern>/*</url-pattern >
  32.     </filter-mapping>
  33.
  34.     <!-- 日志记录 -->
  35.     <context-param>
  36.         <!-- 日志配置文件路径 -->
  37.         <param-name>log4jConfigLocation</ param-name>
  38.         <param-value>classpath:properties/log4j.properties</ param-value>
  39.     </context-param>
  40.     <context-param>
  41.         <!-- 日志页面的刷新间隔 -->
  42.         <param-name>log4jRefreshInterval</ param-name>
  43.         <param-value>6000</param-value >
  44.     </context-param>
  45.     <listener>
  46.         <listener-class>org.springframework.web.util.Log4jConfigListener </listener-class>
  47.     </listener>
  48.
  49.     <listener>
  50.         <listener-class>org.springframework.web.context.ContextLoaderListener </listener-class>
  51.     </listener>
  52.
  53.     <!-- springMVC核心配置 -->
  54.     <servlet>
  55.         <servlet-name>spring</servlet-name >
  56.         <servlet-class>org.springframework.web.servlet.DispatcherServlet </servlet-class>
  57.         <init-param>
  58.             <param-name>contextConfigLocation</ param-name>
  59.             <param-value>classpath:application/spring-mvc.xml </param-value>
  60.         </init-param>
  61.         <load-on-startup>1</load-on-startup >
  62.     </servlet>
  63.     <servlet-mapping>
  64.         <servlet-name>spring</servlet-name >
  65.         <url-pattern>*.do</url-pattern >
  66.     </servlet-mapping>
  67.
  68.     <welcome-file-list>
  69.         <welcome-file>index.jsp</welcome-file >
  70.     </welcome-file-list>
  71.
  72.     <!-- 错误跳转页面 -->
  73.     <error-page>
  74.         <!-- 路径不正确 -->
  75.         <error-code>404</error-code >
  76.         <location>/WEB-INF/error/404.jsp</ location>
  77.     </error-page>
  78.     <error-page>
  79.         <!-- 没有访问权限，访问被禁止 -->
  80.         <error-code>405</error-code >
  81.         <location>/WEB-INF/error/405.jsp</ location>
  82.     </error-page>
  83.     <error-page>
  84.         <!-- 内部错误 -->
  85.         <error-code>500</error-code >
  86.         <location>/WEB-INF/error/500.jsp</ location>
  87.     </error-page>
  88. </web-app>
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	id="WebApp_ID" version="2.5">
	<display-name>smis</display-name>

	<!-- 读取spring配置文件 -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>
			classpath:application/spring-mybatis.xml
		</param-value>
	</context-param>

	<!-- Spring字符集过滤器 -->
	<filter>
		<filter-name>SpringEncodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
		<init-param>
			<param-name>forceEncoding</param-name>
			<param-value>true</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>SpringEncodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

	<!-- 日志记录 -->
	<context-param>
		<!-- 日志配置文件路径 -->
		<param-name>log4jConfigLocation</param-name>
		<param-value>classpath:properties/log4j.properties</param-value>
	</context-param>
	<context-param>
		<!-- 日志页面的刷新间隔 -->
		<param-name>log4jRefreshInterval</param-name>
		<param-value>6000</param-value>
	</context-param>
	<listener>
		<listener-class>org.springframework.web.util.Log4jConfigListener</listener-class>
	</listener>

	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- springMVC核心配置 -->
	<servlet>
		<servlet-name>spring</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:application/spring-mvc.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>spring</servlet-name>
		<url-pattern>*.do</url-pattern>
	</servlet-mapping>

	<welcome-file-list>
		<welcome-file>index.jsp</welcome-file>
	</welcome-file-list>

	<!-- 错误跳转页面 -->
	<error-page>
		<!-- 路径不正确 -->
		<error-code>404</error-code>
		<location>/WEB-INF/error/404.jsp</location>
	</error-page>
	<error-page>
		<!-- 没有访问权限，访问被禁止 -->
		<error-code>405</error-code>
		<location>/WEB-INF/error/405.jsp</location>
	</error-page>
	<error-page>
		<!-- 内部错误 -->
		<error-code>500</error-code>
		<location>/WEB-INF/error/500.jsp</location>
	</error-page>
</web-app>

四、spring-mvc.xml配置
[html] view plain copy print?
  1. <?xml version="1.0" encoding= "UTF-8"?>
  2. <beans xmlns="http://www.springframework.org/schema/beans"
  3.   xmlns:p="http://www.springframework.org/schema/p"
  4.   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  5.   xmlns:context="http://www.springframework.org/schema/context"
  6.   xmlns:mvc="http://www.springframework.org/schema/mvc"
  7.   xmlns:websocket="http://www.springframework.org/schema/websocket"
  8.   xsi:schemaLocation="
  9.     http://www.springframework.org/schema/beans
  10.     http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
  11.     http://www.springframework.org/schema/context
  12.     http://www.springframework.org/schema/context/spring-context-4.0.xsd
  13.     http://www.springframework.org/schema/mvc
  14.     http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">
  15.
  16.     <!-- 添加注解驱动 -->
  17.    <mvc:annotation-driven />
  18.     <!-- 扫描controller（controller层注入） -->
  19.    <context:component-scan base-package="com.alan.smis.controller" />
  20.
  21.    <!-- 避免IE在ajax请求时，返回json出现下载 -->
  22.    <bean id="jacksonMessageConverter"  class="org.springframework.http.converter.json.MappingJacksonHttpMessageConverter">
  23.         <property name="supportedMediaTypes" >
  24.             <list>
  25.                 <value>text/html; charset=UTF-8</value>
  26.             </list>
  27.         </property>
  28.     </bean>
  29.
  30.     <!-- 配置国际化拦截器 -->
  31.     <!-- 拦截参数 -->
  32.     <bean id="messageSource"
  33.         class="org.springframework.context.support.ReloadableResourceBundleMessageSource" >
  34.         <property name="basename"  value="classpath:/messages/messages" />
  35.         <property name="defaultEncoding"  value="UTF-8" />
  36.     </bean>
  37.     <bean id="localeChangeInterceptor"
  38.         class="org.springframework.web.servlet.i18n.LocaleChangeInterceptor">
  39.         <property name="paramName"  value="lang" />
  40.     </bean>
  41.     <bean id="localeResolver"
  42.         class="org.springframework.web.servlet.i18n.CookieLocaleResolver"  />
  43.     <bean id="requestMappingHandlerMapping"
  44.         class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping"  />
  45.
  46.    <!-- 对模型视图添加前后缀 -->
  47.     <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver" >
  48.         <property name="order"  value="1" />
  49.         <property name="viewClass"
  50.             value="org.springframework.web.servlet.view.JstlView"  />
  51.         <property name="prefix"  value="/WEB-INF/jsp/" />
  52.         <property name="suffix"  value=".jsp" />
  53.     </bean>
  54.
  55.     <!-- 配置文件上传，如果没有使用文件上传可以不用配置，当然如果不配，那么配置文件中也不必引入上传组件包 -->
  56.     <bean id="multipartResolver"
  57.         class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
  58.         <!-- 默认编码 -->
  59.         <property name="defaultEncoding"  value="utf-8" />
  60.         <!-- 文件大小最大值 -->
  61.         <property name="maxUploadSize"  value="10485760000" />
  62.         <!-- 内存中的最大值 -->
  63.         <property name="maxInMemorySize"  value="40960" />
  64.     </bean>
  65. </beans>
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
  xmlns:p="http://www.springframework.org/schema/p"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xmlns:context="http://www.springframework.org/schema/context"
  xmlns:mvc="http://www.springframework.org/schema/mvc"
  xmlns:websocket="http://www.springframework.org/schema/websocket"
  xsi:schemaLocation="
    http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context-4.0.xsd
    http://www.springframework.org/schema/mvc
    http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">

    <!-- 添加注解驱动 -->
   <mvc:annotation-driven />
    <!-- 扫描controller（controller层注入） -->
   <context:component-scan base-package="com.alan.smis.controller"/>

   <!-- 避免IE在ajax请求时，返回json出现下载 -->
   <bean id="jacksonMessageConverter" class="org.springframework.http.converter.json.MappingJacksonHttpMessageConverter">
		<property name="supportedMediaTypes">
			<list>
				<value>text/html;charset=UTF-8</value>
			</list>
		</property>
	</bean>

	<!-- 配置国际化拦截器 -->
	<!-- 拦截参数 -->
	<bean id="messageSource"
		class="org.springframework.context.support.ReloadableResourceBundleMessageSource">
		<property name="basename" value="classpath:/messages/messages" />
		<property name="defaultEncoding" value="UTF-8" />
	</bean>
	<bean id="localeChangeInterceptor"
		class="org.springframework.web.servlet.i18n.LocaleChangeInterceptor">
		<property name="paramName" value="lang" />
	</bean>
	<bean id="localeResolver"
		class="org.springframework.web.servlet.i18n.CookieLocaleResolver" />
	<bean id="requestMappingHandlerMapping"
		class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping" />

   <!-- 对模型视图添加前后缀 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
    	<property name="order" value="1" />
		<property name="viewClass"
			value="org.springframework.web.servlet.view.JstlView" />
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>

    <!-- 配置文件上传，如果没有使用文件上传可以不用配置，当然如果不配，那么配置文件中也不必引入上传组件包 -->
    <bean id="multipartResolver"
        class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 默认编码 -->
        <property name="defaultEncoding" value="utf-8" />
        <!-- 文件大小最大值 -->
        <property name="maxUploadSize" value="10485760000" />
        <!-- 内存中的最大值 -->
        <property name="maxInMemorySize" value="40960" />
    </bean>
</beans>

五、spring-mybatis.xml配置
[html] view plain copy print?
  1. <?xml version="1.0" encoding= "UTF-8"?>
  2. <beans xmlns="http://www.springframework.org/schema/beans"
  3.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p= "http://www.springframework.org/schema/p"
  4.     xmlns:context="http://www.springframework.org/schema/context"
  5.     xmlns:mvc="http://www.springframework.org/schema/mvc"
  6.     xsi:schemaLocation="http://www.springframework.org/schema/beans
  7.                         http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
  8.                         http://www.springframework.org/schema/context
  9.                         http://www.springframework.org/schema/context/spring-context-4.0.xsd
  10.                         http://www.springframework.org/schema/mvc
  11.                         http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">
  12.
  13.     <bean id="dataSource"  class="org.apache.commons.dbcp.BasicDataSource"
  14.          destroy-method="close">
  15.          <property name="driverClassName"  value="${jdbc.driver}" />
  16.          <property name="url"  value="${jdbc.url}" />
  17.          <property name="username"  value="${jdbc.username}" />
  18.          <property name="password"  value="${jdbc.password}" />
  19.          <!-- 初始化连接大小 -->
  20.          <property name="initialSize"  value="${jdbc.initialSize}"></property>
  21.          <!-- 连接池最大数量 -->
  22.          <property name="maxActive"  value="${jdbc.maxActive}"></property>
  23.          <!-- 连接池最大空闲 -->
  24.          <property name="maxIdle"  value="${jdbc.maxIdle}"></property>
  25.          <!-- 连接池最小空闲 -->
  26.          <property name="minIdle"  value="${jdbc.minIdle}"></property>
  27.          <!-- 获取连接最大等待时间 -->
  28.          <property name="maxWait"  value="${jdbc.maxWait}"></property>
  29.          <!-- 连接属性 -->
  30.         <property name="connectionProperties" >
  31.           <value>clientEncoding= UTF-8</value>
  32.         </property>
  33.      </bean>
  34.
  35.      <!-- 加载jdbc -->
  36.      <context:property-placeholder location="classpath:properties/jdbc.properties" />
  37.
  38.      <!-- spring和MyBatis完美整合，不需要mybatis的配置映射文件 -->
  39.      <bean id="sqlSessionFactory"  class="org.mybatis.spring.SqlSessionFactoryBean">
  40.          <property name="dataSource"  ref="dataSource" />
  41.          <!-- 自动扫描mapping.xml文件 -->
  42.          <property name="mapperLocations"  value="classpath:mapper/*Mapper.xml"></property>
  43.      </bean>
  44.
  45.     <!-- DAO接口所在包名，Spring会自动查找其下的类 -->
  46.     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer" >
  47.         <property name="basePackage"  value="com.alan.smis.mapper" />
  48.         <property name="sqlSessionFactoryBeanName"  value="sqlSessionFactory"></property>
  49.     </bean>
  50.
  51.     <!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
  52.     <bean id="transactionManager"
  53.         class="org.springframework.jdbc.datasource.DataSourceTransactionManager" >
  54.         <property name="dataSource"  ref="dataSource" />
  55.     </bean>
  56. </beans>
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-4.0.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">

	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
         destroy-method="close">
         <property name="driverClassName" value="${jdbc.driver}" />
         <property name="url" value="${jdbc.url}" />
         <property name="username" value="${jdbc.username}" />
         <property name="password" value="${jdbc.password}" />
         <!-- 初始化连接大小 -->
         <property name="initialSize" value="${jdbc.initialSize}"></property>
         <!-- 连接池最大数量 -->
         <property name="maxActive" value="${jdbc.maxActive}"></property>
         <!-- 连接池最大空闲 -->
         <property name="maxIdle" value="${jdbc.maxIdle}"></property>
         <!-- 连接池最小空闲 -->
         <property name="minIdle" value="${jdbc.minIdle}"></property>
         <!-- 获取连接最大等待时间 -->
         <property name="maxWait" value="${jdbc.maxWait}"></property>
         <!-- 连接属性 -->
	    <property name="connectionProperties">
	      <value>clientEncoding=UTF-8</value>
	    </property>
     </bean>

	 <!-- 加载jdbc -->
 	 <context:property-placeholder location="classpath:properties/jdbc.properties"/>

     <!-- spring和MyBatis完美整合，不需要mybatis的配置映射文件 -->
     <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
         <property name="dataSource" ref="dataSource" />
         <!-- 自动扫描mapping.xml文件 -->
         <property name="mapperLocations" value="classpath:mapper/*Mapper.xml"></property>
     </bean>

    <!-- DAO接口所在包名，Spring会自动查找其下的类 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.alan.smis.mapper" />
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>

    <!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
    <bean id="transactionManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>
</beans>

六、jdbc配置
[html] view plain copy print?
  1. jdbc.driver=oracle.jdbc.driver.OracleDriver
  2. jdbc.url=jdbc:oracle:thin:@192.168.1.236:1521:greendb
  3. jdbc.username=alan
  4. jdbc.password=alan123
  5. jdbc.initialSize=0
  6. jdbc.maxActive=100
  7. jdbc.maxIdle=20
  8. jdbc.minIdle=1
  9. jdbc.maxWait=60000
jdbc.driver=oracle.jdbc.driver.OracleDriver
jdbc.url=jdbc:oracle:thin:@192.168.1.236:1521:greendb
jdbc.username=alan
jdbc.password=alan123
jdbc.initialSize=0
jdbc.maxActive=100
jdbc.maxIdle=20
jdbc.minIdle=1
jdbc.maxWait=60000

七、log4j配置
[html] view plain copy print?
  1.  log4j.rootLogger=INFO,Console,File
  2. #\u5B9A\u4E49\u65E5\u5FD7\u8F93\u51FA\u76EE\u7684\u5730\u4E3A\u63A7\u5236\u53F0
  3. log4j.appender.Console=org.apache.log4j.ConsoleAppender
  4. log4j.appender.Console.Target=System.out
  5. #\u53EF\u4EE5\u7075\u6D3B\u5730\u6307\u5B9A\u65E5\u5FD7\u8F93\u51FA\u683C\u5F0F\uFF0C\u4E0B\u9762\u4E00\u884C\u662F\u6307\u5B9A\u5177\u4F53\u7684\u683C\u5F0F
  6. log4j.appender.Console.layout = org.apache.log4j.PatternLayout
  7. log4j.appender.Console.layout.ConversionPattern=[%c] - %m%n
  8.
  9. #\u6587\u4EF6\u5927\u5C0F\u5230\u8FBE\u6307\u5B9A\u5C3A\u5BF8\u7684\u65F6\u5019\u4EA7\u751F\u4E00\u4E2A\u65B0\u7684\u6587\u4EF6
  10. log4j.appender.File = org.apache.log4j.RollingFileAppender
  11. #\u6307\u5B9A\u8F93\u51FA\u76EE\u5F55
  12. log4j.appender.File.File = logs/ssm.log
  13. #\u5B9A\u4E49\u6587\u4EF6\u6700\u5927\u5927\u5C0F
  14. log4j.appender.File.MaxFileSize = 10MB
  15. # \u8F93\u51FA\u6240\u4EE5\u65E5\u5FD7\uFF0C\u5982\u679C\u6362\u6210DEBUG\u8868\u793A\u8F93\u51FADEBUG\u4EE5\u4E0A\u7EA7\u522B\u65E5\u5FD7
  16. log4j.appender.File.Threshold = ALL
  17. log4j.appender.File.layout = org.apache.log4j.PatternLayout
  18. log4j.appender.File.layout.ConversionPattern =[%p] [%d{yyyy-MM-dd HH\:mm\:ss}][%c]%m%n
 log4j.rootLogger=INFO,Console,File
#\u5B9A\u4E49\u65E5\u5FD7\u8F93\u51FA\u76EE\u7684\u5730\u4E3A\u63A7\u5236\u53F0
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.Target=System.out
#\u53EF\u4EE5\u7075\u6D3B\u5730\u6307\u5B9A\u65E5\u5FD7\u8F93\u51FA\u683C\u5F0F\uFF0C\u4E0B\u9762\u4E00\u884C\u662F\u6307\u5B9A\u5177\u4F53\u7684\u683C\u5F0F
log4j.appender.Console.layout = org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%c] - %m%n

#\u6587\u4EF6\u5927\u5C0F\u5230\u8FBE\u6307\u5B9A\u5C3A\u5BF8\u7684\u65F6\u5019\u4EA7\u751F\u4E00\u4E2A\u65B0\u7684\u6587\u4EF6
log4j.appender.File = org.apache.log4j.RollingFileAppender
#\u6307\u5B9A\u8F93\u51FA\u76EE\u5F55
log4j.appender.File.File = logs/ssm.log
#\u5B9A\u4E49\u6587\u4EF6\u6700\u5927\u5927\u5C0F
log4j.appender.File.MaxFileSize = 10MB
# \u8F93\u51FA\u6240\u4EE5\u65E5\u5FD7\uFF0C\u5982\u679C\u6362\u6210DEBUG\u8868\u793A\u8F93\u51FADEBUG\u4EE5\u4E0A\u7EA7\u522B\u65E5\u5FD7
log4j.appender.File.Threshold = ALL
log4j.appender.File.layout = org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern =[%p] [%d{yyyy-MM-dd HH\:mm\:ss}][%c]%m%n

至此基本的框架已完毕，当然使用中会有很多的需求需要我们去扩展与完善。仅以此文作为基础继续研究。
avatar
文章
阅读
粉丝
