现在热修复的技术基本上有阿里的AndFix、QZone的方案、美团提出的思想方案以及腾讯的Tinker等。
其中AndFix可能接入是最简单的一个（和Tinker命令行接入方式差不多），不过兼容性还是是有一定的问题的；QZone方案对性能会有一定的影响，且在Art模式下出现内存错乱的问题(其实这个问题我之前并不清楚，主要是tinker在MDCC上指出的);美团提出的思想方案主要是基于Instant Run的原理，目前尚未开源，不过这个方案我还是蛮喜欢的，主要是兼容性好。
一、接入Tinker
1. Project----build.grandle
//集成Tinker，热修复
classpath "com.tencent.tinker:tinker-patch-gradle-plugin:${TINKER_VERSION}"
2.app—---build.grandle
defaultConfig {
multiDexEnabled = true
}
dependencies {
//可选，用于生成application类，（版本号换成最新的发布版）
provided("com.tencent.tinker:tinker-android-anno:${TINKER_VERSION}")
//tinker的核心库
compile("com.tencent.tinker:tinker-android-lib:${TINKER_VERSION}")
compile 'com.android.support:multidex:1.0.1'
}

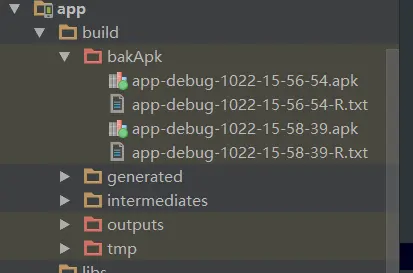

def bakPath = file("${buildDir}/bakApk/")
/**
* you can use assembleRelease to build you base apk
* use tinkerPatchRelease -POLD_APK= -PAPPLY_MAPPING= -PAPPLY_RESOURCE= to build patch
* add apk from the build/bakApk
*/
ext {
//for some reason, you may want to ignore tinkerBuild, such as instant run debug build?
tinkerEnabled = true
//for normal build

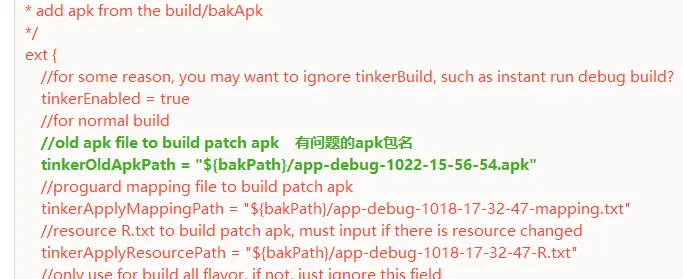

//old apk file to build patch apk
tinkerOldApkPath = "${bakPath}/app-debug-1207-18-46-41.apk"
//proguard mapping file to build patch apk
tinkerApplyMappingPath = "${bakPath}/app-debug-1018-17-32-47-mapping.txt"
//resource R.txt to build patch apk, must input if there is resource changed
tinkerApplyResourcePath = "${bakPath}/app-debug-1018-17-32-47-R.txt"
//only use for build all flavor, if not, just ignore this field
tinkerBuildFlavorDirectory = "${bakPath}/app-1018-17-32-47"
}
def getOldApkPath() {
return hasProperty("OLD_APK") ? OLD_APK : ext.tinkerOldApkPath
}
def getApplyMappingPath() {
return hasProperty("APPLY_MAPPING") ? APPLY_MAPPING : ext.tinkerApplyMappingPath
}
def getApplyResourceMappingPath() {
return hasProperty("APPLY_RESOURCE") ? APPLY_RESOURCE : ext.tinkerApplyResourcePath
}
def buildWithTinker() {
return hasProperty("TINKER_ENABLE") ? TINKER_ENABLE : ext.tinkerEnabled
}
def getTinkerBuildFlavorDirectory() {
return ext.tinkerBuildFlavorDirectory
}
if (buildWithTinker()) {
apply plugin: 'com.tencent.tinker.patch'
tinkerPatch {
/**
* necessary，default 'null'
* the old apk path, use to diff with the new apk to build
* add apk from the build/bakApk
*/
oldApk = getOldApkPath()
/**
* optional，default 'false'
* there are some cases we may get some warnings
* if ignoreWarning is true, we would just assert the patch process
* case 1: minSdkVersion is below 14, but you are using dexMode with raw.
* it must be crash when load.
* case 2: newly added Android Component in AndroidManifest.xml,
* it must be crash when load.
* case 3: loader classes in dex.loader{} are not keep in the main dex,
* it must be let tinker not work.
* case 4: loader classes in dex.loader{} changes,
* loader classes is ues to load patch dex. it is useless to change them.
* it won't crash, but these changes can't effect. you may ignore it
* case 5: resources.arsc has changed, but we don't use applyResourceMapping to build
*/
ignoreWarning = true
/**
* optional，default 'true'
* whether sign the patch file
* if not, you must do yourself. otherwise it can't check success during the patch loading
* we will use the sign config with your build type
*/
useSign = true
/**
* Warning, applyMapping will affect the normal android build!
*/
buildConfig {
/**
* optional，default 'null'
* if we use tinkerPatch to build the patch apk, you'd better to apply the old
* apk mapping file if minifyEnabled is enable!
* Warning:
* you must be careful that it will affect the normal assemble build!
*/
applyMapping = getApplyMappingPath()
/**
* optional，default 'null'
* It is nice to keep the resource id from R.txt file to reduce java changes
*/
applyResourceMapping = getApplyResourceMappingPath()
/**
* necessary，default 'null'
* because we don't want to check the base apk with md5 in the runtime(it is slow)
* tinkerId is use to identify the unique base apk when the patch is tried to apply.
* we can use git rev, svn rev or simply versionCode.
* we will gen the tinkerId in your manifest automatic
*/
tinkerId = '1.0'
}
dex {
/**
* optional，default 'jar'
* only can be 'raw' or 'jar'. for raw, we would keep its original format
* for jar, we would repack dexes with zip format.
* if you want to support below 14, you must use jar
* or you want to save rom or check quicker, you can use raw mode also
*/
dexMode = "jar"
/**
* optional，default 'false'
* if usePreGeneratedPatchDex is true, tinker framework will generate auxiliary class
* and insert auxiliary instruction when compiling base package using
* assemble{Debug/Release} task to prevent class pre-verified issue in dvm.
* Besides, a real dex file contains necessary class will be generated and packed into
* patch package instead of any patch info files.
*
* Use this mode if you have to use any dex encryption solutions.
*
* Notice: If you change this value, please trigger clean task
* and regenerate base package.
*/
// usePreGeneratedPatchDex = false
/**
* necessary，default '[]'
* what dexes in apk are expected to deal with tinkerPatch
* it support * or ? pattern.
*/
pattern = ["classes*.dex",
"assets/secondary-dex-?.jar"]
/**
* necessary，default '[]'
* Warning, it is very very important, loader classes can't change with patch.
* thus, they will be removed from patch dexes.
* you must put the following class into main dex.
* Simply, you should add your own application {@code tinker.sample.android.SampleApplication}
* own tinkerLoader, and the classes you use in them
*
*/
loader = ["com.tencent.tinker.loader.*",
//warning, you must change it with your application
"tinker.sample.android.app.SampleApplication",
//use sample, let BaseBuildInfo unchangeable with tinker
"tinker.sample.android.app.BaseBuildInfo"
]
}
lib {
/**
* optional，default '[]'
* what library in apk are expected to deal with tinkerPatch
* it support * or ? pattern.
* for library in assets, we would just recover them in the patch directory
* you can get them in TinkerLoadResult with Tinker
*/
pattern = ["lib/armeabi/*.so"]
}
res {
/**
* optional，default '[]'
* what resource in apk are expected to deal with tinkerPatch
* it support * or ? pattern.
* you must include all your resources in apk here,
* otherwise, they won't repack in the new apk resources.
*/
pattern = ["res/*", "assets/*", "resources.arsc", "AndroidManifest.xml"]
/**
* optional，default '[]'
* the resource file exclude patterns, ignore add, delete or modify resource change
* it support * or ? pattern.
* Warning, we can only use for files no relative with resources.arsc
*/
ignoreChange = ["assets/sample_meta.txt"]
/**
* default 100kb
* for modify resource, if it is larger than 'largeModSize'
* we would like to use bsdiff algorithm to reduce patch file size
*/
largeModSize = 100
}
packageConfig {
/**
* optional，default 'TINKER_ID, TINKER_ID_VALUE' 'NEW_TINKER_ID, NEW_TINKER_ID_VALUE'
* package meta file gen. path is assets/package_meta.txt in patch file
* you can use securityCheck.getPackageProperties() in your ownPackageCheck method
* or TinkerLoadResult.getPackageConfigByName
* we will get the TINKER_ID from the old apk manifest for you automatic,
* other config files (such as patchMessage below)is not necessary
*/
configField("patchMessage", "tinker is sample to use")
/**
* just a sample case, you can use such as sdkVersion, brand, channel...
* you can parse it in the SamplePatchListener.
* Then you can use patch conditional!
*/
configField("platform", "all")
/**
* patch version via packageConfig
*/
configField("patchVersion", "1.0")
}
//or you can add config filed outside, or get meta value from old apk
//project.tinkerPatch.packageConfig.configField("test1", project.tinkerPatch.packageConfig.getMetaDataFromOldApk("Test"))
//project.tinkerPatch.packageConfig.configField("test2", "sample")
/**
* if you don't use zipArtifact or path, we just use 7za to try
*/
sevenZip {
/**
* optional，default '7za'
* the 7zip artifact path, it will use the right 7za with your platform
*/
zipArtifact = "com.tencent.mm:SevenZip:1.1.10"
/**
* optional，default '7za'
* you can specify the 7za path yourself, it will overwrite the zipArtifact value
*/
// path = "/usr/local/bin/7za"
}
}
List<String> flavors = new ArrayList<>();
project.android.productFlavors.each {flavor ->
flavors.add(flavor.name)
}
boolean hasFlavors = flavors.size() > 0
/**
* bak apk and mapping
*/
android.applicationVariants.all { variant ->
/**
* task type, you want to bak
*/
def taskName = variant.name
def date = new Date().format("MMdd-HH-mm-ss")
tasks.all {
if ("assemble${taskName.capitalize()}".equalsIgnoreCase(it.name)) {
it.doLast {
copy {
def fileNamePrefix = "${project.name}-${variant.baseName}"
def newFileNamePrefix = hasFlavors ? "${fileNamePrefix}" : "${fileNamePrefix}-${date}"
def destPath = hasFlavors ? file("${bakPath}/${project.name}-${date}/${variant.flavorName}") : bakPath
from variant.outputs.outputFile
into destPath
rename { String fileName ->
fileName.replace("${fileNamePrefix}.apk", "${newFileNamePrefix}.apk")
}
from "${buildDir}/outputs/mapping/${variant.dirName}/mapping.txt"
into destPath
rename { String fileName ->
fileName.replace("mapping.txt", "${newFileNamePrefix}-mapping.txt")
}
from "${buildDir}/intermediates/symbols/${variant.dirName}/R.txt"
into destPath
rename { String fileName ->
fileName.replace("R.txt", "${newFileNamePrefix}-R.txt")
}
}
}
}
}
}
project.afterEvaluate {
//sample use for build all flavor for one time
if (hasFlavors) {
task(tinkerPatchAllFlavorRelease) {
group = 'tinker'
def originOldPath = getTinkerBuildFlavorDirectory()
for (String flavor : flavors) {
def tinkerTask = tasks.getByName("tinkerPatch${flavor.capitalize()}Release")
dependsOn tinkerTask
def preAssembleTask = tasks.getByName("process${flavor.capitalize()}ReleaseManifest")
preAssembleTask.doFirst {
String flavorName = preAssembleTask.name.substring(7, 8).toLowerCase() + preAssembleTask.name.substring(8, preAssembleTask.name.length() - 15)
project.tinkerPatch.oldApk = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-release.apk"
project.tinkerPatch.buildConfig.applyMapping = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-release-mapping.txt"
project.tinkerPatch.buildConfig.applyResourceMapping = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-release-R.txt"
}
}
}
task(tinkerPatchAllFlavorDebug) {
group = 'tinker'
def originOldPath = getTinkerBuildFlavorDirectory()
for (String flavor : flavors) {
def tinkerTask = tasks.getByName("tinkerPatch${flavor.capitalize()}Debug")
dependsOn tinkerTask
def preAssembleTask = tasks.getByName("process${flavor.capitalize()}DebugManifest")
preAssembleTask.doFirst {
String flavorName = preAssembleTask.name.substring(7, 8).toLowerCase() + preAssembleTask.name.substring(8, preAssembleTask.name.length() - 13)
project.tinkerPatch.oldApk = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-debug.apk"
project.tinkerPatch.buildConfig.applyMapping = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-debug-mapping.txt"
project.tinkerPatch.buildConfig.applyResourceMapping = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-debug-R.txt"
}
}
}
}
}
}注意 修改IgnoreWarning = true 和 tinkerId = '1.0' //这里的 tinkerId ：必须和项目版本号保持
以上部分Tinker配置信息就已经集成完了！！！！！
二、Tinker 使用
创建 SampleApplicationLike 类 继承 DefaultApplicationLike 用于配置生成的MyApplication类
这个类用解决相同的文件 跨dex文件导致错误异常

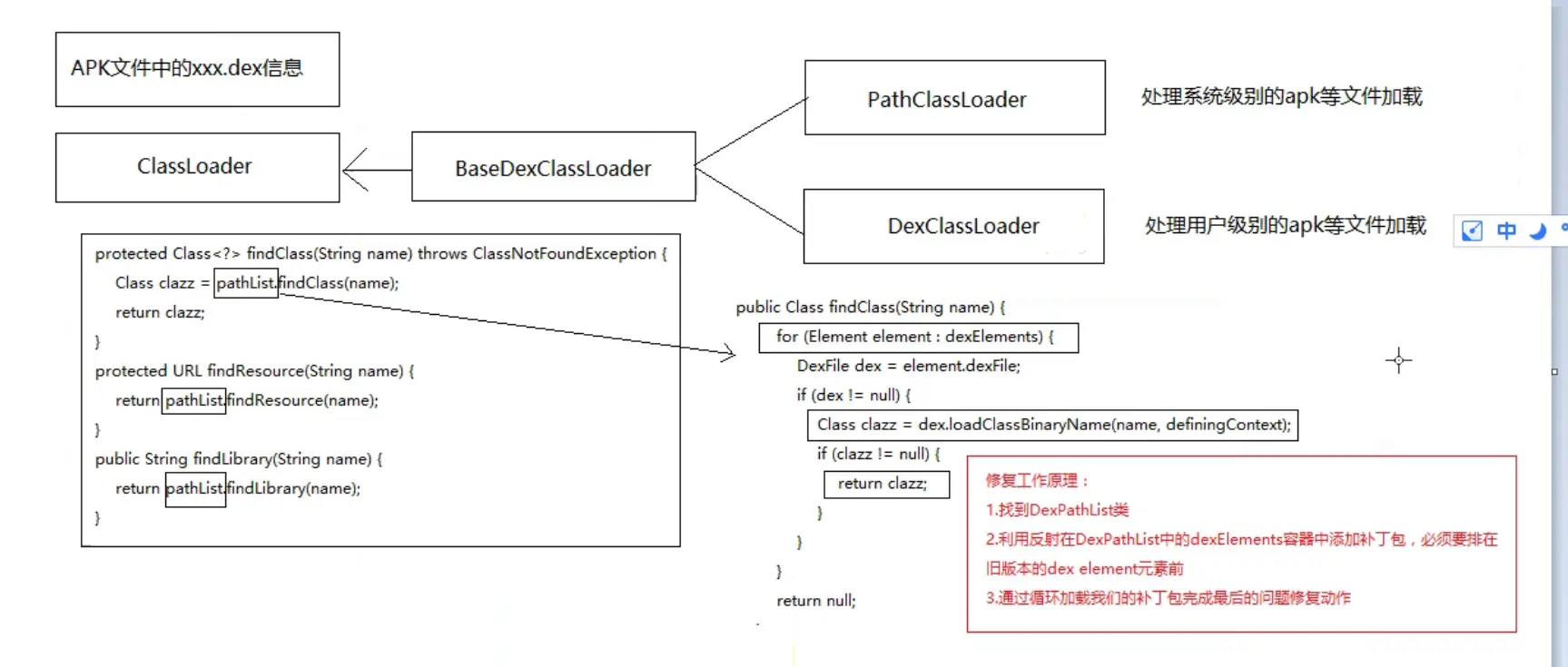

生成MyApplication 作用 ：独立出来Application，在项目中加载类的时候会有多个dex文件加载，每一个dex文件下都有一个标志性信息，如果你想把他擦除掉就必须这样做
**
@DefaultLifeCycle(application = "jasjax.com.chengpai.MyApplication", //包名.MyApplication
flags = ShareConstants.TINKER_ENABLE_ALL,
loadVerifyFlag = false)
public class SampleApplicationLike extends DefaultApplicationLike {
public static Context context;
public SampleApplicationLike(Application application, int tinkerFlags, boolean tinkerLoadVerifyFlag,
long applicationStartElapsedTime, long applicationStartMillisTime, Intent tinkerResultIntent) {
super(application, tinkerFlags, tinkerLoadVerifyFlag, applicationStartElapsedTime, applicationStartMillisTime, tinkerResultIntent);
}
@Override
public void onBaseContextAttached(Context base) {
super.onBaseContextAttached(base);
MultiDex.install(base);
TinkerInstaller.install(this);
// 该方法可以看成MyApplication中的onCreate方法，比如上下文的使用
context=base;
}
}通过这里我们用点击事件来模拟完成修复（官方：Service进行更新的操作）
findViewById(R.id.erro).setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
// 加载补丁包：指定补丁包的位置，读取补丁包信息。
TinkerInstaller.onReceiveUpgradePatch(getApplicationContext(),
Environment.getExternalStorageDirectory().getAbsolutePath()+"/test");// test：补丁包名称（可以定制）
}
});在Debug模式下，当有问题的项目运行完，会在app --- build 下生成一个backApk包，里面存放着有bug的APK，接下来我们要把这个Apk名称设置给build.gradle中的 “old apk file to build patch apk”，这样我们就可以给指定的Apk 修复bug了

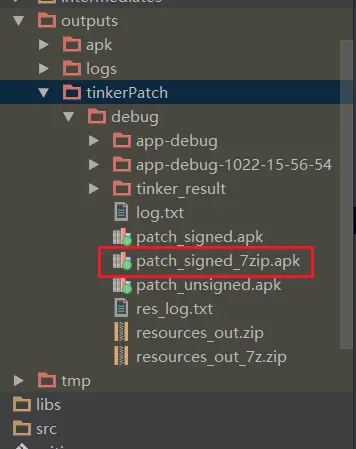

这里还没有完结，接下来我们需要使用命令行去生成 gradle tinkerPatchDebug 生成 X1包（补丁包），编译完成后会生成红色方框标记的的补丁包了，我们需要把他复制出来，名字修改成我们在TinkerInstaller.onReceiveUpgradePatch方法中设置的文件名（test）
这里我使用的是本地模拟，把test文件放置在sd卡目录下，点击修复按钮，程序推出后再次进入就可以看到之前的bug被修改
Tinker原理图：
##
alt
