自定义View之支持Gravity的ViewGroup

1. 前言

前面两篇博客主要是介绍直接继承View后复写onDraw方法来实现一些不规则图形的绘制，来达到满足不同自定义View的需求，更注重的是图形的绘制变换和效果展示，前两天学习一些自定义ViewGroup的相关内容，分享一下。

2. 目标

支持Gravity的ViewGroup。

支持的Gravity的种类：左上，右上，左下，右下，中心。

3. 实现步骤

1. 自定义属性：custom_gravity
2. 自定义属性的取值范围：1－5(topleft, topright, bottomleft, bottomright, center)
3. 自定义LayoutParam。参考LinearLayout，RelativeLayout等等
4. 复写onMeasure， onLayout
5. 复写LayoutParam相关的几个方法

4. 几点提醒

1. onMeasure使用来确定子view的大小的，没有那么神秘，就是根据ViewGroup的大小和子View的LayoutParam来确定子View应该有的大小。通过
   MeasureSpec.makeMeasureSpec的方式生成MeasureSpec，通过调用子View的measure方法，把数据传递给子View，方便确定大小。
2. onLayout方法同来确定子View的位置，传入的参数是当前View Group的上下左上角和右下角的位置，通过子View的属性值和一些其他判断条件，来计算子View应该摆放在哪个位置，然后通过调用子View的layout方法来摆放。

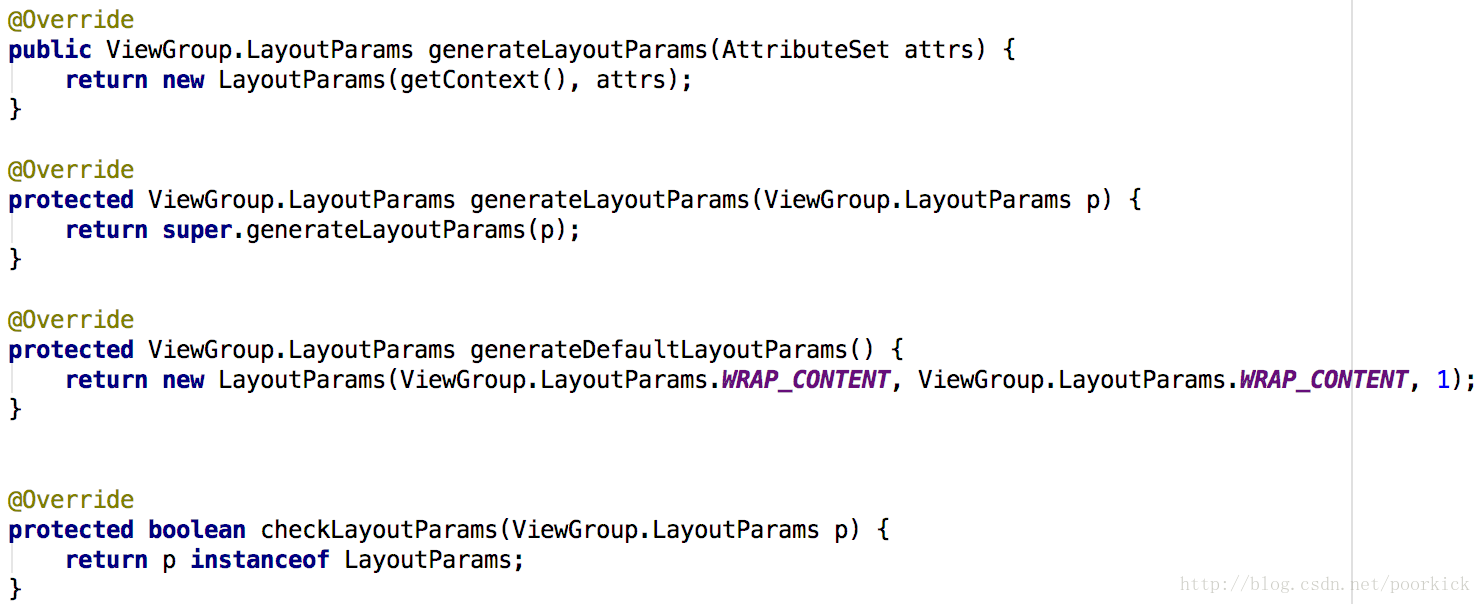

3. 自定义LayoutParam。需要复写几个方法


5. 代码实现

5.1 自定义属性

    <declare-styleable name="CustomViewGroup">
        <attr name="custom_gravity"/>

    </declare-styleable>
    <attr name="custom_gravity">
        <flag name="topleft" value="1"/>
        <flag name="topright" value="2"/>
        <flag name="bottomleft" value="3"/>
        <flag name="bottomright" value="4"/>
        <flag name="center" value="5"/>
    </attr>

5.2 CustomViewGroup

代码写的比较简单，方便理解，把每个子View的大小全部设置成相同的大小。

public class CustomViewGroup extends ViewGroup {

    public CustomViewGroup(Context context) {
        super(context);
    }

    public CustomViewGroup(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public CustomViewGroup(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        int widthSize = MeasureSpec.getSize(widthMeasureSpec);
        int heightSize = MeasureSpec.getSize(heightMeasureSpec);

        /**
         * 每个子View的大小都设置成相同大小
         */
        for (int i = 0; i < getChildCount(); i++) {
            View child = getChildAt(i);
            int mode = MeasureSpec.EXACTLY;
            int childWidth = widthSize / 4;
            int childHeight = heightSize / 4;
            child.measure(MeasureSpec.makeMeasureSpec(childWidth, mode),
                    MeasureSpec.makeMeasureSpec(childHeight, mode));
        }
    }

    @Override
    protected void onLayout(boolean changed, int l, int t, int r, int b) {
        for (int i = 0; i < getChildCount(); i++) {
            View child = getChildAt(i);
            int width = child.getMeasuredWidth();
            int height = child.getMeasuredHeight();
            final LayoutParams lp = (LayoutParams) child.getLayoutParams();
            int gravity = lp.gravity;
            switch (gravity) {
                case LayoutParams.TOPLEFT_GRAVITY:
                    child.layout(l, t, width, height);
                    break;
                case LayoutParams.TOPRIGHT_GRAVITY:
                    child.layout(r - width, t, r, height);
                    break;
                case LayoutParams.BOTTOMLEFT_GRAVITY:
                    child.layout(l, b - height, width, b);
                    break;
                case LayoutParams.BOTTOMRIGHT_GRAVITY:
                    child.layout(r - width, b - height, r, b);
                    break;
                case LayoutParams.CENTER_GRAVITY:
                    child.layout((r - width) / 2, (b - height) / 2, (r + width) / 2,
                            (b + height) / 2);
                    break;
                default:
                    break;
            }
        }
    }

    @Override
    public ViewGroup.LayoutParams generateLayoutParams(AttributeSet attrs) {
        return new LayoutParams(getContext(), attrs);
    }

    @Override
    protected ViewGroup.LayoutParams generateLayoutParams(ViewGroup.LayoutParams p) {
        return new LayoutParams(p);
    }

    @Override
    protected ViewGroup.LayoutParams generateDefaultLayoutParams() {
        return new LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT, 1);
    }


    @Override
    protected boolean checkLayoutParams(ViewGroup.LayoutParams p) {
        return p instanceof LayoutParams;
    }

    public static class LayoutParams extends ViewGroup.LayoutParams {
        public static final int UNSPECIFIED_GRAVITY = -1;
        public static final int TOPLEFT_GRAVITY = 1;
        public static final int TOPRIGHT_GRAVITY = 2;
        public static final int BOTTOMLEFT_GRAVITY = 3;
        public static final int BOTTOMRIGHT_GRAVITY = 4;
        public static final int CENTER_GRAVITY = 5;

        public int gravity = UNSPECIFIED_GRAVITY;

        public LayoutParams(@NonNull Context c, @Nullable AttributeSet attrs) {
            super(c, attrs);

            final TypedArray a = c.obtainStyledAttributes(attrs, R.styleable.CustomViewGroup);
            gravity = a.getInt(R.styleable.CustomViewGroup_custom_gravity, UNSPECIFIED_GRAVITY);
            a.recycle();
        }

        public LayoutParams(int width, int height, int gravity) {
            super(width, height);
            this.gravity = gravity;
        }

        public LayoutParams(@NonNull ViewGroup.LayoutParams source) {
            super(source);
            this.gravity = TOPLEFT_GRAVITY;
        }

        public LayoutParams(@NonNull LayoutParams source) {
            super(source);

            this.gravity = source.gravity;
        }
    }

}

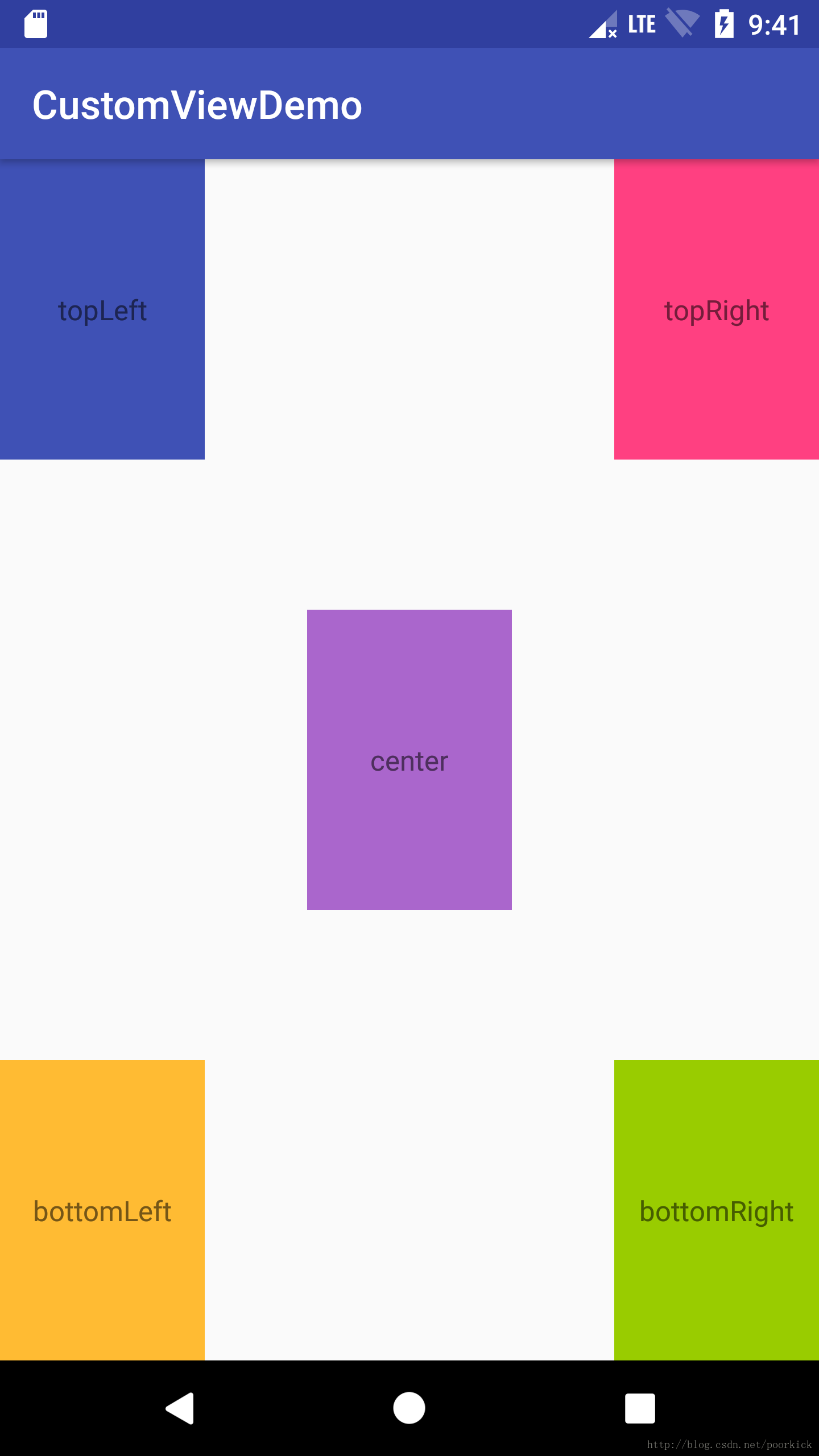

6. 效果图

7. 源代码

源代码还是上传到Github
CustomViewDemo
