Dubbo+ZookeeperDubbo采用全Spring配置方式，透明化接入应用，对应用没有任何API侵入，只需用Sp

搭建ZooKeeper服务注册中心

上传文件：

zookeeper-3.4.9.tar.gz

解压zookeeper-3.4.9.tar.gz

将/opt/zookeeper-3.4.9/conf/zoo_sample.cfg复制为/opt/zookeeper-3.4.9/conf/zoo.cfg

新建目录：/opt/zookeeper-3.4.9/data

修改/opt/zookeeper-3.4.9/conf/zoo.cfg文件

# the directory where the snapshot is stored.
# do not use /tmp for storage, /tmp here is just
# example sakes.
dataDir=/opt/zookeeper-3.4.9/data

启动ZooKeeper:

[root@right bin]# pwd
/opt/zookeeper-3.4.9/bin
[root@right bin]# ./zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper-3.4.9/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@right bin]# ./zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper-3.4.9/bin/../conf/zoo.cfg
Mode: standalone

永久关闭防火墙:

chkconfig iptables off

举例子说明：

创建服务端工程：

引入依赖：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.soyoungboy.distribute</groupId>
    <artifactId>DubboConsumer</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>com.soyoungboy.distribute</groupId>
            <artifactId>DubboInterfaces</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.5.6</version>
        </dependency>
        <dependency>
            <groupId>cglib</groupId>
            <artifactId>cglib</artifactId>
            <version>2.2</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.6.8</version>
        </dependency>
        <dependency>
            <groupId>com.101tec</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.10</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>4.3.10.RELEASE</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.0</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
</project>

创建服务接口的实现类

import com.alibaba.dubbo.demo.DemoService;

public class DemoServiceImpl implements DemoService {

    public String sayHello(String name) {
        return "Hello " + name;
    }

}

Spring配置文件：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

    <!-- 配置当前应用模块名称 -->
    <dubbo:application name="demo-provider"/>

    <!-- 配置注册中心的位置 -->
    <!-- Multicast 注册中心：multicast://224.5.6.7:1234 -->
    <!-- 配置ZooKeeper注册中心位置方式如下 -->
    <dubbo:registry address="192.168.159.200:2181" protocol="zookeeper"/>

    <!-- 配置Dubbo客户端的访问端口 -->
    <dubbo:protocol name="dubbo" port="20880"/>

    <!-- 配置接口实现类对应的bean -->
    <bean id="demoService" class="com.alibaba.dubbo.demo.provider.DemoServiceImpl"/>

    <!-- 配置提供的服务的接口 -->
    <dubbo:service interface="com.alibaba.dubbo.demo.DemoService" ref="demoService"/>

</beans>

log4j.properties

log4j.rootLogger=DEBUG,myConsole
log4j.appender.myConsole=org.apache.log4j.ConsoleAppender
log4j.appender.myConsole.ImmediateFlush=true
log4j.appender.myConsole.Target=System.out
log4j.appender.myConsole.layout=org.apache.log4j.PatternLayout
log4j.appender.myConsole.layout.ConversionPattern=[%-5p] %d(%r) --> [%t] %l: %m %x %n

创建客户端工程:DubboConsumer

引入依赖：

<dependency>
    <groupId>cglib</groupId>
    <artifactId>cglib</artifactId>
    <version>2.2</version>
</dependency>
<dependency>
    <groupId>org.aspectj</groupId>
    <artifactId>aspectjweaver</artifactId>
    <version>1.6.8</version>
</dependency>
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>dubbo</artifactId>
    <version>2.5.5</version>
</dependency>
<dependency>
    <groupId>com.101tec</groupId>
    <artifactId>zkclient</artifactId>
    <version>0.10</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>4.3.10.RELEASE</version>
    <scope>compile</scope>
</dependency>
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>servlet-api</artifactId>
    <version>2.5</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>jsp-api</artifactId>
    <version>2.0</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>com.soyoungboy.distributed</groupId>
    <artifactId>ServiceInterface</artifactId>
    <version>0.0.1-SNAPSHOT</version>
</dependency>

配置文件：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
        http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

    <!-- 配置当前应用模块名称 -->
    <dubbo:application name="demo-consumer"/>

    <!-- 配置注册中心位置 -->
    <dubbo:registry address="192.168.159.246:2181" protocol="zookeeper"/>

    <!-- 配置提供服务的接口类型 -->
    <dubbo:reference id="demoService" interface="com.alibaba.dubbo.demo.DemoService"/>

    <context:component-scan base-package="com.soyoungboy.distribute.handler"/>

    <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <mvc:annotation-driven/>
    <mvc:default-servlet-handler/>

</beans>

在需要调用服务的bean中注入接口类型的bean

import java.util.Map;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import com.alibaba.dubbo.demo.DemoService;

@Controller
public class SayHelloHandler {

    @Autowired
    private DemoService demoService;

    @RequestMapping("/testSayHello")
    public String sayHello(Map<String, Object> map) {

        //像调用本地方法一样调用远程服务
        String sayHello = demoService.sayHello("Tom");

        map.put("result", sayHello);

        return "result";
    }

}

ZooKeeper

ZooKeeper=文件系统+通知机制

文件系统：ZooKeeper使用树形结构管理数据。而且以“/”作为树形结构的根节点。

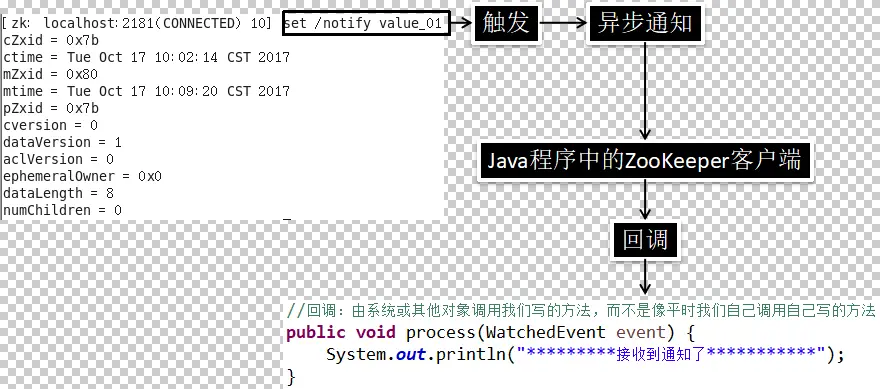

通知机制：用ZooKeeper的通知机制后，各个模块工程在特定znode 上设置Watcher（观察者）来监控当前节点上值的变化。一旦Watcher 检测到了数据变化就会立即通知模块工程，从而自动实现“一处修改，处处生效”的效果。

常用命令：

启动服务器：./zkServer.sh start
停止服务器：./zkServer.sh stop
启动客户端：./zkCli.sh
退出客户端：[zk: localhost:2181(CONNECTED) 6] quit
ls:查看当前znode中所包含的内容
ls2:查看当前节点数据并能看到更新次数等数据
stat:查看节点状态 stat /tebieshuai
set:设置节点的具体值
set 节点 value值 set /tebieshuai new_value
get:获得节点的值 get /shuai
get节点
delete：可以删除指定znode，当该znode拥有子znode时，必须先删除其所有子znode，否则操作将失败。
rmr：命令可用于代替delete命令，rmr是一个递归删除命令，如果发生指定节点拥有子节点时，rmr命令会首先删除子节点。
rmr /chou000000008
create：
create [-s] [-e] path data acl
普通创建：不带有-s、-e参数
-s：含有序列 create -s /chou true
-e：临时（重启或者超时消失）create -s -e /templ uuu

stat属性内容：

czxid：引起这个znode创建的zxid ，创建节点的事务的zxid（ZooKeeper Transaction Id ）

ctime：znode被创建的毫秒数( 从1970年开始)

mzxid：znode最后更新的zxid

mtime：znode最后修改的毫秒数( 从1970年开始)

pZxid：znode最后更新的子节点zxid

cversion：znode子节点变化号，znode 子节点修改次数

dataversion：znode数据变化号

aclVersion：znode访问控制列表的变化号

ephemeralOwner：如果是临时节点，这个是znode拥有者的session id 。如果不是临时节点则是0。

dataLength：znode的数据长度

numChildren：znode子节点数量

ZooKeeper四字命令：

ruok：测试服务是否处于正确状态。如果确实如此，那么服务返回“imok ”，否则不做任何响应
stat：输出关于性能和连接的客户端的列表
conf：输出相关服务配置的详细信息
cons：列出所有连接到服务器的客户端的完全的连接 /会话的详细信息。包括“接受 / 发送”的包数量、会话id 、操作延迟、最后的操作执行等等信息
dump：列出未经处理的会话和临时节点
envi：输出关于服务环境的详细信息（区别于conf命令）
reqs：列出未经处理的请求
wchs：列出服务器watch的详细信息
wchc：通过session列出服务器watch的详细信息，它的输出是一个与watch相关的会话的列表
wchp：通过路径列出服务器 watch的详细信息。它输出一个与 session相关的路径

通过Java程序操作Zookeeper

依赖信息：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.soyoungboy.zookeeper</groupId>
    <artifactId>ZooKeeper</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>com.101tec</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.10</version>
        </dependency>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.9</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.9</version>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

Java操作代码：

import java.io.IOException;
import java.util.ArrayList;

import org.apache.zookeeper.CreateMode;
import org.apache.zookeeper.KeeperException;
import org.apache.zookeeper.WatchedEvent;
import org.apache.zookeeper.Watcher;
import org.apache.zookeeper.ZooDefs.Ids;
import org.apache.zookeeper.ZooKeeper;
import org.apache.zookeeper.data.ACL;
import org.apache.zookeeper.data.Stat;

public class NodeOperation {

    /**
     * 设置节点值
     * @param zooKeeper
     * @param path
     * @param nodeData
     * @return
     * @throws KeeperException
     * @throws InterruptedException
     */
    public Stat setNodeData(ZooKeeper zooKeeper, String path, String nodeData) throws KeeperException, InterruptedException {

        Stat stat = zooKeeper.setData(path, nodeData.getBytes(), -1);
        return stat;
    }

    /**
     * 获取指定节点上的数据
     * @param zooKeeper
     * @param path
     * @return
     * @throws KeeperException
     * @throws InterruptedException
     */
    public String getNodeData(ZooKeeper zooKeeper, String path) throws KeeperException, InterruptedException {

        byte[] data = zooKeeper.getData(path, false, new Stat());

        return new String(data);
    }

    /**
     * 创建节点
     * @param zooKeeper ZooKeeper服务器连接对象
     * @param path 要创建的节点的路径
     * @param nodeData 节点的数据
     * @return
     * @throws KeeperException
     * @throws InterruptedException
     */
    public String createNewNode(ZooKeeper zooKeeper, String path, String nodeData) throws KeeperException, InterruptedException {

        //将字符串类型的数据转换为字节数组类型
        byte[] nodeDataBytes = nodeData.getBytes();

        //访问控制列表
        ArrayList<ACL> openAclUnsafe = Ids.OPEN_ACL_UNSAFE;

        //创建模式
        CreateMode mode = CreateMode.PERSISTENT;

        //执行创建
        String result = zooKeeper.create(path, nodeDataBytes, openAclUnsafe, mode);

        return result;

    }

    /**
     * 连接ZooKeeper服务器
     * @return
     * @throws IOException
     */
    public ZooKeeper connectToZookeeper() throws IOException {

        //连接ZooKeeper服务器的信息
        String connectString = "192.168.159.200:2181";
        int sessionTimeout = 50 * 1000;

        //创建ZooKeeper对象
        ZooKeeper zooKeeper = new ZooKeeper(connectString, sessionTimeout, new Watcher() {

            @Override
            public void process(WatchedEvent event) {
                //暂时不做任何处理
            }
        });

        return zooKeeper;
    }

}

测试使用代码：

import java.io.IOException;

import org.apache.zookeeper.KeeperException;
import org.apache.zookeeper.ZooKeeper;
import org.apache.zookeeper.data.Stat;
import org.junit.Test;

import com.atguigu.zookeeper.NodeOperation;

public class ZooKeeperTest {

    private NodeOperation nodeOperation = new NodeOperation();
    private ZooKeeper zooKeeper = null;

    @Test
    public void testSetNodeData() throws KeeperException, InterruptedException {
        Stat stat = nodeOperation.setNodeData(
                zooKeeper, "/shuai", "are you ok");
        System.out.println(stat);
        int cversion = stat.getCversion();
        System.out.println(cversion);
    }

    @Test
    public void testGetNodeData() throws KeeperException, InterruptedException {
        String nodeData = nodeOperation.getNodeData(zooKeeper, "/shuai");
        System.out.println(nodeData);
    }

    @Test
    public void testCreateNode() throws KeeperException, InterruptedException {

        //create /aaa com.atguigu.service

        String path = "/aaa";
        String nodeData = "com.atguigu.service";

        String result = nodeOperation.createNewNode(zooKeeper, path, nodeData);
        System.out.println(result);

    }

    {
        try {
            zooKeeper = nodeOperation.connectToZookeeper();
        } catch (IOException e) {
            e.printStackTrace();
            throw new RuntimeException(e.getMessage());
        }
    }

    @Test
    public void testConnection() throws IOException, InterruptedException {
        ZooKeeper zooKeeper = nodeOperation.connectToZookeeper();
        System.out.println(zooKeeper);
        Thread.sleep(Long.MAX_VALUE);
    }

}

通知机制

使用方法的递归调用实现持续观察

代码实现：

public class MyWatchMulti {

    public static void main(String[] args) throws IOException, KeeperException, InterruptedException {

        final ZooKeeper zooKeeper = new ZooKeeper("192.168.159.200:2181", 50 * 1000, new Watcher() {
            @Override
            public void process(WatchedEvent event) {}
        });

        byte[] nodeData = zooKeeper.getData("/notify", new Watcher() {

            //回调：由系统或其他对象调用我们写的方法，而不是像平时我们自己调用自己写的方法
            public void process(WatchedEvent event) {
                System.err.println("*********接收到通知了[第一次]***********");

                MyWatchMulti multi = new MyWatchMulti();

                //调用递归方法持续观察
                String currentValue = multi.recursionGetData(zooKeeper);
                System.err.println("当前值="+currentValue);

                System.err.println("*********接收到通知了[第一次]***********");
            }
        }, new Stat());

        System.out.println(new String(nodeData));

        Thread.sleep(Long.MAX_VALUE);

    }

    /**
     * 以递归方式执行获取数据和设置观察者操作实现持续观察
     * @param zooKeeper
     * @return
     */
    public String recursionGetData(final ZooKeeper zooKeeper) {
        byte[] currentValue = null;
        try {
            currentValue = zooKeeper.getData("/notify", new Watcher() {

                @Override
                public void process(WatchedEvent event) {

                    //递归调用的核心
                    recursionGetData(zooKeeper);
                }
            }, new Stat());
        } catch (Exception e) {
            e.printStackTrace();
            throw new RuntimeException(e.getMessage());
        }

        String currentResult = new String(currentValue);
        System.out.println("递归中获取的值="+currentResult);

        return currentResult;
    }

}
