Android系统源码分析--Zygote和SystemServer启动过程

墨香
900 阅读8分钟

按计划本来从这章开始写四大组件的启动过程的，但是看看源码结构发现为了说的更明白还是先写一点系统framework层启动的内容，帮助理解四大组件的启动以及管理过程。我们知道四大组件管理是通过一些服务以及线程实现的，所以先把一些基本概念弄清楚比较好，比如AMS（ActivityManagerService）、PMS（PackageManagerService）等系统服务的作用以及调用方式，了解这些之后再看四大组件相对容易些，因此我们本章先介绍系统启动、部分系统服务的作用。

Zygote启动过程

Zygote是一个孕育器，Android系统所有的应用进程以及系统服务SystemServer都是有Zygote进程孕育（fork）而生的，因此Zygote在Android启动过程中起着决定作用。Zygote的启动是从它的main函数开始的，因此我们从这个函数开始分析。整个过程看下面的时序图。


下面我们开始根据时序图进行分析。

Step 0.ZygoteInit.main

    public static void main(String argv[]) {
        ...
        try {
            ...

            registerZygoteSocket(socketName);

            ...

            preload();

            ...

            gcAndFinalize();

            ...

            if (startSystemServer) {
                startSystemServer(abiList, socketName);
            }

            runSelectLoop(abiList);

            closeServerSocket();
        } catch (MethodAndArgsCaller caller) {
            ...
        } catch (Throwable ex) {
            ...
        }
    }

首先调用registerZygoteSocket方法，创建一个socket接口，用来和ActivityManagerService通讯，然后调用preload方法预加载一些资源等；然后调用gcAndFinalize方法释放一些内存；然后调用startSystemServer方法启动SystemServer组件，然后调用runSelectLoop方法，创建一个无限循环，在socket接口上等待ActivityManagerService请求创建新的应用程序进程；最后调用closeServerSocket方法关闭上面创建的socket。

Step 1.ZygoteInit.registerZygoteSocket

   private static void registerZygoteSocket(String socketName) {
        if (sServerSocket == null) {
            int fileDesc;
            final String fullSocketName = ANDROID_SOCKET_PREFIX + socketName;
            try {
                String env = System.getenv(fullSocketName);
                fileDesc = Integer.parseInt(env);
            } catch (RuntimeException ex) {
                ...
            }

            try {
                FileDescriptor fd = new FileDescriptor();
                fd.setInt$(fileDesc);
                sServerSocket = new LocalServerSocket(fd);
            } catch (IOException ex) {
                throw new RuntimeException(
                        "Error binding to local socket '" + fileDesc + "'", ex);
            }
        }
    }

这个sServerSocket是通过传入FileDescriptor（文件描述者）通过new一个来LocalServerSocket创建的。

Step 2.LocalServerSocket

    public LocalServerSocket(FileDescriptor fd) throws IOException
    {
        impl = new LocalSocketImpl(fd);
        impl.listen(LISTEN_BACKLOG);
        localAddress = impl.getSockAddress();
    }

在LocalServerSocket构造函数中又new了一个LocalSocketImpl，然后调用LocalSocketImpl的listen方法，最后通过getSockAddress方法获取LocalSocketAddress对象。

Step 3.LocalSocketImpl

    /*package*/ LocalSocketImpl(FileDescriptor fd) throws IOException
    {
        this.fd = fd;
    }

这里只是传入了FileDescriptor（文件描述者）。

Step 5.ZygoteInit.preload

    static void preload() {
        ...
        beginIcuCachePinning();
        ...
        preloadClasses();
        ...
        preloadResources();
        ...
        preloadOpenGL();
        ...
        preloadSharedLibraries();
        preloadTextResources();
        ...
    }

这里主要是预加载，1.预加载ICU缓存，2.执行Zygote进程初始化，预加载一些普通类，3.预加载mResources，4.预加载OpenGL，5.预加载共享库，6.预加载TextView的字体缓存。

Step 12.ZygoteInit.gcAndFinalize

    /*package*/ static void gcAndFinalize() {
        final VMRuntime runtime = VMRuntime.getRuntime();
        ...
        System.gc();
        runtime.runFinalizationSync();
        System.gc();
    }

这里主要是调用System.gc来释放一部分内存。

Step 13.ZygoteInit.startSystemServer

    private static boolean startSystemServer(String abiList, String socketName)
            throws MethodAndArgsCaller, RuntimeException {
        ...

        int pid;

        try {
            ...

            /* Request to fork the system server process */
            pid = Zygote.forkSystemServer(
                    parsedArgs.uid, parsedArgs.gid,
                    parsedArgs.gids,
                    parsedArgs.debugFlags,
                    null,
                    parsedArgs.permittedCapabilities,
                    parsedArgs.effectiveCapabilities);
        } catch (IllegalArgumentException ex) {
            ...
        }

        /* For child process */
        if (pid == 0) {
            if (hasSecondZygote(abiList)) {
                waitForSecondaryZygote(socketName);
            }

            handleSystemServerProcess(parsedArgs);
        }

        return true;
    }

首先Zygote会通过调用Zygote.forkSystemServer方法来创建一个新的进程来启动SystemServer，并且返回这个进程的pid，如果pid为0，并且有另外一个Zygote则会执行waitForSecondaryZygote关闭另外的Zygote进程，然后调用handleSystemServerProcess方法。

Step 16.ZygoteInit.handleSystemServerProcess

    private static void handleSystemServerProcess(
            ZygoteConnection.Arguments parsedArgs)
            throws ZygoteInit.MethodAndArgsCaller {

        closeServerSocket();

        ...

        final String systemServerClasspath = Os.getenv("SYSTEMSERVERCLASSPATH");
        if (systemServerClasspath != null) {
            performSystemServerDexOpt(systemServerClasspath);
        }

        if (parsedArgs.invokeWith != null) {
            ...
        } else {
            ...
            RuntimeInit.zygoteInit(parsedArgs.targetSdkVersion, parsedArgs.remainingArgs, cl);
        }
    }

首先调用closeServerSocket方法关闭socket，然后调用performSystemServerDexOpt来创建安装连接InstallerConnection，最后调用RuntimeInit.zygoteInit方法。

Step 19.RuntimeInit.zygoteInit

    public static final void zygoteInit(int targetSdkVersion, String[] argv, ClassLoader classLoader)
            throws ZygoteInit.MethodAndArgsCaller {
        ...
        nativeZygoteInit();
        applicationInit(targetSdkVersion, argv, classLoader);
    }

首先调用nativeZygoteInit函数来执行一个Binder进程间通讯机制初始化工作，然后就可以在进程间进行通讯了，然后执行applicationInit方法。

Step 21.RuntimeInit.applicationInit

    private static void applicationInit(int targetSdkVersion, String[] argv, ClassLoader classLoader)
            throws ZygoteInit.MethodAndArgsCaller {
        ...
        invokeStaticMain(args.startClass, args.startArgs, classLoader);
    }

这里主要是执行一个invokeStaticMain方法来调用SystemServer的main方法。

Step 24.ZygoteInit.runSelectLoop

    private static void runSelectLoop(String abiList) throws MethodAndArgsCaller {
        ArrayList<FileDescriptor> fds = new ArrayList<FileDescriptor>();
        ArrayList<ZygoteConnection> peers = new ArrayList<ZygoteConnection>();

        fds.add(sServerSocket.getFileDescriptor());
        peers.add(null);

        while (true) {
            ...
            try {
                Os.poll(pollFds, -1);
            } catch (ErrnoException ex) {
                ...
            }
            for (int i = pollFds.length - 1; i >= 0; --i) {
                if ((pollFds[i].revents & POLLIN) == 0) {
                    continue;
                }
                if (i == 0) {
                    ZygoteConnection newPeer = acceptCommandPeer(abiList);
                    peers.add(newPeer);
                    fds.add(newPeer.getFileDesciptor());
                } else {
                    boolean done = peers.get(i).runOnce();
                    if (done) {
                        peers.remove(i);
                        fds.remove(i);
                    }
                }
            }
        }
    }

这里通过acceptCommandPeer来创建ActivityManagerService与Socket的连接，然后调用ZygoteConnection.runOnce方法来创建新的应用程序。

SystemServer启动过程

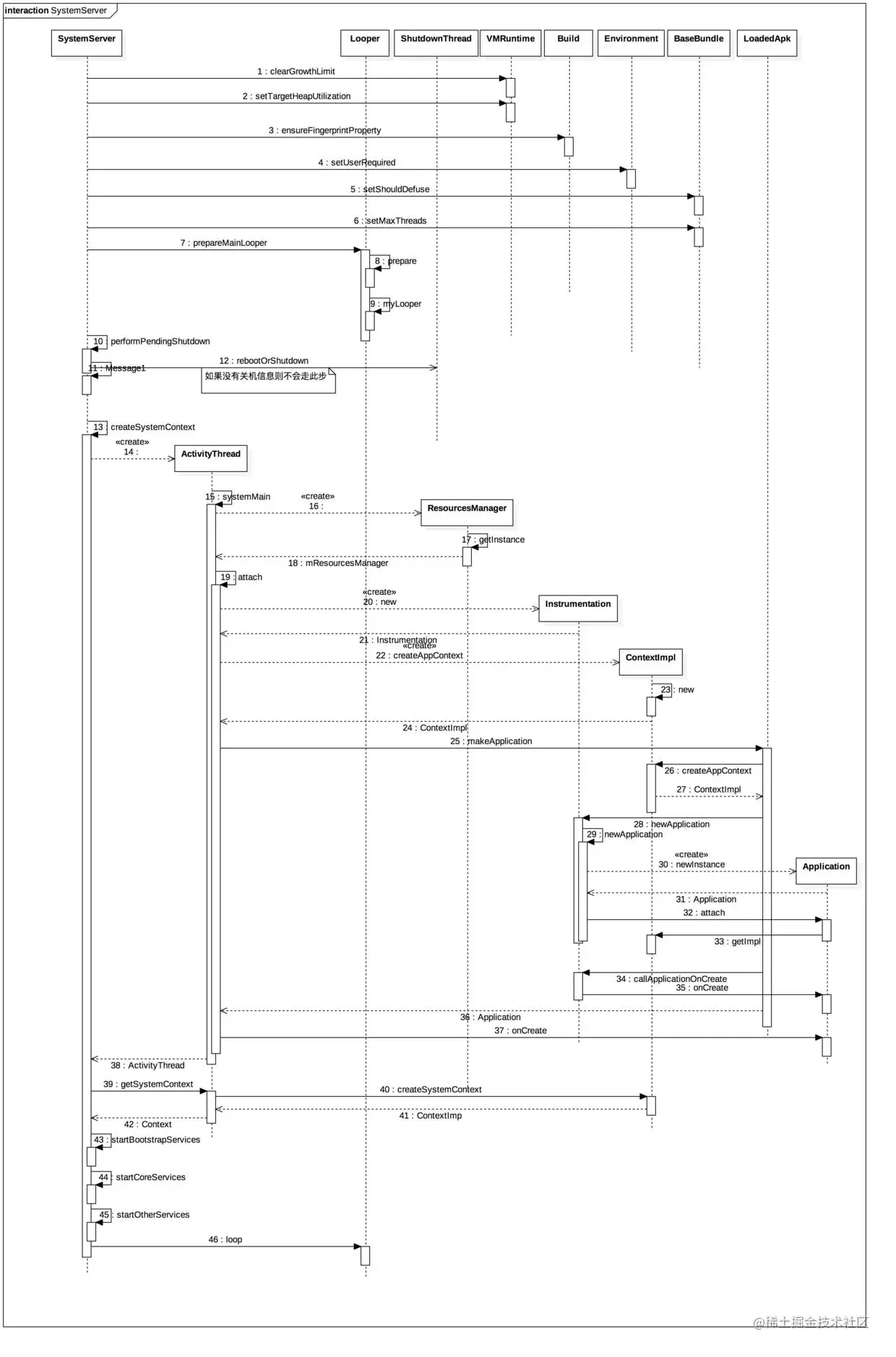

我们从上面的Step 13 知道了SystemServer的main函数调用位置，下面我们分析一下SystemServer的启动过程。


在main方法中new了一个SystemServer然后调用它的run方法：

   private void run() {
        try {
            ...

            // Mmmmmm... more memory!
            // 清除vm内存增长上限，由于启动过程需要较多的虚拟机内存空间
            VMRuntime.getRuntime().clearGrowthLimit();

            // The system server has to run all of the time, so it needs to be
            // as efficient as possible with its memory usage.
            // 设置内存的可能有效使用率为0.8
            VMRuntime.getRuntime().setTargetHeapUtilization(0.8f);

            // Some devices rely on runtime fingerprint generation, so make sure
            // we've defined it before booting further.
            Build.ensureFingerprintProperty();

            // Within the system server, it is an error to access Environment paths without
            // explicitly specifying a user.
            // 访问环境变量前，需要明确地指定用户
            Environment.setUserRequired(true);

            // Within the system server, any incoming Bundles should be defused
            // to avoid throwing BadParcelableException.
            BaseBundle.setShouldDefuse(true);

            // Ensure binder calls into the system always run at foreground priority.
            // 确保当前系统进程的binder调用，总是运行在前台优先级(foreground priority)
            BinderInternal.disableBackgroundScheduling(true);

            // Increase the number of binder threads in system_server
            BinderInternal.setMaxThreads(sMaxBinderThreads);

            ...

            // 准备主线程的Looper
            Looper.prepareMainLooper();

            // Initialize native services.
            // 加载android_servers.so库，该库包含的源码在frameworks/base/services/目录下
            System.loadLibrary("android_servers");

            // Check whether we failed to shut down last time we tried.
            // This call may not return.
            performPendingShutdown();

            // Initialize the system context.
            // 初始化系统上下文
            createSystemContext();

            // Create the system service manager.
            mSystemServiceManager = new SystemServiceManager(mSystemContext);
            //将mSystemServiceManager添加到本地服务的成员sLocalServiceObjects
            LocalServices.addService(SystemServiceManager.class, mSystemServiceManager);
        } finally {
            ...
        }

        // Start services.
        try {
            ...
            startBootstrapServices(); // 启动引导服务
            startCoreServices();      // 启动核心服务
            startOtherServices();     // 启动其他服务
        } catch (Throwable ex) {
            ...
        } finally {
            ...
        }

        ...

        // Loop（循环） forever.
        Looper.loop();
        ...
    }

Step 3.Build.ensureFingerprintProperty

    public static void ensureFingerprintProperty() {
        if (TextUtils.isEmpty(SystemProperties.get("ro.build.fingerprint"))) {
            try {
                SystemProperties.set("ro.build.fingerprint", FINGERPRINT);
            } catch (IllegalArgumentException e) {
                Slog.e(TAG, "Failed to set fingerprint property", e);
            }
        }
    }

确认设备的指纹属性。

Step 7.Looper.prepareMainLooper()

    public static void prepareMainLooper() {
        prepare(false);
        synchronized (Looper.class) {
            if (sMainLooper != null) {
                throw new IllegalStateException("The main Looper has already been prepared.");
            }
            sMainLooper = myLooper();
        }
    }

准备main looper，这个详细的过程我们下一章再讲，这里先看一下流程。

Step 10.SystemServer.performPendingShutdown

    private void performPendingShutdown() {
        final String shutdownAction = SystemProperties.get(
                ShutdownThread.SHUTDOWN_ACTION_PROPERTY, "");
        if (shutdownAction != null && shutdownAction.length() > 0) {
            // 是否重启
            boolean reboot = (shutdownAction.charAt(0) == '1');

            final String reason;
            if (shutdownAction.length() > 1) {
                reason = shutdownAction.substring(1, shutdownAction.length());
            } else {
                reason = null;
            }

            if (PowerManager.REBOOT_RECOVERY_UPDATE.equals(reason)) {
                File packageFile = new File(UNCRYPT_PACKAGE_FILE);
                if (packageFile.exists()) {
                    String filename = null;
                    try {
                        filename = FileUtils.readTextFile(packageFile, 0, null);
                    } catch (IOException e) {
                        Slog.e(TAG, "Error reading uncrypt package file", e);
                    }

                    if (filename != null && filename.startsWith("/data")) {
                        if (!new File(BLOCK_MAP_FILE).exists()) {
                            ...
                            return;
                        }
                    }
                }
            }
            ShutdownThread.rebootOrShutdown(null, reboot, reason);
        }
    }

这里主要是通过关机的action来判断是否重启或者关机。

Step 13.SystemServer.createSystemContext

    private void createSystemContext() {
        // 初始化ActivityThread，并设置默认主题
        ActivityThread activityThread = ActivityThread.systemMain();
        mSystemContext = activityThread.getSystemContext();
        mSystemContext.setTheme(DEFAULT_SYSTEM_THEME);
    }

首先调用ActivityThread.systemMain方法创建ActivityThread对象然后获取mSystemContext，并且设置默认系统主题。

Step 15.ActivityThread.systemMain

    public static ActivityThread systemMain() {
        ...
        ActivityThread thread = new ActivityThread();
        thread.attach(true);
        return thread;
    }

创建ActivityThread对象，并调用attach方法。

Step 17.ResourcesManager.getInstance

    public static ResourcesManager getInstance() {
        synchronized (ResourcesManager.class) {
            if (sResourcesManager == null) {
                sResourcesManager = new ResourcesManager();
            }
            return sResourcesManager;
        }

单例模式创建ResourcesManager对象并且返回。

Step 19.ActivityThread.attach

    private void attach(boolean system) {
        sCurrentActivityThread = this;
        mSystemThread = system;
        if (!system) {
            ...
        } else {
            ...
            try {
                mInstrumentation = new Instrumentation();
                ContextImpl context = ContextImpl.createAppContext(
                        this, getSystemContext().mPackageInfo);
                mInitialApplication = context.mPackageInfo.makeApplication(true, null);
                mInitialApplication.onCreate();
            } catch (Exception e) {
                ...
            }
        }

        ...
    }

因为参数传入的是true，表明是系统的线程，所以执行else里面的内容，首先创建Instrumentation，然后调用ContextImpl.createAppContext方法创建ContextImpl，然后通过调用LoadedApk.makeApplication方法创建Application，然后调用Application.onCreate方法。

Step 22.ContextImpl.createAppContext

    static ContextImpl createAppContext(ActivityThread mainThread, LoadedApk packageInfo) {
        if (packageInfo == null) throw new IllegalArgumentException("packageInfo");
        return new ContextImpl(null, mainThread,
                packageInfo, null, null, 0, null, null, Display.INVALID_DISPLAY);
    }

通过new ContextImpl来创建ContextImpl对象。

Step 22.LoadedApk.makeApplication

    public Application makeApplication(boolean forceDefaultAppClass,
            Instrumentation instrumentation) {
        ...

        Application app = null;

        ...

        try {
            ...
            ContextImpl appContext = ContextImpl.createAppContext(mActivityThread, this);
            app = mActivityThread.mInstrumentation.newApplication(
                    cl, appClass, appContext);
            appContext.setOuterContext(app);
        } catch (Exception e) {
            ...
        }
        ...

        if (instrumentation != null) {
            try {
                instrumentation.callApplicationOnCreate(app);
            } catch (Exception e) {
                ...
            }
        }

        ...

        return app;
    }

通过ContextImpl.createAppContext方法创建ContextImpl对象，然后调用mActivityThread.mInstrumentation.newApplication方法创建Application对象，然后调用instrumentation.callApplicationOnCreate方法。

Step 23.ContextImpl.createAppContext

    static ContextImpl createAppContext(ActivityThread mainThread, LoadedApk packageInfo) {
        if (packageInfo == null) throw new IllegalArgumentException("packageInfo");
        return new ContextImpl(null, mainThread,
                packageInfo, null, null, 0, null, null, Display.INVALID_DISPLAY);
    }

创建ContextImpl对象并返回。

Step 26.Instrumentation.createAppContext

    public Application newApplication(ClassLoader cl, String className, Context context)
            throws InstantiationException, IllegalAccessException,
            ClassNotFoundException {
        return newApplication(cl.loadClass(className), context);
    }

这里主要是调用newApplication方法返回Application。

Step 28.Instrumentation.newApplication

    static public Application newApplication(Class<?> clazz, Context context)
            throws InstantiationException, IllegalAccessException,
            ClassNotFoundException {
        Application app = (Application)clazz.newInstance();
        app.attach(context);
        return app;
    }

调用class.newInstance方法创建Application，然后调用Application.attach方法，向Application中传入context。

Step 32.Application.attach

    /* package */ final void attach(Context context) {
        attachBaseContext(context);
        mLoadedApk = ContextImpl.getImpl(context).mPackageInfo;
    }

通过ContextImpl.getImpl方法获取LoadedApk对象。

Step 34.Instrumentation.callApplicationOnCreate

    public void callApplicationOnCreate(Application app) {
        app.onCreate();
    }

这里开始调用Application的onCreate方法。

Step 39.ActivityThread.getSystemContext

    public ContextImpl getSystemContext() {
        synchronized (this) {
            if (mSystemContext == null) {
                mSystemContext = ContextImpl.createSystemContext(this);
            }
            return mSystemContext;
        }
    }

通过ContextImpl.createSystemContext创建mSystemContext。

Step 40.ContextImpl.createSystemContext

    static ContextImpl createSystemContext(ActivityThread mainThread) {
        LoadedApk packageInfo = new LoadedApk(mainThread);
        ContextImpl context = new ContextImpl(null, mainThread,
                packageInfo, null, null, 0, null, null, Display.INVALID_DISPLAY);
        context.mResources.updateConfiguration(context.mResourcesManager.getConfiguration(),
                context.mResourcesManager.getDisplayMetrics());
        return context;
    }

创建ContextImpl并且返回。

Step 43.SystemServer.startBootstrapServices

    private void startBootstrapServices() {
        ...
        // 安装服务
        Installer installer = mSystemServiceManager.startService(Installer.class);

        // Activity管理服务
        mActivityManagerService = mSystemServiceManager.startService(
                ActivityManagerService.Lifecycle.class).getService();
        mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
        mActivityManagerService.setInstaller(installer);

        ...
        // 电量管理服务
        mPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class);

        ...

        // 管理LEDs和背光灯服务
        mSystemServiceManager.startService(LightsService.class);

        // 显示管理服务
        mDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class);

    mSystemServiceManager.startBootPhase(SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY);

        // 包管理服务
        mPackageManagerService = PackageManagerService.main(mSystemContext, installer,
                mFactoryTestMode != FactoryTest.FACTORY_TEST_OFF, mOnlyCore);
        mFirstBoot = mPackageManagerService.isFirstBoot();
        mPackageManager = mSystemContext.getPackageManager();
        ...
        // 启动用户管理服务
        mSystemServiceManager.startService(UserManagerService.LifeCycle.class);
        Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER);

        //初始化安装包资源的属性缓存
        AttributeCache.init(mSystemContext);

        // 启动系统进程的应用实例
        mActivityManagerService.setSystemProcess();

        // 启动传感器服务
        startSensorService();
    }

这里主要是启动系统引导服务。

Step 44.SystemServer.startCoreServices

    private void startCoreServices() {
        // 启动电池服务
        mSystemServiceManager.startService(BatteryService.class);

        // 启动应用统计服务
        mSystemServiceManager.startService(UsageStatsService.class);
        mActivityManagerService.setUsageStatsManager(
                LocalServices.getService(UsageStatsManagerInternal.class));

        // 启动WebView更新服务
        mWebViewUpdateService = mSystemServiceManager.startService(WebViewUpdateService.class);
    }

启动核心服务。

Step 45.SystemServer.startOtherServices

这里代码就不贴了，都是启动服务的代码，这里有很多服务，我简单列一下服务并说一下服务基本功能。

服务名称服务名称
SchedulingPolicyServiceCameraService
TelecomLoaderServiceAccountManagerService.Lifecycle
ContentService.LifecycleVibratorService
ConsumerIrServiceAlarmManagerService
InputManagerServiceWindowManagerService
VrManagerServicePersistentDataBlockService
MetricsLoggerServiceIpConnectivityMetrics
PinnerServiceInputMethodManagerService.Lifecycle
MountService.LifecycleUiModeManagerService
LockSettingsService.LifecycleBluetoothService
DeviceIdleControllerNsdService
StatusBarManagerServiceClipboardService
NetworkManagementServiceWifiService
NetworkScoreServiceNetworkStatsService
NetworkPolicyManagerServiceWifiNanService
WifiP2pServiceTextServicesManagerService.Lifecycle
WifiScanningServiceConnectivityService
RttServiceDevicePolicyManagerService.Lifecycle
UpdateLockServiceRecoverySystemService
NotificationManagerServiceDeviceStorageMonitorService
LocationManagerServiceCountryDetectorService
SearchManagerService.LifecycleDropBoxManagerService
AudioService.LifecycleDockObserver
ThermalObserverMidiService.Lifecycle
UsbService.LifecycleSerialService
HardwarePropertiesManagerServiceNightDisplayService
JobSchedulerServiceSoundTriggerService
BackupManagerService.LifecycleAppWidgetService
VoiceInteractionManagerServiceGestureLauncherService
SensorNotificationServiceContextHubSystemService
DiskStatsServiceSamplingProfilerService
NetworkTimeUpdateServiceCommonTimeManagementService
EmergencyAffordanceServiceDreamManagerService
AssetAtlasServiceGraphicsStatsService
PrintManagerServiceRestrictionsManagerService
MediaSessionServiceHdmiControlService
TvInputManagerServiceMediaResourceMonitorService
TvRemoteServiceMediaRouterService
TrustManagerServiceFingerprintService
ShortcutService.LifecycleLauncherAppsService
MediaProjectionManagerServiceWearBluetoothService
WearWifiMediatorServiceWearTimeService
MmsServiceBrokerRetailDemoModeService
NsdServiceWallpaperManagerService.Lifecycle

参考：

Android系统启动-SystemServer下篇 Android系统进程Zygote启动过程的源代码分析

注

原文地址：Android系统源码分析--Zygote和SystemServer启动过程

注：本文原创，转载请注明出处，多谢。

avatar
文章
阅读
粉丝
