Android一步步实现一个下拉刷新——RefreshLayout

超神的萝菠
1,211 阅读5分钟

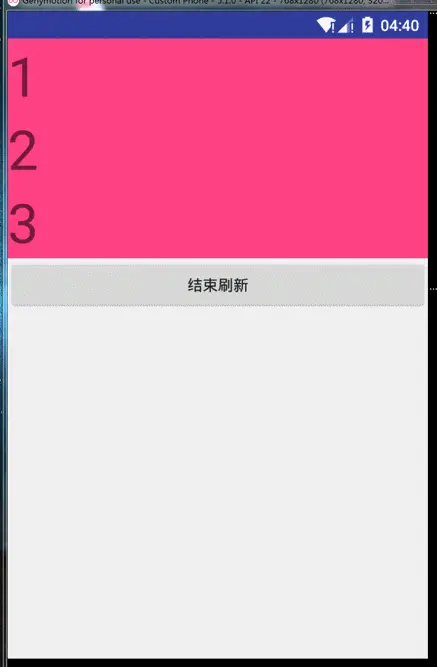

效果图



实现流程

  1. 新建一个RefreshLayout继承自Linearlayout。
    public class RefreshLayout extends LinearLayout

  2. 添加一个progressbar到RefreshLayout中，作为第一个View。

    public RefreshLayout(Context context) {
   super(context);
   init();
}

public RefreshLayout(Context context, @Nullable AttributeSet attrs) {
   super(context, attrs);
   init();
}

public RefreshLayout(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
   super(context, attrs, defStyleAttr);
   init();
}

private void init() {
   addHeadRefresh();
}
private void addHeadRefresh() {
   setOrientation(LinearLayout.VERTICAL);
   ProgressBar progressBar = new ProgressBar(getContext());
   addView(progressBar, 0);
}
  3. 通过scroll隐藏progerssbar。
    @Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
   super.onLayout(changed, l, t, r, b);
   scrollTo(0, getChildAt(0).getHeight());
}
  4. 重写onInterfuptTouchEvent()方法，判断下滑时候拦截事件
    @Override
public boolean onInterceptTouchEvent(MotionEvent ev) {
   y = (int) ev.getRawY();
   switch (ev.getAction()) {
       case MotionEvent.ACTION_DOWN:
           interrupt = false;
           break;
       case MotionEvent.ACTION_MOVE:
           if (y - yLast > 2) {
               interrupt = true;
           } else {
               interrupt = false;
           }
           break;
       case MotionEvent.ACTION_UP:
           interrupt = false;
           break;
   }
   yLast = y;
   return interrupt;
}
  5. 重写onTouchEvent()方法，处理滑动以及弹性滑动
    @Override
public boolean onTouchEvent(MotionEvent event) {
   //动画还没结束的时候，直接消耗掉事件,不处理。
   if (!scroller.isFinished()||isRefresh) {
       return true;
   }
   y = (int) event.getY();
   switch (event.getAction()) {
       case MotionEvent.ACTION_MOVE:
           yMove = y - yLast;
           if (yMove >= 0) {
               scrollBy(0, -yMove / 3);   //  /3为了让下拉有感觉
               i += yMove / 3;
           }
           break;
       case MotionEvent.ACTION_UP:
           if(i>=getChildAt(0).getHeight()){
               smoothToScroll(i-getChildAt(0).getHeight());
               i = getChildAt(0).getHeight();
               isRefresh = true;
               Toast.makeText(getContext(),"正在刷新中",Toast.LENGTH_SHORT).show();
           }else {
               endRefresh();
           }
           break;
   }
   yLast = y;
   return true;
}

  6. 实现弹性滑动典型固定代码

    private void smoothToScroll(int destaY) {
   scroller.startScroll(0, getScrollY(), 0, destaY, 500);
   invalidate();
}

@Override
public void computeScroll() {
   super.computeScroll();
   if (scroller.computeScrollOffset()) {
       scrollTo(0, scroller.getCurrY());
       postInvalidate();
   }
}

  7. 增加结束滑动方法

    public void endRefresh() {
   isRefresh = false;
   smoothToScroll(i);
   i = 0;
}

    第一阶段全部代码如下

    public class RefreshLayout extends LinearLayout {
private boolean interrupt = false;
private int yMove;
private int yLast;
private int y;
private int i;
private boolean isRefresh = false;
private Scroller scroller = new Scroller(getContext());

public RefreshLayout(Context context) {
   super(context);
   init();
}

public RefreshLayout(Context context, @Nullable AttributeSet attrs) {
   super(context, attrs);
   init();
}

public RefreshLayout(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
   super(context, attrs, defStyleAttr);
   init();
}

private void init() {
   addHeadRefresh();
}

@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
   super.onLayout(changed, l, t, r, b);
   scrollTo(0, getChildAt(0).getHeight());
}

private void smoothToScroll(int destaY) {
   scroller.startScroll(0, getScrollY(), 0, destaY, 500);
   invalidate();
}

@Override
public void computeScroll() {
   super.computeScroll();
   if (scroller.computeScrollOffset()) {
       scrollTo(0, scroller.getCurrY());
       postInvalidate();
   }
}

@Override
public boolean onInterceptTouchEvent(MotionEvent ev) {
   y = (int) ev.getRawY();
   switch (ev.getAction()) {
       case MotionEvent.ACTION_DOWN:
           interrupt = false;
           break;
       case MotionEvent.ACTION_MOVE:
           if (y - yLast > 0) {
               interrupt = true;
           } else {
               interrupt = false;
           }
           break;
       case MotionEvent.ACTION_UP:
           interrupt = false;
           break;
   }
   yLast = y;
   return interrupt;
}

@Override
public boolean onTouchEvent(MotionEvent event) {
   //动画还没结束的时候，直接消耗掉事件,不处理。
   if (!scroller.isFinished()||isRefresh) {
       return true;
   }
   y = (int) event.getY();
   switch (event.getAction()) {
       case MotionEvent.ACTION_MOVE:
           yMove = y - yLast;
           if (yMove >= 0) {
               scrollBy(0, -yMove / 3);   //  /3为了让下拉有感觉
               i += yMove / 3;
           }
           break;
       case MotionEvent.ACTION_UP:
           if(i>=getChildAt(0).getHeight()){
               smoothToScroll(i-getChildAt(0).getHeight());
               i = getChildAt(0).getHeight();
               isRefresh = true;
               Toast.makeText(getContext(),"正在刷新中",Toast.LENGTH_SHORT).show();
           }else {
               endRefresh();
           }
           break;
   }
   yLast = y;
   return true;
}

public void endRefresh(){
   isRefresh = false;
   smoothToScroll(i);
   i = 0;
}

private void addHeadRefresh() {
   setOrientation(LinearLayout.VERTICAL);
   ProgressBar progressBar = new ProgressBar(getContext());
   addView(progressBar, 0);
}
}

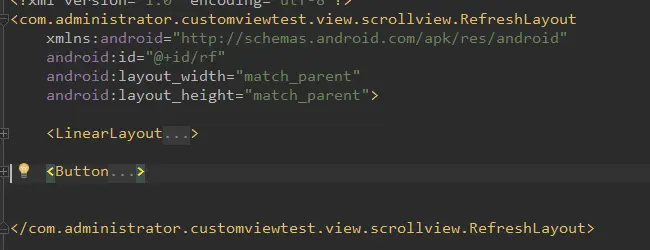

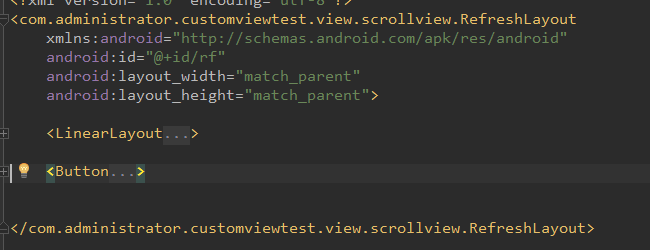

    布局



第二阶段——适配Scrollview

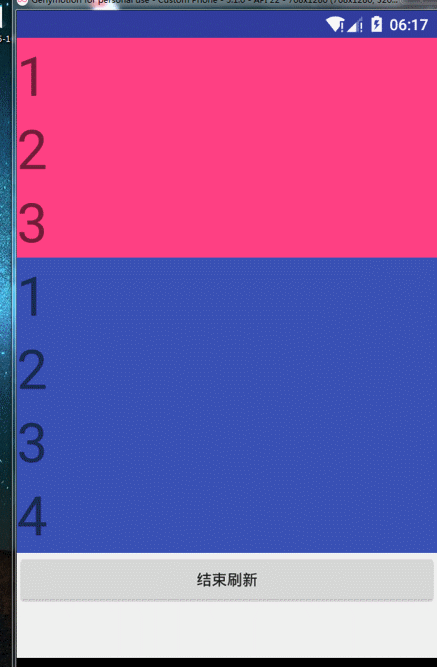

效果图

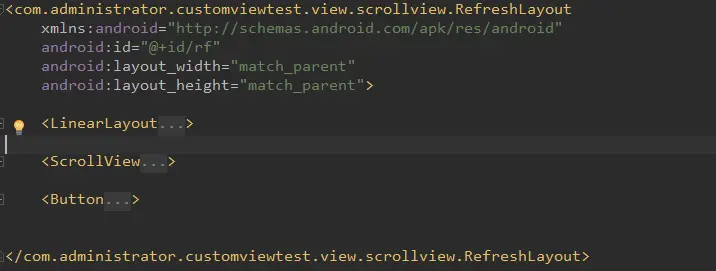

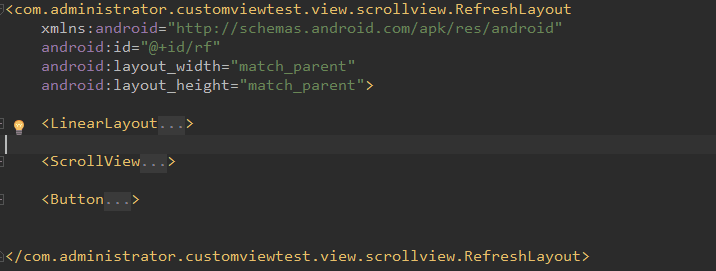

布局



实现过程

  1. 检测直接子view中是否包含Scrollview
     @Override
 protected void onLayout(boolean changed, int l, int t, int r, int b) {
     super.onLayout(changed, l, t, r, b);
     scrollTo(0, getChildAt(0).getHeight());
     checkScrollView();
 }
 private void checkScrollView() {
     //检测是否有scrollview
     for (int j = 0; j < getChildCount(); j++) {
         Object v = getChildAt(j);
         if (v instanceof ScrollView) {
             scrollView = (ScrollView) v;
         }
     }
 }

  2. 为move增加scrollview的判断

             case MotionEvent.ACTION_MOVE:
             if (y - yLast > 0) {
                 //检测下拉操作
                 if(isMoveScrollView(ev)){
                     //如果是在滑动scrollview 不拦截
                     interrupt = false;
                 }else {
                     //否则拦截
                     interrupt = true;
                 }
             } else {
                 //上拉不拦截
                 interrupt = false;
             }
             break;

 private boolean isMoveScrollView(MotionEvent ev) {
     if(scrollView==null){
         return false;
     }
     View head = getChildAt(0);
     //检测点击区域是不是在scrollview
     if(ev.getY()>(scrollView.getTop()-head.getHeight())&&ev.getY()<=
             (scrollView.getBottom()-head.getHeight())&&scrollView.getScrollY()!=0){
         return true;
     }

     return false;
 }

    第三阶段适配Recyclerview

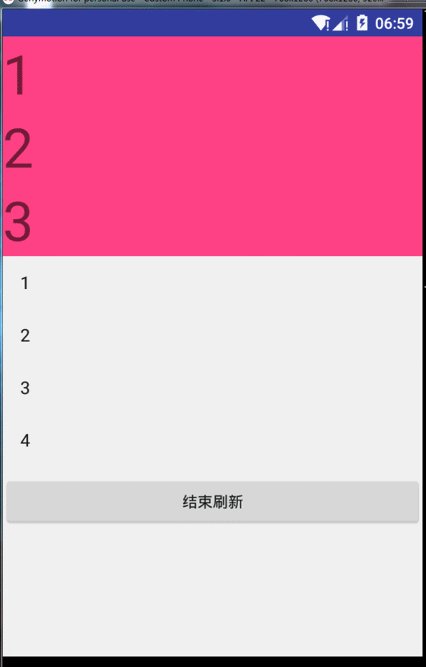

    效果图

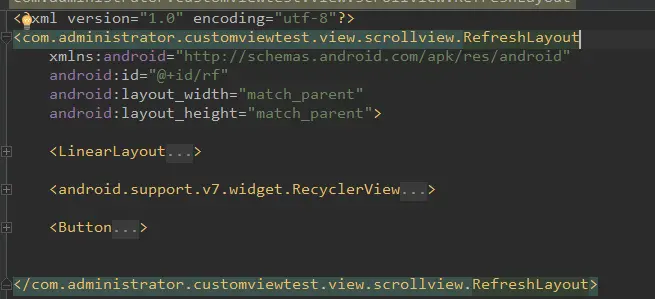

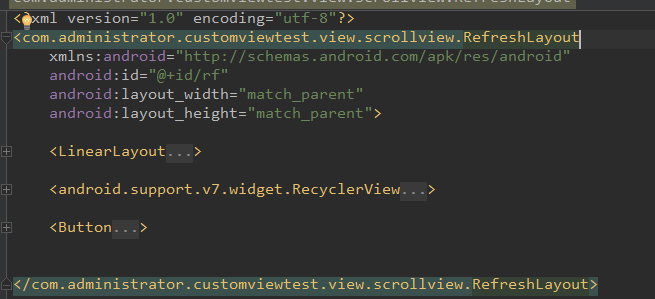

布局



1 检测直接子view中是否包含Recyclerview,记录recyclerview的滑动距离

    private void checkScrollView() {
        //检测是否有scrollview
        for (int j = 0; j < getChildCount(); j++) {
            Object v = getChildAt(j);
            if (v instanceof ScrollView) {
                scrollView = (ScrollView) v;
            } else if (v instanceof RecyclerView) {
                recyclerView = (RecyclerView) v;

                recyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
                    @Override
                    public void onScrolled(RecyclerView recyclerView, int dx, int dy) {
                        super.onScrolled(recyclerView, dx, dy);
                        rvScrolled += dy;
                    }
                });
            }
        }
    }

2 为move增加滑动判断，原理和scrollview差不多

            case MotionEvent.ACTION_MOVE:
                if (y - yLast > 0) {
                    //检测下拉操作
                    if (isMoveScrollView(ev) || isMoveRecyclerView(ev)) {
                        //如果是在滑动scrollview 不拦截
                        interrupt = false;
                    } else {
                        //否则拦截
                        interrupt = true;
                    }
                } else {
                    //上拉不拦截
                    interrupt = false;
                }
                break;
    private boolean isMoveRecyclerView(MotionEvent ev) {
        if (recyclerView == null) {
            return false;
        }
        View head = getChildAt(0);
        //检测点击区域是不是在scrollview
        if (ev.getY() > (recyclerView.getTop() - head.getHeight()) && ev.getY() <=
                (recyclerView.getBottom() - head.getHeight()) && rvScrolled != 0) {
            return true;
        }

        return false;
    }

3 增加OnRefreshListener()

    private interface OnRefreshListener{
         void onRefresh();
    }

第二阶段代码如下

package com.administrator.customviewtest.view.scrollview;

import android.content.Context;
import android.support.annotation.Nullable;
import android.support.v7.widget.RecyclerView;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;
import android.widget.LinearLayout;
import android.widget.ProgressBar;
import android.widget.ScrollView;
import android.widget.Scroller;


/**
 * Created by lsp on 2017/6/6.
 */

public class RefreshLayout extends LinearLayout {
    private boolean interrupt = false;
    private int yMove;
    private int yLast;
    private int y;
    private int i;
    private boolean isRefresh = false;
    private Scroller scroller = new Scroller(getContext());
    private ScrollView scrollView;
    private RecyclerView recyclerView;
    private int rvScrolled = 0;
    private OnRefreshListener onRefreshListener;

    public RefreshLayout(Context context) {
        super(context);
        init();
    }


    public RefreshLayout(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    public RefreshLayout(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }


    private void init() {
        addHeadRefresh();
    }

    public void setOnRefreshListener(OnRefreshListener onRefreshListener) {
        this.onRefreshListener = onRefreshListener;
    }

    @Override
    protected void onLayout(boolean changed, int l, int t, int r, int b) {
        super.onLayout(changed, l, t, r, b);
        scrollTo(0, getChildAt(0).getHeight());
        checkScrollView();
    }

    private void checkScrollView() {
        //检测是否有scrollview
        for (int j = 0; j < getChildCount(); j++) {
            Object v = getChildAt(j);
            if (v instanceof ScrollView) {
                scrollView = (ScrollView) v;
            } else if (v instanceof RecyclerView) {
                recyclerView = (RecyclerView) v;

                recyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
                    @Override
                    public void onScrolled(RecyclerView recyclerView, int dx, int dy) {
                        super.onScrolled(recyclerView, dx, dy);
                        rvScrolled += dy;
                    }
                });
                recyclerView.getAdapter().registerAdapterDataObserver(new RecyclerView.AdapterDataObserver() {
                    @Override
                    public void onItemRangeInserted(int positionStart, int itemCount) {
                        super.onItemRangeInserted(positionStart, itemCount);

                    }

                    @Override
                    public void onItemRangeRemoved(int positionStart, int itemCount) {
                        super.onItemRangeRemoved(positionStart, itemCount);
                    }
                });
            }
        }
    }

    private void smoothToScroll(int destaY) {
        scroller.startScroll(0, getScrollY(), 0, destaY, 500);
        invalidate();
    }

    @Override
    public void computeScroll() {
        super.computeScroll();
        if (scroller.computeScrollOffset()) {
            scrollTo(0, scroller.getCurrY());
            postInvalidate();
        }
    }

    @Override
    public boolean onInterceptTouchEvent(MotionEvent ev) {
        y = (int) ev.getRawY();
        switch (ev.getAction()) {
            case MotionEvent.ACTION_DOWN:
                interrupt = false;
                break;
            case MotionEvent.ACTION_MOVE:
                if (y - yLast > 0) {
                    //检测下拉操作
                    if (isMoveScrollView(ev) || isMoveRecyclerView(ev)) {
                        //如果是在滑动scrollview 不拦截
                        interrupt = false;
                    } else {
                        //否则拦截
                        interrupt = true;
                    }
                } else {
                    //上拉不拦截
                    interrupt = false;
                }
                break;
            case MotionEvent.ACTION_UP:
                interrupt = false;
                break;
        }
        yLast = y;
        return interrupt;
    }

    private boolean isMoveRecyclerView(MotionEvent ev) {
        if (recyclerView == null) {
            return false;
        }
        View head = getChildAt(0);
        //检测点击区域是不是在scrollview
        if (ev.getY() > (recyclerView.getTop() - head.getHeight()) && ev.getY() <=
                (recyclerView.getBottom() - head.getHeight()) && rvScrolled != 0) {
            return true;
        }

        return false;
    }

    private boolean isMoveScrollView(MotionEvent ev) {
        if (scrollView == null) {
            return false;
        }
        View head = getChildAt(0);
        //检测点击区域是不是在scrollview
        if (ev.getY() > (scrollView.getTop() - head.getHeight()) && ev.getY() <=
                (scrollView.getBottom() - head.getHeight()) && scrollView.getScrollY() != 0) {
            return true;
        }

        return false;
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        //动画还没结束的时候，直接消耗掉事件,不处理。
        if (!scroller.isFinished() || isRefresh) {
            return true;
        }
        y = (int) event.getY();
        switch (event.getAction()) {
            case MotionEvent.ACTION_MOVE:
                yMove = y - yLast;
                if (yMove >= 0) {
                    scrollBy(0, -yMove / 3);   //  /3为了让下拉有感觉
                    i += yMove / 3;
                }
                break;
            case MotionEvent.ACTION_UP:
                if (i >= getChildAt(0).getHeight()) {
                    smoothToScroll(i - getChildAt(0).getHeight());
                    i = getChildAt(0).getHeight();
                    isRefresh = true;
                    if (onRefreshListener != null) {
                        onRefreshListener.onRefresh();
                    }
                } else {
                    endRefresh();
                }
                break;
        }
        yLast = y;
        return true;
    }

    public void endRefresh() {
        isRefresh = false;
        smoothToScroll(i);
        i = 0;
    }

    private void addHeadRefresh() {
        setOrientation(LinearLayout.VERTICAL);
        ProgressBar progressBar = new ProgressBar(getContext());
        addView(progressBar, 0);
    }
    private interface OnRefreshListener{
         void onRefresh();
    }
}
avatar
文章
阅读
粉丝
