Android模拟糟糕音量控制设计大赛之ProgressView

超神的萝菠
835 阅读3分钟

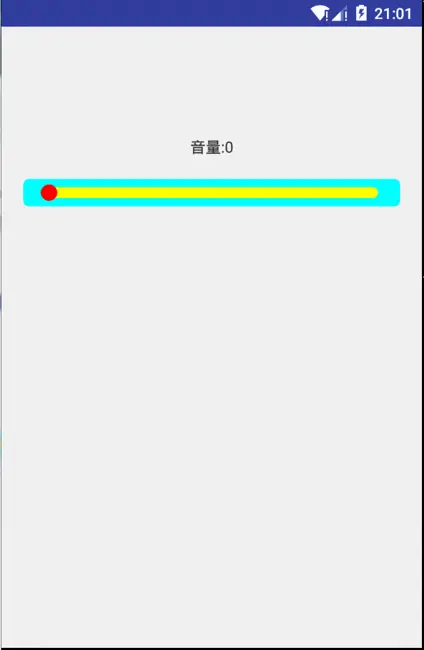

效果图


  • 可以通过旋转view或者直接拖动来控制进度。
  • 根据旋转角度，音量的移动速度会改变
  • 根据旋转角度，归位时候的速度会改变

实现流程

  1. 重写onMeasure()，使得高度为外部矩形的高度+padding。
  2. 重写onDraw(),绘制两个矩形和一个球。
  3. 重写onTouchEvent()判断是点击小球移动还是旋转控件移动，并且判断点击是控件左半部分还是右半部分，在手指抬起时，执行归为动画。

  4. 设置音量改变接口供外部使用。

    使用

    记得要在外层Linearlayout中要添加clipChildred=false。。

    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:tools="http://schemas.android.com/tools"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:orientation="vertical"
 android:clipChildren="false"
 tools:context=".MainActivity">

 <TextView
     android:textSize="14sp"
     android:textColor="#333333"
     android:id="@+id/tv"
     android:gravity="center"
     android:layout_marginTop="100dp"
     android:layout_marginBottom="20dp"
     android:text="音量 :"
     android:layout_width="match_parent"
     android:layout_height="wrap_content" />
 <com.lsp.ProgressView
     android:id="@+id/voice"
     android:paddingLeft="20dp"
     android:paddingRight="20dp"
     android:layout_width="match_parent"
     android:layout_height="wrap_content" />
</LinearLayout>

    代码

    public class ProgressView extends View {
 private static final String TAG = "HappyVoiceView";
 /**
  * 外层矩形框画笔
  */
 private Paint outRectPaint;
 /**
  * 内层矩形框画笔
  */
 private Paint innerRectPaint;
 /**
  * 音量控制球画笔
  */
 private Paint ballPaint;
 /**
  * 外层，内层，球的矩形范围
  */
 private RectF rectF1, rectF2, ballRect;
 /**
  * 外层矩形高度
  */
 private int outRectHeight = 50;
 /**
  * 内层矩形框画笔
  */
 private int innerRectHeight = 20;
 /**
  * 小球的半径
  */
 private int circleRadius = 15;
 /**
  * 内层小球可移动范围
  */
 private int length = 0;
 /**
  * 是否是旋转控件
  */
 private boolean doRoate = false;
 /**
  * 竖直方向偏移
  */
 private float downY;
 /**
  * 角度
  */
 private int degress = 0;
 /**
  * 手指抬起归位
  */
 private ValueAnimator valueAnimator;
 /**
  * 小球当前位置
  */
 private int ballCurrentLength = 0;
 /**
  * 从左面旋转控件
  */
 private boolean isTouchLeft = false;
 /**
  * 从右面面旋转控件
  */
 private boolean isTouchBall = false;
 /**
  * 小球移动最终速度
  */
 private int speed = 1;
 /**
  * 小球最小速度
  */
 private int minSpeed = 2;
 /**
  * 音量改变监听
  */
 private OnVoiceUpdateLinstener voiceUpdateLinstener;

 public void setVoiceUpdateLinstener(OnVoiceUpdateLinstener voiceUpdateLinstener) {
     this.voiceUpdateLinstener = voiceUpdateLinstener;
 }

 public ProgressView(Context context) {
     super(context);
     init();
 }
 public ProgressView(Context context, @Nullable AttributeSet attrs) {
     super(context, attrs);
     init();
 }
 public ProgressView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
     super(context, attrs, defStyleAttr);
     init();
 }
 @Override
 protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
     super.onMeasure(widthMeasureSpec, heightMeasureSpec);
     int widthSize = MeasureSpec.getSize(widthMeasureSpec);

     setMeasuredDimension(widthSize, outRectHeight + getPaddingTop() + getPaddingBottom());

 }
 private void init() {
     outRectPaint = initPaint();
     outRectPaint.setColor(Color.CYAN);
     innerRectPaint = initPaint();
     innerRectPaint.setColor(Color.YELLOW);
     ballPaint = initPaint();
     ballPaint.setColor(Color.RED);
     ballRect = new RectF();
 }
 private void initValueAnimator() {
     valueAnimator = ValueAnimator.ofInt(degress, 0);
       valueAnimator.setDuration(Math.abs(degress)/10*100);
     valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
         @Override
         public void onAnimationUpdate(ValueAnimator valueAnimator) {
             degress = (int) valueAnimator.getAnimatedValue();
             invalidate();
         }
     });
     valueAnimator.start();
 }
 private Paint initPaint() {
     Paint paint = new Paint(Paint.ANTI_ALIAS_FLAG);  //抗锯齿
     paint.setDither(true);  //防抖动
     paint.setColor(Color.CYAN);
     paint.setStyle(Paint.Style.FILL);
     paint.setStrokeCap(Paint.Cap.SQUARE);
     return paint;
 }
 @Override
 protected void onDraw(Canvas canvas) {
     super.onDraw(canvas);
     canvas.translate(getMeasuredWidth() / 2, getMeasuredHeight() / 2);
     dealBallLength();
     rectF1 = new RectF((-getMeasuredWidth() / 2) + getPaddingLeft(), -outRectHeight / 2, (getMeasuredWidth() / 2) - getPaddingLeft(), outRectHeight / 2);
     rectF2 = new RectF((-getMeasuredWidth() / 2) + getPaddingLeft() + getPaddingLeft(), -innerRectHeight / 2, (getMeasuredWidth() / 2) - getPaddingLeft() - getPaddingLeft(), innerRectHeight / 2);
     length = (int) rectF2.width();
     canvas.rotate(degress);
     canvas.drawRoundRect(rectF1, 10, 10, outRectPaint);
     canvas.drawRoundRect(rectF2, 20, 20, innerRectPaint);
     canvas.drawCircle((rectF2.left + ballCurrentLength) + circleRadius / 2, rectF2.centerY(), circleRadius, ballPaint);
     ballRect.left = (rectF2.left + ballCurrentLength) + circleRadius / 2 - circleRadius;
     ballRect.right = (rectF2.left + ballCurrentLength) + circleRadius / 2 + circleRadius;
     ballRect.top = rectF2.centerY() - circleRadius;
     ballRect.bottom = rectF2.centerY() + circleRadius;

     if (voiceUpdateLinstener != null) {
         voiceUpdateLinstener.onVoiceChanged((int) ((float) ballCurrentLength / length * 100));
     }
 }
 private int dealBallLength() {
     speed = Math.abs(degress) / 3 + minSpeed;
     if (degress > 0 && ballCurrentLength < length) {
         speed = ballCurrentLength + speed > length ? (length - ballCurrentLength) : speed;
         ballCurrentLength += speed;
         invalidate();
     } else if (degress < 0 && ballCurrentLength > 0) {
         speed = ballCurrentLength - speed < 0 ? ballCurrentLength : speed;
         ballCurrentLength -= speed;
         invalidate();
     }

     return ballCurrentLength;
 }
 @Override
 public boolean onTouchEvent(MotionEvent event) {
     float y = event.getY();
     float x = event.getX();
     switch (event.getAction()) {
         case MotionEvent.ACTION_DOWN:
             if (valueAnimator != null && valueAnimator.isRunning()) {
                 return false;
             }
             if (ballRect.contains(event.getX() - getMeasuredWidth() / 2, y - getMeasuredHeight() / 2)) {
                 isTouchBall = true;
                 break;
             }
             if (rectF1.contains(event.getX() - getMeasuredWidth() / 2, y - getMeasuredHeight() / 2)) {   //平移过坐标系
                 doRoate = true;
                 downY = (int) event.getY();
                 if (event.getX() - getMeasuredWidth() / 2 <= 0) {
                     isTouchLeft = true;
                 } else {
                     isTouchLeft = false;
                 }
             }
             break;
         case MotionEvent.ACTION_MOVE:
             if (isTouchBall) {
                 ballCurrentLength = (int) (x - getPaddingLeft() - getPaddingLeft());
                 if (ballCurrentLength < 0) {
                     ballCurrentLength = 0;
                 } else if (ballCurrentLength > length) {
                     ballCurrentLength = length;
                 }
                 invalidate();
                 break;
             }
             x = (float) Math.atan((y - downY) / rectF1.right);
             degress = (int) Math.toDegrees(x);
             degress = isTouchLeft ? -degress : degress;
             invalidate();
             break;
         case MotionEvent.ACTION_UP:
             if (doRoate) {
                 initValueAnimator();
             }
             doRoate = false;
             isTouchBall = false;
             break;
     }
     return true;
 }
 public interface OnVoiceUpdateLinstener {
     void onVoiceChanged(int voice);
 }
}
