对于此orm框架的封装，首先要看的便是:hsweb-easy-orm-core
整体思路:因为是为动态表单设计的orm框架，所以要有为映射包装的PO类和反映到表元素的元数据类MetaData，
以及对这些bean进行操作的各种周边(最多的也就是curd的细节分拆)
一，映射包装的PO类
列的设定
我们的curd操作的基本元素首先是表,而我们操作的铁定就是po类，表中的基本元素首先是列，列包含两个属性，名字和字段类型
那么对于这个orm框架中的体现就是:
package org.hsweb.ezorm.core.param;
/**
* @author zhouhao
* @since 1.1
*/
public class Column {
private String name;
private String type;
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getType() {
return type;
}
public void setType(String type) {
this.type = type;
}
public Column type(String type) {
this.type = type;
return this;
}
public static Column build(String name) {
Column column = new Column();
column.setName(name);
return column;
}
}
此处单独定义了ColumnType,暂时未见使用
package org.hsweb.ezorm.core.param;
/**
* @author zhouhao
* @since 1.1
*/
public interface ColumnType {
String def = "";
}
SQL的参数设定
对列的一系列的操作其实是操作字段及所涉及的数据，那么我们所要设定的地方有:
通过参考一个sql语句可以知道，操作一个字段往往会涉及到where后面的条件，以及要处理的字段如in{...}不处理的字段 not in{...} 具体代码里面的体现就是:
首先对条件类型的设定:
/*
* Copyright 2016 http://github.com/hs-web
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.hsweb.ezorm.core.param;
/**
* 查询条件类型,用于动态指定查询条件
*
* @author zhouhao
* @since 1.0
*/
public interface TermType {
/**
* ==
*
* @since 1.0
*/
String eq = "eq";
/**
* !=
*
* @since 1.0
*/
String not = "not";
/**
* like
*
* @since 1.0
*/
String like = "like";
/**
* not like
*
* @since 1.0
*/
String nlike = "nlike";
/**
* >
*
* @since 1.0
*/
String gt = "gt";
/**
* <
*
* @since 1.0
*/
String lt = "lt";
/**
* >=
*
* @since 1.0
*/
String gte = "gte";
/**
* <=
*
* @since 1.0
*/
String lte = "lte";
/**
* in
*
* @since 1.0
*/
String in = "in";
/**
* notin
*
* @since 1.0
*/
String nin = "nin";
/**
* =''
*
* @since 1.0
*/
String empty = "empty";
/**
* !=''
*
* @since 1.0
*/
String nempty = "nempty";
/**
* is null
*
* @since 1.0
*/
String isnull = "isnull";
/**
* not null
*
* @since 1.0
*/
String notnull = "notnull";
/**
* between
*
* @since 1.0
*/
String btw = "btw";
/**
* not between
*
* @since 1.0
*/
String nbtw = "nbtw";
/**
* 此类型将直接执行sql.在类型是从客户端参数中获取的场景中,应该屏蔽此类型
*
* @see SqlTerm
* @since 1.0
* @deprecated 此属性已弃用，如果想直接拼接sql，请使用 {@link SqlTerm}
*/
@Deprecated
String func = "func";
}
其次对于条件的设定:
package org.hsweb.ezorm.core.param;
import java.util.LinkedList;
import java.util.List;
/**
* 执行条件
*/
public class Term implements Cloneable {
/**
* 字段
*/
private String column;
/**
* 值
*/
private Object value;
/**
* 链接类型
*/
private Type type = Type.and;
/**
* 条件类型
*/
private String termType = TermType.eq;
/**
* 嵌套的条件
*/
private List<Term> terms = new LinkedList<>();
public Term or(String term, Object value) {
return or(term, TermType.eq,value);
}
public Term and(String term, Object value) {
return and(term, TermType.eq,value);
}
public Term or(String term, String termType, Object value) {
Term queryTerm = new Term();
queryTerm.setTermType(termType);
queryTerm.setColumn(term);
queryTerm.setValue(value);
queryTerm.setType(Type.or);
terms.add(queryTerm);
return this;
}
public Term and(String term, String termType, Object value) {
Term queryTerm = new Term();
queryTerm.setTermType(termType);
queryTerm.setColumn(term);
queryTerm.setValue(value);
queryTerm.setType(Type.and);
terms.add(queryTerm);
return this;
}
public Term nest() {
return nest(null, null);
}
public Term orNest() {
return orNest(null, null);
}
public Term nest(String term, Object value) {
Term queryTerm = new Term();
queryTerm.setType(Type.and);
queryTerm.setColumn(term);
queryTerm.setValue(value);
terms.add(queryTerm);
return queryTerm;
}
public Term orNest(String term, Object value) {
Term queryTerm = new Term();
queryTerm.setType(Type.or);
queryTerm.setColumn(term);
queryTerm.setValue(value);
terms.add(queryTerm);
return queryTerm;
}
public String getColumn() {
return column;
}
public void setColumn(String column) {
if (column == null) return;
if (column.contains("$")) {
String tmp[] = column.split("[$]");
setTermType(tmp[1]);
column = tmp[0];
}
this.column = column;
}
public Object getValue() {
return value;
}
public void setValue(Object value) {
this.value = value;
}
public Type getType() {
return type;
}
public void setType(Type type) {
this.type = type;
}
public String getTermType() {
return termType.toLowerCase();
}
public void setTermType(String termType) {
this.termType = termType;
}
public List<Term> getTerms() {
return terms;
}
public void setTerms(List<Term> terms) {
this.terms = terms;
}
public Term addTerm(Term term) {
terms.add(term);
return this;
}
@Override
public Term clone() {
Term term = new Term();
term.setColumn(column);
term.setValue(value);
term.setTermType(termType);
term.setType(type);
terms.forEach(t -> term.addTerm(t.clone()));
return term;
}
public enum Type {
or, and;
public static Type fromString(String str) {
try {
return Type.valueOf(str.toLowerCase());
} catch (Exception e) {
return and;
}
}
}
}
将各种条件用po来表达出来并进行封装
最后对于SQL参数对象的设定:
package org.hsweb.ezorm.core.param;
import java.util.*;
import java.util.stream.Collectors;
/**
* SQL参数对象
*
* @author zhouhao
* @since 1.0
*/
public class Param implements Cloneable {
/**
* 条件
*/
protected List<Term> terms = new LinkedList<>();
/**
* 指定要处理的字段
*/
protected Set<String> includes = new LinkedHashSet<>();
/**
* 指定不处理的字段
*/
protected Set<String> excludes = new LinkedHashSet<>();
public <T extends Param> T or(String column, Object value) {
return or(column, TermType.eq, value);
}
public <T extends Param> T and(String column, Object value) {
return and(column, TermType.eq, value);
}
public <T extends Param> T or(String column, String termType, Object value) {
Term term = new Term();
term.setTermType(termType);
term.setColumn(column);
term.setValue(value);
term.setType(Term.Type.or);
terms.add(term);
return (T) this;
}
public <T extends Param> T and(String column, String termType, Object value) {
Term term = new Term();
term.setTermType(termType);
term.setColumn(column);
term.setValue(value);
term.setType(Term.Type.and);
terms.add(term);
return (T) this;
}
public Term nest() {
return nest(null, null);
}
public Term orNest() {
return orNest(null, null);
}
public Term nest(String termString, Object value) {
Term term = new Term();
term.setColumn(termString);
term.setValue(value);
term.setType(Term.Type.and);
terms.add(term);
return term;
}
public Term orNest(String termString, Object value) {
Term term = new Term();
term.setColumn(termString);
term.setValue(value);
term.setType(Term.Type.or);
terms.add(term);
return term;
}
public <T extends Param> T includes(String... fields) {
includes.addAll(Arrays.asList(fields));
return (T) this;
}
public <T extends Param> T excludes(String... fields) {
excludes.addAll(Arrays.asList(fields));
includes.removeAll(Arrays.asList(fields));
return (T) this;
}
public <T extends Param> T where(String key, Object value) {
and(key, value);
return (T) this;
}
public <T extends Param> T where(String key, String termType, Object value) {
and(key, termType, value);
return (T) this;
}
public Set<String> getIncludes() {
if (includes == null) includes = new LinkedHashSet<>();
return includes;
}
public Set<String> getExcludes() {
if (excludes == null) excludes = new LinkedHashSet<>();
return excludes;
}
public void setIncludes(Set<String> includes) {
this.includes = includes;
}
public void setExcludes(Set<String> excludes) {
this.excludes = excludes;
}
public List<Term> getTerms() {
return terms;
}
public void setTerms(List<Term> terms) {
this.terms = terms;
}
public <T extends Param> T addTerm(Term term) {
terms.add(term);
return (T) this;
}
@Override
public Param clone() {
Param param = new Param();
param.setExcludes(new LinkedHashSet<>(excludes));
param.setIncludes(new LinkedHashSet<>(includes));
List<Term> terms = this.terms.stream().map(term -> term.clone()).collect(Collectors.toList());
param.setTerms(terms);
return param;
}
}
这里通过LinkedList 来将条件都包装到一起 ,通过LinkedHashSet来包装要处理的字段

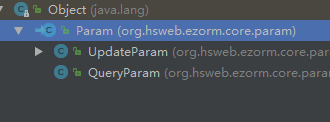

由Param衍生出来的专门对查询(如分页)和更新参数的额外封装:
&amp;amp;amp;lt;img src="https://pic3.zhimg.com/v2-01b95d6278dacbc0b1229db005101492_b.png" data-rawwidth="330" data-rawheight="122" class="content_image" width="330"&amp;amp;amp;gt;
查询往往会涉及到排序，这里对排序先做下封装:
package org.hsweb.ezorm.core.param;
/**
* 排序
*
* @author zhouhao
* @since 1.0
*/
public class Sort extends Column {
private String order = "asc";
private transient QueryParam queryParam;
public String getOrder() {
return order;
}
public void setOrder(String order) {
this.order = order;
}
public Sort() {
}
public Sort(QueryParam queryParam, String name) {
this.queryParam = queryParam;
setName(name);
}
public QueryParam asc() {
this.order = "asc";
return queryParam;
}
public QueryParam desc() {
this.order = "desc";
return queryParam;
}
public Sort and(String field) {
return queryParam.orderBy(field);
}
@Override
public int hashCode() {
return String.valueOf(getName()).concat(order).hashCode();
}
@Override
public boolean equals(Object obj) {
return obj != null && this.hashCode() == obj.hashCode();
}
}
QueryParam: 排序字段同样LinkedList存储
package org.hsweb.ezorm.core.param;
import java.io.Serializable;
import java.util.LinkedHashSet;
import java.util.LinkedList;
import java.util.List;
import java.util.stream.Collectors;
/**
* Created by 浩 on 2016-01-16 0016.
*/
public class QueryParam extends Param implements Serializable, Cloneable {
private static final long serialVersionUID = 7941767360194797891L;
/**
* 是否进行分页，默认为true
*/
private boolean paging = true;
/**
* 第几页 从0开始
*/
private int pageIndex = 0;
/**
* 每页显示记录条数
*/
private int pageSize = 25;
/**
* 排序字段
*
* @since 1.0
*/
private List<Sort> sorts = new LinkedList<>();
private boolean forUpdate = false;
public QueryParam select(String... fields) {
return this.includes(fields);
}
public Sort orderBy(String column) {
Sort sort = new Sort(this, column);
sorts.add(sort);
return sort;
}
public <Q extends QueryParam> Q doPaging(int pageIndex) {
this.pageIndex = pageIndex;
this.paging = true;
return (Q) this;
}
public <Q extends QueryParam> Q doPaging(int pageIndex, int pageSize) {
this.pageIndex = pageIndex;
this.pageSize = pageSize;
this.paging = true;
return (Q) this;
}
public <Q extends QueryParam> Q rePaging(int total) {
paging = true;
// 当前页没有数据后跳转到最后一页
if (this.getPageIndex() != 0 && (pageIndex * pageSize) >= total) {
int tmp = total / this.getPageSize();
pageIndex = total % this.getPageSize() == 0 ? tmp - 1 : tmp;
}
return (Q) this;
}
public boolean isPaging() {
return paging;
}
public void setPaging(boolean paging) {
this.paging = paging;
}
public int getPageIndex() {
return pageIndex;
}
public void setPageIndex(int pageIndex) {
this.pageIndex = pageIndex;
}
public int getPageSize() {
return pageSize;
}
public void setPageSize(int pageSize) {
this.pageSize = pageSize;
}
public List<Sort> getSorts() {
return sorts;
}
public void setSorts(List<Sort> sorts) {
this.sorts = sorts;
}
public void setForUpdate(boolean forUpdate) {
this.forUpdate = forUpdate;
}
public boolean isForUpdate() {
return forUpdate;
}
@Override
public QueryParam clone() {
QueryParam sqlParam = new QueryParam();
sqlParam.setExcludes(new LinkedHashSet<>(excludes));
sqlParam.setIncludes(new LinkedHashSet<>(includes));
List<Term> terms = this.terms.stream().map(Term::clone).collect(Collectors.toList());
sqlParam.setTerms(terms);
sqlParam.setPageIndex(pageIndex);
sqlParam.setPageSize(pageSize);
sqlParam.setPaging(paging);
sqlParam.setSorts(sorts);
sqlParam.setForUpdate(forUpdate);
return sqlParam;
}
}
UpdateParam:
package org.hsweb.ezorm.core.param;
import java.util.LinkedHashSet;
import java.util.List;
import java.util.stream.Collectors;
/**
* Created by zhouhao on 16-4-19.
*/
public class UpdateParam<T> extends Param {
private T data;
public UpdateParam() {
}
public UpdateParam(T data) {
this.data = data;
}
public <C extends UpdateParam<T>> C set(T data) {
this.data = data;
return (C) this;
}
public T getData() {
return data;
}
public void setData(T data) {
this.data = data;
}
@Override
public UpdateParam clone() {
UpdateParam<T> param = new UpdateParam<>();
param.setData(data);
param.setExcludes(new LinkedHashSet<>(excludes));
param.setIncludes(new LinkedHashSet<>(includes));
List<Term> terms = this.terms.stream().map(Term::clone).collect(Collectors.toList());
param.setTerms(terms);
return param;
}
}
对更新数据map类型包装的数据做扩展:
package org.hsweb.ezorm.core.param;
import java.util.HashMap;
import java.util.Map;
/**
* Created by zhouhao on 16-4-21.
*/
public class UpdateMapParam extends UpdateParam<Map<String, Object>> {
public UpdateMapParam() {
this(new HashMap<>());
}
public UpdateMapParam(Map<String, Object> data) {
setData(data);
}
public UpdateMapParam set(String key, Object value) {
this.getData().put(key, value);
return this;
}
}
表插入数据的封装
InsertParam:
package org.hsweb.ezorm.core.param;
public class InsertParam<T> {
private T data;
public InsertParam() {
}
public InsertParam(T data) {
this.data = data;
}
public InsertParam<T> value(T data) {
this.data = data;
return this;
}
public T getData() {
return data;
}
public void setData(T data) {
this.data = data;
}
public static <T> InsertParam<T> build(T data) {
return new InsertParam<>(data);
}
}
和更新针对map数据类型衍生一样:
package org.hsweb.ezorm.core.param;
import java.util.HashMap;
import java.util.Map;
public class InsertParamMapParam extends InsertParam<Map<String, Object>> {
@Override
public Map<String, Object> getData() {
if (super.getData() == null) setData(new HashMap<>());
return super.getData();
}
public InsertParamMapParam value(String property, Object value) {
getData().put(property, value);
return this;
}
public InsertParamMapParam values(Map<String, Object> values) {
getData().putAll(values);
return this;
}
}
二，反映到表元素的元数据类MetaData
PO转表元素数据
OptionConverter:选项映射器
package org.hsweb.ezorm.core;
/**
* 选项映射器,当一个字段持有映射器时.
* <ul>
* <li>
* 在查询时,会追加一个名为{@link OptionConverter#getFieldName()}的字段为{@link OptionConverter#converterValue(Object)} 的值
* </li>
* <li>
* 在修改或者插入时,验证器会首先通过 {@link OptionConverter#converterData(Object)}来获取一个结果.
* 如果返回null.则调用{@link OptionConverter#converterValue(Object)} ,并将值放入数据库.
* 如果继续返回null,则会抛出验证器异常,提示值不再选项范围中
* </li>
* </ul>
* Created by zhouhao on 16-6-4.
*/
public interface OptionConverter {
/**
* 获取所有选项
*
* @return 选项
*/
Object getOptions();
/**
* 获取转换后的字段名称
*
* @return 转换后的字段名称
*/
String getFieldName();
/**
* 将提交的数据,转换为目标数据
*
* @param value 提交的数据
* @return 转换结果
*/
Object converterData(Object value);
/**
* 将数据库的数据,转换为目标数据
*
* @param data 数据库数据
* @return 转换结果
*/
Object converterValue(Object data);
}
PropertyWrapper:属性包装
package org.hsweb.ezorm.core;
import java.io.Serializable;
import java.util.Date;
import java.util.List;
import java.util.Map;
public interface PropertyWrapper extends Serializable {
<T> T getValue();
String toString();
int toInt();
double toDouble();
boolean isTrue();
Date toDate();
Date toDate(String format);
Map<String, Object> toMap();
List<Map> toList();
<T> T toBean(Class<T> type);
<T> List<T> toBeanList(Class<T> type);
boolean isNullOrEmpty();
boolean valueTypeOf(Class<?> type);
}
对PropertyWrapper的简单实现:
package org.hsweb.ezorm.core;
import com.alibaba.fastjson.JSON;
import org.hsweb.commons.ClassUtils;
import org.hsweb.commons.DateTimeUtils;
import org.hsweb.commons.StringUtils;
import java.util.Date;
import java.util.List;
import java.util.Map;
/**
* Created by zhouhao on 16-6-4.
*/
public class SimplePropertyWrapper implements PropertyWrapper {
private Object value;
public SimplePropertyWrapper(Object value) {
this.value = value;
}
@Override
public <T> T getValue() {
return (T) value;
}
@Override
public int toInt() {
return StringUtils.toInt(value);
}
@Override
public double toDouble() {
return StringUtils.toDouble(value);
}
@Override
public boolean isTrue() {
return StringUtils.isTrue(value);
}
@Override
public Date toDate() {
if (value instanceof Date) return ((Date) value);
return DateTimeUtils.formatUnknownString2Date(toString());
}
@Override
public Date toDate(String format) {
if (value instanceof Date) return ((Date) value);
return DateTimeUtils.formatDateString(toString(), format);
}
@Override
public <T> T toBean(Class<T> type) {
if (valueTypeOf(type)) return ((T) getValue());
return JSON.parseObject(toString(), type);
}
@Override
public List<Map> toList() {
return toBeanList(Map.class);
}
@Override
public Map<String, Object> toMap() {
return toBean(Map.class);
}
@Override
public <T> List<T> toBeanList(Class<T> type) {
if (getValue() instanceof List) return ((List) getValue());
return JSON.parseArray(toString(), type);
}
@Override
public boolean isNullOrEmpty() {
return StringUtils.isNullOrEmpty(value);
}
@Override
public boolean valueTypeOf(Class<?> type) {
if (value == null) return false;
return ClassUtils.instanceOf(value.getClass(), type);
}
@Override
public String toString() {
return String.valueOf(value);
}
}
ValueConverter:数据转换
package org.hsweb.ezorm.core;
public interface ValueConverter {
Object getData(Object value);
Object getValue(Object data);
}

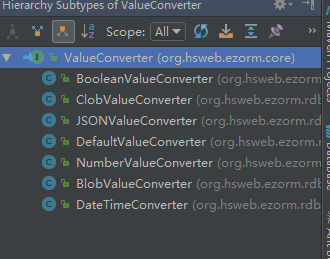

由其所衍生的类:
&amp;amp;amp;lt;img src="https://pic2.zhimg.com/v2-4ec05f2a743ce8c0e17e13b5fd9ba621_b.png" data-rawwidth="408" data-rawheight="366" class="content_image" width="408"&amp;amp;amp;gt;
&amp;amp;amp;lt;img src="https://pic2.zhimg.com/v2-812d845b09f5ce8ac0f400050b6de9c9_b.png" data-rawwidth="330" data-rawheight="259" class="content_image" width="330"&amp;amp;amp;gt;这里只看其中一两个即可:
这里只看其中一两个即可:ClobValueConverter:
package org.hsweb.ezorm.rdb.meta.converter;
import org.hsweb.ezorm.core.ValueConverter;
import java.io.Reader;
import java.sql.Clob;
public class ClobValueConverter implements ValueConverter {
@Override
public Object getData(Object value) {
return value;
}
@Override
public Object getValue(Object data) {
if (data instanceof Clob) {
Clob clobData = ((Clob) data);
try (Reader reader = clobData.getCharacterStream()) {
char[] chars = new char[(int) clobData.length()];
reader.read(chars);
data = new String(chars);
} catch (Exception ignored) {
}
}
return data;
}
}
BooleanValueConverter:
package org.hsweb.ezorm.rdb.meta.converter;
import org.hsweb.ezorm.core.ValueConverter;
public class BooleanValueConverter implements ValueConverter {
@Override
public Object getData(Object value) {
return value;
}
@Override
public Object getValue(Object data) {
if (null == data) return false;
if (data instanceof Boolean) return data;
return "1".equals(String.valueOf(data)) || "true".equals(String.valueOf(data));
}
}
对象包装ObjectWrapper:
/*
* Copyright 2016 http://github.com/hs-web
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.hsweb.ezorm.core;
import java.util.List;
/**
* 对象包装器，在执行查询时，通过包装器对查询结果进行初始化
*
* @author zhouhao
* @since 1.0
*/
public interface ObjectWrapper<T> {
/**
* 执行初始化,在sql执行后,包装结果前,将调用此方法,传入查询的列
*
* @param columns 列集合
*/
default void setUp(List<String> columns) {
}
<C extends T> Class<C> getType();
/**
* 创建对象实例
*
* @return 对象实例
*/
T newInstance();
/**
* 向实例中填充一个属性值
*
* @param instance 实例对象
* @param index 当前实例的索引
* @param attr 属性名称
* @param value 属性值
*/
void wrapper(T instance, int index, String attr, Object value);
/**
* 当一个实例被填充完成后调用，已进行其他操作
*
* @param instance 实例对象
*/
void done(T instance);
}

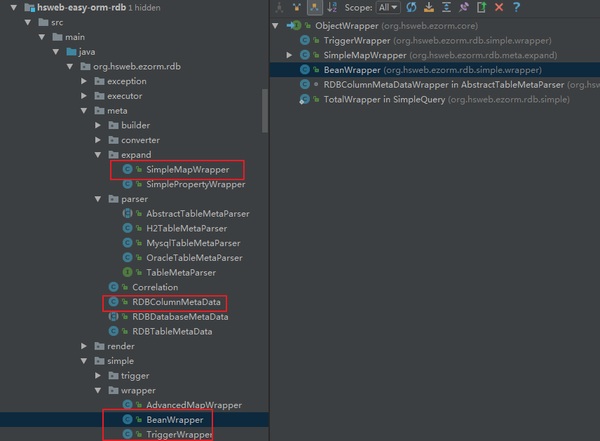

其衍生的类:
&amp;amp;amp;lt;img src="https://pic4.zhimg.com/v2-33ef1b86b40fb30c78a355163beb83a3_b.png" data-rawwidth="856" data-rawheight="629" class="origin_image zh-lightbox-thumb" width="856" data-original="https://pic4.zhimg.com/v2-33ef1b86b40fb30c78a355163beb83a3_r.png"&amp;amp;amp;gt;
触发:Trigger:
package org.hsweb.ezorm.core;
import java.util.Map;
public interface Trigger {
void execute(Map<String, Object> context);
String select_before = "select.before";
String select_wrapper_each = "select.wrapper.each";
String select_wrapper_done = "select.wrapper.done";
String select_done = "select.done";
String insert_before = "insert.before";
String insert_done = "insert.done";
String update_before = "update.before";
String update_done = "update.done";
String delete_before = "delete.before";
String delete_done = "delete.done";
}
定义TableMetaData
package org.hsweb.ezorm.core.meta;
import org.hsweb.ezorm.core.ObjectWrapper;
import org.hsweb.ezorm.core.PropertyWrapper;
import org.hsweb.ezorm.core.Trigger;
import java.io.Serializable;
import java.util.Map;
import java.util.Set;
/**
* @author zhouhao
*/
public interface TableMetaData extends Serializable {
String getName();
String getComment();
String getAlias();
<T extends DatabaseMetaData> T getDatabaseMetaData();
<T extends ColumnMetaData> Set<T> getColumns();
<T extends ColumnMetaData> T getColumn(String name);
<T extends ColumnMetaData> T findColumn(String name);
<T> ObjectWrapper<T> getObjectWrapper();
PropertyWrapper getProperty(String property);
PropertyWrapper getProperty(String property, Object defaultValue);
PropertyWrapper setProperty(String property, Object value);
void on(String name, Trigger trigger);
void on(String name, Map<String, Object> triggerContext);
boolean triggerIsSupport(String name);
}
里面包含有表名字，注释，别名，然后就是表所属数据库的元数据信息，表包含列的元数据信息，以及对象的包装，属性的包装，见上面对象包装，属性的包装，以及通过on()方法对Trigger使用
定义DatabaseMetaData
package org.hsweb.ezorm.core.meta;
import org.hsweb.ezorm.core.ObjectWrapperFactory;
import org.hsweb.ezorm.core.ValidatorFactory;
public interface DatabaseMetaData {
ObjectWrapperFactory getObjectWrapperFactory();
ValidatorFactory getValidatorFactory();
<T extends TableMetaData> T getTableMetaData(String name);
}
个人认为，其实这里表达的就是衔接的意思，ObjectWrapper和TableMetaData信息的对应(等以后有新的理解了再来修改的)
ValidatorFactory
package org.hsweb.ezorm.core;
import org.hsweb.ezorm.core.meta.TableMetaData;
public interface ValidatorFactory {
Validator createValidator(TableMetaData tableMetaData);//源码里暂时未使用到该接口方法定义
}
Validator其实是对INSERT, UPDATE操作和相应数据进行下验证
package org.hsweb.ezorm.core;
public interface Validator {
boolean validate(Object data, Operation operation);
enum Operation {
INSERT, UPDATE
}
}
定义ColumnMetaData
package org.hsweb.ezorm.core.meta;
import org.hsweb.ezorm.core.OptionConverter;
import org.hsweb.ezorm.core.PropertyWrapper;
import org.hsweb.ezorm.core.ValueConverter;
import java.io.Serializable;
import java.util.Set;
public interface ColumnMetaData extends Serializable, Cloneable {
String getName();
String getAlias();
String getComment();
Class getJavaType();
<T extends TableMetaData> T getTableMetaData();
ValueConverter getValueConverter();
OptionConverter getOptionConverter();
Set<String> getValidator();
PropertyWrapper getProperty(String property);
PropertyWrapper getProperty(String property, Object defaultValue);
PropertyWrapper setProperty(String property, Object value);
<T extends ColumnMetaData> T clone();
}
里面包含有表名字，注释，别名，然后就是列所属表的元数据信息，表包含列的元数据信息，以及值的转换，选项的转换，属性的包装，见上面数据转换，属性的包装小节，以及通过clone()方法返回相应的ColumnMetaData的实现。
因篇幅有点长，增删改查等相关操作在下一篇中说
原文链接：hsweb的系列学习——hsweb-easy-orm分析
