1. 概述
Filtersrv ，负责自定义规则过滤 Consumer 从 Broker 拉取的消息。
为什么 Broker 不提供过滤消息的功能呢？我们来看看官方的说法：
- Broker 端消息过滤
在 Broker 中，按照 Consumer 的要求做过滤，优点是减少了对于 Consumer 无用消息的网络传输。 缺点是增加了 Broker 的负担，实现相对复杂。
(1). 淘宝 Notify 支持多种过滤方式，包含直接按照消息类型过滤，灵活的语法表达式过滤，几乎可以满足最苛刻的过滤需求。
(2). 淘宝 RocketMQ 支持按照简单的 Message Tag 过滤，也支持按照 Message Header、body 进行过滤。
(3). CORBA Notification 规范中也支持灵活的语法表达式过滤。- Consumer 端消息过滤
这种过滤方式可由应用完全自定义实现，但是缺点是很多无用的消息要传输到 Consumer 端。
就是在这种考虑下，Filtersrv 出现了。减少了 Broker 的负担，又减少了 Consumer 接收无用的消息。当然缺点也是有的，多了一层 Filtersrv 网络开销。

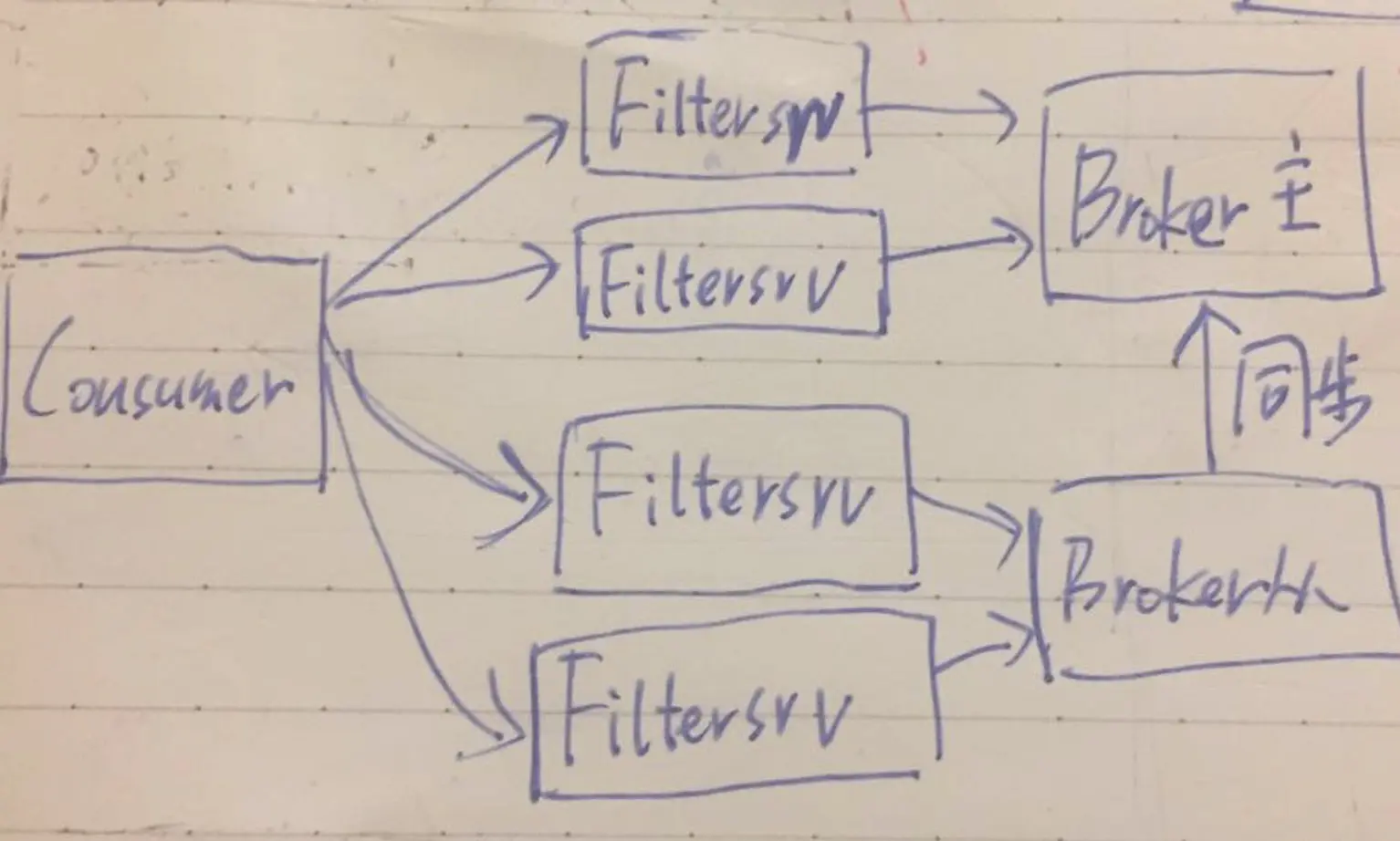

2. Filtersrv 注册到 Broker
- 🦅 一个
Filtersrv只对应一个Broker。 - 🦅 一个
Broker可以对应多个Filtersrv。Filtersrv的高可用通过启动多个Filtersrv实现。 - 🦅
Filtersrv注册失败时，主动退出关闭。
核心代码如下：
1: // ⬇️⬇️⬇️【FiltersrvController.java】 2: public boolean initialize() { 3: // ....(省略代码) 4: 5: // 固定间隔注册到Broker 6: this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() { 7: 8: @Override 9: public void run() {10: FiltersrvController.this.registerFilterServerToBroker();11: }12: }, 15, 10, TimeUnit.SECONDS); // TODO edit by 芋艿：initialDelay时间太短，可能导致初始化失败。从3=》1513: 14: // ....(省略代码)15: }16: 17: /**18: * 注册Filtersrv 到 Broker19: * ！！！如果注册失败，关闭Filtersrv20: */21: public void registerFilterServerToBroker() {22: try {23: RegisterFilterServerResponseHeader responseHeader =24: this.filterServerOuterAPI.registerFilterServerToBroker(25: this.filtersrvConfig.getConnectWhichBroker(), this.localAddr());26: this.defaultMQPullConsumer.getDefaultMQPullConsumerImpl().getPullAPIWrapper()27: .setDefaultBrokerId(responseHeader.getBrokerId());28: 29: if (null == this.brokerName) {30: this.brokerName = responseHeader.getBrokerName();31: }32: 33: log.info("register filter server<{}> to broker<{}> OK, Return: {} {}",34: this.localAddr(),35: this.filtersrvConfig.getConnectWhichBroker(),36: responseHeader.getBrokerName(),37: responseHeader.getBrokerId());38: } catch (Exception e) {39: log.warn("register filter server Exception", e);40: 41: log.warn("access broker failed, kill oneself");42: System.exit(-1); // 异常退出43: }44: }

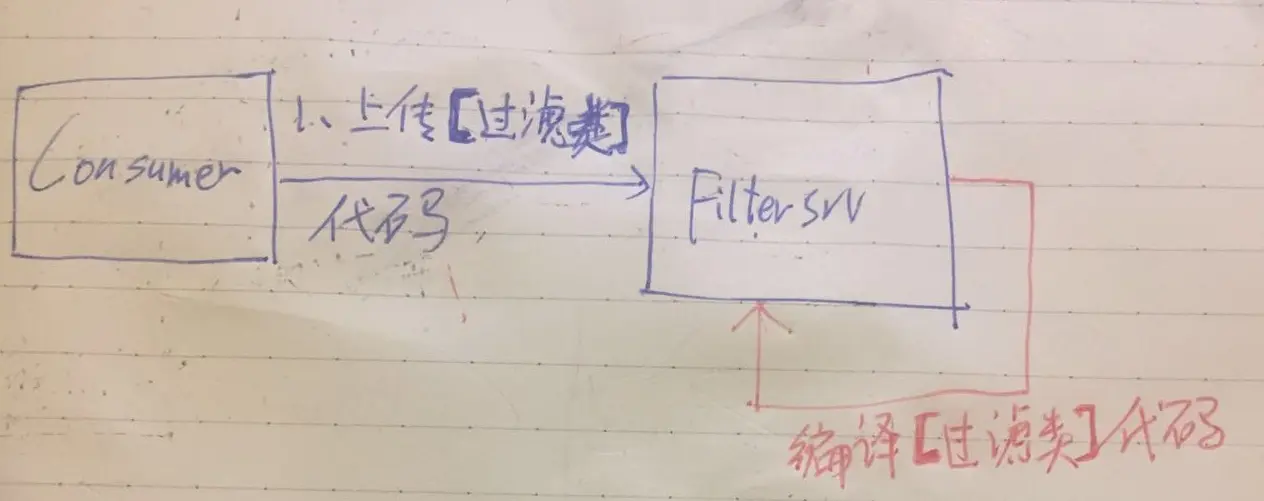

3. 过滤类
3.1 Consumer 订阅时设置 过滤类代码
- 🦅
Consumer针对每个Topic可以订阅不同的过滤类代码。
1: // ⬇️⬇️⬇️【DefaultMQPushConsumer.java】2: @Override3: public void subscribe(String topic, String fullClassName, String filterClassSource) throws MQClientException {4: this.defaultMQPushConsumerImpl.subscribe(topic, fullClassName, filterClassSource);5: }
3.2 Consumer 上传 过滤类代码
- 🦅
Consumer心跳注册到Broker的同时，上传过滤类代码到Broker对应的所有Filtersrv。
1: // ⬇️⬇️⬇️【MQClientInstance.java】 2: /** 3: * 发送心跳到Broker，上传过滤类源码到Filtersrv 4: */ 5: public void sendHeartbeatToAllBrokerWithLock() { 6: if (this.lockHeartbeat.tryLock()) { 7: try { 8: this.sendHeartbeatToAllBroker(); 9: this.uploadFilterClassSource();10: } catch (final Exception e) {11: log.error("sendHeartbeatToAllBroker exception", e);12: } finally {13: this.lockHeartbeat.unlock();14: }15: } else {16: log.warn("lock heartBeat, but failed.");17: }18: }19: 20: /**21: * 上传过滤类到Filtersrv22: */23: private void uploadFilterClassSource() {24: Iterator<Entry<String, MQConsumerInner>> it = this.consumerTable.entrySet().iterator();25: while (it.hasNext()) {26: Entry<String, MQConsumerInner> next = it.next();27: MQConsumerInner consumer = next.getValue();28: if (ConsumeType.CONSUME_PASSIVELY == consumer.consumeType()) {29: Set<SubscriptionData> subscriptions = consumer.subscriptions();30: for (SubscriptionData sub : subscriptions) {31: if (sub.isClassFilterMode() && sub.getFilterClassSource() != null) {32: final String consumerGroup = consumer.groupName();33: final String className = sub.getSubString();34: final String topic = sub.getTopic();35: final String filterClassSource = sub.getFilterClassSource();36: try {37: this.uploadFilterClassToAllFilterServer(consumerGroup, className, topic, filterClassSource);38: } catch (Exception e) {39: log.error("uploadFilterClassToAllFilterServer Exception", e);40: }41: }42: }43: }44: }45: }
3.3 Filter 编译 过滤类代码
- 🦅
Filtersrv处理Consumer上传的过滤类代码，并进行编译使用。
核心代码如下：
1: // ⬇️⬇️⬇️【FilterClassManager.java】 2: /** 3: * 注册过滤类 4: * 5: * @param consumerGroup 消费分组 6: * @param topic Topic 7: * @param className 过滤类名 8: * @param classCRC 过滤类源码CRC 9: * @param filterSourceBinary 过滤类源码10: * @return 是否注册成功11: */12: public boolean registerFilterClass(final String consumerGroup, final String topic,13: final String className, final int classCRC, final byte[] filterSourceBinary) {14: final String key = buildKey(consumerGroup, topic);15: // 判断是否要注册新的过滤类16: boolean registerNew = false;17: FilterClassInfo filterClassInfoPrev = this.filterClassTable.get(key);18: if (null == filterClassInfoPrev) {19: registerNew = true;20: } else {21: if (this.filtersrvController.getFiltersrvConfig().isClientUploadFilterClassEnable()) {22: if (filterClassInfoPrev.getClassCRC() != classCRC && classCRC != 0) { // 类有变化23: registerNew = true;24: }25: }26: }27: // 注册新的过滤类28: if (registerNew) {29: synchronized (this.compileLock) {30: filterClassInfoPrev = this.filterClassTable.get(key);31: if (null != filterClassInfoPrev && filterClassInfoPrev.getClassCRC() == classCRC) {32: return true;33: }34: try {35: FilterClassInfo filterClassInfoNew = new FilterClassInfo();36: filterClassInfoNew.setClassName(className);37: filterClassInfoNew.setClassCRC(0);38: filterClassInfoNew.setMessageFilter(null);39: 40: if (this.filtersrvController.getFiltersrvConfig().isClientUploadFilterClassEnable()) {41: String javaSource = new String(filterSourceBinary, MixAll.DEFAULT_CHARSET);42: // 编译新的过滤类43: Class<?> newClass = DynaCode.compileAndLoadClass(className, javaSource);44: // 创建新的过滤类对象45: Object newInstance = newClass.newInstance();46: filterClassInfoNew.setMessageFilter((MessageFilter) newInstance);47: filterClassInfoNew.setClassCRC(classCRC);48: }49: 50: this.filterClassTable.put(key, filterClassInfoNew);51: } catch (Throwable e) {52: String info = String.format("FilterServer, registerFilterClass Exception, consumerGroup: %s topic: %s className: %s",53: consumerGroup, topic, className);54: log.error(info, e);55: return false;56: }57: }58: }59: 60: return true;61: }

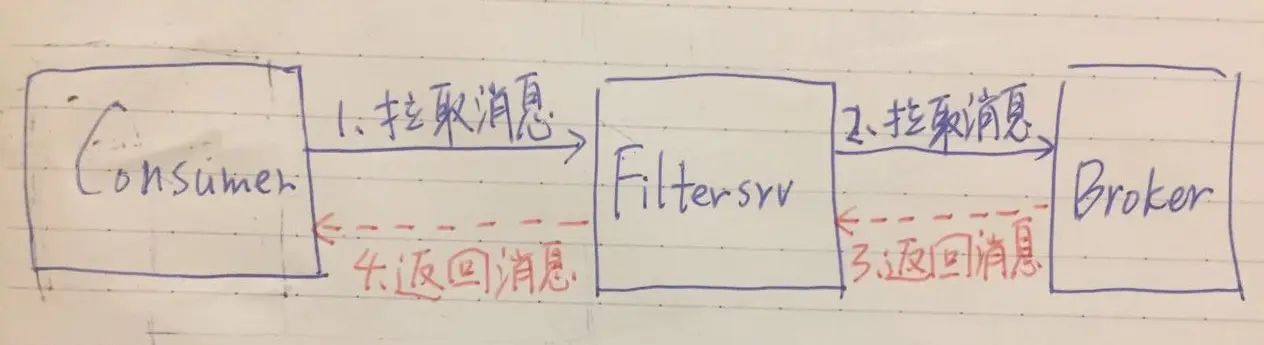

4. 过滤消息
4.1 Consumer 从 Filtersrv 拉取消息
- 🦅
Consumer拉取 使用过滤类方式订阅 的消费消息时，从Broker对应的Filtersrv列表随机选择一个拉取消息。如果选择不到Filtersrv，则无法拉取消息。因此，Filtersrv一定要做高可用。
1: // ⬇️⬇️⬇️【PullAPIWrapper.java】 2: /** 3: * 拉取消息核心方法 4: * 5: * @param mq 消息嘟列 6: * @param subExpression 订阅表达式 7: * @param subVersion 订阅版本号 8: * @param offset 拉取队列开始位置 9: * @param maxNums 批量拉 取消息数量10: * @param sysFlag 拉取系统标识11: * @param commitOffset 提交消费进度12: * @param brokerSuspendMaxTimeMillis broker挂起请求最大时间13: * @param timeoutMillis 请求broker超时时间14: * @param communicationMode 通讯模式15: * @param pullCallback 拉取回调16: * @return 拉取消息结果。只有通讯模式为同步时，才返回结果，否则返回null。17: * @throws MQClientException 当寻找不到 broker 时，或发生其他client异常18: * @throws RemotingException 当远程调用发生异常时19: * @throws MQBrokerException 当 broker 发生异常时。只有通讯模式为同步时才会发生该异常。20: * @throws InterruptedException 当发生中断异常时21: */22: protected PullResult pullKernelImpl(23: final MessageQueue mq,24: final String subExpression,25: final long subVersion,26: final long offset,27: final int maxNums,28: final int sysFlag,29: final long commitOffset,30: final long brokerSuspendMaxTimeMillis,31: final long timeoutMillis,32: final CommunicationMode communicationMode,33: final PullCallback pullCallback34: ) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {35: // // ....(省略代码)36: // 请求拉取消息37: if (findBrokerResult != null) {38: // ....(省略代码)39: // 若订阅topic使用过滤类，使用filtersrv获取消息40: String brokerAddr = findBrokerResult.getBrokerAddr();41: if (PullSysFlag.hasClassFilterFlag(sysFlagInner)) {42: brokerAddr = computPullFromWhichFilterServer(mq.getTopic(), brokerAddr);43: }44: 45: PullResult pullResult = this.mQClientFactory.getMQClientAPIImpl().pullMessage(46: brokerAddr,47: requestHeader,48: timeoutMillis,49: communicationMode,50: pullCallback);51: 52: return pullResult;53: }54: 55: // Broker信息不存在，则抛出异常56: throw new MQClientException("The broker[" + mq.getBrokerName() + "] not exist", null);57: }58: 59: /**60: * 计算filtersrv地址。如果有多个filtersrv，随机选择一个。61: *62: * @param topic Topic63: * @param brokerAddr broker地址64: * @return filtersrv地址65: * @throws MQClientException 当filtersrv不存在时66: */67: private String computPullFromWhichFilterServer(final String topic, final String brokerAddr)68: throws MQClientException {69: ConcurrentHashMap<String, TopicRouteData> topicRouteTable = this.mQClientFactory.getTopicRouteTable();70: if (topicRouteTable != null) {71: TopicRouteData topicRouteData = topicRouteTable.get(topic);72: List<String> list = topicRouteData.getFilterServerTable().get(brokerAddr);73: if (list != null && !list.isEmpty()) {74: return list.get(randomNum() % list.size());75: }76: }77: throw new MQClientException("Find Filter Server Failed, Broker Addr: " + brokerAddr + " topic: "78: + topic, null);79: }
4.2 Filtersrv 从 Broker 拉取消息
- 🦅
Filtersrv拉取消息后，会建议Consumer向Broker主节点拉取消息。 - 🦅
Filtersrv可以理解成一个Consumer，向Broker拉取消息时，实际使用的DefaultMQPullConsumer.java的方法和逻辑。
1: // ⬇️⬇️⬇️【DefaultRequestProcessor.java】
2: /**
3: * 拉取消息
4: *
5: * @param ctx 拉取消息context
6: * @param request 拉取消息请求
7: * @return 响应
8: * @throws Exception 当发生异常时
9: */
10: private RemotingCommand pullMessageForward(final ChannelHandlerContext ctx, final RemotingCommand request) throws Exception {
11: final RemotingCommand response = RemotingCommand.createResponseCommand(PullMessageResponseHeader.class);
12: final PullMessageResponseHeader responseHeader = (PullMessageResponseHeader) response.readCustomHeader();
13: final PullMessageRequestHeader requestHeader =
14: (PullMessageRequestHeader) request.decodeCommandCustomHeader(PullMessageRequestHeader.class);
15:
16: final FilterContext filterContext = new FilterContext();
17: filterContext.setConsumerGroup(requestHeader.getConsumerGroup());
18:
19: response.setOpaque(request.getOpaque());
20:
21: DefaultMQPullConsumer pullConsumer = this.filtersrvController.getDefaultMQPullConsumer();
22:
23: // 校验Topic过滤类是否完整
24: final FilterClassInfo findFilterClass = this.filtersrvController.getFilterClassManager().findFilterClass(requestHeader.getConsumerGroup(), requestHeader.getTopic());
25: if (null == findFilterClass) {
26: response.setCode(ResponseCode.SYSTEM_ERROR);
27: response.setRemark("Find Filter class failed, not registered");
28: return response;
29: }
30: if (null == findFilterClass.getMessageFilter()) {
31: response.setCode(ResponseCode.SYSTEM_ERROR);
32: response.setRemark("Find Filter class failed, registered but no class");
33: return response;
34: }
35:
36: // 设置下次请求从 Broker主节点。
37: responseHeader.setSuggestWhichBrokerId(MixAll.MASTER_ID);
38:
39: MessageQueue mq = new MessageQueue();
40: mq.setTopic(requestHeader.getTopic());
41: mq.setQueueId(requestHeader.getQueueId());
42: mq.setBrokerName(this.filtersrvController.getBrokerName());
43: long offset = requestHeader.getQueueOffset();
44: int maxNums = requestHeader.getMaxMsgNums();
45:
46: final PullCallback pullCallback = new PullCallback() {
47:
48: @Override
49: public void onSuccess(PullResult pullResult) {
50: responseHeader.setMaxOffset(pullResult.getMaxOffset());
51: responseHeader.setMinOffset(pullResult.getMinOffset());
52: responseHeader.setNextBeginOffset(pullResult.getNextBeginOffset());
53: response.setRemark(null);
54:
55: switch (pullResult.getPullStatus()) {
56: case FOUND:
57: response.setCode(ResponseCode.SUCCESS);
58:
59: List<MessageExt> msgListOK = new ArrayList<MessageExt>();
60: try {
61: for (MessageExt msg : pullResult.getMsgFoundList()) {
62: // 使用过滤类过滤消息
63: boolean match = findFilterClass.getMessageFilter().match(msg, filterContext);
64: if (match) {
65: msgListOK.add(msg);
66: }
67: }
68:
69: if (!msgListOK.isEmpty()) {
70: returnResponse(requestHeader.getConsumerGroup(), requestHeader.getTopic(), ctx, response, msgListOK);
71: return;
72: } else {
73: response.setCode(ResponseCode.PULL_RETRY_IMMEDIATELY);
74: }
75: } catch (Throwable e) {
76: final String error =
77: String.format("do Message Filter Exception, ConsumerGroup: %s Topic: %s ",
78: requestHeader.getConsumerGroup(), requestHeader.getTopic());
79: log.error(error, e);
80:
81: response.setCode(ResponseCode.SYSTEM_ERROR);
82: response.setRemark(error + RemotingHelper.exceptionSimpleDesc(e));
83: returnResponse(requestHeader.getConsumerGroup(), requestHeader.getTopic(), ctx, response, null);
84: return;
85: }
86:
87: break;
88: case NO_MATCHED_MSG:
89: response.setCode(ResponseCode.PULL_RETRY_IMMEDIATELY);
90: break;
91: case NO_NEW_MSG:
92: response.setCode(ResponseCode.PULL_NOT_FOUND);
93: break;
94: case OFFSET_ILLEGAL:
95: response.setCode(ResponseCode.PULL_OFFSET_MOVED);
96: break;
97: default:
98: break;
99: }
100:
101: returnResponse(requestHeader.getConsumerGroup(), requestHeader.getTopic(), ctx, response, null);
102: }
103:
104: @Override
105: public void onException(Throwable e) {
106: response.setCode(ResponseCode.SYSTEM_ERROR);
107: response.setRemark("Pull Callback Exception, " + RemotingHelper.exceptionSimpleDesc(e));
108: returnResponse(requestHeader.getConsumerGroup(), requestHeader.getTopic(), ctx, response, null);
109: return;
110: }
111: };
112:
113: // 拉取消息
114: pullConsumer.pullBlockIfNotFound(mq, null, offset, maxNums, pullCallback);
115: return null;
116: }
