Android 自定义底部导航栏

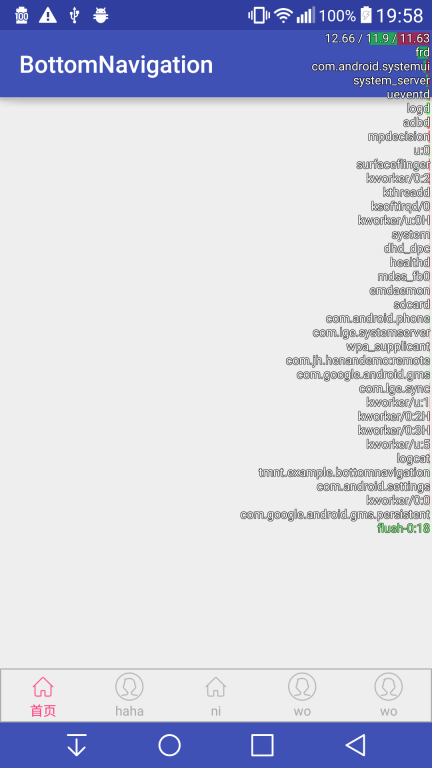

底部导航栏

实现

1. TabItem采用复合控件形式（ImageView + TextView）

   添加图标并设置指定颜色

   private Bitmap drawIcon(int color) {
        Bitmap bimap = ((BitmapDrawable) getResources().getDrawable(res)).getBitmap();
        Bitmap outBitmap = Bitmap.createBitmap(bimap.getWidth(), bimap.getHeight(), Bitmap.Config.ARGB_8888);

        Log.i(TAG, "drawIcon: " + bimap.getWidth() + "  " + bimap.getHeight());
        Bitmap alphaBitmap = bimap.extractAlpha();
        Canvas canvas = new Canvas(outBitmap);

        Paint paint = new Paint();
        paint.setColor(color);

        canvas.drawBitmap(alphaBitmap, 0, 0, paint);
        return outBitmap;
    }

2. BottomNavigation添加TabItem

 class BaseController implements Controller {
      private static final String TAG = "BottomNavigationLayout";

      @Override
      public Controller addTabItem(TabItem tabItem) {
          mTabItems.add(tabItem);
          return this;
      }

      @Override
      public Controller build() {
          LayoutParams layoutParams = new LayoutParams(LayoutParams.WRAP_CONTENT,
                  LayoutParams.MATCH_PARENT);
          layoutParams.weight = 1.0f;
          layoutParams.gravity = Gravity.CENTER;
          for (TabItem tabItem : mTabItems) {
              tabItem.setHandler(new BottomHanler());
              tabItem.setLayoutParams(layoutParams);
              BottomNavigationLayout.this.addView(tabItem, layoutParams);
          }

          setSelectBottom();
          return this;
      }

3. 使用Handler通信 获取TabItem点击事件，设置选中颜色

   由handler发送当前点击TabIem的tag，在BottomNavigation中循环查找后设置监听

底部导航

   class BottomHanler extends Handler {
      @Override
      public void handleMessage(Message msg) {
          super.handleMessage(msg);
          if (msg.what == 2001) {
              mTag = msg.obj;
              Log.i(TAG, "handleMessage: " + mTag);
              for (int i = 0; i < mTabItems.size(); i++) {
                  TabItem tabItem = mTabItems.get(i);
                  if (mTabItems.get(i).getTag().equals(mTag)) {
                      index = i;
                      Log.i(TAG, "handleMessage: " + index);
                      mOnTabItemSelectListener.onSelected(index, mTag);

                      tabItem.setIcon(true);
                  } else {
                      tabItem.setIcon(false);
                  }
              }
              invalidate();//刷新视图
          }
      }
  }

TabItem

 tabItem.setOnClickListener(v ->
                  tabItem.mHandler.obtainMessage(2001, v.getTag()).sendToTarget());

使用

1. 创建选项卡

    TabItem tabItem3 = new TabItem.Builder(this)
             .setDefaultColor(0xFFACACAC)
             .setSelectColor(getResources().getColor(R.color.colorAccent))
             .setTest("wo")
             .setRes(R.drawable.lsv)
             .setTag("ja")
             .build();

2. 添加选项卡

     Controller controller = mBottom.create()
                .addTabItem(tabItem)
                .addTabItem(tabItem1)
                .addTabItem(tabItem2)
                .addTabItem(tabItem3)
                .addTabItem(tabItem4)
                .build();

   Controller用于控制导航栏

3. 添加点击事件

    controller.addTabItemClickListener(new OnTabItemSelectListener() {
            @Override
            public void onSelected(int index, Object tag) {

            }

            @Override
            public void onRepeatClick(int index, Object tag) {

            }
        });
