Android -- RecyclerView（超简单）实现可展开列表

    可展开列表，听到这几个字的时候也许你就会问了，为啥要用 RecyclerView，用Android提供的 ExpandableListView不是更好吗？是的，ExpandableListView是很轻松就可以实现，但是，我要告诉你，我就是喜欢用RecyclerView ……



   好了，不再废话了，这里只是想用RecyclerView实现ExpandableListView的效果，提供一种实现方法和思路，其实很简单，就一句话，展开--插入一行、收起--删除一行。

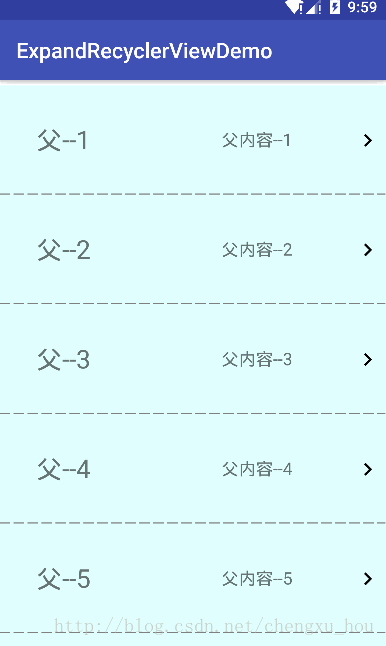

    先上效果图，用的模拟器，有点卡，真机测试很流畅，为了便于区分，上了点色，样子有点丑



说一下实现思路：

* 列表组成：主要分成两个布局，默认展示的为父布局，点击父布局，在父布局的下方插入一行（子布局）；

*展开效果：点击Item，插入一行数据的同时，该item下方的item向下滚动，也就是展开效果；

*动画效果：咳咳…… RecyclerView自带这种渐变的动画效果（知道我为啥喜欢RecyclerView了吧，哈哈），ListView自身是没有这种效果的。

以上也就是简单的实现思路，下面上码。

一大波代码来袭

首先是实体类，用来封装模拟数据

/**
 * Created by hbh on 2017/4/20.
 * 实体类，模拟数据
 */

public class DataBean {

    public static final int PARENT_ITEM = 0;//父布局
    public static final int CHILD_ITEM = 1;//子布局

    private int type;// 显示类型
    private boolean isExpand;// 是否展开
    private DataBean childBean;

    private String ID;
    private String parentLeftTxt;
    private String parentRightTxt;
    private String childLeftTxt;
    private String childRightTxt;

    public String getParentLeftTxt() {
        return parentLeftTxt;
    }

    public void setParentLeftTxt(String parentLeftTxt) {
        this.parentLeftTxt = parentLeftTxt;
    }

    public String getChildRightTxt() {
        return childRightTxt;
    }

    public void setChildRightTxt(String childRightTxt) {
        this.childRightTxt = childRightTxt;
    }

    public String getChildLeftTxt() {
        return childLeftTxt;
    }

    public void setChildLeftTxt(String childLeftTxt) {
        this.childLeftTxt = childLeftTxt;
    }

    public String getParentRightTxt() {
        return parentRightTxt;
    }

    public void setParentRightTxt(String parentRightTxt) {
        this.parentRightTxt = parentRightTxt;
    }

    public int getType() {
        return type;
    }

    public void setType(int type) {
        this.type = type;
    }

    public boolean isExpand() {
        return isExpand;
    }

    public void setExpand(boolean expand) {
        isExpand = expand;
    }

    public DataBean getChildBean() {
        return childBean;
    }

    public void setChildBean(DataBean childBean) {
        this.childBean = childBean;
    }

    public String getID() {
        return ID;
    }

    public void setID(String ID) {
        this.ID = ID;
    }
}

activity_main.xml文件中只有一个RecyclerView控件

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/activity_main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.hbh.cl.expandrecyclerviewdemo.MainActivity">

    <android.support.v7.widget.RecyclerView
        android:id="@+id/recycle_view"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:scrollbars="vertical"
        android:background="@color/white"
        android:paddingTop="5dp">
    </android.support.v7.widget.RecyclerView>

</RelativeLayout>

MainActivity文件也是没啥东西，只有一点要注意的，就是添加滚动监听，滚动监听的接口在Adapter中定义

public class MainActivity extends AppCompatActivity {

    private RecyclerView mRecyclerView;
    private List<DataBean> dataBeanList;
    private DataBean dataBean;
    private RecyclerAdapter mAdapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        mRecyclerView = (RecyclerView) findViewById(R.id.recycle_view);
        initData();
    }

    /**
     * 模拟数据
     */
    private void initData(){
        dataBeanList = new ArrayList<>();
        for (int i = 1; i <= 50; i++) {
            dataBean = new DataBean();
            dataBean.setID(i+"");
            dataBean.setType(0);
            dataBean.setParentLeftTxt("父--"+i);
            dataBean.setParentRightTxt("父内容--"+i);
            dataBean.setChildLeftTxt("子--"+i);
            dataBean.setChildRightTxt("子内容--"+i);
            dataBean.setChildBean(dataBean);
            dataBeanList.add(dataBean);
        }
        setData();
    }

    private void setData(){
        mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
        mAdapter = new RecyclerAdapter(this,dataBeanList);
        mRecyclerView.setAdapter(mAdapter);
        //滚动监听
        mAdapter.setOnScrollListener(new RecyclerAdapter.OnScrollListener() {
            @Override
            public void scrollTo(int pos) {
                mRecyclerView.scrollToPosition(pos);
            }
        });
    }

}

再有就是自定义Item点击监听接口，一个展开，一个收起

/**
 * Created by hbh on 2017/4/20.
 * 父布局Item点击监听接口
 */

public interface ItemClickListener {
    /**
     * 展开子Item
     * @param bean
     */
    void onExpandChildren(DataBean bean);

    /**
     * 隐藏子Item
     * @param bean
     */
    void onHideChildren(DataBean bean);
}

下面就是最主要的Adapter适配器了，主要代码都在这个里面，不过很简单，都有注释，一看就明白

/**
 * Created by hbh on 2017/4/20.
 * 适配器
 */

public class RecyclerAdapter extends RecyclerView.Adapter<BaseViewHolder> {

    private Context context;
    private List<DataBean> dataBeanList;
    private LayoutInflater mInflater;
    private OnScrollListener mOnScrollListener;

    public RecyclerAdapter(Context context, List<DataBean> dataBeanList) {
        this.context = context;
        this.dataBeanList = dataBeanList;
        this.mInflater = LayoutInflater.from(context);
    }

    @Override
    public BaseViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = null;
        switch (viewType){
            case DataBean.PARENT_ITEM:
                view = mInflater.inflate(R.layout.recycleview_item_parent, parent, false);
                return new ParentViewHolder(context, view);
            case DataBean.CHILD_ITEM:
                view = mInflater.inflate(R.layout.recycleview_item_child, parent, false);
                return new ChildViewHolder(context, view);
            default:
                view = mInflater.inflate(R.layout.recycleview_item_parent, parent, false);
                return new ParentViewHolder(context, view);
        }
    }

    /**
     * 根据不同的类型绑定View
     * @param holder
     * @param position
     */
    @Override
    public void onBindViewHolder(BaseViewHolder holder, int position) {
        switch (getItemViewType(position)){
            case DataBean.PARENT_ITEM:
                ParentViewHolder parentViewHolder = (ParentViewHolder) holder;
                parentViewHolder.bindView(dataBeanList.get(position), position, itemClickListener);
                break;
            case DataBean.CHILD_ITEM:
                ChildViewHolder childViewHolder = (ChildViewHolder) holder;
                childViewHolder.bindView(dataBeanList.get(position), position);
                break;
        }
    }

    @Override
    public int getItemCount() {
        return dataBeanList.size();
    }

    @Override
    public int getItemViewType(int position) {
        return dataBeanList.get(position).getType();
    }

    private ItemClickListener itemClickListener = new ItemClickListener() {
        @Override
        public void onExpandChildren(DataBean bean) {
            int position = getCurrentPosition(bean.getID());//确定当前点击的item位置
            DataBean children = getChildDataBean(bean);//获取要展示的子布局数据对象，注意区分onHideChildren方法中的getChildBean()。
            if (children == null) {
                return;
            }
            add(children, position + 1);//在当前的item下方插入
            if (position == dataBeanList.size() - 2 && mOnScrollListener != null) { //如果点击的item为最后一个
                mOnScrollListener.scrollTo(position + 1);//向下滚动，使子布局能够完全展示
            }
        }

        @Override
        public void onHideChildren(DataBean bean) {
            int position = getCurrentPosition(bean.getID());//确定当前点击的item位置
            DataBean children = bean.getChildBean();//获取子布局对象
            if (children == null) {
                return;
            }
            remove(position + 1);//删除
            if (mOnScrollListener != null) {
                mOnScrollListener.scrollTo(position);
            }
        }
    };

    /**
     * 在父布局下方插入一条数据
     * @param bean
     * @param position
     */
    public void add(DataBean bean, int position) {
        dataBeanList.add(position, bean);
        notifyItemInserted(position);
    }

    /**
     *移除子布局数据
     * @param position
     */
    protected void remove(int position) {
        dataBeanList.remove(position);
        notifyItemRemoved(position);
    }

    /**
     * 确定当前点击的item位置并返回
     * @param uuid
     * @return
     */
    protected int getCurrentPosition(String uuid) {
        for (int i = 0; i < dataBeanList.size(); i++) {
            if (uuid.equalsIgnoreCase(dataBeanList.get(i).getID())) {
                return i;
            }
        }
        return -1;
    }

    /**
     * 封装子布局数据对象并返回
     * 注意，此处只是重新封装一个DataBean对象，为了标注Type为子布局数据，进而展开，展示数据
     * 要和onHideChildren方法里的getChildBean()区分开来
     * @param bean
     * @return
     */
    private DataBean getChildDataBean(DataBean bean){
        DataBean child = new DataBean();
        child.setType(1);
        child.setParentLeftTxt(bean.getParentLeftTxt());
        child.setParentRightTxt(bean.getParentRightTxt());
        child.setChildLeftTxt(bean.getChildLeftTxt());
        child.setChildRightTxt(bean.getChildRightTxt());
        return child;
    }

    /**
     * 滚动监听接口
     */
    public interface OnScrollListener{
        void scrollTo(int pos);
    }

    public void setOnScrollListener(OnScrollListener onScrollListener){
        this.mOnScrollListener = onScrollListener;
    }
}

还有两个对应的 ParentViewHolder  和  ChildViewHolder

/**
 * Created by hbh on 2017/4/20.
 * 父布局ViewHolder
 */

public class ParentViewHolder extends BaseViewHolder {

    private Context mContext;
    private View view;
    private RelativeLayout containerLayout;
    private TextView parentLeftView;
    private TextView parentRightView;
    private ImageView expand;
    private View parentDashedView;

    public ParentViewHolder(Context context, View itemView) {
        super(itemView);
        this.mContext = context;
        this.view = itemView;
    }

    public void bindView(final DataBean dataBean, final int pos, final ItemClickListener listener){

        containerLayout = (RelativeLayout) view.findViewById(R.id.container);
        parentLeftView = (TextView) view.findViewById(R.id.parent_left_text);
        parentRightView = (TextView) view.findViewById(R.id.parent_right_text);
        expand = (ImageView) view.findViewById(R.id.expend);
        parentDashedView = view.findViewById(R.id.parent_dashed_view);
        RelativeLayout.LayoutParams params = (RelativeLayout.LayoutParams) expand
                .getLayoutParams();
        expand.setLayoutParams(params);
        parentLeftView.setText(dataBean.getParentLeftTxt());
        parentRightView.setText(dataBean.getParentRightTxt());

        if (dataBean.isExpand()) {
            expand.setRotation(90);
            parentDashedView.setVisibility(View.INVISIBLE);
        } else {
            expand.setRotation(0);
            parentDashedView.setVisibility(View.VISIBLE);
        }

        //父布局OnClick监听
        containerLayout.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                if (listener != null) {
                    if (dataBean.isExpand()) {
                        listener.onHideChildren(dataBean);
                        parentDashedView.setVisibility(View.VISIBLE);
                        dataBean.setExpand(false);
                        rotationExpandIcon(90, 0);
                    } else {
                        listener.onExpandChildren(dataBean);
                        parentDashedView.setVisibility(View.INVISIBLE);
                        dataBean.setExpand(true);
                        rotationExpandIcon(0, 90);
                    }
                }
            }
        });
    }

    @TargetApi(Build.VERSION_CODES.HONEYCOMB)
    private void rotationExpandIcon(float from, float to) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.HONEYCOMB) {
            ValueAnimator valueAnimator = ValueAnimator.ofFloat(from, to);//属性动画
            valueAnimator.setDuration(500);
            valueAnimator.setInterpolator(new DecelerateInterpolator());
            valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {

                @Override
                public void onAnimationUpdate(ValueAnimator valueAnimator) {
                    expand.setRotation((Float) valueAnimator.getAnimatedValue());
                }
            });
            valueAnimator.start();
        }
    }
}

/**
 * Created by hbh on 2017/4/20.
 * 子布局ViewHolder
 */

public class ChildViewHolder extends BaseViewHolder {

    private Context mContext;
    private View view;
    private TextView childLeftText;
    private TextView childRightText;

    public ChildViewHolder(Context context, View itemView) {
        super(itemView);
        this.mContext = context;
        this.view = itemView;
    }

    public void bindView(final DataBean dataBean, final int pos){

        childLeftText = (TextView) view.findViewById(R.id.child_left_text);
        childRightText = (TextView) view.findViewById(R.id.child_right_text);
        childLeftText.setText(dataBean.getChildLeftTxt());
        childRightText.setText(dataBean.getChildRightTxt());

    }
}

OVER，以上就是主要的代码，大部分都贴上了，很简单。

总的来说就是 通过增加和删除 再加上动画效果 来模拟列表的展开和收起，在这里抛砖引玉，如有更好的实现方法或方式，还望各位猿友们不吝赐教，文章如有表述不当，还请指正。

Demo传送门
