其实你不懂：Drawable 着色 (tint) 的兼容方案源码解析Drawable 着色的详尽分析

前两天写一个自定义控件，使用Drawable变色来展示EditText的不同状态，涉及到了DrawableCompat这个类，今天着重分析一下它。

1:Drawable变色的通用代码

//1:通过图片资源文件生成Drawable实例
Drawable drawable = getResources().getDrawable(R.mipmap.ic_launcher).mutate();
//2:先调用DrawableCompat的wrap方法
drawable = DrawableCompat.wrap(drawable);
//3:再调用DrawableCompat的setTint方法，为Drawable实例进行着色
DrawableCompat.setTint(drawable, Color.RED);

这里涉及几个方法:

Drawable.mutate()
DrawableCompat.wrap(@NonNull Drawable drawable)
DrawableCompat.setTint(@NonNull Drawable drawable, @ColorInt int tint)

下面看一下这几个方法的源码，Drawable.mutate()稍后分析，先看一下DrawableCompat中的wrap和setTint这两个方法。

2:DrawableCompat.wrap(@NonNull Drawable drawable)

public static Drawable wrap(@NonNull Drawable drawable) {
  return IMPL.wrap(drawable);
}

从源码可见，wrap方法内部是return IMPL.wrap(drawable)，那这个IMPL是？

    static final DrawableImpl IMPL;
    /**
     * Interface for the full API.
     */
    interface DrawableImpl {
        void jumpToCurrentState(Drawable drawable);
        void setAutoMirrored(Drawable drawable, boolean mirrored);
        boolean isAutoMirrored(Drawable drawable);
        void setHotspot(Drawable drawable, float x, float y);
        void setHotspotBounds(Drawable drawable, int left, int top, int right, int bottom);
        void setTint(Drawable drawable, int tint);
        void setTintList(Drawable drawable, ColorStateList tint);
        void setTintMode(Drawable drawable, PorterDuff.Mode tintMode);
        Drawable wrap(Drawable drawable);
        boolean setLayoutDirection(Drawable drawable, int layoutDirection);
        int getLayoutDirection(Drawable drawable);
        int getAlpha(Drawable drawable);
        void applyTheme(Drawable drawable, Resources.Theme t);
        boolean canApplyTheme(Drawable drawable);
        ColorFilter getColorFilter(Drawable drawable);
        void clearColorFilter(Drawable drawable);
        void inflate(Drawable drawable, Resources res, XmlPullParser parser, AttributeSet attrs,
                     Resources.Theme t) throws IOException, XmlPullParserException;
    }
    static {
        final int version = android.os.Build.VERSION.SDK_INT;
        if (version >= 23) {
            IMPL = new MDrawableImpl();
        } else if (version >= 21) {
            IMPL = new LollipopDrawableImpl();
        } else if (version >= 19) {
            IMPL = new KitKatDrawableImpl();
        } else if (version >= 17) {
            IMPL = new JellybeanMr1DrawableImpl();
        } else if (version >= 11) {
            IMPL = new HoneycombDrawableImpl();
        } else {
            IMPL = new BaseDrawableImpl();
        }
    }

可见，在不同的SDK版本下，IMPL对应DrawableImpl的不同子类实例。下面分别看一下这几个实现类对wrap方法的实质执行代码。

MDrawableImpl

  public Drawable wrap(Drawable drawable) {
      // No need to wrap on M+
      //未对Drawable实例做任何处理，直接返回
      return drawable;
  }

可见在SDK版本>= 23(MDrawableImpl)情况下:DrawableCompat.wrap(@NonNull Drawable drawable)直接返回了原始的Drawable实例

LollipopDrawableImpl

  public Drawable wrap(Drawable drawable) {
      return DrawableCompatLollipop.wrapForTinting(drawable);
  }

继续跟踪DrawableCompatLollipop.wrapForTinting:

public static Drawable wrapForTinting(final Drawable drawable) {
  if (!(drawable instanceof TintAwareDrawable)) {
      //当前传入的Drawable实例并不属于TintAwareDrawable
      return new DrawableWrapperLollipop(drawable);
  }
  return drawable;
}

继续跟踪DrawableWrapperLollipop:

class DrawableWrapperLollipop extends DrawableWrapperKitKat {
  DrawableWrapperLollipop(Drawable drawable) {
    super(drawable);
  }
  ***
}

继续跟踪DrawableWrapperKitKat:

class DrawableWrapperKitKat extends DrawableWrapperHoneycomb {
  DrawableWrapperKitKat(Drawable drawable) {
    super(drawable);
  }
  ***
}

继续跟踪DrawableWrapperHoneycomb:

class DrawableWrapperHoneycomb extends DrawableWrapperGingerbread {
  DrawableWrapperHoneycomb(Drawable drawable) {
    super(drawable);
  }
  ***
}

继续跟踪DrawableWrapperGingerbread:

  static final PorterDuff.Mode DEFAULT_TINT_MODE = PorterDuff.Mode.SRC_IN;
  private int mCurrentColor;
  private PorterDuff.Mode mCurrentMode;
  private boolean mColorFilterSet;
  DrawableWrapperState mState;  //mState默认是null
  private boolean mMutated;
  Drawable mDrawable;

  DrawableWrapperGingerbread(@Nullable Drawable dr) {
      mState = mutateConstantState();
      // Now set the drawable...
      setWrappedDrawable(dr);
  }

mState = mutateConstantState();

mutateConstantState()一路追踪到底：
DrawableWrapperState mutateConstantState() {
    //返回一个DrawableWrapperStateBase实例
    //mState默认是null
    return new DrawableWrapperStateBase(mState, null);
}
private static class DrawableWrapperStateBase extends DrawableWrapperState {
    //调用父类 DrawableWrapperState 的构造函数
    //orig就是DrawableWrapperGingerbread中的mState，默认是null
    DrawableWrapperStateBase(
            @Nullable DrawableWrapperState orig, @Nullable Resources res) {
        super(orig, res);
    }
    @Override
    public Drawable newDrawable(@Nullable Resources res) {
        return new DrawableWrapperGingerbread(this, res);
    }
}
protected static abstract class DrawableWrapperState extends Drawable.ConstantState {
    int mChangingConfigurations;
    Drawable.ConstantState mDrawableState;
    ColorStateList mTint = null;
    PorterDuff.Mode mTintMode = DEFAULT_TINT_MODE;
    //orig就是DrawableWrapperGingerbread中的mState，默认是null
    DrawableWrapperState(@Nullable DrawableWrapperState orig, @Nullable Resources res) {
        //因为orig是null,所以mChangingConfigurations，mDrawableState，
        //mTint，mTintMode都是DrawableWrapperState中的默认值
        if (orig != null) {
            mChangingConfigurations = orig.mChangingConfigurations;
            mDrawableState = orig.mDrawableState;
            mTint = orig.mTint;
            mTintMode = orig.mTintMode;
        }
    }
}

代码一路跟下来可见:mState = mutateConstantState(),mState被赋值为一个新的DrawableWrapperState实例，
其中：mState（DrawableWrapperState）中，下面成员变量的值都是默认值:
int mChangingConfigurations;
Drawable.ConstantState mDrawableState;
ColorStateList mTint = null;
PorterDuff.Mode mTintMode = DEFAULT_TINT_MODE;

setWrappedDrawable(dr);

setWrappedDrawable(Drawable dr)一路追踪到底:
public final void setWrappedDrawable(Drawable dr) {
    if (mDrawable != null) {
        mDrawable.setCallback(null);
    }
    mDrawable = dr;
    if (dr != null) {
        dr.setCallback(this);
        // Only call setters for data that's stored in the base Drawable.
        setVisible(dr.isVisible(), true);
        setState(dr.getState());
        setLevel(dr.getLevel());
        setBounds(dr.getBounds());
        //mState不为null:为一个新的DrawableWrapperState实例
        if (mState != null) {
            //为mState的mDrawableState赋值为Drawable原始实例
            //关联的ConstantState
            mState.mDrawableState = dr.getConstantState();
        }
    }
    invalidateSelf();
}

这里涉及到DrawableWrapperGingerbread中的几个方法:
setVisible(boolean visible, boolean restart)

@Override
public boolean setVisible(boolean visible, boolean restart) {
  //Drawable中的setVisible，用于控制Drawable实例是否执行动画,对于AnimationDrawable实例会产生效果，控制是否执行动画
  return super.setVisible(visible, restart) || mDrawable.setVisible(visible, restart);
}

setState(final int[] stateSet)

@Override
public boolean setState(final int[] stateSet) {
    boolean handled = mDrawable.setState(stateSet);
    handled = updateTint(stateSet) || handled;
    return handled;
}
private boolean updateTint(int[] state) {
    //isCompatTintEnabled()这里直接返回了true
    if (!isCompatTintEnabled()) {
        // If compat tinting is not enabled, fail fast
        return false;
    }
    //mState.mTint是默认值:null
    final ColorStateList tintList = mState.mTint;
    //mState.mTintMode是默认值:DEFAULT_TINT_MODE = PorterDuff.Mode.SRC_IN
    final PorterDuff.Mode tintMode = mState.mTintMode;
    if (tintList != null && tintMode != null) {
        //tintList为null,所以不会执行下面代码
        final int color = tintList.getColorForState(state, tintList.getDefaultColor());
        if (!mColorFilterSet || color != mCurrentColor || tintMode != mCurrentMode) {
            setColorFilter(color, tintMode);
            mCurrentColor = color;
            mCurrentMode = tintMode;
            mColorFilterSet = true;
            return true;
        }
    } else {
        //tintList为null
        mColorFilterSet = false;
        //执行的是其父类Drawable的clearColorFilter()
        clearColorFilter();
    }
    return false;
}
protected boolean isCompatTintEnabled() {
    // It's enabled by default on Gingerbread
    //这里直接返回了true
    return true;
}
Drawable的clearColorFilter方法：移除了当前Drawable实例关联的ColorFilter
public void clearColorFilter() {
    setColorFilter(null);
}

可见：setState(dr.getState())这一步直接移除了Drawable实例关联的ColorFilter.
setLevel直接使用的是其父类Drawable中的方法setLevel(@IntRange(from=0,to=10000) int level)

Drawable的setLevel方法：
public final boolean setLevel(@IntRange(from=0,to=10000) int level) {
    //在这里，因为mLevel就是之前DrawableWrapperGingerbread构造函数中的Drawable dr的level值，
    //而level=dr.getLevel()返回的也是Drawable dr的level值，mLevel == level，
    //所以下面的代码并不会执行
    if (mLevel != level) {
        mLevel = level;
        return onLevelChange(level);
    }
    return false;
}

可见：setLevel(dr.getLevel())这一步并未产生实质影响，未执行处理逻辑。
setBounds直接使用的是其父类Drawable中的方法setBounds(@NonNull Rect bounds)

/**
 * Specify a bounding rectangle for the Drawable. This is where the drawable
 * will draw when its draw() method is called.
 */
public void setBounds(@NonNull Rect bounds) {
    setBounds(bounds.left, bounds.top, bounds.right, bounds.bottom);
}

可见：setBounds(dr.getBounds())这一步为新产生的DrawableWrapperGingerbread实例设置其绘制范围与原始Drawable实例一致。

可见在SDK版本>= 21(LollipopDrawableImpl)情况下:DrawableCompat.wrap(@NonNull Drawable drawable)返回了Drawable的子类DrawableWrapperGingerbread的一个新实例。
且在updateTint方法中移除了该新实例关联过的ColorFilter,设置了该新实例的绘制范围和原始Drawable实例相同

KitKatDrawableImpl
跟踪终点同LollipopDrawableImpl

在KitKatDrawableImpl情况下，wrap(Drawable drawable)一路跟踪到底:
@Override
public Drawable wrap(Drawable drawable) {
  return DrawableCompatKitKat.wrapForTinting(drawable);
}
**
继承关系跟踪到最后还是DrawableWrapperGingerbread，和LollipopDrawableImpl相同：
DrawableWrapperGingerbread(@Nullable Drawable dr) {
  mState = mutateConstantState();
  // Now set the drawable...
  setWrappedDrawable(dr);
}

JellybeanMr1DrawableImpl
跟踪终点同LollipopDrawableImpl
HoneycombDrawableImpl
跟踪终点同LollipopDrawableImpl
BaseDrawableImpl
跟踪终点同LollipopDrawableImpl

综上可见：
1：在SDK版本>= 23(MDrawableImpl)情况下:DrawableCompat.wrap(@NonNull Drawable drawable)直接返回了原始的Drawable实例；
2：其余情况下，DrawableCompat.wrap(@NonNull Drawable drawable)返回了Drawable的子类DrawableWrapperGingerbread的一个新实例，且在updateTint方法中移除了该新实例关联过的ColorFilter,设置了该新实例的绘制范围和原始Drawable实例相同；

3:DrawableCompat.setTint(@NonNull Drawable drawable, @ColorInt int tint)

    public static void setTint(@NonNull Drawable drawable, @ColorInt int tint) {
        IMPL.setTint(drawable, tint);
    }

之前分析wrap方法时候已经看到IMPL在不同SDK版本下有不同的实现，还是逐一查看：

MDrawableImpl

setTint一路跟踪：
@Override
public void setTint(Drawable drawable, int tint) {
  DrawableCompatLollipop.setTint(drawable, tint);
}
public static void setTint(Drawable drawable, int tint) {
  //执行的是Drawable原生的setTint方法
  drawable.setTint(tint);
}

LollipopDrawableImpl

setTint一路跟踪：
@Override
public void setTint(Drawable drawable, int tint) {
  //同MDrawableImpl
  DrawableCompatLollipop.setTint(drawable, tint);
}

KitKatDrawableImpl

setTint一路跟踪：
@Override
public void setTint(Drawable drawable, int tint) {
  DrawableCompatBase.setTint(drawable, tint);
}
public static void setTint(Drawable drawable, int tint) {
  if (drawable instanceof TintAwareDrawable) {
      ((TintAwareDrawable) drawable).setTint(tint);
  }
}
public interface TintAwareDrawable {
  void setTint(@ColorInt int tint);
  void setTintList(ColorStateList tint);
  void setTintMode(PorterDuff.Mode tintMode);
}

在上面分析DrawableCompat.wrap方法时候，已知其返回结果为DrawableWrapperGingerbread新实例，看一下DrawableWrapperGingerbread类的声明：class DrawableWrapperGingerbread extends Drawable implements Drawable.Callback, DrawableWrapper, TintAwareDrawable
由此可见，setTint实质执行的还是DrawableWrapperGingerbread的setTint方法，继续跟踪：

  setTint一路追踪：
  @Override
  public void setTint(int tint) {
      setTintList(ColorStateList.valueOf(tint));
  }
  @Override
  public void setTintList(ColorStateList tint) {
      //1:在上面分析DrawableCompat.wrap时候，mState的值如下：
      //mState（DrawableWrapperState）中，下面成员变量的值都是默认值:
      //int mChangingConfigurations;
      //Drawable.ConstantState mDrawableState;
      //ColorStateList mTint = null;
      //PorterDuff.Mode mTintMode = DEFAULT_TINT_MODE;

      //2:在DrawableCompat.setTint时候，mState.mTint不再为空值
      mState.mTint = tint;
      updateTint(getState());
  }

  //之前DrawableCompat.wrap已经执行过一次updateTint，
  //现在DrawableCompat.setTint第二次执行！！
  private boolean updateTint(int[] state) {
      //isCompatTintEnabled()返回true
      if (!isCompatTintEnabled()) {
          // If compat tinting is not enabled, fail fast
          return false;
      }
      //此时mState.mTint已经在setTintList中赋值不为null
      final ColorStateList tintList = mState.mTint;
      //mState.mTintMode依然为默认值不为null
      final PorterDuff.Mode tintMode = mState.mTintMode;
      if (tintList != null && tintMode != null) {
          //两者都不为空，因而执行if条件下代码

          //获取当前状态下对应的颜色
          final int color = tintList.getColorForState(state, tintList.getDefaultColor());
          //mColorFilterSet默认是false
          //color即为setTint时候传入的颜色
          //mCurrentColor默认值是0
          //tintMode是mState中的mTintMode=DEFAULT_TINT_MODE = PorterDuff.Mode.SRC_IN
          //mCurrentMode默认值是null
          if (!mColorFilterSet || color != mCurrentColor || tintMode != mCurrentMode) {
              //对Drawable实例产生着色的，本质上还是执行了Drawable中的setColorFilter方法。
              setColorFilter(color, tintMode);
              mCurrentColor = color;
              mCurrentMode = tintMode;
              mColorFilterSet = true;
              return true;
          }
      } else {
          mColorFilterSet = false;
          clearColorFilter();
      }
      return false;
  }

JellybeanMr1DrawableImpl
跟踪终点同KitKatDrawableImpl
HoneycombDrawableImpl
跟踪终点同KitKatDrawableImpl
BaseDrawableImpl
跟踪终点同KitKatDrawableImpl

综上可见：
1：在SDK版本>= 21(MDrawableImpl和LollipopDrawableImpl)情况下:DrawableCompat.setTint(@NonNull Drawable drawable, @ColorInt int tint)执行的是Drawable原生的setTint方法；
2：其余情况下，DrawableCompat.setTint(@NonNull Drawable drawable, @ColorInt int tint)本质上还是执行了Drawable中的setColorFilter方法；

4:原生Drawable.setTint(@ColorInt int tintColor)

public void setTint(@ColorInt int tintColor) {
    setTintList(ColorStateList.valueOf(tintColor));
}
public void setTintList(@Nullable ColorStateList tint) {
    //你没有看错，竟然是个空方法！！！！
}

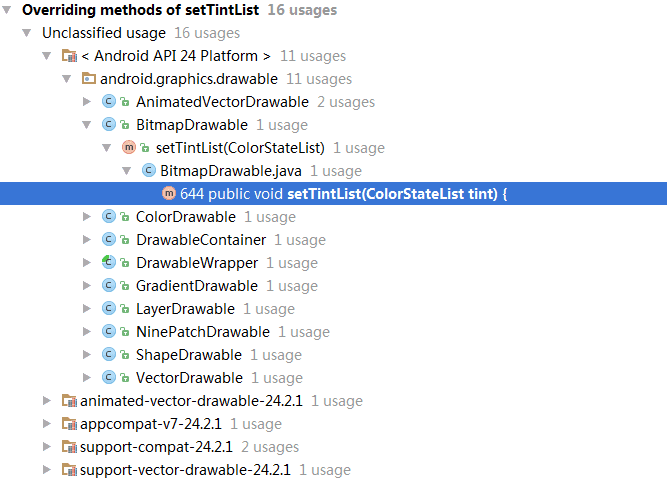

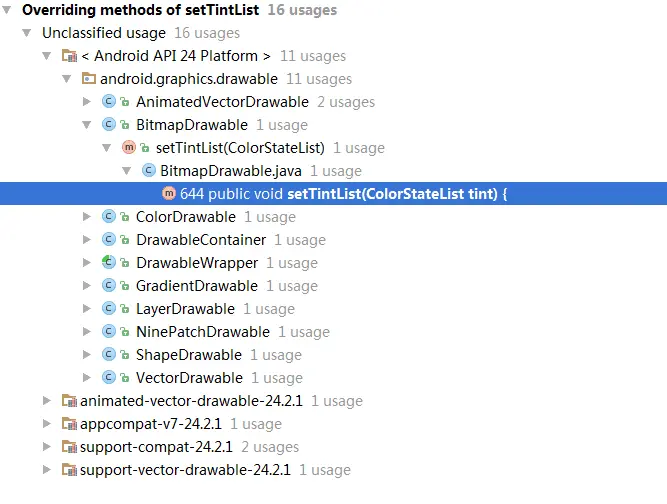

刚看到这儿时候也有些纳闷，后来一想肯定是我们在获取Drawable原始实例的时，获取的其实是Drawable的子类实例，在Drawable子类里对setTintList做了重写，有图有真相：


5:Drawable.mutate()的作用

    /**
     * Make this drawable mutable. This operation cannot be reversed. A mutable
     * drawable is guaranteed to not share its state with any other drawable.
     * This is especially useful when you need to modify properties of drawables
     * loaded from resources. By default, all drawables instances loaded from
     * the same resource share a common state; if you modify the state of one
     * instance, all the other instances will receive the same modification.
     *
     * Calling this method on a mutable Drawable will have no effect.
     *
     * @return This drawable.
     * @see ConstantState
     * @see #getConstantState()
     */
    public @NonNull Drawable mutate() {
        return this;
    }

单纯看源码解释可能比较抽象，说的通俗一点，我们通过Resource获取mipmap文件夹下的一张资源图片，在获取Drawable初始实例时候如果不使用mutate()，那么我们对这个Drawable进行着色，不仅改变了当前Drawable实例的颜色，以后任何通过这个图片获取到的Drawable实例，都会具有之前设置的颜色。所以如果我们对一张资源图片的着色不是APP全局生效的，就需要使用mutate()。

具体原因：
Android为了优化系统性能，同一张资源图片生成的Drawable实例在内存中只存在一份，在不使用mutate的情况下，修改任意Drawable都会全局发生变化。
使用mutate，Android系统也没有把Drawable实例又单独拷贝一份，仅仅是单独存放了状态值，很小的一部分数据，Drawable实例在内存中仍然保持1份，因而并不会影响系统的性能。
具体变化可以通过2张图片说明：

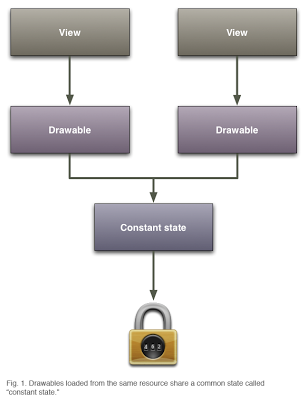

1:不使用mutate:

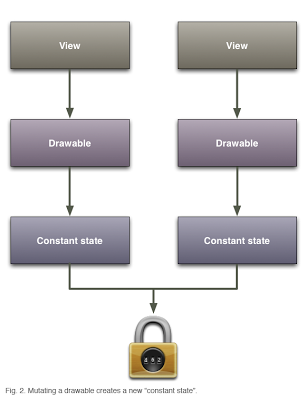

2:使用mutate:


以上就是个人分析的一点结果，若有错误，请各位同学留言告知！

That's all !

其实你不懂：Drawable 着色 (tint) 的兼容方案 源码解析

1:Drawable变色的通用代码

2:DrawableCompat.wrap(@NonNull Drawable drawable)

3:DrawableCompat.setTint(@NonNull Drawable drawable, @ColorInt int tint)

4:原生Drawable.setTint(@ColorInt int tintColor)

5:Drawable.mutate()的作用

其实你不懂：Drawable 着色 (tint) 的兼容方案源码解析
