Android 自定义控件之圆点指示器 View(IndicateDotView)

前言

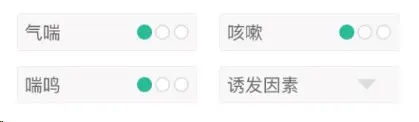

最近公司项目中，有一个如下的UI：

可以看到，右侧的圆点，虽然可以直接用布局实现，但是由于很多地方都出现了，所以考虑到复用性不高。可以直接用自定义View来实现，扩展性和复用性都很好，并且这个View也很简单，直接画圆就行了。

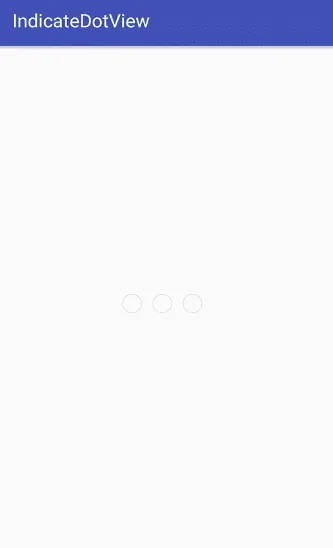

最终效果

代码

首先来定义需要用到的自定义属性：

在代码中获取：

public IndicateDotView(Context context, AttributeSet attrs, int defStyleAttr) {
    super(context, attrs, defStyleAttr)
    TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.IndicateDotView)
    mUnSelectColor = a.getColor(R.styleable.IndicateDotView_indicate_unselect_color, mUnSelectColor)
    mSelectColor = a.getColor(R.styleable.IndicateDotView_indicate_select_color, mSelectColor)
    mDivideWidth = (int) a.getDimension(R.styleable.IndicateDotView_indicate_divide_width, mDivideWidth)
    mDivideColor = a.getColor(R.styleable.IndicateDotView_indicate_divide_color, mDivideColor)
    mIsLeastOne = a.getBoolean(R.styleable.IndicateDotView_indicate_is_least_one, mIsLeastOne)
    mMargin = (int) a.getDimension(R.styleable.IndicateDotView_indicate_margin, mMargin)
    mRadius = (int) a.getDimension(R.styleable.IndicateDotView_indicate_radius, mRadius)
    mClickable = a.getBoolean(R.styleable.IndicateDotView_android_clickable, mClickable)
    mMaxNumber = a.getInt(R.styleable.IndicateDotView_indicate_max_number, mMaxNumber)
    mNumber = a.getInt(R.styleable.IndicateDotView_indicate_number, mNumber)
    a.recycle()

    mPaint = new Paint()
    mPaint.setAntiAlias(true)
}

onDraw()中绘制：

@Override
protected void onDraw(Canvas canvas) {
    if(mNumber > mMaxNumber){
        if(mIsLeastOne){
            mNumber = 1;
        }else{
            mNumber = 0;
        }
    }

    for (int i = 0; i < mMaxNumber; i++) {
        if(i < mNumber){
            mPaint.setColor(mSelectColor);
            mPaint.setStyle(Paint.Style.FILL_AND_STROKE);
            drawCircle(canvas, i);
        }else{
            mPaint.setColor(mUnSelectColor);
            mPaint.setStyle(Paint.Style.FILL);
            drawCircle(canvas, i);

            if(mDivideColor != -1){
                mPaint.setColor(mDivideColor);
                mPaint.setStyle(Paint.Style.STROKE);
                mPaint.setStrokeWidth(mDivideWidth);
                drawCircle(canvas, i);
            }
        }
    }
}

代码很简单，就是根据最大圆点数循环绘制圆以及边框，绘制圆的代码如下：

private void drawCircle(Canvas canvas, int i){
    canvas.drawCircle(getPaddingLeft() + mRadius + mDivideWidth + (((mRadius * 2)
            + (mDivideWidth * 2) + mMargin) * i), getHeight() / 2, mRadius, mPaint);
}

最后在onMeasure()计算宽高：

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    int widthMode = MeasureSpec.getMode(widthMeasureSpec);
    int heightMode = MeasureSpec.getMode(heightMeasureSpec);
    int widthSize = MeasureSpec.getSize(widthMeasureSpec);
    int heightSize = MeasureSpec.getSize(heightMeasureSpec);

    int width = 0;
    int height = 0;

    if(widthMode != MeasureSpec.EXACTLY){
        width = mMaxNumber * (mRadius * 2 + mDivideWidth * 2 + mMargin) + getPaddingLeft() + getPaddingRight();
    }

    if(heightMode != MeasureSpec.EXACTLY){
        height = mRadius * 2 + mDivideWidth * 2 + getPaddingTop() + getPaddingBottom();
    }

    setMeasuredDimension(widthMode == MeasureSpec.EXACTLY ? widthSize : width,
            heightMode == MeasureSpec.EXACTLY ? heightSize : height);
}

源码下载

GitHub地址：github.com/Airsaid/Ind…
