如何构造 Swift 框架（二）

宇朋Look
762 阅读7分钟
原文链接： wilddylan.github.io

功能编写

环境管理 ModeSwitch

新建ModeSwitch.swift

import Foundation
/// 开发模式
public enum Mode: String {
  /// 开发模式，打印日志，不上报日志
  case develope = "[DEVELOPE MODE]"
  /// 调试模式，关闭日志打印，上报日志
  case prepared = "[PREPARED MODE]"
  /// 生产模式，关闭日志打印，上报日志
  case production = "[PRODUCTION MODE]"
  }
/// 模式控制
public class INSModeSwitch {
  /// 默认为调试模式
  public static let `default` = INSModeSwitch(.develope)

  public var currentMode: Mode {
    didSet {
    }
  }
  /// 私有初始化方法
  private init(_ mode: Mode) {
    self.currentMode = mode
  }
  }
/// 模式选择器
public let ModeSwitcher = INSModeSwitch.default

目前这是一个极其简单的模式控制，毫无别的作用，以后扩展功能

日志模块-基础日志 Console

第一步我们先完成日志输出，新建Logger.swift

import Foundation
/// 日志级别
public enum LogLevel: String {
  /// 打印所有类型日志
  case all = "🛢[ALL]"
  /// 仅打印调试日志
  case debug = "⚒[DEBUG]"
  /// 仅打印警告日志
  case warning = "❗️[WARN]"
  /// 仅打印信息日志
  case information = "📢[INFO]"
  }
final public class INSLogger {
  /// 默认为输出全部日志
  public static let `default` = INSLogger(.all)

  public var level: LogLevel {
    didSet {

    }
  }

  /// 日志输出
  ///
  /// - parameter lev: 日志级别
  /// - parameter content: 日志内容
  public func printLog(_ lev: LogLevel, _ details: String, _ items: Any) {
    guard level == .all || level == lev, ModeSwitcher.currentMode == .develope else {
      return
    }

    print(lev.rawValue, details, "\n", items)
  }

  private init(_ level: LogLevel) {
    self.level = level
  }
  }
/// 公开日志打印模块
public let Logger = INSLogger.default
/// 公开便捷调用方法
public func ILog(_ lev: LogLevel, _ items: Any, _ function: StaticString = #function, _ line: Int = #line, _ file: StaticString = #file) {
  var details = "[\("\(file)".components(separatedBy: "/").last!): \(function): \(line)]"
  Logger.printLog(lev, details, items)
  }

这个时候，我们对前2部分进行简单的测试：

ModeSwitcher.currentMode = .develope
print(ModeSwitcher.currentMode)

Logger.level = .warning

ILog(.all, "Hello world! Current Mode is \(Logger.level)")
ILog(.debug, "Hello world! Current Mode is \(Logger.level)")
ILog(.warning, "Hello world! Current Mode is \(Logger.level)")
ILog(.information, "Hello world! Current Mode is \(Logger.level)")

.developer情况下会输出相应的日志，.all为输出所有日志，预发、生产模式下不会输出日志。

🛢 [WARN] [ViewController.swift: viewDidLoad(): 24]
 ["2": "3", "4": "5"]

分别为文件，方法，行号，内容。

功能扩展，界面扩展

一些Foundation，UIKit的扩展。新建2个文件夹，分别为FoundationExtension，UIKitExtension。在文件夹内添加这些扩展方法。这一块内容暂时省略，接着往下写功能模块。

UISDK这里我依旧支持AsyncDisplayKit，从这个库诞生我就开始一直使用，所以对于我来说，用这个比UIKit顺手：

pod "AsyncDisplayKit"

Foundation扩展先添加Keychain的帮助模块

pod 'KeychainAccess'
权限服务

权限服务：获得一些系统的权限，新建Permission.swift

import Foundation
import CoreBluetooth
import AddressBook;
import AVFoundation;
import CoreBluetooth;
import CoreLocation;
import CoreMotion;
import EventKit;
import Photos
/// 当前的状态
public enum kPermissionAccess {
  /// 用户拒绝
  case denied
  /// 用户同意
  case granted
  /// 系统设置拉黑等错误
  case restricted
  /// 未知错误
  case unknown
  /// 设备不支持
  case unsupported
  /// 开发者没有导入相应的库
  case missingFramework
  /// 用户没选
  case notDetermined
  }
public func hasAccessToBluetoothLE() ->kPermissionAccess {
  switch CBCentralManager().state {
    case .unsupported:
    return .unsupported;
    break;

    case .unauthorized:
    return .denied;
    break;

    default:
    return .granted;
    break;
  }
  }
public func hasAccessToCalendar() ->kPermissionAccess {

  switch EKEventStore.authorizationStatus(for: .event) {
  case .authorized:
    return .granted;
    break;

  case .denied:
    return .denied;
    break;

  case .restricted:
    return .restricted;
    break;

  case .notDetermined:
    return .notDetermined;
    break;

  default:
    return .unknown;
    break;
  }
  }
public func hasAccessToContacts() ->kPermissionAccess {
  switch (ABAddressBookGetAuthorizationStatus()) {
  case .authorized:
    return .granted;
    break;

  case .denied:
    return .denied;
    break;

  case .restricted:
    return .restricted;
    break;

  case .notDetermined:
    return .notDetermined;
    break;

  default:
    return .unknown;
    break;
  }
  }
public func hasAccessToLocation() ->kPermissionAccess {
  switch CLLocationManager.authorizationStatus() {
  case .authorizedAlways:
    return .granted;
    break;

  case .authorizedWhenInUse:
    return .granted;
    break;

  case .denied:
    return .denied;
    break;

  case .restricted:
    return .restricted;
    break;

  case .notDetermined:
    return .notDetermined;
    break;

  default:
    return .unknown;
    break;
  }
  }
public func hasAccessToPhotos() ->kPermissionAccess {

  switch PHPhotoLibrary.authorizationStatus() {
  case .authorized:
    return .granted;
    break;

  case .denied:
    return .denied;
    break;

  case .restricted:
    return .restricted;
    break;

  case .notDetermined:
    return .notDetermined;
    break;

  default:
    return .unknown;
    break;
  }
  }
public func hasAccessToReminders() ->kPermissionAccess {
  switch EKEventStore.authorizationStatus(for: .reminder) {
  case .authorized:
    return .granted;
    break;

  case .denied:
    return .denied;
    break;

  case .restricted:
    return .restricted;
    break;

  case .notDetermined:
    return .notDetermined;
    break;

  default:
    return .unknown;
    break;
  }
  }
public typealias requestAccessHandler = (Bool?, Any?) ->()
public func requestAccessToCalendarWithSuccess(_ handler: @escaping requestAccessHandler) {
  EKEventStore().requestAccess(to: .event) {
    handler($0, $1)
  }
  }
public func requestAccessToContactsWithSuccess(_ handler: @escaping requestAccessHandler) {
  if let addressBook = ABAddressBookCreateWithOptions(nil, nil) {
    ABAddressBookRequestAccessWithCompletion(addressBook as ABAddressBook!) {
      handler($0, $1)
    }
  }
  }
public func requestAccessToMicrophoneWithSuccess(_ handler: @escaping requestAccessHandler) {
  let session = AVAudioSession.sharedInstance()
  session.requestRecordPermission {
    handler($0, nil)
  }
  }
public func requestAccessToPhotosWithSuccess(_ handler: @escaping requestAccessHandler) {
  PHPhotoLibrary.requestAuthorization {
    if $0 == .authorized {
      handler(true, nil)
    } else {
      handler(false, nil)
    }
  }
  }
public func requestAccessToRemindersWithSuccess(_ handler: @escaping requestAccessHandler) {
  EKEventStore().requestAccess(to: .reminder) {
    handler($0, $1)
  }
  }
/// 获取位置访问权限
///
/// - parameter whenInUse: 如果为False，则请求总是需要的权限
public func requestAccessToLocationWithSuccess(_ handler: @escaping requestAccessHandler, _ whenInUse: Bool = true) {
  let locationManager = CLLocationManager()
  if whenInUse, let content = Bundle.main.object(forInfoDictionaryKey: "NSLocationWhenInUseUsageDescription") {
    locationManager.requestWhenInUseAuthorization()
  } else {
    locationManager.requestAlwaysAuthorization()
  }
  handler(true, nil)
  }
public func requestAccessToMotionWithSuccess(_ handler: @escaping requestAccessHandler) {
  let motionManager = CMMotionActivityManager()
  let motionQueue = OperationQueue()
  motionManager.startActivityUpdates(to: motionQueue) {_ in
    handler(true, nil)
    motionManager.stopActivityUpdates()
  }
  }

可是你们忘记了，我很懒，所以这段代码不需要了，直接：

pod 'PermissionScope'

来嗨吧！

组件处理（核心模块）

要解决的问题暂时有：

  1. 如何成为组件（实现协议与方法即可）
  2. 如何启动组件（调用组件必须实现的启动方法）
  3. 组件之间如何数据传输（实现Router模拟HTTP请求数据传递）
  4. 组件之间如何做界面跳转（利用上述Router模拟OpenURL方式调起）
  5. 组件服务如何停止（调用协议实现的方法并从组件管理中心移除注册）

规则1：只有已经注册了的组件才可以成为Router的操作对象，想成为组件则必须有单独类实现组件协议。

规则2：Router仅负责数据传递与获取视图实例（可传值，后者拥有前者的弱引用）

规则3：仅在每个模块的组件中心的代理方法中注册相应的URL供被调用

import Foundation
/// 数据流
public typealias INSDataFlowHandler = (Any...) ->Any
/// 错误的Scheme
fileprivate let INSDataUnknowedScheme = "INSDataUnknowedScheme_Key"
/// 插件协议
public protocol INSPlugin {
  var pluginLoaded: Bool { get }
  /// 插件唯一标识
  /// - returns: 插件标识，用来获取插件
  func pluginScheme() ->String!

  // MARK: - Mappings

  /// 视图控制器Map
  /// - returns: 视图控制器的对应字典
  func classMapping() ->Dictionary?
  /// 数据流Map
  /// - returns: 数据流字典
  func dataflowMapping() ->Dictionary?

  // MARK: - Plugin status

  /// 当插件注册成功的时候会调用这个方法
  func serviceStarted()
  /// 当插件取消注册的时候会调用这个方法
  func serviceStopped()
  }
extension INSPlugin {
  /// 插件加载状态
  public var pluginLoaded: Bool {
    return (ModuleCenter.getPlugin(for: pluginScheme()) != nil)
  }
  }
/// 插件基类，成为模块插件管理器则必须继承该类，并实现方法
open class Plugin: INSPlugin {
  final public func registePlugin() {
    ModuleCenter.registePlugin(self)
  }

  final public func deRegistePlugin() {
    ModuleCenter.deRegistePlugin(self)
  }

  open func pluginScheme() -> String! {
    return nil
  }

  open func serviceStopped() {}

  open func serviceStarted() {}
  open func dataflowMapping() ->Dictionary? {
    return nil
  }
  open func classMapping() ->Dictionary? {
    return nil
  }

  public init() {
    // I'm a plug-in manager 🏵
  }
  }
/// 插件控制中心
final public class ModuleManager: NSObject {
  public static let `default` = ModuleManager()
  /// 已经加载的插件
  private(set) var loadedPlugins: Dictionary = [:]

  /// 注册新的插件
  @discardableResult
  public func registePlugin(_ item: Plugin) ->Bool {
    guard let scheme = item.pluginScheme(), loadedPlugins[scheme] == nil else {
      return false
    }
    loadedPlugins[scheme] = item
    /// 注册组件
    item.serviceStarted()
    return true
  }

  /// 取消注册插件
  public func deRegistePlugin(_ item: Plugin) {
    guard let scheme = item.pluginScheme() else {
      return
    }
    loadedPlugins.removeValue(forKey: scheme)
    /// 移除组件
    item.serviceStopped()
  }

  /// 根据唯一标识获取插件
  public func getPlugin(for scheme: String) ->Plugin? {
    return loadedPlugins[scheme]
  }

  /// 数据流
  @discardableResult
  public func send(to url: String, and param: Any...) ->Any? {
    let (scheme, host) = validateURL(url)

    guard let pluginItem = getPlugin(for: scheme!), let dataMapping = pluginItem.dataflowMapping() else {
      ILog(.warning, "找不到scheme对应的插件或插件没有dataMapping!")
      return nil
    }

    guard let sendHandler = dataMapping[host!] else {
      ILog(.warning, "该路径没有对应的Handler")
      return nil
    }

    return sendHandler(param)
  }

  /// 视图流
  @discardableResult
  public func `class`(for url: String) ->AnyClass? {
    let (scheme, host) = validateURL(url)

    guard let pluginItem = getPlugin(for: scheme!), let dataMapping = pluginItem.classMapping() else {
      ILog(.warning, "找不到scheme对应的插件或插件没有classMapping!")
      return nil
    }

    return dataMapping[host!]
  }

  @discardableResult
  private func validateURL(_ url:String) ->(String?, String?) {
    guard let URLObject = URL(string: url), let scheme = URLObject.scheme else {
      ILog(.warning, "输入的url不能转换为URL对象或URL对象没有Scheme!")
      return (INSDataUnknowedScheme, "")
    }
    return (scheme, URLObject.host)
  }

  private override init() {
    // I'm a module manager 🏵
  }
  }
public let ModuleCenter = ModuleManager.default

接下来，我们实现一个小的插件继承自Plugin并实现一些代理方法：

import UIKit
class NetworkPlugin: Plugin {
  override func serviceStarted() {
    ILog(.debug, "Network service started")
  }

  override func serviceStopped() {
    ILog(.debug, "Network service stopped")
  }

  override func pluginScheme() -> String! {
    return "Network"
  }

  override func dataflowMapping() ->Dictionary? {
    let mapping: [String: INSDataFlowHandler] = [
      "getData": {
        ILog(.warning, "receive call \($0)")
        return "Custom data"
      },
      "supportMethod": {
        ILog(.warning, "receive call \($0)")
        return [
          "GET",
          "POST",
          "PUT",
          "DELETE"
          ]
      }
    ]
    return mapping
  }

  override func classMapping() -> Dictionary? {
    let mapping: [String: AnyClass] = [
      "vc1": UIViewController.self,
      "vc2": NSObject.self
    ]
    return mapping
  }

  static let `default` = NetworkPlugin()
  }

然后在ViewController.swift中测试：

ModeSwitcher.currentMode = .develope
Logger.level = .all

let sharedNetwork = NetworkPlugin.default
sharedNetwork.registePlugin()

ILog(.information, ModuleCenter.send(to: "Network://getData", and: "Hello World"))
ILog(.information, ModuleCenter.send(to: "Network://supportMethod", and: "Hello World", "Hello real world!", ["a": "b"]))
ILog(.information, ModuleCenter.class(for: "Network://vc1"))
ILog(.information, ModuleCenter.class(for: "Network://vc2"))

sharedNetwork.deRegistePlugin()

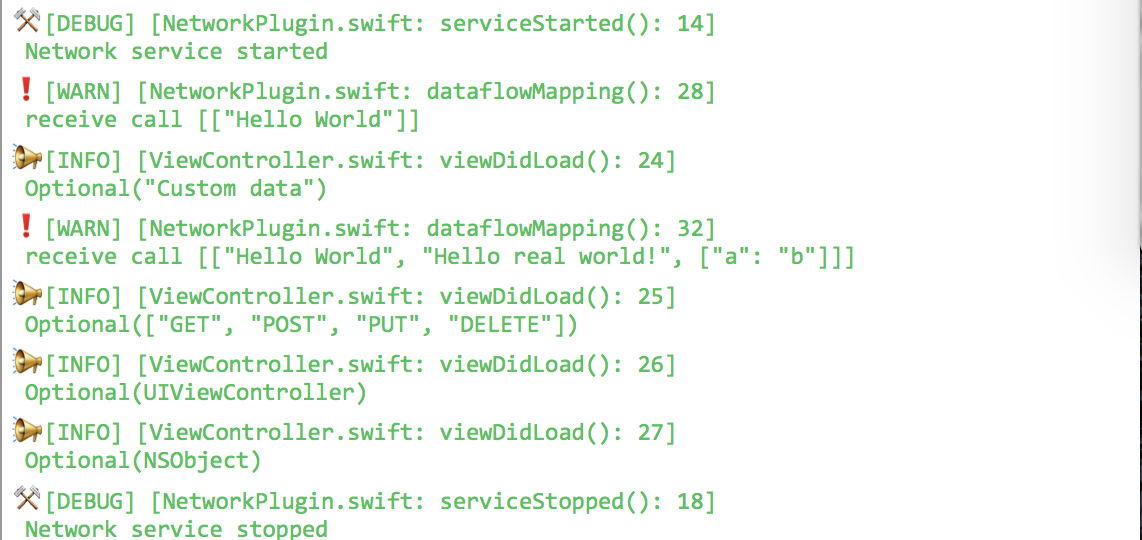

看到输出为：

说明功能已经基本的完成了。这里并没有将打开界面写入到当前模块，还是感觉直接获取类好一点，所以直接把OpenURL的方式改成了获取类型，然后由使用者自己去创建对象分情况使用，这样自定义的程度也高一点。 如果写为OpenURL的方式，那我们又要分很多种了，push还是present，是否需要导航，考虑到仅获取不使用的情况，要写控制器基类，还有必要统一一个初始化方法供使用。但是这些似乎已经不是一个框架应该做的事情了（仅鉴于我对Swift框架的理解，框架不干涉业务，框架不干涉UI）。

文章篇幅过长并且均为代码，所以本文只写到这里。

下篇文章会开始编写数据模块、网络模块。

avatar
文章
阅读
粉丝
