简介

最近几天自己实现了一个通用的下拉刷新控件,在项目介绍是写的英文,应该也不难看懂,就懒得再用中文写一遍了就直接复制过来了。如有问题多谢指出。

A widget that can achieve the function of pulling to refresh. It’s like a container which can help developer to manager the sub view.

This widget supports almost all of the android view such as listview,webview,scrollview or more.What’s more,It’s extremely flexible and extensible.You can user your own view for the pull-refresh head.I support some callback to you in the headview for your own animation.you just need to follow the steps below.

project source code

You can fork this project on github Project Code

Gradle dependency

I am studying how to publish this widget to the Jcenter and the mavenCenter now,so you will see the dependency soon or later.

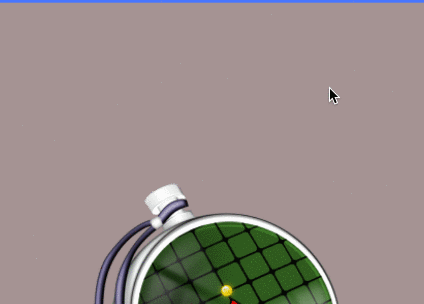

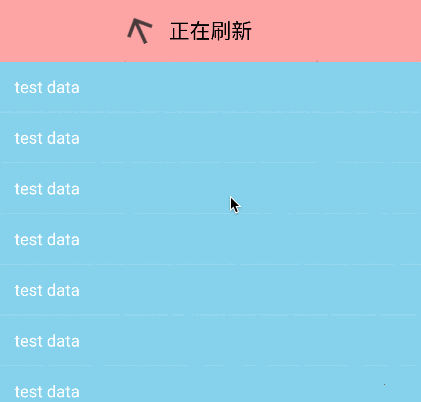

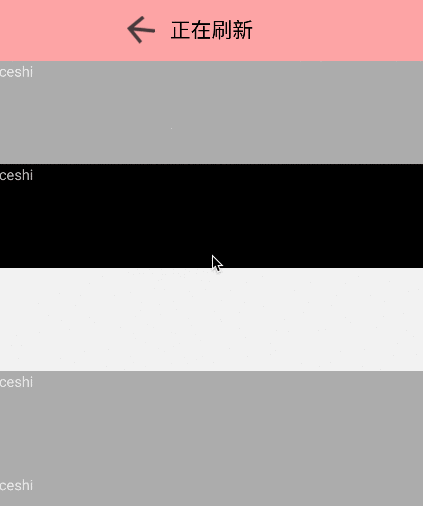

Screenshots

refresh3

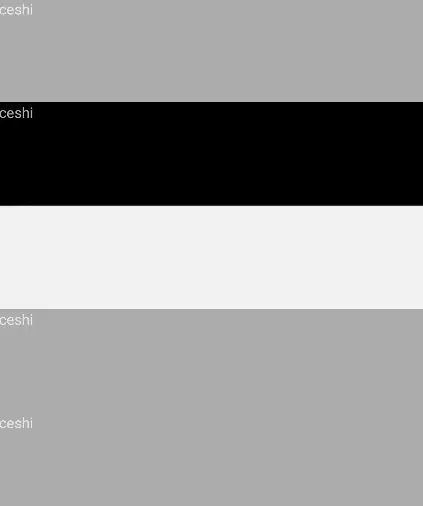

refresh1

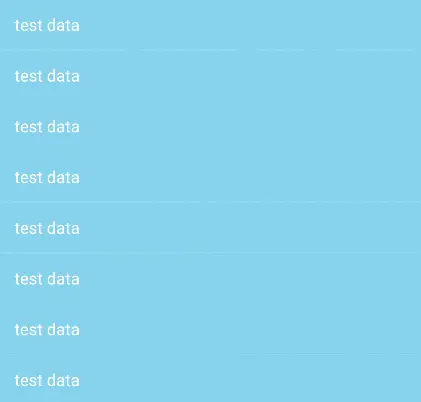

refresh2

Usage

Only these simple code you need to write that you get what you want.

code in your activity


PullContainer mPullContainer = (PullContainer) findViewById(R.id.base_container);
SimpleHeader simpleHeader = new SimpleHeader(this);
mPullContainer.setHeaderView(simpleHeader);
mPullContainer.setRefreshCallBack(new RefreshCallBack() {
    @Override
    public void onRefreshBegin() {
        mHandler.postDelayed(new Runnable() {
            @Override
            public void run() {
                mPullContainer.refreshComplete();
            }
        }, 2000);
    }
    });

code in your contentView xml











Look,how easy it is.

Customizing

I guess you are wondering to know how to use your own head view with your favourite style.Of course,I also support the most flexible and extandable way for you.

For convenience,I offer a simple header view for you in the sample code.You just need to draw your own head view like me. Here is the code of my SimpleHeader

 * Created by zale on 2015/12/9. */
public class SimpleHeader extends BaseHeader {
    private TextView stateTV;
    private ImageView arrowIV;
    private Animation rotateAn;
    public SimpleHeader(Context context) {
        this(context, null);
    }
    public SimpleHeader(Context context, AttributeSet attrs) {
        super(context, attrs);
        init(context);
    }
    private void init(Context context) {
        View headView = LayoutInflater.from(context).inflate(R.layout.item_simple_headview, this);
        stateTV = (TextView) headView.findViewById(R.id.state);
        arrowIV = (ImageView) headView.findViewById(R.id.arrow_image);
        rotateAn = AnimationUtils.loadAnimation(context,R.anim.pull_refresh_arrow_anim);
        LinearInterpolator linearInterpolator = new LinearInterpolator();
        rotateAn.setInterpolator(linearInterpolator);
    }
    @Override
    public void onUIReset(Indicator indicator) {
        stateTV.setText("pull to refresh");
    }
    @Override
    public void onUIRefreshPerpare(Indicator indicator) {
        stateTV.setText("release to refresh");
    }
    @Override
    public void onUIRefreshBegin(Indicator indicator) {
        stateTV.setText("refreshing");
        if (rotateAn!=null){
            arrowIV.startAnimation(rotateAn);
        }
    }
    @Override
    public void onUIRefreshComplete(Indicator indicator) {
        stateTV.setText("refresh complete");
        arrowIV.clearAnimation();
    }
    }

All you need to do is to subclass the BaseHeader and override methods in the code.

warning:you should not override the onUIPositionChange method int your head view because this method is used to control the UI

other custom styles

Except write the head view by yourself,you can also drive the widget performs like what you want.You are able to use these methods to control the behaviour.

Class: zalezone.pullrefresh.pullrefreshview.PullContainer

Public Methods

  • void setPullResistance(float resistance) set the resistance of pulling the view.

  • void setPullCloseDuration(int millisecond) set the duration of close the content.

  • void set headerCloseDuration(int millisecond) set the duration of close the header.

more?to to continued..

Communication

If you have some suggestions or want to join me to prefect this widget,welcome to contact me. email:1433317488@qq.com,zalecoder@gmail.com
