View 的 MeasureSpec 确定过程

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
	super.onMeasure(widthMeasureSpec, heightMeasureSpec);
}

public static class MeasureSpec {
        private static final int MODE_SHIFT = 30;
        private static final int MODE_MASK  = 0x3 << MODE_SHIFT;

        public static final int UNSPECIFIED = 0 << MODE_SHIFT;
        public static final int EXACTLY     = 1 << MODE_SHIFT;
        public static final int AT_MOST     = 2 << MODE_SHIFT;

        public static int makeMeasureSpec(int size, int mode) {
            if (sUseBrokenMakeMeasureSpec) {
                return size + mode;
            } else {
                return (size & ~MODE_MASK) | (mode & MODE_MASK);
            }
        }

        public static int getMode(int measureSpec) {
            return (measureSpec & MODE_MASK);
        }

        public static int getSize(int measureSpec) {
            return (measureSpec & ~MODE_MASK);
        }

        static int adjust(int measureSpec, int delta) {
            final int mode = getMode(measureSpec);
            if (mode == UNSPECIFIED) {
                // No need to adjust size for UNSPECIFIED mode.
                return makeMeasureSpec(0, UNSPECIFIED);
            }
            int size = getSize(measureSpec) + delta;
            if (size < 0) {
                Log.e(VIEW_LOG_TAG,
                 "MeasureSpec.adjust: new size would be negative! (" + size +") spec: "
                 + toString(measureSpec) + " delta: " + delta);
                size = 0;
            }
            return makeMeasureSpec(size, mode);
        }

        public static String toString(int measureSpec) {
            int mode = getMode(measureSpec);
            int size = getSize(measureSpec);

            StringBuilder sb = new StringBuilder("MeasureSpec: ");

            if (mode == UNSPECIFIED)
                sb.append("UNSPECIFIED ");
            else if (mode == EXACTLY)
                sb.append("EXACTLY ");
            else if (mode == AT_MOST)
                sb.append("AT_MOST ");
            else
                sb.append(mode).append(" ");

            sb.append(size);
            return sb.toString();
        }
    }

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
	Log.e("ghui", "CustomLinearLayout." + "widthMeasureSpec:"
	+ MeasureSpec.toString(widthMeasureSpec)
	+ ", heightMeasureSpec: " + MeasureSpec.toString(heightMeasureSpec));
	super.onMeasure(widthMeasureSpec, heightMeasureSpec);
}

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
	Log.e("ghui", "CustomView." + "widthMeasureSpec:"
	+ MeasureSpec.toString(widthMeasureSpec)
	+ ", heightMeasureSpec: " + MeasureSpec.toString(heightMeasureSpec));
	super.onMeasure(widthMeasureSpec, heightMeasureSpec);
	}

protected void measureChildWithMargins(View child,
    int parentWidthMeasureSpec, int widthUsed,
    int parentHeightMeasureSpec, int heightUsed) {

    final MarginLayoutParams lp = (MarginLayoutParams) child.getLayoutParams();
    final int childWidthMeasureSpec = getChildMeasureSpec(parentWidthMeasureSpec,
            mPaddingLeft + mPaddingRight + lp.leftMargin + lp.rightMargin
                    + widthUsed, lp.width);
    final int childHeightMeasureSpec = getChildMeasureSpec(parentHeightMeasureSpec,
            mPaddingTop + mPaddingBottom + lp.topMargin + lp.bottomMargin
                    + heightUsed, lp.height);
    child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
}

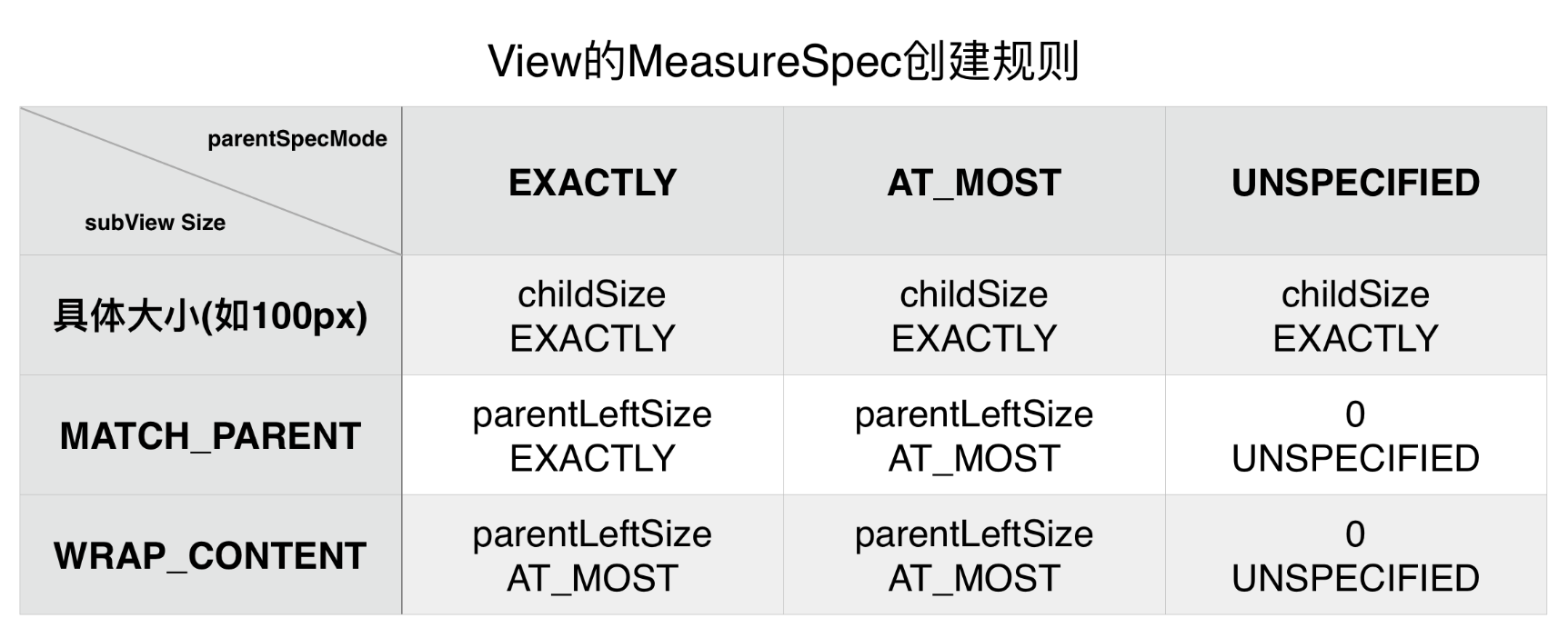

public static int getChildMeasureSpec(int spec, int padding, int childDimension) {
    int specMode = MeasureSpec.getMode(spec);
    int specSize = MeasureSpec.getSize(spec);

    int size = Math.max(0, specSize - padding);

    int resultSize = 0;
    int resultMode = 0;

    switch (specMode) {
    // Parent has imposed an exact size on us
    case MeasureSpec.EXACTLY:
        if (childDimension >= 0) {
            resultSize = childDimension;
            resultMode = MeasureSpec.EXACTLY;
        } else if (childDimension == LayoutParams.MATCH_PARENT) {
            // Child wants to be our size. So be it.
            resultSize = size;
            resultMode = MeasureSpec.EXACTLY;
        } else if (childDimension == LayoutParams.WRAP_CONTENT) {
            // Child wants to determine its own size. It can't be
            // bigger than us.
            resultSize = size;
            resultMode = MeasureSpec.AT_MOST;
        }
        break;

    // Parent has imposed a maximum size on us
    case MeasureSpec.AT_MOST:
        if (childDimension >= 0) {
            // Child wants a specific size... so be it
            resultSize = childDimension;
            resultMode = MeasureSpec.EXACTLY;
        } else if (childDimension == LayoutParams.MATCH_PARENT) {
            // Child wants to be our size, but our size is not fixed.
            // Constrain child to not be bigger than us.
            resultSize = size;
            resultMode = MeasureSpec.AT_MOST;
        } else if (childDimension == LayoutParams.WRAP_CONTENT) {
            // Child wants to determine its own size. It can't be
            // bigger than us.
            resultSize = size;
            resultMode = MeasureSpec.AT_MOST;
        }
        break;

    // Parent asked to see how big we want to be
    case MeasureSpec.UNSPECIFIED:
        if (childDimension >= 0) {
            // Child wants a specific size... let him have it
            resultSize = childDimension;
            resultMode = MeasureSpec.EXACTLY;
        } else if (childDimension == LayoutParams.MATCH_PARENT) {
            // Child wants to be our size... find out how big it should
            // be
            resultSize = 0;
            resultMode = MeasureSpec.UNSPECIFIED;
        } else if (childDimension == LayoutParams.WRAP_CONTENT) {
            // Child wants to determine its own size.... find out how
            // big it should be
            resultSize = 0;
            resultMode = MeasureSpec.UNSPECIFIED;
        }
        break;
    }
    return MeasureSpec.makeMeasureSpec(resultSize, resultMode);
}
