HTML5 下的 Form Validation

Introduction

Validating forms has notoriously been a painful development experience. Implementing client side validation in a user friendly, developer friendly, and accessible way is hard. Before HTML5 there was no means of implementing validation natively; therefore, developers have resorted to a variety of JavaScript based solutions.

To help ease the burden on developers, HTML5 introduced a concept known as constraint validation - a native means of implementing client side validation on web forms.

Yet, despite being available in the latest version of all major browsers, constraint validation is a topic largely relegated to presentations and demos. My goal in writing this is to shed some light on the new APIs to help developers make better web forms for everyone.

In this tutorial I will:

• Present a comprehensive overview of what constraint validation is.
• Dig into the current limitations of the spec and browser implementations.
• Discuss how you can use HTML5 constraint validation in your forms now.

What is Constraint Validation?

The core of constraint validation is an algorithm browsers run when a form is submitted to determine its validity. To make this determination, the algorithm utilizes new HTML5 attributes min, max, step, pattern, and required as well as existing attributes maxlength and type.

As an example take this form with an empty required text input:

If you attempt to submit this form as is, supporting browsers will prevent the submission and display the following:

• Chrome 21 查看图片
• Firefox 15
• Internet Explorer 10
• Opera 12 查看图片
• Opera Mobile 查看图片
• Chrome for Android 查看图片

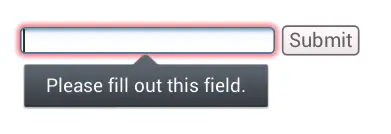

• Firefox for Android

Per the spec how errors are presented to the user is left up to the browser itself. However, the spec does provide a full DOM API, new HTML attributes, and CSS hooks authors can use to customize the experience.

DOM API

The constraint validation API adds the following properties / methods to DOM nodes.

The willValidate property indicates whether the node is a candidate for constraint validation. For submittable elements this will be set to true unless for some reason the node is barred from constraint validation, such as possessing the disabled attribute.

validity

The validity property of a DOM node returns a ValidityState object containing a number of boolean properties related to the validity of the data in the node.

• customError: true if a custom validity message has been set per a call to setCustomValidity().

• patternMismatch: true if the node's value does not match its pattern attribute.

• rangeOverflow: true if the node's value is greater than its max attribute.

• rangeUnderflow: true if the node's value is less than its min attribute.

• stepMismatch: true if the node's value is invalid per its step attribute.

• tooLong: true if the node's value exceeds its maxlength attribute. All browsers prevent this from realistically occurring by preventing users from inputting values that exceed the maxlength. Although rare it is possible to have this property be true in some browsers; I've written about how that's possible here.
• typeMismatch: true if an input node's value is invalid per its type attribute.

• valueMissing: true if the node has a required attribute but has no value.

• valid: true if all of the validity conditions listed above are false.

validationMessage

The validationMessage property of a DOM node contains the message the browser displays to the user when a node's validity is checked and fails.

The browser provides a default localized message for this property. If the DOM node is not a candidate for constraint validation or if the node contains valid data validationMessage will be set to an empty string.

Note: As of this writing Opera does not fill in this property by default. It will show the user a correct error message, it just doesn't fill in the property.

checkValidity()

The checkValidity method on a form element node (e.g. input, select, textarea) returns true if the element contains valid data.

On form nodes it returns true if all of the form's children contain valid data.

Additionally, every time a form element's validity is checked via checkValidity and fails, an invalid event is fired for that node. Using the example code above if you wanted to run something whenever the node with id input-1 was checked and contained invalid data you could use the following:

document.getElementById('input-1').addEventListener('invalid', function() {
    //...
}, false);

There is no valid event, however, you can use the change event for notifications of when a field's validity changes.

document.getElementById('input-1').addEventListener('change', function(event) {
    if (event.target.validity.valid) {
        //Field contains valid data.
    } else {
        //Field contains invalid data.
    }
}, false);

setCustomValidity()

The setCustomValidity method changes the validationMessage property as well as allows you to add custom validation rules.

Because it is setting the validationMessage passing in an empty string marks the field as valid and passing any other string marks the field as invalid. Unfortunately there is no way of setting the validationMessage without also changing the validity of a field.

For example, if you had two password fields you wanted to enforce be equal you could use the following:

if (document.getElementById('password1').value != document.getElementById('password2').value) {
    document.getElementById('password1').setCustomValidity('Passwords must match.');
} else {
    document.getElementById('password1').setCustomValidity('');
}

HTML Attributes

We've already seen that the maxlength, min, max, step, pattern, and type attributes are used by the browser to constrain data. For constraint validation there are two additional relevant attributes - novalidate and formnovalidate.

novalidate

The boolean novalidate attribute can be applied to form nodes. When present this attribute indicates that the form's data should not be validated when it is submitted.

Because the above form has the novalidate attribute it will submit even though it contains an empty required input.

formnovalidate

The boolean formnovalidate attribute can be applied to button and input nodes to prevent form validation. For example:

When the "Validate" button is clicked form submission will be prevented because of the empty input. However, when the "Do NOT Validate" button is clicked the form will submit despite the invalid data because of the formnovalidate attribute.

CSS Hooks

Writing effective form validation is not just about the errors themselves; it's equally important to show the errors to the user in a usable way, and supporting browsers give you CSS hooks to do just that.

:invalid and :valid

In supporting browsers the :valid pseudo-classes will match form elements that meet their specified constraints and the :invalid pseudo-classes will match those that do not.

Resetting Default Styling

By default Firefox places a red box-shadow and IE10 places a red outline on :invalid fields.

• Firefox 15
• Internet Explorer 10

WebKit based browsers and Opera do nothing by default. If you would like a consistent starting point you can use the following to suppress the defaults.

:invalid {
    box-shadow: none; /* FF */
    outline: 0;       /* IE 10 */
}

I have a pending pull request to discuss whether this normalization belongs in normalize.css.

Inline Bubbles

A larger display discrepancy is the look of the inline validation bubbles the browser displays on invalid fields. However, WebKit is the only rendering engine that gives you any means of customizing the bubble. In WebKit you can experiment with the following 4 pseduoclasses in order to get a more custom look.

::-webkit-validation-bubble {}
::-webkit-validation-bubble-message {}
::-webkit-validation-bubble-arrow {}
::-webkit-validation-bubble-arrow-clipper {}

Removing the Default Bubble

Because you can only customize the look of the bubbles in WebKit, if you want a custom look across all supporting browsers your only option is to suppress the default bubble and implement your own. The following will disable the default inline validation bubbles from all forms on a page.

var forms = document.getElementsByTagName('form');
for (var i = 0; i

If you do suppress the default bubbles make sure that you do something to show errors to users after invalid form submissions.  Currently the bubbles are the only means by which browsers indicate something went wrong.

Current Implementation Issues and Limitations

While these new APIs bring a lot of power to client side form validation, there are some limitations to what you are able to do.

setCustomValidity

For simply setting the validationMessage of a field setCustomValidity works, but as forms get more complex a number of limitations of the setCustomValidity method become apparent.


Problem #1: Handling multiple errors on one field

Calling setCustomValidity on a node simply overrides its validationMessage.  Therefore, if you call setCustomValidity on the same node twice the second call will simply overwrite the first.  There is no mechanism to handle for an array of error messages or a way of displaying multiple error messages to the user.

One way of handling this is to append additional messages to the node's validationMessage as such.


var foo = document.getElementById('foo');
foo.setCustomValidity(foo.validationMessage + ' An error occurred');



You cannot pass in HTML or formatting characters so unfortunately concatenating
      strings can leave you with something like this:
    查看图片

Problem #2: Knowing when to check the validity of a field

To illustrate this issue consider the example of a form with two password
      input fields that must match:



        Change Your Password




                Password 1:




                Password 2:









My suggestion earlier was to use the change event to implement
      the validation, which looks something like this:

var password1 = document.getElementById('password1');
var password2 = document.getElementById('password2');

var checkPasswordValidity = function() {
    if (password1.value != password2.value) {
        password1.setCustomValidity('Passwords must match.');
    } else {
        password1.setCustomValidity('');
    }
};

password1.addEventListener('change', checkPasswordValidity, false);
password2.addEventListener('change', checkPasswordValidity, false);


Try It


Now, whenever the value of either password field is changed by the user
      the validity will be reevaluated. However, consider a script that automatically
      fills in the passwords, or even a script that changes a constraint attribute
      such as pattern, required, min, max,
      or step. This could absolutely affect the validity of the password
      fields, yet, there is no event to know that this has happened.

Bottom Line: We need a means of running code whenever a field's validity might have changed.

Problem #3: Knowing when a user attempts to submit a form

Why not use the form's submit event for the problem described
      above? The submit event is not fired until after the browser
      has determined a form contains valid data given all of its specified constraints.
      Therefore, there is no way of knowing when a user attempts to submit a
      form and it is prevented by the browser.

It can be very useful to know when a submission attempt occurs. You may
      want to show the user a list of error messages, change focus, or display
      help text of some sort. Unfortunately, you'll need a workaround to make
      this happen.

One way to accomplish this is by adding the novalidate attribute
      to the form and use its submit event. Because of the novalidate attribute
      the form submission will not be prevented regardless of the validity of
      the data. Therefore, the client script will have to explicitly check whether
      the form contains valid data in a submit event and prevent submission
      accordingly. Here's an extension of the password match example that enforces
      that the validation logic will run before the form is submitted.



        Change Your Password




                Password 1:




                Password 2:









Try It


The major disadvantage of this approach is that adding the novalidate attribute
      to a form prevents the browser from displaying the inline validation bubble
      to the user. Therefore, if you use this technique you must implement your
      own means of presenting error messages to the user. Here is a simple example showing
      one way of accomplishing this.

Bottom Line: We need a forminvalid event that would be fired
      whenever a form submission was prevented due to invalid data.

Safari


Even though Safari supports the constraint validation API, as of this
      writing (version 6), Safari will not prevent submission of a form with
      constraint validation issues. To the user Safari will behave no differently
      than a browser that doesn't support constraint validation at all.

The easiest way around this is to use the same approach as the workaround
      described above, give all forms the novalidate attribute and
      manually prevent form submissions using preventDefault. The
      following code adds this behavior to all forms.

var forms = document.getElementsByTagName('form');
for (var i = 0; i

Try It

Note: There are several documented bugs where the checkValidity method returns false positives (see here and here for examples).  False positives are especially dangerous with the above workaround because the user will be stuck on a form with valid data, so use caution.

Declarative Error Messages

While you have the ability to change a field's error message by setting its validationMessage through setCustomValidity, it can be a nuisance to continuously setup the JavaScript boilerplate to make this happen, especially on large forms.

To help make this process easier, Firefox introduced a custom x-moz-errormessage attribute that can be used to automatically set a field's validationMessage.








Try It


When the above form is submitted in Firefox the user will see the custom
      message instead of the browser's default.
    查看图片

This feature was proposed to the W3C but
      was rejected. Therefore, at the moment Firefox is the only browser where
      you can declaratively specify error messages.

Title Attribute


While it doesn't change the validationMessage, in the case
      of a patternMismatch browsers do display the contents of the title attribute
      in the inline bubble if it's provided. (Note: Chrome will actually display the title attribute when provided for any type of error, not just patternMismatches.)

For example if you try to submit the following form:


    Price: $





Try It


Here's a sampling of what browsers will display:



    :invalid {
        border: 1px solid red;
    }
    :valid {
        border: 1px solid green;
    }





    .interacted:invalid {
        border: 1px solid red;
    }
    .interacted:valid {
        border: 1px solid green;
    }


















• Safari 6
• Internet Explorer 8 查看图片

In addition to polyfilling, Webshims also provides solutions for many of the limitations of constraint validation discussed earlier.

• Declaratively specify error messages through a data-errormessage attribute.
• Provides classes form-ui-valid and form-ui-invalid which work similarly to :-moz-ui-valid and :-moz-ui-invalid.
• Provides custom events firstinvalid, lastinvalid, changedvalid, and changedinvalid.
• Includes workarounds for WebKit false positives on form submission.

For more information on what Webshims provides refer to its HTML5 forms docs.

H5F

H5F is a lightweight, dependency free polyfill that implements the full constraint validation API as well as a number of the new attributes.

To see how to use H5F let's add it to our basic example of a form with a single required text input.

H5F will prevent the submission of the form in all browsers, but the user will only see an inline validation bubble in browsers that support it natively. Since H5F polyfills the full constraint validation API you can use it to implement your own UI to do whatever you'd like.

If you're looking for some examples of how to leverage the API, H5F's demo page has an implementation that shows the messages in a bubble on the right hand side of the inputs. I also have an example that shows how you can show all error messages in a list at the top of forms.

In addition to polyfilling the constraint validation API, H5F also provides classes to mimic :-moz-ui-valid and :-moz-ui-invalid. By default these classes are valid and error although they can be customized by passing in a second parameter to H5F.setup.

H5F.setup(document.getElementById('foo'), {
    validClass: 'valid',
    invalidClass: 'invalid'
});

For more information on H5F check it out on Github.

Conclusion

HTML5's constraint validation APIs make adding client side validation to forms quick while providing a JavaScript API and CSS hooks for customization.

While there are still some issues with the implementations and old browsers to deal with, with a good polyfill or server-side fallback you can utilize these APIs in your forms today.
