Scalable Vector Graphics (SVG) is a language for describing two-dimensional graphics in XML. These graphics can consist of paths, images, and/or text that are able to be scaled and resized without losing image quality.
Inline SVG refers to the embedded code written within HTML to generate these graphics in a browser, which will be the focus of this book.
There are many advantages to using SVG this way, including having access to all the graphic's individual parts for interactivity purposes, generating searchable text, DOM access for direct edits, and promoting user accessibility.
Starting with basic organization and simple shapes, we'll then continue on to describe the SVG coordinate system or "canvas", painting a graphic's interior and/or border, transforms, and using and manipulating graphical text. We'll wrap up by touching on more advanced features such as gradients and patterns.
This guide is meant to provide a quick but thorough introduction to building SVG inline, and while it in no way covers all the available features, it should prove helpful in getting you started. It's intended for designers and developers looking to add SVG to their workflow in the most accessible way possible.
From small stroke details to getting started with hand crafted patterns, this guide is intended to be an all around “go-to” reference for writing SVG.
Before You Begin
While this "Pocket Guide" is intended for those that already know a thing or two about HTML and CSS, there are a few additional things that will be helpful to know before diving into SVG code in your favorite browser, such as: the information needed within the SVG fragment for proper rendering, how to make your graphics as accessible as possible, and knowing how and when to use vector graphic software.
Using SVG
There are a number of ways to include SVG in
your projects: inline, an <object>,
or as Data URI's. We will be specifically addressing the use of SVG inline
which involves writing SVG code within the body of a properly structured
HTML document.
So while we will only be addressing inline SVG here, there may be instances
where another method may be more appropriate. For example, if you do not
need editing abilities of the graphic itself or access to its individual
parts, using it as an
Vector Graphic Software
Vector graphic software options can be useful when looking to create more complex graphics that wouldn't be reasonable to write "by hand". Software such as Adobe Illustrator, Inkscape, Sketch, iDraw, or WebCode can be useful tools to add to your SVG bag of tricks.
The advantage to these types of tools is that you can export their SVG code and embed it right into your HTML. We'll touch on that a bit later.
Inline SVG on the Web
For the sake of brevity throughout this book the SVG DOCTYPE, version
number, xmlns,
and xml:space have
been excluded from all code samples.
These attributes specify the version of SVG being used and the namespace of the document. The main thing to remember at this point is that you will generally not need to include these attributes to successfully render your graphic in the browser.
Let's take a look at these attributes now, in an example of SVG code generated by Illustrator, to ensure this doesn’t take you by surprise when getting started:
In most instances the DOCTYPE and attributes here within the element
are not necessary and can be eliminated, substantially "cleaning up" your
code.
SVG User Accessibility
Utilizing SVG accessibility features is a great habit to form, but again for the sake of brevity, descriptions and titles will not be included within the code throughout the book.
Once you become more experienced writing SVG including these elements
is going to make your graphics more accessible to users. For instance,
content within the element allows you to provide a detailed
description of a graphic to users with screen readers.
SVG text also provides a huge advantage over traditional raster-based images in terms of accessibility because SVG text is detected and read, and can easily be resized to accommodate specific reading preferences.
General Notes
A couple more general notes before diving in: the fonts used for the demos
throughout the book are available through Google Fonts.
While you will see this spelled out through font-family here,
what you will not see, and will have to include in your document, is the
correlating link or @import obtained from Google
Fonts.
The examples throughout strictly use pixels and percentages as unit identifiers. Supported length units for SVG are: em, ex, px, pt, pc, cm, mm, in, and percentages.
The SVG code in this book can be added to any text editor and then viewed in any browser that supports inline SVG. While browser support is very strong for SVG in general, this support can become much less consistent with more advanced features like gradients, for example. Can I Use is a great place to check on support for these types of features, but ultimately nothing will beat what you learn through trial and error.
All that being said, you can also copy the code as is, place it into the HTML section of a pen over at CodePen, and instantly see your graphic on the screen. I cannot say enough great things about this tool as it was essentially what got me interested in SVG in the first place. It’s my favorite way to learn: playing, tinkering, and sometimes even failing miserably.
Finally, some examples will have portions of a graphic's code commented out to minimize the size of the block of code when that particular portion is not related to the topic at hand.
SVG details reside within a element. This element contains
several attributes which permit the customization of your graphic's "canvas".
While these attributes are not completely necessary to render an image,
omitting them may leave more complex graphics vulnerable when performing
across browsers and make them susceptible to not rendering as intended.
As mentioned, inline graphics can be written "by hand", or embedded by accessing the XML code generated by vector graphic software. Either way, proper organization and structure is crucial to writing efficient SVG code, primarily because the order of these graphical elements determines their stacking order.
Organization & Semantics
An SVG document fragment is made up of any number of SVG elements contained
within the element. Organization within this document
is crucial. Content within the document can expand rapidly, and proper
organization promotes accessibility and efficiency throughout, benefitting
both the author and users.
This section will introduce the key to writing SVG - the element
- and review some common attributes that aid in the initial document setup.
svg Element
The element is classified as both a container and a structural
element, and can be used to nest a standalone SVG fragment inside the document.
This fragment establishes its own coordinate system.
The attributes used within this element, such as width, height, preserveAspectRatio and viewBox define
the canvas for the graphic being written.
When obtaining SVG code from certain vector software there is a lot of additional info within
the element, such as the SVG version number (indicates
the SVG language version being used) and DOCTYPE. As I’ve mentioned, that
information will not be included in examples throughout this guide, and
their exclusion will not prevent your graphics from rendering on the screen.
g Element
The g element is a container element for grouping related graphics
together. Utilizing this element in conjunction with description and title
elements provides information about your graphic, and aids in organization
and accessibility by grouping related graphical components together.
Also, by grouping related elements together you can manipulate the group as a whole versus the individual parts. This is especially handy when animating these elements, for example, as the animation can be applied to the group.
Any element that is not contained within a g is assumed to
be its own group.
use Element
The element allows you to reuse elements throughout a
document. There are additional attributes that can be included within this
element, such as x, y, width, and height,
which define the mapping location details of the graphic within the coordinate
system.
Using the xlink:href attribute here enables you to call on
the element to be reused. For example, if there was a with
an id of “apple” containing the image of an apple that needed
to be reused this image can be referenced by : .
This element can be a significant time saver and help minimize required code.
defs Element
While permits the reuse of a graphic already rendered,
graphics within a element are not rendered onto the canvas,
but are able to be referenced and then rendered through the use of xlink:href.
Graphics are defined within and can then be used throughout
the document by referencing the id of that graphic.

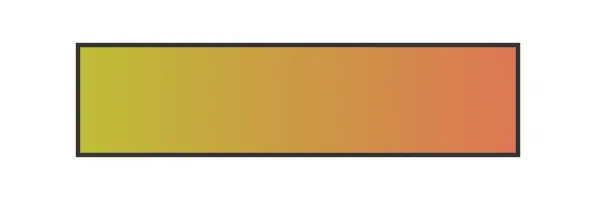

For example, the following code draws a very simple gradient within a rectangle:
The contents of the has no visual output until called
on by referencing its unique id, which in this instance is
being done through the fill attribute of the rectangle.
symbol Element
The element is similar to as it provides
a way to group elements, however, elements within have
no visual output (like ) until called on with the element.
Also unlike the element, establishes
its own coordinate system separate from the viewport it's rendered in.
SVG viewport and viewBox, which establish the coordinate system
for the graphics being mapped, will be addressed further in a different
section.
Stacking Order
The stacking order of SVG cannot be manipulated by z-index in
CSS as other elements within HTML can. The order in which SVG elements
are stacked depends entirely on their placement within the document fragment.

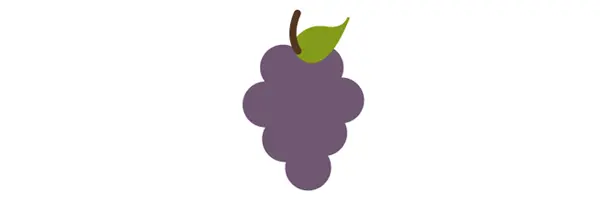

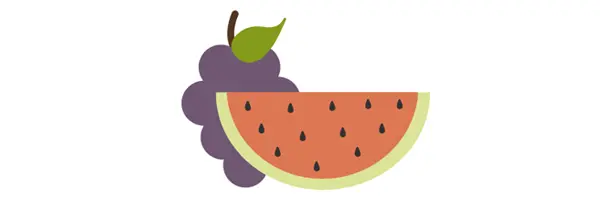

The grapes and watermelon below are within the same element.
The watermelon appears in front of the grapes because the group containing
the paths that make up the watermelon is listed after the grapes in the
document.
If the group containing the grapes was moved to the end of the document it would then appear in front of the watermelon.
This method of determining stacking order also applies to the individual elements within the group. For example, moving the path of the stem in the grapes image to the end of the group will result in the stem being on top.
Basic SVG shapes can be written by hand in HTML but you may eventually experience the need to use a much more complex graphic inline. These more complex graphics can be created with vector software, but for now let’s look at the basics that can easily be hand coded.
Basic Shapes
SVG contains the following set of basic shape elements: rectangles, circles, ellipses, straight lines, polylines, and polygons. Each element requires a set of attributes before it renders, like coordinates and size details.
Rectangle
The element defines a rectangle.
View demo here.
The width and height attributes establish the size
of the rectangle, while fill sets the interior color for the
shape. The numerical values default to pixels and fill would
default to black when left unspecified.
Other attributes that can be included are x and y coordinates.
These values will move the shape along the appropriate axis according to
the dimensions set by the element.
It is also possible to create rounded corners by specifying values within rx and ry attributes.
For example, rx="5" ry="10" will produce horizontal sides of
corners that have a 5px radius, and vertical sides of corners that have
a 10px radius.
Circle
The element is mapped based on a center point and
an outer radius.
View demo here.
The cx and cy coordinates establish the location
of the center of the circle in relation to the workplace dimensions set
by the .
The r attribute sets the size of the outer radius.
Ellipse
An element defines an ellipse that is mapped based
on a center point and two radii.
View demo here.
While the cx and cy values are establishing the
center point based on pixel distance into the SVG coordinate space, the rx and ry values
are defining the radius of the sides of the shape.
Line
The element defines a straight line with a start and end point.
View demo here.
Together the x1 and y1 values establish the coordinates
for the start of the line, while the y1 and y2 values
establish the end of the line.

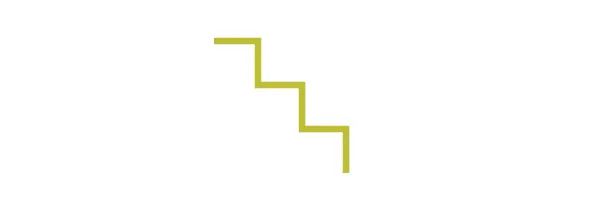

Polyline
The element defines a set of connected straight
line segments, generally resulting in an open shape (start and end points
that do not connect).
View demo here.
The values within points establish the shape's location on
the x and y axis throughout the shape and are grouped
as x,y throughout the list of values.
An odd number of points here is an error.
Polygon

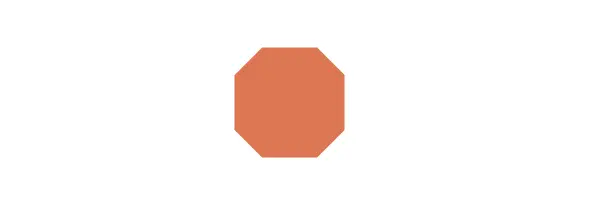

A element defines a closed shape consisting of connected
lines.
View demo here.
The points of the polygon shape are defined through a series of eight
grouped x,y values.
This element can also produce other closed shapes depending on the number of defined points.
The path Element

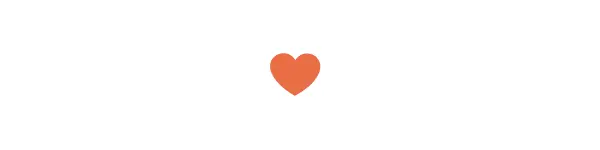

SVG paths represent the outline of a shape. This shape can be filled, stroked, used to navigate text, and/or used as a clipping path.
Depending on the shape this path can get very complex, especially when there are many curves involved. Gaining a basic understanding of how they work and the syntax involved, however, will help make these particular paths much more manageable.
path data
The path data is contained in a d attribute within a element,
defining the outline for a shape: .
This data included within the d attribute spell out the moveto, line, curve, arc and closepath instructions
for the path.

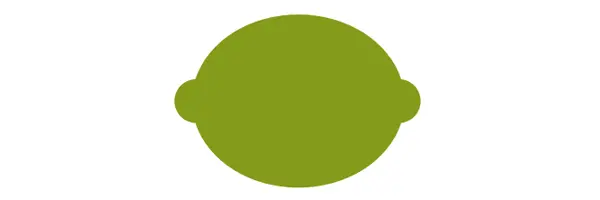

The details below define the path specifics for a graphic
of a lime:
moveto
The moveto commands (M or m) establish a new point, as lifting a pen and starting to draw in a new location on paper would. The line of code comprising the path data must begin with a moveto command, as shown in the above example of the lime.
moveto commands that follow the initial one represent the start of a new subpath, creating a compound path. An uppercase M here indicates absolute coordinates will follow, while a lowercase m indicates relative coordinates.
closepath
The closepath (Z or z) ends the current subpath and results in a straight line being drawn from that point to the initial point of the path.
If the closepath is followed immediately by a moveto, these moveto coordinates represent the start of the next subpath. If this same closepath is followed by anything other than moveto, the next subpath begins at the same point as the current subpath.
Both an uppercase or lowercase z here have identical outcomes.
lineto
The lineto commands draw straight lines from the current point to a new point.
L, l
The L and l commands draw a line from the current point to the next provided point coordinates. This new point then becomes the current point, and so on.
An uppercase L signals that absolute positioning will follow, while a lowercase l is relative.
H, h
The H and h commands draw a horizontal line from the current point.
An uppercase H signals that absolute positioning will follow, while a lowercase h is relative.
V, v
The V and v commands draw a vertical line from the current point.
An uppercase V signals that absolute positioning will follow, while a lowercase v is relative.
Curve Commands
There are three groups of commands that draw curved paths: Cubic Bézier (C, c, S, s), Quadratic Bézier (Q, q, T, t), and Elliptical arc (A, a).
The following curve sections will introduce the basic concept behind each curve command, review the mapping details, and then provide a diagram for further understanding.

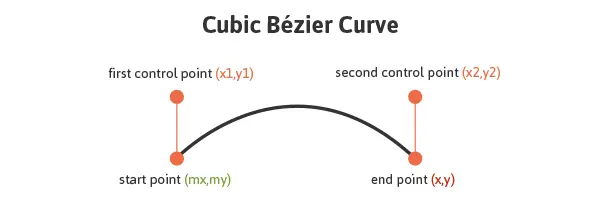

Cubic Bézier
The C and c Cubic Bézier commands draw a curve from the current point using (x1,y1) parameters as a control point at the beginning of the curve and (x2,y2) as the control point at the end, defining the shape details of the curve.
The S and s commands also draw a Cubic Bézier curve, but in this instance there is an assumption that the first control point is a reflection of the second control point.
The following code draws a basic Cubic Bézier curve:
View demo here.
Manipulating the first and last sets of values for this curve will impact its start and end location, while manipulating the two center values will impact the shape and positioning of the curve itself at the beginning and end.
The S and s commands also draw a Cubic Bézier curve, but in this instance there is an assumption that the first control point is a reflection of the last control point for the previous C command. This reflection is relative to the start point of the S command.
An uppercase C signals that absolute positioning will follow, while a lowercase c is relative. This same logic applies to S and s.
Quadratic Bézier

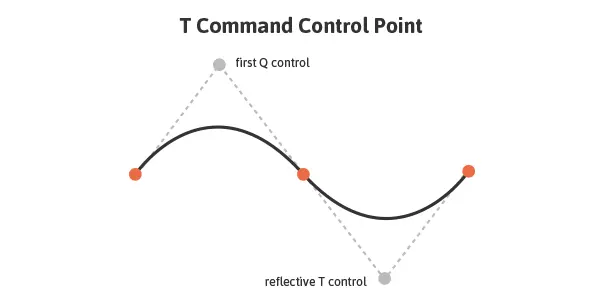

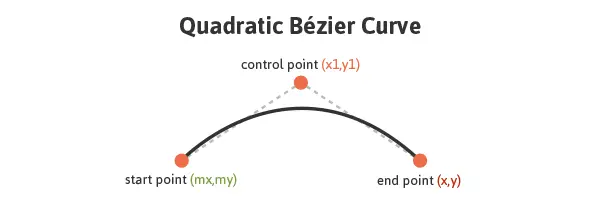

Quadratic Bézier curves (Q, q, T, t) are similar to Cubic Bézier curves except that they only have one control point.
The following code draws a basic Quadratic Bézier curve:
View demo here.
Manipulating the first and last sets of values, M20,50 and 100,50,
impacts the positioning of the beginning and end points of the curve. The
center set of values, Q40,5, define the control point for the
curve, establishing its shape.
Q and q draw the curve from the initial point to the end point using (x1,y1) as the control. T and t draw the curve from the initial point to the end point by assuming that the control point is a reflection of the control on the previously listed command relative to the start point of the new T or t command.
An uppercase Q signals that absolute positioning will follow, while a lowercase q is relative. This same logic applies to T and t.
Elliptical Arc
An Elliptical Arc (A, a) defines a segment of an ellipse. These segments are created through the A or a commands which create the arc by specifying the start point, end point, x and y radii, rotation, and direction.
Here is a look at the code for a basic Elliptical Arc:
The first and last sets of values within this path, M65,10 and 50,25 represent
initial and final coordinates, while the second set of values define the
two radii. The values of 1,0 (large-arc-flag and sweep-flag)
determine how the arc is drawn, as there are four different options here.

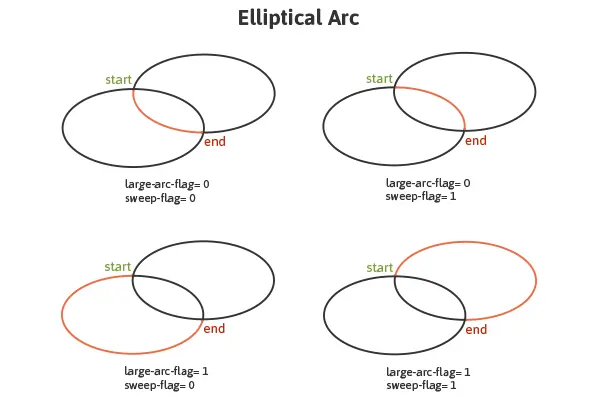

The following diagram shows the four arc options and the impact that large-arc-flag and sweep-flag values have on the final rendering of the arc segment.
View demo here.
Embeds From Vector Software
Vector graphics software allows for the generation of more complex shapes and paths while producing SVG code that can be taken, used, and manipulated elsewhere.
Once the graphic is complete, the generated XML code, which can be quite lengthy depending on the complexity, can be copied and embedded into HTML. Breaking down each section of the SVG and having the right organizational elements in place can greatly help in navigating and understanding these seemingly complex and wordy documents.
Here is the SVG code for an image of some cherries with added classes for enhanced navigation:
The attributes within the svg element define the workspace,
or “canvas” for the graphic. The leaf and the stems are within one (group),
while the cherries are in another. The string of numerical values define
the path the graphic will take and the fill and stroke attributes
set the color for the backgrounds and borders.
Once this code is copied it can be run through an SVG optimizer before being placed in HTML, which will help eliminate unnecessary code and spacing and in turn greatly reduce the file size. Peter Collingridge's SVG Optimiser or SVGOare tools that are very helpful in this regard.
Perhaps the most important aspect of SVG, after understanding its general structure and how to create basic shapes, is getting a grasp of the workspace in use, or in other words, the coordinate system to which the graphics will be mapped.
Understanding the workspace of SVG is helpful in properly rendering your
artwork, but becomes crucial once you get into more advanced SVG features.
For example, the mapping of gradients and patterns relies heavily on the
established coordinate system. This workspace is defined by the dimensions
of the viewport and viewBox attributes.

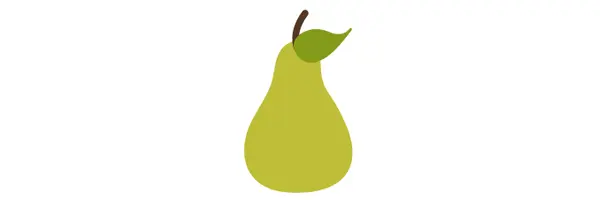

This pear, happily, has a matching viewport and viewBox:
View demo here.
The entire pear is visible in the browser and will scale accordingly when the viewport dimensions are changed.
viewport
The viewport is the visible section of an SVG. While SVG can be as wide or as high as you wish, limiting the viewport will mean that only a certain section of the image can be visible at a time.
The viewport is set through height and width attributes
within the .
If these values are not defined, the dimensions of the viewport will generally be determined by other indicators within the SVG, like the width of the outermost SVG element. However, leaving this undefined leaves our artwork susceptible to being cut off.
viewBox
The viewBox allows for the specification that a given set of
graphics stretch to fit a particular container element. These values include
four numbers separated by commas or spaces: min-x, min-y, width,
and height that should generally be set to the bounds of the
viewport.
The min values represent at what point within the image the
viewBox should start, while the width and height establish
the size of the box.
If we choose not to define a viewBox the image will not scale
to match the bounds set by the viewport.
If 50px were taken off the width and height of the
pear image viewBox, the portion of the pear that is visible
is reduced, but then what is left visible will scale to fit to the bounds
of the viewport.
View demo here.
The min values within the viewBox define the origin
of the viewBox within the parent element. In other words, the
point within the viewBox at which you want it to begin matching
up the viewport. In the above pear image, the min values are
set to 0,0 (top left). Let's change these to 50, 30: viewBox="50 30 115 190".
View demo here.

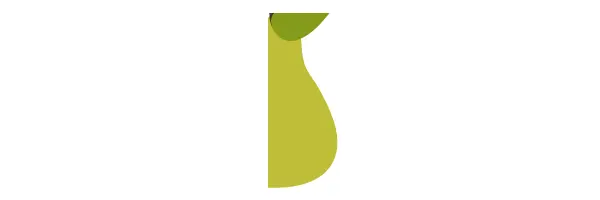

The viewBox now starts 50px in from the x axis and
30px in from the y axis. In altering these values the section
of the pear that is focused on has changed.
preserveAspectRatio
If the viewport and viewBox do not have the same width to height
ratio, the preserveAspectRatio attribute directs the browser
how to display the image.
preserveAspectRatio takes two parameters, and .
The first parameter takes two parts and directs the viewBox's
alignment within the viewport. The second is optional and indicates how
the aspect ratio is to be preserved.
preserveAspectRatio="xMaxYMax meet"
These values will align the bottom right corner of the viewBox to
the bottom right corner of the viewport. meet preserves the
aspect ratio by scaling the viewBox to fit within the viewport
as much as possible.
There are three options: meet (default), slice,
and none. While meet ensures complete visibility of the graphic
(as much as possible), slice attempts to fill the viewport with
the viewBox and will then slice off any part of the image that
does not fit inside the viewport after this scaling. none results
in no preserved aspect ratio and a potentially distorted image.

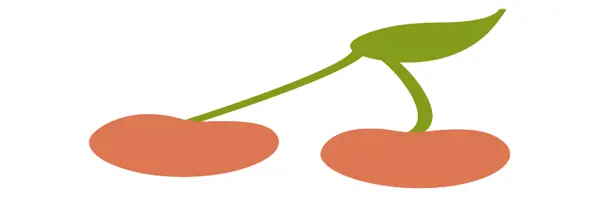

Perhaps the most straightforward value here is "none", which establishes that uniform scaling should not be applied. If we then increase the pixel values of the viewport, the below image of cherries will stretch non-uniformly and look distorted.
View demo here.
The preserveAspectRatio for the image below is set to xMinYMax meet which
is aligning the bottom left corner of the viewBox to the bottom
left corner of the viewport (which is now outlined). meet is
ensuring the image is scaling to fit inside the viewport as much as possible.

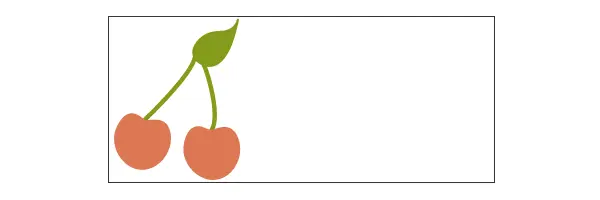

View demo here.

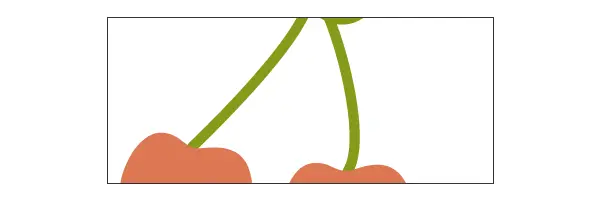

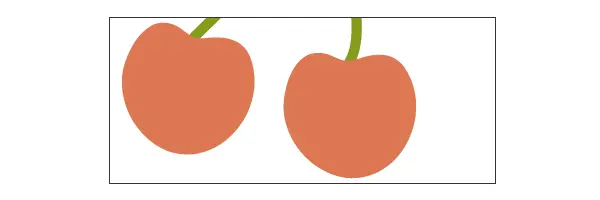

Here are the same cherries when meet is changed to slice:
View demo here.
Note that the alignment values do not have to correlate.
View demo here.
The above example has a preserveAspectRatio of xMinYMid slice;
the cherries are now aligned along the middle of the y axis
of the viewport.
Coordinate System Transforms
SVG enables the additional altering of graphics such as rotation, scaling, moving, and skewing through the use of transforms. The SVG author can apply transforms to individual elements or to an entire group of elements.
These functions are included within the element to be manipulated and
reside within the attribute. Multiple transforms
can be used by including several functions inside this attribute, for example: transform="translate(,) rotate()" />.
Something important to keep in mind when transforming SVG is that it will impact your coordinate system, or workspace. This is because transforms create a new user space by essentially copying the original and then placing the transformation on the new system itself.
The following image demonstrates the coordinate system transform that takes place when placing a translation of (100,100) on the group containing the graphic:
The coordinate system itself has been translated and the image of the lime and lemon has maintained its original positioning within this system. The new user coordinate system has its origin at location (100,100) in the original coordinate system.
Because of this relationship with the coordinate system, many of these
functions will move the graphic even if you are not directly setting a
translation on it. For example, attempting to triple an image’s size by
including a scale value of "3" is multiplying the x and y coordinates
by "3" and the image is scaling along with it, moving it across the screen
in the process.
In the case of nested transforms the effects are cumulative, so the final transform on a child element will be based on the accumulation of the transforms before it.
translate
The translate function specifies the details of moving a shape,
and the two numerical values included here direct movement along both the x and y axis: transform="translate(,)".
These values can be separated by either whitespace or commas.
The y value here is optional and if omitted a value of "0"
is assumed.
rotate
A value within rotate will specify the shape's rotation at
its point of origin (in degrees), which for SVG is 0,0 (top left): transform="rotate()".
There is also an option here to include x and y values: transform=rotate( [,]).
If supplied, these values establish a new center of rotation other than
what is defaulted to (which is 0,0).
Here is an apple before and after having a 20 degree rotation applied: transform="rotate(20)". Note that this image does not reflect the coordinate change this transform makes.
scale
Scaling allows the resizing of SVG elements through the use of the scale function.
This function accepts one or two values which specify horizontal and vertical
scaling amounts along the appropriate axis: transform="scale( [])".
The sy value is optional and if omitted it is assumed to be
equal to sx to ensure consistent resizing.
A scale value of ".5" would render a graphic half the size
it was originally, while a value of "3" would triple this initial size.
A value of "4,2" would scale a graphic four times its original width, and
two times its original height.
skew
SVG elements can be skewed, or made crooked, through the use of the skewX and skewY functions.
The value included within these functions represents a skew transformation
in degrees along the appropriate axis.

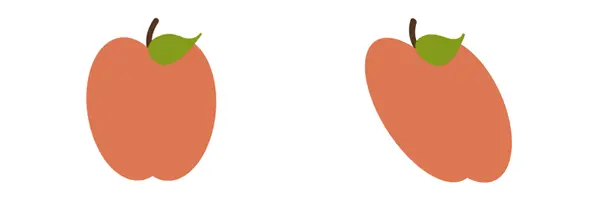

Here is a look at an apple before and after adding a skewX value
of "20": transform="skewX(20)". Note that this image does not reflect the coordinate change this transform makes.
fill and stroke allow us to paint to the interior
and border of SVG.
"Paint"
refers to the action of applying colors, gradients, or patterns to graphics
through fill and/or stroke.
fill Properties
The fill attribute paints the interior of a specific graphical
element. This fill can consist of a solid color, gradient, or pattern.
The interior of a shape is determined by examining all subpaths and specifications
spelled out within the fill-rule.
When filling a shape or path, fill will paint open paths as
if the last point of the path connected with the first, even though a stroke color
on this section of the path would not render.
fill-rule
The fill-rule property indicates the algorithm to be used in
determining which parts of the canvas are included inside the shape. This
is not always straightforward when working with more complex intersecting
or enclosed paths.
The accepted values here are nonzero, evenodd, inherit.
nonzero

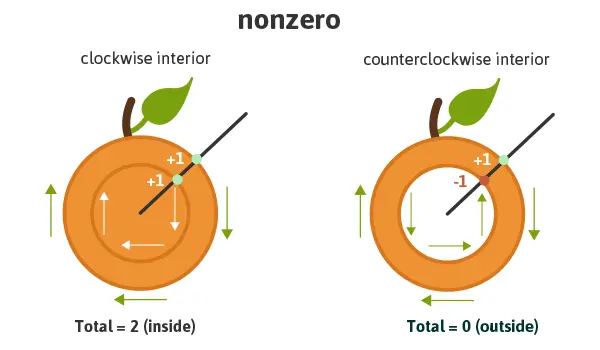

A value of nonzero determines the inside of a point on the
canvas by drawing a line from the area in question through the entire shape
in any direction and then considering the locations where a segment of
the shape crosses this line. This starts with zero and adds one each time
a path segment crosses the line from left to right and subtracts one each
time a path segment crosses the line from right to left.
If the result is zero after evaluating and counting these intersections then the point is outside the path, otherwise it is inside.
Essentially, if the interior path is drawn clockwise it will be considered as "inside", but if drawn counter-clockwise it will be considered "outside" and therefore be excluded from painting.

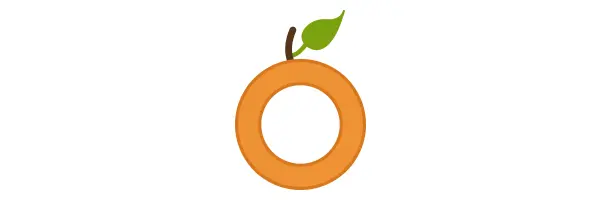

evenodd
A value of evenodd determines the inside of an area on the
canvas by drawing a line from that area through the entire shape in any
direction and counts the path segments that the line crosses. If this results
in an odd number the point is inside, if even the point is outside.
Given the specific algorithm of the evenodd rule, the drawing
direction of the interior shape in question is irrelevant, unlike with nonzero,
as we are simply counting the paths as they cross the line.
While this property is not generally necessary, it will allow for greater fill control
of a complex graphic, as mentioned.
inherit
A value of inherit will direct the element to take on the fill-rule specified
by its parent.
fill-opacity
The fill-opacity value refers to the opacity level of the interior
paint fill. A value of "0" results in complete transparency, "1" applies
no transparency, and values in between represent a percentage-based level
of opacity.
Stroke Attributes
There are a number of stroke-related attributes within SVG that allow for the control and manipulation of stroke details. The abilities of these attributes provide for greater control of hand-coded SVG, but also prove convenient when needing to make edits to an existing embedded graphic.
The following examples use an inline SVG of grapes. The attributes being used reside directly within the correlating shape’s element.
stroke
The stroke attribute defines the “border” paint of particular
shapes and paths.
The following grapes image has a purple stroke: stroke="#765373".

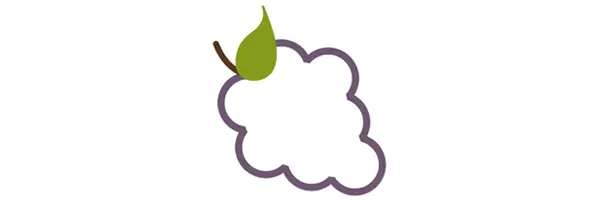

View demo here.
stroke-width
The stroke-width value establishes the width of the grape’s
stroke, which is set to 6px on the grapes image.
The default value for this attribute is 1. If a percentage value is used, the value is based on the dimensions of the viewport.

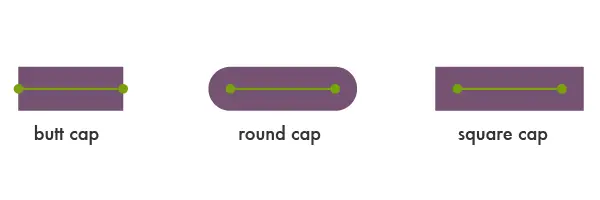

stroke-linecap
stroke-linecap defines which shape the end of an open path
will take and there are four acceptable values: butt, round, square, inherit.
A value of inherit will direct the element to take on the stroke-linecap specified
by its parent.
The stem in the following image has a stroke-linecap value
of square:
View demo here.
stroke-linejoin

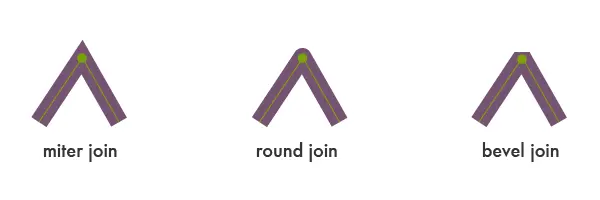

stroke-linejoin defines how the corners of strokes will look
on paths and basic shapes.
Here is a look at the grapes with a stroke-linejoin of "bevel":
View demo here.
stroke-miterlimit
When two lines meet at a sharp angle and are set to a stroke-linejoin="miter",
the stroke-miterlimit attribute allows for the specification
of how far this joint/corner extends.
The length of this joint is called the miter length, and it is measured from the inner corner of the line join to the outer tip of the join.
This value is a limit on the ratio of the miter length to the stroke-width.
1.0 is the smallest possible value for this attribute.
The first grape image is set to stroke-miterlimit="1.0", which
creates a bevel effect. The stroke-miterlimit on the second
image is set to 4.0.
View demo here.
stroke-dasharray
The stroke-dasharray attribute turns paths into dashes rather
than solid lines.
Within this attribute you can specify the length of the dash as well as the distance between the dashes, separated with commas or whitespace.
If an odd number of values are provided, the list is then repeated to
produce an even number of values. For example, 8,6,4 becomes 8,6,4,8,6,4 as
shown in the second grapes image below.
Placing just one number within this value results in a space between the dashes that is equal to the length of a dash.
View demo here.

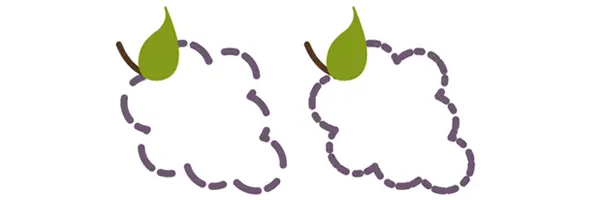

The first grapes image here shows the impact that an even number of listed
values has on the grape's path: stroke-dasharray="20,15,10,8".
stroke-dashoffset

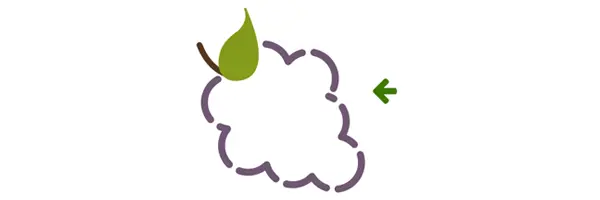

stroke-dashoffset specifies the distance into the dash pattern
to start the dash.
View demo here.
In the example above, there is a dash set to be 40px long, and a dashoffset of
35px. At the starting point of the path the dash will not become visible
until 35px in to the first 40px dash, which is why the first dash appears
significantly shorter.
stroke-opacity
The stroke-opacity attribute allows for a transparency level
to be set on strokes.
The value here is a decimal number between 0 and 1, with 0 being completely transparent.
The element defines a graphic consisting of text. There
are a number of attribute options for customization of this text, and gradients,
patterns, clipping paths, masks, or filters can also be applied.
Writing and editing in SVG provides a very powerful
ability to create scalable text as graphics that can be easily changed
and edited within the SVG code.
Remember to be mindful of viewport dimensions when working through the examples in this section. The viewport, as mentioned, will determine the visible portion of the SVG and it may be necessary to change the viewport depending on the alteration specifics.
Basic Attributes
SVG text attributes reside within the element, which
resides inside the element. Through these attributes we
can control some basic styling for our text as well as completely spell
out its mapping details on the canvas, enabling full control of its placement
on the screen.
x, y, dx, dy
The first letter within a element is rendered according
to the established x and y values. While the x value
determines where to start the text along the x axis, the y value
determines the horizontal location of the bottom of the text.
While x and y establish coordinates in an absolute
space, dx and dy establish relative coordinates.
This is especially handy when used in conjunction with the element,
which will be discussed further in an upcoming section.

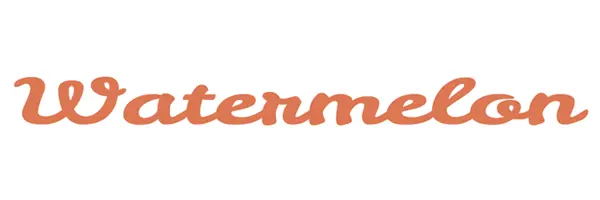

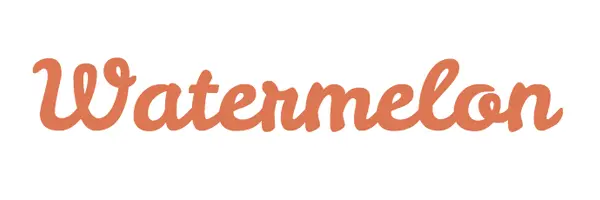

Watermelon
View demo here.
The above text starts 30px into the viewport of the SVG, and the bottom
of the text is set 90px in from the top of this viewport: x="30" y="90".
rotate
A rotation can be placed on the individual letters/symbols, and/or on the element as a whole.
A single value within the rotate attribute results in each
glyph rotating at that value. A string of values can also be used to target
and assign a different rotation value to each letter. If there are not
enough values to match the number of letters, the last value sets the rotation
for the remaining characters.

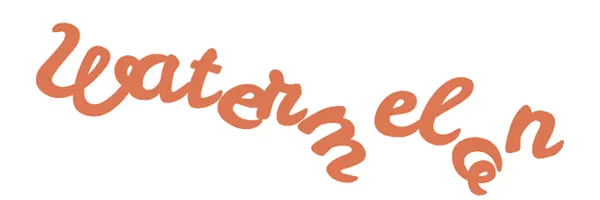

The text below has a rotation set on the entire graphic through the transform element,
but also a value for each glyph: rotate="20,0,5,30,10,50,5,10,65,5".
Watermelon
View demo here.
textLength & lengthAdjust
The textLength attribute specifies the length of the text.
The length of the text will adjust to fit the length specified within this
attribute by altering the space between the provided characters.
The following example has a textLength value of 900px. Notice
that the spacing between the characters has increased to fill this space.
Watermelon
View demo here.
When used in conjunction with the lengthAdjust attribute, it
can be specified that both the letter spacing and glyph size should adjust
to fit to these new length values.
A value of "spacing" results in an image that resembles the
example above where the spacing between the characters has expanded to
fill the space: ‘lengthAdjust=”spacing”’.
A value of "spacingAndGlyphs" directs both the spacing and
the glyph size to adjust accordingly: lengthAdjust="spacingAndGlyphs".
View demo here.
The tspan Element
The element is significant because SVG does not currently
support automatic line breaks or word wrapping. allows
us to draw multiple lines of text by singling out certain words or characters
to then be manipulated independently.
Instead of defining a new coordinate system for these additional lines,
the element positions these new lines of text in relation
to the previous line of text.
The element has no visual output on its own, but by
specifying more details within the elements we can single out this particular
text and have more control over its design and positioning.
In the example below "are" and "delicious" are located within separate elements
within the element. By using dy within each
of these spans, we are positioning the word along the y axis in relation
to the word before it.
While "are" is positioned -30px from "Watermelons", "delicious" is positioned 50px from "are".
Watermelons
are
delicious
View demo here.

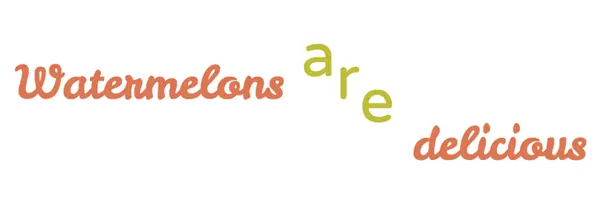

You can also move each glyph individually through a list of values, as shown in the example below. The letter/symbol is then moved according to the position of the letter/symbol before it, and "delicious" is now positioned according to the "e" in "are".
View demo here.
The tspan containing “are” has the following list of dy values: dy="-30 30 30".
Spacing Properties
There are a number of properties available when using the element
within inline SVG that control the spacing of words and letters, similar
to the capabilities of vector graphic software.
Understanding how to use these properties helps ensure graphics are displayed exactly as intended.
kerning & letter-spacing
Kerning refers to the process of adjusting the spacing between characters.
The kerning property allows us to adjust this space based on
the kerning tables that are included in the font being used, or set a unique
length.
A value of auto indicates that the inter-glyph spacing should
be based on the kerning tables that are included in the font being used.
The example below has a kerning value of auto,
which in this instance has no visual impact since it is the default value.

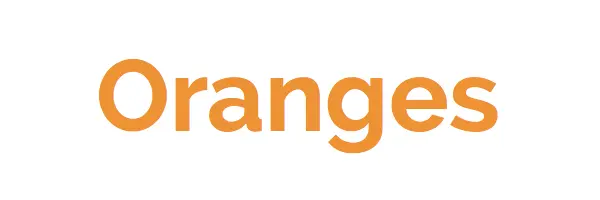

Oranges
Adjusting the length between these characters can be done by simply including
a numerical value: kerning="30".

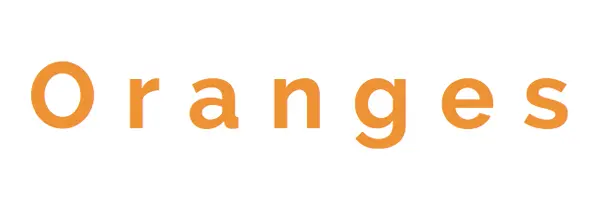

A value of inherit is also valid.
letter-spacing has value options of normal, ,
or inherit. A numerical value here will have the same impact
on the spacing as kerning. The letter-spacing property
is intended to be used as supplemental spacing to any spacing already in
effect from kerning.
word-spacing
Th word-spacing property specifies the spacing between words.

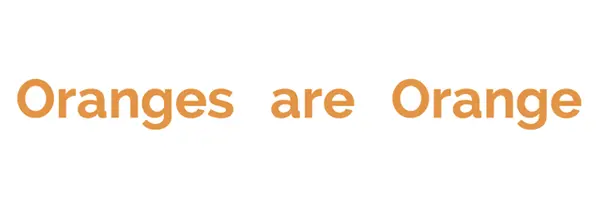

Oranges are Orange
Other valid values here are normal (default), and inherit.
text-decoration
The text-decoration property permits the use of underline, overline,
and line-through in SVG text.
While drawing order does not always have an impact on visual output in
SVG, the order does matter in regards to text-decoration. All
text decoration values, except line-through, should be drawn before the
text is filled and/or stroked; this renders the text on top of the decorations.
line-through should be drawn after the text is filled and/or
stroked, rendering the decoration on top of the text.
Here is a look at text-decoration="underline" and text-decoration="line-through".
text Along a Path
As mentioned, inline SVG provides us with advanced customization options that are similar to the capabilities of vector graphic software. Within the SVG code itself we can position text exactly as we want it to render on the screen.
In taking this manipulation even further, SVG can be
set to follow a given element.
The textPath Element
The textPath element is where all the magic of this feature
resides. While SVG text would generally reside within a element,
it will now reside within a element within the element.
This will then call on the chosen path's id which
is hanging out in a element waiting to be used.
The basic syntax:
Place text here

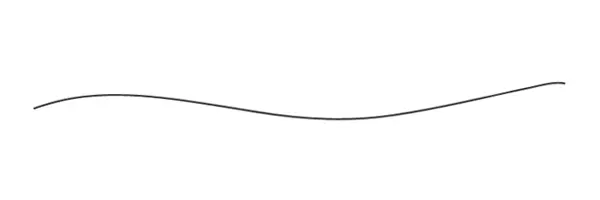

Here is a look at the vector path to be used in the code below:
After generating this path in vector graphic software the SVG element code
itself (which will not include color like shown above) can be copied and
placed within the element in the , which
is also shown in the code above.

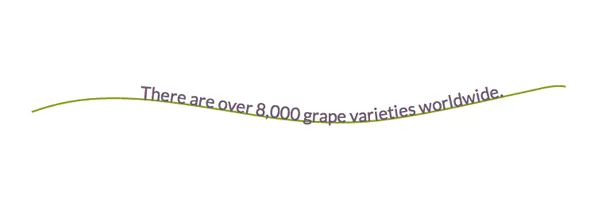

There are over 8,000 grape varieties worldwide.
xlink:href
The xlink:href attribute in a allows
us to reference the path to which the text will be rendered on.
startOffset
The startOffset attribute represents a text offset length from
the start of the path. A value of "0%" indicates the start
point of the path, while "100%" indicates the end point.
The example below has a startOffset of "20%" which pushes the
text to begin 20% in along the path. The font size has been decreased to
prevent it from rendering out of the viewport when moved.
Adding color to the path's stroke via the element can
aid in understanding what exactly is happening here.
There are over 8,000 grape varieties worldwide.
View demo here.
Gradients
There are two types of SVG gradients: linear and radial. Linear gradients are generated in a straight line, while radial gradients are circular.
A very simple linear gradient is structured like this:
The contains a element which allows
us to create reusable definitions to be called on later. These definitions
have no visual output until they are referenced using their unique ID within
the stroke and/or fill attributes for SVG shapes or .
These shapes and/or text will also reside within the element,
but outside of the element.
Once a gradient is built and assigned an ID, it can be called through
the fill and/or stroke attributes within the SVG.
For example, fill= "url(#gradientName)".
Linear Gradients
Linear gradients change color evenly along a straight line and each point
(stop) defined on this line will represent the correlating color within
the element. At each point the color is at
100% saturation, and the space in between expresses a transition from one
color to the next.
stop Nodes
nodes can also accept an opacity with stop-opacity=""
Below is the code for a simple linear gradient with two color stops applied to a rectangle:
View demo here.
offset informs the gradient at what point to assign the correlating stop-color.
x1, y1, x2, y2
The x1, y1, x2, and y2 attribute values represent the start and end points onto which the gradient stops (color changes) are mapped. These percentages will map the gradients respectively along the appropriate axis.
A y value of “100%” and an x value of “0” will produce
a horizontal gradient, while the reverse will produce a vertical one. Having
both values set at “100%” (or any value outside of 0) will render an angled
gradient.
gradientUnits
The gradientUnits attribute defines the coordinate system for
the x1, x2, y1, y2 values. The two value options here are ‘userSpaceOnUse’
or ‘objectBoundingBox’. userSpaceOnUse sets the gradient coordinating
system in absolute units, while objectBoundingBox (default)
establishes this system within the bounds of the SVG shape itself, the
target.
spreadMethod
The spreadMethod attribute’s value specifies how the gradient
will spread out through the shape if it starts or ends inside the bounds
of the target. If the gradient is set to not fill the shape, spreadMethod determines
how the gradient should go about covering that empty space. There are three
options here: ‘pad’, ‘repeat’, or ‘reflect’.
A value of pad (default) directs the first and last colors
of the gradient to spread out over the remainder of the uncovered target
region. A value of repeat directs the gradient to repeat the
pattern from the beginning continuously. A value of reflect will
reflect the gradient pattern alternating from start-to-end, end-to-start
continuously.

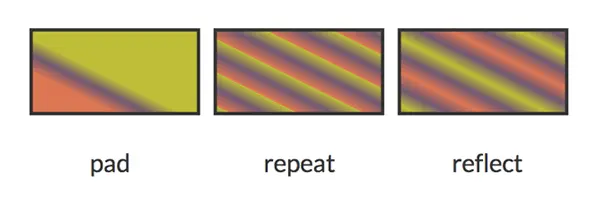

The start and end point for the gradient below is: x1="20%" y1="30%" x2="40%" y2="80%".
gradientTransform
The gradientTransform attribute is optional and allows for
further transformation of the gradient before it is mapped, like adding
a rotation.
xlink:href
The xlink:href attribute allows you to call on the ID of another
gradient to inherit its details, but you can also include different values.
This gradient inherits the details of the first gradient from the beginning of this section, but has an alternate spreadMethod value.
Radial Gradients
Most of the attributes for a are the same
as those of except there is a different set
of coordinates to work with.
cx, cy, r
The cx, cy, and r attributes define
the outermost section of the circle and the 100% stop-color of
the gradient will be mapped to the perimeter of this value. cx and cy define
the center coordinate, while r sets the radius of the gradient.
fx, fy
The fx, fy attributes represent the coordinates
for the gradient’s focal point, or innermost circle. Essentially, the center
of the gradient does not have to also be its focal point, which can be
altered with these values.
While by default the focal point of the radial gradient would be centered,
the focal point attributes can change this. The focal point values for
the image below are fx="95%" fy="70%".

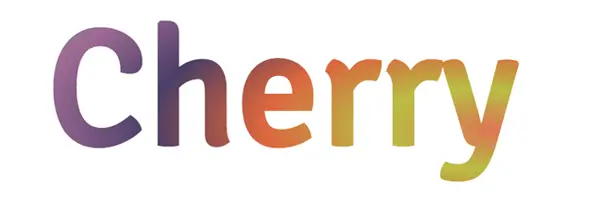

Cherry
View demo here.
In this example, the focal point shifts to the bottom right of the image.
Patterns
Patterns are generally considered one of the more complex paint options available to color the fills and strokes of SVG. Establishing a foundation and understanding the basic syntax can make these seemingly more complex patterns much more obtainable.
Here is a look at the syntax for a basic pattern applied to a rectangle:
View demo here.
Basic Attributes
The attributes and values for patterns define the "canvas", the design, and overall positioning. Patterns can consist of paths and/or shapes, can paint text, and can even be nested within another pattern.
x, y, width, height
The x and y attributes within the element define
how far into the shape the pattern will start. Width and height used within
the element define the actual width and height of
the allotted pattern space.
The “basicPattern” referenced above contains the following values: x="10" y="10" width="40" height="40".
The pattern will start 10px in from the start of the x axis, 10px in from
the start of the y axis, and essentially create a “canvas” that is 40px
wide, and 40px high.
patternUnits
The patternUnits attribute defines the coordinates for which
x, y, width, and height are referenced. The two options here are userSpaceOnUse and objectBoundingBox (default).
userSpaceOnUse results in a pattern coordinate system that
is determined by the coordinate system for the element referencing the ,
while objectBoundingBox establishes the mapping coordinate system
as the bounding box of the element to which the pattern is applied.
patternContentUnits
The patternContentUnits attribute values are the same as the
values for patternUnits, except the coordinate system is now
being defined for the contents of the pattern itself.
This value, unlike patternUnits, defaults to userSpaceOnUse,
which means that unless one or both of these attributes are specified the
shapes drawn within the are being drawn in a different
coordinate system than the element is using.
Defining patternUnits="userSpaceOnUse" within the element
simplifies this process and ensures a consistent workspace.
Nested Patterns
Patterns can also be nested to create a much more unique and detailed design.
Here is a look at the structure of a basic nested pattern:
The element contains both patterns. Within ,
the pattern for the rectangle is calling on the circle pattern via fill and
the main rectangle is then calling on the rectangle pattern also via fill,
painting the interior of the main shape with a nested pattern.

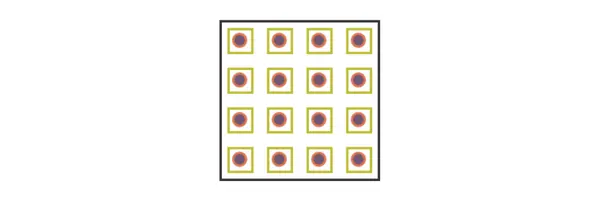

View demo here.
Clipping Path
The clipping path restricts the region to which paint will be applied to the SVG. Any region drawn outside of the bounds set by the clipping path will not be rendered.
To demonstrate the abilities of this feature, let's use a clipping path consisting of "Apples" text being applied over a tomato colored rectangle and a green circle.

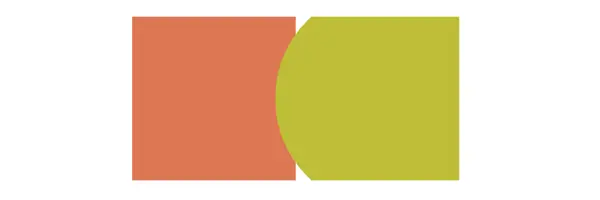

Below are the shapes without the clipping path applied, set to stretch beyond the viewport.
Now, here's a look at the code to apply the "Apples" text to this "canvas".

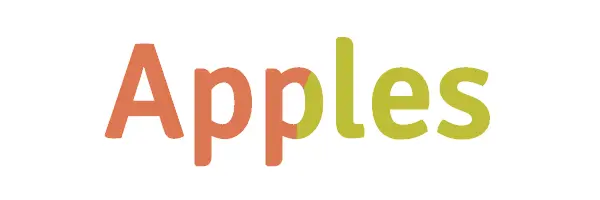

Apples
View demo here.
The clipping path is defined within the element
and then called on by both shapes by referencing its unique id.
Writing inline SVG enables very useful editing powers and lets us as the author have complete access to all the graphical elements individually. Within this code we are generating graphics that scale without losing image quality, are searchable, and enhance accessibility.
It will most likely take some time tinkering to get comfortable with your SVG writing abilities, but once you do I would recommend working on making your code as short and efficient as possible, exploring SMIL animations, and experimenting with styling SVG elements with CSS.
Hopefully this guide acts as both a valuable reference, and an inspiration in terms of understanding the powerful potential of building and manipulating inline SVG.
For news and updates, please visit the book's site, and if you have any questions or comments in regards to the book I can be reached on Twitter or by email at info@jonibologna.com.
