cilium hubble 支持 ip 跟踪

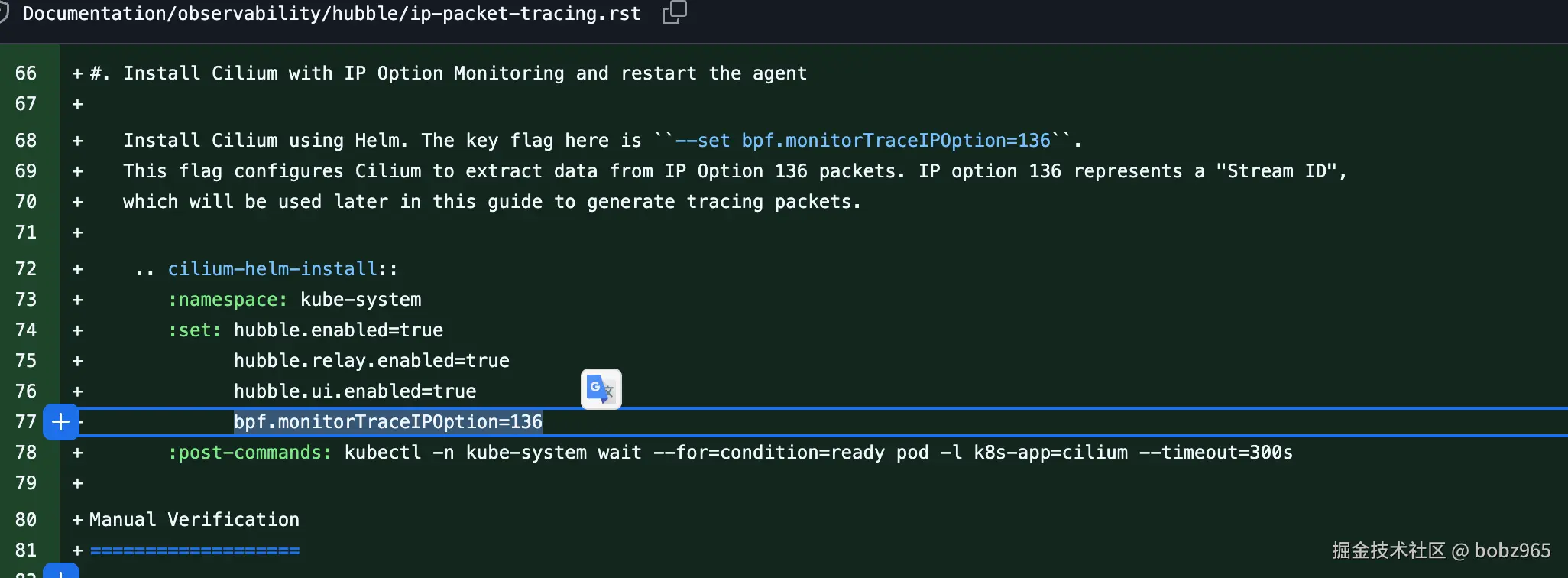

#. Install Cilium with IP Option Monitoring and restart the agent

Install Cilium using Helm. The key flag here is --set bpf.monitorTraceIPOption=136. This flag configures Cilium to extract data from IP Option 136 packets. IP option 136 represents a "Stream ID", which will be used later in this guide to generate tracing packets.

.. cilium-helm-install::
   :namespace: kube-system
   :set: hubble.enabled=true
         hubble.relay.enabled=true
         hubble.ui.enabled=true
         bpf.monitorTraceIPOption=136
   :post-commands: kubectl -n kube-system wait --for=condition=ready pod -l k8s-app=cilium --timeout=300s



Manual Verification

To verify the feature, manually inject a known Trace ID into packets using nping. The following examples uses a payload of 4 bytes to meet the strict length requirements.

#. Deploy Client and Server Pods Deploy an nginx server and a netshoot client (containing nping):

.. literalinclude:: ../../../examples/kubernetes-ip-options/ip-options-pods.yaml :language: yaml

.. parsed-literal::

   kubectl apply -f \ |SCM_WEB|\/examples/kubernetes-ip-options/ip-options-pods.yaml

Wait for the deployments to become ready

.. code-block:: shell-session

   kubectl rollout status deployment client
   kubectl rollout status deployment server

#. Trigger Traffic with Valid IP Options

Execute nping from the client to the server, manually specifying the IP Option hex string.

.. code-block:: shell-session

   # 1. Get the IP of the server pod
   server_ip=$(kubectl get pods -l app=server -o jsonpath='{.items[0].status.podIP}')

   # 2. Run nping with Option 136 (0x88)
   # Format: \x88 (Type 136) \x04 (Data + header length) \x34\x21 (Data/ID)
   # The data 0x3421 corresponds to decimal 13345.
   # Note: Length must be exactly 2, 4 or 8 bytes of payload. Length 4 for the message indicates 2 bytes of payload
   kubectl exec deployment/client -- nping --tcp -p 80 --ip-options '\x88\x04\x34\x21' -c 3 ${server_ip}

Observing with Hubble

With traffic flowing, use the Hubble CLI to observe the extracted data.

#. Build and Connect Hubble

.. code-block:: shell-session

   cd hubble
   make hubble
   cilium hubble port-forward &

#. Filter by Trace ID

Filter specifically for the injected ID 13345 (hex 0x3421):

.. code-block:: shell-session

   ./hubble observe -f --ip-trace-id 13345

Verify that flows between the client and server pods appear with the matching ID.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: client
  labels:
    app: client
spec:
  replicas: 1
  selector:
    matchLabels:
      app: client
  template:
    metadata:
      labels:
        app: client
    spec:
      containers:
      - name: client
        image: nicolaka/netshoot
        command:
        - sleep
        args:
        - "infinity"
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: server
  labels:
    app: server
spec:
  replicas: 1
  selector:
    matchLabels:
      app: server
  template:
    metadata:
      labels:
        app: server
    spec:
      containers:
      - name: server
        image: nginx
        ports:
        - containerPort: 80

参考

github.com/cilium/cili…
