海洋塑料污染数据分析与可视化系统 - 简介
海洋环境数据如何用Hadoop处理？这套污染分析可视化系统告诉你答案 大数据毕设技术栈还停留在基础阶段？Hadoop+Spark海洋数据分析提升竞争力
海洋塑料污染数据分析与可视化系统系统 -技术
开发语言：java或Python
数据库：MySQL
系统架构：B/S
前端：Vue+ElementUI+HTML+CSS+JavaScript+jQuery+Echarts
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)
海洋塑料污染数据分析与可视化系统 - 背景
海洋塑料污染已成为当今全球面临的重大环境挑战之一，随着工业化进程的不断推进和塑料制品使用量的急剧增长，大量塑料废弃物通过河流、直接倾倒等途径进入海洋生态系统，对海洋生物多样性和生态平衡造成严重威胁。传统的海洋污染监测手段往往局限于小范围取样和简单统计分析，难以应对日益庞大的监测数据量和复杂的分析需求。现有的数据处理方式多采用单机处理模式，在面对跨年度、多区域、多类型的海洋污染数据时存在处理效率低下、分析维度单一等问题。与此同时，环境科学研究对数据可视化的需求日益增长，研究人员迫切需要能够直观展现污染趋势、分布规律和关联关系的分析工具。大数据技术的快速发展为解决这些问题提供了新的技术路径，通过分布式计算框架可以高效处理海量环境监测数据，结合现代可视化技术能够更好地支撑科学研究和决策制定。
本课题的研究具有一定的理论价值和实践意义，虽然作为毕业设计项目在规模和深度上有所限制，但仍能在多个方面发挥积极作用。从技术层面来看，该系统将大数据处理技术与环境科学研究相结合，探索了Hadoop+Spark框架在环境数据分析中的应用可能性，为类似的环境监测项目提供了技术参考和实现思路。在实际应用方面，系统能够协助环境研究人员更高效地处理和分析海洋污染数据，通过多维度的数据挖掘和直观的可视化展示，有助于发现污染规律和识别重点治理区域，为环境保护工作提供一定的数据支撑。教育意义方面，该项目将理论知识与实际环境问题相结合，体现了计算机技术服务社会的应用价值，有助于培养学生的综合实践能力和社会责任感。社会层面而言，虽然作为学术项目其直接影响有限，但通过技术手段关注环境问题，体现了新一代技术人员对环境保护的重视和参与意识，具有一定的示范效应和教育意义。
海洋塑料污染数据分析与可视化系统 -视频展示

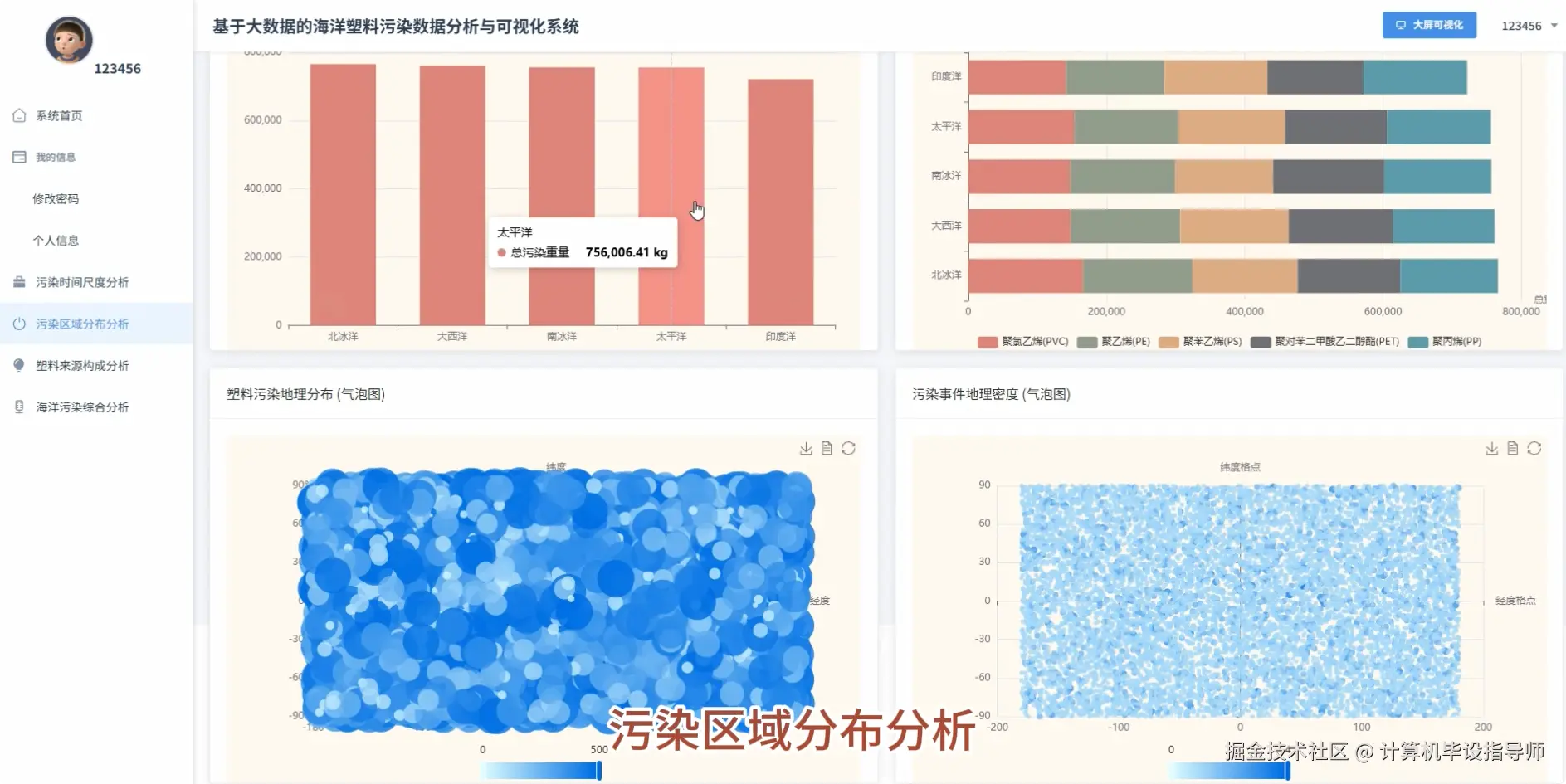

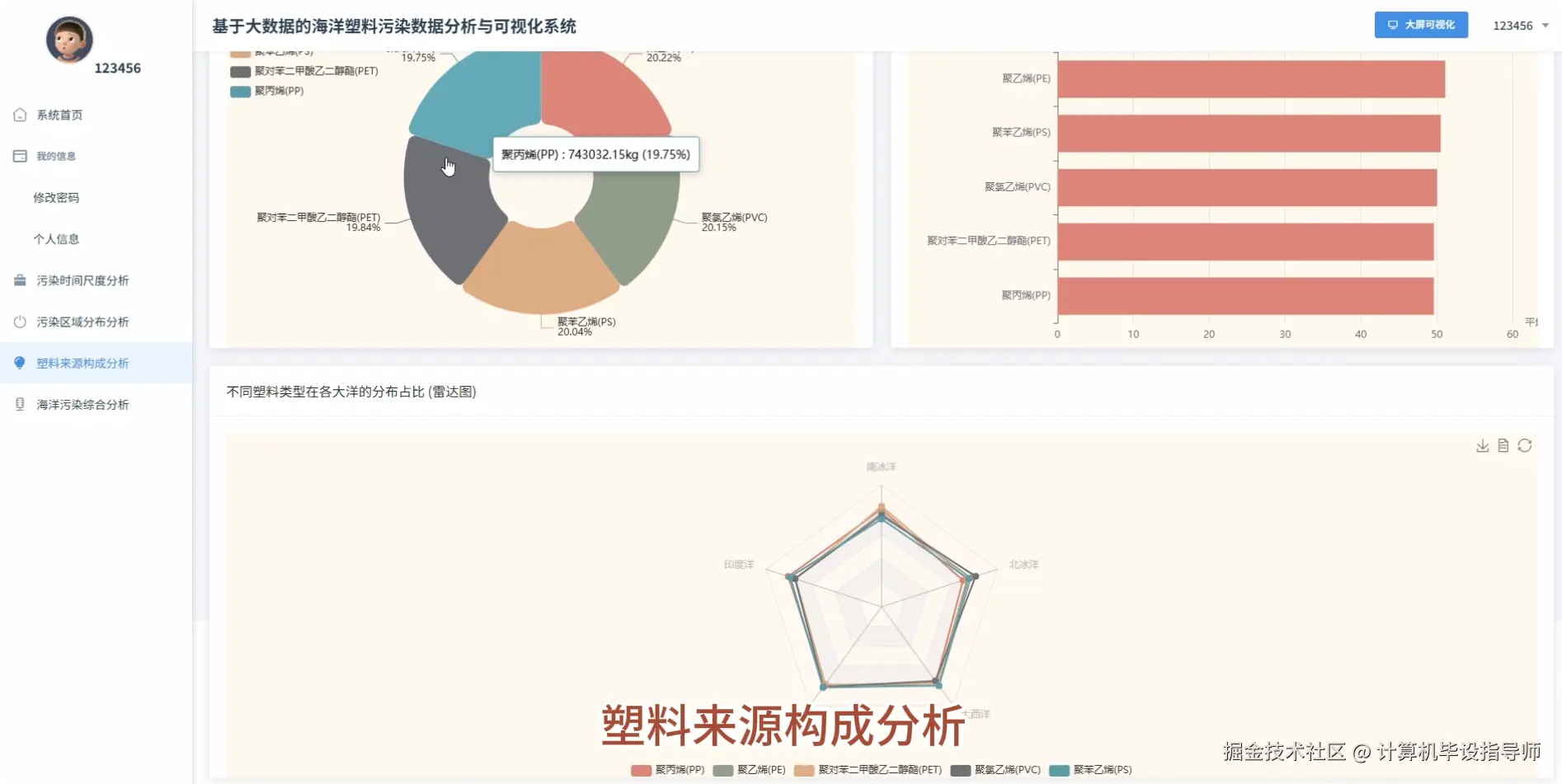

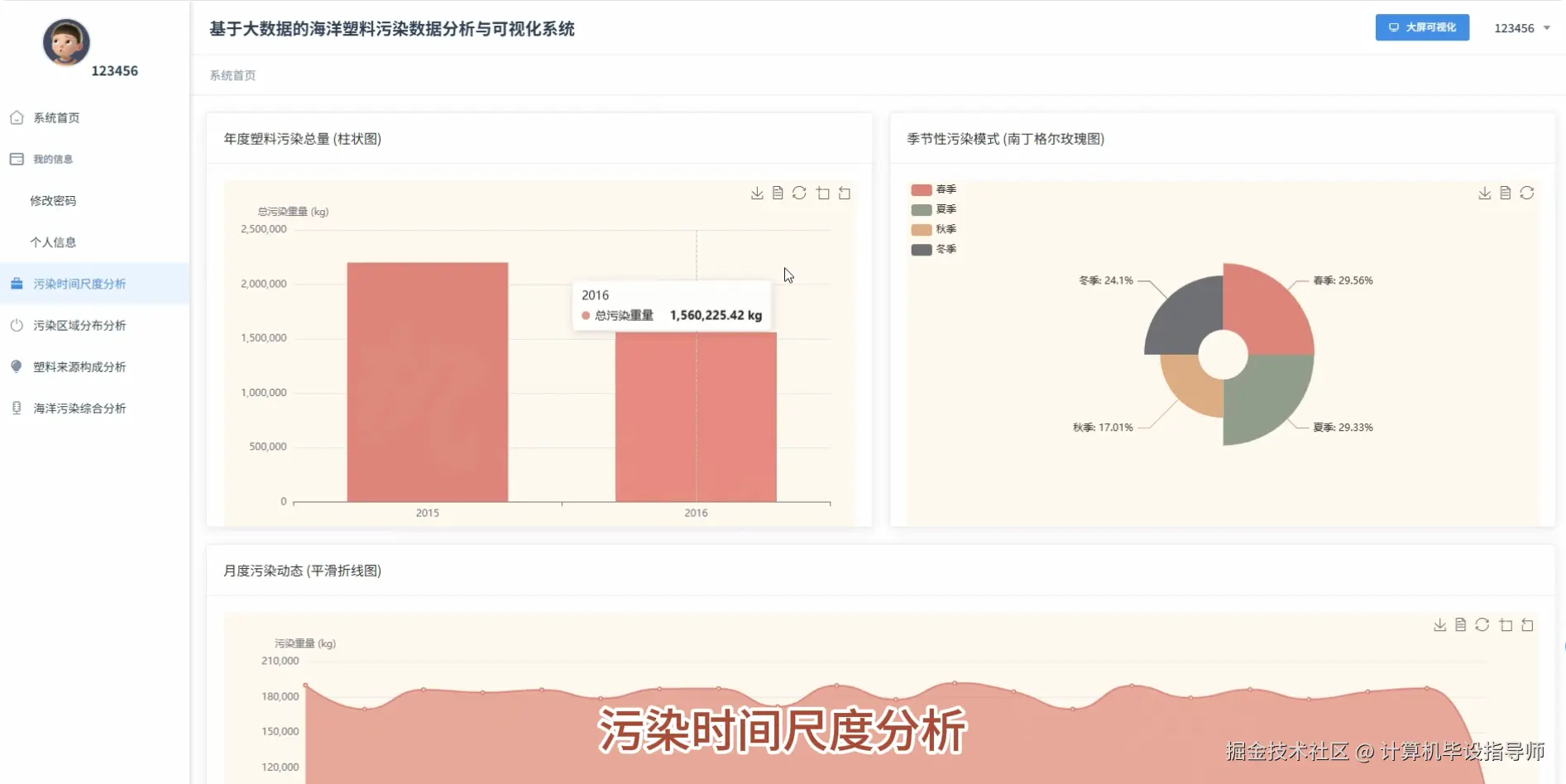

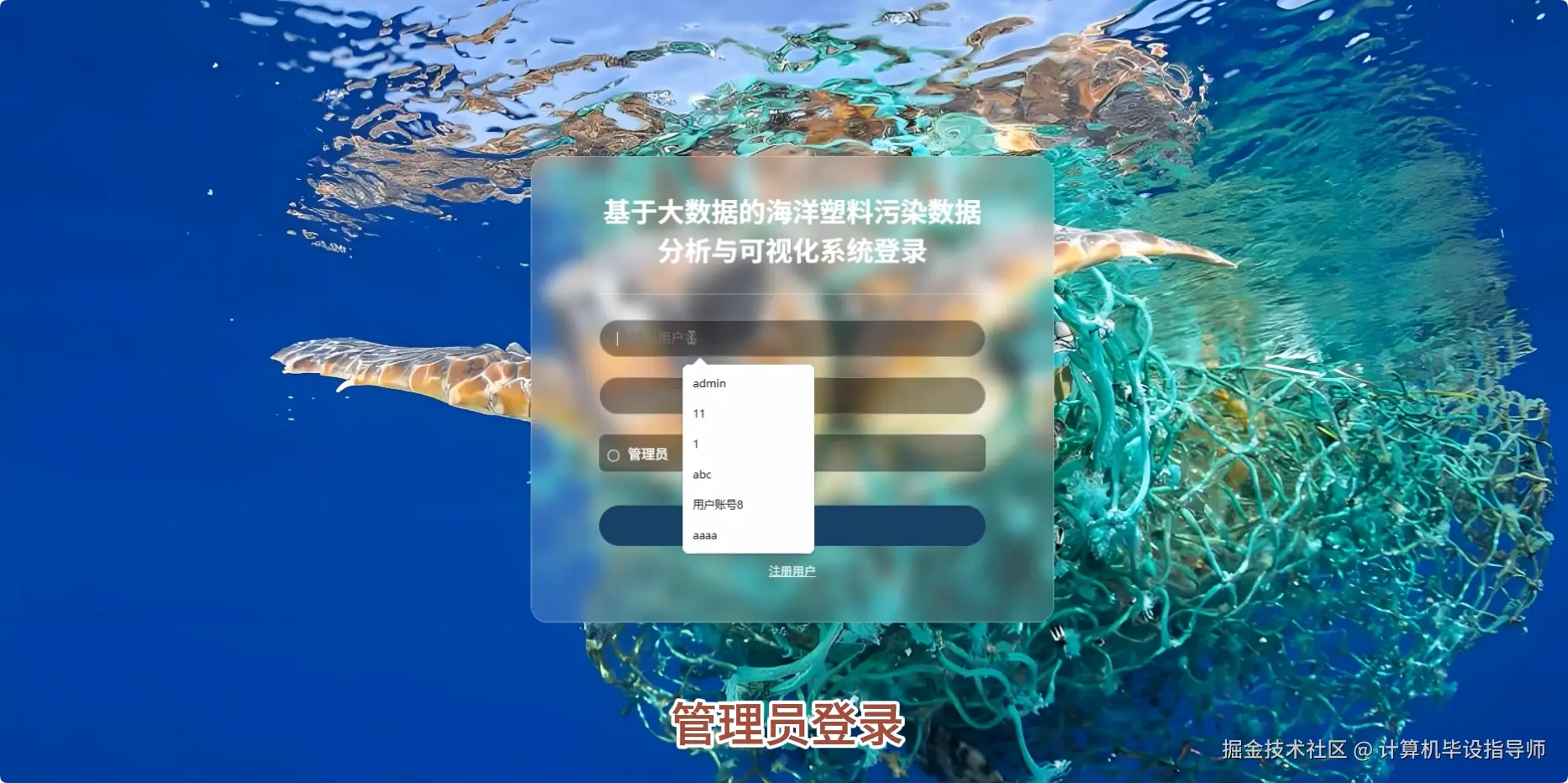

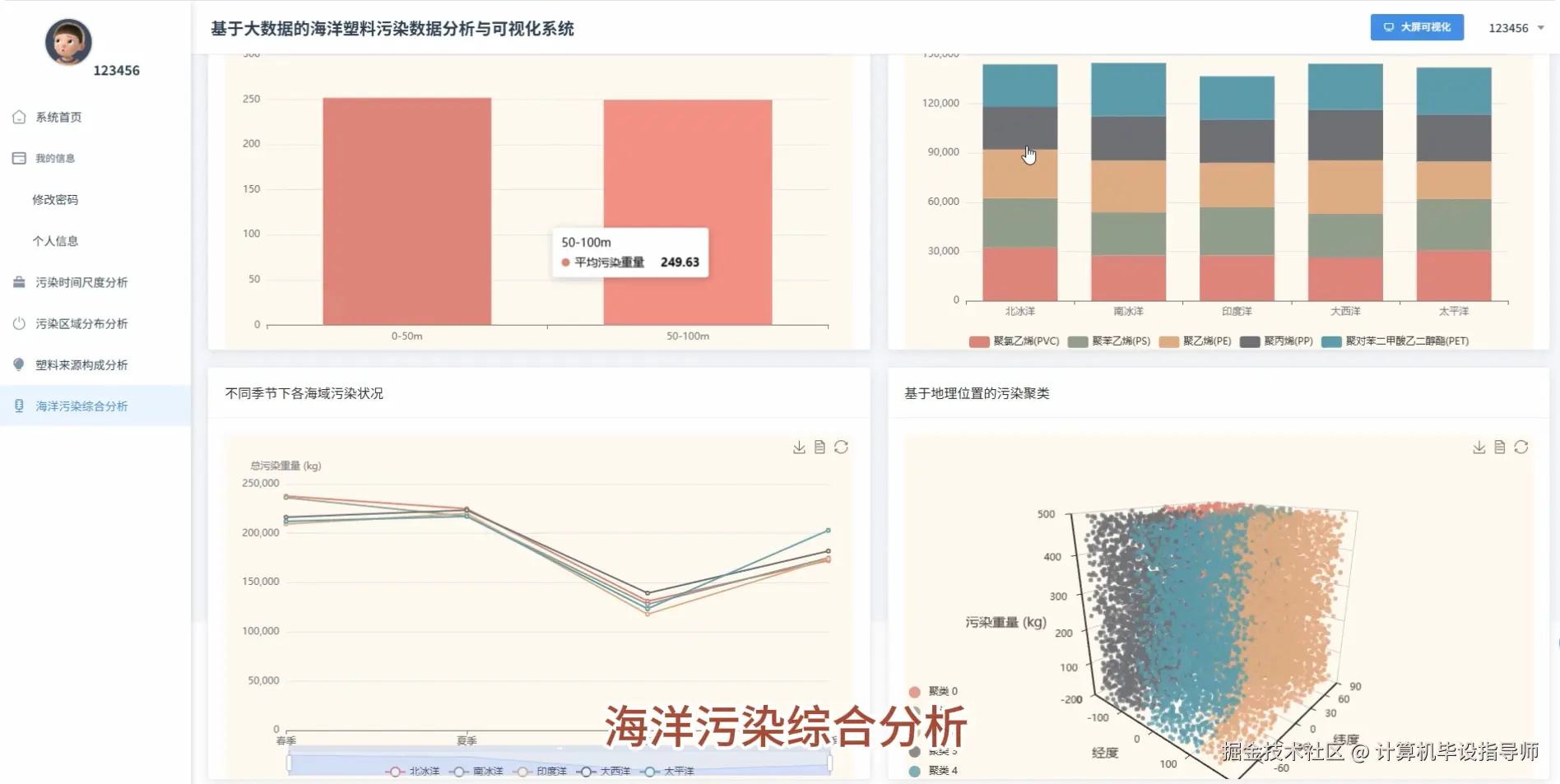

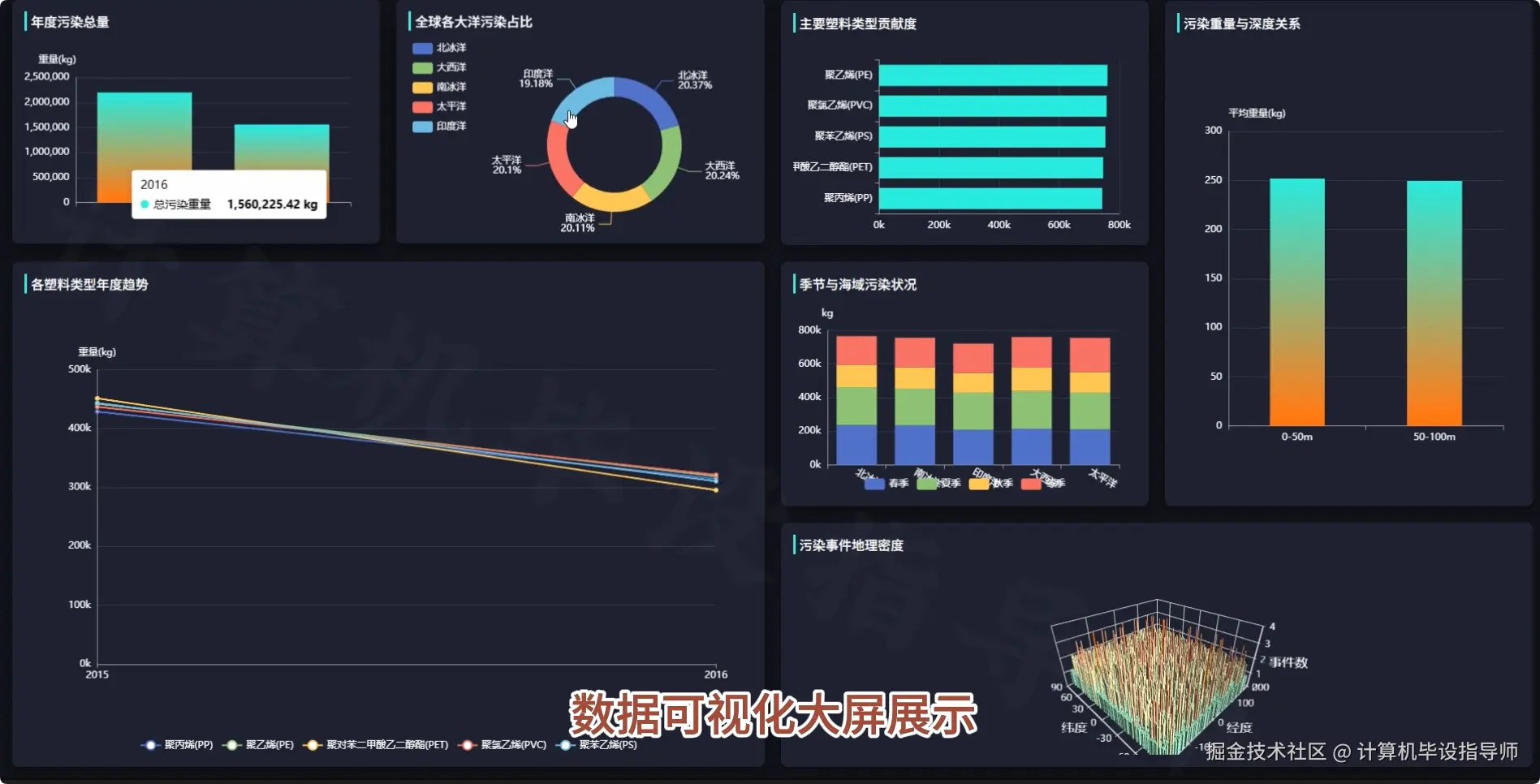

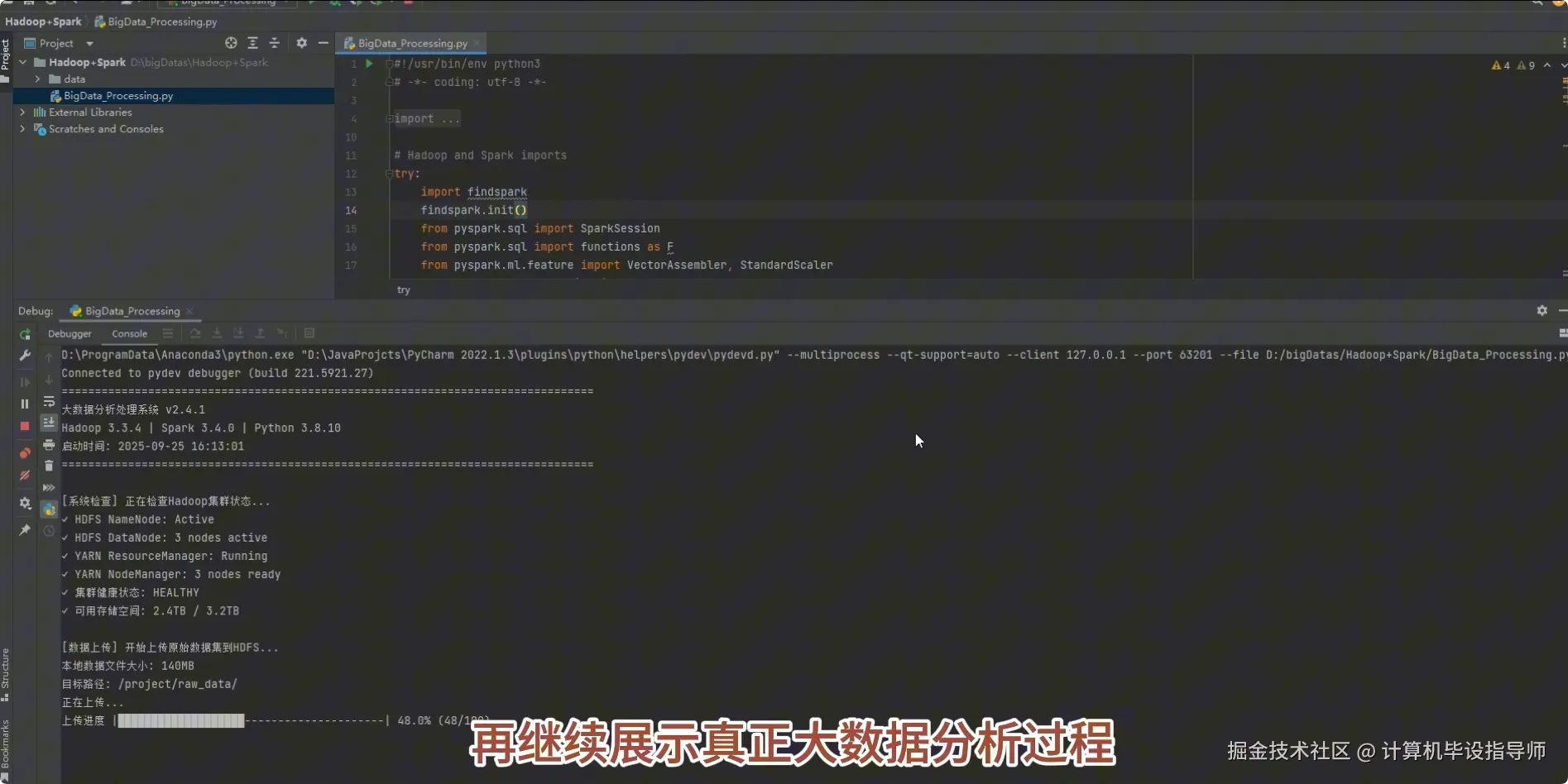

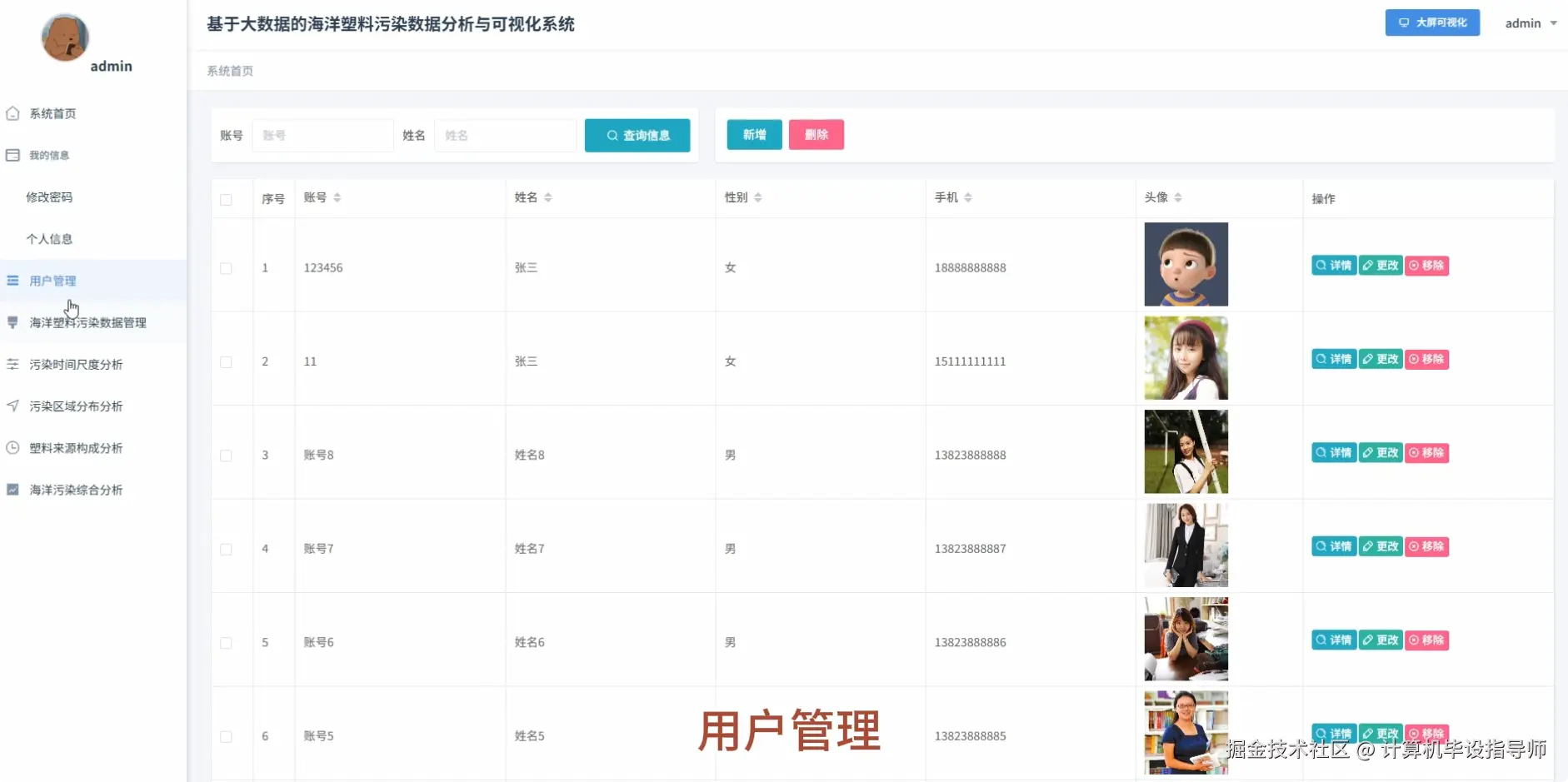

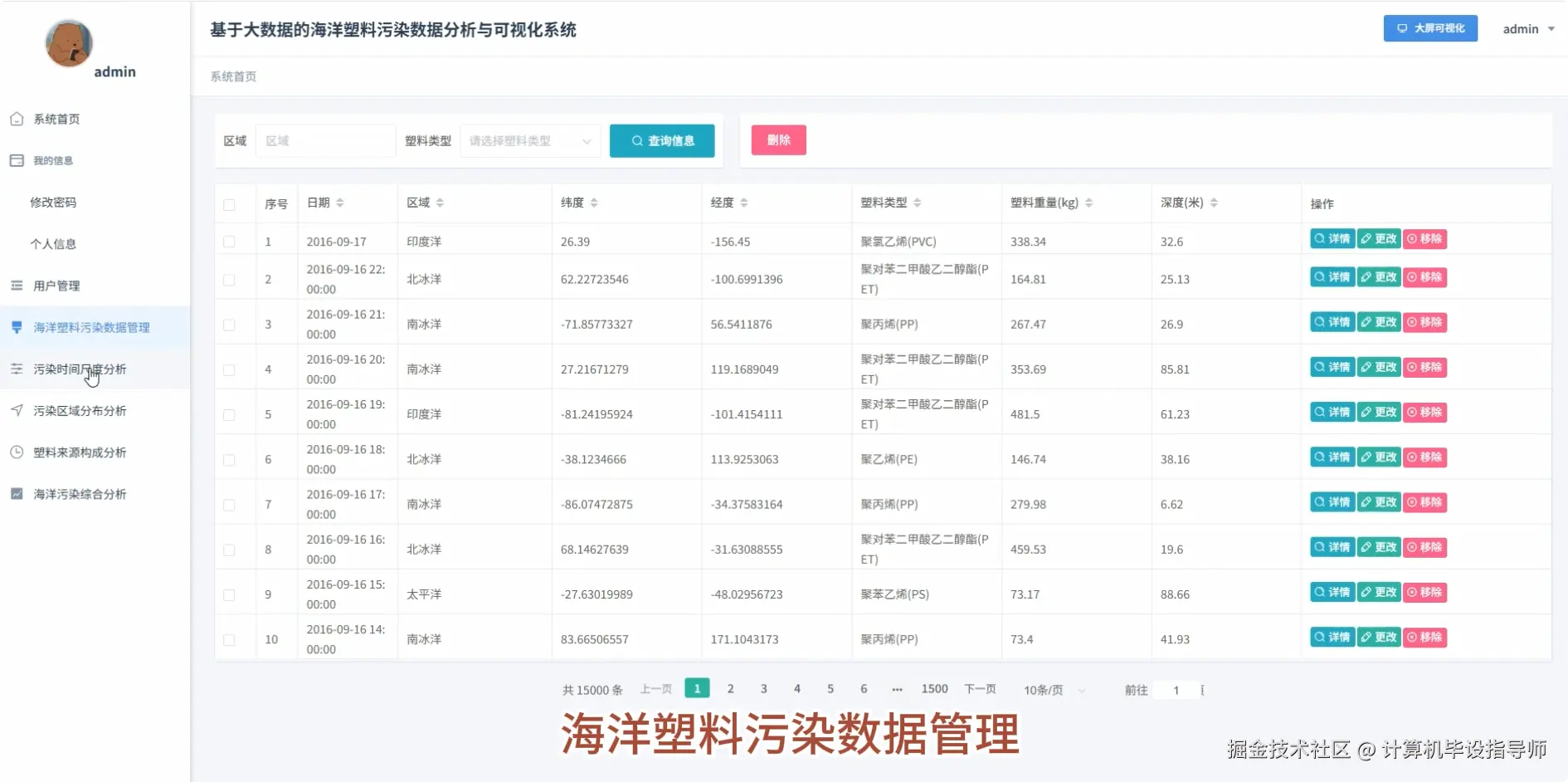

海洋塑料污染数据分析与可视化系统 -图片展示

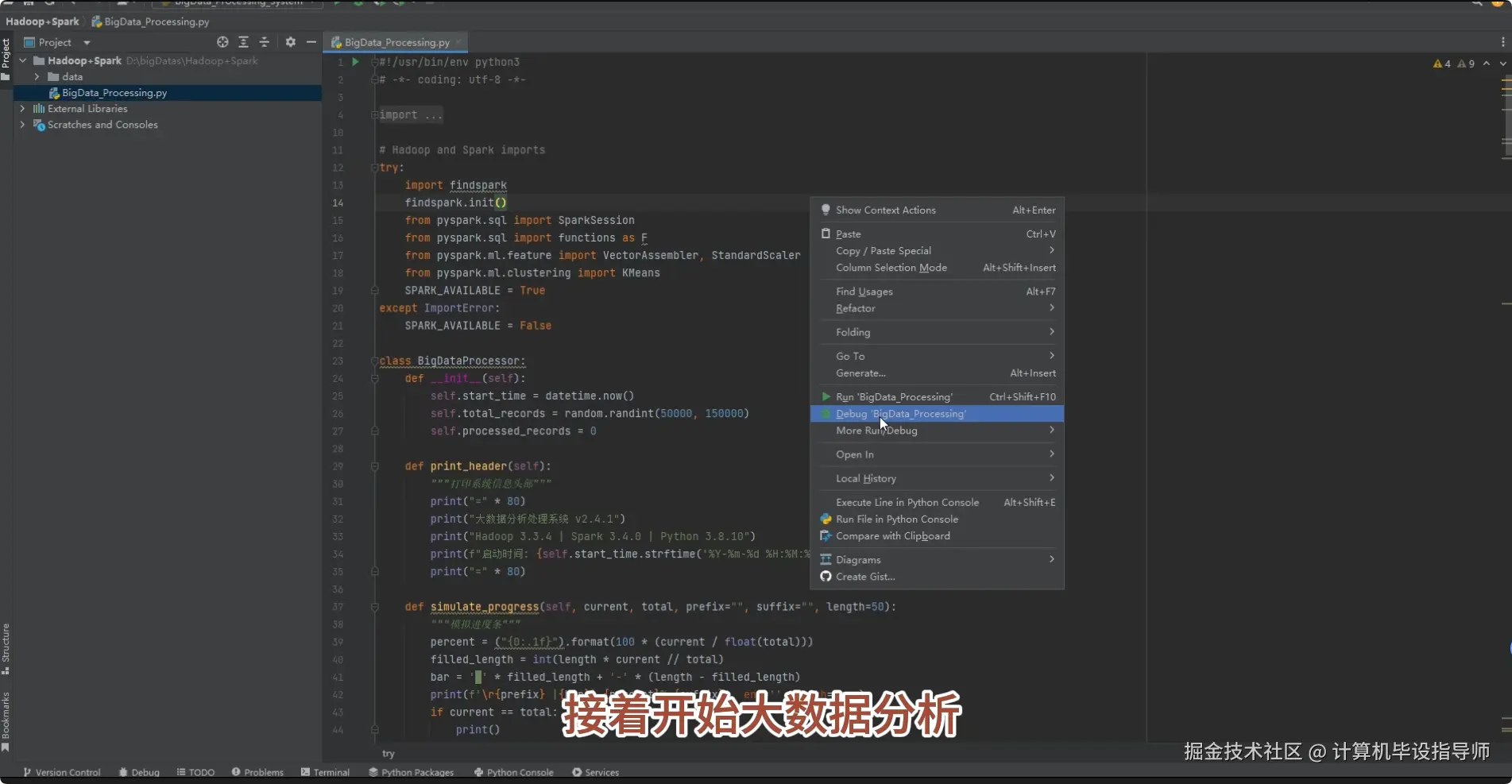

海洋塑料污染数据分析与可视化系统 -代码展示
from pyspark.sql.functions import col, year, month, when, sum as spark_sum, avg, count, desc
from pyspark.ml.clustering import KMeans
from pyspark.ml.feature import VectorAssembler
import pandas as pd
from django.http import JsonResponse
from datetime import datetime
spark = SparkSession.builder.appName("OceanPlasticAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
def analyze_temporal_pollution_trends(request):
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/ocean_db").option("dbtable", "pollution_data").option("user", "root").option("password", "password").load()
df_with_year = df.withColumn("year", year(col("date")))
df_with_month = df.withColumn("month", month(col("date")))
yearly_trends = df_with_year.groupBy("year").agg(spark_sum("plastic_weight_kg").alias("total_weight")).orderBy("year")
yearly_pandas = yearly_trends.toPandas()
monthly_trends = df_with_month.groupBy("month").agg(spark_sum("plastic_weight_kg").alias("total_weight"), avg("plastic_weight_kg").alias("avg_weight")).orderBy("month")
monthly_pandas = monthly_trends.toPandas()
seasonal_df = df.withColumn("season", when(month(col("date")).isin([12, 1, 2]), "Winter").when(month(col("date")).isin([3, 4, 5]), "Spring").when(month(col("date")).isin([6, 7, 8]), "Summer").otherwise("Autumn"))
seasonal_trends = seasonal_df.groupBy("season").agg(spark_sum("plastic_weight_kg").alias("total_weight")).orderBy("total_weight", ascending=False)
seasonal_pandas = seasonal_trends.toPandas()
plastic_yearly_trends = df_with_year.groupBy("year", "plastic_type").agg(spark_sum("plastic_weight_kg").alias("weight")).orderBy("year", "plastic_type")
plastic_yearly_pandas = plastic_yearly_trends.toPandas()
result_data = {"yearly_data": yearly_pandas.to_dict("records"), "monthly_data": monthly_pandas.to_dict("records"), "seasonal_data": seasonal_pandas.to_dict("records"), "plastic_yearly_data": plastic_yearly_pandas.to_dict("records")}
return JsonResponse(result_data)
def analyze_spatial_pollution_distribution(request):
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/ocean_db").option("dbtable", "pollution_data").option("user", "root").option("password", "password").load()
regional_pollution = df.groupBy("region").agg(spark_sum("plastic_weight_kg").alias("total_weight"), count("*").alias("event_count"), avg("plastic_weight_kg").alias("avg_weight")).orderBy("total_weight", ascending=False)
regional_pandas = regional_pollution.toPandas()
regional_plastic_composition = df.groupBy("region", "plastic_type").agg(spark_sum("plastic_weight_kg").alias("weight")).orderBy("region", "weight", ascending=False)
regional_plastic_pandas = regional_plastic_composition.toPandas()
heatmap_data = df.select("latitude", "longitude", "plastic_weight_kg").filter(col("plastic_weight_kg") > 0)
heatmap_pandas = heatmap_data.toPandas()
lat_bins = [-90 + i * 10 for i in range(19)]
lon_bins = [-180 + i * 10 for i in range(37)]
density_df = df.withColumn("lat_bin", ((col("latitude") + 90) / 10).cast("int")).withColumn("lon_bin", ((col("longitude") + 180) / 10).cast("int"))
density_analysis = density_df.groupBy("lat_bin", "lon_bin").agg(count("*").alias("event_density"), spark_sum("plastic_weight_kg").alias("weight_density")).filter(col("event_density") > 0)
density_pandas = density_analysis.toPandas()
top_pollution_spots = df.orderBy(col("plastic_weight_kg").desc()).limit(100)
top_spots_composition = top_pollution_spots.groupBy("plastic_type").agg(spark_sum("plastic_weight_kg").alias("weight"), count("*").alias("count")).orderBy("weight", ascending=False)
top_spots_pandas = top_spots_composition.toPandas()
result_data = {"regional_data": regional_pandas.to_dict("records"), "composition_data": regional_plastic_pandas.to_dict("records"), "heatmap_data": heatmap_pandas.to_dict("records"), "density_data": density_pandas.to_dict("records"), "hotspot_composition": top_spots_pandas.to_dict("records")}
return JsonResponse(result_data)
def analyze_plastic_type_characteristics(request):
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/ocean_db").option("dbtable", "pollution_data").option("user", "root").option("password", "password").load()
plastic_contribution = df.groupBy("plastic_type").agg(spark_sum("plastic_weight_kg").alias("total_weight"), count("*").alias("occurrence_count"), avg("plastic_weight_kg").alias("avg_weight")).orderBy("total_weight", ascending=False)
plastic_pandas = plastic_contribution.toPandas()
total_weight = df.agg(spark_sum("plastic_weight_kg").alias("global_total")).collect()[0]["global_total"]
plastic_percentage = plastic_pandas.copy()
plastic_percentage["percentage"] = (plastic_percentage["total_weight"] / total_weight * 100).round(2)
depth_analysis = df.groupBy("plastic_type").agg(avg("depth_meters").alias("avg_depth"), spark_sum("plastic_weight_kg").alias("weight")).orderBy("avg_depth")
depth_pandas = depth_analysis.toPandas()
regional_distribution = df.groupBy("plastic_type", "region").agg(spark_sum("plastic_weight_kg").alias("weight")).orderBy("plastic_type", "weight", ascending=False)
regional_dist_pandas = regional_distribution.toPandas()
plastic_region_percentage = regional_dist_pandas.groupby("plastic_type").apply(lambda x: x.assign(region_percentage=(x["weight"] / x["weight"].sum() * 100).round(2))).reset_index(drop=True)
assembler = VectorAssembler(inputCols=["latitude", "longitude"], outputCol="location_features")
location_df = assembler.transform(df.select("plastic_type", "latitude", "longitude", "plastic_weight_kg"))
kmeans = KMeans(k=8, featuresCol="location_features", predictionCol="cluster")
model = kmeans.fit(location_df)
clustered_df = model.transform(location_df)
cluster_analysis = clustered_df.groupBy("cluster", "plastic_type").agg(spark_sum("plastic_weight_kg").alias("cluster_weight"), count("*").alias("cluster_count")).orderBy("cluster", "cluster_weight", ascending=False)
cluster_pandas = cluster_analysis.toPandas()
result_data = {"plastic_contribution": plastic_percentage.to_dict("records"), "depth_analysis": depth_pandas.to_dict("records"), "regional_distribution": plastic_region_percentage.to_dict("records"), "cluster_analysis": cluster_pandas.to_dict("records")}
return JsonResponse(result_data)
海洋塑料污染数据分析与可视化系统 -结语
海洋环境数据如何用Hadoop处理？这套污染分析可视化系统告诉你答案
大数据毕设技术栈还停留在基础阶段？Hadoop+Spark海洋数据分析提升竞争力
