基于大数据的人体体能活动能量消耗分析与可视化系统选题指南-系统功能介绍
基于大数据的人体体能活动能量消耗数据分析与可视化系统是一套专门针对人体运动能量消耗进行深度分析的综合性平台。该系统采用Hadoop分布式存储架构结合Spark大数据处理引擎，能够高效处理海量的人体体能活动数据，通过Python数据分析技术和Django后端框架构建稳定的数据处理服务。系统前端采用Vue+ElementUI+Echarts技术栈，为用户提供直观的数据可视化界面。核心功能涵盖基础人口统计学与能量消耗关系分析、不同活动类型的能量消耗特征对比、生理指标与能量消耗的关联性研究以及多维因素综合分析等模块。系统能够从性别、年龄、BMI等人口学特征出发，深入分析各类体能活动的能量消耗规律，同时结合心率、呼吸指标等生理数据，为用户提供科学准确的能量消耗评估结果，支持个性化的健康管理和运动指导建议。
基于大数据的人体体能活动能量消耗分析与可视化系统选题指南-系统技术介绍
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于大数据的人体体能活动能量消耗分析与可视化系统选题指南-系统背景意义
随着现代生活方式的改变和健康意识的增强，人们对于自身体能活动和能量消耗的关注度不断提升。传统的能量消耗评估方法往往依赖于简单的公式计算或经验估算，难以准确反映个体差异和活动特征对能量代谢的复杂影响。现有的健康监测设备虽然能够收集大量的生理数据，但缺乏有效的大数据分析手段来挖掘这些数据背后的深层规律。特别是在老年人群体中，不同个体的身体状况、活动能力和代谢特征存在显著差异，需要更加精准的分析方法来指导健康管理。同时，运动科学和健康管理领域迫切需要基于实际数据的科学分析工具，来替代传统的标准化评估方式。大数据技术的发展为处理复杂的生理数据提供了新的可能，能够从多维度、大样本的角度分析人体能量消耗规律，为精准健康管理提供数据支撑。 本课题的研究具有重要的实际应用价值和学术意义。从实际应用角度来看，该系统能够为健康管理机构和个人用户提供更加科学准确的能量消耗评估工具，帮助制定个性化的运动计划和营养方案。通过分析不同人群在各类活动中的能量消耗特征，可以为肥胖控制、慢病管理等健康干预提供数据依据。同时，系统的研究成果可以应用于可穿戴设备的算法优化，提高能量消耗监测的准确性。从技术角度而言，本课题探索了大数据技术在生理数据分析中的应用，为相关领域的技术发展提供了实践经验。该系统整合了多种生理指标和人口学特征，建立了相对完整的能量消耗分析框架，对于运动生理学和健康信息学的发展具有一定的参考价值。作为一个毕业设计项目，本课题也体现了大数据技术在传统健康管理领域的创新应用，展示了跨学科融合的研究思路。
基于大数据的人体体能活动能量消耗分析与可视化系统选题指南-系统演示视频

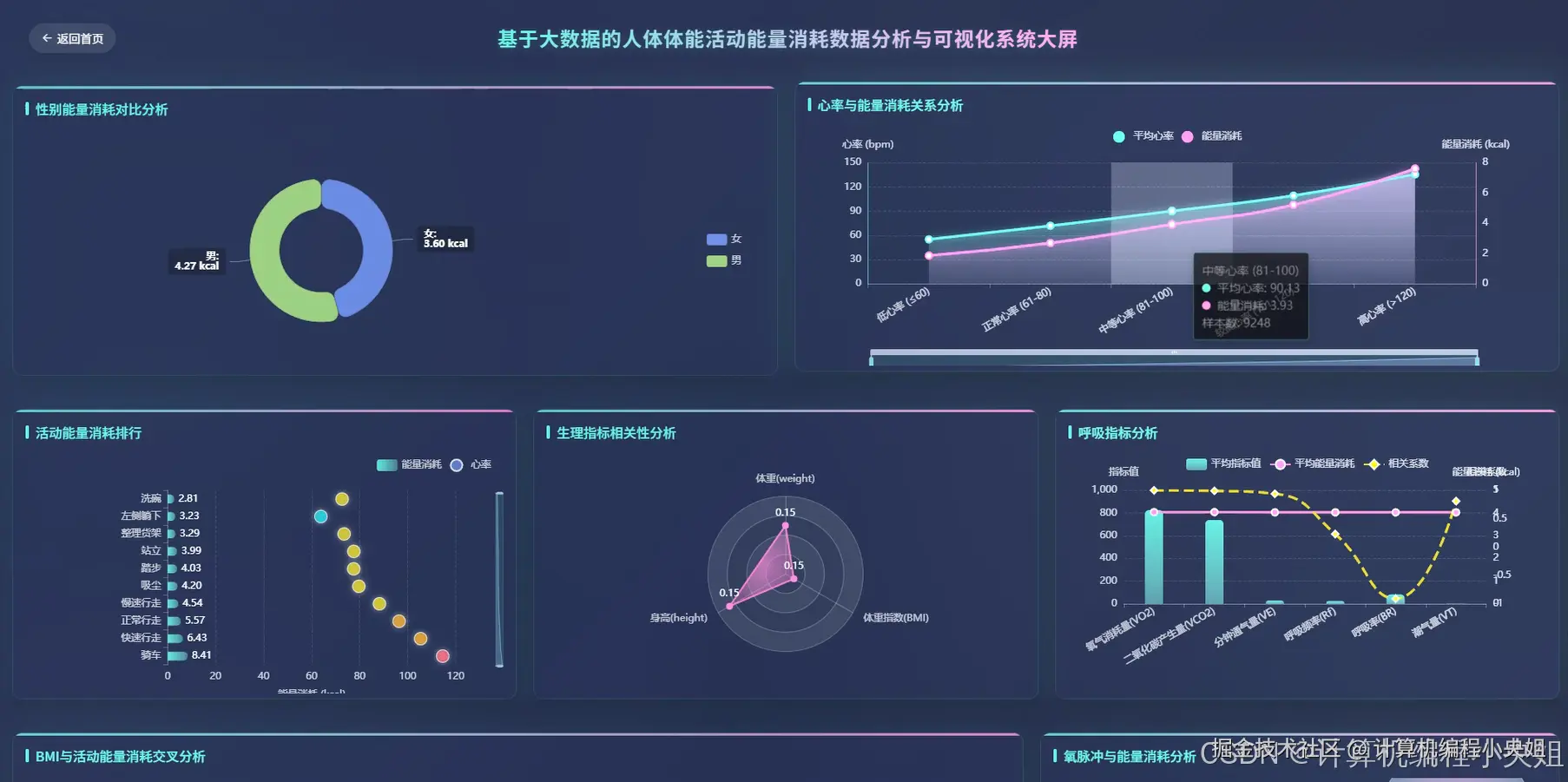

基于大数据的人体体能活动能量消耗分析与可视化系统选题指南-系统演示图片
基于大数据的人体体能活动能量消耗分析与可视化系统选题指南-系统部分代码
from pyspark.sql import SparkSession
from pyspark.sql.functions import *
from pyspark.sql.types import *
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
import mysql.connector
spark = SparkSession.builder.appName("EnergyConsumptionAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
@csrf_exempt
def gender_energy_analysis(request):
if request.method == 'POST':
try:
data = json.loads(request.body)
dataset_path = data.get('dataset_path', '/data/eehpa_dataset.csv')
df = spark.read.option("header", "true").option("inferSchema", "true").csv(dataset_path)
df = df.filter(col("gender").isNotNull() & col("EEm").isNotNull())
gender_stats = df.groupBy("gender").agg(
avg("EEm").alias("avg_energy"),
stddev("EEm").alias("std_energy"),
count("EEm").alias("count"),
min("EEm").alias("min_energy"),
max("EEm").alias("max_energy")
).collect()
male_data = next((row for row in gender_stats if row['gender'] == 'Male'), None)
female_data = next((row for row in gender_stats if row['gender'] == 'Female'), None)
energy_difference = male_data['avg_energy'] - female_data['avg_energy'] if male_data and female_data else 0
coefficient_variation_male = (male_data['std_energy'] / male_data['avg_energy']) * 100 if male_data else 0
coefficient_variation_female = (female_data['std_energy'] / female_data['avg_energy']) * 100 if female_data else 0
age_gender_cross = df.groupBy("gender", when(col("age") < 65, "Middle_aged").when(col("age") >= 75, "Elderly").otherwise("Senior")).agg(avg("EEm").alias("avg_energy")).collect()
bmi_gender_analysis = df.withColumn("bmi_category", when(col("bmi") < 18.5, "Underweight").when(col("bmi") < 25, "Normal").when(col("bmi") < 30, "Overweight").otherwise("Obese"))
bmi_gender_stats = bmi_gender_analysis.groupBy("gender", "bmi_category").agg(avg("EEm").alias("avg_energy"), count("*").alias("sample_count")).collect()
statistical_test_data = df.select("gender", "EEm").collect()
male_energies = [row['EEm'] for row in statistical_test_data if row['gender'] == 'Male']
female_energies = [row['EEm'] for row in statistical_test_data if row['gender'] == 'Female']
from scipy import stats
t_stat, p_value = stats.ttest_ind(male_energies, female_energies) if len(male_energies) > 0 and len(female_energies) > 0 else (0, 1)
result_data = {
'gender_comparison': [{'gender': row['gender'], 'avg_energy': round(row['avg_energy'], 2), 'std_energy': round(row['std_energy'], 2), 'sample_size': row['count'], 'min_energy': round(row['min_energy'], 2), 'max_energy': round(row['max_energy'], 2)} for row in gender_stats],
'energy_difference': round(energy_difference, 2),
'variation_analysis': {'male_cv': round(coefficient_variation_male, 2), 'female_cv': round(coefficient_variation_female, 2)},
'age_gender_interaction': [{'gender': row['gender'], 'age_group': row['CASE WHEN (age < 65) THEN Middle_aged WHEN (age >= 75) THEN Elderly ELSE Senior END'], 'avg_energy': round(row['avg_energy'], 2)} for row in age_gender_cross],
'bmi_gender_interaction': [{'gender': row['gender'], 'bmi_category': row['bmi_category'], 'avg_energy': round(row['avg_energy'], 2), 'sample_count': row['sample_count']} for row in bmi_gender_stats],
'statistical_significance': {'t_statistic': round(t_stat, 4), 'p_value': round(p_value, 4), 'significant': p_value < 0.05}
}
conn = mysql.connector.connect(host='localhost', user='root', password='123456', database='energy_analysis')
cursor = conn.cursor()
cursor.execute("INSERT INTO analysis_results (analysis_type, result_data, created_at) VALUES (%s, %s, NOW())", ('gender_energy_analysis', json.dumps(result_data)))
conn.commit()
cursor.close()
conn.close()
return JsonResponse({'status': 'success', 'data': result_data})
except Exception as e:
return JsonResponse({'status': 'error', 'message': str(e)})
return JsonResponse({'status': 'error', 'message': 'Invalid request method'})
@csrf_exempt
def activity_energy_analysis(request):
if request.method == 'POST':
try:
data = json.loads(request.body)
dataset_path = data.get('dataset_path', '/data/eehpa_dataset.csv')
df = spark.read.option("header", "true").option("inferSchema", "true").csv(dataset_path)
df = df.filter(col("original_activity_labels").isNotNull() & col("EEm").isNotNull())
activity_stats = df.groupBy("original_activity_labels").agg(
avg("EEm").alias("avg_energy"),
stddev("EEm").alias("std_energy"),
count("EEm").alias("sample_count"),
min("EEm").alias("min_energy"),
max("EEm").alias("max_energy"),
avg("METS").alias("avg_mets")
).orderBy(desc("avg_energy")).collect()
static_activities = ["sitting", "lying", "standing"]
dynamic_activities = ["walking", "running", "climbing stairs", "cycling"]
df_with_category = df.withColumn("activity_type", when(col("original_activity_labels").isin(static_activities), "Static").when(col("original_activity_labels").isin(dynamic_activities), "Dynamic").otherwise("Other"))
activity_type_stats = df_with_category.groupBy("activity_type").agg(avg("EEm").alias("avg_energy"), count("*").alias("sample_count")).collect()
intensity_analysis = df.withColumn("intensity_level", when(col("METS") < 3, "Light").when(col("METS") < 6, "Moderate").otherwise("Vigorous"))
intensity_stats = intensity_analysis.groupBy("intensity_level").agg(avg("EEm").alias("avg_energy"), avg("METS").alias("avg_mets"), count("*").alias("sample_count")).collect()
gender_activity_stats = df.groupBy("original_activity_labels", "gender").agg(avg("EEm").alias("avg_energy")).collect()
bmi_activity_analysis = df.withColumn("bmi_category", when(col("bmi") < 18.5, "Underweight").when(col("bmi") < 25, "Normal").when(col("bmi") < 30, "Overweight").otherwise("Obese"))
bmi_activity_stats = bmi_activity_analysis.groupBy("original_activity_labels", "bmi_category").agg(avg("EEm").alias("avg_energy"), count("*").alias("sample_count")).filter(col("sample_count") >= 5).collect()
correlation_analysis = df.select("EEm", "METS").collect()
energy_values = [row['EEm'] for row in correlation_analysis]
mets_values = [row['METS'] for row in correlation_analysis]
correlation_coefficient = np.corrcoef(energy_values, mets_values)[0, 1] if len(energy_values) > 0 else 0
top_energy_activities = sorted([row for row in activity_stats], key=lambda x: x['avg_energy'], reverse=True)[:5]
low_energy_activities = sorted([row for row in activity_stats], key=lambda x: x['avg_energy'])[:5]
result_data = {
'activity_rankings': [{'activity': row['original_activity_labels'], 'avg_energy': round(row['avg_energy'], 2), 'std_energy': round(row['std_energy'], 2), 'sample_count': row['sample_count'], 'avg_mets': round(row['avg_mets'], 2) if row['avg_mets'] else 0} for row in activity_stats],
'activity_type_comparison': [{'type': row['activity_type'], 'avg_energy': round(row['avg_energy'], 2), 'sample_count': row['sample_count']} for row in activity_type_stats],
'intensity_analysis': [{'intensity': row['intensity_level'], 'avg_energy': round(row['avg_energy'], 2), 'avg_mets': round(row['avg_mets'], 2), 'sample_count': row['sample_count']} for row in intensity_stats],
'gender_activity_differences': [{'activity': row['original_activity_labels'], 'gender': row['gender'], 'avg_energy': round(row['avg_energy'], 2)} for row in gender_activity_stats],
'bmi_activity_patterns': [{'activity': row['original_activity_labels'], 'bmi_category': row['bmi_category'], 'avg_energy': round(row['avg_energy'], 2), 'sample_count': row['sample_count']} for row in bmi_activity_stats],
'energy_mets_correlation': round(correlation_coefficient, 4),
'top_energy_activities': [{'activity': row['original_activity_labels'], 'avg_energy': round(row['avg_energy'], 2)} for row in top_energy_activities],
'low_energy_activities': [{'activity': row['original_activity_labels'], 'avg_energy': round(row['avg_energy'], 2)} for row in low_energy_activities]
}
conn = mysql.connector.connect(host='localhost', user='root', password='123456', database='energy_analysis')
cursor = conn.cursor()
cursor.execute("INSERT INTO analysis_results (analysis_type, result_data, created_at) VALUES (%s, %s, NOW())", ('activity_energy_analysis', json.dumps(result_data)))
conn.commit()
cursor.close()
conn.close()
return JsonResponse({'status': 'success', 'data': result_data})
except Exception as e:
return JsonResponse({'status': 'error', 'message': str(e)})
return JsonResponse({'status': 'error', 'message': 'Invalid request method'})
@csrf_exempt
def physiological_correlation_analysis(request):
if request.method == 'POST':
try:
data = json.loads(request.body)
dataset_path = data.get('dataset_path', '/data/eehpa_dataset.csv')
df = spark.read.option("header", "true").option("inferSchema", "true").csv(dataset_path)
physiological_indicators = ["HR", "VO2", "VCO2", "VE", "VO2.HR", "R", "Qt", "SV", "VE.VO2", "VE.VCO2"]
clean_df = df.select(["EEm"] + physiological_indicators + ["original_activity_labels", "gender", "age", "bmi"]).filter(col("EEm").isNotNull())
for indicator in physiological_indicators:
clean_df = clean_df.filter(col(indicator).isNotNull())
correlation_results = []
pandas_df = clean_df.toPandas()
for indicator in physiological_indicators:
correlation_coeff = pandas_df['EEm'].corr(pandas_df[indicator])
correlation_results.append({'indicator': indicator, 'correlation': round(correlation_coeff, 4), 'strength': 'Strong' if abs(correlation_coeff) > 0.7 else 'Moderate' if abs(correlation_coeff) > 0.4 else 'Weak'})
hr_energy_stats = clean_df.groupBy(when(col("HR") < 100, "Low_HR").when(col("HR") < 140, "Moderate_HR").otherwise("High_HR").alias("hr_category")).agg(avg("EEm").alias("avg_energy"), avg("HR").alias("avg_hr"), count("*").alias("sample_count")).collect()
respiratory_analysis = clean_df.groupBy("original_activity_labels").agg(avg("VO2").alias("avg_vo2"), avg("VCO2").alias("avg_vco2"), avg("VE").alias("avg_ve"), avg("EEm").alias("avg_energy")).collect()
oxygen_pulse_stats = clean_df.groupBy(when(col("VO2.HR") < 10, "Low_Efficiency").when(col("VO2.HR") < 15, "Moderate_Efficiency").otherwise("High_Efficiency").alias("efficiency_category")).agg(avg("EEm").alias("avg_energy"), avg("VO2.HR").alias("avg_oxygen_pulse")).collect()
respiratory_quotient_analysis = clean_df.groupBy("original_activity_labels").agg(avg("R").alias("avg_rq"), avg("EEm").alias("avg_energy")).collect()
cardiac_output_analysis = clean_df.select("Qt", "SV", "EEm", "original_activity_labels").groupBy("original_activity_labels").agg(avg("Qt").alias("avg_qt"), avg("SV").alias("avg_sv"), avg("EEm").alias("avg_energy")).collect()
ventilation_efficiency_stats = clean_df.groupBy(when(col("VE.VO2") < 30, "High_Efficiency").when(col("VE.VO2") < 40, "Moderate_Efficiency").otherwise("Low_Efficiency").alias("vent_efficiency")).agg(avg("EEm").alias("avg_energy"), avg("VE.VO2").alias("avg_ve_vo2"), avg("VE.VCO2").alias("avg_ve_vco2")).collect()
gender_physiological_diff = clean_df.groupBy("gender").agg(avg("HR").alias("avg_hr"), avg("VO2").alias("avg_vo2"), avg("EEm").alias("avg_energy")).collect()
age_physiological_patterns = clean_df.withColumn("age_group", when(col("age") < 65, "Middle_aged").when(col("age") >= 75, "Elderly").otherwise("Senior")).groupBy("age_group").agg(avg("HR").alias("avg_hr"), avg("VO2").alias("avg_vo2"), avg("VE").alias("avg_ve"), avg("EEm").alias("avg_energy")).collect()
predictor_importance = sorted(correlation_results, key=lambda x: abs(x['correlation']), reverse=True)
result_data = {
'correlation_matrix': correlation_results,
'hr_energy_relationship': [{'hr_category': row['hr_category'], 'avg_energy': round(row['avg_energy'], 2), 'avg_hr': round(row['avg_hr'], 1), 'sample_count': row['sample_count']} for row in hr_energy_stats],
'respiratory_patterns': [{'activity': row['original_activity_labels'], 'avg_vo2': round(row['avg_vo2'], 2), 'avg_vco2': round(row['avg_vco2'], 2), 'avg_ve': round(row['avg_ve'], 2), 'avg_energy': round(row['avg_energy'], 2)} for row in respiratory_analysis],
'oxygen_pulse_efficiency': [{'efficiency_level': row['efficiency_category'], 'avg_energy': round(row['avg_energy'], 2), 'avg_oxygen_pulse': round(row['avg_oxygen_pulse'], 2)} for row in oxygen_pulse_stats],
'respiratory_quotient_analysis': [{'activity': row['original_activity_labels'], 'avg_rq': round(row['avg_rq'], 3), 'avg_energy': round(row['avg_energy'], 2)} for row in respiratory_quotient_analysis],
'cardiac_output_patterns': [{'activity': row['original_activity_labels'], 'avg_qt': round(row['avg_qt'], 2) if row['avg_qt'] else 0, 'avg_sv': round(row['avg_sv'], 2) if row['avg_sv'] else 0, 'avg_energy': round(row['avg_energy'], 2)} for row in cardiac_output_analysis],
'ventilation_efficiency': [{'efficiency_level': row['vent_efficiency'], 'avg_energy': round(row['avg_energy'], 2), 'avg_ve_vo2': round(row['avg_ve_vo2'], 2), 'avg_ve_vco2': round(row['avg_ve_vco2'], 2)} for row in ventilation_efficiency_stats],
'gender_physiological_differences': [{'gender': row['gender'], 'avg_hr': round(row['avg_hr'], 1), 'avg_vo2': round(row['avg_vo2'], 2), 'avg_energy': round(row['avg_energy'], 2)} for row in gender_physiological_diff],
'age_physiological_patterns': [{'age_group': row['age_group'], 'avg_hr': round(row['avg_hr'], 1), 'avg_vo2': round(row['avg_vo2'], 2), 'avg_ve': round(row['avg_ve'], 2), 'avg_energy': round(row['avg_energy'], 2)} for row in age_physiological_patterns],
'predictor_importance_ranking': predictor_importance[:5]
}
conn = mysql.connector.connect(host='localhost', user='root', password='123456', database='energy_analysis')
cursor = conn.cursor()
cursor.execute("INSERT INTO analysis_results (analysis_type, result_data, created_at) VALUES (%s, %s, NOW())", ('physiological_correlation_analysis', json.dumps(result_data)))
conn.commit()
cursor.close()
conn.close()
return JsonResponse({'status': 'success', 'data': result_data})
except Exception as e:
return JsonResponse({'status': 'error', 'message': str(e)})
return JsonResponse({'status': 'error', 'message': 'Invalid request method'})
基于大数据的人体体能活动能量消耗分析与可视化系统选题指南-结语
💟💟如果大家有任何疑虑，欢迎在下方位置详细交流。
