基于Docker容器DevOps应用方案 企业业务代码发布系统

企业业务代码发布方式

传统方式

  • 以物理机或虚拟机为颗粒度部署
  • 部署环境比较复杂，需要有先进的自动化运维手段
  • 出现问题后重新部署成本大，一般采用集群方式部署
  • 部署后以静态方式展现

容器化方式

  • 以容器为颗粒度部署
  • 部署方式简单，启动速度快
  • 一次构建可到处运行
  • 出现故障后，可随时恢复
  • 可同时部署多套环境（测试、预发布、生产环境等）

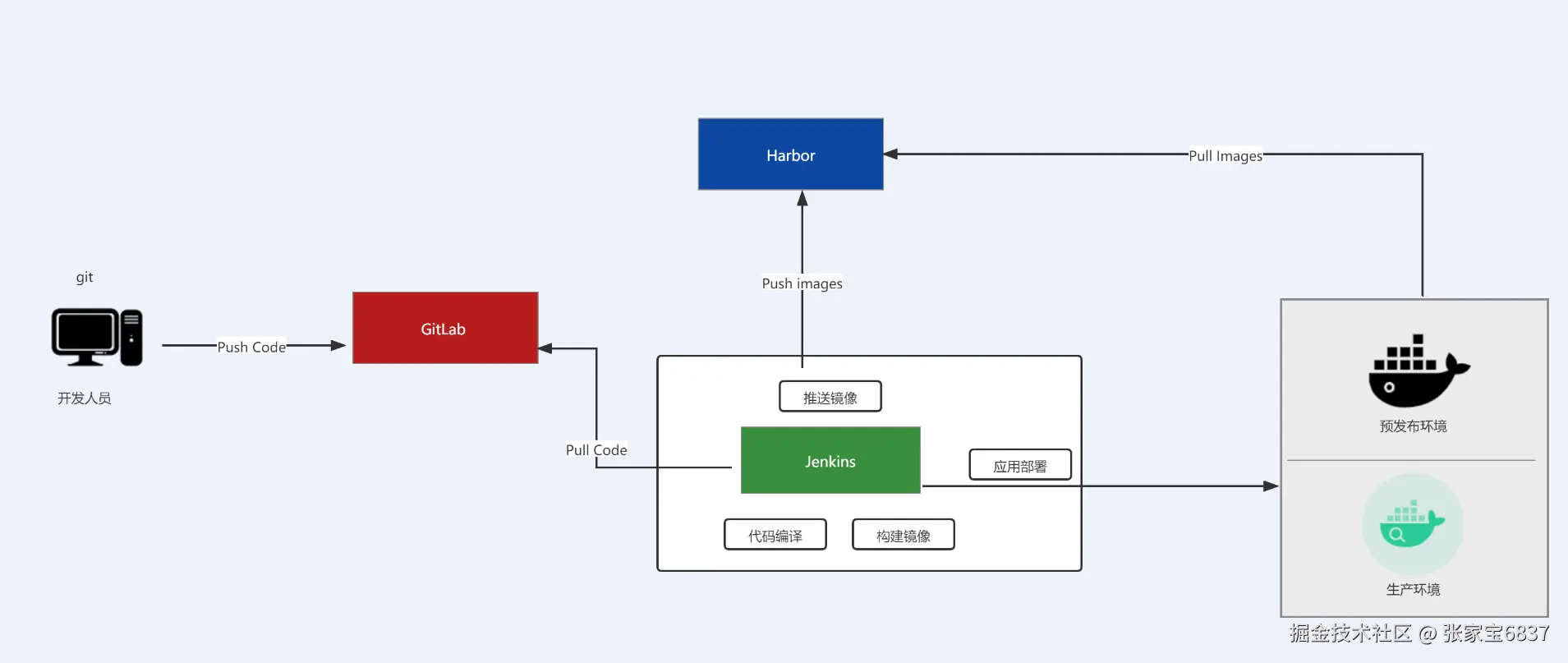

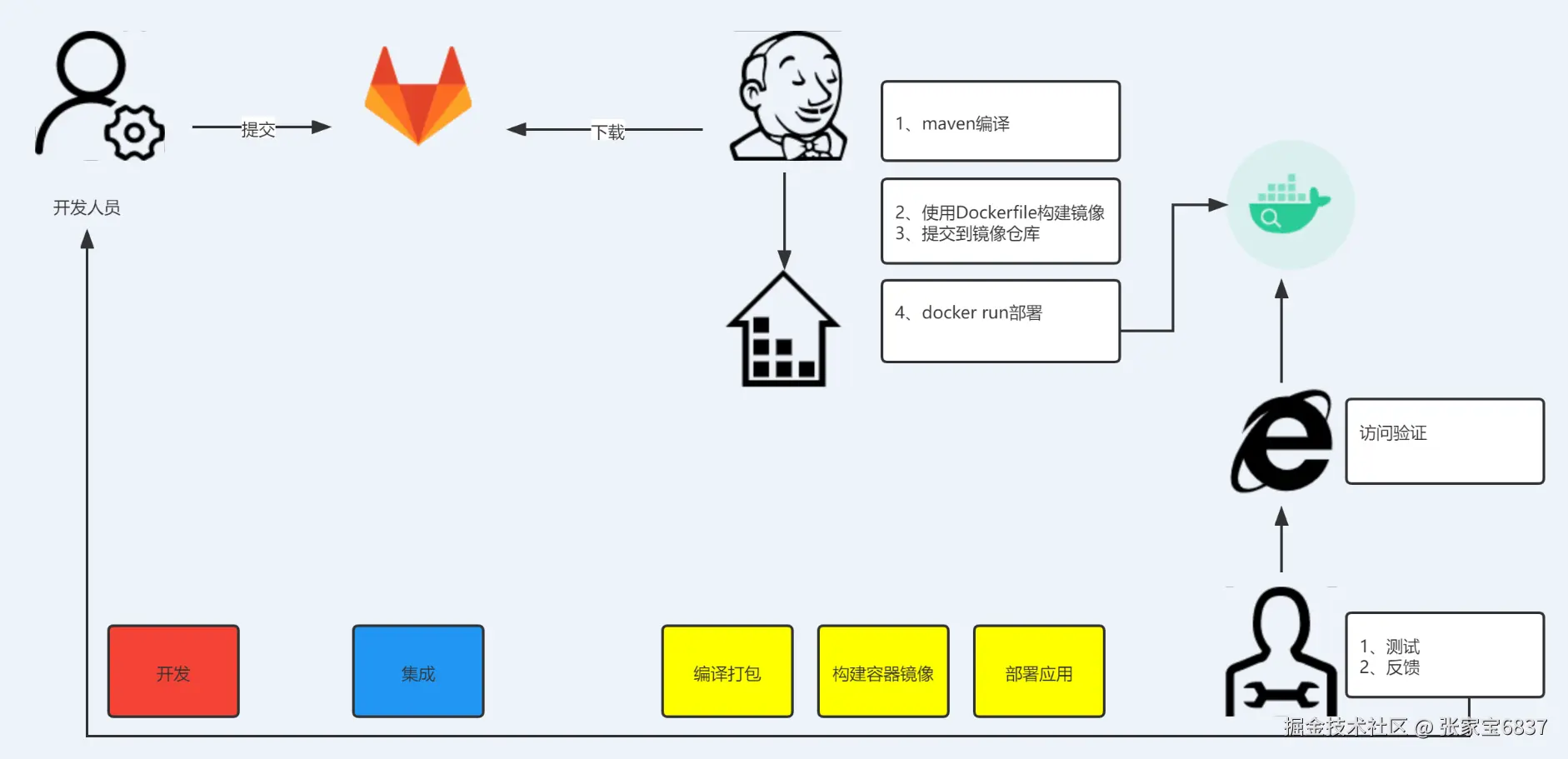

企业业务代码发布逻辑图


企业业务代码发布工具及流程图

工具

序号工具工具用途
1git用于提交业务代码或克隆业务代码仓库
2gitlab用于存储业务代码
3jenkins用于利用插件完成业务代码编译、构建、推送至Harbor容器镜像仓库及项目部署
4tomcat用于运行JAVA业务代码
5maven用于编译业务代码
6harbor用于存储业务代码构建的容器镜像存储
7docker用于构建容器镜像，部署项目

流程图

本次部署Java代码包


企业业务代码发布系统环境部署

主机规划

序号主机名主机IP主机功能软件
1dev192.168.91.150开发者 项目代码 sologit
2gitlab-server192.168.91.151代码仓库gitlab-ce
3jenkins-server192.168.91.152编译代码、打包镜像、项目发布jenkins、docker、git
4harbor-server192.168.91.153存储容器镜像harbor、docker
5web-server192.168.91.154运行容器，项目上线docke

gitlab-server、jenkins-server 2GB内存

# 准备上面5个节点，并在每个节点上进行下面的操作

# 配置每个节点的host /etc/hosts
192.168.91.150 dev
192.168.91.151 gitlab-server
192.168.91.152 jenkins-server
192.168.91.153 harobr-server
192.168.91.154 web-server

# 节点时间同步
# 这个命令会弹出一个vi编辑页面，添加 0 */1 * * * ntpdate time1.aliyun.com
crontab -e
# 查看添加后计划任务
crontab -l
0 */1 * * * ntpdate time1.aliyun.com

# 关闭防火墙
systemctl stop firewalld && systemctl disable firewalld

firewall-cmd --state
not running

# 使用非交互式修改selinux配置文件
sed -ri 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
# 重启节点
reboot

# 重启后验证selinux是否关闭
sestatus
SELinux status:                 disabled

主机中工具安装

dev主机
# git 用于下载项目及上传代码至代码仓库
yum -y install git
gitlab-server主机

清华大学开源软件镜像站，搜索"gitlab-ce"，点击进去，选择"yum"，选择"e17"

# 创建文件 /etc/yum.repos.d/gitlab.repo
[gitlab]
name=gitlab-ce
baseurl=https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el7
enabled=1
gpgcheck=0

# gitlab-ce安装
yum -y install gitlab-ce

# gitlab-ce配置
# 修改 /etc/gitlab/gitlab.rb 32行的配置如下
external_url 'http://192.168.91.151'

# 启动gitlab-ce
gitlab-ctl reconfigure
gitlab-ctl status

# 重置密码
gitlab-rake "gitlab:password:reset[root]"
Enter password:
Confirm password:
Password successfully updated for user with username root.


jenkins-server主机
jdk和maven安装

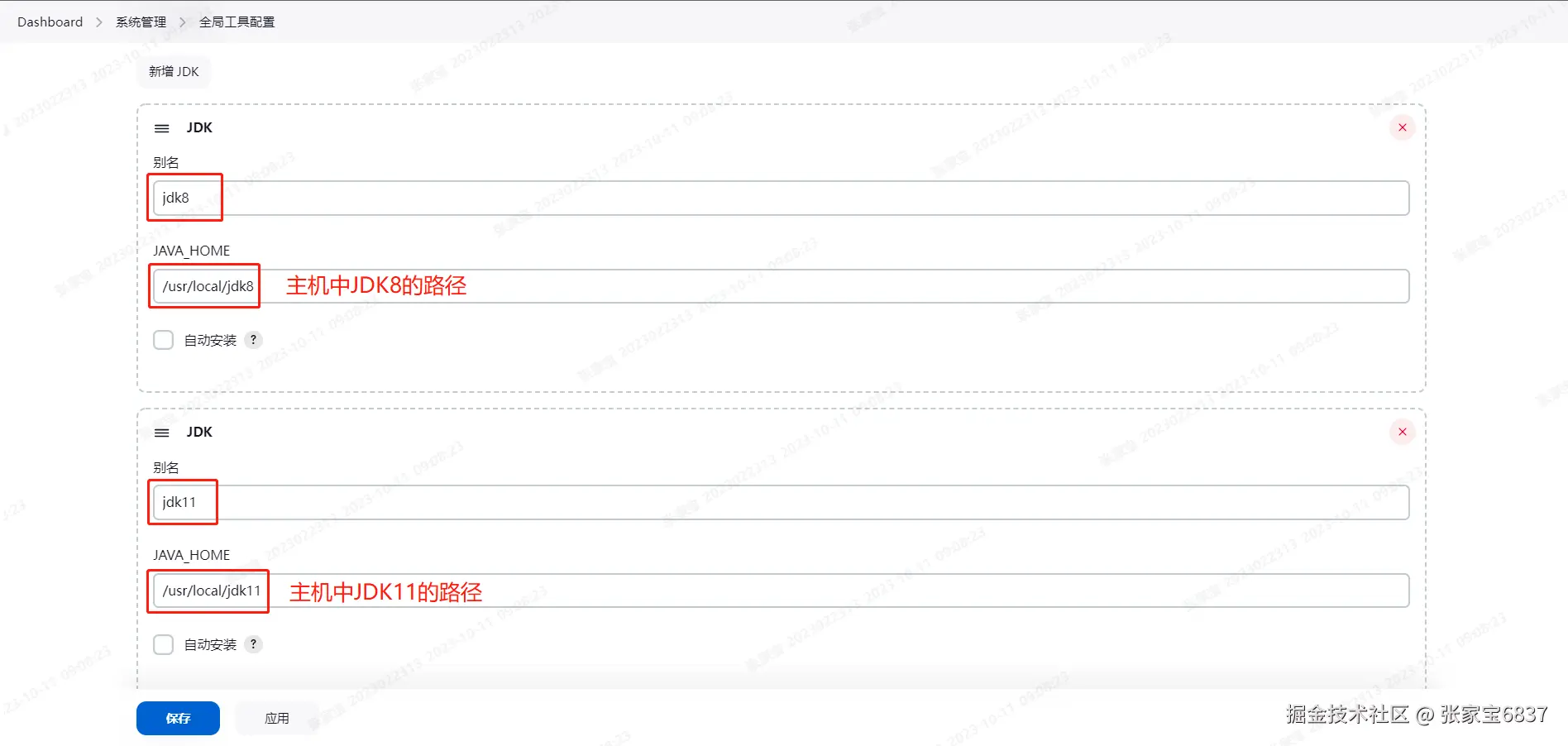

这里安装的是Jenkins 2.414.2，使用jdk11，必须下载jdk11的最新版本，还需要下载jdk8用于jdk8项目的编译。需要配置两个maven一个用于编译jdk8项目，一个用于编译jdk11项目，如果还有其他版本的jdk项目，按照相同的操作同时配置好jdk和maven即可

# JDK安装
# 下载JDK8，如果有的话直接拷贝过来即可
wget https://download.java.net/openjdk/jdk8u43/ri/openjdk-8u43-linux-x64.tar.gz
tar xf openjdk-8u43-linux-x64.tar.gz
mv java-se-8u43-ri /usr/local/jdk8
rm -f openjdk-8u43-linux-x64.tar.gz

# 下载JDK11，如果有的话直接拷贝过来即可
wget https://download.java.net/java/GA/jdk11/9/GPL/openjdk-11.0.2_linux-x64_bin.tar.gz
tar xf openjdk-11.0.2_linux-x64_bin.tar.gz
mv jdk-11.0.2 /usr/local/jdk11
rm -f openjdk-11.0.2_linux-x64_bin.tar.gz

# 配置java环境变量
echo 'export JAVA_HOME=/usr/local/jdk11' >> /etc/profile
echo 'export PATH=$PATH:${JAVA_HOME}/bin' >> /etc/profile
source /etc/profile

# 设置/usr/bin/java软连接，安装jenkins时需要
ln -s /usr/local/jdk11/bin/java /usr/bin/java

java -version
openjdk version "11.0.2" 2019-01-15
OpenJDK Runtime Environment 18.9 (build 11.0.2+9)
OpenJDK 64-Bit Server VM 18.9 (build 11.0.2+9, mixed mode)

# maven安装
# 安装两个一个用于jdk8项目，一个用于jdk11项目
# openjdk8使用maven3.8，否则可能会出现一些证书不能使用的情况，jdk8可以使用maven的最新版本
wget https://dlcdn.apache.org/maven/maven-3/3.8.8/binaries/apache-maven-3.8.8-bin.tar.gz
tar xf apache-maven-3.8.8-bin.tar.gz
mv apache-maven-3.8.8 /usr/local/mvn_jdk8
rm -f apache-maven-3.8.8-bin.tar.gz

wget https://dlcdn.apache.org/maven/maven-3/3.9.4/binaries/apache-maven-3.9.4-bin.tar.gz
tar xf apache-maven-3.9.4-bin.tar.gz
mv apache-maven-3.9.4 /usr/local/mvn_jdk11
rm -f apache-maven-3.9.4-bin.tar.gz

# 给不同的mvn配置不同的jdk
sed '30 aJAVA_HOME=/usr/local/jdk8' -i /usr/local/mvn_jdk8/bin/mvn
sed '30 aJAVA_HOME=/usr/local/jdk11' -i /usr/local/mvn_jdk11/bin/mvn

# 验证两个mvn是否配置正确
/usr/local/mvn_jdk8/bin/mvn -v
Apache Maven 3.8.8 (4c87b05d9aedce574290d1acc98575ed5eb6cd39)
Maven home: /usr/local/mvn_jdk8
Java version: 1.8.0_43, vendor: Oracle Corporation, runtime: /usr/local/jdk8/jre
Default locale: en_US, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-1160.71.1.el7.x86_64", arch: "amd64", family: "unix"

/usr/local/mvn_jdk11/bin/mvn -v
Apache Maven 3.9.4 (dfbb324ad4a7c8fb0bf182e6d91b0ae20e3d2dd9)
Maven home: /usr/local/mvn_jdk11
Java version: 11.0.2, vendor: Oracle Corporation, runtime: /usr/local/jdk11
Default locale: en_US, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-1160.71.1.el7.x86_64", arch: "amd64", family: "unix"

# 配置maven环境变量
echo 'export MAVEN_HOME=/usr/local/mvn_jdk11' >> /etc/profile
echo 'export PATH=$PATH:${MAVEN_HOME}/bin' >> /etc/profile
source /etc/profile

mvn -version
Apache Maven 3.9.4 (dfbb324ad4a7c8fb0bf182e6d91b0ae20e3d2dd9)
Maven home: /usr/local/mvn_jdk11
Java version: 11.0.2, vendor: Oracle Corporation, runtime: /usr/local/jdk11
Default locale: en_US, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-1160.71.1.el7.x86_64", arch: "amd64", family: "unix"

maven配置修改

# 创建maven repository目录
mkdir /opt/mvn_jdk8 /opt/mvn_jdk11
# 给这些目录赋予其他用户权限
chmod 777 /opt/mvn_*

/usr/local/mvn_jdk8/conf/settings.xml配置文件修改为下面的内容

<?xml version="1.0" encoding="UTF-8"?>
<settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 https://maven.apache.org/xsd/settings-1.2.0.xsd">
  <localRepository>/opt/mvn_jdk8</localRepository>
  <mirrors>
    <mirror>
      <id>aliyunmaven</id>
      <mirrorOf>*</mirrorOf>
      <name>阿里云公共仓库</name>
      <url>https://maven.aliyun.com/repository/public</url>
    </mirror>
  </mirrors>
</settings>

/usr/local/mvn_jdk11/conf/settings.xml配置文件修改为下面的内容

<?xml version="1.0" encoding="UTF-8"?>
<settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 https://maven.apache.org/xsd/settings-1.2.0.xsd">
  <localRepository>/opt/mvn_jdk11</localRepository>
  <mirrors>
    <mirror>
      <id>aliyunmaven</id>
      <mirrorOf>*</mirrorOf>
      <name>阿里云公共仓库</name>
      <url>https://maven.aliyun.com/repository/public</url>
    </mirror>
  </mirrors>
</settings>
jenkins安装

访问 www.jenkins.io/download/ 页面，点击 Red Hat/Fedora/Alma/Rocky/CentOS ，进入 pkg.jenkins.io/redhat-stab… 页面，这里有安装步骤

wget -O /etc/yum.repos.d/jenkins.repo https://pkg.jenkins.io/redhat-stable/jenkins.repo
rpm --import https://pkg.jenkins.io/redhat-stable/jenkins.io-2023.key
yum -y install fontconfig
yum -y install jenkins
systemctl enable jenkins && systemctl start jenkins

# jenkins安装完成之后，可能需要做下面这些修改
# /etc/sudoes 修改这个文件，给jenkins用户添加免密
echo "jenkins ALL=(ALL) NOPASSWD: ALL" >> /etc/sudoers
# /etc/passwd 查看这个文件jenkins所在行，最后一个单词可能是false(导致不能切换用户)，需要修改为bash
cat /etc/passwd | grep jenkins
jenkins:x:997:995:Jenkins Automation Server:/var/lib/jenkins:/bin/false
# 切换用户后，可能不能显示用户
su jenkins
# 若不显示用户，则执行下面的操作
cp /etc/skel/.bash* ~/
# 退出，重新登录即可显示用户
exit
su jenkins
exit

# 做出上述修改之后，回到root用户，重启jenkins
systemctl restart jenkins

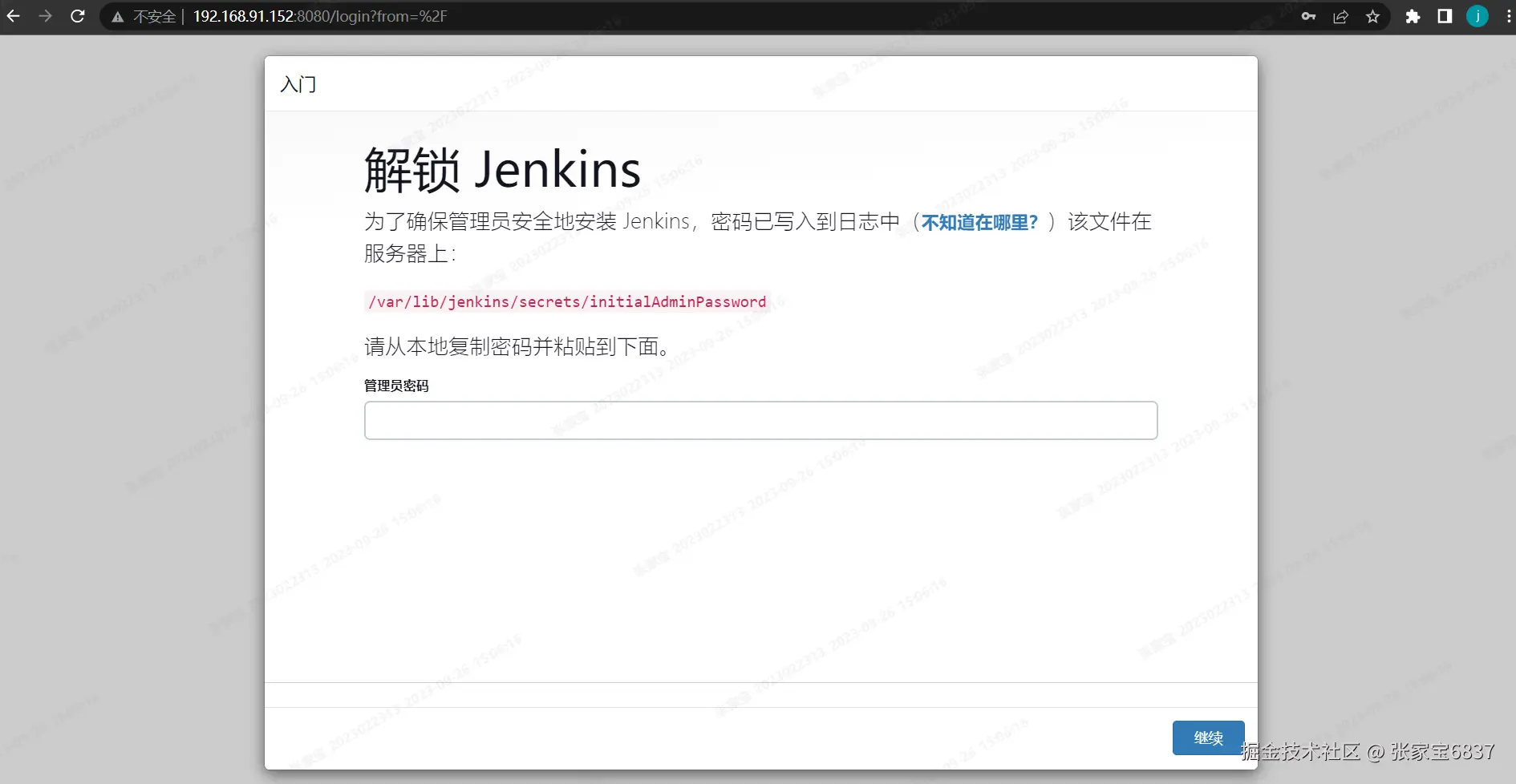

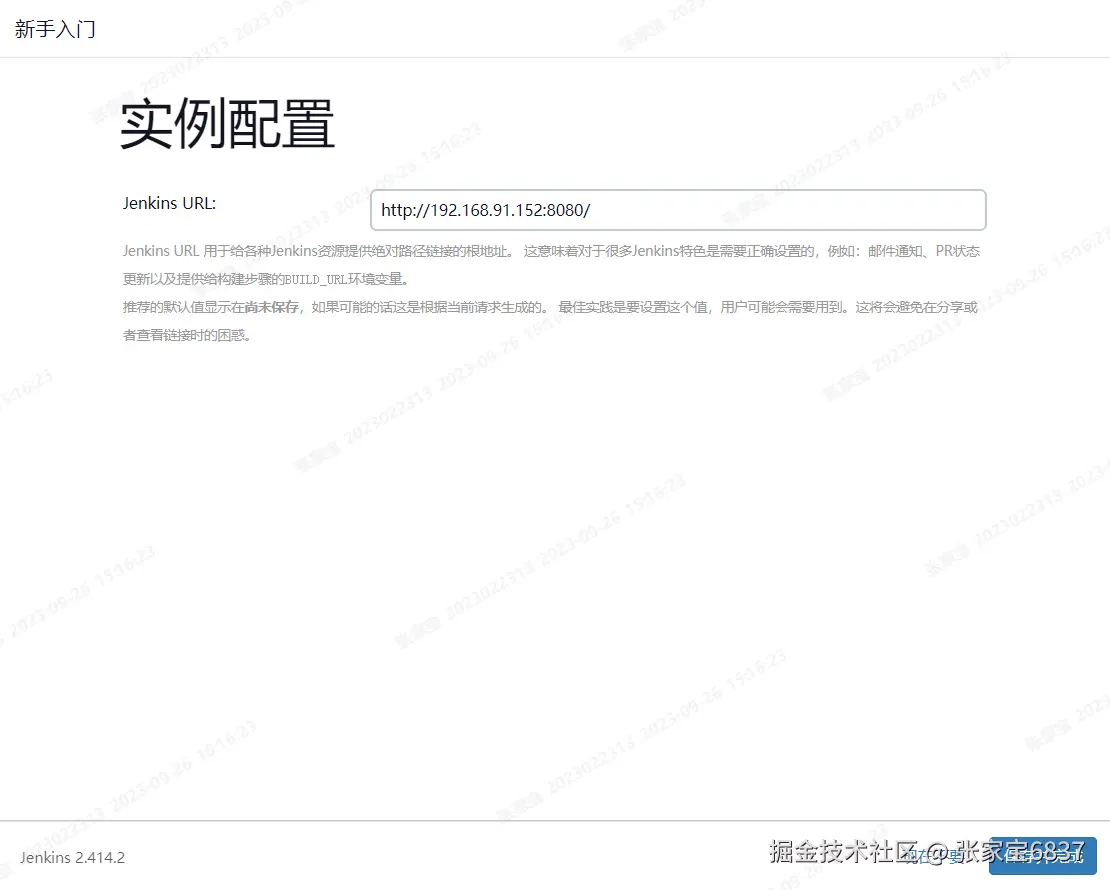

根据提示解锁Jenkins

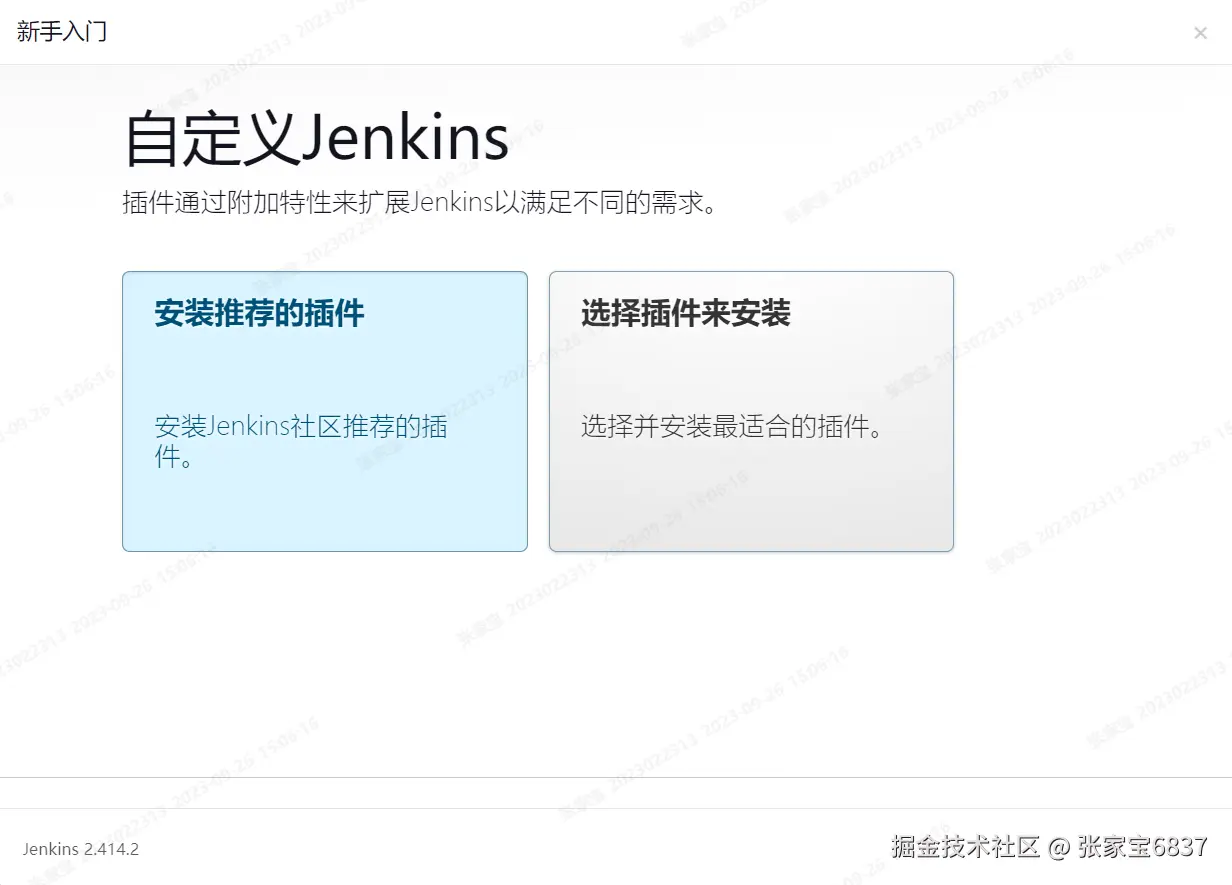

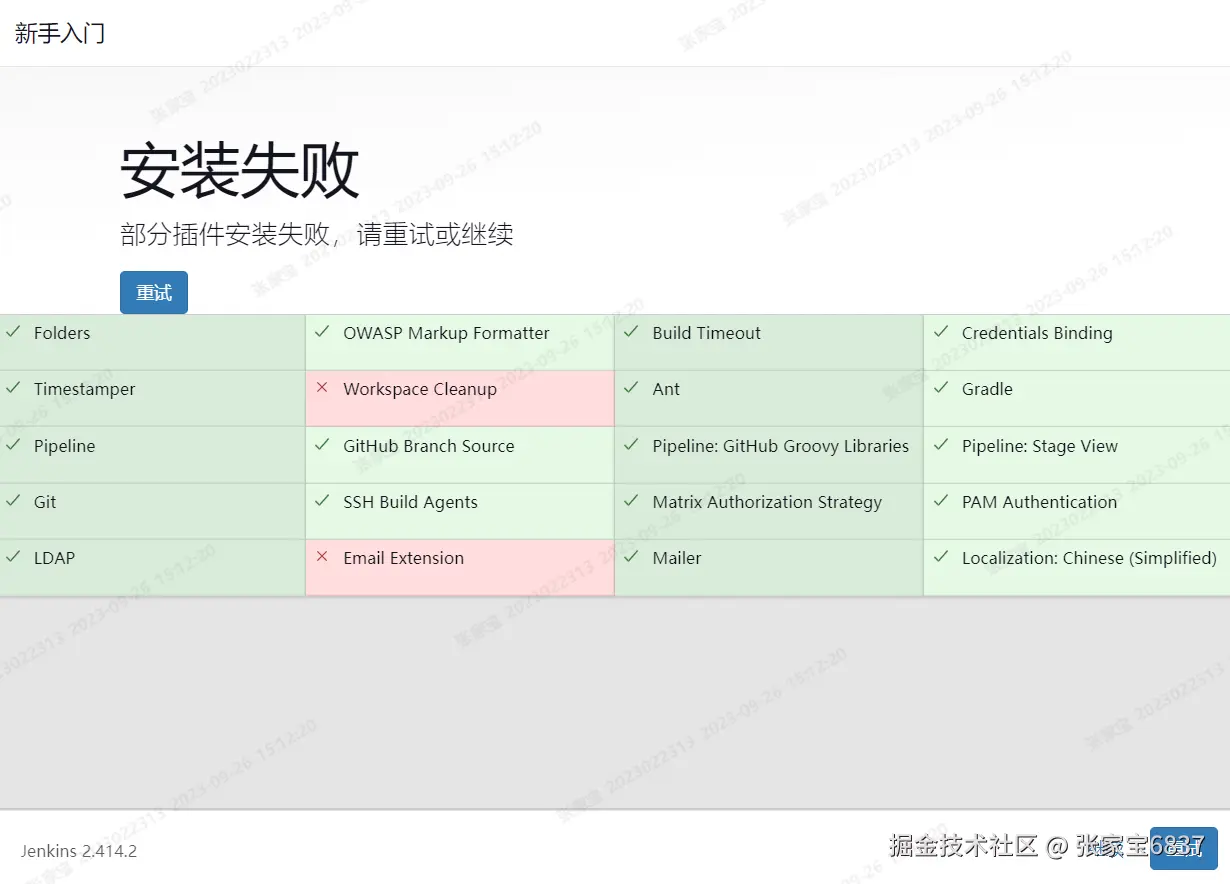

安装推荐的插件，可能会有部分插件安装失败，点击"重试"。如果所有的插件都安装失败，如果报"unable to find valid certification path to requeste"这个错误，需要把openjdk换成对应大版本的最新版本，或者使用jdk而不是openjdk


创建第一个管理员用户




git安装
yum -y install git
docker安装
# docker安装
wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum -y install docker-ce
cat << EOF > /etc/docker/daemon.json
{
  "registry-mirrors": ["https://zwyx2n3v.mirror.aliyuncs.com"]
}
EOF
systemctl enable docker && systemctl start docker
docker version
harbor-server主机
# docker安装
wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum -y install docker-ce
cat << EOF > /etc/docker/daemon.json
{
  "registry-mirrors": ["https://zwyx2n3v.mirror.aliyuncs.com"]
}
EOF
systemctl enable docker && systemctl start docker
docker version

# docker-compose安装
wget https://github.com/docker/compose/releases/download/v2.20.3/docker-compose-linux-x86_64
mv docker-compose-linux-x86_64 /usr/bin/docker-compose
chmod +x /usr/bin/docker-compose
docker-compose version

# harbor部署
wget https://github.com/goharbor/harbor/releases/download/v2.9.0/harbor-offline-installer-v2.9.0.tgz
tar xf harbor-offline-installer-v2.9.0.tgz
cd harbor
cp harbor.yml.tmpl harbor.yml
# 修改配置文件，修改hostname: 192.168.91.153，并将https相关配置注掉
vim harbor.yml

./prepare
./install.sh
web-server主机
# docker安装
wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum -y install docker-ce
cat << EOF > /etc/docker/daemon.json
{
  "registry-mirrors": ["https://zwyx2n3v.mirror.aliyuncs.com"]
}
EOF
systemctl enable docker && systemctl start docker
docker version

工具集成配置

配置docker主机使用harbor
# jenkins-server 和 web-server
cat << EOF > /etc/docker/daemon.json
{
  "registry-mirrors": ["https://zwyx2n3v.mirror.aliyuncs.com"],
  "insecure-registries": ["http://192.168.91.153"]
}
EOF
systemctl restart docker
# 输入用户名和密码登陆harbor
docker login 192.168.91.153

# harbor-server
cat << EOF > /etc/docker/daemon.json
{
  "registry-mirrors": ["https://zwyx2n3v.mirror.aliyuncs.com"],
  "insecure-registries": ["http://192.168.91.153"]
}
EOF
docker-compose down
systemctl restart docker
docker-compose up -d
配置jenkins使用docker
# jenkins-server

# 验证系统中是否有jenkins用户
grep jenkins /etc/passwd
jenkins:x:997:995:Jenkins Automation Server:/var/lib/jenkins:/bin/bash

# 验证系统中是否有docker用户及用户组
grep docker /etc/group
docker:x:993:

# 添加jenkins用户到docker用户组
usermod -G docker jenkins
grep docker /etc/group
docker:x:993:jenkins

# 重启jenkins服务
systemctl restart jenkins
密钥配置
dev主机至gitlab-ce
# dev

# dev主机生成密钥对
ssh-keygen

cat /root/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCijXXzcjTEkvb6JWWc7ufDGaG7J7g5xabj2H0YDsW5O+gPWOYb325rYtUC78CZ1c1dvC7sng5F6tUowEwe5xWsJBsC239CkRhNqRnY8Y7C4+lEYqbvh1VhDELOaSqIqnLd3e6POWk2KvWKdnwFwinaILV5R+AayZtVlLJ3yjSEXeZbnwwLOeEX9p/6Yhn3KvkHlRxS7SAD2cIwrtuoCMuj9o5FbO49bXnhlAO/7rvJX9cc/KEGVEQgdgHAxenB85CK2twQLMk7za+ZNPmEqI+oy095aY+h0wnnesPxfPjGI4UpM+r9HPt7WKhw60zg/KEKvl47KVf7ZyDlO7iaQDbZ root@dev

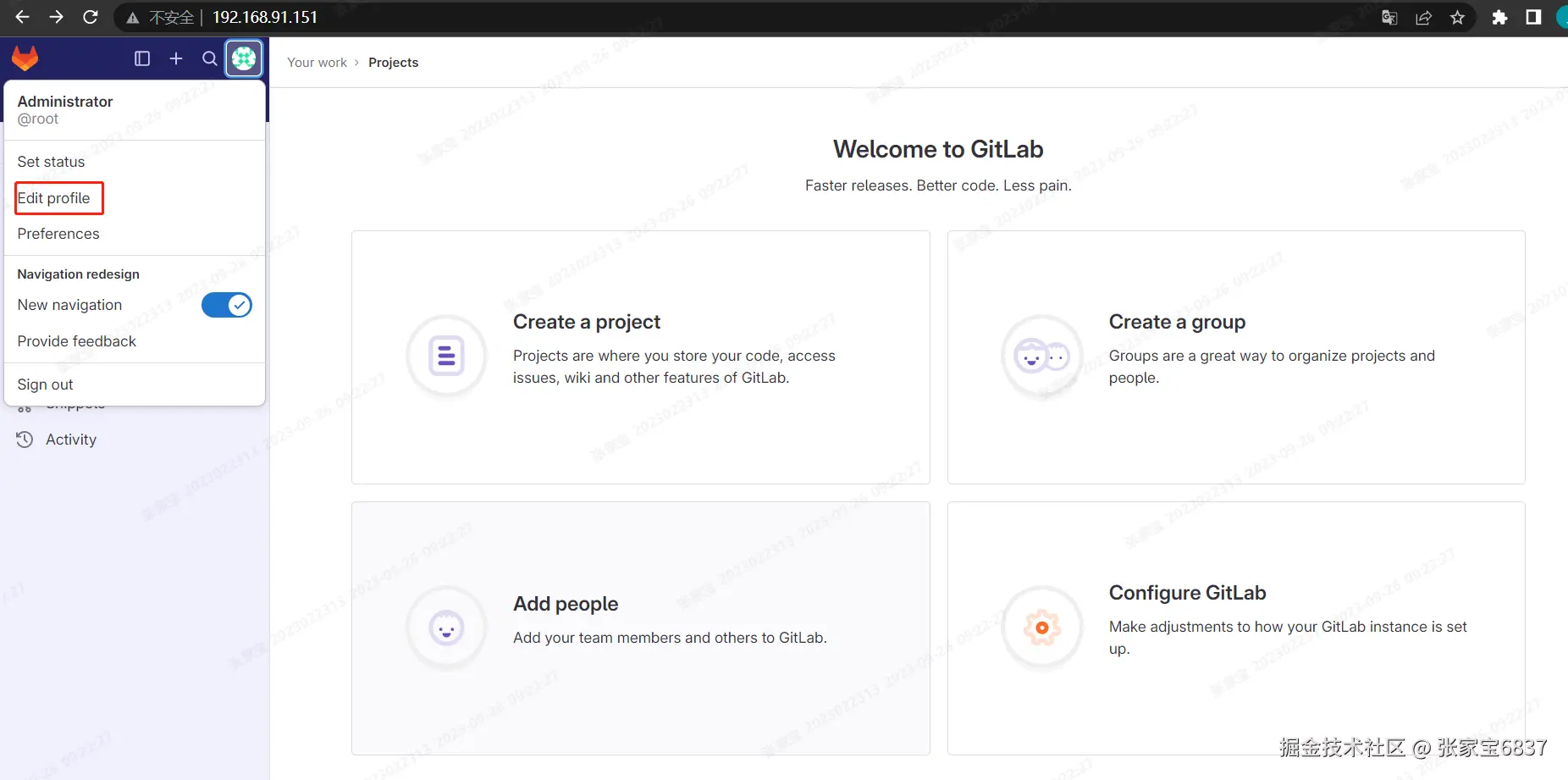

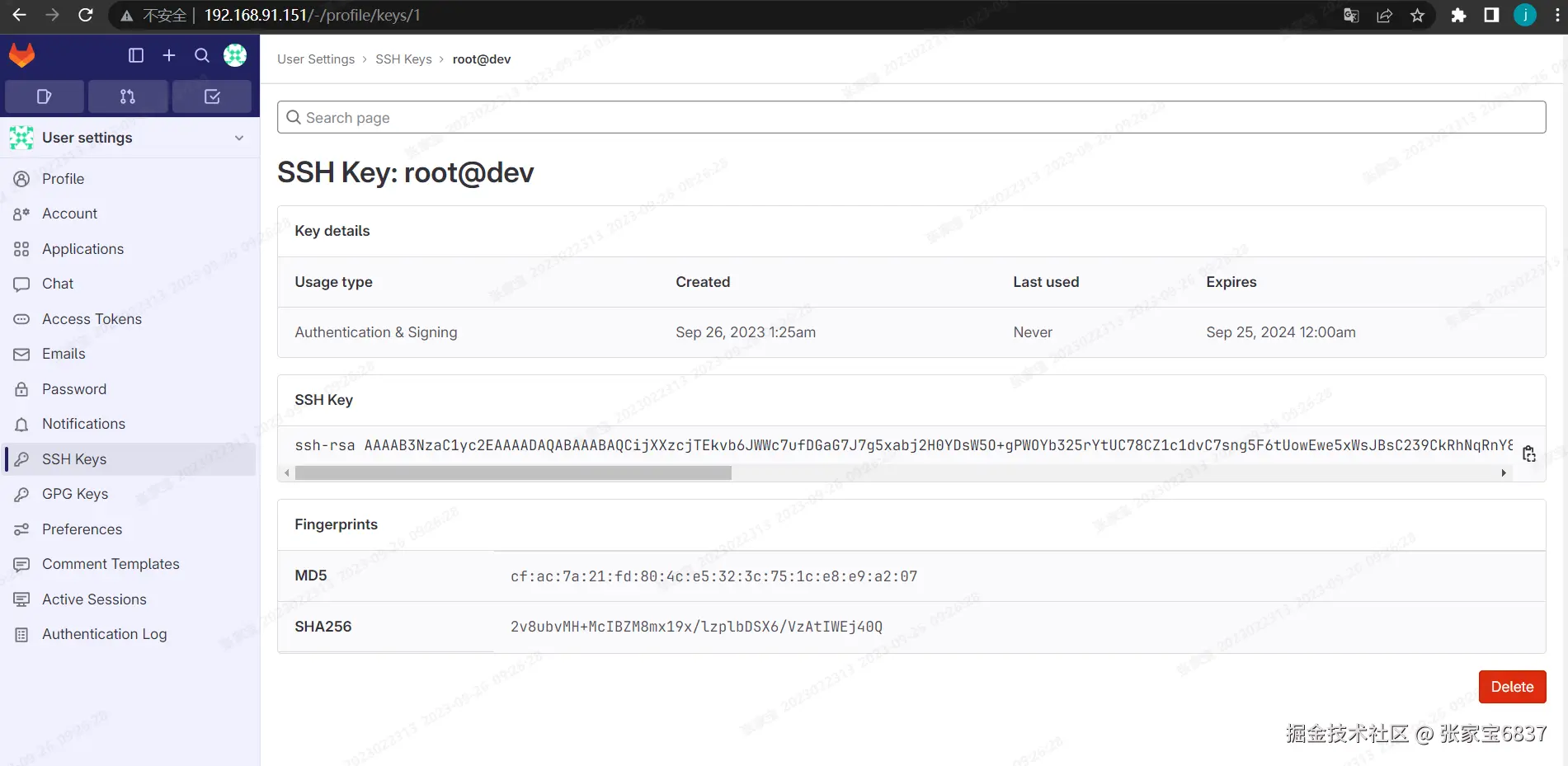

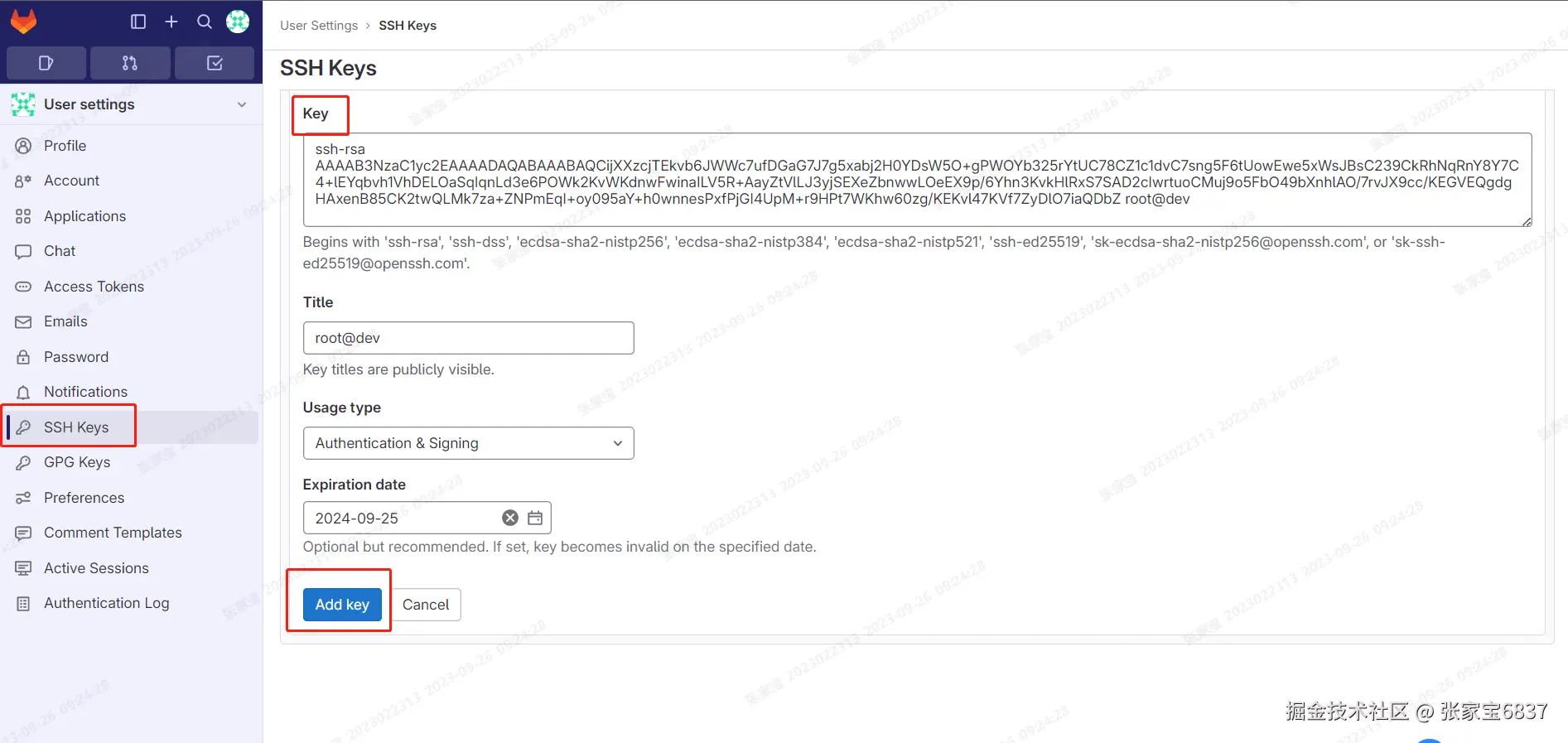

将上面生成的公钥添加到 gitlab 中




jenkins-server主机至gitlab-ce
# jenkins-server

su jenkins

# jenkins-server主机生成密钥对
ssh-keygen

cat ~/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC8M+vxsz0ZyK2Agr8hqfaHfEnulBIOXNtfoVtZizKb++iaQewBV6sK4ygb3RWbru5ZMJLCIY08ZBAPdjEObb/+QnC2999+s8sJKKdJ2K74YaUl8y35eDHQosCAxATNU1fVfC5IVsO49uiJvw1lJKAtfueDFBcSQA9Y9oA767TqbQ0wOQmB4sCYurhSJtDivRG21vjTlVYI5relLT6g4iL1UyTXzVZwICKH5G/oz2q7CjMEXzNbJKiblngtBubmolv2sJ/VzST67T8gQ1QeRmEvO4klEachGhDmYtNAqaD1fBzmMstGlJA2yuqK3idR8pxwAL0UniDM/acQv5n2mo5X jenkins@jenkins-server

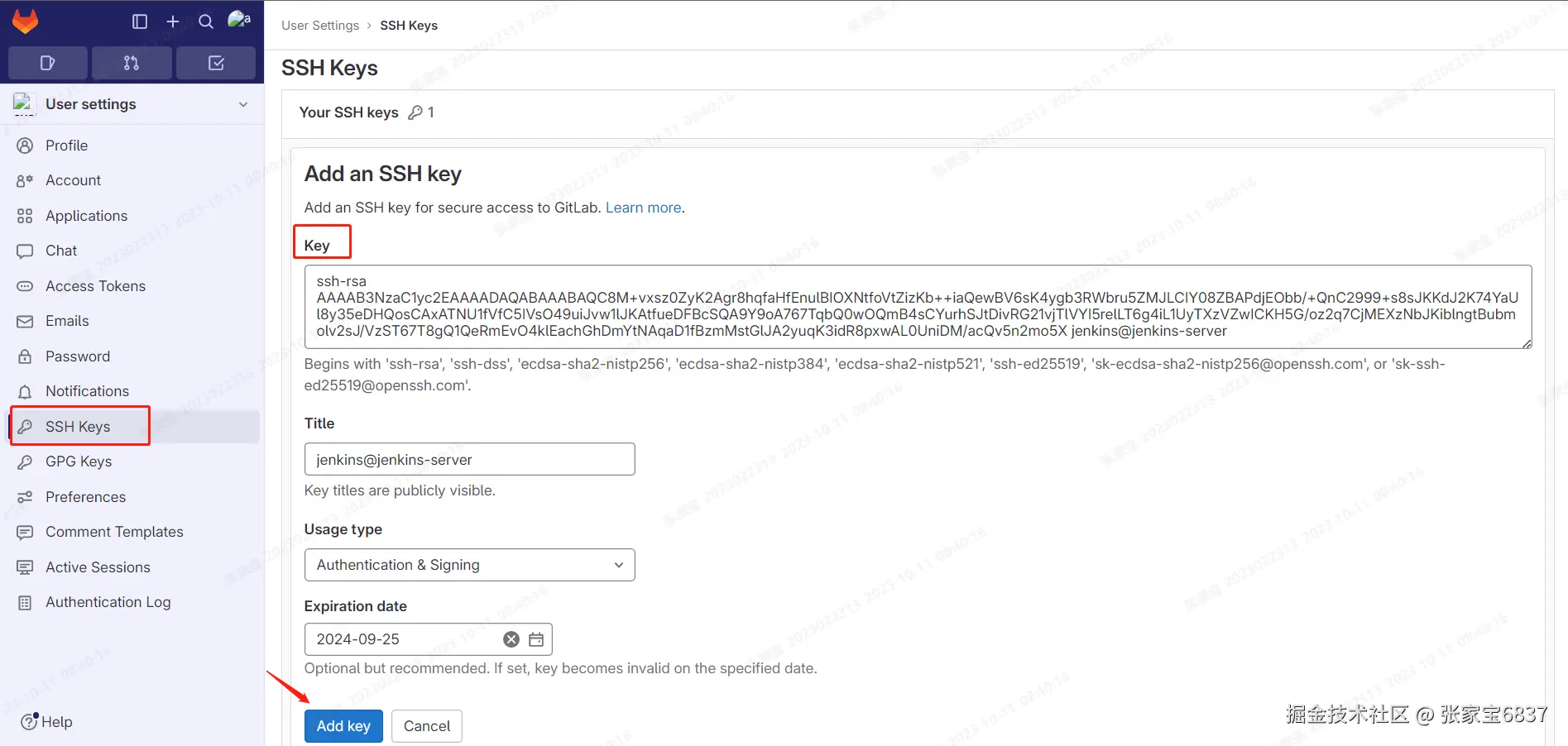

将上面生成的公钥添加到 gitlab 中

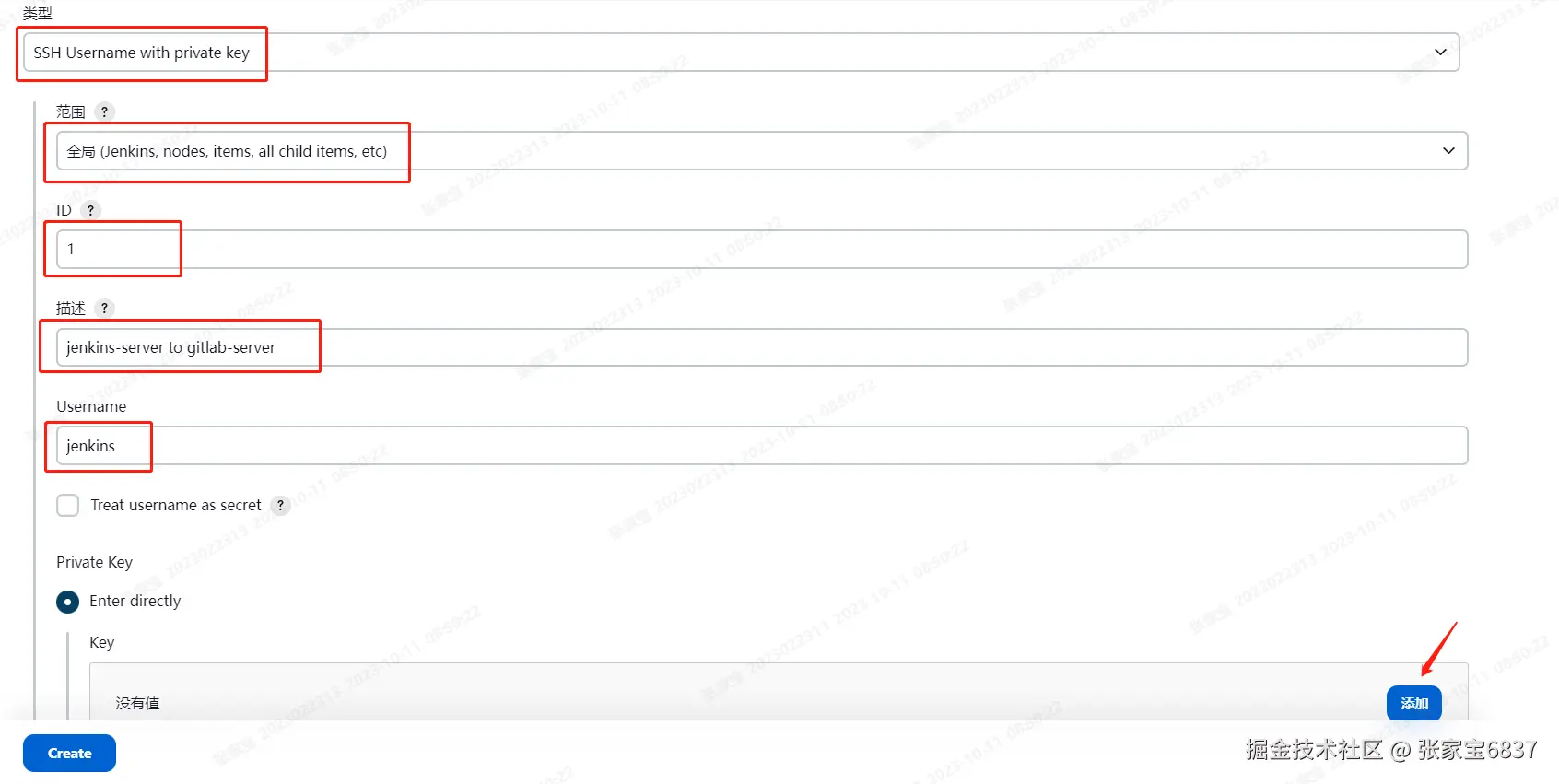

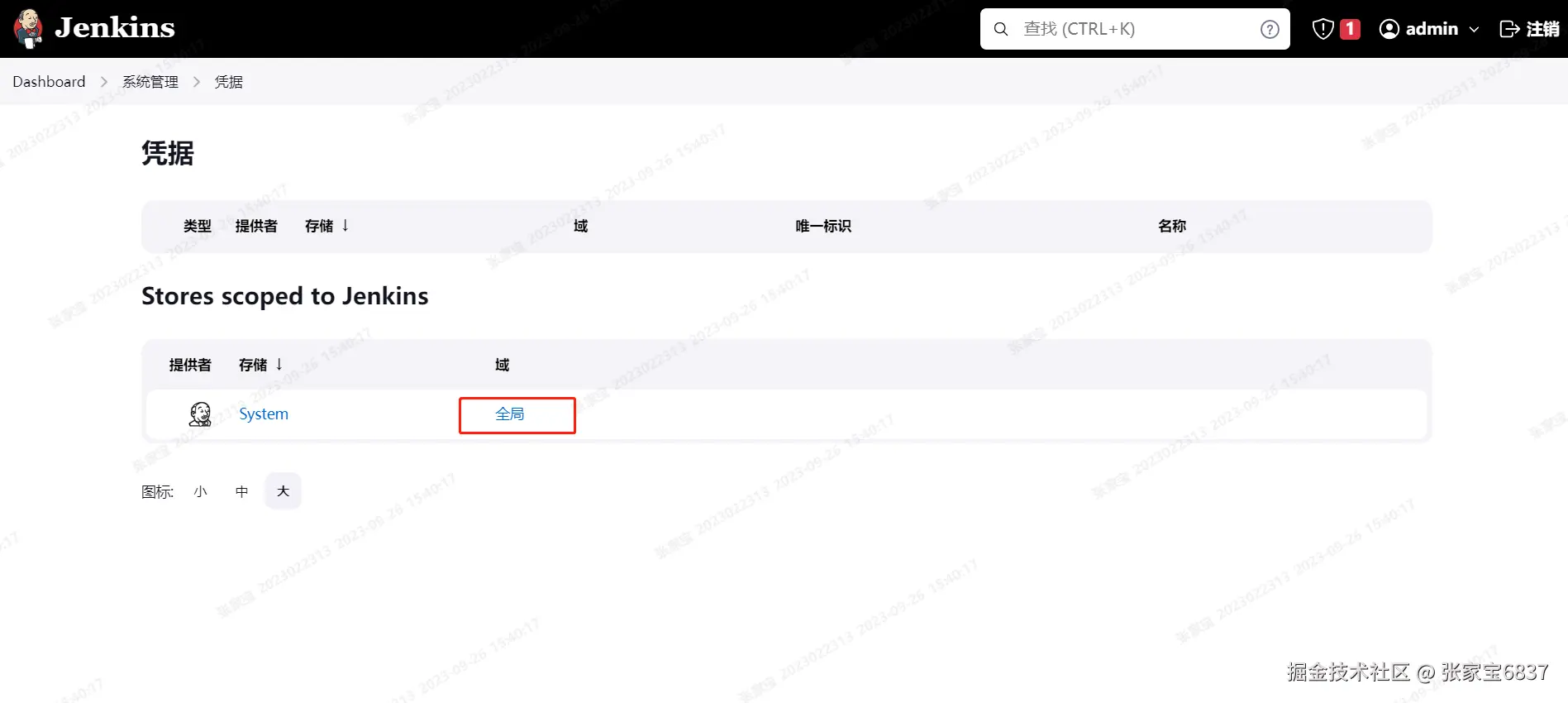

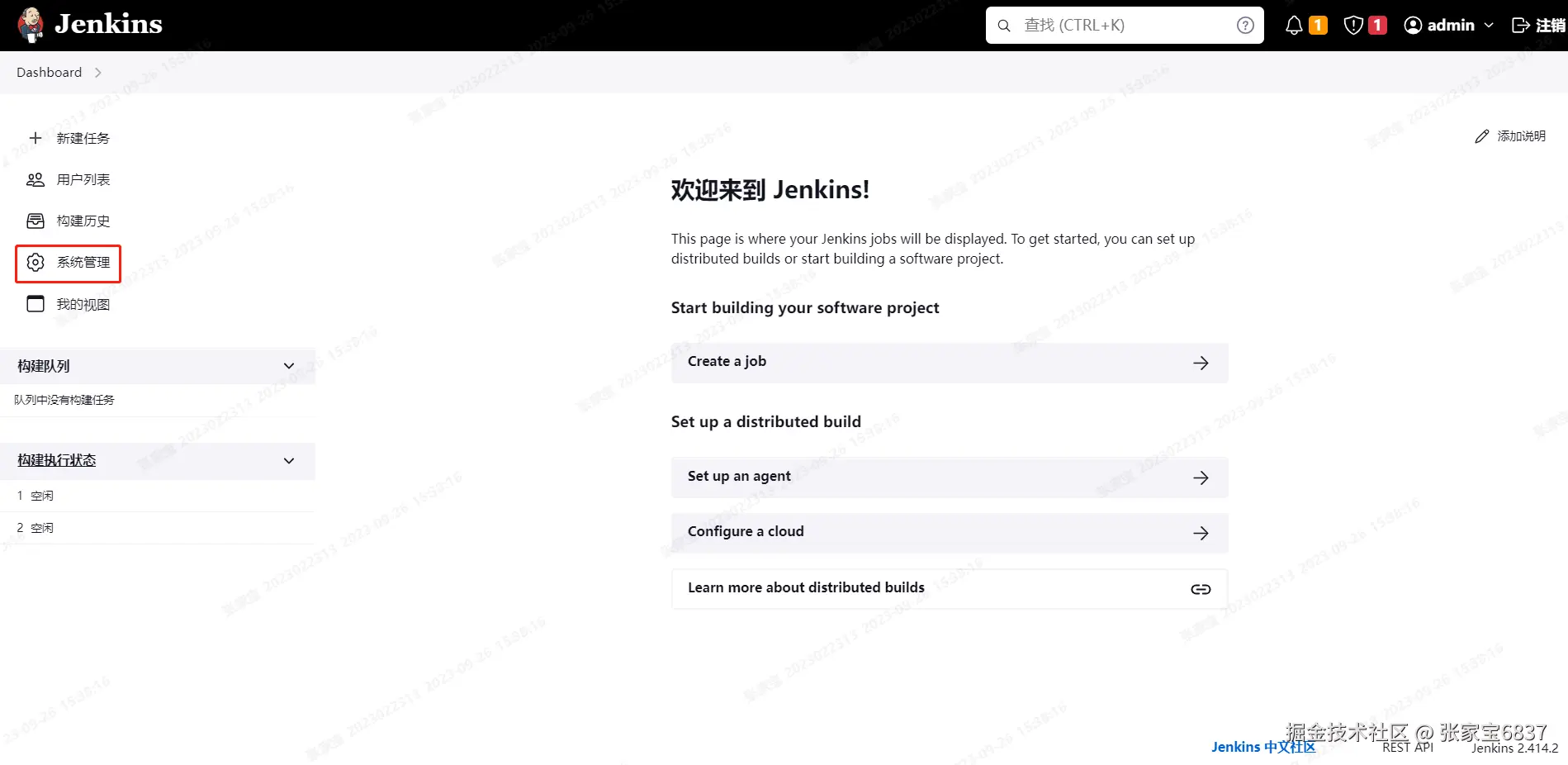

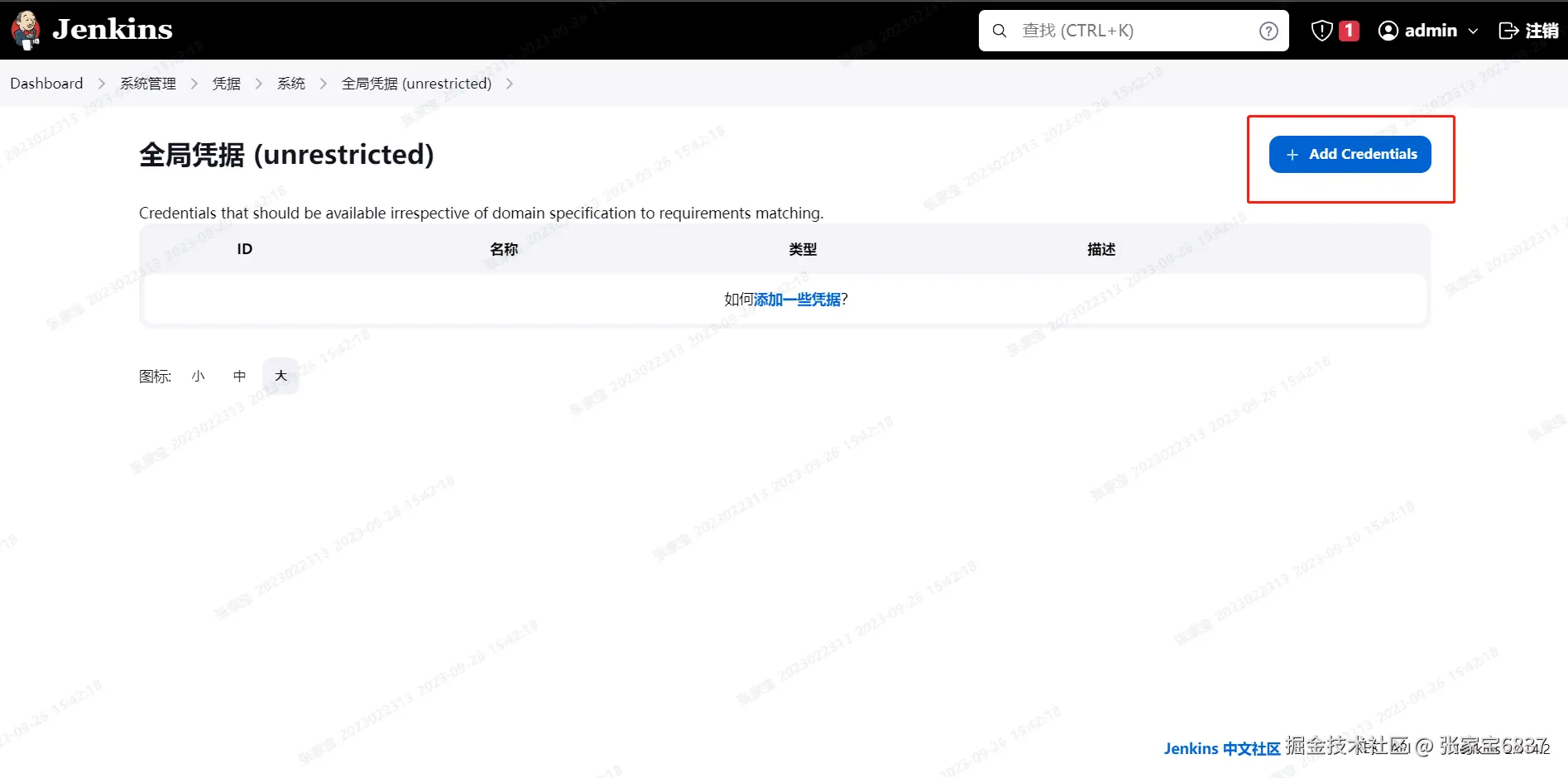

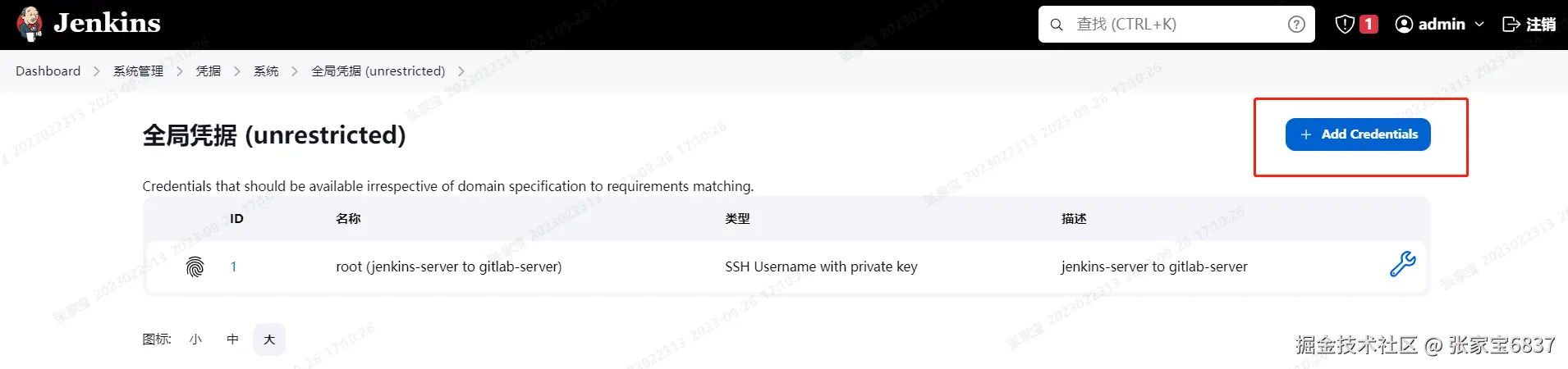

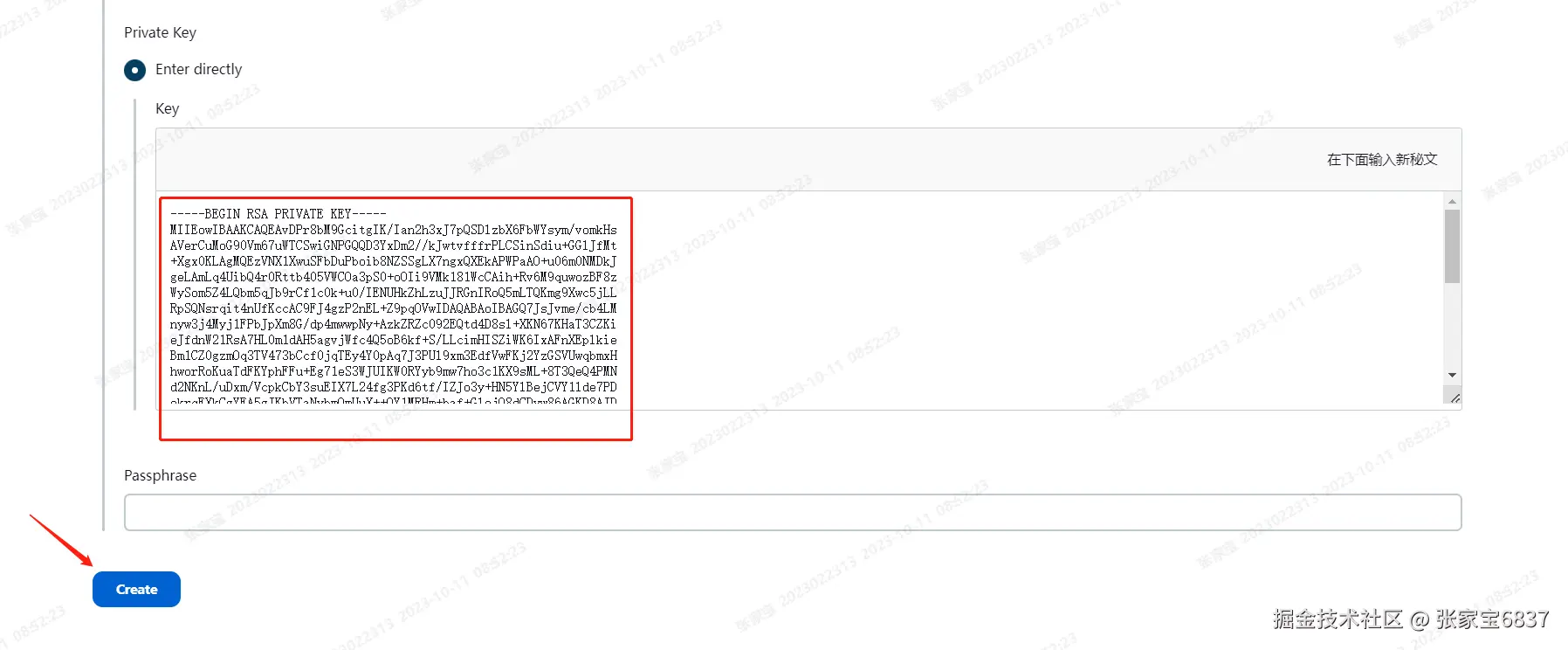

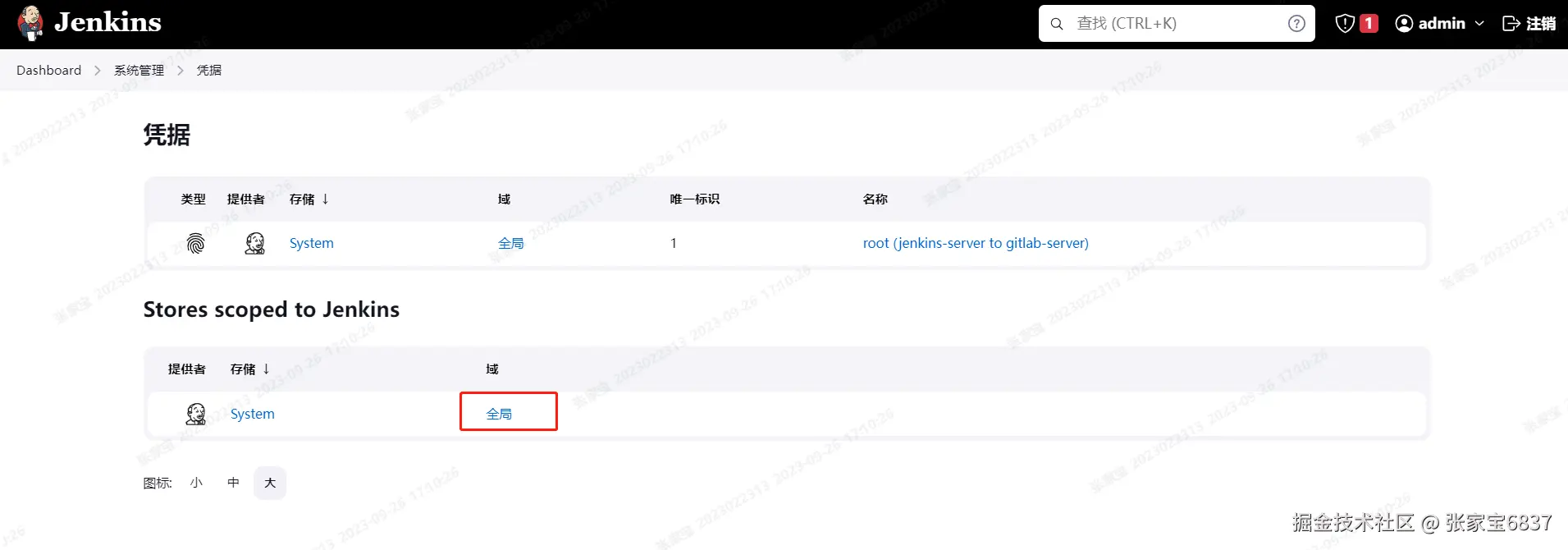

配置jenkins-sever主机的私钥到凭据列表
# jenkins-server

cat ~/.ssh/id_rsa
-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEAvDPr8bM9GcitgIK/Ian2h3xJ7pQSDlzbX6FbWYsym/vomkHs
AVerCuMoG90Vm67uWTCSwiGNPGQQD3YxDm2//kJwtvfffrPLCSinSdiu+GGlJfMt
+Xgx0KLAgMQEzVNX1XwuSFbDuPboib8NZSSgLX7ngxQXEkAPWPaAO+u06m0NMDkJ
geLAmLq4UibQ4r0Rttb405VWCOa3pS0+oOIi9VMk181WcCAih+Rv6M9quwozBF8z
WySom5Z4LQbm5qJb9rCf1c0k+u0/IENUHkZhLzuJJRGnIRoQ5mLTQKmg9Xwc5jLL
RpSQNsrqit4nUfKccAC9FJ4gzP2nEL+Z9pqOVwIDAQABAoIBAGQ7JsJvme/cb4LM
nyw3j4Myj1FPbJpXm8G/dp4mwwpNy+AzkZRZc092EQtd4D8sl+XKN67KHaT3CZKi
eJfdnW21RsA7HL0m1dAH5agvjWfc4Q5oB6kf+S/LLcimHISZiWK6IxAFnXEplkie
Bm1CZ0gzmOq3TV473bCcf0jqTEy4Y0pAq7J3PUl9xm3EdfVwFKj2YzGSVUwqbmxH
hworRoKuaTdFKYphFFu+Eg71eS3WJUIKW0RYyb9mw7ho3c1KX9sML+8T3QeQ4PMN
d2NKnL/uDxm/VcpkCbY3suEIX7L24fg3PKd6tf/IZJo3y+HN5YlBejCVY1lde7PD
okrqFXkCgYEA5gJKbVTaNybmOmUuX++QY1MRHm+baf+GlejQ8dCDyw86AGKD8AJD
0tTWdOKTsqya15IDmsUlQ4RHXzAoGWLjz97HEy3jwlsY2Oko/elc+BdgkGKxhuJy
78WuPVblph1iXcEPZJBDOMAVaxA3Zchct2yEZ6mHW2fp/34LewUARrUCgYEA0XhC
5lmP74ee5+KE+1NQ/KCzfk/lxlkESI9c8XLqeTaD9ue7tiFip24XaDFIlxelFwNu
k2Urs90IHqJXnBIjIC741bxtlWJQoRGVUf+W0K0K9FwkeDfVOgjDISIm9mHZASfm
5EDlLpOzJ8gwo39voJ4C3oQ2jW0cAho1RpGTPFsCgYAG+iLP1jcYXTG2q8MQXe//
U1G9np0URhALFBjifPTCgB++Sz69VRRBnPs0aHsafGnmCCPb2gcbWTPhC1DsFDfc
4mEfj9DM4H6MdeYsbZvIWs0vFA9WjB/4bgKvEae9tj55oZWZ81ZWrlz39nH3wHAv
kDcj/dyBRVGv0l7+yFQN0QKBgHUBuFzzqnMiTqE45w98esCjA6CLAM7K6pmde01j
45XR3eUNjM0v2Outk2WgIexESPOR9zJeUQsnbGGwTT/g4b4YfublWlEXmfJe4Ant
u1DVWEknLzf3+CNywYzAhwMZpR4AK/lURrC90FVofcLWbIRLv06Mi+x0BjEmcpv4
tUYBAoGBAMZSicyu/qHJbqQwUvaAhzOsS8wLNagpxclXIpsDDsmmC81I5IUMaztu
yl9iNs8ylw5tbWFyGWfGYnd0MnST2Zm93Y5bPyna3WtwN7ndEO7BoemPB3Ax8QYL
2IpNZ9aw6/0INwlikhg/o8E9+xUbB7PB6FdFTbcEqXEa7U7l054D
-----END RSA PRIVATE KEY-----






输入key值，点击"Create"

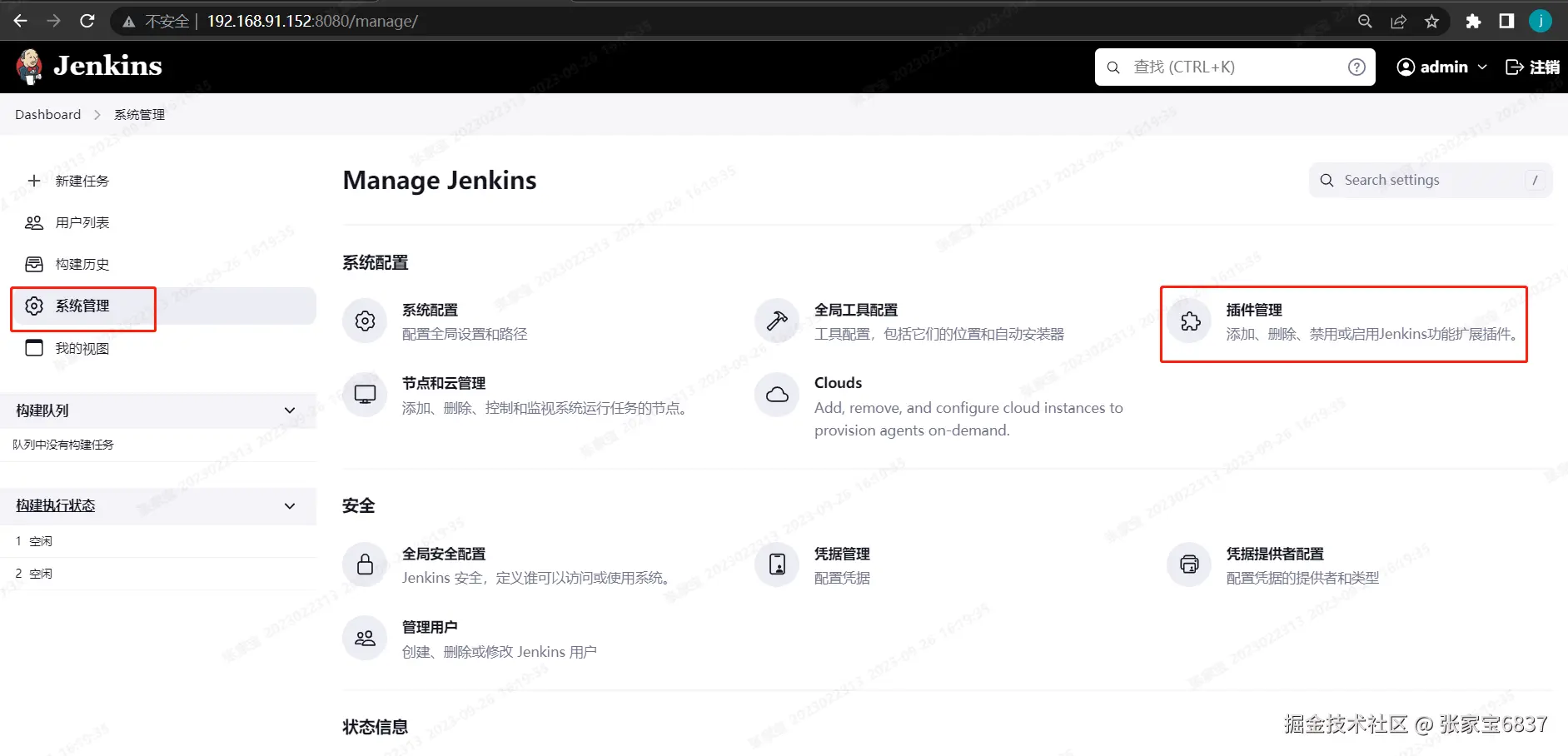

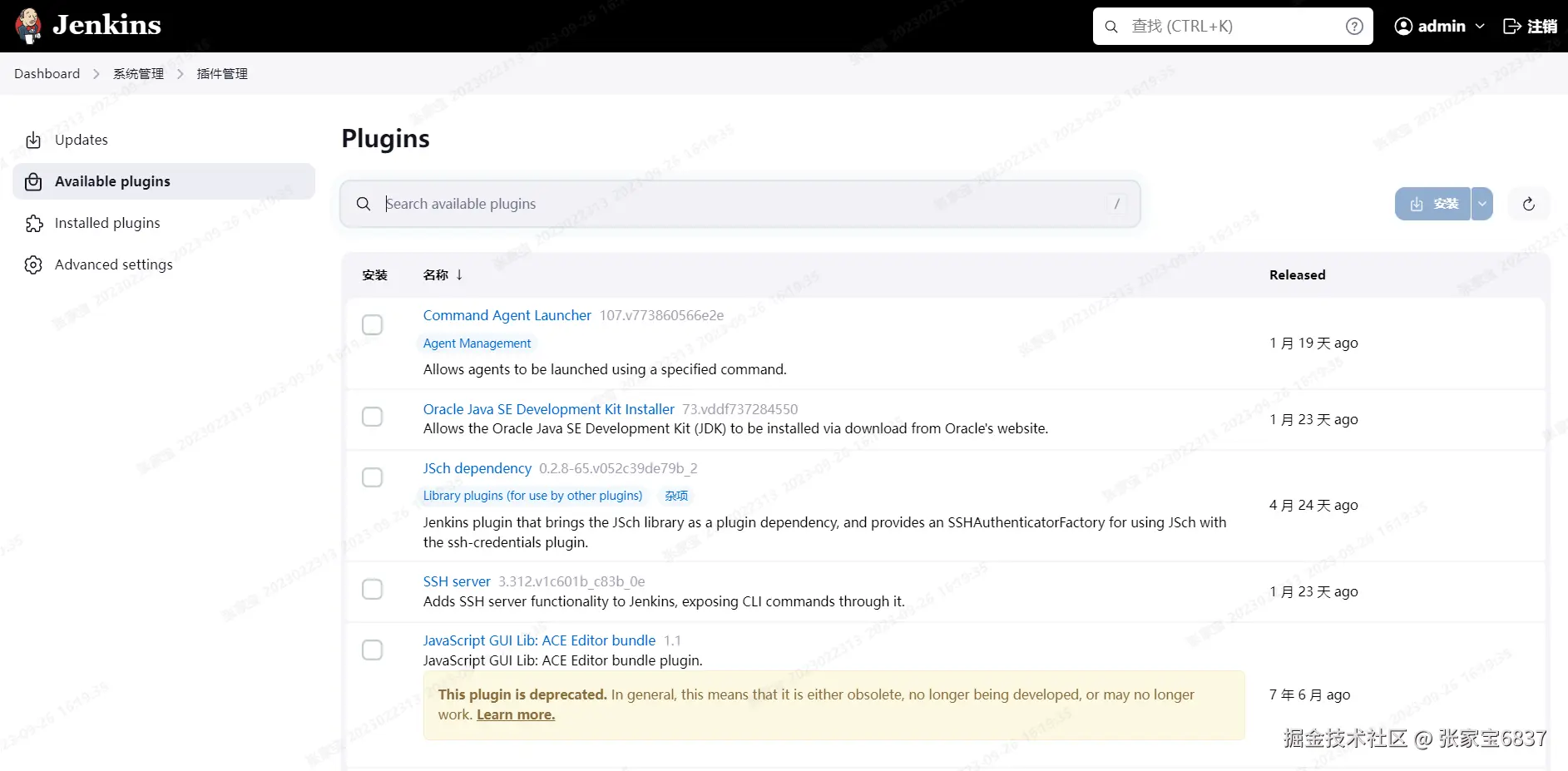

jenkins插件安装

maven integration 安装，用于编译JAVA项目

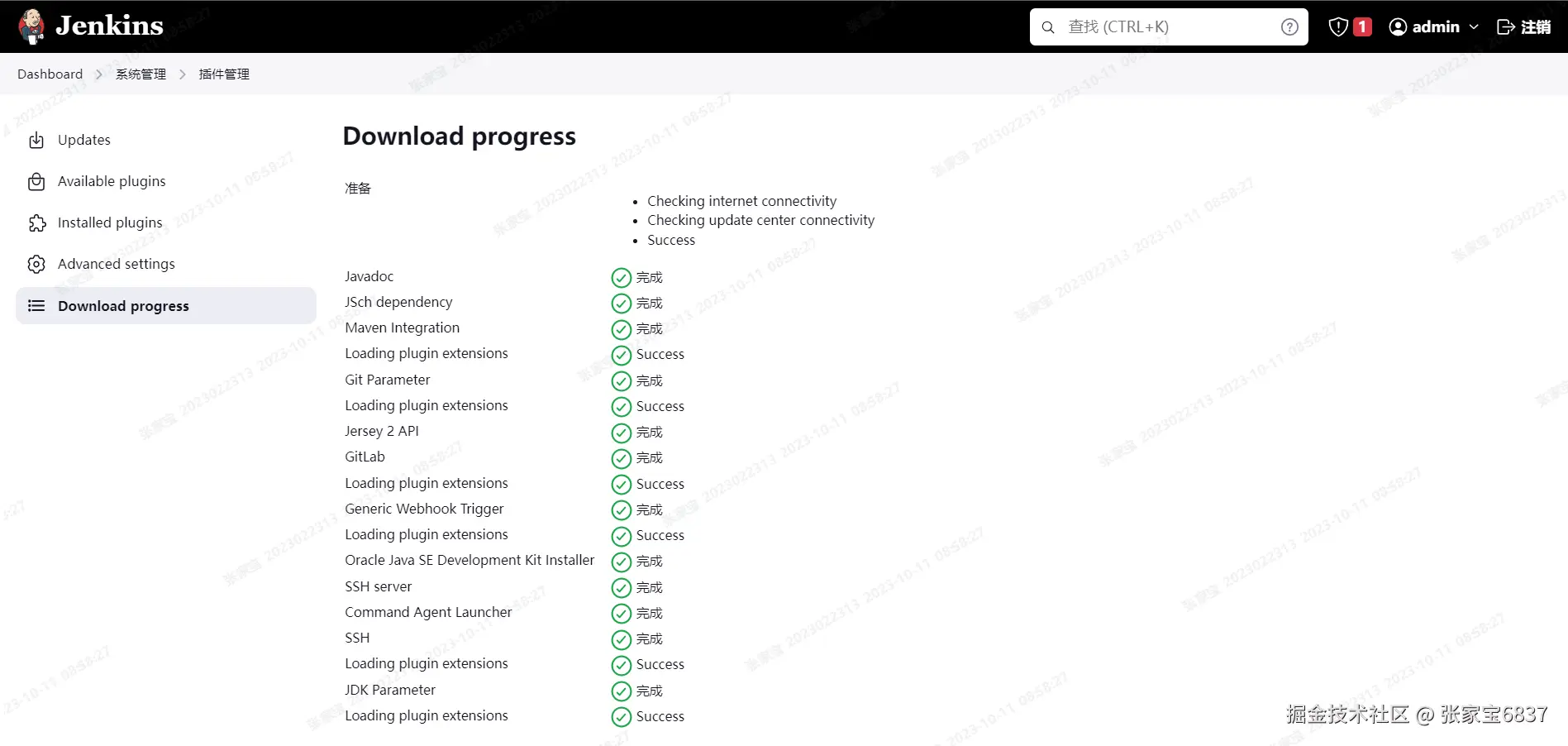

和上面的操作类似，安装下面的插件

  • git parameter 用于基于git版本提交进行参数构建项目
  • gitlab 用于jenkins-server拉取项目
  • Generic Webhook Trigger 用于项目自动化构建
  • ssh 用于jenkins-server对web-server实施项目部署

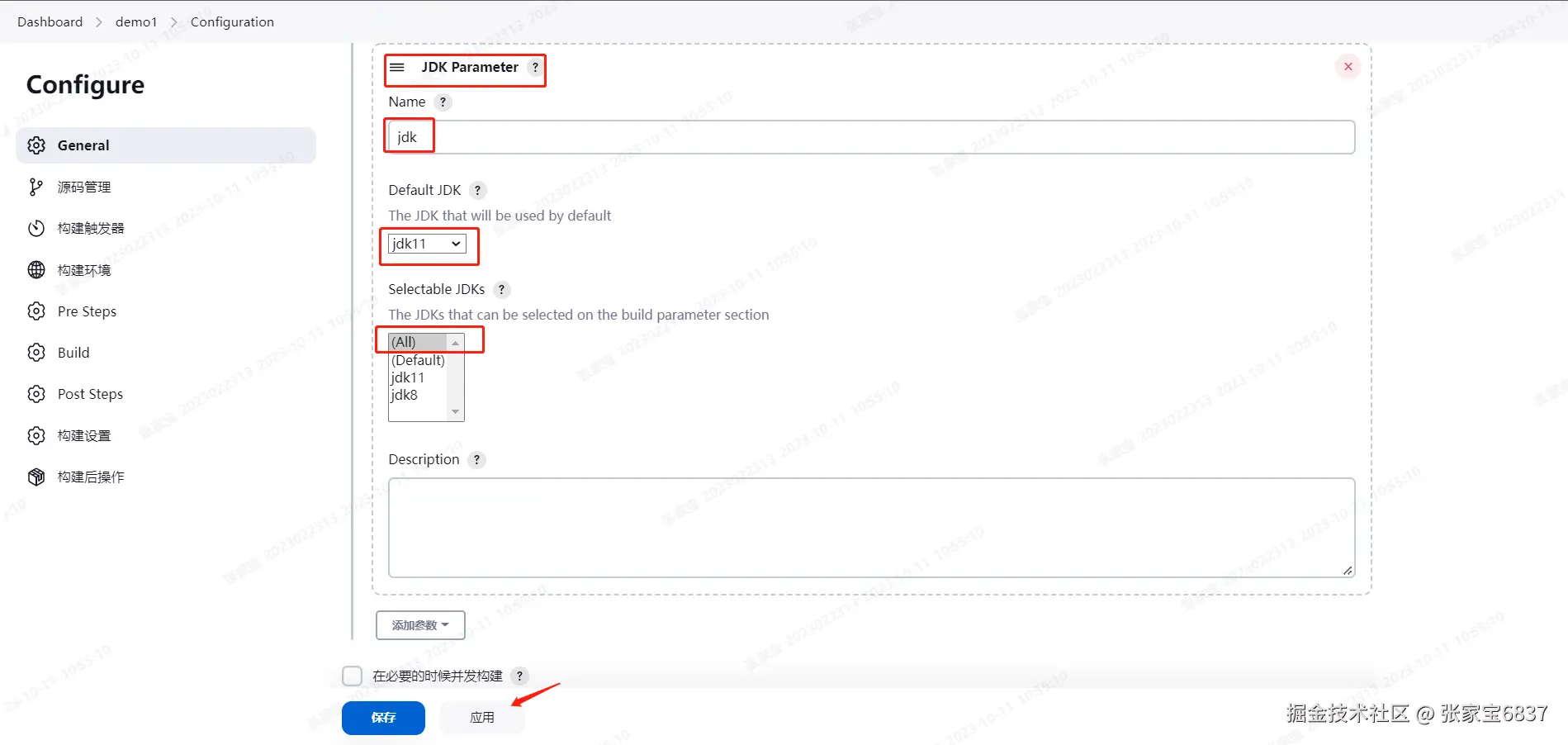

  • JDK Parameter 在构建项目时用于指定JDK

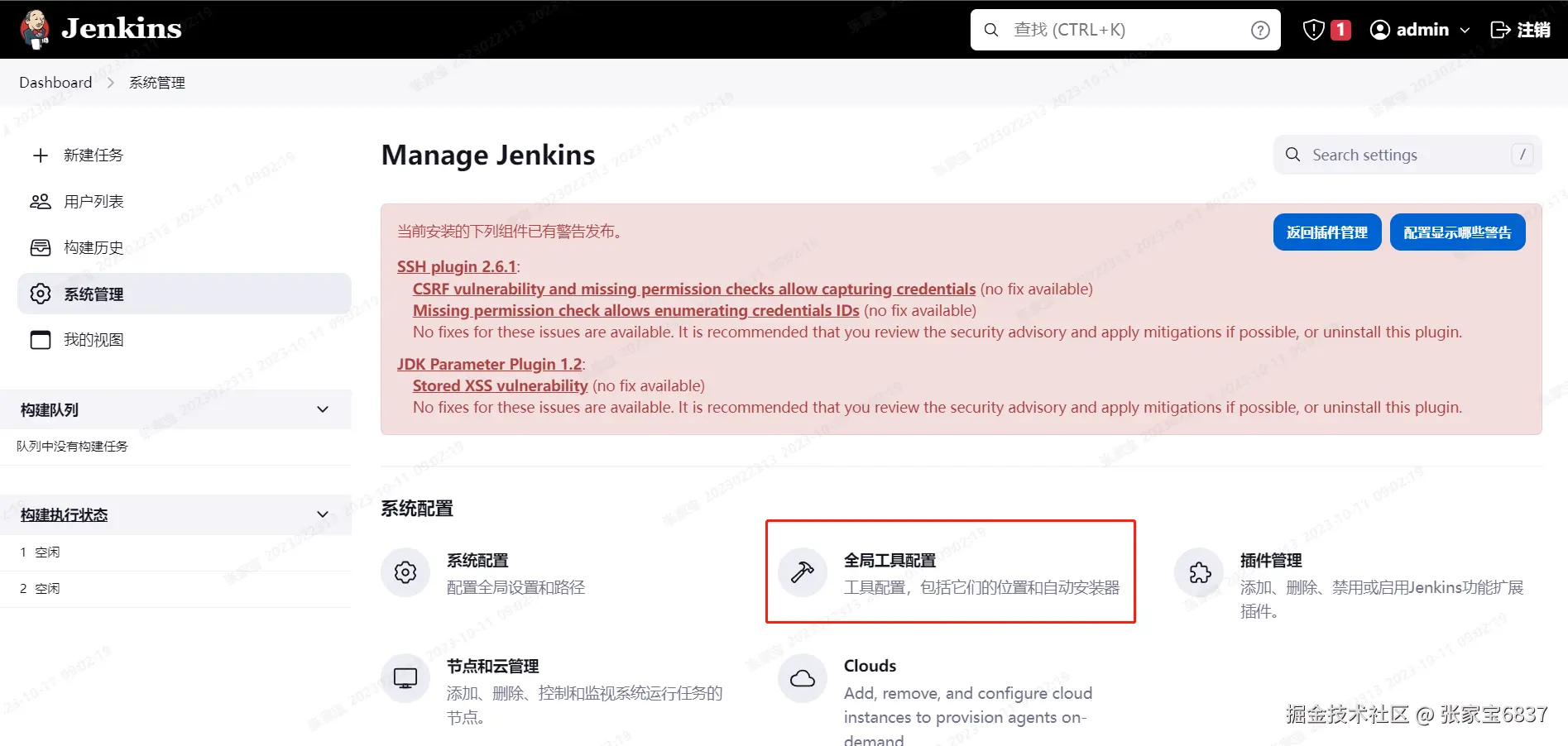

jenkins全局工具配置


JDK 安装

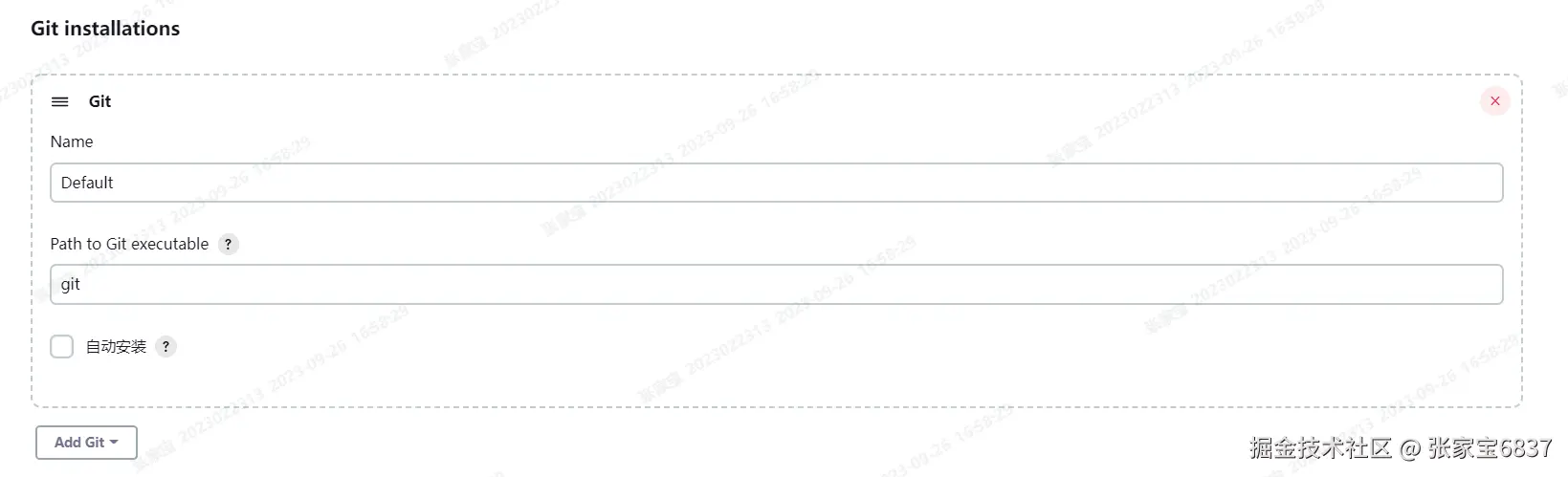

Git配置

默认就有这个配置

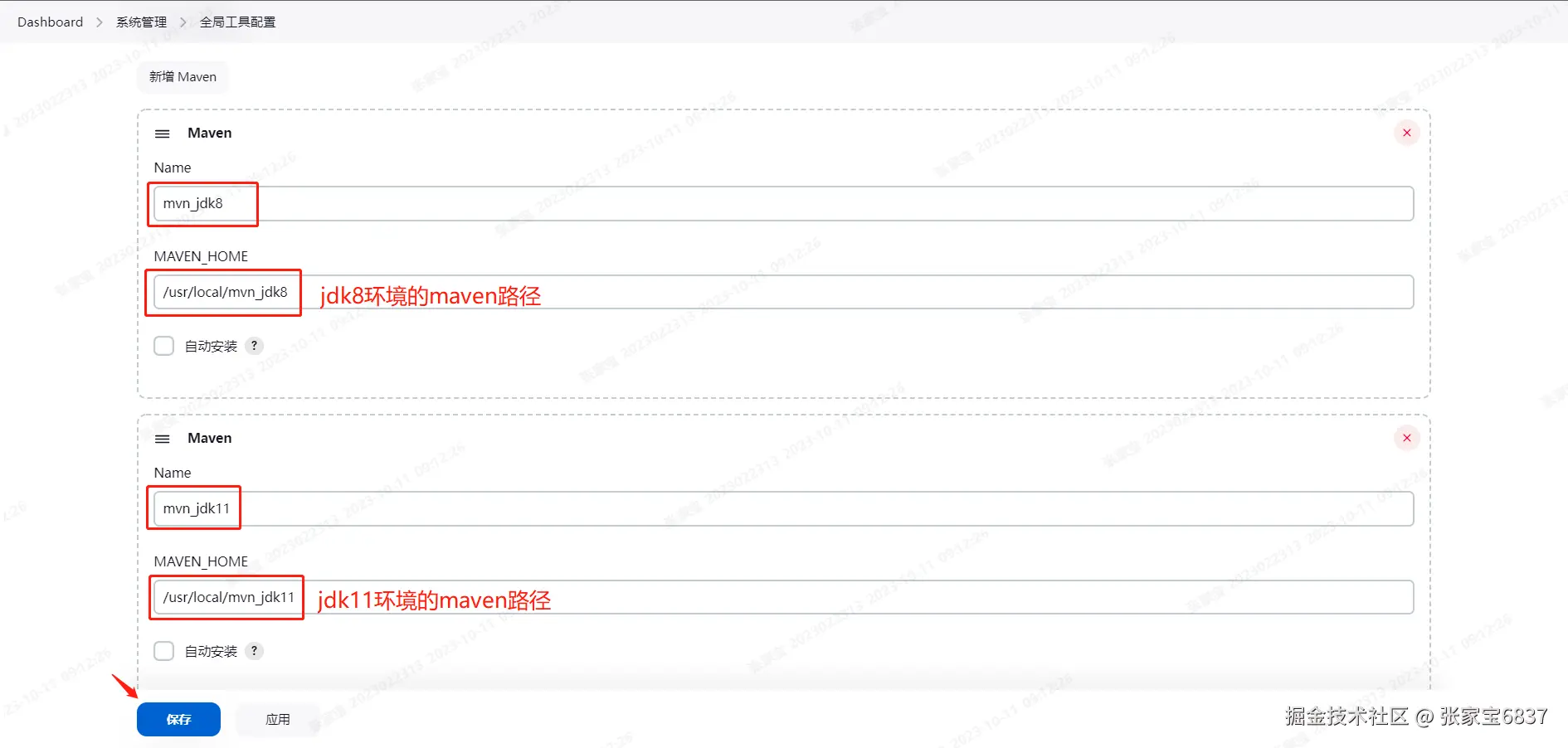

Maven安装

修改配置之后，需要点击下面的"保存"或"应用"按钮

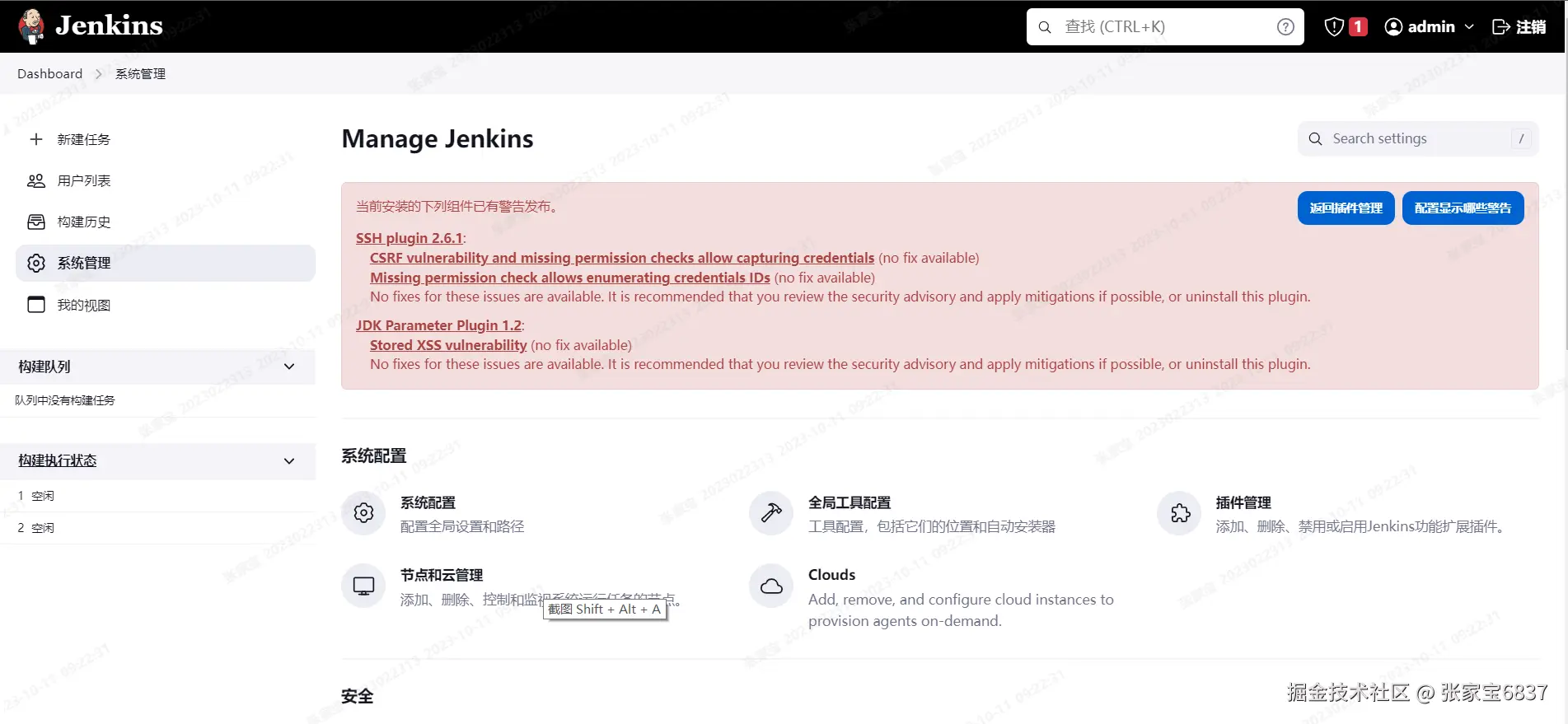

jenkins系统配置

主要配置jenkins-server通过ssh协议连接web-server

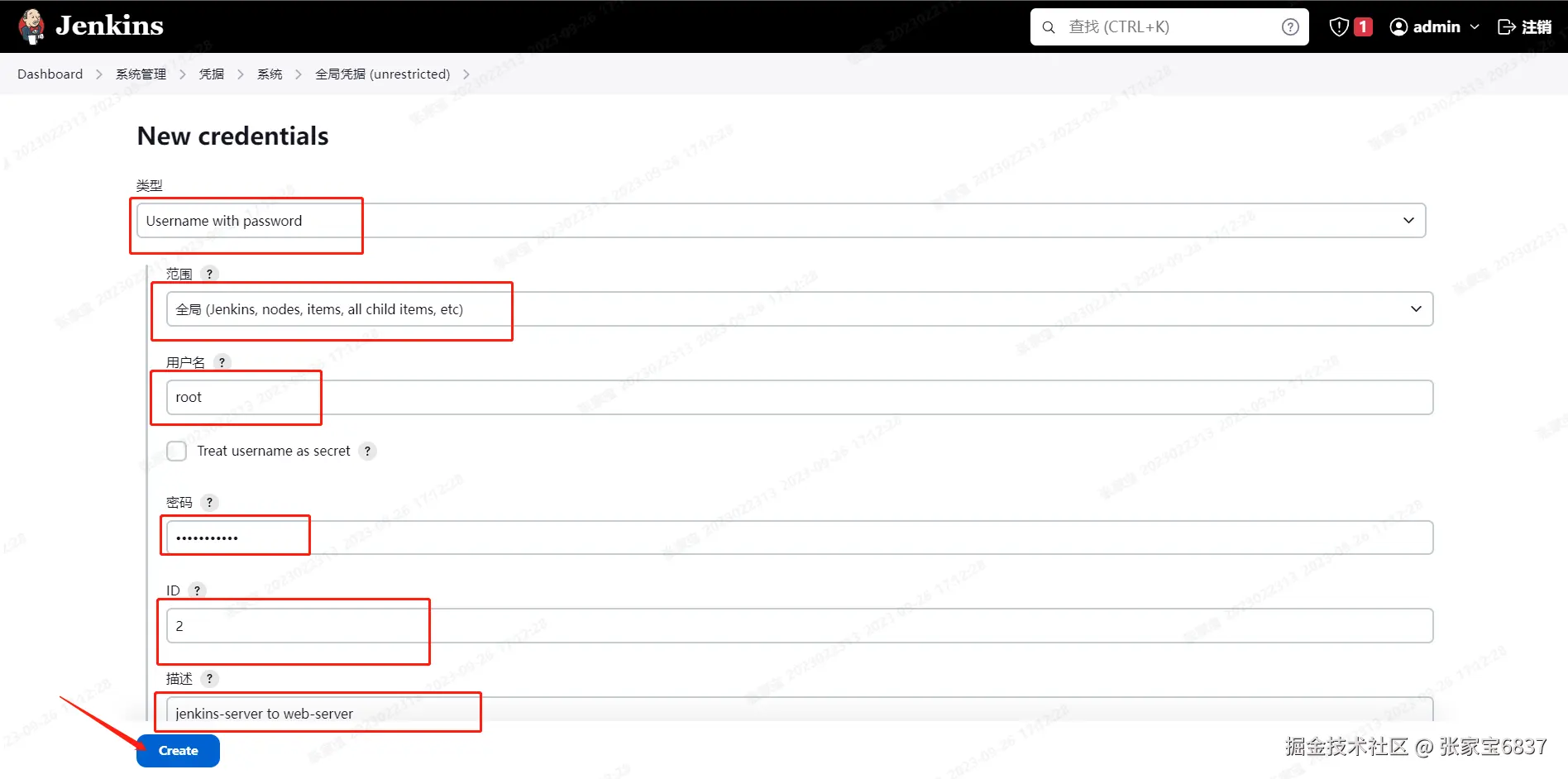

添加jenkins-server访问web-server凭据



填写远程主机的用户名和密码，ID随便填一个与其它凭证不一样的ID即可，然后点击"Create"按钮创建

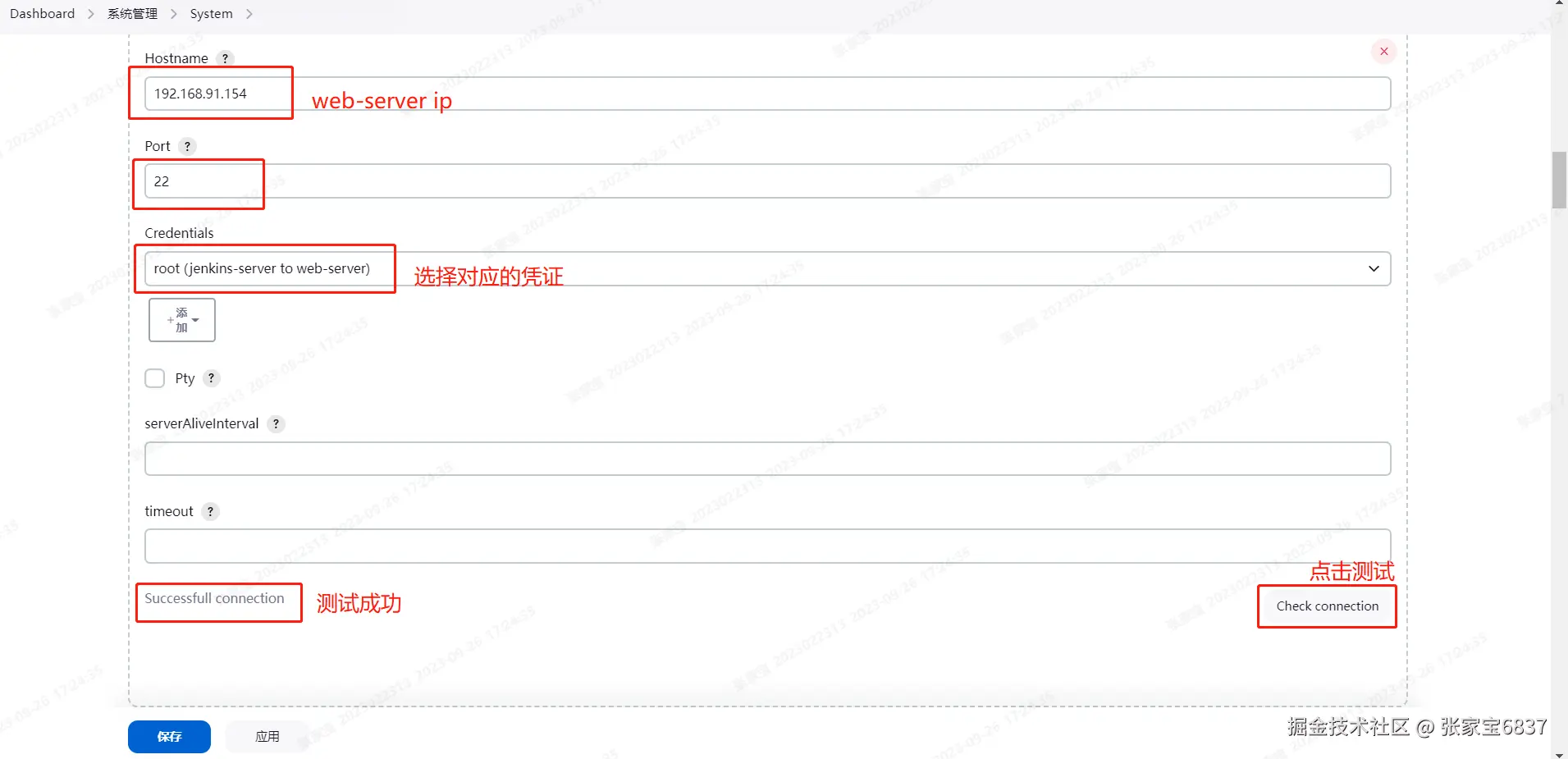

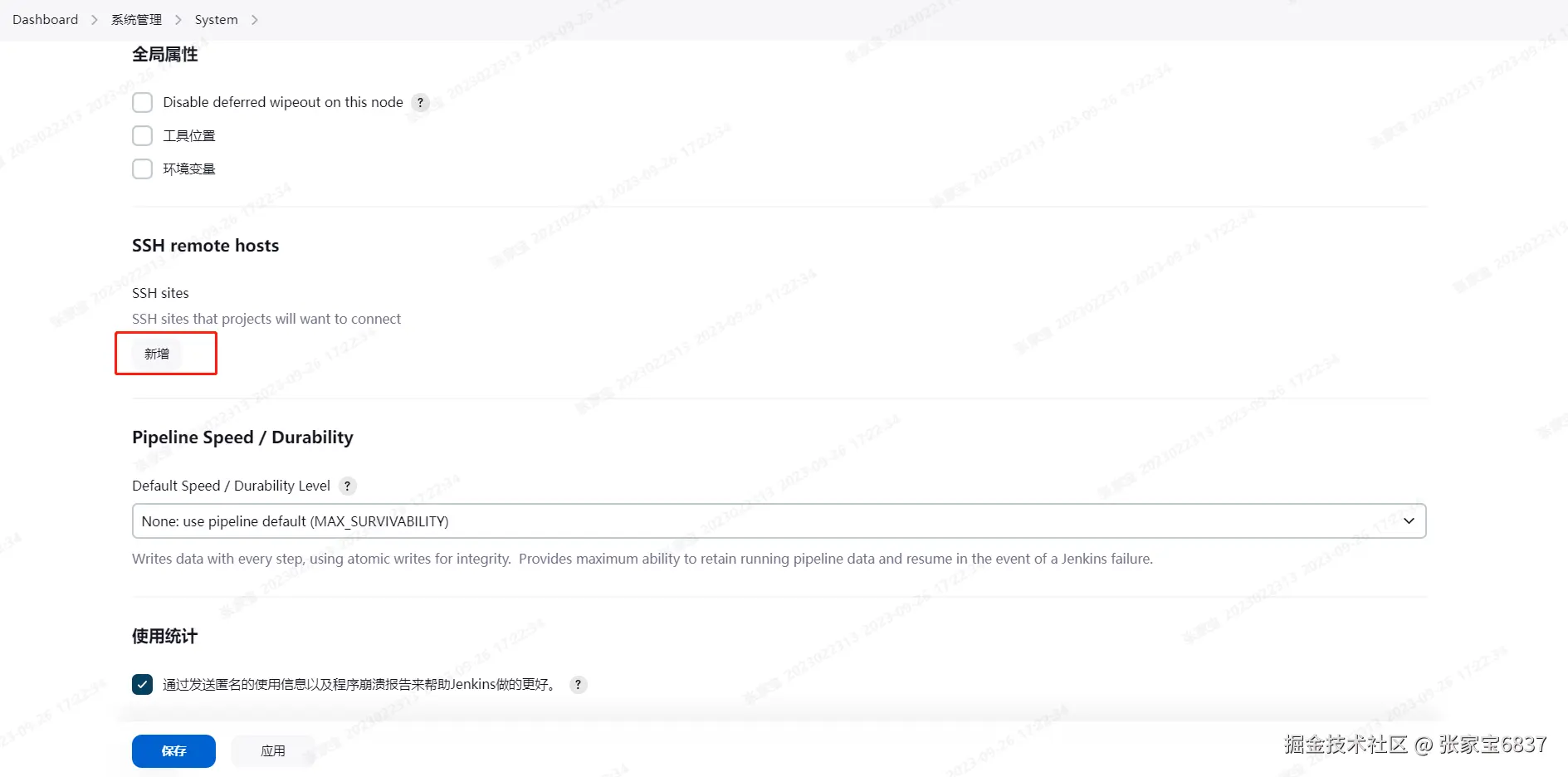

配置ssh协议连接主机



填写ssh连接的相关信息，然后点击"保存"按钮


企业业务代码项目发布

项目代码

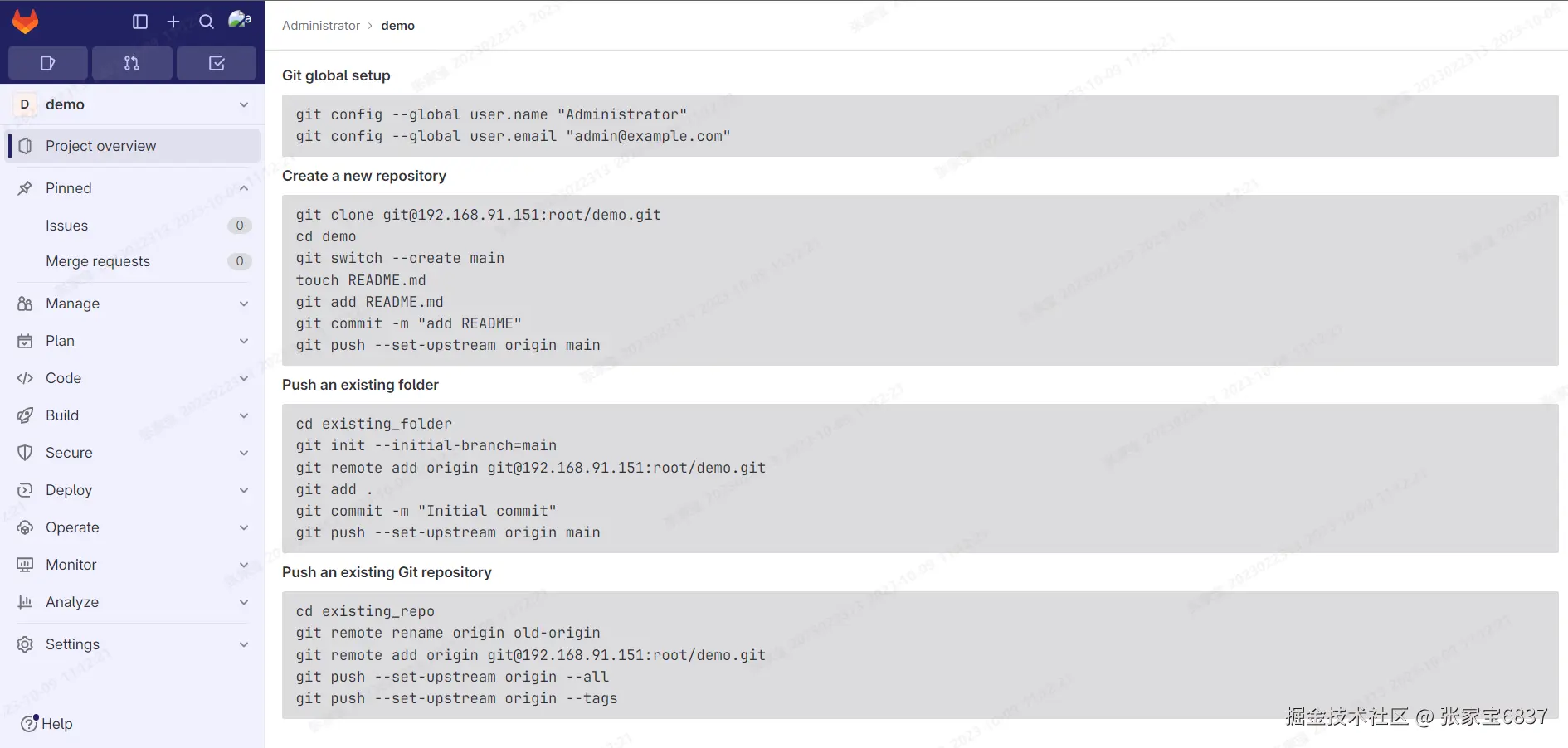

项目代码上传到gitlab

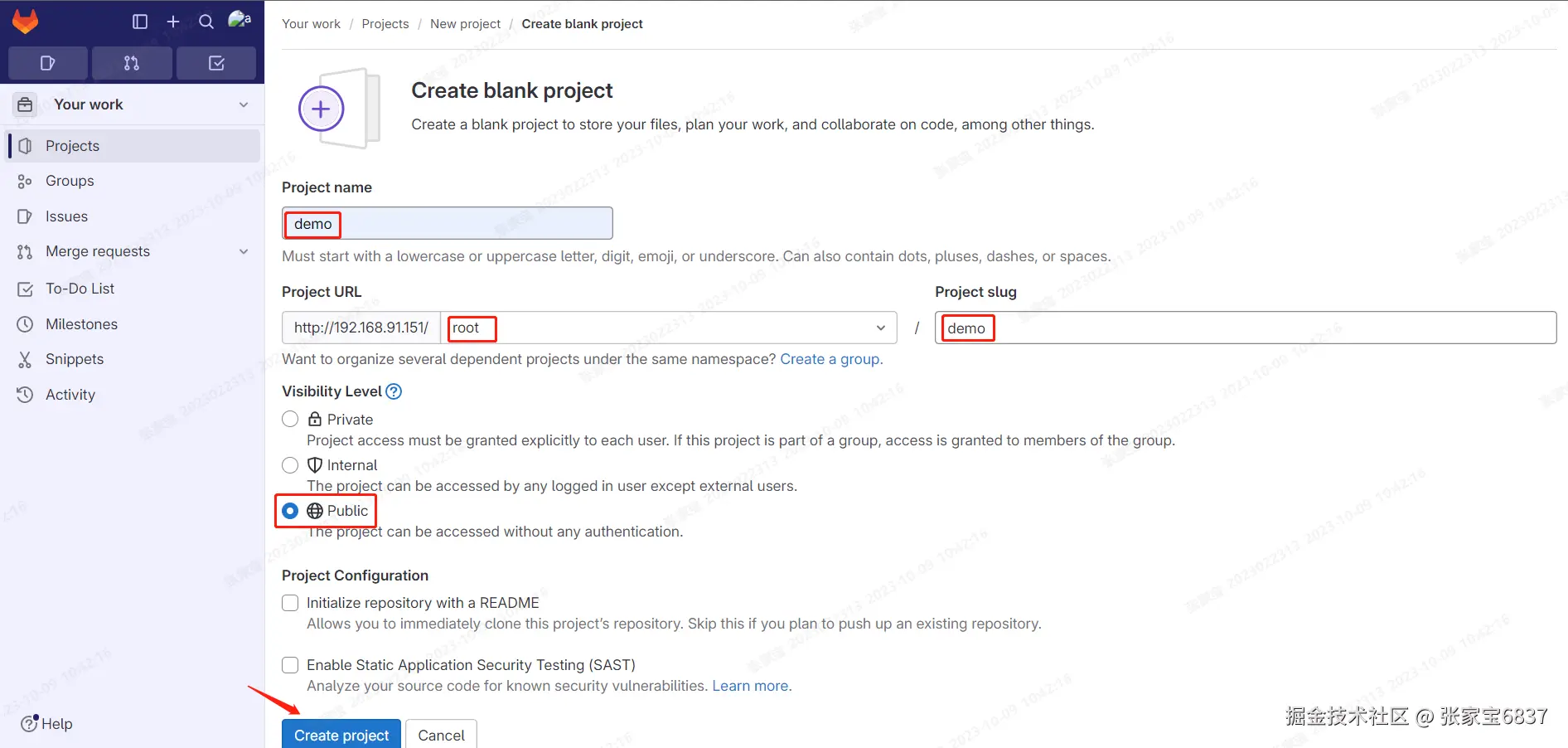

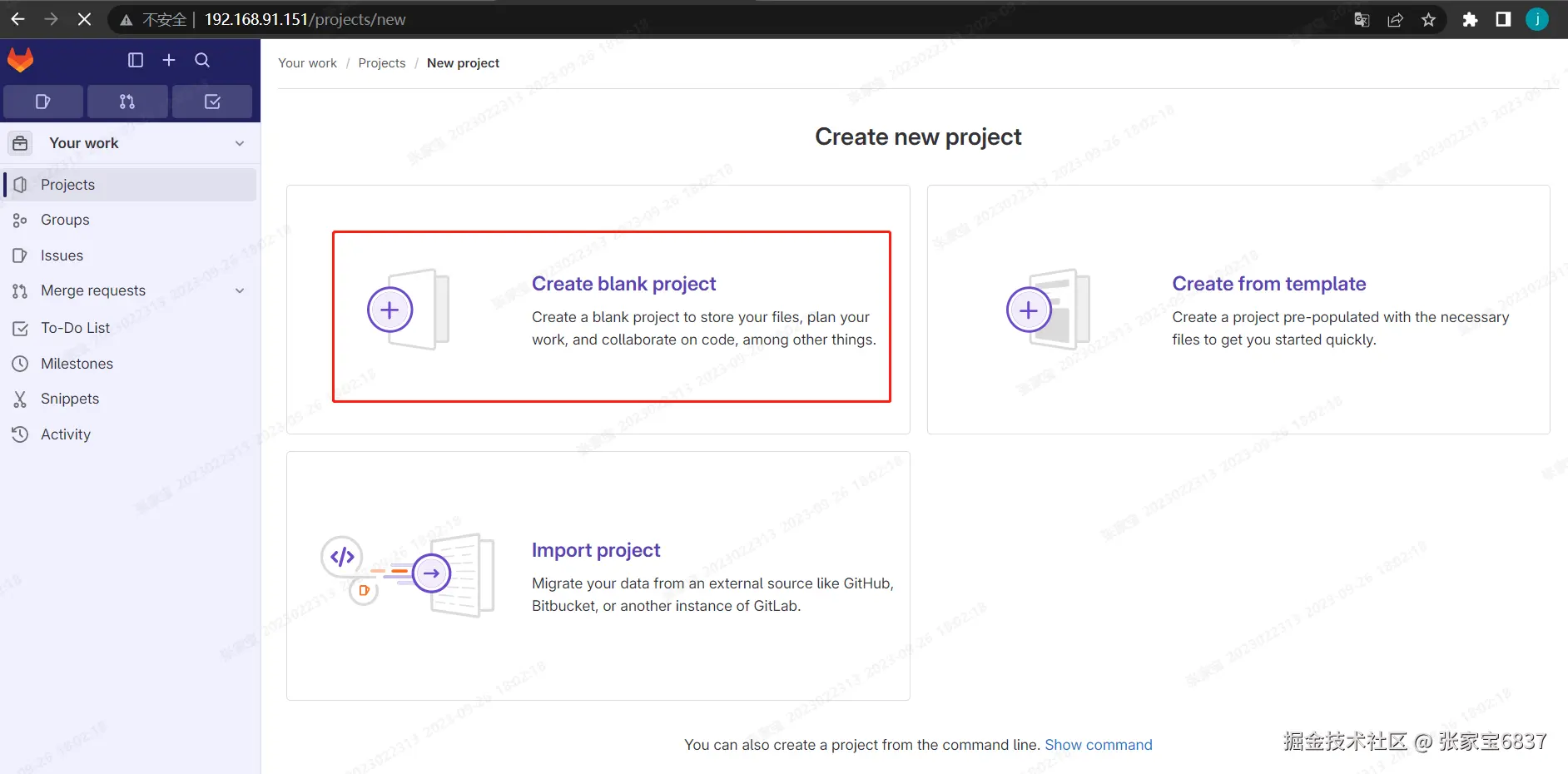

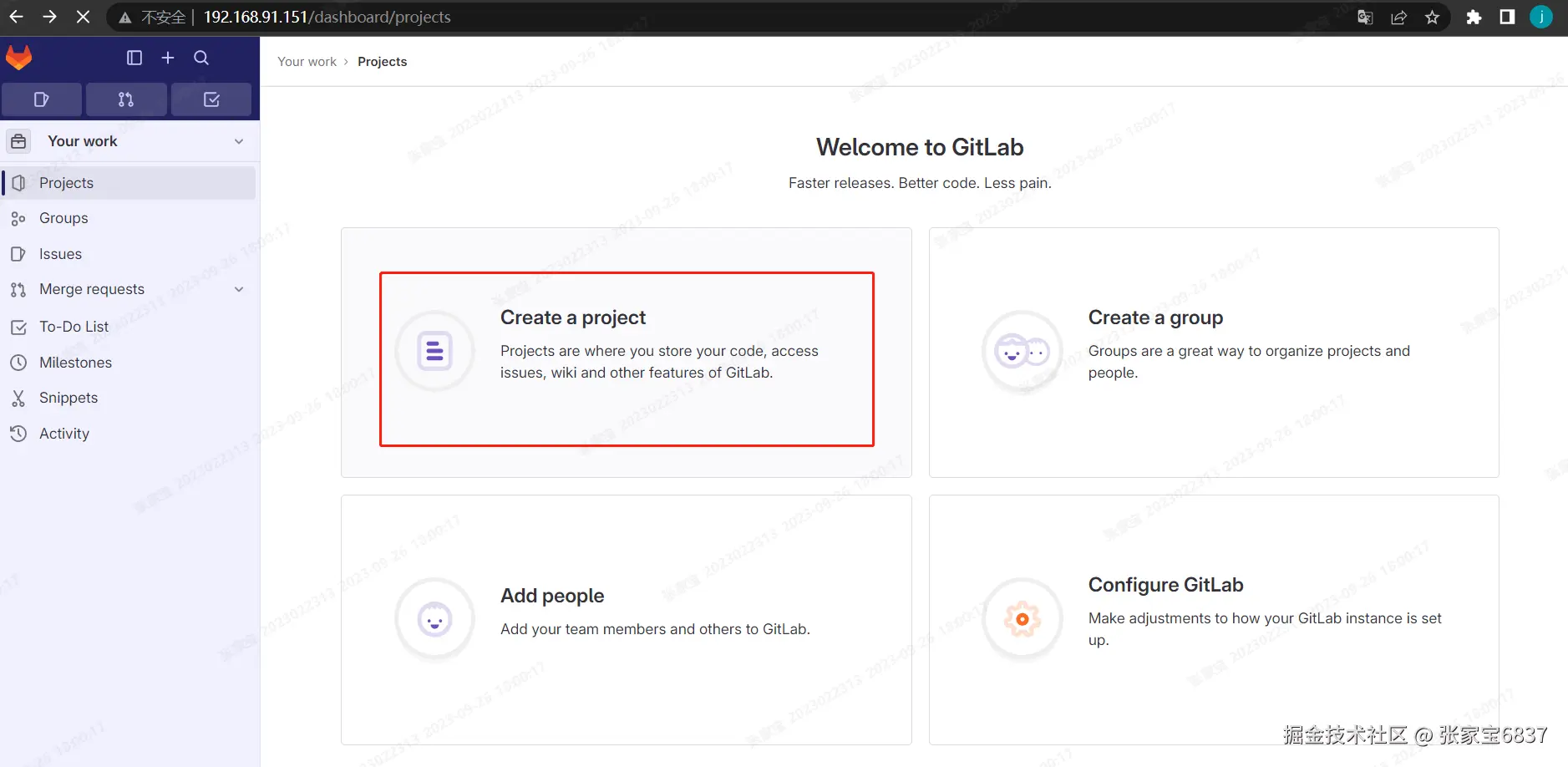

先在gitlab上创建demo项目





# dev
mkdir demo
cd demo
mkdir -p src/main/java/com/demo
cat > src/main/java/com/demo/DemoApplication.java << EOF
package com.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@SpringBootApplication
@RestController
public class DemoApplication {
    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }
    @GetMapping("/hello")
    public String hello() {
        return "hello world";
    }
}
EOF

创建pom.xml文件，内容如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.7.16</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.demo</groupId>
	<artifactId>demo</artifactId>
	<version>1.0.0</version>
	<properties>
		<java.version>1.8</java.version>
	</properties>
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
	</dependencies>
	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

git config --global user.name "Administrator"
git config --global user.email "admin@example.com"
git init
git remote add origin git@192.168.91.151:root/demo.git
git add .
git commit -m "Initial commit"
git push --set-upstream origin master

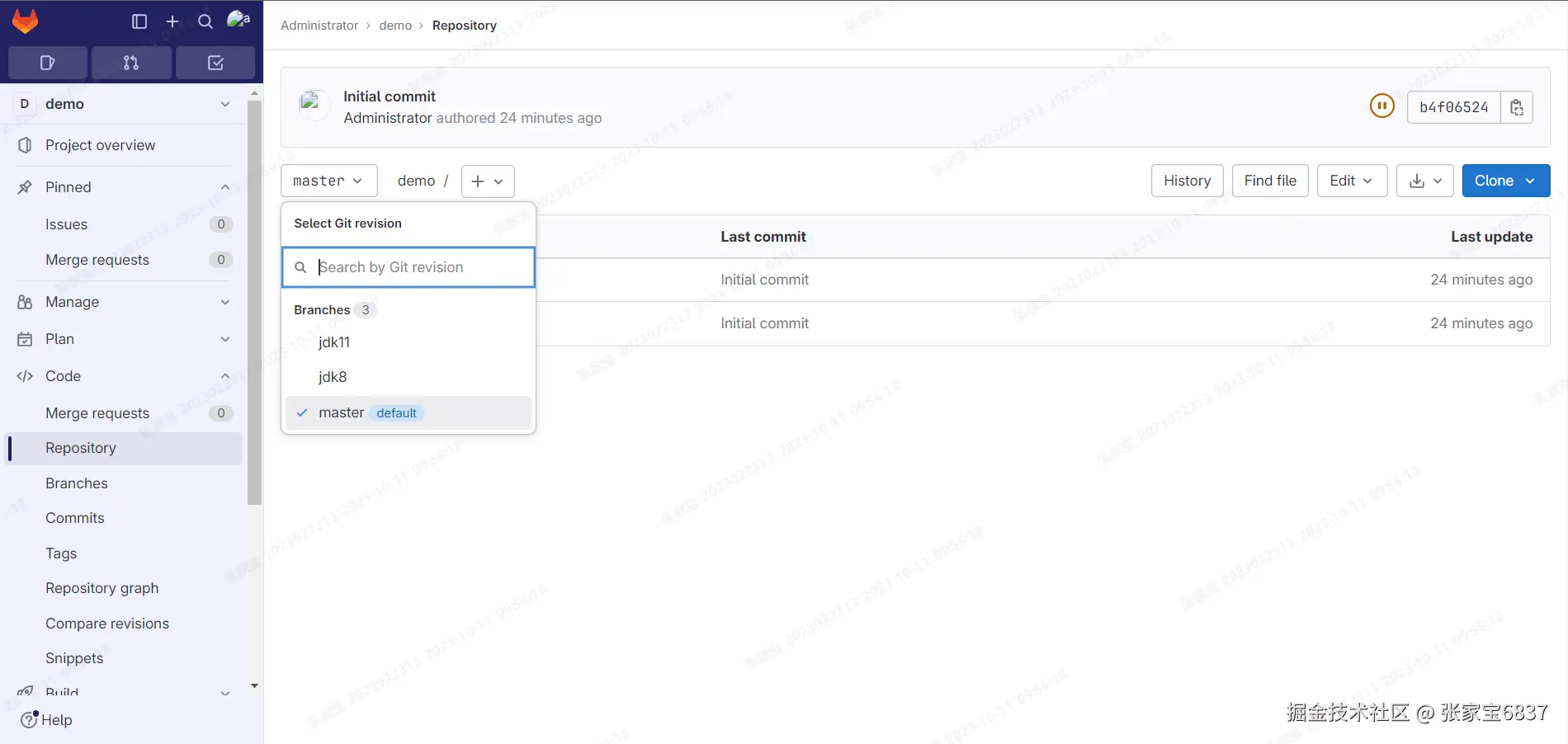

# 创建jdk8分支
git branch jdk8
git checkout jdk8
git push origin jdk8

# 创建jdk11分支
git branch jdk11
git checkout jdk11
git push origin jdk11

# jdk8分支修改
git checkout jdk8
sed -i 's/hello world/hello world jdk8/g' src/main/java/com/demo/DemoApplication.java
git add .
git commit -m "jdk8"
git push origin jdk8

# jdk11分支修改
git checkout jdk11
sed -i 's/hello world/hello world jdk11/g' src/main/java/com/demo/DemoApplication.java
sed -i 's/1.0.0/2.0.0/g' pom.xml
sed -i 's/1.8/11/g' pom.xml
git add .
git commit -m "jdk11"
git push origin jdk11


构建项目运行基础应用容器镜像

# harbor-server
mkdir demodir
cd demodir

# 下载jdk8，如果有的话直接拷贝过来即可
wget https://download.java.net/openjdk/jdk8u43/ri/openjdk-8u43-linux-x64.tar.gz
tar xf openjdk-8u43-linux-x64.tar.gz
mv java-se-8u43-ri jdk8
rm -f openjdk-8u43-linux-x64.tar.gz

# 下载JDK11，如果有的话直接拷贝过来即可
wget https://download.java.net/java/GA/jdk11/9/GPL/openjdk-11.0.2_linux-x64_bin.tar.gz
tar xf openjdk-11.0.2_linux-x64_bin.tar.gz
mv jdk-11.0.2 jdk11
rm -f openjdk-11.0.2_linux-x64_bin.tar.gz

# Dockerfile
FROM centos:centos7
ARG JDK_DIR
ENV JAVA_HOME=/usr/local/jdk
ADD $JDK_DIR /usr/local/jdk
RUN echo 'export JAVA_HOME=/usr/local/jdk' >> /etc/profile
RUN echo 'export PATH=${JAVA_HOME}/bin:$PATH' >> /etc/profile
RUN source /etc/profile

# 使用docker build构建容器镜像
docker build --build-arg JDK_DIR=jdk8 -t 192.168.91.153/library/jdk:jdk8 .
docker build --build-arg JDK_DIR=jdk11 -t 192.168.91.153/library/jdk:jdk11 .

docker images
REPOSITORY                      TAG       IMAGE ID       CREATED          SIZE
192.168.91.153/library/jdk      jdk11     55db4d7aa427   28 seconds ago   514MB
192.168.91.153/library/jdk      jdk8      4d77ba5f91c3   55 seconds ago   477MB

docker run -it --rm 192.168.91.153/library/jdk:jdk8 bash
# 在容器中执行，看看是否是对应的java版本
source /etc/profile;java -version

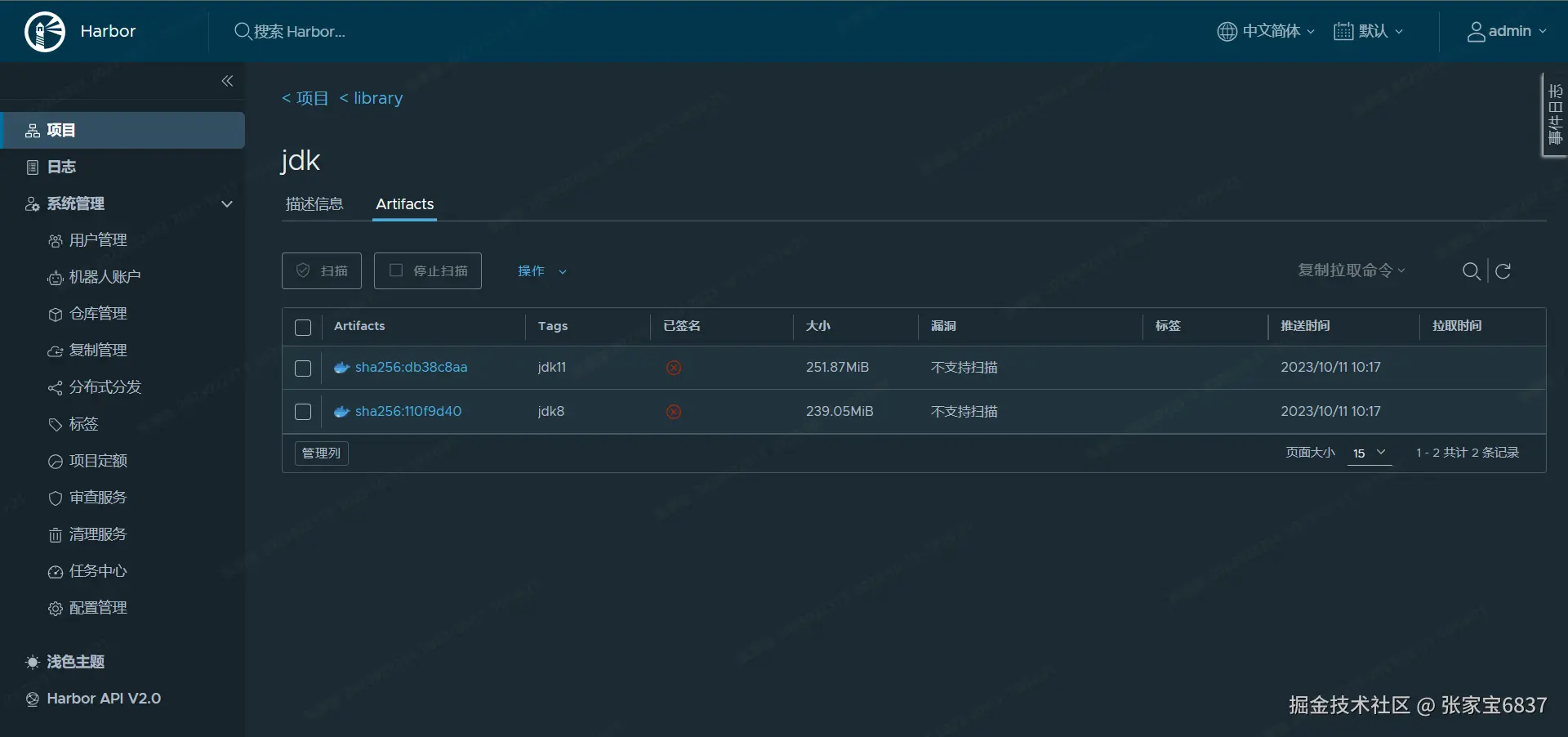

docker login 192.168.91.153

docker push 192.168.91.153/library/jdk:jdk8
docker push 192.168.91.153/library/jdk:jdk11


项目构建及发布

项目构建及发布步骤
  • jenkins获取项目代码
  • jenkins对项目代码编译，由maven完成
  • jenkins使用docker对编译完成的项目代码进行打包，打包成容器应用镜像

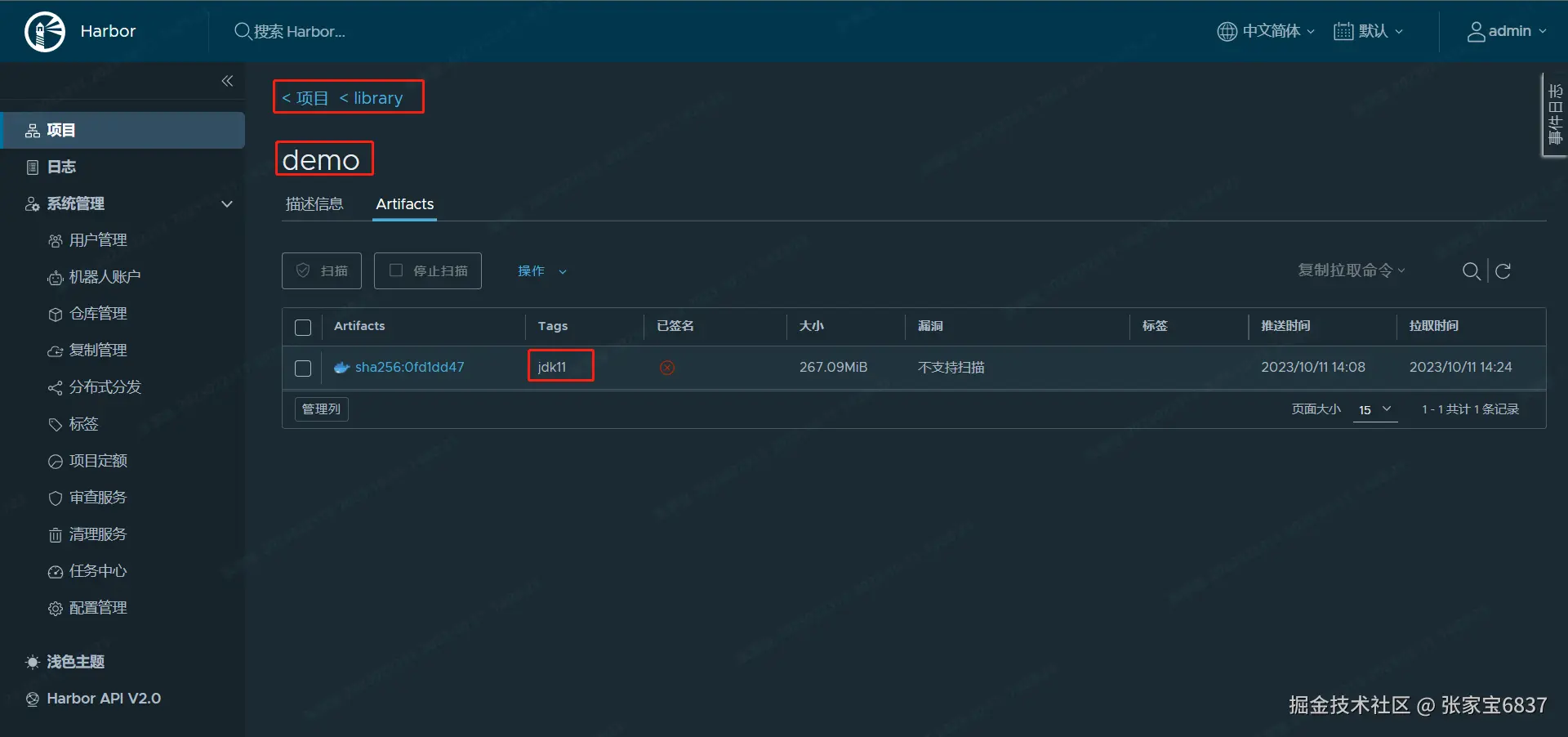

  • jenkins把打包的容器应用镜像上传到harbor
  • jenkins通过ssh插件完成对web-server进行运行容器应用镜像的操作

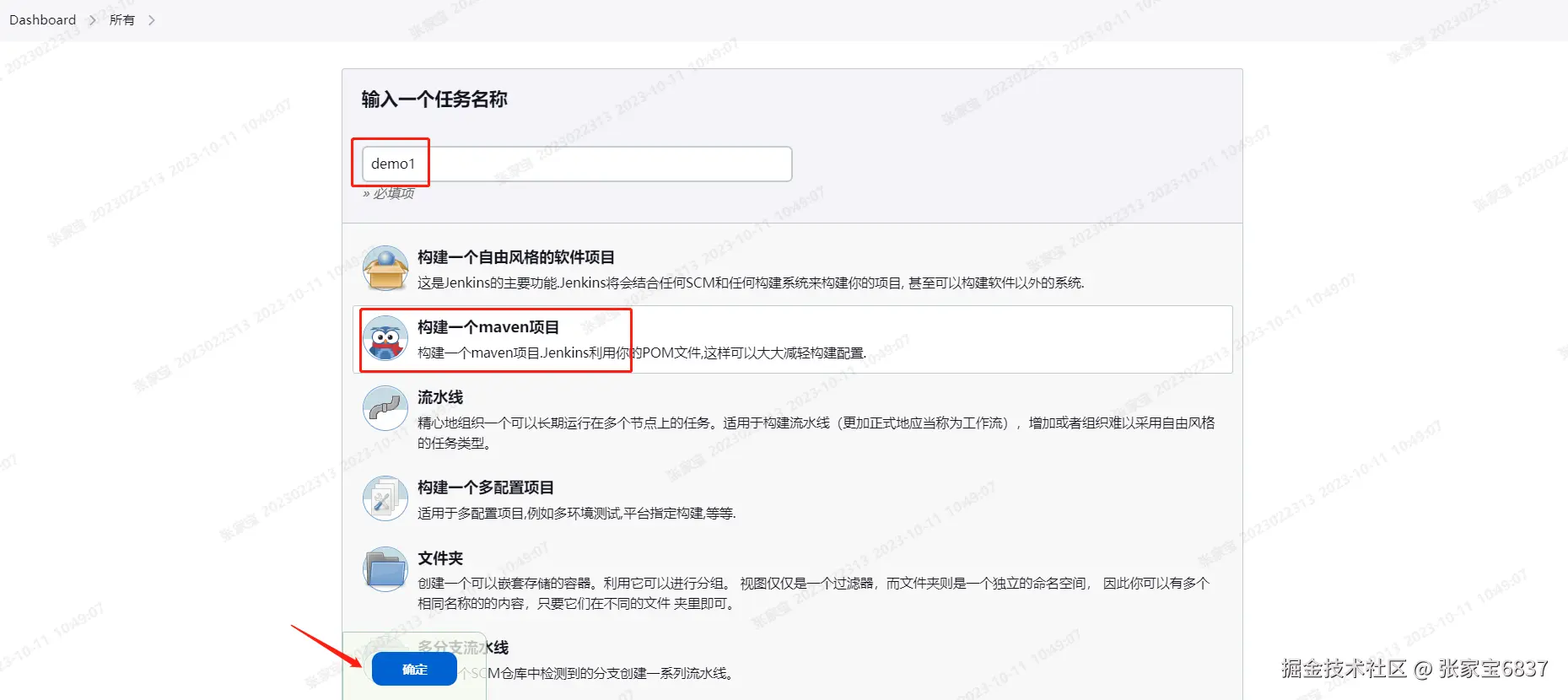

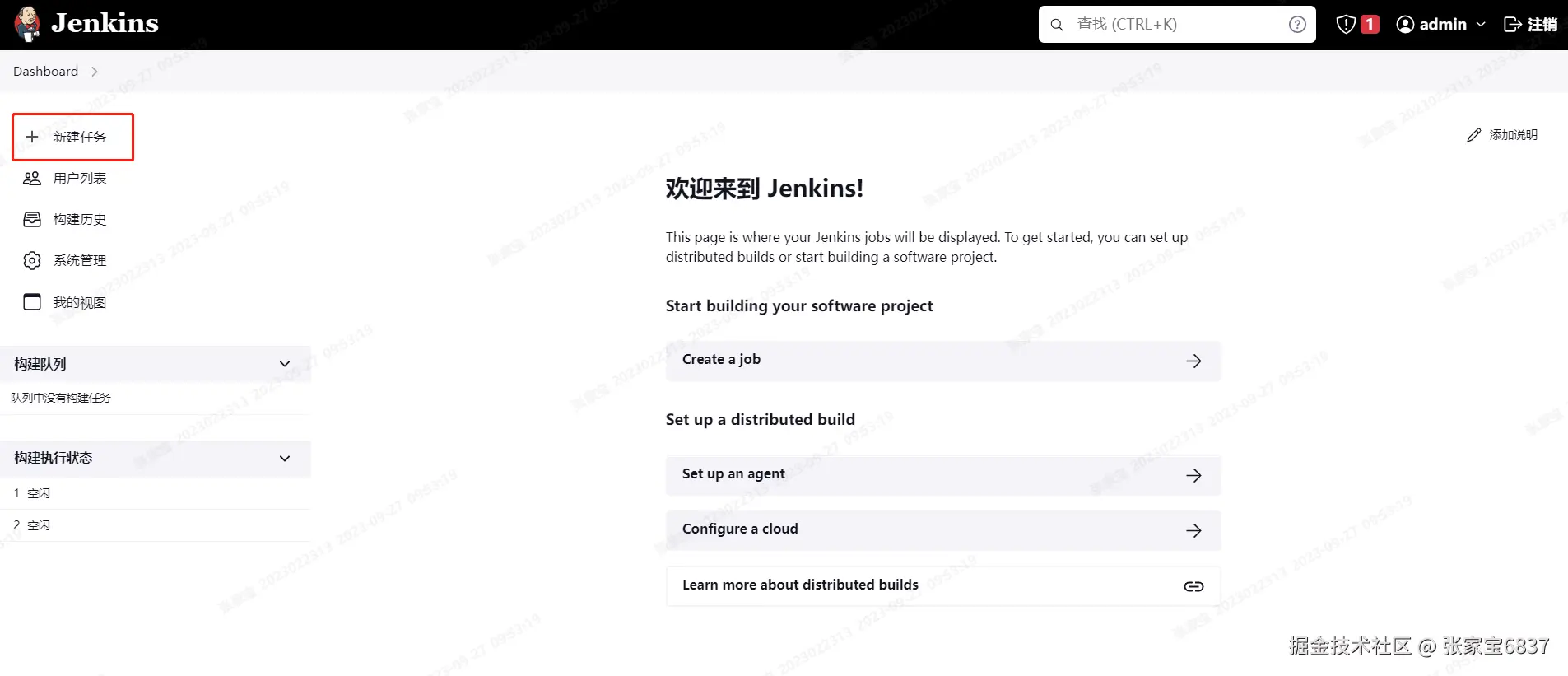

创建项目任务

"构建一个maven项目"，构建的项目依赖的jdk版本不能小于jenkins依赖的jdk版本，否则会报java版本偏低的错误，可以通过修改jenkins配置以及项目的pom文件来绕过这个错误，但是比较麻烦。可以通过"构建一个自由风格的软件项目"或"流水线"，来构建任何jdk版本的maven项目

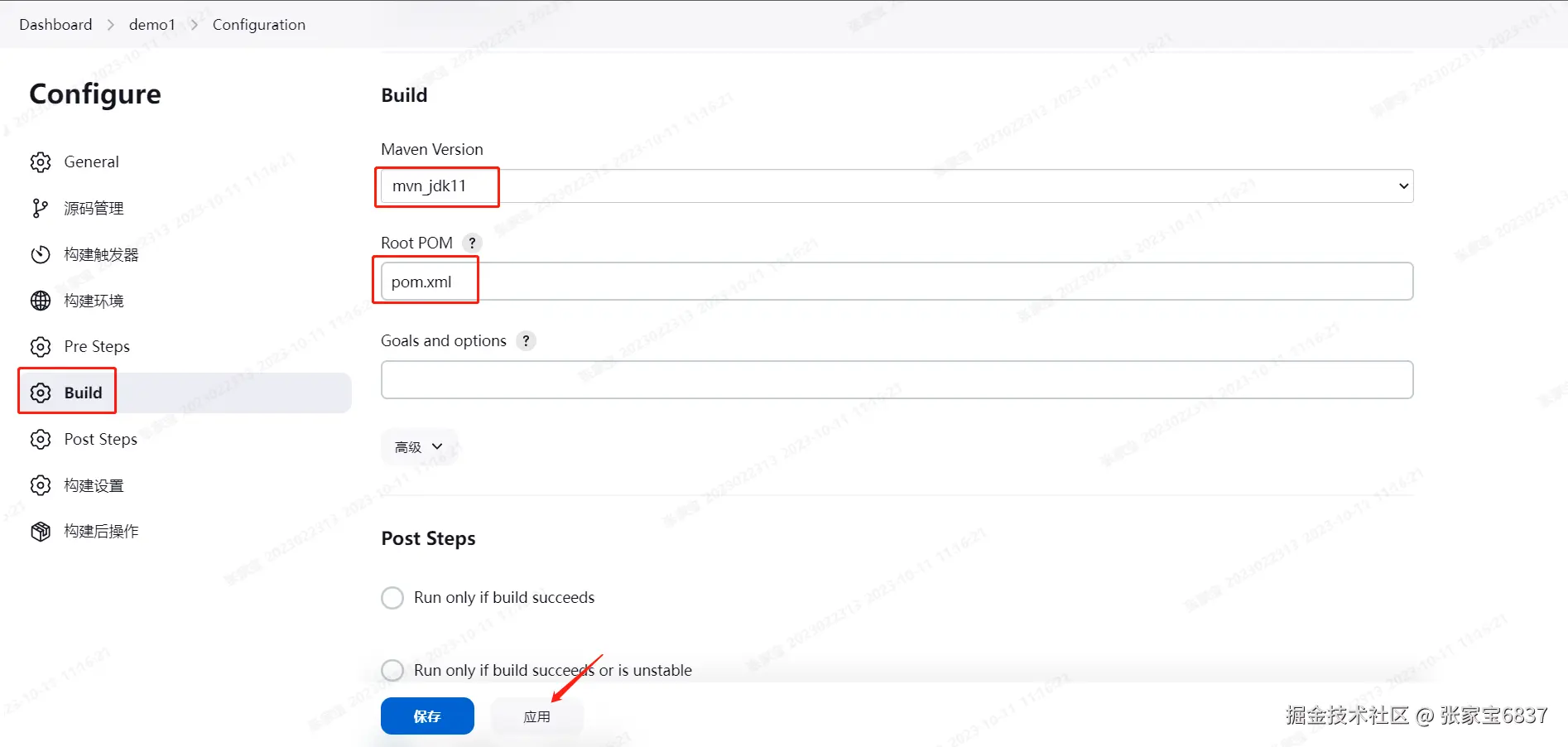

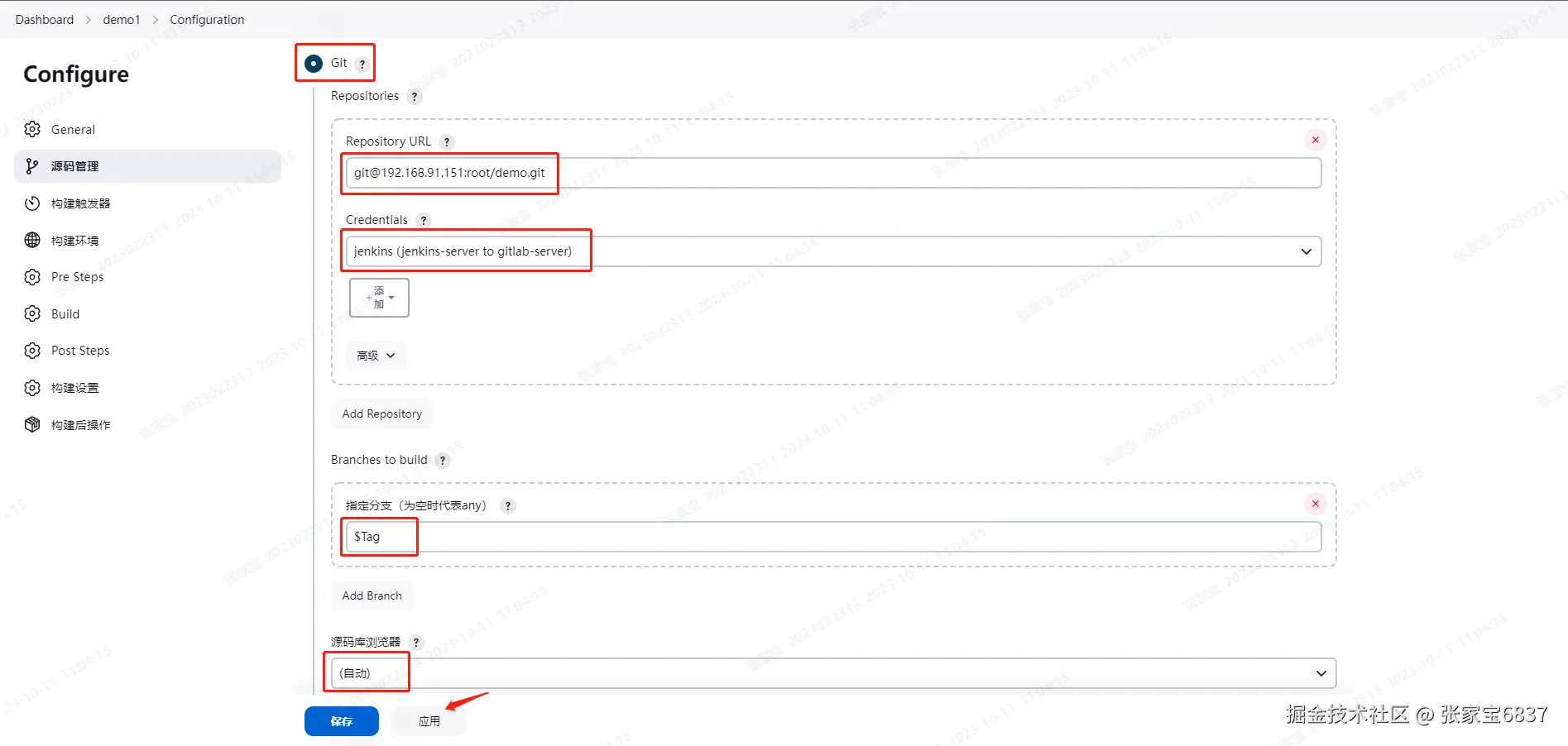

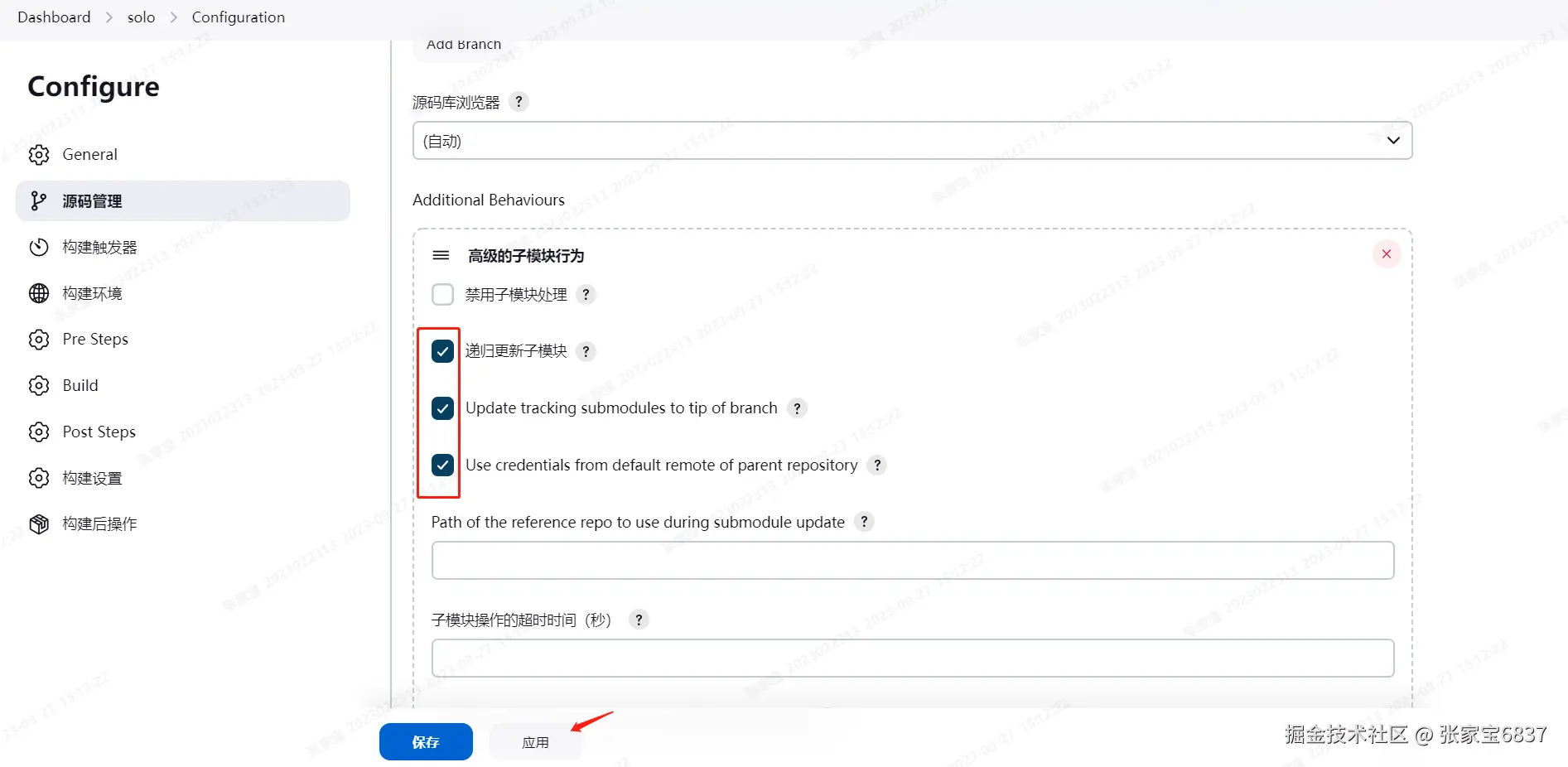

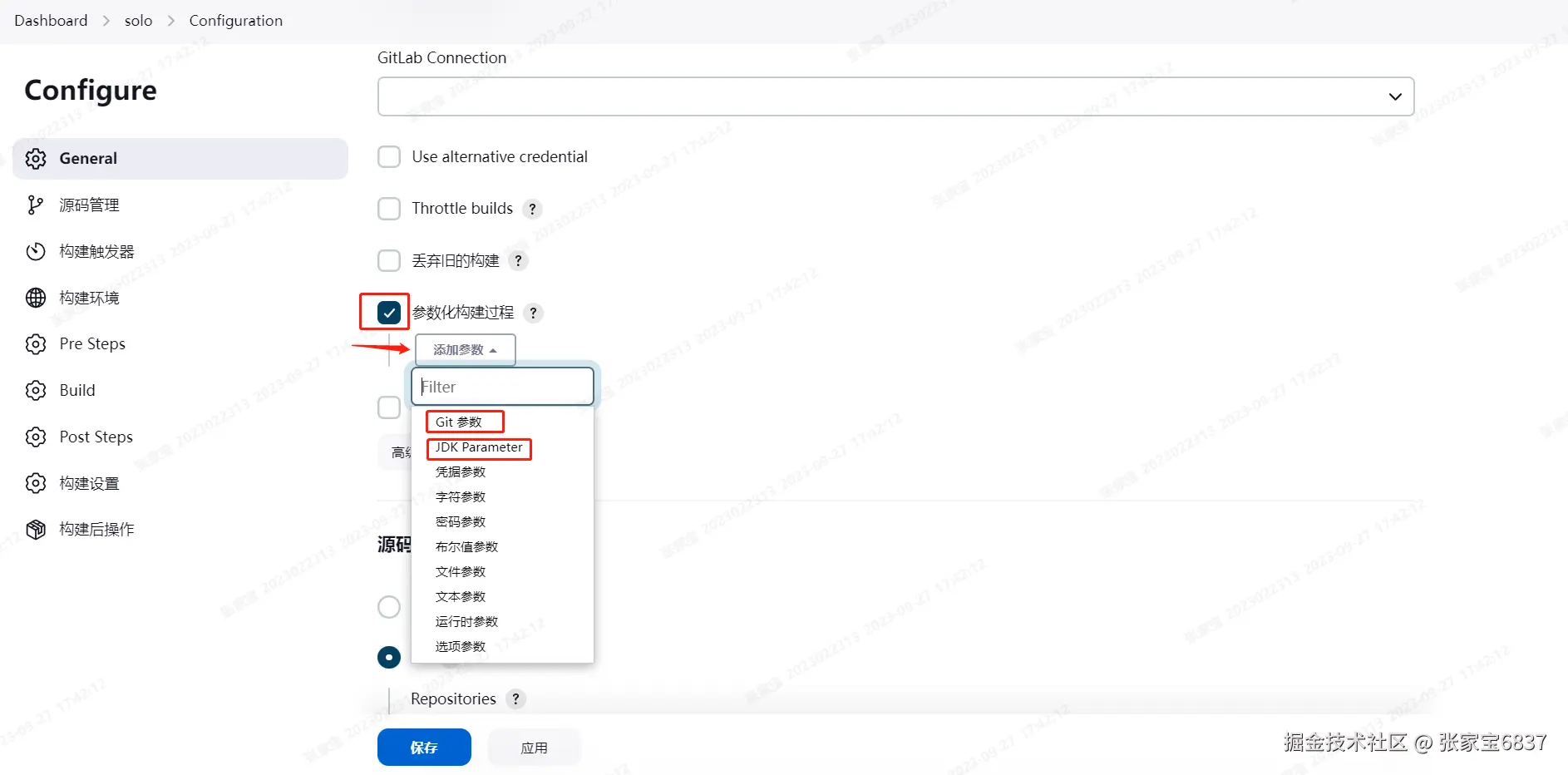

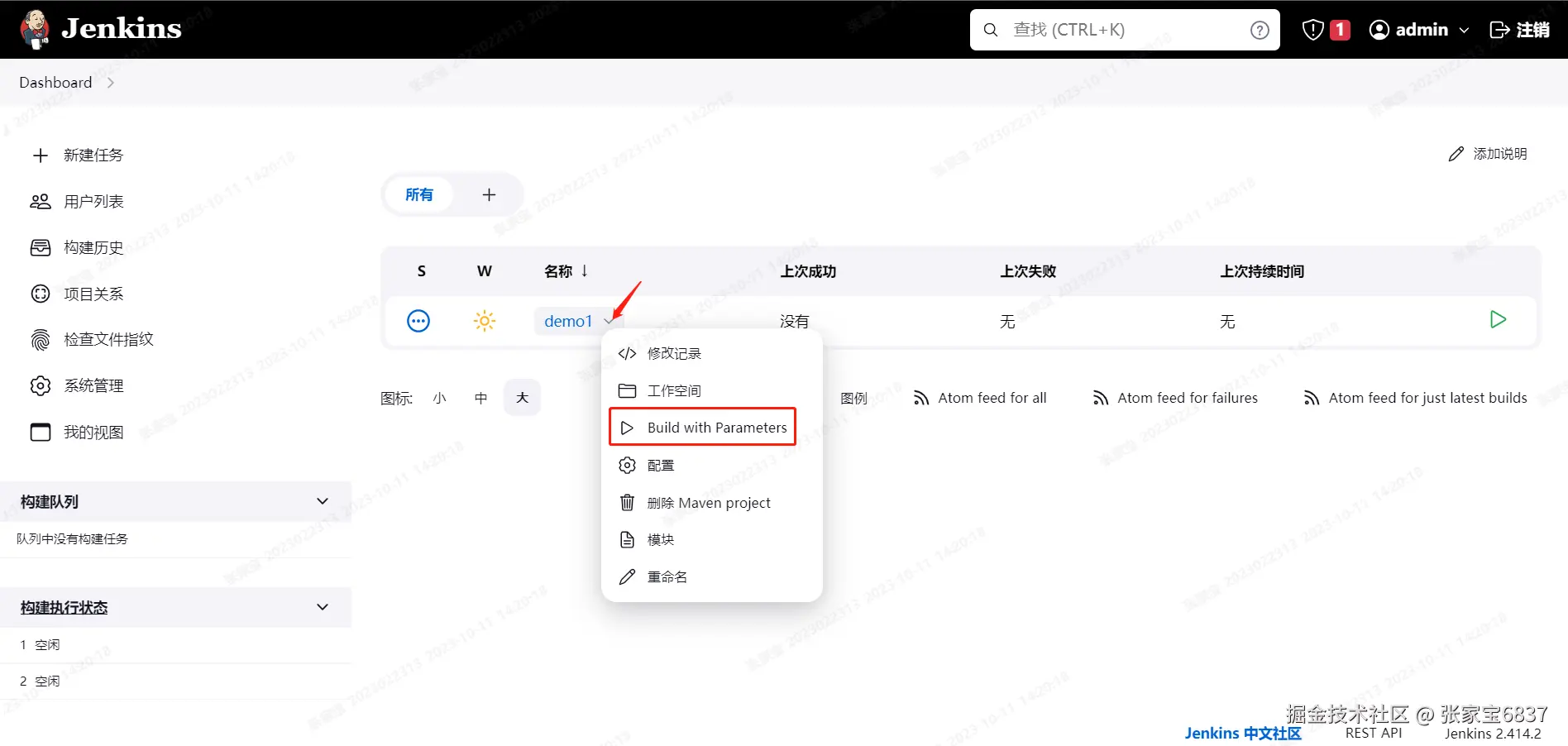

构建一个maven项目

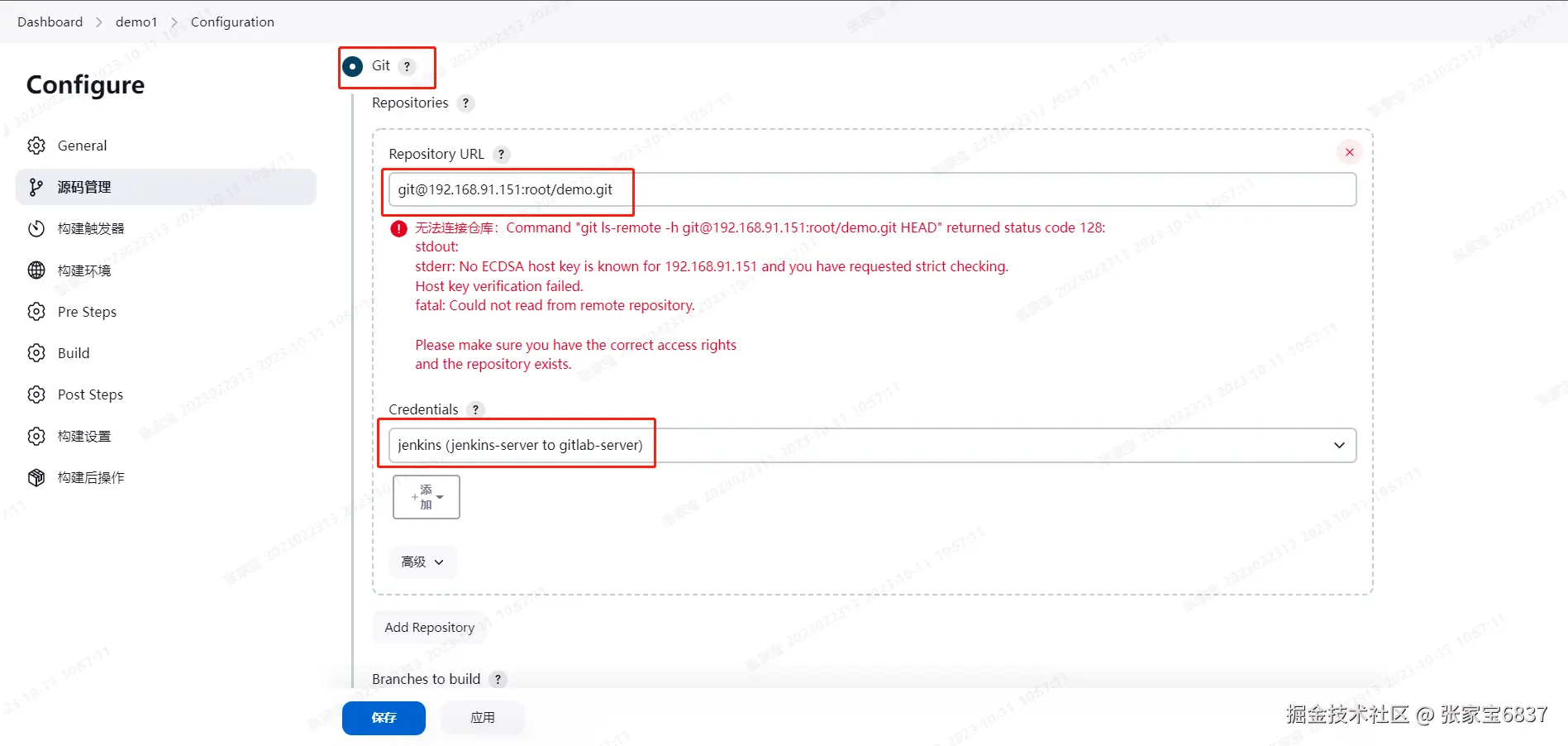

可能会出现上面的错误，有三种解决方案

  1. 配置jenkins-server到gitlab-server免密ssh

  2. 修改 /etc/ssh/ssh_config 配置文件

  3. 按照提示，在jenkins-server执行

    # jenkins-server
su jenkins
# 按照提示输入yes
git ls-remote -h git@192.168.91.151:root/demo.git HEAD
The authenticity of host '192.168.91.151 (192.168.91.151)' can't be established.
ECDSA key fingerprint is SHA256:fFK1C9qzpNWRtBAq1dZHIEGT1fMtDD3gAQ2gWAslYTw.
ECDSA key fingerprint is MD5:ed:76:a9:08:3f:0a:a5:9a:3a:ea:f3:81:26:25:95:9d.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.91.151' (ECDSA) to the list of known hosts.

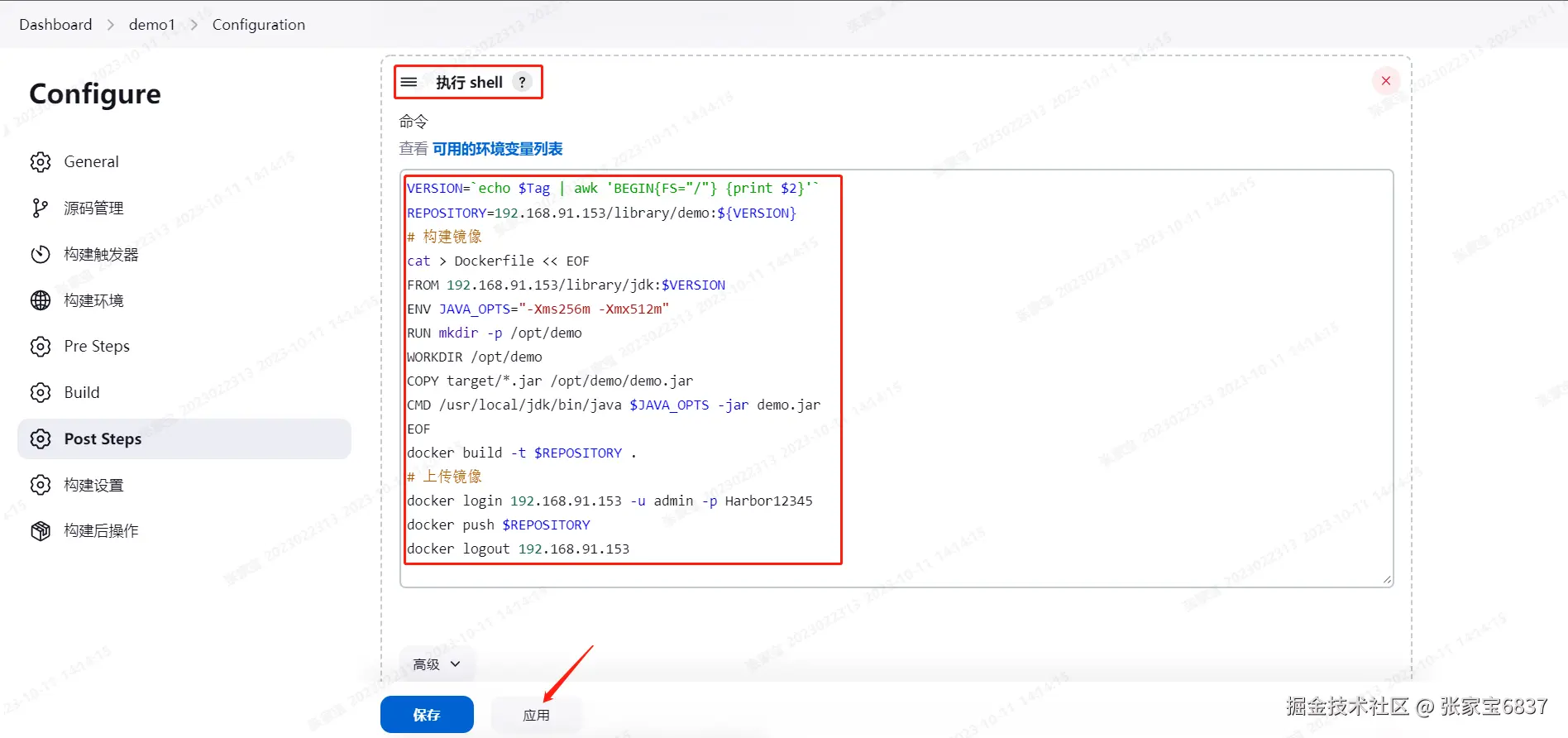

VERSION=`echo $Tag | awk 'BEGIN{FS="/"} {print $2}'`
REPOSITORY=192.168.91.153/library/demo:${VERSION}
# 构建镜像
cat > Dockerfile << EOF
FROM 192.168.91.153/library/jdk:$VERSION
ENV JAVA_OPTS="-Xms256m -Xmx512m"
RUN mkdir -p /opt/demo
WORKDIR /opt/demo
COPY target/*.jar /opt/demo/demo.jar
CMD /usr/local/jdk/bin/java $JAVA_OPTS -jar demo.jar
EOF
docker build -t $REPOSITORY .
# 上传镜像
docker login 192.168.91.153 -u admin -p Harbor12345
docker push $REPOSITORY
docker logout 192.168.91.153

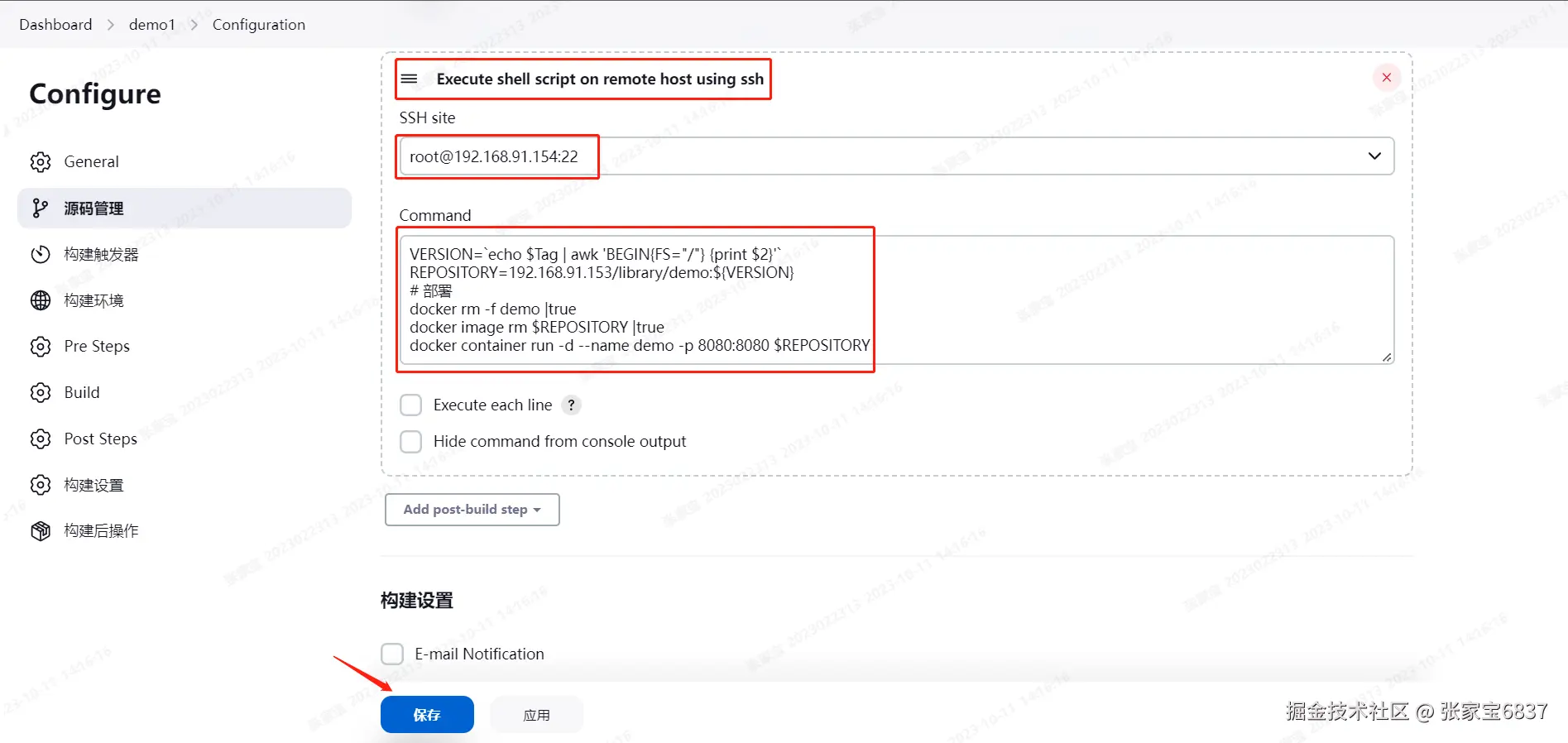

VERSION=`echo $Tag | awk 'BEGIN{FS="/"} {print $2}'`
REPOSITORY=192.168.91.153/library/demo:${VERSION}
# 部署
docker rm -f demo |true
docker image rm $REPOSITORY |true
docker container run -d --name demo -p 8080:8080 $REPOSITORY

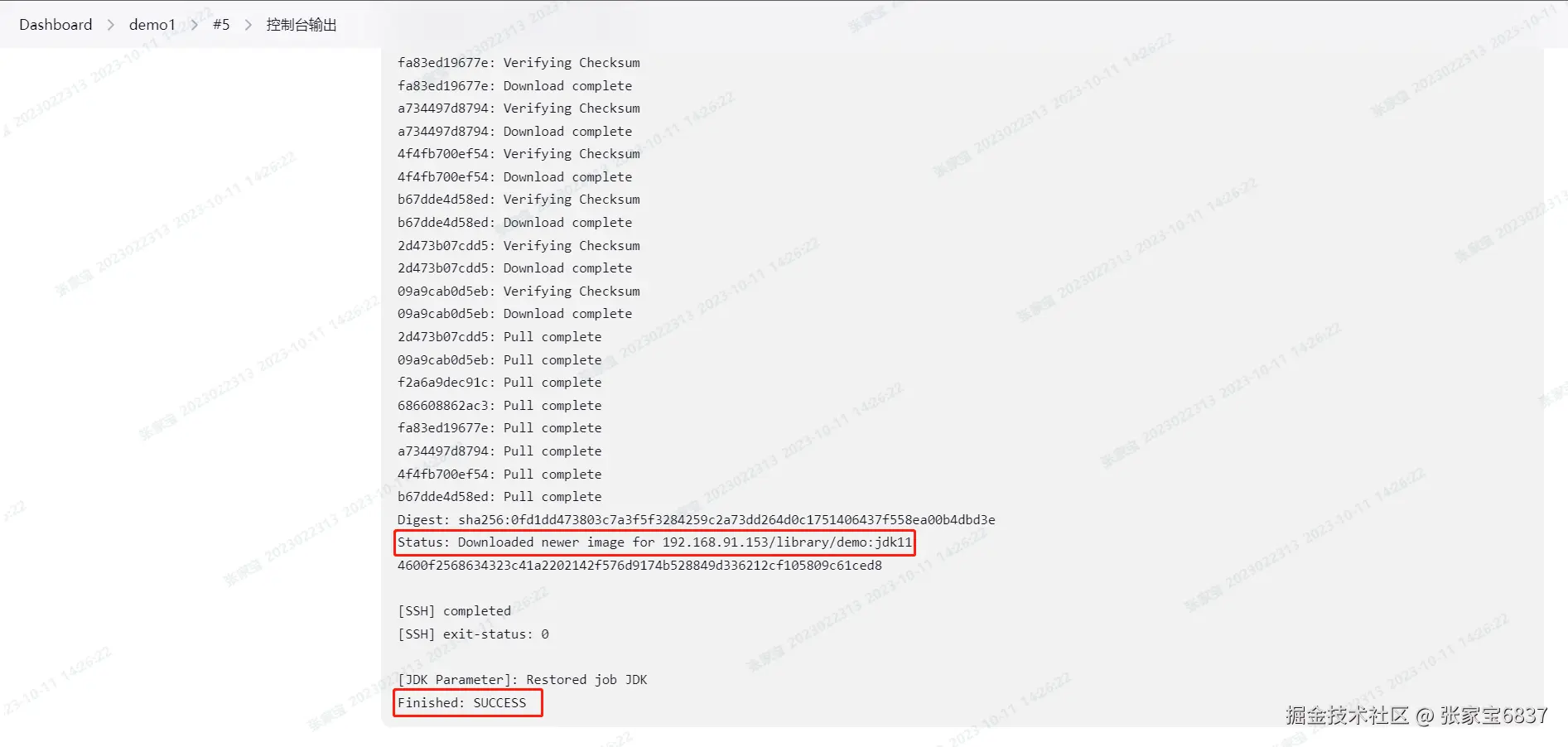

# web-server
# 可以看到刚刚jenkins部署成功的demo服务
docker ps
CONTAINER ID   IMAGE                               COMMAND                  CREATED          STATUS          PORTS                                       NAMES
4600f2568634   192.168.91.153/library/demo:jdk11   "/bin/sh -c '/usr/lo…"   32 seconds ago   Up 31 seconds   0.0.0.0:8080->8080/tcp, :::8080->8080/tcp   demo

curl 192.168.91.154:8080/hello
hello world jdk11

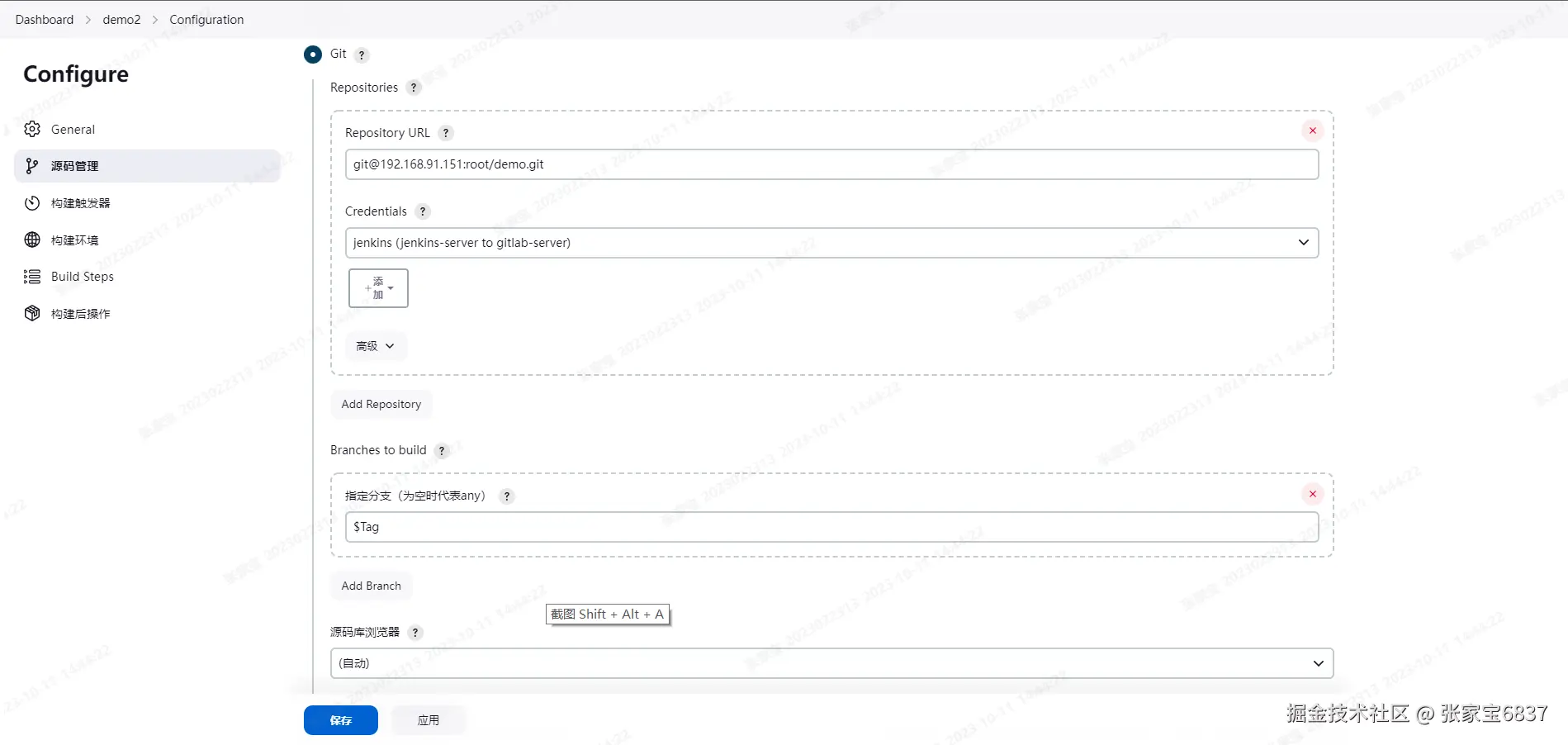

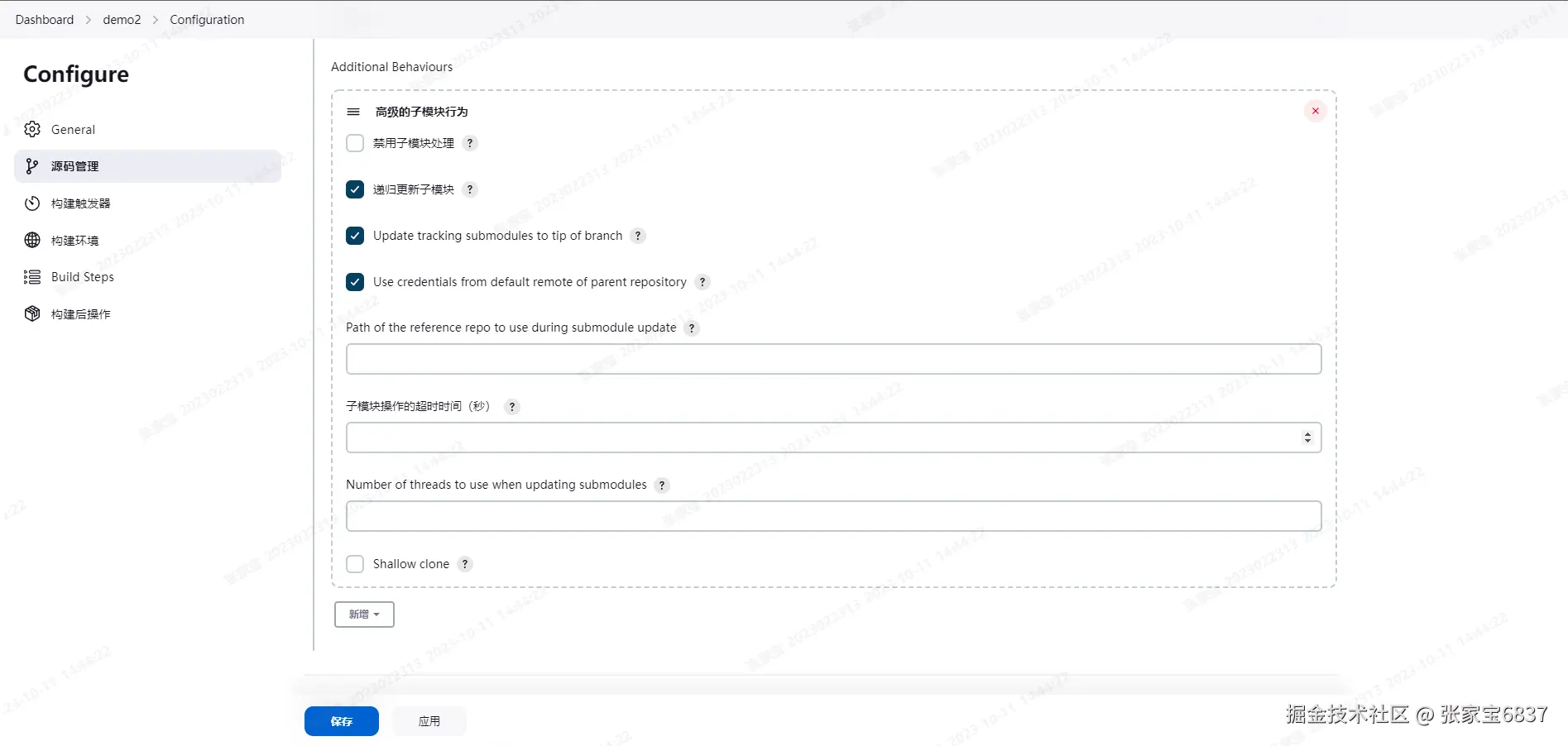

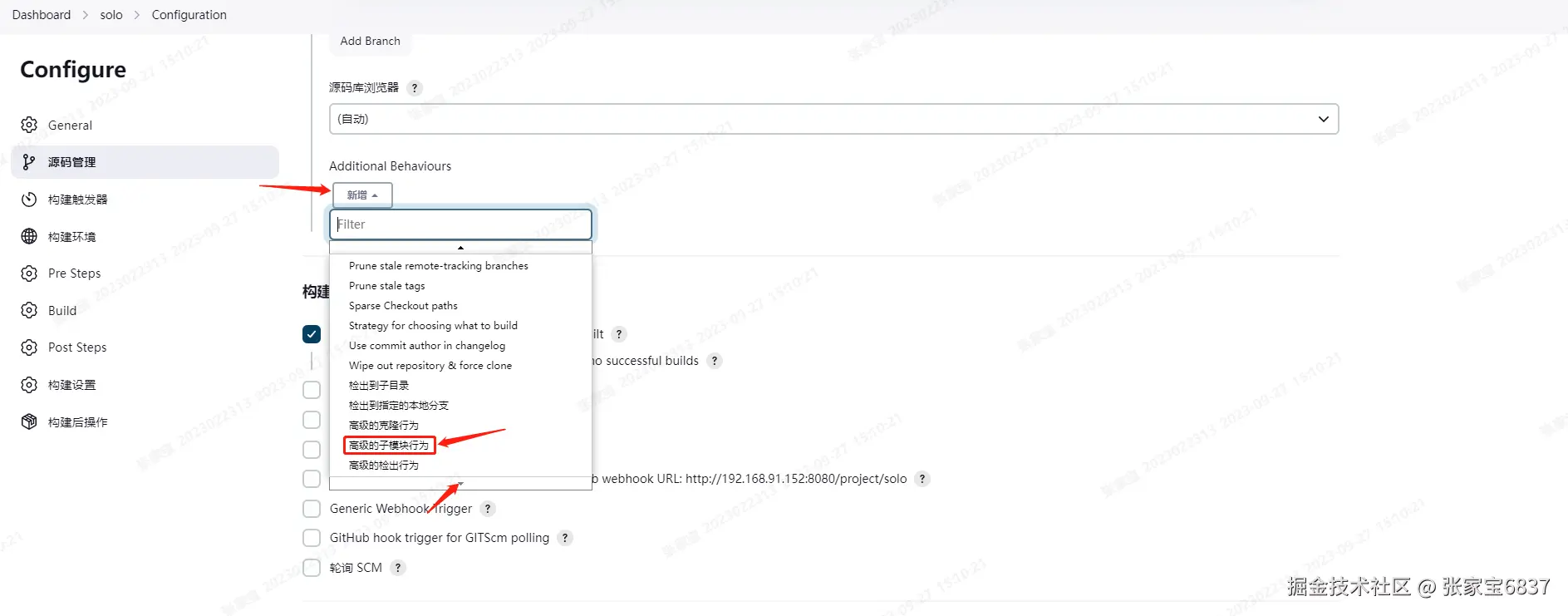

构建一个自由风格的软件项目

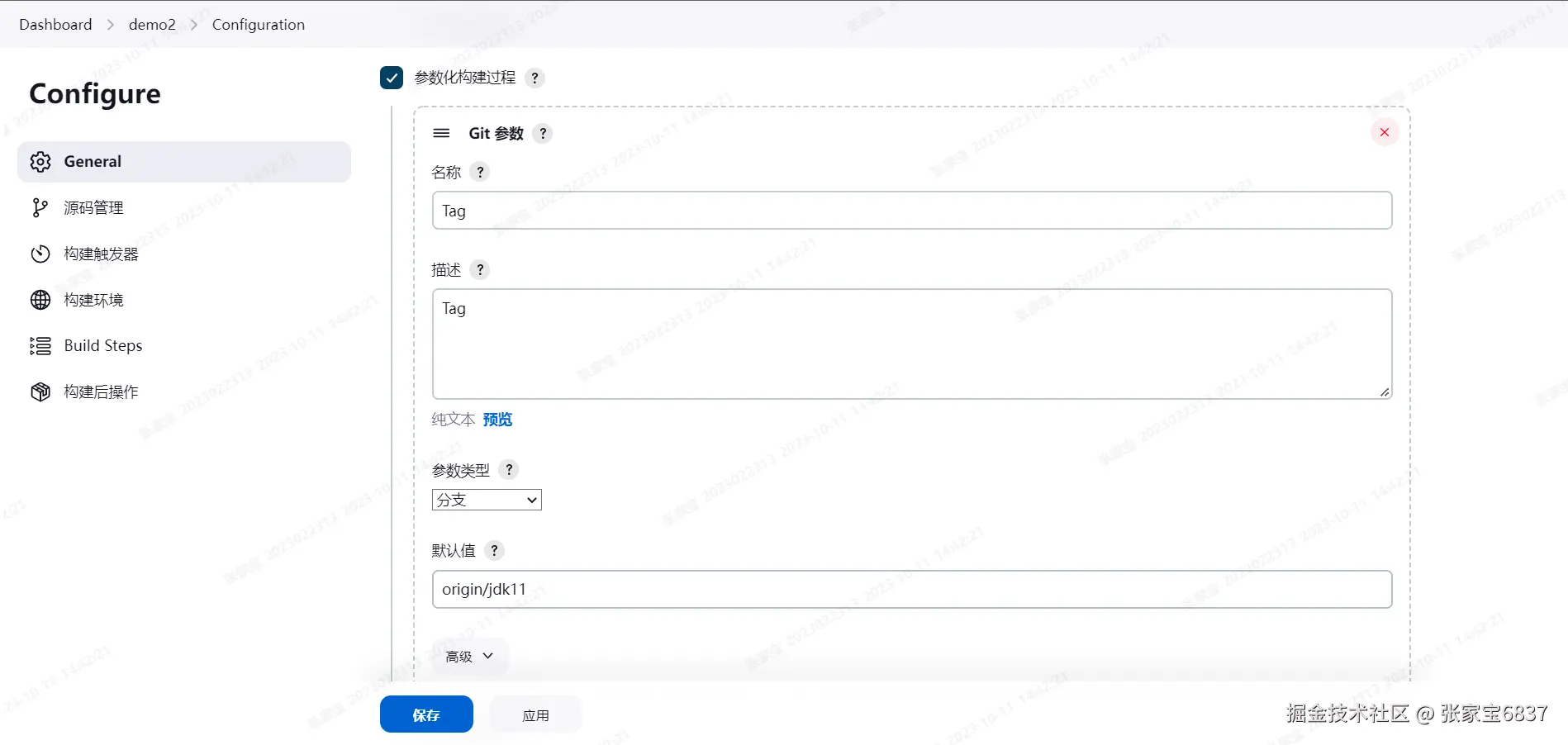

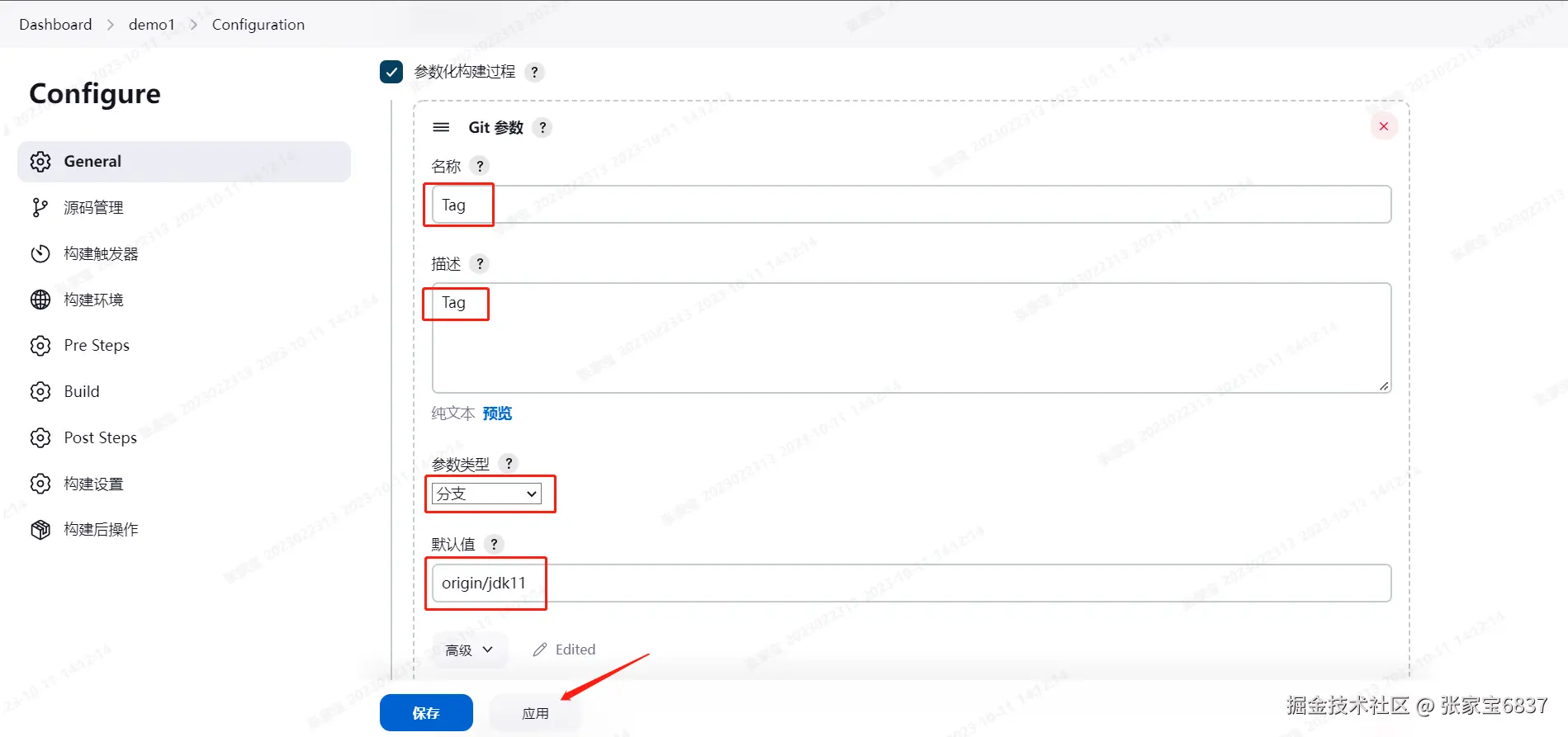

构建的时候选择不同的分支，可以同时支持jdk8和jdk11

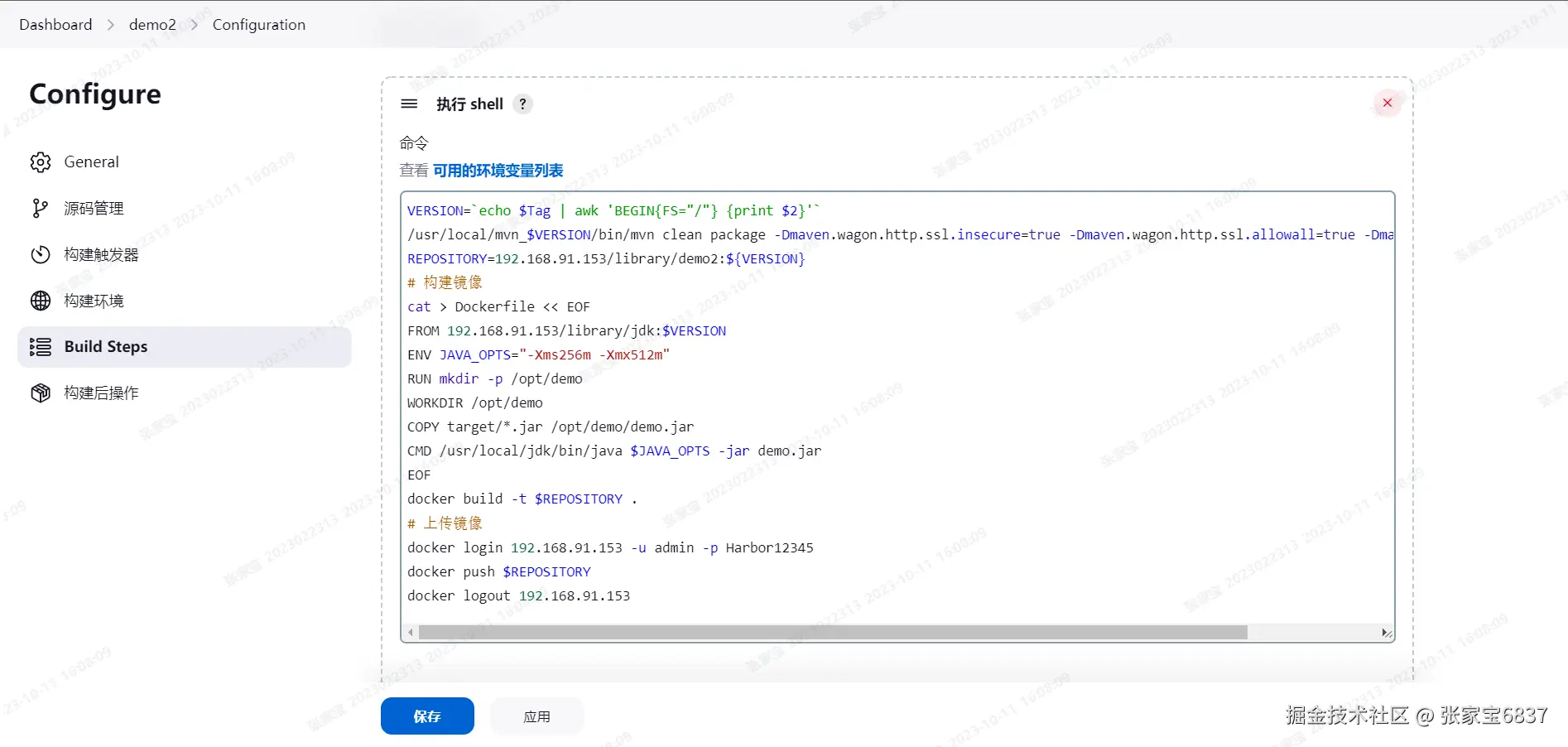

VERSION=`echo $Tag | awk 'BEGIN{FS="/"} {print $2}'`
# -Dmaven.wagon.http.ssl.insecure -Dmaven.wagon.http.ssl.allowall 使用openjdk8时可能需要这两个选项
/usr/local/mvn_$VERSION/bin/mvn clean package -Dmaven.wagon.http.ssl.insecure=true -Dmaven.wagon.http.ssl.allowall=true -Dmaven.test.skip=true
REPOSITORY=192.168.91.153/library/demo2:${VERSION}
# 构建镜像
cat > Dockerfile << EOF
FROM 192.168.91.153/library/jdk:$VERSION
ENV JAVA_OPTS="-Xms256m -Xmx512m"
RUN mkdir -p /opt/demo
WORKDIR /opt/demo
COPY target/*.jar /opt/demo/demo.jar
CMD /usr/local/jdk/bin/java $JAVA_OPTS -jar demo.jar
EOF
docker build -t $REPOSITORY .
# 上传镜像
docker login 192.168.91.153 -u admin -p Harbor12345
docker push $REPOSITORY
docker logout 192.168.91.153

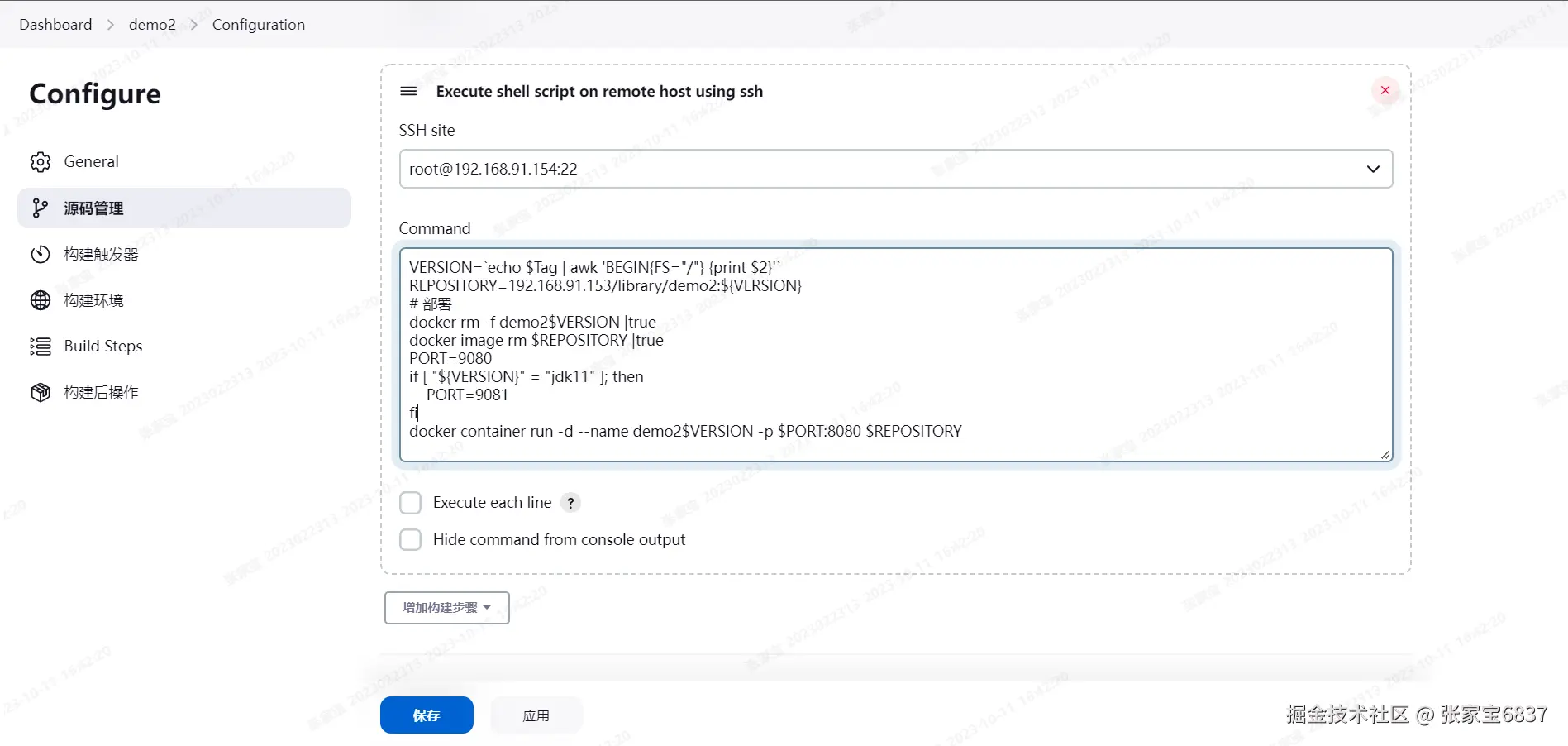

VERSION=`echo $Tag | awk 'BEGIN{FS="/"} {print $2}'`
REPOSITORY=192.168.91.153/library/demo2:${VERSION}
# 部署
docker rm -f demo2$VERSION |true
docker image rm $REPOSITORY |true
PORT=9080
if [ "${VERSION}" = "jdk11" ]; then
    PORT=9081
fi
docker container run -d --name demo2$VERSION -p $PORT:8080 $REPOSITORY

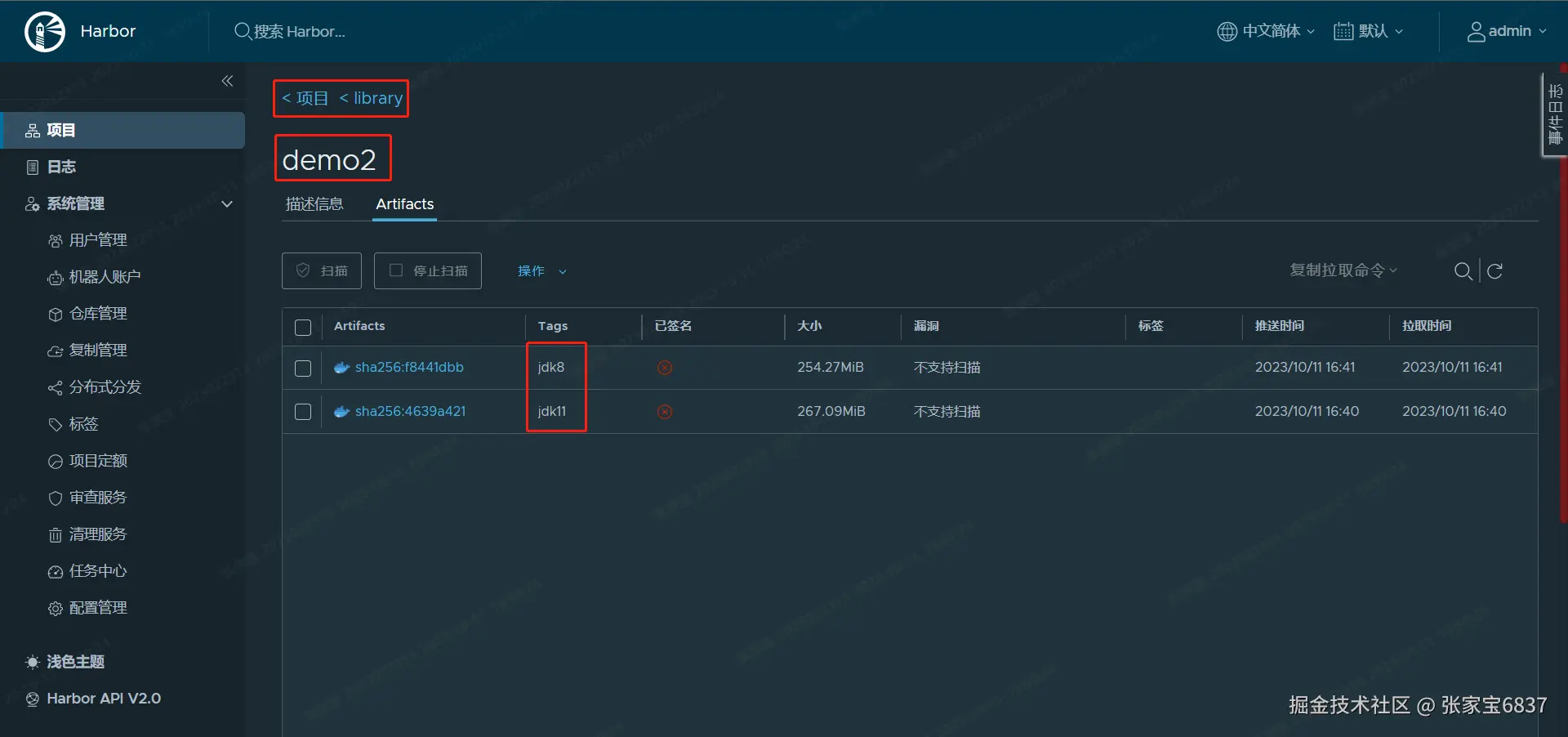

构建两次，一个是jdk8，一个是jdk11



# web-server
# 可以看到刚刚jenkins部署成功的demo2服务
docker ps
CONTAINER ID   IMAGE                                COMMAND                  CREATED         STATUS         PORTS                                       NAMES
93a1a4b7b0d6   192.168.91.153/library/demo2:jdk8    "/bin/sh -c '/usr/lo…"   6 minutes ago   Up 6 minutes   0.0.0.0:9080->8080/tcp, :::9080->8080/tcp   demo2jdk8
41910bea7a94   192.168.91.153/library/demo2:jdk11   "/bin/sh -c '/usr/lo…"   7 minutes ago   Up 7 minutes   0.0.0.0:9081->8080/tcp, :::9081->8080/tcp   demo2jdk11

curl 192.168.91.154:9080/hello
hello world jdk8

curl 192.168.91.154:9081/hello
hello world jdk11
avatar
文章
阅读
粉丝
