- mapbox GL javascript库
- 使用天地图作为瓦片
<template>
<div id="cxtjmap"></div>
</template>
<script setup lang="ts">
import circleImg from '@/images/circle.png';
import minusImg from '@/images/minus.png';
import plusImg from '@/images/plus.png';
import thunderImg from '@/images/thunder.png';
import thunderstormImg from '@/images/thunderstorm.png';
import triangleImg from '@/images/triangle.png';
import mapboxgl from 'mapbox-gl';
import { onBeforeUnmount, onMounted } from 'vue';
let map: mapboxgl.Map;
function initMapBox() {
mapboxgl.accessToken ='';
const params:any = {
container: 'cxtjmap',
style: {
sprite: 'mapbox://sprites/examples/cjikt35x83t1z2rnxpdmjs7y7',
glyphs: 'mapbox://fonts/mapbox/{fontstack}/{range}.pbf',
version: 8,
sources: {
tdtVec: {
type: 'raster',
tiles: [
'http://t0.tianditu.gov.cn/vec_w/wmts?service=WMTS&request=GetTile&version=1.0.0&tilematrixset=w&layer=vec&style=default&tilematrix={z}&tilerow={y}&tilecol={x}&format=tiles&tk=9f1439233cfad9ed75a0f55417a79e42',
'http://t1.tianditu.gov.cn/vec_w/wmts?service=WMTS&request=GetTile&version=1.0.0&tilematrixset=w&layer=vec&style=default&tilematrix={z}&tilerow={y}&tilecol={x}&format=tiles&tk=9f1439233cfad9ed75a0f55417a79e42',
'http://t2.tianditu.gov.cn/vec_w/wmts?service=WMTS&request=GetTile&version=1.0.0&tilematrixset=w&layer=vec&style=default&tilematrix={z}&tilerow={y}&tilecol={x}&format=tiles&tk=9f1439233cfad9ed75a0f55417a79e42',
'http://t3.tianditu.gov.cn/vec_w/wmts?service=WMTS&request=GetTile&version=1.0.0&tilematrixset=w&layer=vec&style=default&tilematrix={z}&tilerow={y}&tilecol={x}&format=tiles&tk=9f1439233cfad9ed75a0f55417a79e42',
],
tileSize: 256,
},
tdtCva: {
type: 'raster',
tiles: [
'http://t0.tianditu.gov.cn/cva_w/wmts?service=WMTS&request=GetTile&version=1.0.0&tilematrixset=w&layer=cva&style=default&tilematrix={z}&tilerow={y}&tilecol={x}&format=tiles&tk=9f1439233cfad9ed75a0f55417a79e42',
'http://t1.tianditu.gov.cn/cva_w/wmts?service=WMTS&request=GetTile&version=1.0.0&tilematrixset=w&layer=cva&style=default&tilematrix={z}&tilerow={y}&tilecol={x}&format=tiles&tk=9f1439233cfad9ed75a0f55417a79e42',
'http://t2.tianditu.gov.cn/cva_w/wmts?service=WMTS&request=GetTile&version=1.0.0&tilematrixset=w&layer=cva&style=default&tilematrix={z}&tilerow={y}&tilecol={x}&format=tiles&tk=9f1439233cfad9ed75a0f55417a79e42',
'http://t3.tianditu.gov.cn/cva_w/wmts?service=WMTS&request=GetTile&version=1.0.0&tilematrixset=w&layer=cva&style=default&tilematrix={z}&tilerow={y}&tilecol={x}&format=tiles&tk=9f1439233cfad9ed75a0f55417a79e42',
],
tileSize: 256,
},
},
layers: [
{
id: 'background',
type: 'background',
minzoom: 0,
maxzoom: 24,
layout: { visibility: 'visible' },
paint: { 'background-color': 'rgba(11, 15, 79, 1)' },
},
{
id: 'tdtVec',
type: 'raster',
source: 'tdtVec',
},
{
id: 'tdtCva',
type: 'raster',
source: 'tdtCva',
},
],
},
center: { lng: 170, lat: 66 },
zoom: 2,
maxBounds: [
[50, 2],
[166, 56],
],
pitch: 0,
bearing: 0,
logoPosition: undefined,
antialias: true,
};
map = new mapboxgl.Map(params);
}
function initImage() {
loadImage(minusImg, 'minus', { sdf: true });
loadImage(triangleImg, 'triangle', { sdf: true });
loadImage(plusImg, 'plus', { sdf: true });
loadImage(circleImg, 'circle', { sdf: true });
loadImage(thunderImg, 'thunder', { sdf: true });
loadImage(thunderstormImg, 'thunderstorm', { sdf: true });
}
function loadImage(src: string, imageName: string, opt?: any) {
map.loadImage(
src,
(error?: Error | undefined, image?: HTMLImageElement | ImageBitmap | undefined) => {
if (error) throw error;
map.addImage(imageName, image!, opt);
},
);
}
function initThunder() {
map.addSource('intracloud-lightning', {
type: 'geojson',
data: {
type: 'FeatureCollection',
features: [],
},
});
map.addLayer({
id: 'intracloud-lightning',
type: 'circle',
source: 'intracloud-lightning',
paint: {
'circle-color': ['get', 'color'],
'circle-radius': ['interpolate', ['linear'], ['zoom'], 0, 3, 10, 5],
'circle-stroke-width': 0,
},
});
map.addSource('ground-lightning', {
type: 'geojson',
data: {
type: 'FeatureCollection',
features: [],
},
});
map.addLayer({
id: 'ground-lightning',
type: 'symbol',
source: 'ground-lightning',
layout: {
'icon-image': ['get', 'type'],
'icon-size': [
'match',
['get', 'size'],
'medium',
0.3,
'large',
0.5,
0.3, // 默认大小
],
'icon-rotation-alignment': 'map',
'icon-allow-overlap': true,
},
paint: {
'icon-color': 'green',
},
});
initLineLayer(map);
bindEvent();
}
// 初始化
function initLineLayer(_map: mapboxgl.Map) {
_map.addSource('location-line', {
type: 'geojson',
data: {
type: 'FeatureCollection',
features: [],
},
});
_map.addLayer({
id: 'location-line',
type: 'line',
source: 'location-line',
layout: {
'line-join': 'round',
'line-cap': 'round',
},
paint: {
'line-color': 'red',
'line-width': 1,
},
});
_map.addSource('location-line-inner', {
type: 'geojson',
data: {
type: 'FeatureCollection',
features: [],
},
});
_map.addLayer({
id: 'location-line-inner',
type: 'line',
source: 'location-line-inner',
layout: {
'line-join': 'round',
'line-cap': 'round',
},
paint: {
'line-color': 'red',
'line-width': 1,
'line-dasharray': [10, 5],
},
});
_map.addSource('location-line-text', {
type: 'geojson',
data: {
type: 'FeatureCollection',
features: [],
},
});
//添加文本图层
_map.addLayer({
id: 'location-line-text',
type: 'symbol',
source: 'location-line-text',
layout: {
'text-field': ['get','title'], // 文本来源
'text-offset': [0, 0.5], // 文本偏移量
'text-anchor': 'bottom-left', // 文本锚点
'text-size': 10, // 文本大小
'text-allow-overlap': true,
'text-ignore-placement': true,
},
paint: {
'text-color': 'green', // 文本颜色
},
});
}
function bindEvent() {
// 鼠标样式
let popupPoint: any = null;
const popup = new mapboxgl.Popup({
closeOnClick: false,
closeButton: false,
offset: 26,
maxWidth: '340px',
className: 'thunder-popup',
});
map.on('mouseleave', 'ground-lightning', function () {
map.getCanvas().style.cursor = 'auto';
popup.remove();
timeHover = true;
});
map.on('mouseleave', 'intracloud-lightning', function () {
map.getCanvas().style.cursor = 'auto';
popup.remove();
timeHover = true;
});
map.on('mousemove', 'ground-lightning', async function (e) {
map.getCanvas().style.cursor = 'pointer';
if (popupPoint?.id != e.features![0].properties!.id) {
popupPoint = e.features![0].properties;
}
console.log(getPopupStr(popupPoint));
popup
.setLngLat([e.lngLat.lng, e.lngLat.lat])
.setHTML((await getPopupStr(popupPoint)) as string)
.addTo(map);
});
map.on('mousemove', 'intracloud-lightning', async function (e) {
map.getCanvas().style.cursor = 'pointer';
if (popupPoint?.id != e.features![0].properties!.id) {
popupPoint = e.features![0].properties;
}
popup
.setLngLat([e.lngLat.lng, e.lngLat.lat])
.setHTML((getPopupStr(popupPoint)) as string)
.addTo(map);
});
map.on('click', 'ground-lightning', async function (e) {
map.getCanvas().style.cursor = 'pointer';
if (popupPoint?.id != e.features![0].properties!.id) {
popupPoint = e.features![0].properties;
}
const resData = getLocationLineData(popupPoint);
//@ts-ignore
map.getSource('location-line-inner').setData({
type: 'FeatureCollection',
features: resData.inner,
});
//@ts-ignore
map.getSource('location-line').setData({
type: 'FeatureCollection',
features: resData.outside,
});
//@ts-ignore
map.getSource('location-line-text').setData({
type: 'FeatureCollection',
features: resData.stationName,
});
});
}
function convexHull(points: { lat: number; lon: number }[]): { lat: number; lon: number }[] {
// Find the point with the lowest latitude (and smallest longitude if latitudes are equal)
let start = points.reduce(
(prev, curr) =>
prev.lat < curr.lat
? prev
: prev.lat === curr.lat
? prev.lon < curr.lon
? prev
: curr
: curr,
points[0],
);
// Sort points by polar angle
points.sort((a, b) => polarAngle(start, a) - polarAngle(start, b));
// Remove the starting point from the sorted list
const stack: { lat: number; lon: number }[] = [start, points[0]];
for (let i = 1; i < points.length; i++) {
while (
stack.length >= 2 &&
orientation(stack[stack.length - 2], stack[stack.length - 1], points[i]) <= 0
) {
stack.pop();
}
stack.push(points[i]);
}
return stack;
}
function polarAngle(
pivot: { lat: number; lon: number },
point: { lat: number; lon: number },
): number {
return Math.atan2(point.lat - pivot.lat, point.lon - pivot.lon);
}
function orientation(
p1: { lat: number; lon: number },
p2: { lat: number; lon: number },
p3: { lat: number; lon: number },
): number {
return (p2.lon - p1.lon) * (p3.lat - p1.lat) - (p2.lat - p1.lat) * (p3.lon - p1.lon);
}
function calculateDistance(lat1: number, lon1: number, lat2: number, lon2: number) {
const R = 6371; // 地球半径，单位：km
const dLat = ((lat2 - lat1) * Math.PI) / 180;
const dLon = ((lon2 - lon1) * Math.PI) / 180;
const a =
Math.sin(dLat / 2) * Math.sin(dLat / 2) +
Math.cos((lat1 * Math.PI) / 180) *
Math.cos((lat2 * Math.PI) / 180) *
Math.sin(dLon / 2) *
Math.sin(dLon / 2);
const c = 2 * Math.atan2(Math.sqrt(a), Math.sqrt(1 - a));
const distance = R * c;
return distance;
}
let timeHover = true;
let strBox: string | null = null;

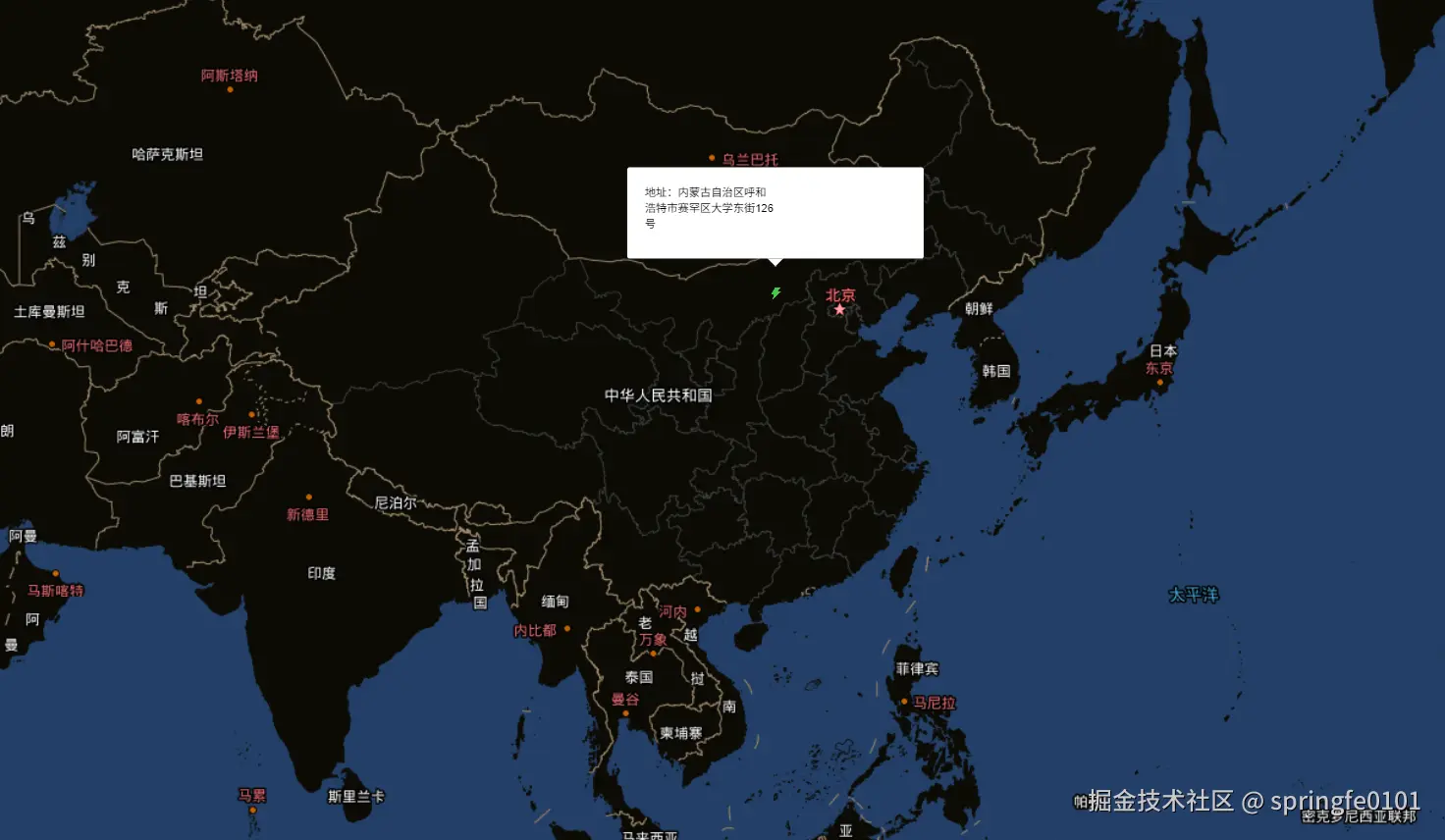

function getPopupStr(PointObj: any) {
if (timeHover) {
timeHover = false;
if (PointObj) {
console.log(PointObj);
strBox = `<div class="thunder">
<div class="item">地址：${PointObj.address}</div>
</div>`;
} else {
strBox = `<div class="thunder">
<div>无数据 </div>
</div>`;
}
}
return strBox;
}

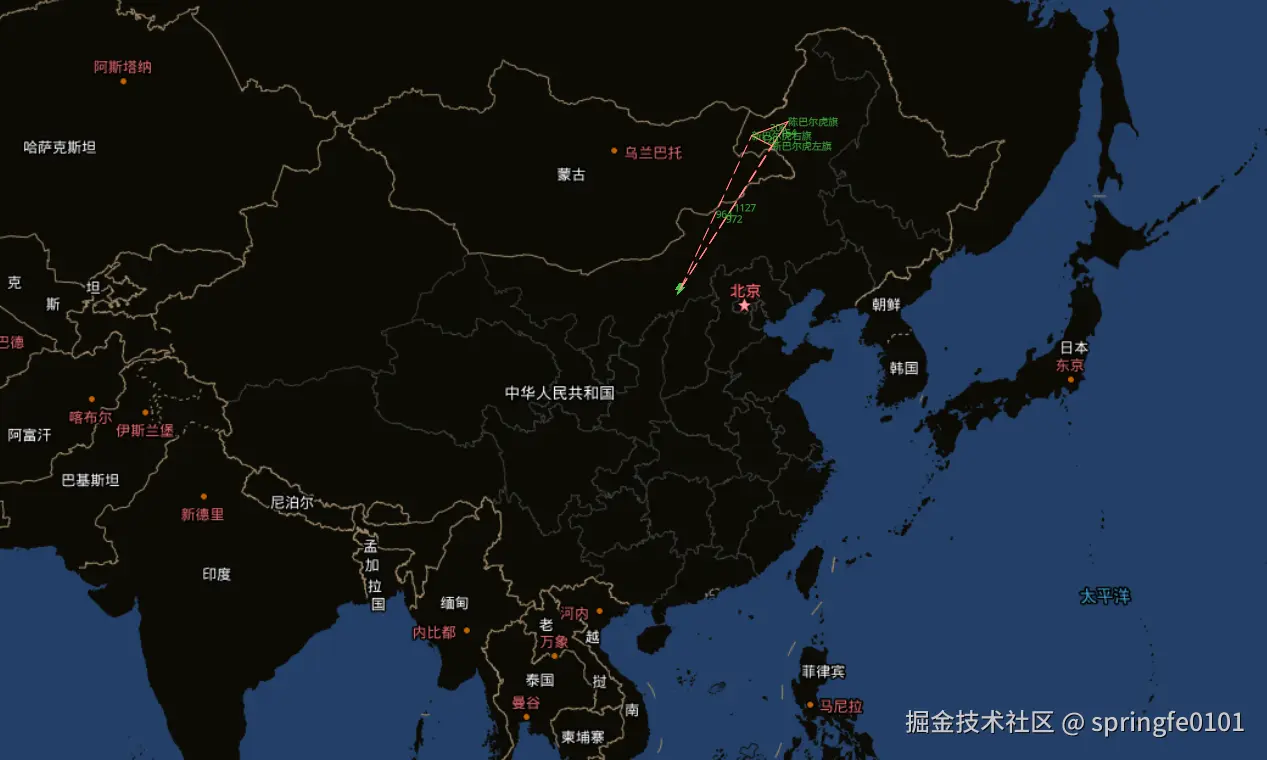

function getLocationLineData(currentPoint: any) {
let stationList = JSON.parse(currentPoint.stationList);
let stationName: any[] = [];
let innerLine: any[] = [];
for (let j = 0; j < stationList.length; j++) {
// 以下为 地图上画站点名称
let locationText = {
type: 'Feature',
geometry: {
type: 'Point',
coordinates: [stationList[j].lon, stationList[j].lat], // 文本的经纬度
},
properties: {
title: stationList[j].sta_name_new,
},
};
stationName.push(locationText);
// 以下为定位点和站之间划线
let data2 = {
type: 'Feature',
properties: {},
geometry: {
type: 'LineString',
coordinates: new Array(),
},
};
data2.geometry.coordinates.push([currentPoint.longitude, currentPoint.latitude]);
data2.geometry.coordinates.push([stationList[j].lon, stationList[j].lat]);
innerLine.push(data2);
// 以下为定位定位點和站之间画公里数
const distance = calculateDistance(
currentPoint.latitude,
currentPoint.longitude,
stationList[j].lat,
stationList[j].lon,
);
let lon: number = (currentPoint.longitude + stationList[j].lon) / 2;
let lat: number = (currentPoint.latitude + stationList[j].lat) / 2;
let locationText2 = {
type: 'Feature',
geometry: {
type: 'Point',
coordinates: [lon, lat], // 文本的经纬度
},
properties: {
title: Math.floor(distance),
},
};
stationName.push(locationText2);
}
let data1 = {
type: 'Feature',
properties: {},
geometry: {
type: 'LineString',
coordinates: new Array(),
},
};
let locationToLocationLine: any[] = [];
if (stationList.length > 2) {
const sortedCoordinates = convexHull(stationList);
for (let j = 0; j < sortedCoordinates.length; j++) {
data1.geometry.coordinates.push([sortedCoordinates[j].lon, sortedCoordinates[j].lat]);
let k = j + 1;
if (j == sortedCoordinates.length - 1) {
data1.geometry.coordinates.push([sortedCoordinates[0].lon, sortedCoordinates[0].lat]);
k = 0;
}
const distance = calculateDistance(
stationList[j].lat,
stationList[j].lon,
stationList[k].lat,
stationList[k].lon,
);
let lon: number = (stationList[j].lon + stationList[k].lon) / 2;
let lat: number = (stationList[j].lat + stationList[k].lat) / 2;
let distanceText = {
type: 'Feature',
geometry: {
type: 'Point',
coordinates: [lon, lat], // 文本的经纬度
},
properties: {
title: Math.floor(distance),
},
};
stationName.push(distanceText);
}
locationToLocationLine.push(data1);
}
return { inner: innerLine, outside: locationToLocationLine, stationName: stationName };
}
function drawMapData() {
let data = formMapData();
updateLocationThunder(data.groundLightingDataArr, data.cloudLightingDataArr);
}
function updateLocationThunder(groundLightingDataArr: any, cloudLightingDataArr: any) {
//@ts-ignore
map.getSource('ground-lightning').setData({
type: 'FeatureCollection',
features: groundLightingDataArr,
});
//@ts-ignore
map.getSource('intracloud-lightning').setData({
type: 'FeatureCollection',
features: cloudLightingDataArr,
});
}
function formMapData() {
const stationListData = [
{
"town": "陈巴尔虎旗",
"sta_name": "站1",
"city": "呼伦贝尔市",
"sta_name_new": "陈巴尔虎旗",
"lon": 119.4489,
"province": "内蒙古自治区",
"lat": 49.3392,
},
{
"town": "新巴尔虎左旗",
"sta_name": "站2",
"city": "呼伦贝尔市",
"sta_name_new": "新巴尔虎左旗",
"lon": 118.2631,
"province": "内蒙古自治区",
"lat": 48.1864,
},
{
"town": "新巴尔虎右旗",
"sta_name": "站3",
"city": "呼伦贝尔市",
"sta_name_new": "新巴尔虎右旗",
"lon": 116.8103,
"province": "内蒙古自治区",
"lat": 48.6781,
}
]
let mapData = [{logotype:1,longitude:111.654,latitude:40.812,address:'内蒙古自治区呼和浩特市赛罕区大学东街126号',stationList:stationListData}];
const groundLightingDataArr: any = [];
const cloudLightingDataArr: any = [];
mapData.forEach((el: any, i: number) => {
//最后一条算最新数据
if (i === mapData.length - 1) {
groundLightingDataArr.push({
type: 'Feature',
properties: {
id: i,
color: '#fff',
name: 'new',
type: 'thunder',
size: 'large',
...el,
},
geometry: {
type: 'Point',
coordinates: [el.longitude, el.latitude],
},
});
} else {
if (el.lightningType == 0) {//云闪
cloudLightingDataArr.push({
type: 'Feature',
properties: {
color: 'green',
id: i,
...el,
},
geometry: {
type: 'Point',
coordinates: [el.longitude, el.latitude],
},
});
}
if (el.lightningType == 1) {//地闪
if (el.peakCurrentIntensity > 0) {//正地闪
groundLightingDataArr.push({
type: 'Feature',
properties: {
id: i,
color: 'red',
name: '加',
type: 'plus',
size: 0.3,
...el,
},
geometry: {
type: 'Point',
coordinates: [el.longitude, el.latitude],
},
});
}
if (el.peakCurrentIntensity <= 0) {//负地闪
groundLightingDataArr.push({
type: 'Feature',
properties: {
id: i,
color: 'green',
name: '减',
type: 'minus',
size: 0.3,
...el,
},
geometry: {
type: 'Point',
coordinates: [el.longitude, el.latitude],
},
});
}
}
}
});
return {'groundLightingDataArr':groundLightingDataArr,'cloudLightingDataArr':cloudLightingDataArr};
}
function loadMap() {
map.on('load', function () {
initImage();
initThunder();
drawMapData();
});
}
function destroyMapbox() {
map && map.remove();
}
onMounted(() => {
initMapBox();
loadMap();
});
onBeforeUnmount(() => {
destroyMapbox();
});
</script>
<style>
#cxtjmap {
height: 100%;
}
.thunder-popup {
.thunder {
display: flex;
flex-wrap: wrap;
color: black;
font-size: 14px;
margin: 12px;
div {
width: 50%;
margin-bottom: 6px;
&.w-100 {
width: 100%;
}
}
}
}
</style>
完整代码地址 github
