openGemini中对于时间的筛选分散于代码的各个位置和层级。因为数据在存储时就根据时间进行了分片，将不同时间段的数据存储在不同的shards中。除此之外，在tssp文件中，不同时间线的数据分割成不同的block存放，每个block中的时间又分别有序。而当插入数据时出现时间乱序时，顺序和乱序的数据也会分开存放。为了应对这些在不同层级根据时间切分数据的策略，以及对性能的考量，导致了openGemini对于时间的处理比较复杂。
一、编译和准备
当一条查询SQL传到ts-sql节点，该语句会经过解析成AST，再经过编译和准备。
在编译阶段的preprocess方法中，这里从condition中将查询限制的时间范围提取出来，并将时间过滤条件和condition中的其他条件分开，单独储存在timeRange字段中。因为时间的特殊性，所以会将时间和其他condition分开来处理。
// preprocess retrieves and records the global attributes of the current statement.
func (c *compiledStatement) preprocess(stmt *influxql.SelectStatement) error {
c.Ascending = stmt.TimeAscending()
c.Limit = stmt.Limit
c.HasTarget = stmt.Target != nil
valuer := influxql.NowValuer{Now: c.Options.Now, Location: stmt.Location}
// 解析编译condition并分离时间条件
cond, t, err := influxql.ConditionExpr(stmt.Condition, &valuer)
if err != nil {
return err
}
// Verify that the condition is actually ok to use.
if err := c.validateCondition(cond); err != nil {
return err
}
// 条件和时间分开存放
c.Condition = cond
c.TimeRange = t
...
}
二、Shard层面的时间筛选
在准备阶段，我们会根据Shard自身的时间范围和查询携带的时间条件，筛选出目标数据所属shards。
对于每一个拿到的shards，逻辑计划会生成一个对应的LogicalIndexScan和其下层算子。
func (c *compiledStatement) Prepare(shardMapper ShardMapper, sopt SelectOptions) (PreparedStatement, error) {
// we need to limit the possible time range that can be used when mapping shards but not when actually executing
// the select statement. Determine the shard time range here.
timeRange := c.TimeRange
...
// Create an iterator creator based on the shards in the cluster.
shards, err := shardMapper.MapShards(c.stmt.Sources, timeRange, sopt, c.stmt.Condition)
if err != nil {
return nil, err
}
...
return NewPreparedStatement(stmt, &opt, shards, columns, sopt.MaxPointN, c.Options.Now), nil
}
目标shards的查找逻辑在mapMstShards方法中，通过csm.MetaClient.ShardGroupsByTimeRange方法，可以拿到包含查询时间的ShardGroups。
func (csm *ClusterShardMapper) mapMstShards(s *influxql.Measurement, csming *ClusterShardMapping, tmin, tmax time.Time, condition influxql.Expr, opt *query.SelectOptions) error {
source, shardKeyInfo, measurements, engineTypes, err := csm.getTargetShardMsg(s)
if err != nil {
return err
}
// Retrieve the list of shards for this database. This list of
// shards is always the same regardless of which measurement we are
// using.
if _, ok := csming.ShardMap[source]; !ok {
groups, err := csm.MetaClient.ShardGroupsByTimeRange(s.Database, s.RetentionPolicy, tmin, tmax)
if err != nil {
return err
}
...
}
return nil
}
MetaClient可以看做是连接Meta集群的客户端，用来给Meta节点发送命令和接收元数据，其中的cacheData字段保存着元数据快照，在SQL节点启动时，会从Meta集群获取一份元数据快照保存，并定期拉取更新。这里从元数据中根据查询的Database名和RP名获取到对应的RetentionPolicy元数据，通过遍历切片组找到包含所查询时间的切片组并返回。OpenGemini根据保留策略的Shard Duration划分Shards，同一个切片组的切片拥有相同起始时间。当一个Shard Group到期后，系统会创建新的Shard Group，并为每个节点分配新的分片 (Shard)。
// ShardGroupsByTimeRange returns a list of all shard groups on a database and policy that may contain data
// for the specified time range. Shard groups are sorted by start time.
func (c *Client) ShardGroupsByTimeRange(database, policy string, min, max time.Time) (a []meta2.ShardGroupInfo, err error) {
c.mu.RLock()
defer c.mu.RUnlock()
// Find retention policy.
rpi, err := c.cacheData.RetentionPolicy(database, policy)
if err != nil {
return nil, err
} else if rpi == nil {
return nil, meta2.ErrRetentionPolicyNotFound(policy)
}
groups := make([]meta2.ShardGroupInfo, 0, len(rpi.ShardGroups))
for _, g := range rpi.ShardGroups {
if g.Deleted() || !g.Overlaps(min, max) {
continue
}
groups = append(groups, g)
}
return groups, nil
}
// Client is used to execute commands on and read data from
// a meta service cluster.
type Client struct {
...
cacheData *meta2.Data
...
// send RPC message interface.
SendRPCMessage
}
// Data represents the top level collection of all metadata.
type Data struct {
Term uint64 // associated raft term
Index uint64 // associated raft index
ClusterID uint64
ClusterPtNum uint32 // default number is the total cpu number of 16 nodes.
PtNumPerNode uint32
NumOfShards int32 // default number of shard for measurement created by `CREATE MEASUREMENT ... SHARDS AUTO`
MetaNodes []NodeInfo // careful: metaNode.gossipAddr is not use.
DataNodes []DataNode // data nodes
SqlNodes []DataNode // sql nodes
PtView map[string]DBPtInfos // PtView's key is dbname, value is PtInfo's slice.
ReplicaGroups map[string][]ReplicaGroup // key is dbname, value is the replication group of the database
Databases map[string]*DatabaseInfo
Streams map[string]*StreamInfo
Users []UserInfo
...
拿到ShardGroups后，对每一个group进行遍历，通过TargetShards方法找到其中存活且可读的Shards，如果创建表时指定了ShardKey，这里也会根据ShardKey和查询的Tags条件做一个筛选。
func (csm *ClusterShardMapper) mapMstShards(s *influxql.Measurement, csming *ClusterShardMapping, tmin, tmax time.Time, condition influxql.Expr, opt *query.SelectOptions) error {
source, shardKeyInfo, measurements, engineTypes, err := csm.getTargetShardMsg(s)
if err != nil {
return err
}
// Retrieve the list of shards for this database. This list of
// shards is always the same regardless of which measurement we are
// using.
if _, ok := csming.ShardMap[source]; !ok {
groups, err := csm.MetaClient.ShardGroupsByTimeRange(s.Database, s.RetentionPolicy, tmin, tmax)
if err != nil {
return err
}
if len(groups) == 0 {
csming.ShardMap[source] = nil
return nil
}
shardInfosByPtID := make(map[uint32][]executor.ShardInfo)
//firstSetTimeRange := true
for i, g := range groups {
// ShardGroupsByTimeRange would get all shards with different engine type in the TimeRange,
// we only need to process shards with engine type in engineTypes or equals to engineType.
if !engineTypes[g.EngineType] {
continue
}
if shardKeyInfo == nil {
shardKeyInfo = measurements[0].GetShardKey(groups[i].ID)
}
aliveShardIdxes := csm.MetaClient.GetAliveShards(s.Database, &groups[i], true)
var shs []meta2.ShardInfo
if opt.HintType == hybridqp.FullSeriesQuery || opt.HintType == hybridqp.SpecificSeriesQuery {
shs, csming.seriesKey = groups[i].TargetShardsHintQuery(measurements[0], shardKeyInfo, condition, opt, aliveShardIdxes)
} else {
shs = groups[i].TargetShards(measurements[0], shardKeyInfo, condition, aliveShardIdxes)
}
csm.updateShardInfosByPtID(s, g, shs, &shardInfosByPtID)
}
csming.ShardMap[source] = shardInfosByPtID
}
return nil
}
三、TSSP文件
经过了shards的筛选，我们接下来会做tssp文件中的进一步筛选。
在IndexScanTransform中，会完成对索引的扫描，获取到对应的serieskeys和sids，这之后会生成ChunkReader，创建GroupCursor，TagSetCursor，SeriesCursor等用于读取数据。需要注意的是，当我们打印逻辑计划，可以看到LogIcalIndexScan和下层的LogicalReader等逻辑算子，而在生成物理计划执行Pipeline时，LogIcalIndexScan下层的算子并没有立即生成对应的物理算子。而是等待IndexScanTransform索引扫描完成，确定了数据所在的文件范围后，再进行延迟展开，将ChunkReader以及下层的Cursors创建并在IndexScanTransform下的sub-pipeline中执行。
以下述SQL为例：
> select * from mst
name: mst
+---------------------+-----------+-------+-------+----------+--------+--------+
| time | address | age | alive | country | height | name |
+---------------------+-----------+-------+-------+----------+--------+--------+
| 1629129600000000000 | shenzhen | 12.3 | true | china | 70 | azhu |
| 1629129601000000000 | shanghai | 20.5 | false | american | 80 | alan |
| 1629129602000000000 | beijin | 3.4 | true | germany | 90 | alang |
| 1629129603000000000 | guangzhou | 30 | false | japan | 121 | ahui |
| 1629129604000000000 | chengdu | 35 | true | canada | 138 | aqiu |
| 1629129605000000000 | wuhan | 48.8 | <nil> | china | 149 | agang |
| 1629129606000000000 | <nil> | 52.7 | true | american | 153 | agan |
| 1629129607000000000 | anhui | 28.3 | false | germany | <nil> | alin |
| 1629129608000000000 | xian | <nil> | true | japan | 179 | ali |
| 1629129609000000000 | hangzhou | 60.8 | false | canada | 180 | <nil> |
| 1629129610000000000 | nanjin | 102 | true | <nil> | 191 | ahuang |
| 1629129611000000000 | zhengzhou | 123 | false | china | 203 | ayin |
| 1629129612000000000 | liuzhou | 15.4 | true | china | 68 | azhu |
+---------------------+-----------+-------+-------+----------+--------+--------+
7 columns, 13 rows in set
> select * from mst where time >= 1629129606000000000 and time <= 1629129611000000000
name: mst
+---------------------+-----------+-------+-------+----------+--------+--------+
| time | address | age | alive | country | height | name |
+---------------------+-----------+-------+-------+----------+--------+--------+
| 1629129606000000000 | <nil> | 52.7 | true | american | 153 | agan |
| 1629129607000000000 | anhui | 28.3 | false | germany | <nil> | alin |
| 1629129608000000000 | xian | <nil> | true | japan | 179 | ali |
| 1629129609000000000 | hangzhou | 60.8 | false | canada | 180 | <nil> |
| 1629129610000000000 | nanjin | 102 | true | <nil> | 191 | ahuang |
| 1629129611000000000 | zhengzhou | 123 | false | china | 203 | ayin |
+---------------------+-----------+-------+-------+----------+--------+--------+
7 columns, 6 rows in set
在shard的CreateCursor方法中，通过Scan方法扫描获取到seireskeys后，会调用createGroupCursor方法创建GroupCursor，接着在createGroupSubCursor方法中的newTagSetCursor创建TagSetCursor，在itrsInit方法中创建SeriesCursor，最后创建TsmMergeCursor以及其下面的LocationCursor。
type LocationCursor struct {
rowNum int
pos int
lcs []*Location
filterRecPool *record.CircularRecordPool
}
locationCursor的lcs字段保存着需要被读取的tssp文件以及Chunk Meta，其数据结构Location如下：
type Location struct {
ctx *ReadContext
r TSSPFile
meta *ChunkMeta
segPos int
fragPos int // Indicates the sequence number of a fragment range.
fragRgs []*fragment.FragmentRange
}
初始化TsmMergeCursor时，会通过AddLoc方法将需要读取的Location加入到lcs字段中。在OpenGemini中，顺序数据和乱序数据由插入数据时，是否按时间顺序插入来区分。为了保证读写效率，顺序数据和乱序数据会分开存放。
func (c *tsmMergeCursor) AddLoc() error {
var err error
...
// 顺序数据
err = AddLocationsWithInit(c.locations, c.ctx.readers.Orders, c.ctx, c.sid)
if err != nil {
return err
}
// 乱序数据
err = AddLocationsWithInit(c.outOfOrderLocations, c.ctx.readers.OutOfOrders, c.ctx, c.sid)
if err != nil {
return err
}
}
...
return nil
}
接着会进入到AddLocations方法中，在loc.Cotations方法会进行条件筛选
func AddLocations(l *immutable.LocationCursor, files immutable.TableReaders, ctx *idKeyCursorContext, sid uint64, metaCtx *immutable.ChunkMetaContext) error {
for _, r := range files {
if ctx.IsAborted() {
return nil
}
loc := immutable.NewLocation(r, ctx.decs)
contains, err := loc.Contains(sid, ctx.tr, metaCtx)
if err != nil {
return err
}
if contains {
l.AddLocation(loc)
}
}
return nil
}
func (l *Location) Contains(sid uint64, tr util.TimeRange, ctx *ChunkMetaContext) (bool, error) {
// use bloom filter and file time range to filter generally
contains, err := l.r.ContainsValue(sid, tr)
if err != nil {
return false, err
}
if !contains {
return false, nil
}
// read file meta to judge whether file has data, chunk meta will also init
err = l.readChunkMeta(sid, tr, ctx)
if err != nil {
return false, err
}
if l.meta == nil {
return false, nil
}
if l.ctx.Ascending {
return l.segPos < int(l.fragRgs[len(l.fragRgs)-1].End), nil
}
return l.segPos >= int(l.fragRgs[0].Start), nil
}

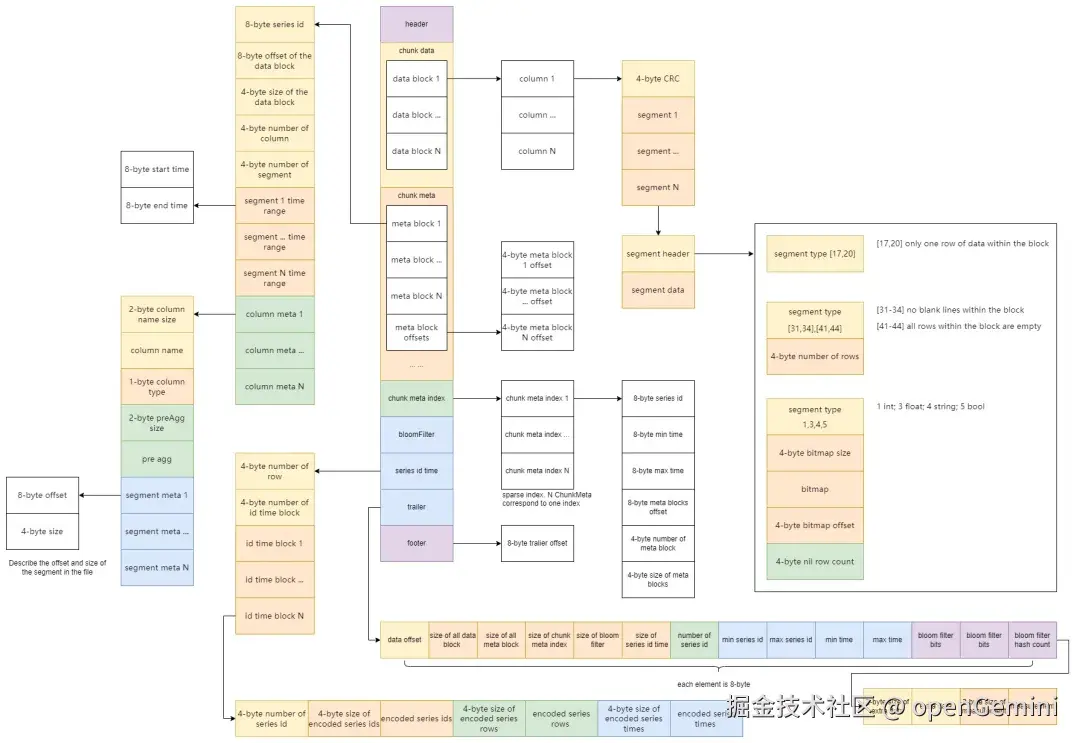

这里首先会通过bloom过滤器过滤sid，以及trainler中的min/maxTime做一个文件级的时间过滤。trainler的min/max time表示文件储存的所有数据的最大和最小时间。
四、Chunk Meta Index
在通过了这个过滤后，我们会读取这个sid对应的chunk meta Index，chunk meta index是一个稀疏索引，多个Chunk Meta对应其中一个index，在这一步进行Chunks级别的稀疏索引时间筛选，并找到index。
func (r *tsspFileReader) MetaIndex(id uint64, tr util.TimeRange) (int, *MetaIndex, error) {
if err := r.lazyInit(); err != nil {
errInfo := errno.NewError(errno.LoadFilesFailed)
log.Error("MetaIndex", zap.Error(errInfo))
return -1, nil, err
}
if id < r.trailer.minId || id > r.trailer.maxId {
return 0, nil, nil
}
idx := searchMetaIndexItem(r.metaIndexItems, id)
if idx < 0 {
return -1, nil, nil
}
metaIndex := &r.metaIndexItems[idx]
// Chunk级的时间过滤
if !tr.Overlaps(metaIndex.minTime, metaIndex.maxTime) {
return 0, nil, nil
}
return idx, metaIndex, nil
}
五、Chunk Meta&Meta Block
通过上述index，我们可以将sid对应的目标缩小到几个chunk meta。接着通过二分查找的方式最终找到sid对应的meta block(一个chunk meta实际对应一个meta block)。chuck meta的timeranges记录着该block中包含的segment的时间范围，据此我们进行了block级的时间筛选。
func (l *Location) readChunkMeta(id uint64, tr util.TimeRange, ctx *ChunkMetaContext) error {
idx, m, err := l.r.MetaIndex(id, tr)
if err != nil {
return err
}
if m == nil {
return nil
}
ctx.meta = l.meta
meta, err := l.r.ChunkMeta(id, m.offset, m.size, m.count, idx, ctx, fileops.IO_PRIORITY_ULTRA_HIGH)
if err != nil {
return err
}
if meta == nil {
return nil
}
// block级的时间过滤
if !tr.Overlaps(meta.MinMaxTime()) {
return nil
}
l.meta = meta
// init a new FragmentRange as [0, meta.segCount) if not SetFragmentRanges.
if len(l.fragRgs) == 0 {
if cap(l.fragRgs) <= 0 {
l.fragRgs = []*fragment.FragmentRange{{Start: 0, End: meta.segCount}}
} else {
l.fragRgs = l.fragRgs[:1]
l.fragRgs[0].Start, l.fragRgs[0].End = 0, meta.segCount
}
l.fragPos = 0
}
if !l.ctx.Ascending {
l.fragPos = len(l.fragRgs) - 1
l.segPos = int(l.fragRgs[l.fragPos].End - 1)
}
return nil
}
经过上述过滤，我们可以具体拿到包含在查询时间范围内的所有Chunk，并添加到Location中，最后层层包装到GroupCursor中。
六、ChunkReader
完成Cursor和LogicalIndexScan以下延迟生成的store层逻辑计划后，我们创建新的物理计划和sub-pipeline，将GroupCursor填入ChunkReader中。
接着在sub-pipeline中执行ChunkReader，真正地从tssp文件中读取数据，具体实现在ChunkReader的readChunk方法中。
func (r *ChunkReader) readChunk() (executor.Chunk, error) {
if r.isPreAgg || r.multiCallsWithFirst {
return r.readChunkByPreAgg()
}
for {
if r.cursorPos >= len(r.cursor) {
return nil, nil
}
// 读取数据为record
rec, _, err := r.nextRecord()
if err != nil {
return nil, err
}
if rec == nil {
r.cursorPos++
continue
}
name := r.cursor[r.cursorPos].Name()
ck := r.ResultChunkPool.GetChunk()
ck.SetName(influx.GetOriginMstName(name))
ck.(*executor.ChunkImpl).Record = rec
tracing.SpanElapsed(r.transSpan, func() {
// record转换成chunk用来在算子之间传递数据
err = r.transToChunk(rec, ck)
})
if err != nil {
return nil, err
}
executor.IntervalIndexGen(ck, r.schema.Options().(*query.ProcessorOptions))
return ck, nil
}
}
在nextRecord方法，用cursor.Next()方法获取record，Next()在Cursor中层层传递，从GroupCursor.Next()到TagCursor.Next()，再到SeriesCursor.Next()，tsmMergeCursor.Next()，到LocationCursor的ReadData()，最后到Location的readData。数据在向上传递时会在不同cursor进行包装、聚合、字段处理、分组、聚合等操作，这里暂不赘述。重点关注数据从文件的获取。在这个方法中，对时间进行了segment级和行级的筛选。
func (l *Location) readData(filterOpts *FilterOptions, dst, filterRec *record.Record, filterBitmap *bitmap.FilterBitmap,
unnestOperator UnnestOperator) (*record.Record, int, error) {
var rec *record.Record
var err error
var oriRowCount int
if !l.ctx.tr.Overlaps(l.meta.MinMaxTime()) {
l.nextSegment(true)
return nil, 0, nil
}
for rec == nil && l.hasNext() {
if l.ctx.IsAborted() {
return nil, oriRowCount, nil
}
// 判断当前segment是否包含时间范围
if (!l.ctx.tr.Overlaps(l.getCurSegMinMax())) ||
(!l.overlapsForRowFilter(filterOpts.rowFilters)) {
l.nextSegment(false)
continue
}
tracing.StartPP(l.ctx.readSpan)
// 读取当前segment的数据
rec, err = l.r.ReadAt(l.meta, l.segPos, dst, l.ctx, fileops.IO_PRIORITY_ULTRA_HIGH)
if err != nil {
return nil, 0, err
}
l.nextSegment(false)
...
tracing.SpanElapsed(l.ctx.filterSpan, func() {
if rec != nil {
oriRowCount += rec.RowNums()
if l.ctx.Ascending {
// 对每个数据行进行时间筛选
rec = FilterByTime(rec, l.ctx.tr)
} else {
rec = FilterByTimeDescend(rec, l.ctx.tr)
}
}
// filter by field
if rec != nil {
rec = FilterByField(rec, filterRec, filterOpts.options, filterOpts.cond, filterOpts.rowFilters, filterOpts.pointTags, filterBitmap, &filterOpts.colAux)
}
})
}
return rec, oriRowCount, nil
}
总结
从SQL时间的过滤过程，我们可以一窥OpenGemini数据从文件中被筛选获取的过程。正如tssp layout文件所示：
从SQL层拿到查询SQL后，先根据时间范围从Meta获取到shards分片。进入STORE层后，对Shard进行索引扫描获取到sids。
接着通过sid查询各个tssp文件，首先通过文件的trailer找到文件的min/max time做过滤，再借助chunk meta index稀疏索引的min/max time过滤并找到chunk meta和meta block，通过meta block的segment times在查询数据前做最后筛选。接着通过meta block拿到data block的offset和size，以此真正获取数据，并通过数据的time完成时间过滤。
openGemini 官网：www.openGemini.org
Star for me😊：github.com/openGemini
openGemini 公众号：
欢迎关注～ 诚邀你加入 openGemini 社区，共建、共治、共享未来！
