一、前言

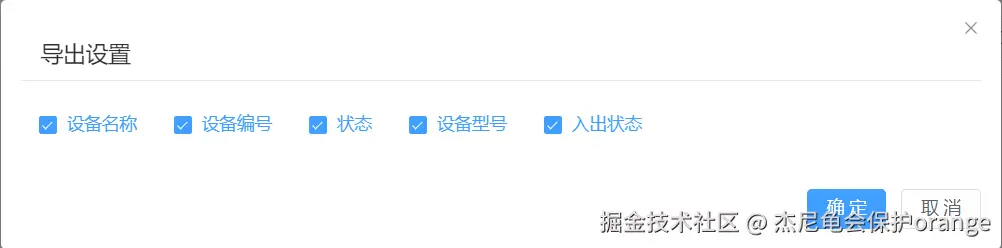

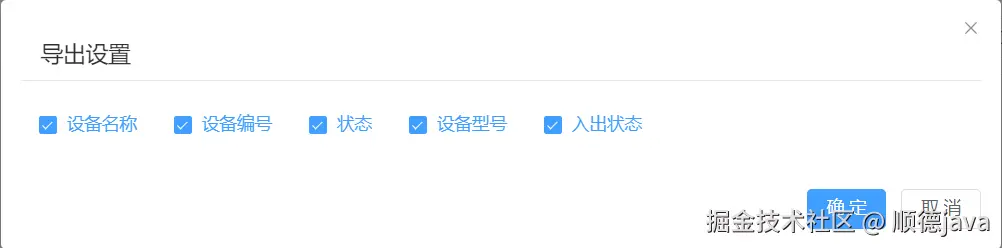

在实际开发中,常常会遇到需要根据用户需求自定义导出字段的场景。用户希望在前端界面上自由选择需要导出的字段(如下图所示)。本文档将深入讲解如何基于RuoYi-Vue-Plus框架,结合EasyExcel库,实现自定义导出功能,满足企业多样化的数据导出需求。
二、实现
1.添加导出前方法
对于熟悉EasyExcel的小伙伴来说,都知道导出时关键的一步是为实体属性添加@ExcelProperty
注解。在导出前,我们需要获取这些带有注解的字段。这决定了导出的Excel表格将包含哪些数据列。接下来,我直接为大家展示获取这些注解字段的代码实现。话不多说,直接上代码!!!
1.Controller层代码
/**
* 导出前方法
*/
@SaCheckPermission("mqtt:devices:export")
@Log(title = "考勤设备", businessType = BusinessType.EXPORT)
@GetMapping("/prepareDataForExport")
public R<List<Map<String, Object>>> prepareDataForExport() {
List<Map<String, Object>> entityHeaders = CustomExcelTool.extractHeadersFromEntity(AttendanceDevicesVo.class);
return R.ok(entityHeaders);
}
2.CustomExcelTool工具类代码
/**
* 自定义Excel工具
*
* @Author: 陈江灿
* @CreateTime: 2025-03-06
*/
public class CustomExcelTool {
/**
* 从实体类中提取Excel表头
* @param attendanceDevicesVoClass
* @return
*/
public static List<Map<String, Object>> extractHeadersFromEntity(Class<?> attendanceDevicesVoClass) {
List<Map<String, Object>> headers = new ArrayList<>();
Field[] fields = attendanceDevicesVoClass.getDeclaredFields();
for (Field field : fields) {
if (field.isAnnotationPresent(ExcelProperty.class)) {
ExcelProperty excelProperty = field.getAnnotation(ExcelProperty.class);
String[] headerNames = excelProperty.value();
if (headerNames.length > 0) {
Map<String, Object> headerMap = new HashMap<>();
headerMap.put("value", field.getName());
headerMap.put("label", headerNames[0]);
headerMap.put("isshow", true);
headers.add(headerMap);
}
}
}
return headers;
}
}

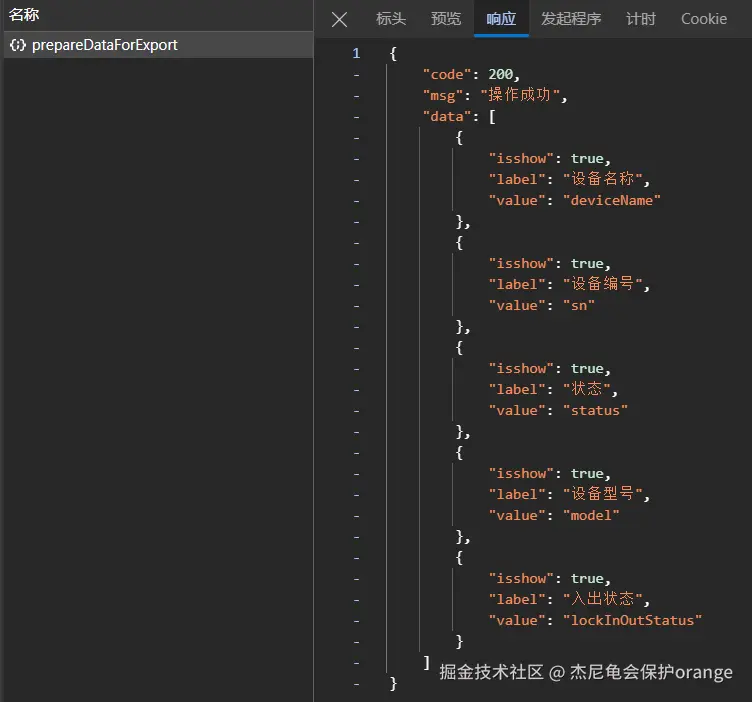

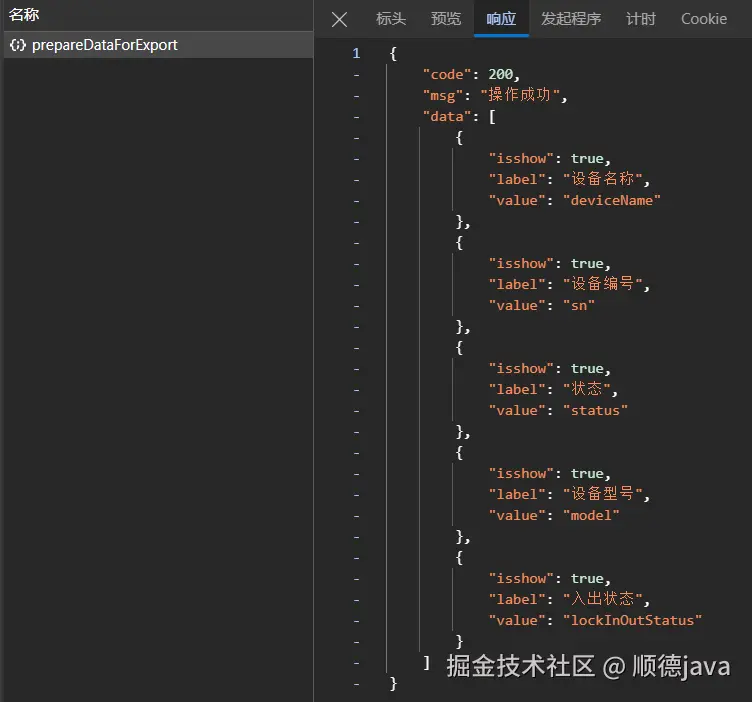

重启项目我们可以测试看看(如下图),我们可以看到我们成功获取了带@ExcelProperty
注解的实体类字段。
PS:这里大家也可以建一个实体去存value,label,isshow更好一点,我是图方便。
2.修改导出方法
在上一步我们获取了带@ExcelProperty
注解的实体类字段,到后面的工作就简单了,我们只需要把用户选择好要导出的字段返回给后端就好了。还是老规矩直接上代码!!!
1.Controller层
/**
* 导出考勤设备列表
*/
@SaCheckPermission("mqtt:devices:export")
@Log(title = "考勤设备", businessType = BusinessType.EXPORT)
@PostMapping("/export")
public void export(AttendanceDevicesBo bo, HttpServletResponse response) throws Exception {
List<AttendanceDevicesVo> list = attendanceDevicesService.queryList(bo);
List<List<String>> head = CustomExcelTool.GetHead(bo.getDtoList());
List<List<Object>> data = CustomExcelTool.GetData(bo.getDtoList(), list);
ExcelUtil.exportExcel(head, data, "考勤设备", response);
}
2.获取表头
/**
* 获取表头
* @param head
* @return
* @throws Exception
* @Author: 陈江灿
* @CreateTime: 2025-03-06
*/
public static List<List<String>> GetHead(String head) throws Exception {
ObjectMapper objectMapper = new ObjectMapper();
JsonNode jsonArray = objectMapper.readTree(head);
List<List<String>> heads = new ArrayList<>();
for (JsonNode node : jsonArray) {
if (node.get("isshow").asBoolean()) {
heads.add(Collections.singletonList(node.get("label").asText()));
}
}
return heads;
}
3.获取数据
/**
* 获取数据
* @param head
* @return
* @Author: 陈江灿
* @CreateTime: 2025-03-06
* @throws Exception
*/
public static List<List<Object>> GetData(String head, List<?> list) throws Exception {
ObjectMapper objectMapper = new ObjectMapper();
JsonNode jsonArray = objectMapper.readTree(head);
List<List<Object>> data = new ArrayList<>();
for (int i = 0; i < list.size(); i++) {
data.add(new ArrayList<>());
}
for (JsonNode node : jsonArray) {
if (node.get("isshow").asBoolean()) {
String valueKey = node.get("value").asText();
for (int i = 0; i < list.size(); i++) {
Object vo = list.get(i);
String value = getValueFromVo(vo, valueKey);
data.get(i).add(value);
}
}
}
return data;
}
/**
* 从给定对象的指定字段检索值,应用任何必要的格式
* @param vo
* @param key
* @Author: 陈江灿
* @CreateTime: 2025-03-06
* @return
*/
private static String getValueFromVo(Object vo, String key) {
try {
Field field = vo.getClass().getDeclaredField(key);
field.setAccessible(true);
Object value = field.get(vo);
// 获取字段上的 @ExcelDictFormat 注解
ExcelDictFormat dictFormat = field.getAnnotation(ExcelDictFormat.class);
if (dictFormat != null) {
ExcelDictConvert dictConvert = new ExcelDictConvert();
ExcelContentProperty contentProperty = new ExcelContentProperty();
Field contentPropertyField = ExcelContentProperty.class.getDeclaredField("field");
contentPropertyField.setAccessible(true);
contentPropertyField.set(contentProperty, field);
WriteCellData<String> cellData = dictConvert.convertToExcelData(value, contentProperty, null);
return cellData != null ? cellData.getStringValue() : "";
}
return value != null ? value.toString() : "";
} catch (NoSuchFieldException | IllegalAccessException e) {
e.printStackTrace();
return "";
}
}
3.导出代码
/**
* 自定义表头导出
* @Author: 陈江灿
* @CreateTime: 2025-03-06
* @param head
* @param data
* @param sheetName
* @param response
* @param <T>
*/
public static <T> void exportExcel(List<List<String>> head, List<List<Object>> data, String sheetName, HttpServletResponse response) {
try {
resetResponse(sheetName + ".xlsx", response);
ServletOutputStream os = response.getOutputStream();
ExcelWriter excelWriter = EasyExcel.write(os)
.head(head) // 动态表头
.registerWriteHandler(new CustomCellWriteHandler())
.registerWriteHandler(new CustomColumnWidthStyleStrategy())
.build();
WriteSheet writeSheet = EasyExcel.writerSheet(sheetName).build();
excelWriter.write(data, writeSheet);
excelWriter.finish();
os.flush();
} catch (IOException e) {
throw new RuntimeException("导出Excel异常", e);
}
}
扩展部分
在ruoyi-vue-plus中还自定义了字典转换器和枚举转换器,GetData方法操控的是list,无法进行转换,我们需要修改一下getValueFromVo方法。
/**
* 从给定对象的指定字段检索值,应用任何必要的格式
* @Author: 陈江灿
* @CreateTime: 2025-03-06
* @param vo
* @param key
* @return
*/
private static String getValueFromVo(Object vo, String key) {
try {
Field field = vo.getClass().getDeclaredField(key);
field.setAccessible(true);
Object value = field.get(vo);
ExcelDictFormat dictFormat = field.getAnnotation(ExcelDictFormat.class);
if (dictFormat != null) {
ExcelDictConvert dictConvert = new ExcelDictConvert();
ExcelContentProperty contentProperty = new ExcelContentProperty();
Field contentPropertyField = ExcelContentProperty.class.getDeclaredField("field");
contentPropertyField.setAccessible(true);
contentPropertyField.set(contentProperty, field);
WriteCellData<String> cellData = dictConvert.convertToExcelData(value, contentProperty, null);
return cellData != null ? cellData.getStringValue() : "";
}
ExcelEnumFormat enumFormat = field.getAnnotation(ExcelEnumFormat.class);
if (dictFormat != null) {
Class<?> enumClass = enumFormat.enumClass();
String textField = enumFormat.textField();
for (Object enumConstant : enumClass.getEnumConstants()) {
Field enumField = enumConstant.getClass().getDeclaredField(textField);
enumField.setAccessible(true);
String enumValue = enumField.get(enumConstant).toString();
if (Objects.equals(value, enumConstant.toString())) {
return enumValue;
}
}
}
return value != null ? value.toString() : "";
} catch (NoSuchFieldException | IllegalAccessException e) {
e.printStackTrace();
return "";
}
}
总结
方法就是通过前后端约定,将字段的显示名称(headName
)与实体属性名称(fieldName
)对应起来。前端用户勾选所需导出的字段后,将这些字段的fieldName
传递给后端。后端接收后,利用Java反射机制动态匹配实体类中的属性,根据用户选择决定导出哪些字段。此方法提高了系统的灵活性,允许用户自定义导出内容。后端根据配置动态构建导出数据,最终生成并输出符合用户需求的Excel文件。
