用js使页面元素匀速横向滚动,怎么样能减少性能消耗

188 阅读21分钟

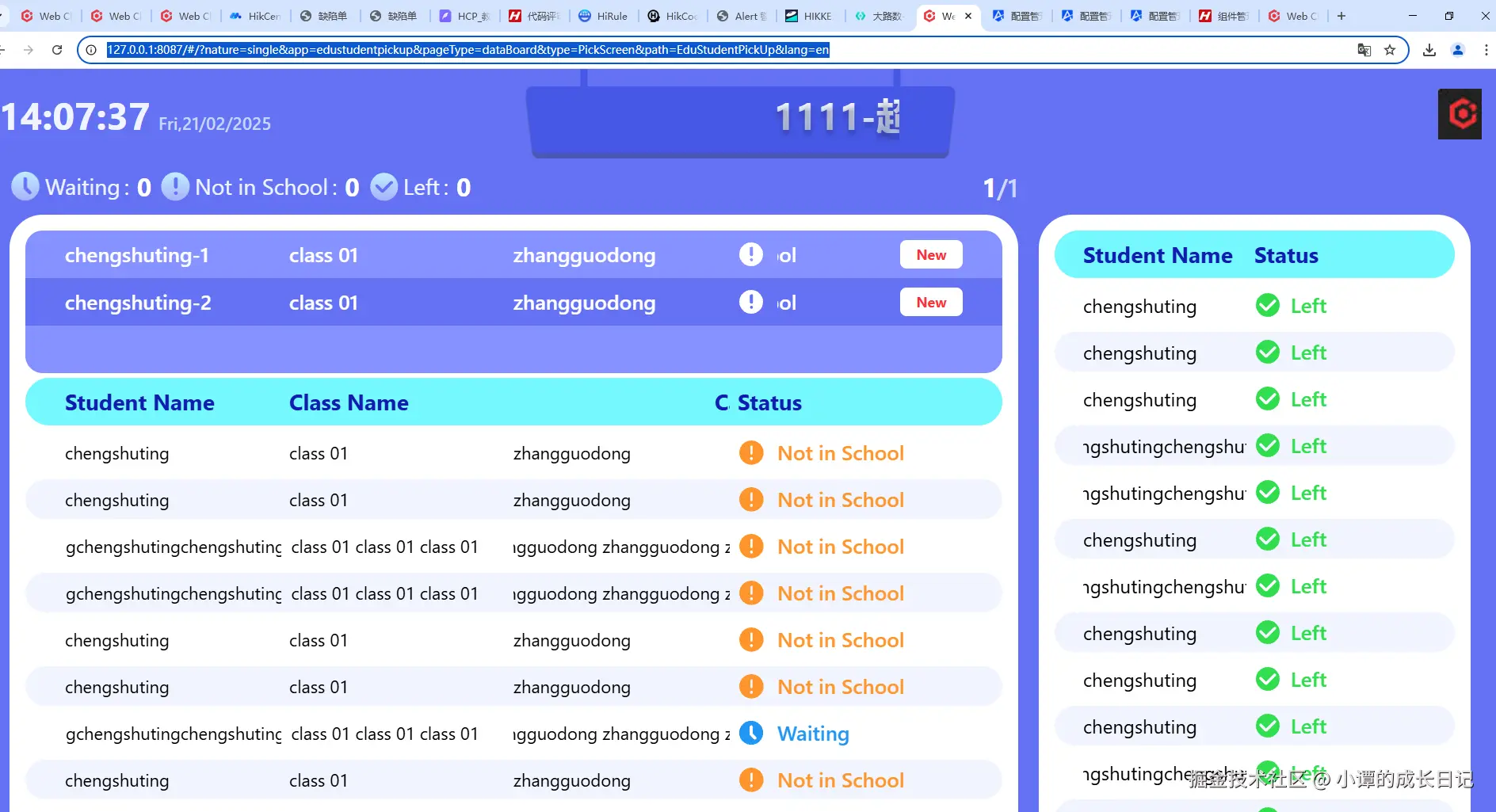

效果图:

image.png 我需要考虑常见的滚动实现方式及其性能问题。通常,使用JavaScript的setInterval或递归setTimeout来不断修改元素的transform或left属性是比较常见的方法,但这些方法可能会导致重排(reflow)和重绘(repaint),尤其是在频繁操作DOM时。此外,使用CSS动画或transition可能更高效,但用户明确要求用JavaScript,所以需要排除纯CSS方案。

然后,思考如何优化JavaScript的实现。首先,减少重排和重绘是关键。使用transform的translateX属性会比修改left或marginLeft更高效,因为transform可以利用GPU加速,不会触发布局重排。另外,使用requestAnimationFrame代替setInterval或setTimeout可以确保动画与浏览器的刷新率同步,减少不必要的帧绘制,提高流畅度。

还需要考虑将滚动元素提升为合成层,这可以通过CSS的will-change属性或transform3d来实现,这样浏览器会将该元素单独处理,减少重新绘制的区域。此外,避免在滚动过程中进行复杂的DOM操作或样式计算,这些都会增加性能开销。

然后,检查用户的项目环境。根据environment_details,用户正在使用Vue.js项目,可能是在view/pickScreen/pickScreen.vue文件中实现滚动效果。需要确保提供的代码示例与Vue的集成方式兼容,比如在mounted生命周期钩子中初始化动画,并在beforeDestroy中清理资源,防止内存泄漏。

接下来,考虑代码的具体实现。使用requestAnimationFrame来更新transform属性,在每一帧中计算当前位移,实现匀速运动。同时,在滚动容器上设置will-change: transform以提示浏览器优化。另外,如果元素内容静态,可以提前复制内容形成无缝滚动,减少DOM操作。

最后,需要验证这些优化措施的有效性。比如,在Chrome的Performance面板中记录动画运行时的性能,查看FPS是否稳定,是否有不必要的布局或绘制操作。此外,确保在滚动过程中不会触发其他高耗能的操作,比如频繁的样式查询或计算。

总结可能的优化点:使用requestAnimationFrame、transform进行位移、提升为合成层、避免强制同步布局、减少DOM操作等。将这些点整合到代码示例中,并提供相应的解释,帮助用户理解每一步的优化目的。

首先分析用户需求:需要实现横向滚动效果同时优化性能。根据当前项目结构(view/pickScreen/pickScreen.vue),建议采用以下优化策略:

  1. 使用CSS transform代替传统定位属性:transform的translateX操作会触发GPU加速,且不会引起布局重排
  2. 使用requestAnimationFrame替代setInterval:与浏览器刷新率同步,避免过度绘制
  3. 优化DOM结构:确保滚动元素形成独立的合成层,减少重绘区域
  4. 使用will-change属性预提示浏览器优化
  5. 避免强制同步布局:不要在动画循环中读取布局属性

具体实现步骤:

  1. 在模板中创建滚动容器结构
  2. 在mounted生命周期初始化动画
  3. 使用性能更优的transform属性进行位移
  4. 添加will-change属性提示浏览器优化
  5. 实现循环逻辑时注意内存管理
<template>
  <!-- 大屏 -->
  <div
    class="pick-show-screen"
    id="pick-show-screen-edustudentpickup"
    :class="{
      'pick-show-screen-style1':currentStyle==='style1',
      'pick-show-screen-style2':currentStyle==='style2',
      'pick-show-screen-style3':currentStyle==='style3',
      'pick-show-screen-norelateclass':!haseRelateClass,
      'pick-show-screen-net-error':isNetError
    }"
  >
    <!-- 头部 -->
    <div class="top-header">
      <div class="left-time">
        <div class="absolute-time">{{ time }}</div>
        <div class="date-time">{{ week+date }}</div>
      </div>
      <div
        class="center-title"
        :style="{
          width:`${440*rate}px`
        }"
      >
        <div
          class="text"
          id="pick-up-center-title"
        >
          {{ Title }}
        </div>
      </div>
      <div class="right-logo-wrapper">
        <div
          class="right-logo"
          :style="{
            width:`${330*rate}px`
          }"
        >
          <div
            class="imgbox"
            :style="{backgroundImage:`url(${LogoData})`}"
          >
          </div>
        </div>
      </div>
    </div>
    <!-- 数据区域 -->
    <div
      class="bottom-data"
      v-if="haseRelateClass&&!isNetError"
    >
      <!-- 状态汇总数据+左表分页 -->
      <!-- :style="{
          opacity:isNoData?0:1
        }" -->
      <div
        class="top-sumary"
      >
        <div class="State-box">
          <div
            class="State-item"
            v-for="(item,index) in statusSumary"
            :key="item.State"
          >
            <div class="icon">
              <img
                :src="item.icon"
                alt=""
              >
            </div>
            <div class="State-text">
              <div class="text">
                <div class="text-occupy">
                  {{ item.State }}
                </div>
                <div
                  class="text"
                  :id="`State-sumary-item-${index}`"
                >
                  {{ item.State }}
                </div>
              </div>
              <div class="colon">:</div>
              <div class="number">{{ item.number }}</div>
            </div>
          </div>
        </div>
        <div class="page-number">
          <div class="current">{{ screenData.ScreenIndex }}</div>
          <div class="total">{{ `/${screenData.TotalNum}` }}</div>
        </div>
      </div>
      <!-- 数据表格 -->
      <div class="bottom-table">
        <!-- 左表 -->
        <!-- {{ indexTest-1 }} -->
        <div class="left-table">
          <div class="top-new">
            <div
              class="inner-table"
              v-if="currentTopData.length"
            >
              <div
                class="row"
                v-for="(item,index) in 3"
                :key="item"
                :class="{
                  'even-row':index%2!==0
                }"
              >
                <div class="box-contain box-contain-new-data">
                  <div
                    class="new-data"
                    :id="`new-data-${index}`"
                  >
                    <div
                      class="student-name"
                    >
                      <div
                        v-if="topNewData[index]"
                        class="text"
                        :id="`student-name-new-${index}`"
                      >{{ topNewData[index].StudentName }}</div>
                    </div>
                    <div class="class-name">
                      <div
                        v-if="topNewData[index]"
                        class="text"
                        :id="`class-name-new-${index}`"
                      >{{ topNewData[index].ClassName }}</div>
                    </div>
                    <div
                      class="ParentNameOrPlate"
                    >
                      <div
                        v-if="topNewData[index]"
                        class="text"
                        :id="`ParentNameOrPlate-name-new-${index}`"
                      >{{ topNewData[index].ParentNameOrPlate }}</div>
                    </div>
                    <div class="State">
                      <div
                        class="left-State"
                        v-if="topNewData[index]"
                      >
                        <div class="icon">
                          <img
                            :src="newDataIcon[currentStyle][topNewData[index].State]"
                            alt=""
                          >
                        </div>
                        <div class="text-container">
                          <div
                            class="text"
                            :id="`State-name-new-${index}`"
                          >{{ statusMap[topNewData[index].State].label }}</div>
                        </div>
                      </div>
                      <div
                        class="right-satus"
                        v-if="topNewData[index]"
                      >
                        <div class="text">{{ $t('hcp_edustudentpickup_new_name') }}</div>
                      </div>
                    </div>
                  </div>
                  <div
                    class="old-data"
                    :id="`old-data-${index}`"
                  >
                    <div
                      class="student-name"
                    >
                      <div
                        v-if="topOldData[index]"
                        class="text"
                        :id="`student-name-old-${index}`"
                      >{{ topOldData[index].StudentName }}</div>
                    </div>
                    <div class="class-name">
                      <div
                        v-if="topOldData[index]"
                        class="text"
                        :id="`class-name-old-${index}`"
                      >{{ topOldData[index].ClassName }}</div>
                    </div>
                    <div
                      class="ParentNameOrPlate"
                    >
                      <div
                        v-if="topOldData[index]"
                        class="text"
                        :id="`ParentNameOrPlate-name-old-${index}`"
                      >{{ topOldData[index].ParentNameOrPlate }}</div>
                    </div>
                    <div class="State">
                      <div
                        class="left-State"
                        v-if="topOldData[index]"
                      >
                        <div class="icon">
                          <img
                            :src="newDataIcon[currentStyle][topOldData[index].State]"
                            alt=""
                          >
                        </div>
                        <div class="text-container">
                          <div
                            class="text"
                            :id="`State-name-old-${index}`"
                          >{{ statusMap[topOldData[index].State].label }}</div>
                        </div>
                      </div>
                      <div
                        class="right-satus"
                        v-if="topOldData[index]"
                      >
                        <div class="text">{{ $t('hcp_edustudentpickup_new_name') }}</div>
                      </div>
                    </div>
                  </div>
                </div>
              </div>
            </div>

            <div
              class="nodata"
              v-if="!currentTopData.length"
            >
              <div class="nodata-content">
                <div class="nodata-img">
                  <img
                    :src="topNodataIcon[currentStyle]"
                    alt=""
                  >
                </div>
                <div class="nodata-text">{{ $t('hcp_edustudentpickup_no_data_name') }}</div>
              </div>
            </div>
          </div>
          <div class="center-label">
            <div class="row">
              <div
                class="row-item"
                v-for="(item,index) in leftTableLabel"
                :key="item.name"
              >
                <div
                  class="text"
                  :id="`center-label-name-left-${index}`"
                >{{ item.name }}</div>
              </div>
            </div>
          </div>
          <div class="bottom-all">
            <div
              class="inner-table"
              v-if="leftBottomData.length"
            >
              <div
                class="row"
                v-for="(item,index) in 10"
                :key="item"
                :class="{
                  'even-row':index%2!==0
                }"
              >
                <div class="student-name">
                  <div
                    v-if="leftBottomData[index]"
                    class="text"
                    :id="`student-name-left-${index}`"
                  >{{ leftBottomData[index].StudentName }}</div>
                </div>
                <div class="class-name">
                  <div
                    v-if="leftBottomData[index]"
                    class="text"
                    :id="`class-name-left-${index}`"
                  >{{ leftBottomData[index].ClassName }}</div>
                </div>
                <div class="ParentNameOrPlate">
                  <div
                    v-if="leftBottomData[index]"
                    class="text"
                    :id="`ParentNameOrPlate-name-left-${index}`"
                  >{{ leftBottomData[index].ParentNameOrPlate }}</div>
                </div>
                <div class="State">
                  <div
                    class="left-State"
                    v-if="leftBottomData[index]"
                  >
                    <div class="icon">
                      <img
                        :src="statusMap[leftBottomData[index].State].icon[currentStyle]"
                        alt=""
                      >
                    </div>
                    <div class="text-container">
                      <div
                        class="text"
                        :id="`State-name-left-${index}`"
                        :style="{color:statusMap[leftBottomData[index].State].color[currentStyle]}"
                      >{{ statusMap[leftBottomData[index].State].label }}</div>
                    </div>
                  </div>
                </div>
              </div>
            </div>

            <div
              class="nodata"
              v-if="!leftBottomData.length"
            >
              <div class="nodata-content">
                <div class="nodata-img">
                  <img
                    :src="bottomNodataIcon[currentStyle]"
                    alt=""
                  >
                </div>
                <div class="nodata-text">{{ $t('hcp_edustudentpickup_no_data_name') }}</div>
              </div>
            </div>
          </div>
        </div>
        <!-- 右表 -->
        <div class="right-table">
          <div class="top-label">
            <div class="row">
              <div
                class="row-item"
                v-for="(item,index) in rightTableLabel"
                :key="item.name"
              >
                <div
                  class="text"
                  :id="`center-label-name-right-${index}`"
                >{{ item.name }}</div>
              </div>
            </div>
          </div>
          <div class="bottom-all">
            <div
              class="inner-table"
              v-if="rightBottomData.length"
            >
              <div
                class="row"
                v-for="(item,index) in 13"
                :key="item"
                :class="{
                  'even-row':index%2===0
                }"
              >
                <div class="student-name">
                  <div
                    v-if="rightBottomData[index]"
                    class="text"
                    :id="`student-name-right-${index}`"
                  >{{ rightBottomData[index].StudentName }}</div>
                </div>
                <div class="State">
                  <div
                    class="left-State"
                    v-if="rightBottomData[index]"
                  >
                    <div class="icon">
                      <img
                        :src="statusMap[rightBottomData[index].State].icon[currentStyle]"
                        alt=""
                      >
                    </div>
                    <div class="text-container">
                      <div
                        class="text"
                        :id="`State-name-right-${index}`"
                        :style="{color:statusMap[rightBottomData[index].State].color[currentStyle]}"
                      >{{ statusMap[rightBottomData[index].State].label }}</div>
                    </div>
                  </div>
                </div>
              </div>
            </div>

            <div
              class="nodata"
              v-if="!rightBottomData.length"
            >
              <div class="nodata-content">
                <div class="nodata-img">
                  <img
                    :src="bottomNodataIcon[currentStyle]"
                    alt=""
                  >
                </div>
                <div class="nodata-text">{{ $t('hcp_edustudentpickup_no_data_name') }}</div>
              </div>
            </div>
          </div>
        </div>
      </div>
    </div>
    <!-- 网络中断 -->
    <div
      class="bottom-no-data"
      v-else-if="isNetError"
    >
      <div class="nodata-content">
        <div class="nodata-img">
          <img
            :src="netErrorIcon[currentStyle]"
            alt=""
          >
        </div>
        <div class="nodata-text">{{ $t('hcp_edustudentpickup_net_error_tip_msg') }}</div>
      </div>
    </div>
    <!-- 无数据 -->
    <div
      class="bottom-no-data"
      v-else
    >
      <div class="nodata-content">
        <div class="nodata-img">
          <img
            :src="noDataIcon[currentStyle]"
            alt=""
          >
        </div>
        <div class="nodata-text">{{ $t('hcp_edustudentpickup_guide_tips_msg') }}</div>
      </div>
    </div>
  </div>
</template>

<script>
import moment from 'moment';
import API from '@/EduStudentPickUp/api/pickScreenService.js';
// import { newDataTest, leftBottomData, rightBottomData} from './mark';
export default {
  data () {
    return {
      ConfigID: '',
      styleMap: {
        0: 'style1',
        1: 'style3',
        2: 'style2'
      },
      currentStyle: 'style1',
      Title: 'Student Pick-up',
      AutoTurnPageTime: 10,
      LogoData: require('../../assets/images/pick_logo.png'),
      noDataIcon: {
        style1: require('../../assets/images/pick_no_data1.png'),
        style2: require('../../assets/images/pick_no_data2.png'),
        style3: require('../../assets/images/pick_no_data3.png')
      },
      netErrorIcon: {
        style1: require('../../assets/images/pick_net_error1.png'),
        style2: require('../../assets/images/pick_net_error2.png'),
        style3: require('../../assets/images/pick_net_error3.png')
      },
      topNodataIcon: {
        style1: require('../../assets/images/pick_top_no_data1.png'),
        style2: require('../../assets/images/pick_top_no_data2.png'),
        style3: require('../../assets/images/pick_top_no_data2.png')
      },
      bottomNodataIcon: {
        style1: require('../../assets/images/pick_bottom_no_data1.png'),
        style2: require('../../assets/images/pick_bottom_no_data2.png'),
        style3: require('../../assets/images/pick_bottom_no_data2.png')
      },
      newDataIcon: {
        style1: {
          1: require('../../assets/images/pick_waiting_style1.png'),
          0: require('../../assets/images/pick_notin_new_style1.png')
        },
        style2: {
          1: require('../../assets/images/pick_new_data_icon.png'),
          0: require('../../assets/images/pick_notin_new_style2.png')
        },
        style3: {
          1: require('../../assets/images/pick_new_data_icon.png'),
          0: require('../../assets/images/pick_notin_new_style2.png')
        }
      },
      statusMap: {
        1: {
          label: this.$t('hcp_edustudentpickup_waiting_school_name'),
          icon: {
            style1: require('../../assets/images/pick_waiting_style1.png'),
            style2: require('../../assets/images/pick_waiting_style2.png'),
            style3: require('../../assets/images/pick_waiting_style2.png')
          },
          color: {
            style1: 'rgb(75, 230, 252)',
            style2: 'rgb(33, 150, 243)',
            style3: 'rgb(33, 150, 243)'
          }
        },
        0: {
          label: this.$t('hcp_edustudentpickup_not_in_school_name'),
          icon: {
            style1: require('../../assets/images/pick_notin_style1.png'),
            style2: require('../../assets/images/pick_notin_style2.png'),
            style3: require('../../assets/images/pick_notin_style2.png')
          },
          color: {
            style1: 'rgb(255, 181, 8)',
            style2: 'rgb(255, 149, 44)',
            style3: 'rgb(255, 149, 44)'
          }
        },
        2: {
          label: this.$t('hcp_edustudentpickup_leave_school_name'),
          icon: {
            style1: require('../../assets/images/pick_leave_style1.png'),
            style2: require('../../assets/images/pick_leave_style1.png'),
            style3: require('../../assets/images/pick_leave_style1.png')
          },
          color: {
            style1: 'rgb(49, 222, 79)',
            style2: 'rgb(2, 191, 15)',
            style3: 'rgb(49, 222, 79)'
          }
        }
      },
      statusSumary: [
        {
          State: this.$t('hcp_edustudentpickup_waiting_school_name'),
          number: 0,
          prop: 'WaittingNum',
          icon: require('../../assets/images/pick_waiting_blue.png')
        },
        {
          State: this.$t('hcp_edustudentpickup_not_in_school_name'),
          number: 0,
          prop: 'NotInSchoolNum',
          icon: require('../../assets/images/pick_notin_blue.png')
        },
        {
          State: this.$t('hcp_edustudentpickup_leave_school_name'),
          number: 0,
          prop: 'LeaveNum',
          icon: require('../../assets/images/pick_leave_blue.png')
        }
      ],
      leftTableLabel: [
        {
          name: this.$t('hcp_edustudentpickup_student_name')
        },
        {
          name: this.$t('hcp_edustudentpickup_class_name')
        },
        {
          name: this.$t('hcp_edustudentpickup_family_car_name')
        },
        {
          name: this.$t('hcp_edustudentpickup_status_name')
        }
      ],
      rightTableLabel: [
        {
          name: this.$t('hcp_edustudentpickup_student_name')
        },
        {
          name: this.$t('hcp_edustudentpickup_status_name')
        }
      ],
      topNewData: [],
      topOldData: [],
      // leftBottomData,
      // rightBottomData,
      leftBottomData: [],
      rightBottomData: [],
      timer: null,
      timer1: null,
      timer2: null,
      weekMap: {
        0: this.$t('hcp_edustudentpickup_week7_name'),
        1: this.$t('hcp_edustudentpickup_week1_name'),
        2: this.$t('hcp_edustudentpickup_week2_name'),
        3: this.$t('hcp_edustudentpickup_week3_name'),
        4: this.$t('hcp_edustudentpickup_week4_name'),
        5: this.$t('hcp_edustudentpickup_week5_name'),
        6: this.$t('hcp_edustudentpickup_week6_name')
      },
      date: '',
      time: '',
      week: '',
      isChangeScreen: false,
      rate: 1,
      screenData: {
        ScreenIndex: 1,
        TotalNum: 1
      },
      animationId: '',
      haseRelateClass: true,
      isNetError: false,
      currentShowOld: true,
      firstTime: true,
      currentTopData: [],
      newDataTest: {},
      indexTest: 1

    };
  },
  computed: {
    isNoData() {
      return !this.topNewData.length && !this.leftBottomData.length && !this.rightBottomData.length;
    }
  },
  watch: {
    ConfigID() {
      this.getScreenConfig();
    },
    AutoTurnPageTime() {
      this.timer1 && clearInterval(this.timer1);
      this.timer1 = setInterval(()=>this.getScreenData(true), this.AutoTurnPageTime * 1000);
    }
  },
  created() {
    this.getScreenConfig();
  },
  mounted() {
    // 获取页面的宽度,计算头部标题和logo的宽度
    this.computeWidth();
    // 分页切换定时器
    this.getScreenData(false);
    this.timer1 = setInterval(()=>this.getScreenData(true), this.AutoTurnPageTime * 1000);
    // 左上角时间定时器
    this.updateClock();
    this.timer = setInterval(this.updateClock, 1000);
    // 屏幕内刷新
    this.timer2 = setInterval(()=>this.getScreenData(false), 3000);
    // 文本横向滚动
    this.scrollAuto();
  },
  beforeDestroy() {
    this.timer && clearInterval(this.timer);
    this.timer1 && clearInterval(this.timer1);
    this.timer2 && clearInterval(this.timer2);
    this.animationId && (cancelAnimationFrame(this.animationId));
  },
  methods: {
    async getScreenData(isChangeScreen) {
      // 如果是翻页,切换页码
      if (isChangeScreen) {
        if (this.screenData.TotalNum === 1) {
          return;
        } else if (this.screenData.ScreenIndex < this.screenData.TotalNum) {
          this.screenData.ScreenIndex = this.screenData.ScreenIndex + 1;
        } else {
          this.screenData.ScreenIndex = 1;
        }
        this.isChangeScreen = true;
      } else {
        // // if (this.indexTest > 7) {
        // //   return;
        // // }
        // let LeftUpPickupReocrdList = newDataTest[this.indexTest];
        // // 当从有数据到无数据,3行元素被清空,再次置为初始状态
        // if (this.currentTopData.length && !LeftUpPickupReocrdList.length) {
        //   this.topOldData = [];
        //   this.topNewData = [];
        //   this.firstTime = true;
        //   this.currentShowOld = true;
        // }
        // this.currentTopData = LeftUpPickupReocrdList;
        // // 如果是第1次,直接赋值
        // if (this.firstTime) {
        //   this.topOldData = LeftUpPickupReocrdList;
        // }
        // this.$nextTick(()=>{
        //   // 最新数据更新动画
        //   this.newDataMove(LeftUpPickupReocrdList);
        //   // this.indexTest = this.indexTest + 1;
        //   if (this.indexTest < 15) {
        //     this.indexTest = this.indexTest + 1;
        //   } else {
        //     this.indexTest = 1;
        //   }
        // });
      }

      let params = {
        PickupScreenRequest: {
          LeftUpPageSize: 3,
          LeftDownPageSize: 10,
          LeftDownPageIndex: this.screenData.ScreenIndex,
          RightPageSize: 13
        }
      };
      let res = await API.getPickupScreenData(params);
      let {isValid,
        isNetError,
        ErrorCode,
        ConfigID = '',
        Data = {},
        LeftDownTotalNum = 0,
        LeftUpPickupReocrdList = [],
        LeftDownPickupReocrdList = [],
        RightPickupReocrdList = []} = res || {};

      // 大屏未关联班级处理
      if (ErrorCode === 424010) {
        this.haseRelateClass = false;
      } else {
        this.haseRelateClass = true;
      }
      // 网络恢复刷新页面
      if (this.isNetError && !isNetError) {
        window.location.reload();
      }
      // 网络问题或接口报错
      this.isNetError = isNetError;
      if (isNetError || !isValid) {
        let {ConfigID} = Data;
        this.ConfigID = ConfigID;
        // 网络是否异常或请求失败
        return;
      }

      // 概览数据赋值
      this.statusSumary.forEach(item=>{
        item.number = res[item.prop] || 0;
      });

      if (!isChangeScreen) {
        // 从有变为空,要做一次初始化
        if (this.currentTopData.length && !LeftUpPickupReocrdList.length) {
          this.topOldData = [];
          this.topNewData = [];
          this.firstTime = true;
          this.currentShowOld = true;
        }
        // 用currentTopData来控制最新三行的数据是否展示
        this.currentTopData = LeftUpPickupReocrdList;
        // 如果是第1次,直接赋值
        if (this.firstTime) {
          this.topOldData = LeftUpPickupReocrdList;
        }
        // 页面最新数据渲染完再做动画
        this.$nextTick(()=>{
          // 最新数据更新动画
          this.newDataMove(LeftUpPickupReocrdList);
        });
      }

      // 无动画表格数据赋值
      this.leftBottomData = LeftDownPickupReocrdList;
      this.rightBottomData = RightPickupReocrdList;
      this.ConfigID = ConfigID;
      this.screenData.TotalNum = Math.ceil(LeftDownTotalNum / 10) === 0 ? 1 : Math.ceil(LeftDownTotalNum / 10);
      // 如果当前屏幕索引大于总数,则置为最后一页数据
      if (this.screenData.TotalNum < this.screenData.ScreenIndex) {
        this.screenData.ScreenIndex = this.screenData.TotalNum;
        this.getScreenData(false);
      }
    },
    async getScreenConfig() {
      let res = await API.getPickupDisplayConfig();
      let {isNetError, isValid, Title = '--', LogoData = '', AutoTurnPageTime = 10, BackgroudPicIndex = 0} = res;
      if (isNetError || !isValid) {
        // 网络是否异常或请求失败
        return;
      }
      this.currentStyle = this.styleMap[BackgroudPicIndex];
      this.Title = Title;
      this.LogoData = LogoData;
      this.AutoTurnPageTime = AutoTurnPageTime;
    },
    computeWidth() {
      let containerDom = document.getElementById('pick-show-screen-edustudentpickup');
      if (!containerDom) {
        return;
      }
      let containerLength = containerDom.offsetWidth;
      this.rate = containerLength / 1920;
    },
    // 竖向动画
    newDataMove(LeftUpPickupReocrdList) {
      // 新数据进入动画:
      // 老数据从展示行下移,隐藏,再回到初始顶部位置
      // 新数据展示,从初始顶部位置,移到正中央展示行
      if (!this.firstTime) {
        // 如果有最新数据进来才进行动画
        if (this.currentShowOld) {
          if (JSON.stringify(LeftUpPickupReocrdList) === JSON.stringify(this.topOldData)) {
            return;
          }
          this.topNewData = LeftUpPickupReocrdList;
        } else {
          if (JSON.stringify(LeftUpPickupReocrdList) === JSON.stringify(this.topNewData)) {
            return;
          }
          this.topOldData = LeftUpPickupReocrdList;
        }
        this.currentShowOld = !this.currentShowOld;
      }
      for (let index = 0; index < 3; index++) {
        this.judgeMove(`new-data-${index}`, true, index);
        this.judgeMove(`old-data-${index}`, false, index);
      }
    },
    judgeMove(idName, isNew, index) {
      let textDom = document.getElementById(idName);
      if (!textDom) {
        return;
      }
      let textHeight = textDom.offsetHeight;
      let offset = textHeight;
      if (!textDom.style.transform) {
        if (isNew) {
          textDom.style.transform = `translateY(${-offset}px)`;
        } else {
          textDom.style.transform = `translateY(0px)`;
        }
      }
      // 3行都初始化完成,才置为false
      if (this.firstTime) {
        if (index === 2 && !isNew) {
          this.firstTime = false;
        }
        return;
      }

      if (textDom.style.transform === 'translateY(0px)') {
        textDom.style.visibility = 'visible';
        textDom.style.transition = `transform 1s ease`;
        textDom.style.transform = `translateY(${offset}px)`;
        textDom.addEventListener('transitionend', function() {
          textDom && (textDom.style.visibility = 'hidden');
          textDom && (textDom.style.transition = `transform 0s ease`);
          textDom && (textDom.style.transform = `translateY(${-offset}px)`);
          textDom && (textDom.removeEventListener('transitionend', arguments));
          textDom = null;
        });
        return;
      }
      if (textDom.style.transform === `translateY(${-offset}px)`) {
        textDom.style.visibility = 'visible';
        textDom.style.transition = `transform 1s ease`;
        textDom.style.transform = `translateY(0px)`;
        textDom.addEventListener('transitionend', function() {
          textDom && (textDom.style.transition = `transform 0s ease`);
          textDom && (textDom.style.transform = `translateY(0px)`);
          textDom && (textDom.removeEventListener('transitionend', arguments));
          textDom = null;
        });
      }
    },
    // 横向滚动
    getDomWidthAndMove(textClass, isChangeScreen) {
      let textDom = document.getElementById(textClass);
      if (!textDom) {
        return;
      }
      let textLength = textDom.offsetWidth;
      let boxWidth = textDom.parentNode.offsetWidth;
      let translateX = parseInt(textDom.style.transform?.replace(/[^\d-]/g, '') || 0, 10);
      if (isChangeScreen) {
        textDom.style.transform = 'translateX(0)';
        return;
      }
      if (textLength > boxWidth) {
        if (Math.abs(translateX) >= textLength) {
          textDom.style.transform = `translateX(${boxWidth}px)`;
        } else {
          textDom.style.transform = `translateX(${translateX - 1}px)`;
        }
      } else {
        textDom.style.transform = 'translateX(0)';
      }
      // 回收
      textDom = null;
    },
    // 实现文本横向滚动
    scrollAuto() {
      // 大屏标题
      this.getDomWidthAndMove('pick-up-center-title');
      // 左表上方3个状态
      this.statusSumary.forEach((item, index)=>{
        this.getDomWidthAndMove(`State-sumary-item-${index}`);
      });
      // 左表上3行-每行
      this.topNewData.length > 0 && this.topNewData.forEach((item, index)=>{
        this.getDomWidthAndMove(`student-name-new-${index}`, this.isChangeScreen);
        this.getDomWidthAndMove(`class-name-new-${index}`, this.isChangeScreen);
        this.getDomWidthAndMove(`ParentNameOrPlate-name-new-${index}`, this.isChangeScreen);
        // 状态
        this.getDomWidthAndMove(`State-name-new-${index}`, this.isChangeScreen);
      });
      // 左表上3行-每行(用于翻页动画)
      this.topOldData.length > 0 && this.topOldData.forEach((item, index)=>{
        this.getDomWidthAndMove(`student-name-old-${index}`, this.isChangeScreen);
        this.getDomWidthAndMove(`class-name-old-${index}`, this.isChangeScreen);
        this.getDomWidthAndMove(`ParentNameOrPlate-name-old-${index}`, this.isChangeScreen);
        // 状态
        this.getDomWidthAndMove(`State-name-old-${index}`, this.isChangeScreen);
      });
      // 左表标签行
      this.leftTableLabel.forEach((item, index)=>{
        this.getDomWidthAndMove(`center-label-name-left-${index}`, this.isChangeScreen);
      });
      // 左表下面翻页行
      this.leftBottomData.length > 0 && this.leftBottomData.forEach((item, index)=>{
        this.getDomWidthAndMove(`student-name-left-${index}`, this.isChangeScreen);
        this.getDomWidthAndMove(`class-name-left-${index}`, this.isChangeScreen);
        this.getDomWidthAndMove(`ParentNameOrPlate-name-left-${index}`, this.isChangeScreen);
        // 状态
        this.getDomWidthAndMove(`State-name-left-${index}`, this.isChangeScreen);
      });
      // 右表标签行
      this.rightTableLabel.forEach((item, index)=>{
        this.getDomWidthAndMove(`center-label-name-right-${index}`, this.isChangeScreen);
      });
      // 右表内容行
      this.rightBottomData.length > 0 && this.rightBottomData.forEach((item, index)=>{
        this.getDomWidthAndMove(`student-name-right-${index}`, this.isChangeScreen);
        // 状态
        this.getDomWidthAndMove(`State-name-right-${index}`, this.isChangeScreen);
      });

      // 如果翻页,文本从要从0开始滚动
      if (this.isChangeScreen) {
        this.isChangeScreen = false;
      }
      this.animationId = requestAnimationFrame(this.scrollAuto);
    },
    // 更新时间
    updateClock() {
      this.time = moment().format('HH:mm:ss');
      this.date = moment().format('DD/MM/YYYY');
      this.week = `${this.weekMap[moment().day()] },`;
      if (this.time === '23:59:59') {
        window.location.reload();
      }
    }
  }
};
</script>

<style lang="less" scoped>
.move-common-style{
  height: 100%;
  overflow: hidden;
  position: relative;
  >.text{
    min-width: 100%;
    width: auto;
    position: absolute;
    top: 0;
    white-space: nowrap;
    will-change: transform;
    transform: translateZ(0); /* 开启GPU加速 */
  }
}

.pick-show-screen{
  width: 100%;
  height: 100%;
  overflow: auto;
  .top-header{
    display: flex;
    justify-content: space-between;
    .left-time{
      display: flex;
      align-items: baseline;
      .absolute-time{
        font-size: 48px;
        line-height: 48px;
        font-weight: 700;
        padding-right: 10px;
      }
      .date-time{
        font-size: 22px;
        line-height: 24px;
        font-weight: 600;
      }
    }
    .center-title{
      font-size: 36px;
      line-height: 36px;
      font-weight: 700;
      text-transform: uppercase;
      display: flex;
      align-items: center;
      .move-common-style();
      .text{
        text-align:center;
      }
    }
    .right-logo-wrapper{
      width: 382px;
      display: flex;
      justify-content: flex-end;
      .right-logo{
        width: 330px;
        height: 64px;
      .imgbox{
        height: 100%;
        width: 100%;
        background-size: contain;
        background-repeat: no-repeat; /* 背景图不重复 */
        background-position:right center; /* 背景图居中 */
      }
      }
    }
  }
  .bottom-data{
    width: 100%;
    padding: 0 34px 20px;
    .top-sumary{
      display: flex;
      align-items: center;
      justify-content: space-between;
      width: calc((100% - 26px) * 0.7);
      .State-box{
        width: calc(100% - 120px);
        display: flex;
        align-items: center;
        .State-item{
          display: flex;
          align-items: center;
          max-width: calc(100% / 3);
          padding-right: 10px;
          .icon{
            padding-right: 5px;
            display: flex;
            align-items: center;
            img{
              height: 40px;
              width: 40px;
            }
          }
          .State-text{
            display: flex;
            align-items: center;
            flex: 1;
            min-width: 0;
            .text{
              font-size: 28px;
              min-width: 0;
              flex: 1;
              .text-occupy{
                visibility: hidden;
                white-space: nowrap;
              }
              .move-common-style();
            }
            .colon{
              padding-left: 5px;
              font-size: 28px;
            }
            .number{
              padding-left: 10px;
              font-size: 32px;
              font-weight: 700;
            }
          }
        }
      }
      .page-number{
        width: 110px;
        display: flex;
        align-items: baseline;
        justify-content:flex-end;
        .current{
          font-size: 34px;
          font-weight: 700;
        }
        .total{
          font-size: 32px;
          font-weight: 600;
        }
      }
    }
    .bottom-table{
      width: 100%;
      display: flex;
      justify-content: space-between;
      height: 890px;
      .left-table{
        width: calc((100% - 26px) * 0.7);
        .top-new{
          width: 100%;
          .inner-table{
            width: 100%;
            .row{
              width: 100%;
              .box-contain{
                width: 100%;
                height: 100%;
                position: relative;
                overflow: hidden;
              }
              .new-data{
                display: flex;
                align-items: center;
                width: 100%;
                height: 100%;
                justify-content: space-between;
                visibility: hidden;
                position: absolute;
                top: 0;
                left: 0;
              }
              .old-data{
                display: flex;
                align-items: center;
                width: 100%;
                height: 100%;
                justify-content: space-between;
                position: absolute;
                top: 0;
                left: 0;
              }
              .student-name,.class-name,.ParentNameOrPlate{
                width: calc(25% - 10px);
                .move-common-style();
              }
              .State{
                width: 25%;
                display: flex;
                align-items: center;
                justify-content: space-between;
                height: 100%;
                .left-State{
                  display: flex;
                  align-items: center;
                  justify-content: space-between;
                  height: 100%;
                  flex: 1;
                  .icon{
                    display: flex;
                    align-items: center;
                  }
                  .text-container{
                    .move-common-style();
                  }
                }
                .right-satus{
                  max-width: 90px;
                  height: 36px;
                }
              }
            }
          }
          .nodata{
            display: flex;
            align-items: center;
            justify-content: center;
            font-size: 22px;
            .nodata-content{
              text-align: center;
              img{
                height: 68px;
                width: 68px;
              }
            }
          }
        }
        .center-label{
          .row{
            display: flex;
            align-items: center;
            justify-content: space-between;
            .row-item{
              width: calc(25% - 10px);
              .move-common-style();
              &:last-child{
                width: 25%;
              }
            }
          }
        }
        .bottom-all{
          .inner-table{
            .row{
              display: flex;
              align-items: center;
              justify-content: space-between;
              .student-name,.class-name,.ParentNameOrPlate,.State{
                width: calc(25% - 10px);
                .move-common-style();
              }
              .State{
                width: 25%;
                display: flex;
                align-items: center;
                height: 100%;
                .left-State{
                  display: flex;
                  align-items: center;
                  justify-content: space-between;
                  height: 100%;
                  width: 100%;
                  .icon{
                    display: flex;
                    align-items: center;
                  }
                  .text-container{
                    .move-common-style();
                  }
                }
              }
            }
          }
          .nodata{
            display: flex;
            align-items: center;
            justify-content: center;
            font-size: 22px;
            .nodata-content{
              text-align: center;
              img{
                height: 108px;
                width: 108px;
              }
            }
          }
        }
      }
      .right-table{
        width: calc((100% - 26px) * 0.3);
        height: 100%;
        .top-label{
          .row{
            display: flex;
            align-items: center;
            justify-content: space-between;
            .row-item{
              width: calc(50% - 10px);
              .move-common-style();
              &:last-child{
                width: 50%;
              }
            }
          }
        }
        .bottom-all{
          .inner-table{
            .row{
              display: flex;
              align-items: center;
              justify-content: space-between;
              .student-name,.State{
                width: calc(50% - 10px);
                .move-common-style();
                }
              .State{
                width: 50%;
                display: flex;
                align-items: center;
                .left-State{
                  display: flex;
                  align-items: center;
                  justify-content: space-between;
                  height: 100%;
                  width: 100%;
                  .icon{
                    display: flex;
                    align-items: center;
                  }
                  .text-container{
                    .move-common-style();
                  }
                }
              }
            }
          }
          .nodata{
            display: flex;
            align-items: center;
            justify-content: center;
            font-size: 22px;
            .nodata-content{
              text-align: center;
              img{
                height: 108px;
                width: 108px;
              }
            }
          }
        }
      }
    }
  }
}
.pick-show-screen-norelateclass{
  display: flex;
  flex-direction: column;
  .bottom-no-data{
    flex: 1;
    display: flex;
    align-items: center;
    justify-content: center;
    .nodata-content{
      text-align: center;
      img{
        height: 128px;
        width: 128px;
      }
      .nodata-text{
        font-size: 28px;
      }
    }
  }
}
.pick-show-screen-net-error{
  display: flex;
  flex-direction: column;
  .bottom-no-data{
    flex: 1;
    display: flex;
    align-items: center;
    justify-content: center;
    .nodata-content{
      text-align: center;
      img{
        height: 200px;
        width: 200px;
      }
      .nodata-text{
        font-size: 28px;
      }
    }
  }
}
.pick-show-screen-style1{
  background-color: rgb(7, 5, 3);
  .top-header{
    height: 114px;
    padding:18px 20px 0px;
    background-image: url('../../assets/images/pick_header_background_style1.png'); /* 设置图片路径 */
    background-size: 100% 100%;
    background-repeat: no-repeat; /* 背景图不重复 */
    background-position: center; /* 背景图居中 */
    .left-time{
      padding-top: 10px;
      .absolute-time{
        color: rgb(198, 214, 255);
      }
      .date-time{
        color: rgb(198, 214, 255);
      }
    }
    .center-title{
      width: 440px;
      .text{
        text-shadow: 0px 5.5px 6px rgba(10, 13, 33, 0.3);
        background: linear-gradient(180.00deg, rgb(255, 255, 255),rgb(198, 214, 255));
        -webkit-background-clip:text;
        -webkit-text-fill-color:transparent;
        background-clip:text;
      }
    }
  }
  .bottom-data{
    .top-sumary{
      height: 40px;
      line-height: 40px;
      margin-bottom: 16px;
      .State-box{
        .State-item{
          .State-text{
            .text{
              color: rgb(255, 255, 255);
            }
            .number,.colon{
              color: rgb(255, 255, 255);
            }
          }
        }
      }
      .page-number{
        background-image: url('../../assets/images/pick_page_style1.png'); /* 设置图片路径 */
        background-size: 100% 100%;
        background-repeat: no-repeat; /* 背景图不重复 */
        background-position: center;
        padding: 0 35px;
        .current{
          color: rgb(255, 255, 255);
        }
        .total{
          color: rgb(198, 214, 255);
        }
      }
    }
    .bottom-table{
      height: 890px;
      .left-table{
        height: 100%;
        background-color: rgba(38, 85, 111, 0.3);
        border-radius: 10px;
        background-image: url('../../assets/images/pick_left_table_background_style1.png'); /* 设置图片路径 */
        background-size: 100% 100%;
        background-repeat: no-repeat; /* 背景图不重复 */
        background-position: center; /* 背景图居中 */
        .top-new{
          height: 220px;
          padding:20px 30px;
          .inner-table{
            .row{
              padding:0 20px 0 30px;
              height: 60px;
              line-height: 60px;
              background-color: rgb(71, 133, 254);
              &:first-child{
                border-radius: 16px 16px 0 0;
              }
              &:last-child{
                border-radius: 0 0 16px 16px;
              }
              .student-name,.class-name,.ParentNameOrPlate,.State{
                font-size: 28px;
                font-weight: 600;
                color: rgb(255, 255, 255);
              }
              .State{
                .left-State{
                  width: 50%;
                  .icon{
                    width: 34px;
                    height: 34px;
                    img{
                      width: 100%;
                      height: 100%;
                    }
                  }
                  .text-container{
                    width: calc(100% - 50px);
                    font-size: 26px;
                    font-weight: 600;
                  }
                }
                .right-satus{
                  padding: 0 20px;
                  height: 36px;
                  line-height: 36px;
                  max-width: 50%;
                  background-color: rgb(16, 29, 36);
                  color: rgb(75, 230, 252);
                  font-size: 18px;
                  font-weight: 700;
                  border-radius: 8px;
                }
              }
            }
            .even-row{
              background-color: rgba(61, 126, 255, 0.71);
            }
          }
          .nodata{
            height: 180px;
            background-color: rgb(71, 133, 254);
            border-radius:16px;
            .nodata-content{
              color: rgba(0, 0, 0, 0.3);
            }
          }
        }
        .center-label{
          .row{
            height: 60px;
            line-height: 60px;
            padding-left: 60px;
            padding-right: 50px;
            background-color: rgba(61, 126, 255, 0.3);
            font-weight: 700;
            .row-item{
              color: rgb(209, 221, 244);
              font-size: 28px;
              font-weight: 700px;
            }
          }
        }
        .bottom-all{
          height: 610px;
          padding:0 30px;
          .inner-table{
            .row{
              height: 60px;
              line-height: 60px;
              padding:0 20px 0 30px;
              .student-name,.class-name,.ParentNameOrPlate,.State{
                color: rgb(209, 221, 244);
                font-size: 24px;
              }
              .State{
                .left-State{
                  .icon{
                    width: 34px;
                    height: 34px;
                    img{
                      width: 100%;
                      height: 100%;
                    }
                  }
                  .text-container{
                    width: calc(100% - 50px);
                    font-size: 26px;
                    font-weight: 600;
                  }
                }
              }
            }
            .even-row{
              background-image: url('../../assets/images/pick_row_style1.png'); /* 设置图片路径 */
              background-size: 100% 100%;
              background-repeat: no-repeat; /* 背景图不重复 */
              background-position: center;
            }
          }
          .nodata{
            height: 610px;
            .nodata-content{
              color: rgba(198, 214, 255, 0.5);
            }
          }
        }
      }
      .right-table{
        height: 100%;
        background-color: rgba(38, 85, 111, 0.3);
        border-radius: 10px;
        background-image: url('../../assets/images/pick_right_table_background_style1.png'); /* 设置图片路径 */
        background-size: 100% 100%;
        background-repeat: no-repeat; /* 背景图不重复 */
        background-position: center; /* 背景图居中 */
        .top-label{
          background-color: rgba(61, 126, 255, 0.3);
          border-radius: 10px 10px 0 0;
          .row{
            // border-radius: 10px 10px 0 0;
            height: 60px;
            line-height: 60px;
            color: rgb(209, 221, 244);
            padding: 0 66px;
            font-size: 28px;
            font-weight: 700;
          }
        }
        .bottom-all{
          height: 830px;
          padding:25px 26px 25px;
          .inner-table{
            .row{
              height: 60px;
              line-height: 60px;
              padding: 0 40px;
              .student-name,.State{
                color: rgb(209, 221, 244);
                font-size: 24px;
              }
              .State{
                .icon{
                  width: 34px;
                  height: 34px;
                  img{
                    width: 100%;
                    height: 100%;
                  }
                }
                .text-container{
                  width: calc(100% - 46px);
                  font-size: 26px;
                  font-weight: 600;
                }
              }
            }
            .even-row{
              background-image: url('../../assets/images/pick_row_style1.png'); /* 设置图片路径 */
              background-size: 100% 100%;
              background-repeat: no-repeat; /* 背景图不重复 */
              background-position: center;
            }
          }
          .nodata{
            height: 830px;
            .nodata-content{
              color: rgba(198, 214, 255, 0.5);
            }
          }
        }
      }
    }
  }
  .bottom-no-data{
    .nodata-content{
      .nodata-text{
        color: rgba(198, 214, 255, 0.5);
      }
    }
  }
}
.pick-show-screen-style2{
  background-color: rgb(246, 250, 255);
  .top-header{
    height: 114px;
    padding:18px 20px 0px;
    background-image: url('../../assets/images/pick_header_background_style2.png'); /* 设置图片路径 */
    background-size: 100% 100%;
    background-repeat: no-repeat; /* 背景图不重复 */
    background-position: center; /* 背景图居中 */
    .left-time{
      padding-top: 10px;
      .absolute-time{
        color: rgb(91, 91, 94);
      }
      .date-time{
        color: rgb(139, 143, 153);
      }
    }
    .center-title{
      width: 440px;
      .text{
        color: rgb(37, 37, 39);
      }
    }
  }
  .bottom-data{
    .top-sumary{
      height: 40px;
      line-height: 40px;
      margin-bottom: 16px;
      .State-box{
        .State-item{
          .State-text{
            .text{
              color: rgb(0, 0, 0);
            }
            .number,.colon{
              color: rgb(0, 0, 0);
            }
          }
        }
      }
      .page-number{
        // padding: 0 35px;
        .current{
          color: rgb(37, 37, 39);
        }
        .total{
          color: rgb(143, 143, 143);
        }
      }
    }
    .bottom-table{
      height: 865px;
      .left-table{
        height: 100%;
        border-radius: 16px;
        box-sizing: border-box;
        border: 1px solid rgb(159, 193, 251);
        box-shadow: 0px 2px 16px 0px rgba(0, 0, 0, 0.16);
        background: rgb(255, 255, 255);
        .top-new{
          height: 200px;
          background-color: white;
          padding-bottom: 20px;
          border-radius: 16px 16px 0 0;
          .inner-table{
            background-color: rgb(101, 114, 244);
            border-radius: 16px 16px 0 0;
            .row{
              height: 60px;
              line-height: 60px;
              padding:0px 60px;
              .student-name,.class-name,.ParentNameOrPlate,.State{
                font-size: 28px;
                font-weight: 600;
                color: rgb(255, 255, 255);
              }
              .State{
                .left-State{
                  width: 50%;
                  .icon{
                    width: 34px;
                    height: 34px;
                    img{
                      width: 100%;
                      height: 100%;
                    }
                  }
                  .text-container{
                    width: calc(100% - 50px);
                    font-size: 26px;
                    font-weight: 600;
                  }
                }
                .right-satus{
                  padding: 0 20px;
                  height: 36px;
                  line-height: 36px;
                  max-width: 50%;
                  background-color: rgb(255, 255, 255);
                  color: rgb(250, 50, 57);
                  font-size: 18px;
                  font-weight: 700;
                  border-radius: 8px;
                }
              }
            }
            .even-row{
              background-color: rgb(134, 145, 255);
            }
          }
          .nodata{
            height: 180px;
            background-color: rgb(101, 114, 244);
            border-radius:16px 16px 0 0;
            .nodata-content{
              color: rgba(255, 255, 255, 0.7);
            }
          }
        }
        .center-label{
          .row{
            height: 60px;
            line-height: 60px;
            padding-left: 60px;
            padding-right: 50px;
            background-color: rgb(229, 238, 255);
            font-weight: 700;
            .row-item{
              color: rgb(21, 21, 20);
              font-size: 28px;
              font-weight: 700px;
            }
          }
        }
        .bottom-all{
          height: 600px;
          .inner-table{
            .row{
              height: 60px;
              line-height: 60px;
              padding:0 60px;
              &:last-child{
                border-radius: 0 0 16px 16px;
              }
              .student-name,.class-name,.ParentNameOrPlate,.State{
                color: rgb(32, 32, 32);
                font-size: 24px;
              }
              .State{
                .left-State{
                  .icon{
                    width: 34px;
                    height: 34px;
                    img{
                      width: 100%;
                      height: 100%;
                    }
                  }
                  .text-container{
                    width: calc(100% - 50px);
                    font-size: 26px;
                    font-weight: 600;
                  }
                }
              }
            }
            .even-row{
              background-color: rgb(229, 238, 255);
            }
          }
          .nodata{
            height: 600px;
            .nodata-content{
              color: rgba(0, 0, 0, 0.5);
            }
          }
        }
      }
      .right-table{
        height: 100%;
        border-radius: 16px;
        box-sizing: border-box;
        border: 1px solid rgb(159, 193, 251);
        border-radius: 16px;
        box-shadow: 0px 2px 16px 0px rgba(0, 0, 0, 0.16);
        background: rgb(255, 255, 255);
        .top-label{
          background-color: rgb(229, 238, 255);
          border-radius: 16px 16px 0 0;
          .row{
            height: 60px;
            line-height: 60px;
            color: rgb(38, 47, 66);
            padding: 0 65px;
            font-size: 28px;
            font-weight: 700;
          }
        }
        .bottom-all{
          height: 804px;
          .inner-table{
            .row{
              height: 60px;
              line-height: 60px;
              padding: 0 65px;
              background-color: rgb(242, 246, 255);
              .student-name,.State{
                color: rgb(38, 47, 66);
                font-size: 24px;
              }
              .State{
                .icon{
                  width: 34px;
                  height: 34px;
                  img{
                    width: 100%;
                    height: 100%;
                  }
                }
                .text-container{
                  width: calc(100% - 46px);
                  font-size: 26px;
                  font-weight: 600;
                }
              }
            }
            .even-row{
              background: rgb(255, 255, 255);
            }
          }
          .nodata{
            height: 804px;
            .nodata-content{
              color: rgba(0, 0, 0, 0.5);
            }
          }
        }
      }
    }
  }
  .bottom-no-data{
    .nodata-content{
      .nodata-text{
        color: rgba(0, 0, 0, 0.5);
      }
    }
  }
}
.pick-show-screen-style3{
  background-color: rgb(101, 114, 244);
  .top-header{
    height: 114px;
    padding:0px 20px;
    background-image: url('../../assets/images/pick_header_background_style3.png'); /* 设置图片路径 */
    background-repeat: no-repeat; /* 背景图不重复 */
    background-position: center; /* 背景图居中 */
    margin-bottom: 14px;
    align-items: center;
    .left-time{
      .absolute-time{
        color: rgb(241, 245, 255);
      }
      .date-time{
        color: rgb(198, 214, 255);
      }
    }
    .center-title{
      width: 520px;
      .text{
        line-height: 48px;
        top: auto;
        font-size: 48px;
        text-shadow: 0px 5.5px 6px rgba(10, 13, 33, 0.3);
        background: linear-gradient(180.00deg, rgb(255, 255, 255),rgb(198, 214, 255));
        -webkit-background-clip:text;
        -webkit-text-fill-color:transparent;
        background-clip:text;
      }
    }
    .right-logo{
      width: 370px;
      height: 84px;
      // background-color: rgb(255, 255, 255);
      // border-radius: 8px;
    }

  }
  .bottom-data{
    padding-bottom: 32px;
    .top-sumary{
      height: 40px;
      line-height: 40px;
      margin-bottom: 16px;
      .State-box{
        .State-item{
          .State-text{
            .text{
              color: rgb(241, 245, 255);
            }
            .number,.colon{
              color: rgb(255, 255, 255);
            }
          }
        }
      }
      .page-number{
        // padding: 0 35px;
        .current{
          color: rgb(255, 255, 255);
        }
        .total{
          color: rgba(255, 255, 255, 0.7);
        }
      }
    }
    .bottom-table{
      height: 865px;
      .left-table{
        height: 100%;
        border-radius: 42px;
        box-sizing: border-box;
        background-color: rgb(255, 255, 255);
        .top-new{
          height: 206px;
          padding:20px 20px 10px;
          border-radius: 42px 42px 0 0;
          .inner-table{
            background-color: rgb(134, 145, 255);
            border-radius: 22px;
            .row{
              height: 60px;
              line-height: 60px;
              padding:0px 50px;
              .student-name,.class-name,.ParentNameOrPlate,.State{
                font-size: 26px;
                font-weight: 600;
                color: rgb(255, 255, 255);
              }
              .State{
                .left-State{
                  width: 50%;
                  .icon{
                    width: 34px;
                    height: 34px;
                    img{
                      width: 100%;
                      height: 100%;
                    }
                  }
                  .text-container{
                    width: calc(100% - 50px);
                    font-size: 26px;
                    font-weight: 600;
                  }
                }
                .right-satus{
                  padding: 0 20px;
                  height: 36px;
                  line-height: 36px;
                  max-width: 50%;
                  background-color: rgb(255, 255, 255);
                  color: rgb(250, 50, 57);
                  font-size: 18px;
                  font-weight: 700;
                  border-radius: 8px;
                }
              }
            }
            .even-row{
              background-color: rgb(101, 114, 244);
            }
          }
          .nodata{
            height: 180px;
            background-color: rgb(134, 145, 255);
            border-radius:22px;
            .nodata-content{
              color: rgba(255, 255, 255, 0.7);
            }
          }
        }
        .center-label{
          padding: 0 20px;
          .row{
            height: 60px;
            line-height: 60px;
            padding:0 50px;
            background-color: rgb(117, 248, 254);
            font-weight: 700;
            border-radius: 48px;
            .row-item{
              color: rgb(16, 30, 175);
              font-size: 28px;
              font-weight: 600px;
            }
          }
        }
        .bottom-all{
          height: 600px;
          padding:0 20px;
          .inner-table{
            .row{
              height: 68px;
              line-height: 68px;
              padding:0 50px;
              .student-name,.class-name,.ParentNameOrPlate,.State{
                color: rgb(0, 0, 0);
                font-size: 22px;
              }
              .State{
                .left-State{
                  .icon{
                    width: 34px;
                    height: 34px;
                    img{
                      width: 100%;
                      height: 100%;
                    }
                  }
                  .text-container{
                    width: calc(100% - 50px);
                    font-size: 26px;
                    font-weight: 600;
                  }
                }
              }
            }
            .even-row{
              height: 50px;
              line-height: 50px;
              background-color: rgb(241, 245, 255);
              border-radius: 48px;
            }
          }
          .nodata{
            height: 600px;
            .nodata-content{
              color: rgba(0, 0, 0, 0.5);
            }
          }
        }
      }
      .right-table{
        height: 100%;
        border-radius: 42px;
        background: rgb(255, 255, 255);
        padding: 20px;
        .top-label{
          background-color: rgb(117, 248, 254);
          border-radius: 48px;
          .row{
            height: 60px;
            line-height: 60px;
            color: rgb(16, 30, 175);
            padding: 0 36px;
            font-size: 28px;
            font-weight: 700;
          }
        }
        .bottom-all{
          height: 786px;
          .inner-table{
            .row{
              height: 50px;
              line-height: 50px;
              padding: 0 36px;
              background-color: rgb(241, 245, 255);
              border-radius: 48px;
              .student-name,.State{
                color: rgb(0, 0, 0);
                font-size: 24px;
              }
              .State{
                .icon{
                  width: 34px;
                  height: 34px;
                  img{
                    width: 100%;
                    height: 100%;
                  }
                }
                .text-container{
                  width: calc(100% - 46px);
                  font-size: 26px;
                  font-weight: 600;
                }
              }
            }
            .even-row{
              height: 68px;
              line-height: 68px;
              background: rgb(255, 255, 255);
            }
          }
          .nodata{
            height: 786px;
            .nodata-content{
              color: rgba(0, 0, 0, 0.5);
            }
          }
        }
      }
    }
  }
  .bottom-no-data{
    .nodata-content{
      .nodata-text{
        color: rgba(255, 255, 255, 0.7);
      }
    }
  }
}
</style>

let leftBottomData = [
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshuting',
    ClassName: 'class 01 class 01 class 01 class 01 class 01 class 01 ',
    ParentNameOrPlate: 'zhangguodong zhangguodong zhangguodong zhangguodong zhangguodong zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshuting',
    ClassName: 'class 01 class 01 class 01 class 01 class 01 class 01 ',
    ParentNameOrPlate: 'zhangguodong zhangguodong zhangguodong zhangguodong zhangguodong zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshuting',
    ClassName: 'class 01 class 01 class 01 class 01 class 01 class 01 ',
    ParentNameOrPlate: 'zhangguodong zhangguodong zhangguodong zhangguodong zhangguodong zhangguodong',
    State: 1
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 1
  },
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshuting',
    ClassName: 'class 01 class 01 class 01 class 01 class 01 class 01 ',
    ParentNameOrPlate: 'zhangguodong zhangguodong zhangguodong zhangguodong zhangguodong zhangguodong',
    State: 0
  }
];

let rightBottomData = [
  {
    StudentName: 'chengshuting',
    State: 2
  },
  {
    StudentName: 'chengshuting',
    State: 2
  },
  {
    StudentName: 'chengshuting',
    State: 2
  },
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshuting',
    State: 2
  },
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshuting',
    State: 2
  },
  {
    StudentName: 'chengshuting',
    State: 2
  },
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshuting',
    State: 2
  },
  {
    StudentName: 'chengshuting',
    State: 2
  },
  {
    StudentName: 'chengshuting',
    State: 2
  },
  {
    StudentName: 'chengshuting',
    State: 2
  },
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshuting',
    State: 2
  },
  {
    StudentName: 'chengshuting',
    State: 2
  },
  {
    StudentName: 'chengshuting',
    State: 2
  }
];

let topNewData = [
  {
    StudentName: 'chengshutingchengshutingchengshutingchengshutingchengshutingchengshutingchengshutingchengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  }
];
let topOldData = [
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  },
  {
    StudentName: 'chengshuting',
    ClassName: 'class 01',
    ParentNameOrPlate: 'zhangguodong',
    State: 0
  }
];

let newDataTest = {
  1: [
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  2: [
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-2',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  3: [
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-2',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-3',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  4: [
    {
      StudentName: 'chengshuting-3',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  5: [
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  6: [],
  7: [
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-2',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-3',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  8: [],
  9: [
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-2',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  10: [],
  11: [
    {
      StudentName: 'chengshuting-2',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  12: [
    {
      StudentName: 'chengshuting-2',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  13: [
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-2',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    },
    {
      StudentName: 'chengshuting-3',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  14: [
    {
      StudentName: 'chengshuting-1',
      ClassName: 'class 01',
      ParentNameOrPlate: 'zhangguodong',
      State: 0
    }
  ],
  15: []

};

export {
  leftBottomData,
  rightBottomData,
  topNewData,
  topOldData,
  newDataTest
};
