Compose Multiplatform 之旅 — 网络请求（Ktor）

droidHZ
768 阅读3分钟

在app 开发过程中，网络请求是必不可少的，那Compose Multiplatform项目中，我们该如何进行网络请求呢？今天我们就来聊一聊CMP跨平台项目中的网络请求。

想更多了解Compose Multiplatform项目的小伙伴，也可以看看其他文章

对于框架的选择，我们还是使用之前推荐的 klibs.io，搜network 关键字，找到了一个破万star的开源项目ktor。它是由JetBrains打造的异步网络框架，100% Kotlin，完美契合CMP。

仓库地址：github.com/ktorio/ktor

依赖引入

注意需要引入serialization的plugins，不然不能生成对应的类，出现类找不到的问题。


//libs.versions.toml文件

ktor = "2.3.11"

[libraries]
ktor-client-android = { module = "io.ktor:ktor-client-android", version.ref = "ktor" }
ktor-client-okhttp = { module = "io.ktor:ktor-client-okhttp", version.ref = "ktor" }
ktor-client-content-negotiation = { module = "io.ktor:ktor-client-content-negotiation", version.ref = "ktor" }
ktor-client-core = { module = "io.ktor:ktor-client-core", version.ref = "ktor" }
ktor-client-darwin = { module = "io.ktor:ktor-client-darwin", version.ref = "ktor" }
ktor-serialization-kotlinx-json = { module = "io.ktor:ktor-serialization-kotlinx-json", version.ref = "ktor" }

[plugins]
kotlinx-serialization = { id = "org.jetbrains.kotlin.plugin.serialization", version.ref = "kotlin" }



//shared build.gradle.kts 文件
plugins {
    ...
    alias(libs.plugins.kotlinx.serialization)
}

kotlin {

    sourceSets {
        commonMain.dependencies {
            implementation(libs.ktor.client.core)
            implementation(libs.ktor.client.content.negotiation)
            implementation(libs.ktor.serialization.kotlinx.json)
        }
        androidMain.dependencies {
            implementation(libs.ktor.client.android)
        }
        iosMain.dependencies {
            implementation(libs.ktor.client.darwin)
        }
        jvmMain.dependencies {
            implementation(libs.ktor.client.cio)
        }
    }
}

如果之前没有引入lifecycle-viewmodel-compose 也需要引入下，这个基于viewmodel 来更新UI，后续我们也会讲讲viewmodel

//libs.versions.toml
compose-lifecycle = "2.8.2"
lifecycle-viewmodel-compose = { group = "org.jetbrains.androidx.lifecycle", name = "lifecycle-viewmodel-compose", version.ref = "compose-lifecycle" }

implementation(libs.lifecycle.viewmodel.compose)

Android 还需要manifest里面声明一下权限

<uses-permission android:name="android.permission.INTERNET" />

初始化ktorClient 实例

val ktorClient = HttpClient {
    install(ContentNegotiation) {
        json(kotlinx.serialization.json.Json {
            ignoreUnknownKeys = true
            isLenient = true
        })
    }
}

编写对应数据类

这里我们基于wanandroid 的开放api 做一个数据的展示。

对应接口示例：www.wanandroid.com/article/lis…

根据对应的数据，可以找一个json to kotlin的网站，直接生成对应的data class，然后加上@Serializable 注解。

下面就是wanandroid的数据自动生成的data class 精简后的代码。

@Serializable
data class ApiResponse<T>(
    val data: T,
    val errorCode: Int,
    val errorMsg: String
)

@Serializable
data class Article(
    val id: Int,
    val title: String,
    val author: String,
    val niceDate: String,
    val superChapterName: String,
    val chapterName: String,
    val link: String
)

@Serializable
data class ArticleList(
    val curPage: Int,
    val datas: List<Article>,
    val offset: Int,
    val over: Boolean,
    val pageCount: Int,
    val size: Int,
    val total: Int
)

创建 Repository

我们这里是只用到get请求，代码也是非常的简单，给一个url 拼接参数即可。post 请求可以看testPost方法，使用上也十分方便。

class WanAndroidRepository() {
    private val baseUrl = "https://www.wanandroid.com"

	//get 请求
    suspend fun getArticles(page: Int = 0): ApiResponse<ArticleList> {
        return ktorClient.get("$baseUrl/article/list/$page/json").body()
    }

	//post 请求
    suspend fun testPost(page: Int = 0): ApiResponse<ArticleList> {
        return ktorClient.post("$baseUrl/article/list/$page/json") {
            headers {
                append("X-Custom-Header", "value")
                append(HttpHeaders.UserAgent, "Ktor Client")
            }
            contentType(ContentType.Application.Json)
            setBody(xxx)
        }.body()
    }
}

创建 ViewModel

继承了ViewModel，使用viewModelScope 使用协程调用接口请求

class ArticleViewModel(
    private val repository: WanAndroidRepository
) : ViewModel(){
    private val _articles = mutableStateListOf<Article>()
    val articles: List<Article> = _articles

    private val _isLoading = mutableStateOf(false)
    val isLoading: State<Boolean> = _isLoading

    private val _error = mutableStateOf<String?>(null)
    val error: State<String?> = _error

    private var currentPage = 0

    fun loadArticles() {
        viewModelScope.launch(Dispatchers.Default) {
            _isLoading.value = true
            try {
                val response = repository.getArticles(currentPage)
                if (response.errorCode == 0) {
                    _articles.addAll(response.data.datas)
                    currentPage++
                } else {
                    _error.value = response.errorMsg
                }
            } catch (e: Exception) {
                _error.value = e.message ?: "Unknown error"
            } finally {
                _isLoading.value = false
            }
        }
    }
}

UI展示

使用前面的导航的逻辑，在发现tab 展示创建对应的viewModel 和 ComposableUI

object FindTab: Tab {
    override val options: TabOptions
        @Composable
        get() = TabOptions(
            index = 0u,
            title = "Find"
        )

    @Composable
    override fun Content() {
        val viewModel = viewModel {
            ArticleViewModel(WanAndroidRepository())
        }
        ArticleScreen(viewModel = viewModel)
    }
}

使用LazyColumn列表展示，每一个item卡片，封装成ArticleItem

@Composable
fun ArticleScreen(viewModel: ArticleViewModel) {
    val articles = viewModel.articles
    val isLoading = viewModel.isLoading

    Column(modifier = Modifier.fillMaxSize()) {

        if (isLoading.value) {
            CircularProgressIndicator(modifier = Modifier.align(Alignment.CenterHorizontally))
        }

        LazyColumn {
            items(articles.size) { index ->
                ArticleItem(article = articles[index])
            }
        }
    }
    LaunchedEffect(Unit) {
        viewModel.loadArticles()
    }
}

@Composable
fun ArticleItem(article: Article) {
    Card(
        modifier = Modifier
            .fillMaxWidth()
            .padding(8.dp),
        elevation = 4.dp
    ) {
        Column(modifier = Modifier.padding(16.dp)) {
            Text(
                text = article.title,
                style = MaterialTheme.typography.h6,
                modifier = Modifier.padding(bottom = 8.dp)
            )
            Row(verticalAlignment = Alignment.CenterVertically) {
                Text(
                    text = "${article.author} · ",
                    style = MaterialTheme.typography.caption,
                    color = Color.Gray
                )
                Text(
                    text = article.niceDate,
                    style = MaterialTheme.typography.caption,
                    color = Color.Gray
                )
                Spacer(modifier = Modifier.weight(1f))
                Text(
                    text = "${article.superChapterName}/${article.chapterName}",
                    style = MaterialTheme.typography.caption,
                    color = Color.Blue
                )
            }
        }
    }
}

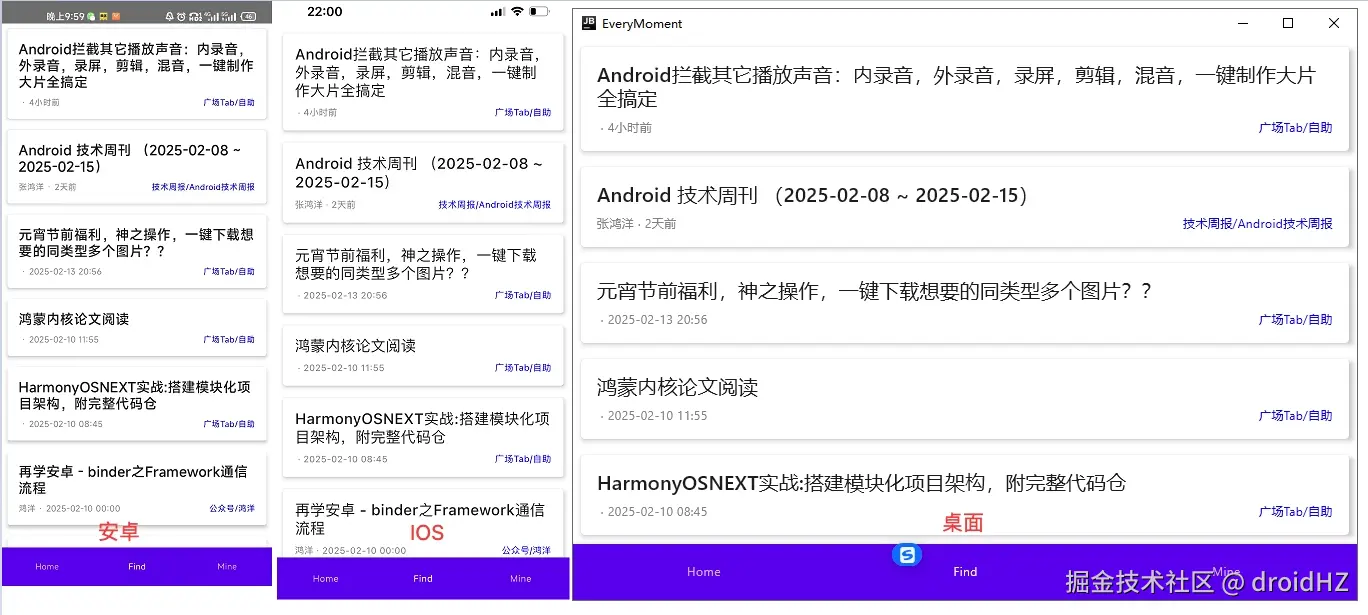

最终效果


结语

ktor 是一个强大的库，不仅可以实现我们这里的Android、iOS、桌面端，还能写后端，感兴趣的伙伴，也可以去看看它的官方文档。

目前已经提到了好几个三方库，能覆盖app开发大部分场景，有想了解跨平台其他的特性或者三方库的伙伴，可以提出来，我们一起学习，共同进步。
