docker 私有化环境 registry 镜像仓库部署指南

摘要：本文主要介绍如何在内网环境快速部署registry仓库，因为它没有安全认证且占用资源少，在内网中使用是非常方便的，是用于开发环境和边缘环境最佳实践。

部署

本文介绍的案例中，集成了一个registry-ui，方便通过界面查询仓库中拥有的镜像。

• 官网地址：github.com/Joxit/docke…

registry-ui的htpasswd文件

对应的用户名和密码是registry:ui

registry:$2y$11$1bmuJLK8HrQl5ACS/WeqRuJLUArUZfUcP2R23asmozEpfN76.pCHy

registry-ui的config.yml

配置文件

version: 0.1
log:
  fields:
    service: registry
storage:
  delete:
    enabled: true
  cache:
    blobdescriptor: inmemory
  filesystem:
    rootdirectory: /var/lib/registry
http:
  addr: :5000
  headers:
    X-Content-Type-Options: [nosniff]
    Access-Control-Allow-Origin: ['*']
    Access-Control-Allow-Methods: ['HEAD', 'GET', 'OPTIONS', 'DELETE']
    Access-Control-Allow-Headers: ['Authorization', 'Accept']
    Access-Control-Max-Age: [1728000]
    Access-Control-Allow-Credentials: [true]
    Access-Control-Expose-Headers: ['Docker-Content-Digest']
auth:
  htpasswd:
    realm: basic-realm
    path: /etc/docker/registry/htpasswd

docker-compose.yml

version: '3'
services:
  registry:
    image: registry:2
    volumes:
      - ./registry-data:/var/lib/registry
      - ./config.yml:/etc/docker/registry/config.yml
      - ./htpasswd:/etc/docker/registry/htpasswd
    networks:
      - default

  ui:
    image: joxit/docker-registry-ui:latest
    ports:
      - 5000:80
    environment:
      - REGISTRY_TITLE=My Private Docker Registry
      - NGINX_PROXY_PASS_URL=http://registry:5000
      - SINGLE_REGISTRY=true
    depends_on:
      - registry
    networks:
      - default

networks:
  default:
    external:
      name: nisec

• 启动docker-compose up -d

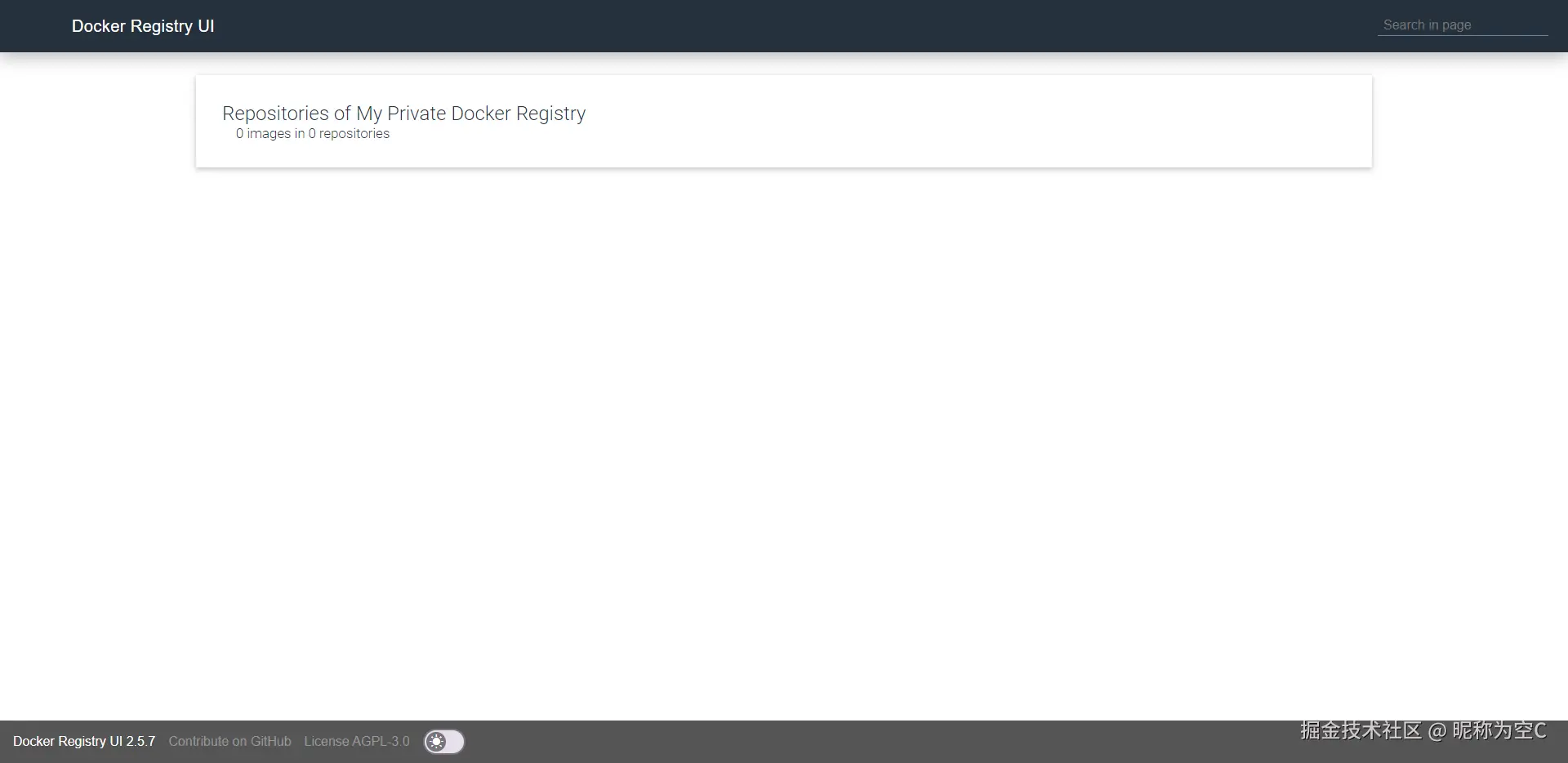

访问

• http://localhost:5000；用户名registry，密码：ui
