RoughJS-手绘风格的图形库

520 阅读4分钟

RoughJS 是一个小巧(压缩后不到 9KB)的图形库,它能让你轻松绘制出类似手绘草图的图形。无论是线条、曲线、弧线,还是多边形、圆形和椭圆形,RoughJS 都能帮你搞定。最重要的是,它既支持 Canvas,也支持 SVG。

安装

    npm install --save roughjs

快速入门


import { RoughSVG } from "roughjs/bin/svg"
const svg = document.querySelector('svg') as SVGSVGElement
const rc = new RoughSVG(svg)
const node = rc.rectangle(10, 10, 200, 200); // x, y, width, height
svg.appendChild(node)

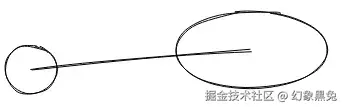

直线和椭圆

当然,RoughJS 不仅仅能画矩形,它还能轻松绘制直线、圆形和椭圆

    rc.circle(80, 120, 50); // centerX, centerY, 直径
    rc.ellipse(300, 100, 150, 80); // centerX, centerY, width, height
    rc.line(80, 120, 300, 100); // x1, y1, x2, y2

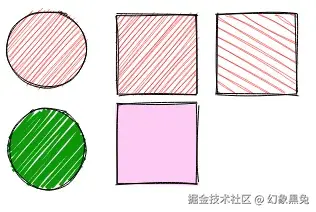

填充

RoughJS 还支持多种填充效果,让你的图形更加丰富多彩

    rc.circle(50, 50, 80, { fill: 'red' }); // 使用红色的影线
    rc.rectangle(120, 15, 80, 80, { fill: 'red' });
    rc.circle(50, 150, 80, {
      fill: "rgb(10,150,10)",
      fillWeight: 3 // 设置填充的权重
    });
    rc.rectangle(220, 15, 80, 80, {
      fill: 'red',
      hachureAngle: 60, // 设置影线的角度
      hachureGap: 8
    });
    rc.rectangle(120, 105, 80, 80, {
      fill: 'rgba(255,0,200,0.2)',
      fillStyle: 'solid' // 设置填充的类型
    });

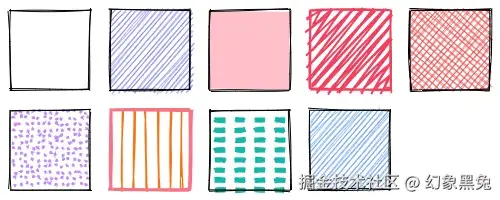

填充样式

RoughJS 提供了多种填充样式,包括:hachure(default)、solidzigzagcross-hatchdotssunburstdashed或者zigzag-line

    rc.rectangle(10, 10, 80, 80)
    rc.rectangle(110, 10, 80, 80, { fill: '#6366f1' })
    rc.rectangle(210, 10, 80, 80, {
    	fill: 'pink',
    	fillStyle: 'solid'
    })
    rc.rectangle(310, 10, 80, 80, {
    	fill: '#f43f5e',
    	fillStyle: 'zigzag',
    	strokeWidth: 2,
    	fillWeight: 1.8, stroke: '#f43f5e'
    })
    rc.rectangle(410, 10, 80, 80, {
    	fill: '#ef4444',
    	fillStyle: 'cross-hatch',
    	strokeWidth: 1.2
    })

    rc.rectangle(10, 110, 80, 80, {
    	fill: '#c084fc',
    	fillStyle: 'dots',
    	hachureGap: 6
    })
    rc.rectangle(110, 110, 80, 80, {
    	fill: '#f97316',
    	stroke: '#fb7185',
    	hachureAngle: 0,
    	strokeWidth: 3,
    	fillStyle: 'sunburst'
    })
    rc.rectangle(210, 110, 80, 80, {
    	fill: '#14b8a6',
    	fillWeight: 5,
    	hachureGap: 10,
    	hachureAngle: 90,
    	fillStyle: 'dashed'
    })
    rc.rectangle(310, 110, 80, 80, {
    	fill: '#3b82f6',
    	fillStyle: ' zigzag-line'
    })

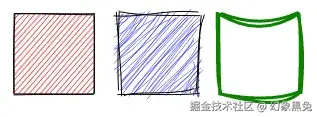

草图风格

RoughJS通过设置roughness(粗糙度)和bowing(弯曲度)等参数来实现不同的草图风格

    rc.rectangle(15, 15, 80, 80, { roughness: 0.5, fill: 'red' });
    rc.rectangle(120, 15, 80, 80, { roughness: 2.8, fill: 'blue' });
    rc.rectangle(220, 15, 80, 80, { bowing: 6, stroke: 'green', strokeWidth: 3 });


SVG Path

RoughJS 还支持通过path来绘制复杂的图形

    rc.path('M80 80 A 45 45, 0, 0, 0, 125 125 L 125 80 Z', { fill: 'green' });
    rc.path('M230 80 A 45 45, 0, 1, 0, 275 125 L 275 80 Z', { fill: 'purple' });
    rc.path('M80 230 A 45 45, 0, 0, 1, 125 275 L 125 230 Z', { fill: 'red' });
    rc.path('M230 230 A 45 45, 0, 1, 1, 275 275 L 275 230 Z', { fill: 'blue' });


如何在React中使用RoughJS

RoughJS 直接操作 DOM 创建图形,但是在 React 中需要使用useEffect添加到组件中,这种方式使用起来不太方便。我们可以封装成React组件来简化使用:

    // 参考:<https://github.com/rough-stuff/rough/blob/master/src/svg.ts>
    import React, { forwardRef } from "react";
    import { Drawable, Options } from "roughjs/bin/core";
    import { RoughGenerator } from "roughjs/bin/generator";

    const gen = new RoughGenerator()

    type RoughDrawProps = React.SVGAttributes<SVGGElement> & { drawable: Drawable }
    const RoughDraw = forwardRef<SVGGElement, RoughDrawProps>(({
      drawable,
      ...props
    }, ref) => {
      const sets = drawable.sets || [];
      const o = drawable.options || gen.defaultOptions;
      const precision = drawable.options.fixedDecimalPlaceDigits;

      const paths = sets.map((drawing, index) => {
        const d = gen.opsToPath(drawing, precision)
        switch (drawing.type) {
          case 'path':
            return (
              <path
                key={index}
                d={d}
                stroke={o.stroke}
                strokeWidth={o.strokeWidth}
                fill={'none'}
                strokeDasharray={o.strokeLineDash
                  ? o.strokeLineDash.join(' ').trim()
                  : undefined
                }
                strokeDashoffset={o.strokeLineDashOffset
                  ? o.strokeLineDashOffset
                  : undefined
                }
              />
            )
          case 'fillPath':
            return (
              <path
                key={index}
                d={d}
                stroke={'none'}
                strokeWidth={0}
                fill={o.fill || ''}
                fillRule={drawable.shape === 'curve' || drawable.shape === 'polygon'
                  ? 'evenodd'
                  : undefined
                }
              />
            )
          case 'fillSketch':
            let fweight = o.fillWeight;
            if (fweight < 0) {
              fweight = o.strokeWidth / 2;
            }
            return (
              <path
                key={index}
                d={d}
                stroke={o.fill || ''}
                strokeWidth={fweight}
                fill={'none'}
                strokeDasharray={o.strokeLineDash
                  ? o.strokeLineDash.join(' ').trim()
                  : undefined
                }
                strokeDashoffset={o.strokeLineDashOffset
                  ? o.strokeLineDashOffset
                  : undefined
                }
              />
            )
          default:
            return null;
        }
      }).filter(item => !!item)
      return (
        <g {...props} ref={ref}>
          {paths}
        </g>
      )
    })

    type RoughPathProps = React.SVGAttributes<SVGGElement> & { d: string, options?: Options }
    export const RoughPath = forwardRef<SVGGElement, RoughPathProps>(({
      d,
      options,
      ...props
    }, ref) => {
      const drawing = gen.path(d, options);
      return (
        <RoughDraw drawable={drawing} {...props} ref={ref} />
      )
    })

    type RoughEllipseProps = React.SVGAttributes<SVGGElement> & {
      x: number,
      y: number,
      width: number,
      height: number,
      options?: Options
    }
    export const RoughEllipse = forwardRef<SVGGElement, RoughEllipseProps>(({
      x,
      y,
      width,
      height,
      options,
      ...props
    }, ref) => {
      const drawing = gen.ellipse(x, y, width, height, options);
      return (
        <RoughDraw drawable={drawing} {...props} ref={ref} />
      )
    })

    // 省略其他。。。

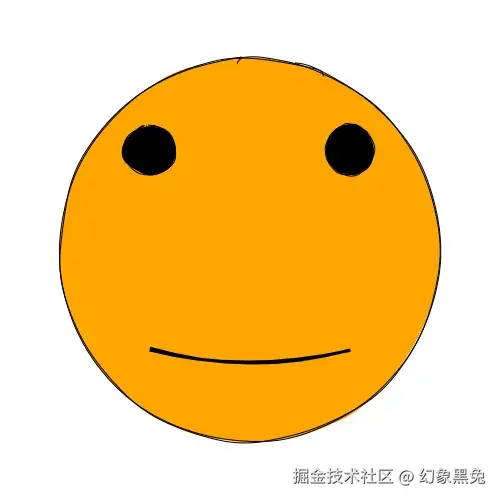

测试

最后,我们来测试一下这个 React 组件

        <svg width={500} height={500} id='svg'>
          <RoughEllipse
    	      x={250}
    	      y={250}
    	      width={400}
    	      height={400}
    	      options={{ fill:'orange', fillStyle: 'solid', seed: 1 }}
    	     />
          <RoughEllipse
    	      x={150}
    	      y={150}
    	      width={50}
    	      height={50}
    	      options={{ fill:'black', fillStyle:'solid', roughness: 1.2 }}
    	     />
          <RoughEllipse
    	      x={350}
    	      y={150}
    	      width={50}
    	      height={50}
    	      options={{ fill:'black', fillStyle:'solid', roughness: 1.2 }}
    	     />
          <RoughPath
    	      d='M150,350 Q250,375 350,350'
    	      options={{ stroke:'black', strokeWidth: 3 }}
    	     />
        </svg>
