背景
CODING 是腾讯云提供的云原生应用平台，提供了可视化的编排工具，支持 GitOps、CI/CD、Helm、Kubernetes 等云原生技术。笔者所在的公司使用 Jenkins 构建，由运维团队负责管理 CI/CD，效率低下，腾讯云给我们推广了这个产品，趁这个机会，笔者决定研究下 CODING。
目标
探索 CODING 流水线使用，验证 CI/CD 能力。
实战
以 演示工程 为例，使用 Maven 构建工具，目录结构如下。
eden-demo-cola
|_ .coding/
|_ Jenkinsfile # CODING 流水线脚本
|_ settings.xml # 自定义Maven 配置文件
|_ docker/
|_ Dockerfile # Docker 构建文件
|_ entrypoint.sh # Docker 容器启动脚本
|_ ...
|_ pom.xml # Maven 构建文件

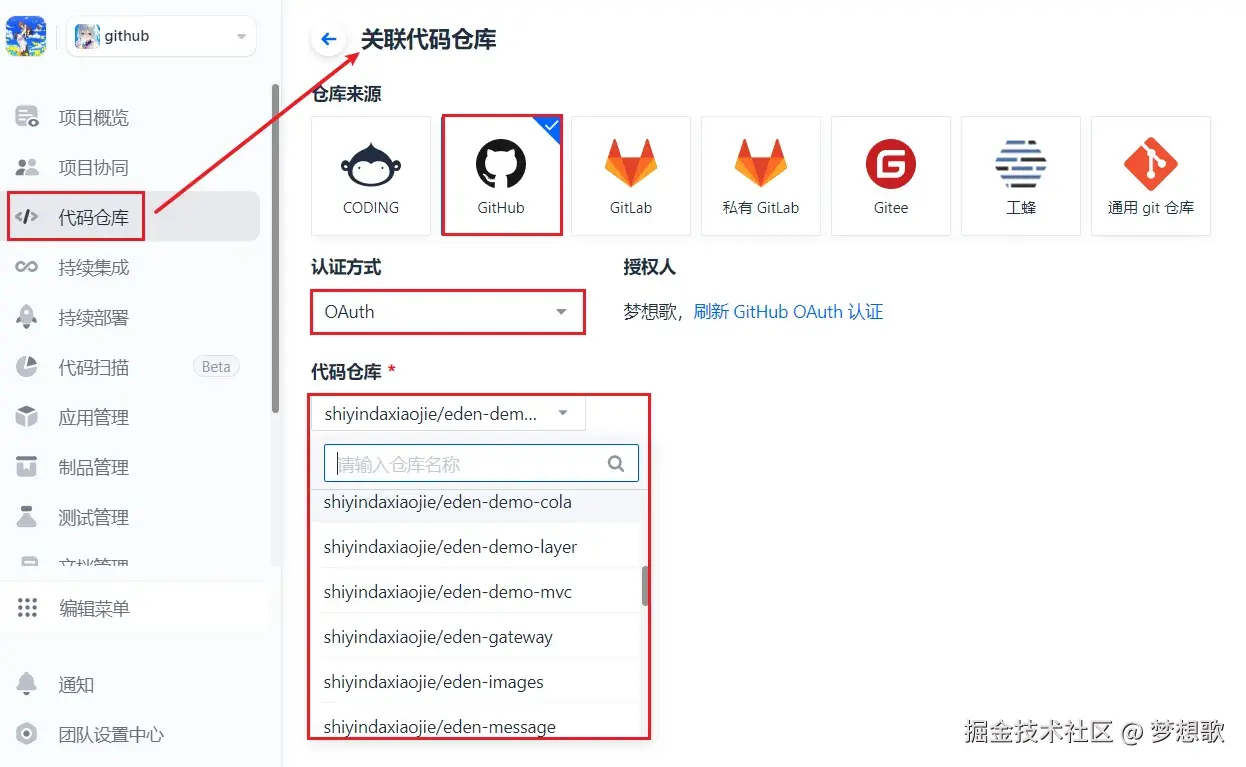

设置 Git 代码仓库
由于笔者的项目主要托管在 Github，使用关联代码仓库完成构建。
选择 Image 构建工具
目前 Java 构建镜像的主流方式有两种：
- 使用 Google 的
jib-maven-plugin插件，这种方式简单轻便，不需要在 Docker 环境下运行。- 编写 Dockerfile 文件：自由度较高，结合
spring-boot-maven-plugin插件配置分层。
Google Jib 插件构建
在子模块 eden-demo-cola-start 中引入 jib-maven-plugin 插件。
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>io.github.shiyindaxiaojie.eden.demo</groupId>
<artifactId>eden-demo-cola</artifactId>
<version>0.0.1-SNAPSHOT</version>
<relativePath>../pom.xml</relativePath>
</parent>
<artifactId>eden-demo-cola-start</artifactId>
<packaging>jar</packaging>
<name>eden-demo-cola-start</name>
<description>启动入口</description>
<properties>
<start-class>org.ylzl.eden.demo.ColaApplication</start-class>
<maven.deploy.skip>true</maven.deploy.skip>
<build.layers.enabled>true</build.layers.enabled>
</properties>
<build>
<finalName>${project.name}</finalName>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
<plugin>
<groupId>com.google.cloud.tools</groupId>
<artifactId>jib-maven-plugin</artifactId>
<configuration>
<from>
<image>openjdk:11-jdk-slim</image>
</from>
<to>
<image>${docker.image}</image>
<auth>
<username>${docker.username}</username>
<password>${docker.password}</password>
</auth>
<tags>
<tag>${project.version}</tag>
<tag>latest</tag>
</tags>
</to>
<container>
<entrypoint>
<shell>bash</shell>
<option>-c</option>
<arg>/entrypoint.sh</arg>
</entrypoint>
<ports>
<port>8080</port>
<port>9080</port>
</ports>
<environment>
<TZ>Asia/Shanghai</TZ>
<LANG>C.UTF-8</LANG>
<JVM_XMS>1g</JVM_XMS>
<JVM_XMX>1g</JVM_XMX>
<JVM_XSS>256k</JVM_XSS>
<GC_MODE>G1</GC_MODE>
<USE_GC_LOG>Y</USE_GC_LOG>
<USE_HEAP_DUMP>Y</USE_HEAP_DUMP>
<USE_LARGE_PAGES>N</USE_LARGE_PAGES>
<SPRING_PROFILES_ACTIVE>dev</SPRING_PROFILES_ACTIVE>
</environment>
<creationTime>USE_CURRENT_TIMESTAMP</creationTime>
<mainClass>${start-class}</mainClass>
</container>
<extraDirectories>
<paths>src/main/docker/jib</paths>
<permissions>
<permission>
<file>/entrypoint.sh</file>
<mode>755</mode>
</permission>
</permissions>
</extraDirectories>
<allowInsecureRegistries>true</allowInsecureRegistries>
</configuration>
</plugin>
</plugins>
</build>
</project>
使用 Maven 构建并发布镜像，代码片段如下：
mvn -pl eden-demo-cola-start jib:build -Dimage=shiyindaxiaojie/eden-demo-cola -Djib.disableUpdateChecks=true -DskipTests -U -T 4C
Dockerfile 分层构建
如果您不希望引入 Google 第三方插件，也可以参考 docker 目录的 Dockerfile 文件，代码实现了镜像的分层，可以放心使用。
# 使用基础镜像
FROM m.daocloud.io/openjdk:11-jdk-slim AS builder
# 指定构建模块
ARG MODULE=eden-demo-cola-start
# 设置工作目录
WORKDIR /app
# 复制必要文件
COPY $MODULE/target/$MODULE.jar application.jar
COPY docker/entrypoint.sh entrypoint.sh
# 使用 Spring Boot 的分层模式提取 JAR 文件的依赖项
RUN java -Djarmode=layertools -jar application.jar extract
# 创建容器镜像
FROM m.daocloud.io/openjdk:11-jdk-slim
# 定义元数据
LABEL maintainer="梦想歌 <shiyindaxiaojie@gmail.com>"
LABEL version="1.0.0"
# 指定构建参数
ARG USER=tmpuser
ARG GROUP=tmpgroup
# 设置环境变量
ENV HOME="/app"
ENV TZ="Asia/Shanghai"
ENV LANG="C.UTF-8"
ENV XMS="1g"
ENV XMX="1g"
ENV XSS="256k"
ENV GC_MODE="G1"
ENV USE_GC_LOG="Y"
ENV USE_HEAP_DUMP="Y"
ENV USE_LARGE_PAGES="N"
ENV SPRING_PROFILES_ACTIVE="dev"
ENV SERVER_PORT="8080"
ENV MANAGEMENT_SERVER_PORT="9080"
# 创建日志目录
RUN mkdir -p $HOME/logs \
&& touch $HOME/logs/entrypoint.out \
&& ln -sf /dev/stdout $HOME/logs/entrypoint.out \
&& ln -sf /dev/stderr $HOME/logs/entrypoint.out
# 切换工作目录
WORKDIR $HOME
# 从基础镜像复制应用程序依赖项和模块
COPY --from=builder /app/dependencies/ ./
COPY --from=builder /app/spring-boot-loader ./
COPY --from=builder /app/organization-dependencies ./
COPY --from=builder /app/modules-dependencies ./
COPY --from=builder /app/snapshot-dependencies/ ./
COPY --from=builder /app/application/ ./
COPY --from=builder /app/entrypoint.sh ./
# 创建普通用户
RUN groupadd -g 1000 $GROUP \
&& useradd -u 1000 -g $GROUP -d $HOME -s /bin/bash $USER \
&& chown -R $USER:$GROUP $HOME \
&& chmod -R a+rwX $HOME
# 切换到容器用户
USER $USER
# 暴露访问端口
EXPOSE $SERVER_PORT $MANAGEMENT_SERVER_PORT
# 设置启动入口
CMD ["./entrypoint.sh"]

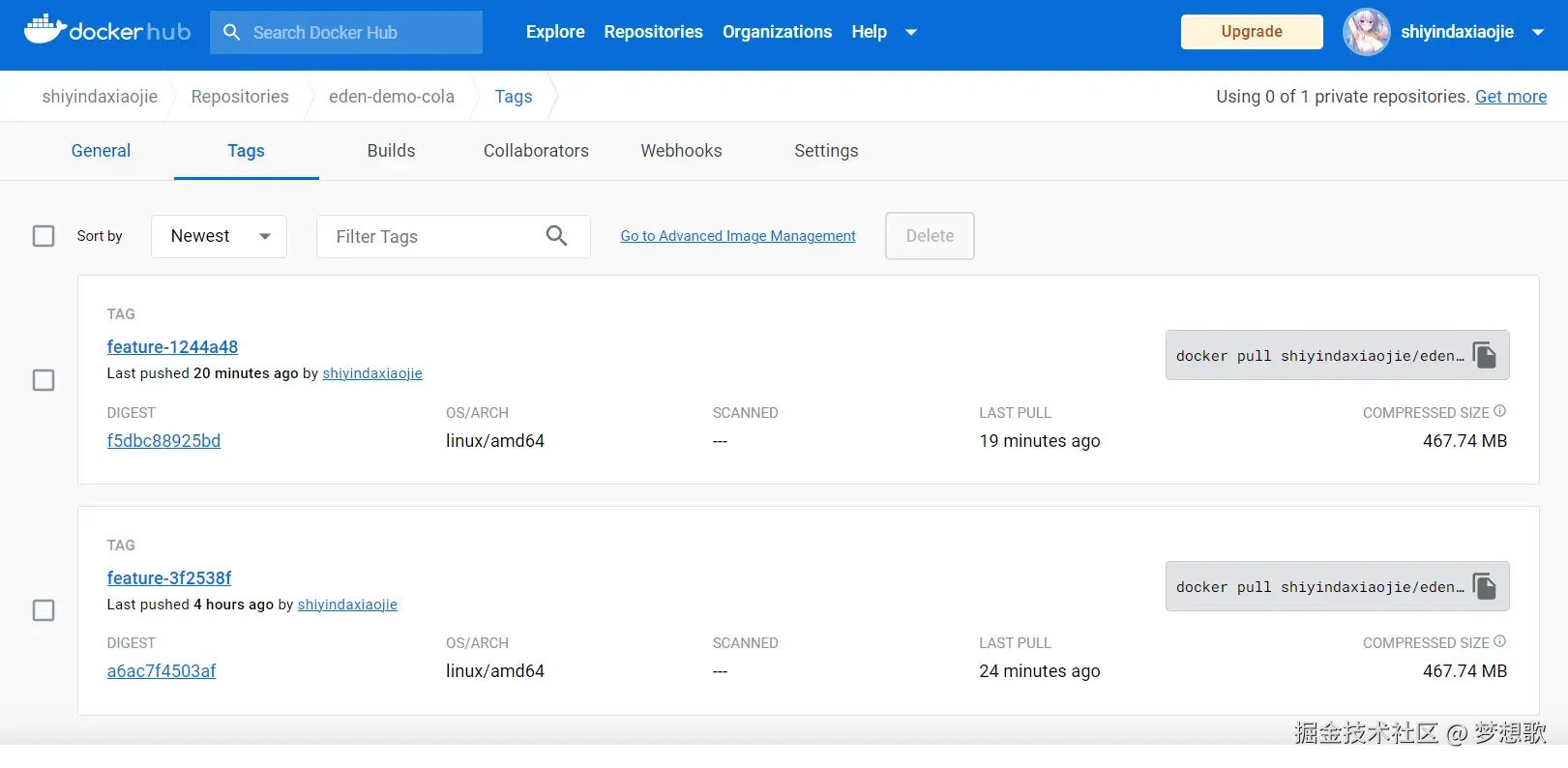

在根目录执行 Docker 指令完成构建。
docker build -f docker/Dockerfile -t shiyindaxiaojie/eden-demo-cola .
docker push shiyindaxiaojie/eden-demo-cola
自定义 Maven 配置文件
由于笔者直接使用 CODING 节点托管部署，无法了解服务器内部的 Maven 细节，并且，Maven 的环境变动可能会影响整个构建计划不可用，因此，建议自定义 settings.xml 来控制您的应用。
首先，使用 -s 选项指定项目 .coding 目录的 settings.xml 文件。
mvn package -DskipTests -T 4C -s ./.coding/settings.xml
Maven 配置文件的内容统一使用 ${env.xxx} 变量，表示通过 CODING 的脚本传递环境变量，代码片段如下。
<?xml version="1.0" encoding="UTF-8"?>
<settings>
<servers>
<server>
<id>coding</id>
<username>${env.MAVEN_USERNAME}</username>
<password>${env.MAVEN_PASSWORD}</password>
</server>
</servers>
<profiles>
<profile>
<id>coding</id>
<properties>
<docker.username>${env.DOCKER_USERNAME}</docker.username>
<docker.password>${env.DOCKER_PASSWORD}</docker.password>
<docker.image>${env.DOCKER_IMAGE}</docker.image>
<altReleaseDeploymentRepository>
coding::default::${env.MAVEN_REPO_URL}
</altReleaseDeploymentRepository>
<altSnapshotDeploymentRepository>
coding::default::${env.MAVEN_REPO_URL}
</altSnapshotDeploymentRepository>
</properties>
<repositories>
<repository>
<id>coding</id>
<url>${env.MAVEN_REPO_URL}</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>
</repositories>
<pluginRepositories>
<pluginRepository>
<id>coding</id>
<url>${env.MAVEN_REPO_URL}</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</pluginRepository>
</pluginRepositories>
</profile>
</profiles>
<activeProfiles>
<activeProfile>coding</activeProfile>
</activeProfiles>
</settings>
对应的 CODING 流水线传递相关变量到 settings.xml。
stage('推送到 Maven 制品库') {
steps {
withCredentials([
usernamePassword(
credentialsId: env.MAVEN_RELEASES,
usernameVariable: 'MAVEN_RELEASES_USERNAME',
passwordVariable: 'MAVEN_RELEASES_PASSWORD'
),
usernamePassword(
credentialsId: env.MAVEN_SNAPSHOTS,
usernameVariable: 'MAVEN_SNAPSHOTS_USERNAME',
passwordVariable: 'MAVEN_SNAPSHOTS_PASSWORD'
)
]) {
withEnv([
"MAVEN_RELEASES_ID=${MAVEN_RELEASES_ID}",
"MAVEN_RELEASES_URL=${MAVEN_RELEASES_URL}",
"MAVEN_RELEASES_USERNAME=${MAVEN_RELEASES_USERNAME}",
"MAVEN_RELEASES_PASSWORD=${MAVEN_RELEASES_PASSWORD}",
"MAVEN_SNAPSHOTS_ID=${MAVEN_SNAPSHOTS_ID}",
"MAVEN_SNAPSHOTS_URL=${MAVEN_SNAPSHOTS_URL}",
"MAVEN_SNAPSHOTS_USERNAME=${MAVEN_SNAPSHOTS_USERNAME}",
"MAVEN_SNAPSHOTS_PASSWORD=${MAVEN_SNAPSHOTS_PASSWORD}"
]) {
sh 'mvn -T 4C -Pcoding deploy -DskipTests -s ./.coding/settings.xml'
}
}
}
}

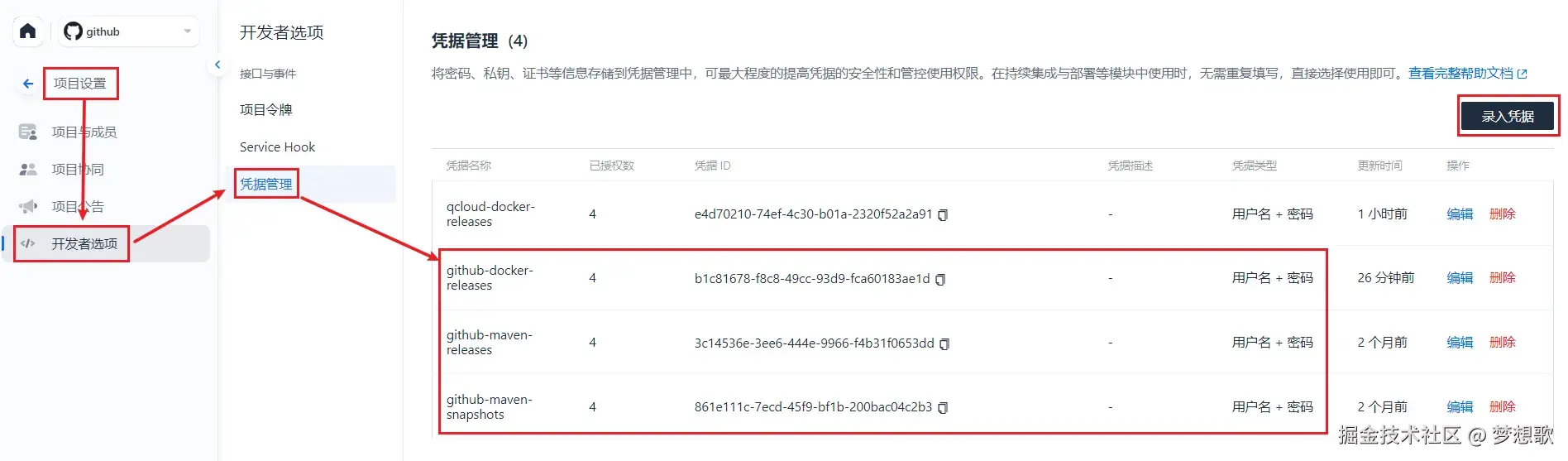

设置 Docker 和 Maven 凭据
使用项目凭据来替换 CODING 脚本所需的 Docker/Maven 账户信息，减少维护凭据的工作，允许多个构建计划复用同一个凭据。同时防止构建计划泄露账户信息，特别是多人协作部署。

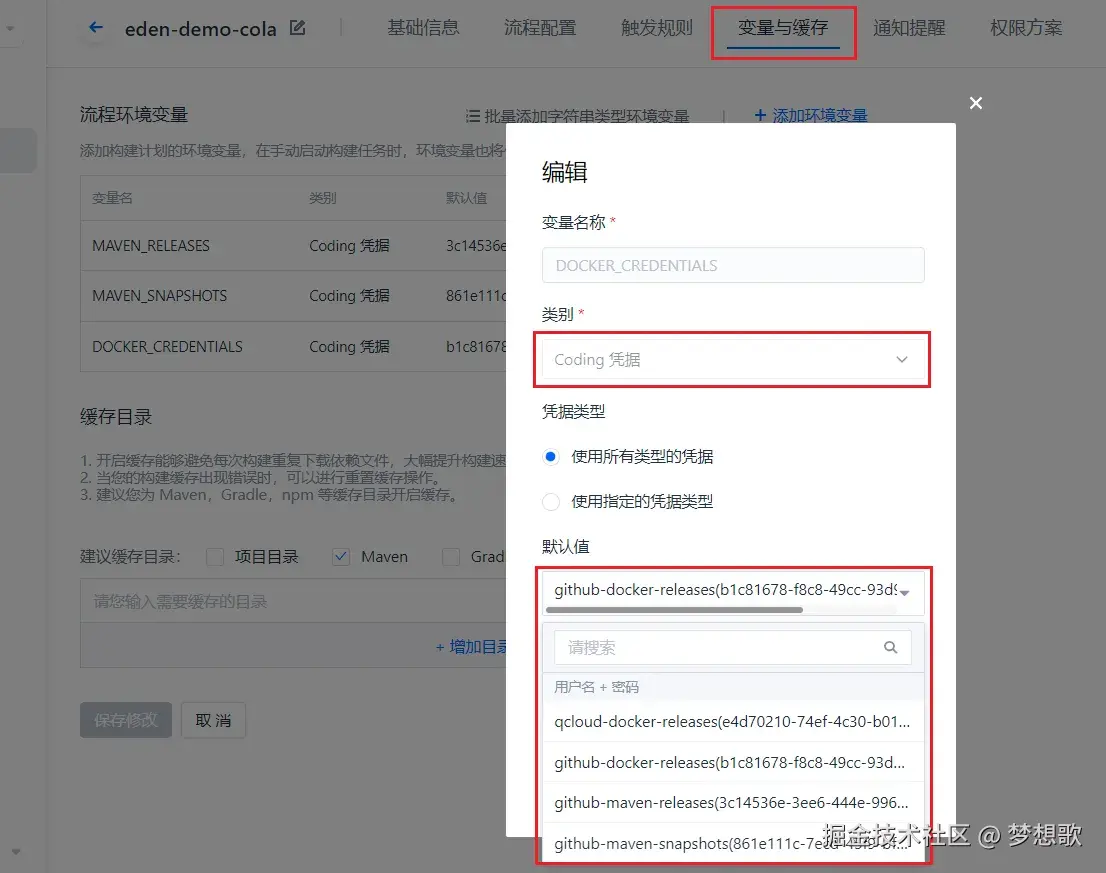

录入凭据后，在构建计划的 变量与缓存 选择相关凭据。
编排 Jenkinsfile 脚本
由于 CODING 目前没有实现 Jenkinsfile 脚本的版本控制，为防止误删配置导致整个构建计划不可用，笔者的做法是把 Jenkinsfile 脚本保存到工程
.coding目录下，使用Git完成版本控制。

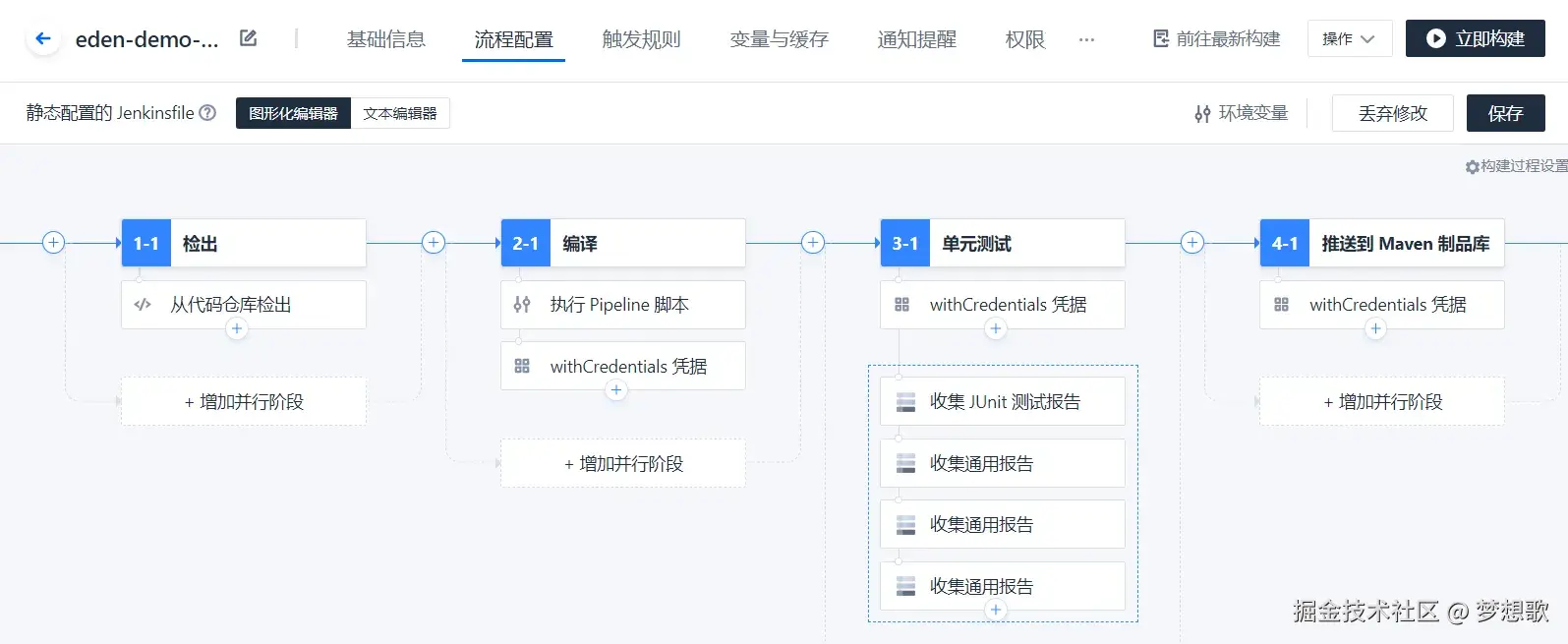

在 .coding 目录提供了开箱即用的 Jenkinsfile，包含编译打包、单元测试、发布私服、推送镜像等步骤，完整代码如下。
pipeline {
agent any
environment {
MAVEN_SNAPSHOTS_NAME = "maven-snapshots"
MAVEN_SNAPSHOTS_ID = "${CCI_CURRENT_TEAM}-${PROJECT_NAME}-${MAVEN_SNAPSHOTS_NAME}"
MAVEN_SNAPSHOTS_URL = "${CCI_CURRENT_WEB_PROTOCOL}://${CCI_CURRENT_TEAM}-maven.pkg.${CCI_CURRENT_DOMAIN}/repository/${PROJECT_NAME}/${MAVEN_SNAPSHOTS_NAME}/"
MAVEN_RELEASES_NAME = "maven-releases"
MAVEN_RELEASES_ID = "${CCI_CURRENT_TEAM}-${PROJECT_NAME}-${MAVEN_RELEASES_NAME}"
MAVEN_RELEASES_URL = "${CCI_CURRENT_WEB_PROTOCOL}://${CCI_CURRENT_TEAM}-maven.pkg.${CCI_CURRENT_DOMAIN}/repository/${PROJECT_NAME}/${MAVEN_RELEASES_NAME}/"
MAVEN_SNAPSHOTS_NAME = "maven-snapshots"
MAVEN_RELEASES_NAME = "maven-releases"
DOCKER_REPOSITORY_NAME = "docker"
MAVEN_SNAPSHOTS_ID = "${CCI_CURRENT_TEAM}-${PROJECT_NAME}-${MAVEN_SNAPSHOTS_NAME}"
MAVEN_SNAPSHOTS_URL = "${CCI_CURRENT_WEB_PROTOCOL}://${CCI_CURRENT_TEAM}-maven.pkg.${CCI_CURRENT_DOMAIN}/repository/${PROJECT_NAME}/${MAVEN_SNAPSHOTS_NAME}/"
MAVEN_RELEASES_ID = "${CCI_CURRENT_TEAM}-${PROJECT_NAME}-${MAVEN_RELEASES_NAME}"
MAVEN_RELEASES_URL = "${CCI_CURRENT_WEB_PROTOCOL}://${CCI_CURRENT_TEAM}-maven.pkg.${CCI_CURRENT_DOMAIN}/repository/${PROJECT_NAME}/${MAVEN_RELEASES_NAME}/"
DOCKER_REPOSITORY = "${CCI_CURRENT_TEAM}-docker.pkg.${CCI_CURRENT_DOMAIN}/${PROJECT_NAME}/${DOCKER_REPOSITORY_NAME}"
}
stages {
stage('检出') {
steps {
checkout([$class: 'GitSCM',
branches: [[name: GIT_BUILD_REF]],
userRemoteConfigs: [[
url: GIT_REPO_URL,
credentialsId: CREDENTIALS_ID
]]])
}
}
stage('编译') {
steps {
script {
if (env.TAG_NAME ==~ /.*/ ) {
ARTIFACT_VERSION = "${env.TAG_NAME}"
} else if (env.MR_SOURCE_BRANCH ==~ /.*/ ) {
ARTIFACT_VERSION = "${env.MR_RESOURCE_ID}-${env.GIT_COMMIT_SHORT}"
} else {
ARTIFACT_VERSION = "${env.BRANCH_NAME.replace('/', '-')}-${env.GIT_COMMIT_SHORT}"
}
}
withCredentials([
usernamePassword(
credentialsId: env.MAVEN_RELEASES,
usernameVariable: 'MAVEN_RELEASES_USERNAME',
passwordVariable: 'MAVEN_RELEASES_PASSWORD'
),
usernamePassword(
credentialsId: env.MAVEN_SNAPSHOTS,
usernameVariable: 'MAVEN_SNAPSHOTS_USERNAME',
passwordVariable: 'MAVEN_SNAPSHOTS_PASSWORD'
)
]) {
withEnv([
"ARTIFACT_VERSION=${ARTIFACT_VERSION}",
"MAVEN_RELEASES_ID=${MAVEN_RELEASES_ID}",
"MAVEN_RELEASES_URL=${MAVEN_RELEASES_URL}",
"MAVEN_RELEASES_USERNAME=${MAVEN_RELEASES_USERNAME}",
"MAVEN_RELEASES_PASSWORD=${MAVEN_RELEASES_PASSWORD}",
"MAVEN_SNAPSHOTS_ID=${MAVEN_SNAPSHOTS_ID}",
"MAVEN_SNAPSHOTS_URL=${MAVEN_SNAPSHOTS_URL}",
"MAVEN_SNAPSHOTS_USERNAME=${MAVEN_SNAPSHOTS_USERNAME}",
"MAVEN_SNAPSHOTS_PASSWORD=${MAVEN_SNAPSHOTS_PASSWORD}"
]) {
sh 'mvn -T 4C -U -Pcoding versions:set -DnewVersion=${ARTIFACT_VERSION} package -DskipTests -s ./.coding/settings.xml'
}
}
}
}
stage('单元测试') {
steps {
withCredentials([
usernamePassword(
credentialsId: env.MAVEN_RELEASES,
usernameVariable: 'MAVEN_RELEASES_USERNAME',
passwordVariable: 'MAVEN_RELEASES_PASSWORD'
),
usernamePassword(
credentialsId: env.MAVEN_SNAPSHOTS,
usernameVariable: 'MAVEN_SNAPSHOTS_USERNAME',
passwordVariable: 'MAVEN_SNAPSHOTS_PASSWORD'
)
]) {
withEnv([
"MAVEN_RELEASES_ID=${MAVEN_RELEASES_ID}",
"MAVEN_RELEASES_URL=${MAVEN_RELEASES_URL}",
"MAVEN_RELEASES_USERNAME=${MAVEN_RELEASES_USERNAME}",
"MAVEN_RELEASES_PASSWORD=${MAVEN_RELEASES_PASSWORD}",
"MAVEN_SNAPSHOTS_ID=${MAVEN_SNAPSHOTS_ID}",
"MAVEN_SNAPSHOTS_URL=${MAVEN_SNAPSHOTS_URL}",
"MAVEN_SNAPSHOTS_USERNAME=${MAVEN_SNAPSHOTS_USERNAME}",
"MAVEN_SNAPSHOTS_PASSWORD=${MAVEN_SNAPSHOTS_PASSWORD}"
]) {
sh 'mvn -T 4C -Pcoding,unit-test test -s ./.coding/settings.xml'
}
}
}

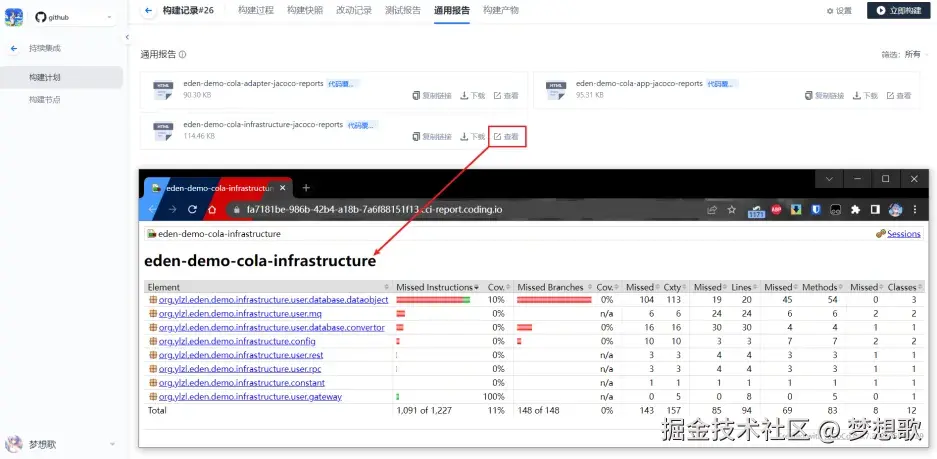

post {
always {
junit '**/surefire-reports/*.xml'
codingHtmlReport(name: 'eden-demo-cola-adapter-jacoco-reports', tag: '代码覆盖率报告', path: 'eden-demo-cola-adapter/target/site/jacoco', entryFile: 'index.html')
codingHtmlReport(name: 'eden-demo-cola-app-jacoco-reports', tag: '代码覆盖率报告', path: 'eden-demo-cola-app/target/site/jacoco', entryFile: 'index.html')
codingHtmlReport(name: 'eden-demo-cola-infrastructure-jacoco-reports', tag: '代码覆盖率报告', path: 'eden-demo-cola-infrastructure/target/site/jacoco', entryFile: 'index.html')
}
}
}

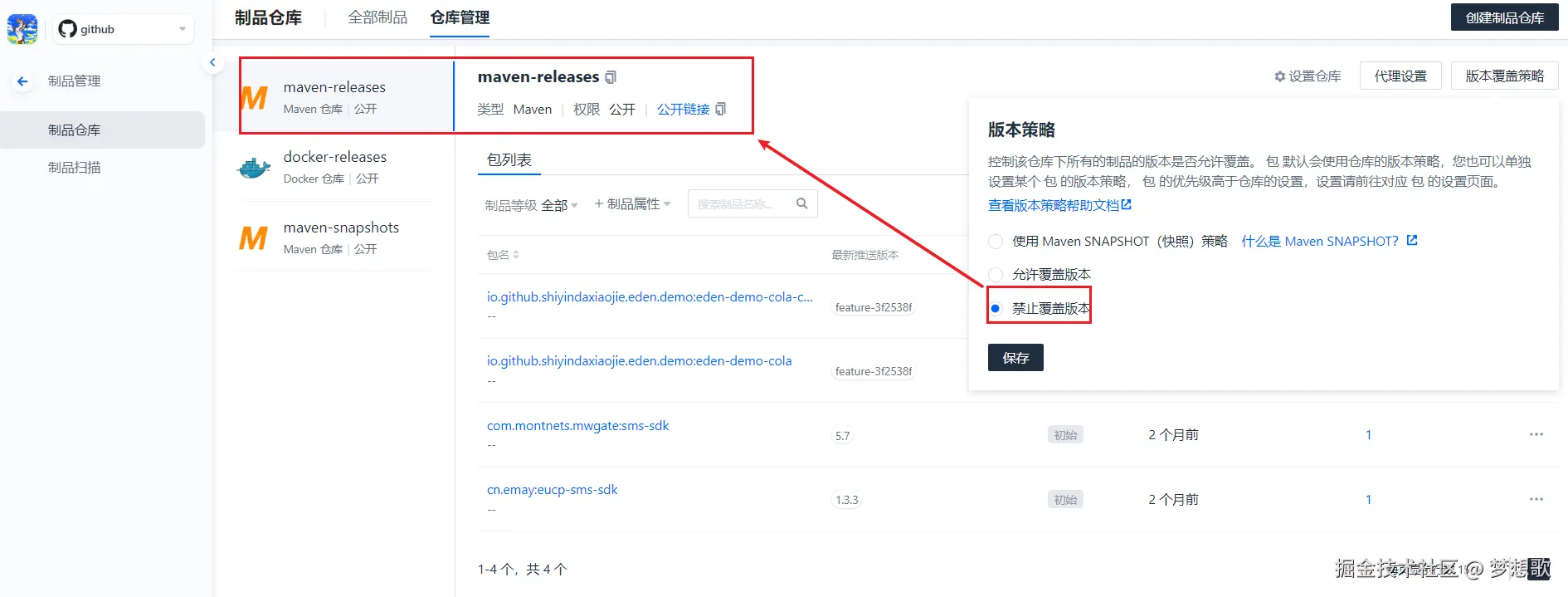

stage('推送到 Maven 制品库') {
steps {
withCredentials([
usernamePassword(
credentialsId: env.MAVEN_RELEASES,
usernameVariable: 'MAVEN_RELEASES_USERNAME',
passwordVariable: 'MAVEN_RELEASES_PASSWORD'
),
usernamePassword(
credentialsId: env.MAVEN_SNAPSHOTS,
usernameVariable: 'MAVEN_SNAPSHOTS_USERNAME',
passwordVariable: 'MAVEN_SNAPSHOTS_PASSWORD'
)
]) {
withEnv([
"MAVEN_RELEASES_ID=${MAVEN_RELEASES_ID}",
"MAVEN_RELEASES_URL=${MAVEN_RELEASES_URL}",
"MAVEN_RELEASES_USERNAME=${MAVEN_RELEASES_USERNAME}",
"MAVEN_RELEASES_PASSWORD=${MAVEN_RELEASES_PASSWORD}",
"MAVEN_SNAPSHOTS_ID=${MAVEN_SNAPSHOTS_ID}",
"MAVEN_SNAPSHOTS_URL=${MAVEN_SNAPSHOTS_URL}",
"MAVEN_SNAPSHOTS_USERNAME=${MAVEN_SNAPSHOTS_USERNAME}",
"MAVEN_SNAPSHOTS_PASSWORD=${MAVEN_SNAPSHOTS_PASSWORD}"
]) {
sh 'mvn -T 4C -Pcoding deploy -DskipTests -s ./.coding/settings.xml'
}
}
}
}
stage('推送到 Docker 制品库') {
steps {
withCredentials([
usernamePassword(
credentialsId: env.DOCKER_REGISTRY_CREDENTIALS_ID,
usernameVariable: 'DOCKER_USERNAME',
passwordVariable: 'DOCKER_PASSWORD'
)
]) {
withEnv([
"DOCKER_USERNAME=${DOCKER_USERNAME}",
"DOCKER_PASSWORD=${DOCKER_PASSWORD}"
]) {
sh "docker login ${DOCKER_REPOSITORY} -u ${DOCKER_USERNAME} -p ${DOCKER_PASSWORD}"
sh "docker build -t ${DOCKER_REPOSITORY}/${DEPOT_NAME}:${ARTIFACT_VERSION} -f docker/Dockerfile ."
sh "docker push ${DOCKER_REPOSITORY}/${DEPOT_NAME}:${ARTIFACT_VERSION}"
sh "docker push ${DOCKER_REPOSITORY}/${DEPOT_NAME}:latest"
}
}
}
}
}
}
如果您不熟悉 Jenkinsfile 的语法，可以复制上述代码，切换到 CODING 图形化视角，进入可视化模式调整。
编辑好 Jenkinsfile 文件后保存，点击 立即构建，触发流水线即可。接下来，笔者根据 Jenkinsfile 内容中的关键代码块进行讲解。
自定义检出 Git 代码
正常情况下，我们是一对一检出 Git 仓库。
stage('检出') {
steps {
checkout([$class: 'GitSCM',
branches: [[name: GIT_BUILD_REF]],
userRemoteConfigs: [[
url: GIT_REPO_URL,
credentialsId: CREDENTIALS_ID
]]])
}
}
有些特殊场景，需要同时检出多个 Git 仓库，详见下述代码片段。不过，这样做会导致您无法有效控制 Git 自动触发。
stage('检出') {
parallel { // 开启并行构建
stage('检出 eden-gateway') {
steps {
dir('eden-gateway') {
checkout([$class: 'GitSCM',
branches: [[name: env.EDEN_GATEWAY_VERSION]],
userRemoteConfigs: [[
url: env.EDEN_GATEWAY_GIT_URL,
credentialsId: CREDENTIALS_ID
]]])
script {
// ...
}
}
}
}
stage('检出 eden-uaa') {
steps {
dir('eden-uaa') {
checkout([$class: 'GitSCM',
branches: [[name: env.EDEN_UAA_VERSION]],
userRemoteConfigs: [[
url: env.EDEN_UAA_GIT_URL,
credentialsId: CREDENTIALS_ID
]]])
script {
// ...
}
}
}
}
}
}
设置 Maven 魔法版本号
CODING 内置了一系列丰富的环境变量，您可以通过 ${env.TAG_NAME} 或者 ${env.BRANCH_NAME} 获取 Git 的版本号，使用 versions-maven-plugin 执行 mvn versions:set -DnewVersion=${VERSION} 动态设置 Maven 模块的版本号。
stage('编译') {
steps {
script {
if (env.TAG_NAME ==~ /.*/ ) {
ARTIFACT_VERSION = "${env.TAG_NAME}"
} else if (env.MR_SOURCE_BRANCH ==~ /.*/ ) {
ARTIFACT_VERSION = "${env.MR_RESOURCE_ID}-${env.GIT_COMMIT_SHORT}"
} else {
ARTIFACT_VERSION = "${env.BRANCH_NAME.replace('/', '-')}-${env.GIT_COMMIT_SHORT}"
}
}
withCredentials([
usernamePassword(
credentialsId: env.MAVEN_RELEASES,
usernameVariable: 'MAVEN_RELEASES_USERNAME',
passwordVariable: 'MAVEN_RELEASES_PASSWORD'
),
usernamePassword(
credentialsId: env.MAVEN_SNAPSHOTS,
usernameVariable: 'MAVEN_SNAPSHOTS_USERNAME',
passwordVariable: 'MAVEN_SNAPSHOTS_PASSWORD'
)
]) {
withEnv([
"ARTIFACT_VERSION=${ARTIFACT_VERSION}",
"MAVEN_RELEASES_ID=${MAVEN_RELEASES_ID}",
"MAVEN_RELEASES_URL=${MAVEN_RELEASES_URL}",
"MAVEN_RELEASES_USERNAME=${MAVEN_RELEASES_USERNAME}",
"MAVEN_RELEASES_PASSWORD=${MAVEN_RELEASES_PASSWORD}",
"MAVEN_SNAPSHOTS_ID=${MAVEN_SNAPSHOTS_ID}",
"MAVEN_SNAPSHOTS_URL=${MAVEN_SNAPSHOTS_URL}",
"MAVEN_SNAPSHOTS_USERNAME=${MAVEN_SNAPSHOTS_USERNAME}",
"MAVEN_SNAPSHOTS_PASSWORD=${MAVEN_SNAPSHOTS_PASSWORD}"
]) {
sh 'mvn -T 4C -U -Pcoding versions:set -DnewVersion=${ARTIFACT_VERSION} package -DskipTests -s ./.coding/settings.xml'
}
}
}
}
Java 测试报告可视化
CODING 提供了测试报告的可视化支持，下述代码片段提供了单元测试和代码覆盖率分析的配置示例。
stage('单元测试') {
steps {
withCredentials([
usernamePassword(
credentialsId: env.MAVEN_RELEASES,
usernameVariable: 'MAVEN_RELEASES_USERNAME',
passwordVariable: 'MAVEN_RELEASES_PASSWORD'
),
usernamePassword(
credentialsId: env.MAVEN_SNAPSHOTS,
usernameVariable: 'MAVEN_SNAPSHOTS_USERNAME',
passwordVariable: 'MAVEN_SNAPSHOTS_PASSWORD'
)
]) {
withEnv([
"MAVEN_RELEASES_ID=${MAVEN_RELEASES_ID}",
"MAVEN_RELEASES_URL=${MAVEN_RELEASES_URL}",
"MAVEN_RELEASES_USERNAME=${MAVEN_RELEASES_USERNAME}",
"MAVEN_RELEASES_PASSWORD=${MAVEN_RELEASES_PASSWORD}",
"MAVEN_SNAPSHOTS_ID=${MAVEN_SNAPSHOTS_ID}",
"MAVEN_SNAPSHOTS_URL=${MAVEN_SNAPSHOTS_URL}",
"MAVEN_SNAPSHOTS_USERNAME=${MAVEN_SNAPSHOTS_USERNAME}",
"MAVEN_SNAPSHOTS_PASSWORD=${MAVEN_SNAPSHOTS_PASSWORD}"
]) {
sh 'mvn -T 4C -Pcoding,unit-test test -s ./.coding/settings.xml'
}
}
}
post {
always {
junit '**/surefire-reports/*.xml' // 单元测试报告
codingHtmlReport(name: 'eden-demo-cola-adapter-jacoco-reports', tag: '代码覆盖率报告', path: 'eden-demo-cola-adapter/target/site/jacoco', entryFile: 'index.html')
codingHtmlReport(name: 'eden-demo-cola-app-jacoco-reports', tag: '代码覆盖率报告', path: 'eden-demo-cola-app/target/site/jacoco', entryFile: 'index.html')
codingHtmlReport(name: 'eden-demo-cola-infrastructure-jacoco-reports', tag: '代码覆盖率报告', path: 'eden-demo-cola-infrastructure/target/site/jacoco', entryFile: 'index.html')
}
}
}

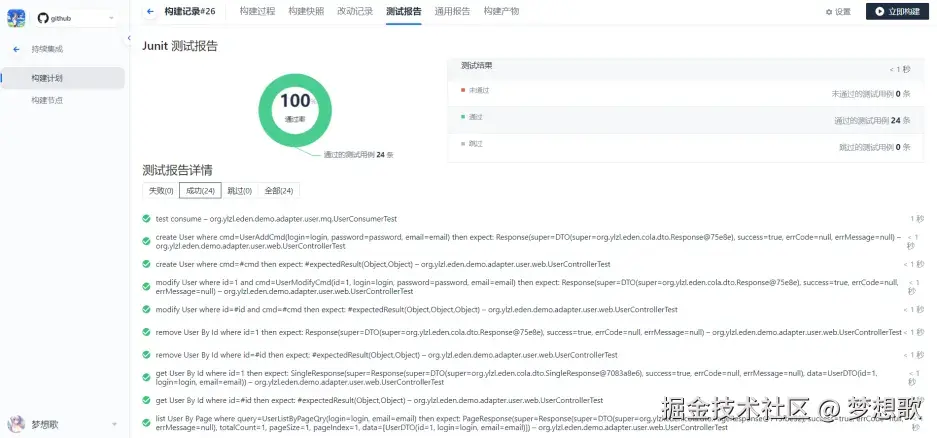

在构建记录中，点击 测试报告 页签，查看单元测试报告。
从 通用报告 查看代码覆盖率报告。
发布制品到 Maven 仓库
多人协同下，需要把构建生成的 API 依赖发布到私服（制品库）。在此之前我们已经配置好了 Maven 私服地址和相关凭据，具体可以参考下面的代码片段。
stage('推送到 Maven 制品库') {
steps {
withCredentials([
usernamePassword(
credentialsId: env.MAVEN_RELEASES,
usernameVariable: 'MAVEN_RELEASES_USERNAME',
passwordVariable: 'MAVEN_RELEASES_PASSWORD'
),
usernamePassword(
credentialsId: env.MAVEN_SNAPSHOTS,
usernameVariable: 'MAVEN_SNAPSHOTS_USERNAME',
passwordVariable: 'MAVEN_SNAPSHOTS_PASSWORD'
)
]) {
withEnv([
"MAVEN_RELEASES_ID=${MAVEN_RELEASES_ID}",
"MAVEN_RELEASES_URL=${MAVEN_RELEASES_URL}",
"MAVEN_RELEASES_USERNAME=${MAVEN_RELEASES_USERNAME}",
"MAVEN_RELEASES_PASSWORD=${MAVEN_RELEASES_PASSWORD}",
"MAVEN_SNAPSHOTS_ID=${MAVEN_SNAPSHOTS_ID}",
"MAVEN_SNAPSHOTS_URL=${MAVEN_SNAPSHOTS_URL}",
"MAVEN_SNAPSHOTS_USERNAME=${MAVEN_SNAPSHOTS_USERNAME}",
"MAVEN_SNAPSHOTS_PASSWORD=${MAVEN_SNAPSHOTS_PASSWORD}"
]) {
sh 'mvn -T 4C -Pcoding deploy -DskipTests -s ./.coding/settings.xml'
}
}
}
}
Maven 私服应当严格区分 Releases 和 Snapshots 仓库。
在开发测试阶段，需要利用 Maven 的快照更新维持 API 的变动，使用 Snapshots 仓库比较合适。
在预发布阶段，表示测试已通过，可以发布生产了，API 不允许有变动，应当严格使用 Releases 仓库来限制版本的发布，避免相同版本的 API 被覆盖。
在 CODING 制品库，您可以在 Releases 仓库设置版本策略为禁止覆盖版本。
推送镜像到 Docker 仓库
本文中，笔者使用 Docker Hub 托管镜像，代码中的变量，在设置凭据的小节已详细说明，您可以根据实际情况进行调整。
stage('推送到 Docker 制品库') {
steps {
withCredentials([
usernamePassword(
credentialsId: env.DOCKER_CREDENTIALS,
usernameVariable: 'DOCKER_USERNAME',
passwordVariable: 'DOCKER_PASSWORD'
)
]) {
withEnv([
"DOCKER_USERNAME=${DOCKER_USERNAME}",
"DOCKER_PASSWORD=${DOCKER_PASSWORD}",
"DOCKER_IMAGE=${DOCKER_REPOSITORY}:${ARTIFACT_VERSION}"
]) {
sh 'mvn -Pcoding -pl eden-demo-cola-start jib:build -Djib.disableUpdateChecks=true -DskipTests -s ./.coding/settings.xml'
}
}
}
}
执行上述代码后，在 DockerHub 查看镜像已更新，验证通过。
更新镜像到 K8s 集群
CODING 支持配置镜像更新到 K8s 已部署的工作负载。
stage('部署到 K8s 集群') {
steps {
withEnv(["DOCKER_IMAGE=${DOCKER_REPOSITORY}:${ARTIFACT_VERSION}"]) {
cdDeploy(deployType: 'PATCH_IMAGE', application: '${CCI_CURRENT_TEAM}', pipelineName: '${PROJECT_NAME}-${CCI_JOB_NAME}-5001969', image: '${DOCKER_IMAGE}', cloudAccountName: 'test', namespace: 'test', manifestType: 'Deployment', manifestName: 'demo-cola', containerName: 'demo-cola', credentialId: 'a2954a785e1d40caa1803274a23edac9', personalAccessToken: '${CD_PERSONAL_ACCESS_TOKEN}')
}
}
}

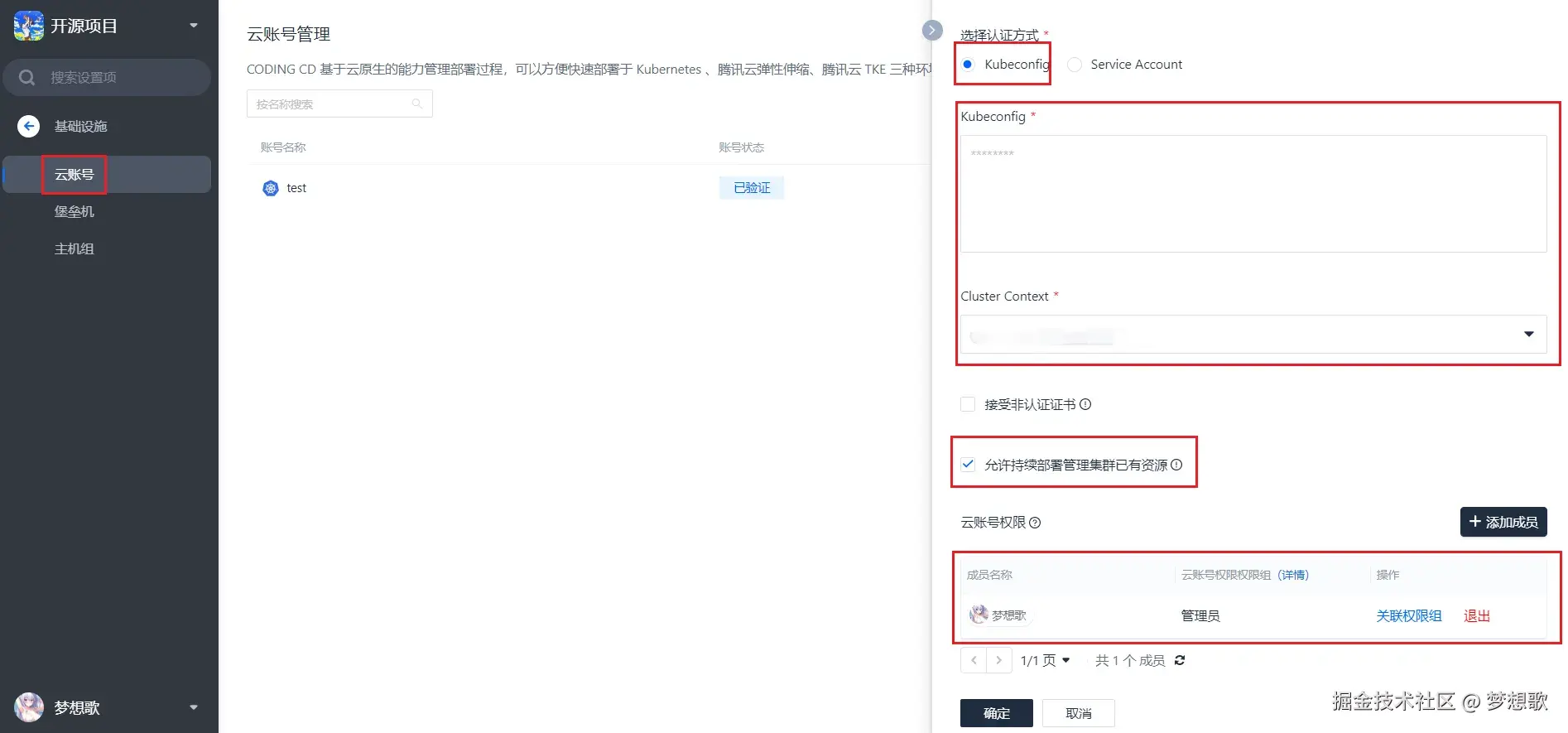

在 CODING 的 持续部署 > 弹性伸缩 > 配置云账号 添加 K8s 凭据，绑定需要部署的 K8s 集群。

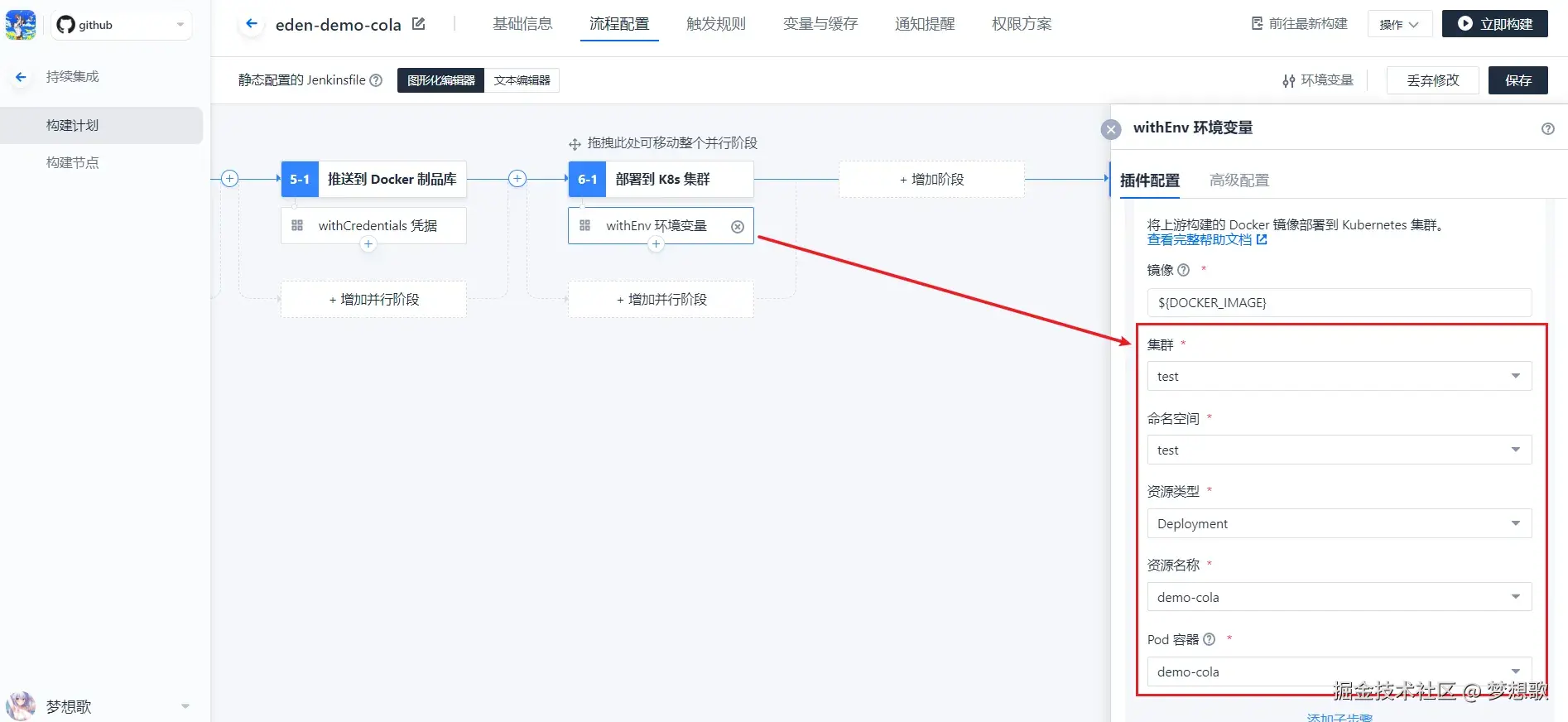

在 CODING 构建计划编排界面配置 镜像更新，选择上述已绑定的 K8s 集群，根据级联选择到具体的 Pod 容器。

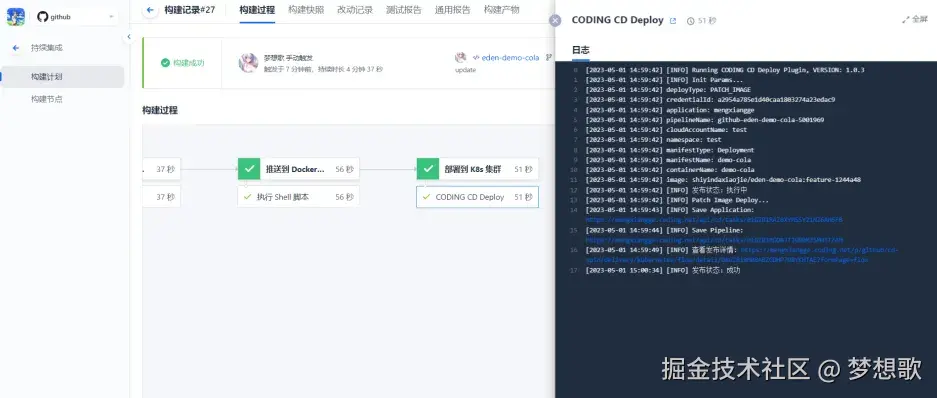

点击构建，查看镜像更新执行记录。

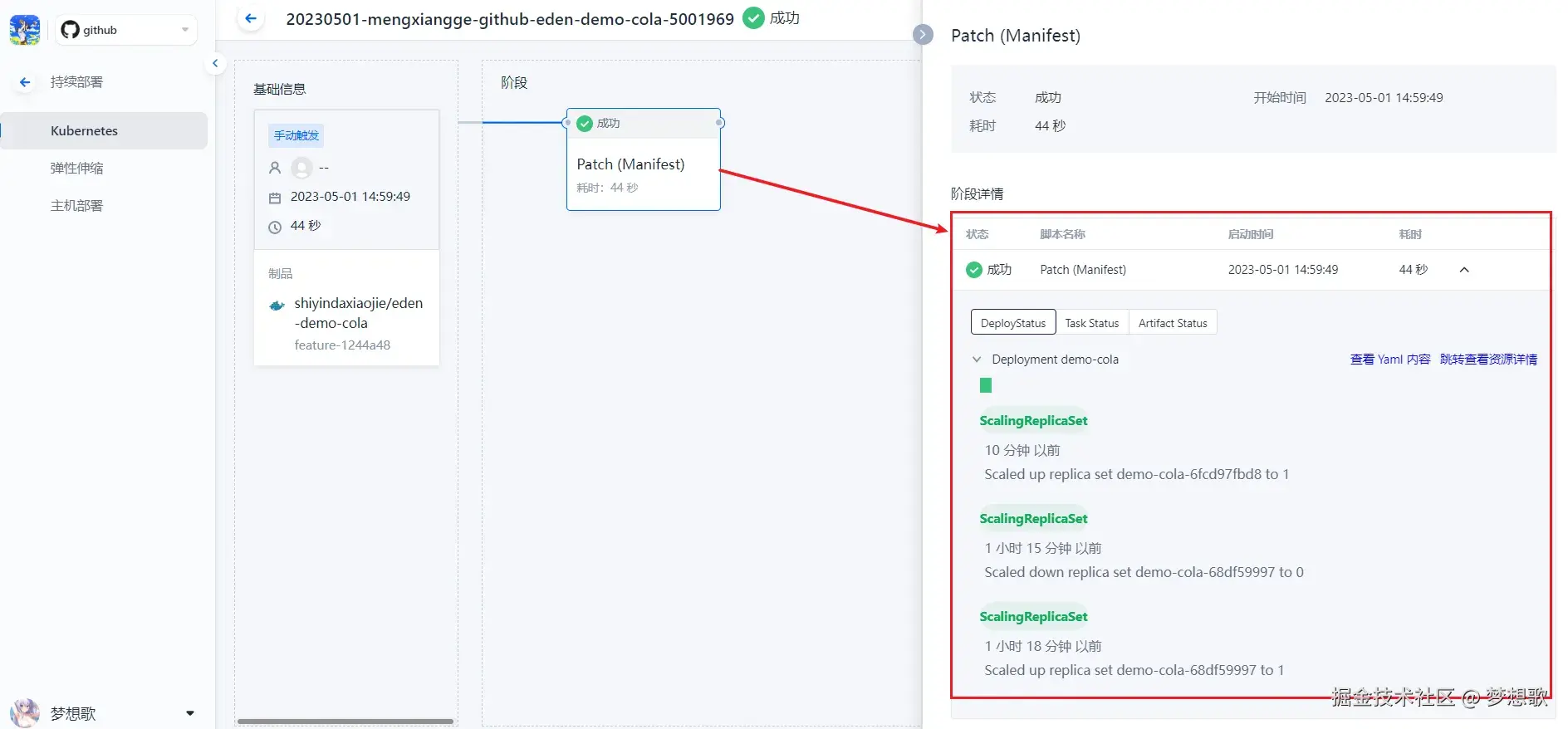

除了控制台输出，也可以点击查看 K8s 发布详情。

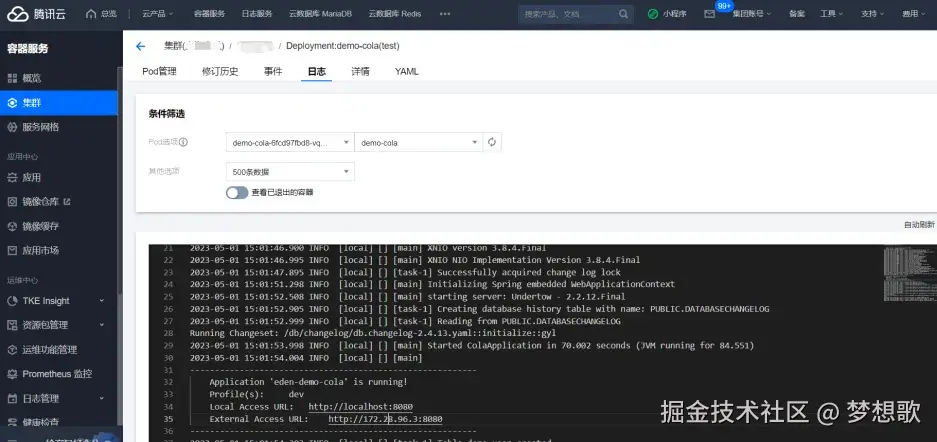

查看 K8s 集群（笔者使用腾讯云 Serveless 集群部署），启动成功！
访问控制台输出的 External Access URL 地址，系统访问正常。
前端项目怎么构建？
以开源的若依项目（Vue）为例，在代码目录下分别创建以下目录：
eden-ui
|_ .coding/
|_ Jenkinsfile # CODING 流水线脚本
|_ nginx.conf # Nginx 配置文件
|_ docker/
|_ Dockerfile # Docker 构建文件
|_ ...
|_ .npmrc
初始化 .npmrc，代理 npm 源，指向 CODING 制品库。
registry=https://xxx-npm.pkg.coding.net/xxx/npm/
always-auth=true
//xxx-npm.pkg.coding.net/xxx/npm/:username=${CODING_ARTIFACTS_USERNAME}
//xxx-npm.pkg.coding.net/xxx/npm/:_password=${CODING_ARTIFACTS_PASSWORD}
//xxx-npm.pkg.coding.net/xxx/npm/:email=xxx@gmail.com
为了让前端单独运行，需要依赖 Nginx 的镜像进行部署，所以，我们要把 nginx 的配置也加上，nginx.conf 配置如下。
user nginx;
worker_processes 1;
error_log logs/error.log warn;
pid logs/nginx.pid;
events {
worker_connections 1024;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log logs/access.log main;
sendfile on;
keepalive_timeout 65;
client_max_body_size 500m;
server {
listen 80;
server_name localhost;
charset utf-8;
gzip_static on;
gzip_vary on;
gzip_min_length 1k;
gzip_comp_level 9;
gzip_types text/css text/javascript application/javascript application/x-javascript application/xml;
gzip_disable "MSIE [1-6]\.";
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root /usr/share/nginx/html;
}
location / { # 前端
root /usr/share/nginx/html;
index index.html index.htm;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location ^~ /api/ { # 后端
proxy_pass http://xxx:8080/;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
}
}
调整 Dockerfile 打包脚本，指定 Vue 项目打包后的静态资源到 Nginx 的静态资源目录中。
FROM nginx:1.15.2-alpine
LABEL maintainer="梦想歌"
COPY dist/ /usr/share/nginx/html
COPY .coding/nginx.conf /etc/nginx/conf.d/default.conf
EXPOSE 80
编写 Jenkinsfile 构建脚本，参考如下内容。
pipeline {
agent any
environment {
CODING_DOCKER_REPO_NAME = "docker"
CODING_DOCKER_REPO_HOST = "${CCI_CURRENT_TEAM}-docker.pkg.${CCI_CURRENT_DOMAIN}"
CODING_DOCKER_REPO_URL = "${CODING_DOCKER_REPO_HOST}/${PROJECT_NAME}/${CODING_DOCKER_REPO_NAME}/${DEPOT_NAME}"
TCR_NAMESPACE_NAME = "xxx"
TCR_DOCKER_REPO_URL = "shjrccr.ccs.tencentyun.com/${TCR_NAMESPACE_NAME}/${DEPOT_NAME}"
}
stages {
stage('检出') {
steps {
checkout([$class: 'GitSCM',
branches: [[name: GIT_BUILD_REF]],
userRemoteConfigs: [[
url: GIT_REPO_URL,
credentialsId: CREDENTIALS_ID
]]])
}
}
stage('编译') {
steps {
script {
if (env.TAG_NAME ==~ /.*/ ) {
CODING_ARTIFACT_VERSION = "${env.TAG_NAME}"
} else if (env.MR_SOURCE_BRANCH ==~ /.*/ ) {
CODING_ARTIFACT_VERSION = "mr-${env.MR_RESOURCE_ID}-${env.GIT_COMMIT_SHORT}"
} else {
CODING_ARTIFACT_VERSION = "${env.BRANCH_NAME.replace('/', '-')}-${env.GIT_COMMIT_SHORT}"
}
}
sh 'rm -rf /usr/lib/node_modules/npm/'
dir ('/root/.cache/downloads') {
sh 'wget -nc "https://coding-public-generic.pkg.coding.net/public/downloads/node-linux-x64.tar.xz?version=v16.13.0" -O node-v16.13.0-linux-x64.tar.xz | true'
sh 'tar -xf node-v16.13.0-linux-x64.tar.xz -C /usr --strip-components 1'
}
withCredentials([
usernamePassword(
credentialsId: env.CODING_ARTIFACTS_CREDENTIALS_ID,
usernameVariable: 'CODING_ARTIFACTS_USERNAME',
passwordVariable: 'CODING_ARTIFACTS_PASSWORD'
)]) {
script {
sh '''
echo "CODING_ARTIFACTS_USERNAME=${CODING_ARTIFACTS_USERNAME}" >> $CI_ENV_FILE
echo "CODING_ARTIFACTS_PASSWORD=${CODING_ARTIFACTS_PASSWORD}" >> $CI_ENV_FILE
'''
readProperties(file: env.CI_ENV_FILE).each {
key, value -> env[key] = value
}
}
sh 'npm install'
sh 'npm run build:prod'
}
}
}
stage('推送到 Docker 制品库') {
steps {
withEnv([
"DOCKER_USERNAME=${DOCKER_USERNAME}",
"DOCKER_PASSWORD=${DOCKER_PASSWORD}",
"DOCKER_IMAGE=${TCR_DOCKER_REPO_URL}:${CODING_ARTIFACT_VERSION}"
]) {
sh 'docker login --username=${DOCKER_USERNAME} --password=${DOCKER_PASSWORD} shjrccr.ccs.tencentyun.com'
sh 'docker build -t ${DOCKER_IMAGE} .'
sh 'docker tag ${DOCKER_IMAGE} ${DOCKER_IMAGE}'
sh 'docker push ${DOCKER_IMAGE}'
}
}
}
stage('部署到 K8s 集群') {
steps {
withEnv(["DOCKER_IMAGE=${TCR_DOCKER_REPO_URL}:${CODING_ARTIFACT_VERSION}"]) {
cdDeploy(deployType: 'PATCH_IMAGE', application: '${CCI_CURRENT_TEAM}', pipelineName: '${PROJECT_NAME}-${CCI_JOB_NAME}-202222222', image: '${DOCKER_IMAGE}', cloudAccountName: 'xxx-k8s-test', namespace: 'test', manifestType: 'Deployment', manifestName: 'xxx-client', containerName: 'xxx-client', credentialId: 'aaaaaaaaaaaaaaaaaaaaaaa', personalAccessToken: '${CD_PERSONAL_ACCESS_TOKEN}')
}
}
}
}
}

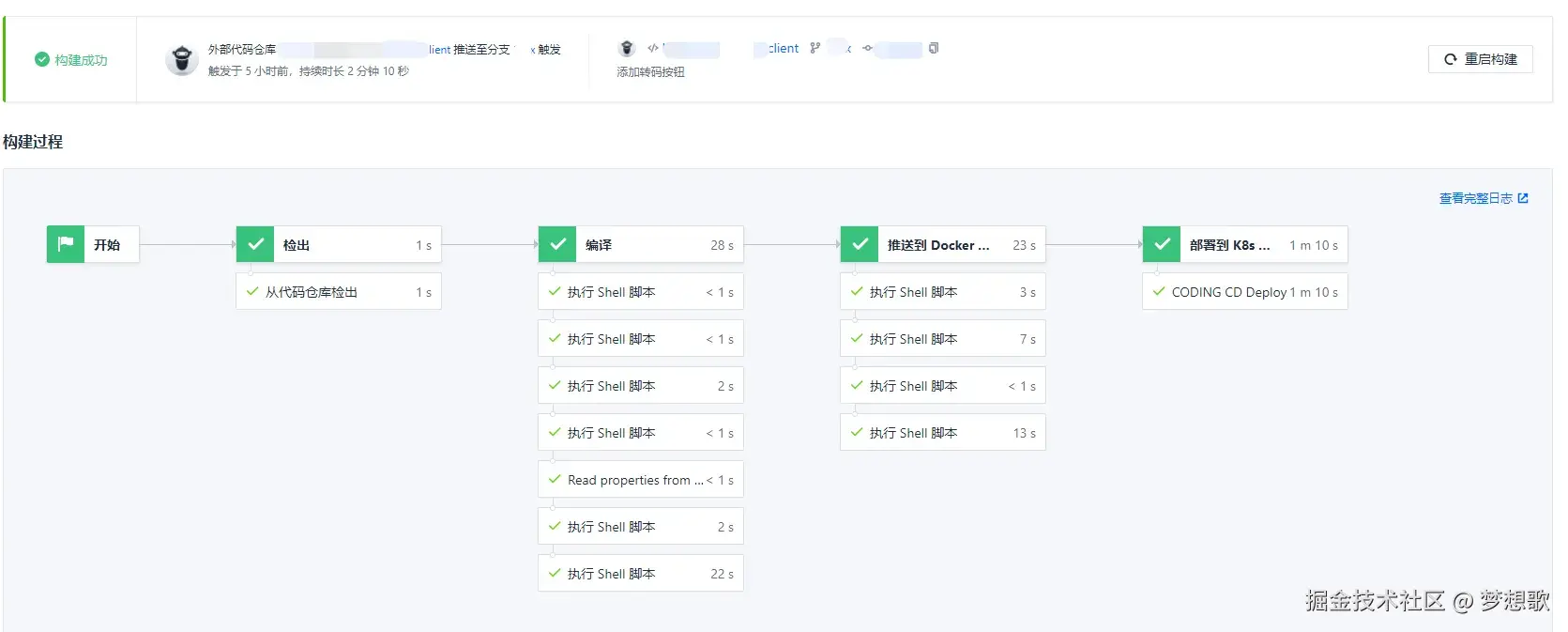

构建成功的效果图如下。
总结
在公司引入 CODING 后，研发团队和运维团队的工作都发生了很大的变化。研发团队负责 DevOps 的全生命周期管理，不再依赖运维团队，效率提升明显。而运维团队专注于基础设施，如云原生、网络、操作系统的优化，能更有效地处理线上故障。从整体的收益来看，至少节省了两个员工的成本。
CODING 流水线存在一些不足，只提供了单一镜像的更新功能，只能用于已部署的目标，并且不适合多服务批量部署，除非手动写脚本，基于 kubectl apply 实现。和腾讯方沟通后，他们告诉笔者，目前有个 Orbit 云原生应用交付正在内测，即将上线，可以开放白名单给我们尝试下。
下一期，笔者将介绍 CODING Orbit 云原生应用交付。
