uni-app框架核心/常用API梳理二

82 阅读11分钟

位置相关

涉及到地图 App平台 manifest中配置好自己的地图厂商key,在地图厂商的后台,填写正确包名和证书摘要

  1. App平台 manifest中配置好自己的地图厂商key,在地图厂商的后台,填写正确包名和证书摘要。地图厂商的sdk会在运行时校验key、包名、证书的一致性
  2. Web平台 manifest中配置好自己的地图厂商key,使用web接口如涉及白名单,需确保自己的域名在地图厂商那里正确配置了域名白名单
  3. 确保在地图厂商那里配额足够
  4. 确保在地图厂商那里有周边服务的权限。否则无法获取周围地址

如果运行在微信浏览器中,可以使用微信的jssdk的定位能力。这个是微信向腾讯地图申请的key,开发者无需配置自己的key。

地图厂商的商业授权较贵,如需购买,请点击获取优惠

uni.getLocation

uni.getLocation({
    type: 'wgs84',
    success: function (res) {
        console.log('当前位置的经度:' + res.longitude);
        console.log('当前位置的纬度:' + res.latitude);
    }
});

uni.chooseLocation

uni.chooseLocation({
    success: function (res) {
        console.log('位置名称:' + res.name);
        console.log('详细地址:' + res.address);
        console.log('纬度:' + res.latitude);
        console.log('经度:' + res.longitude);
    }
});

这两个api前面有介绍地址选点的注意事项,这里不在赘述~请移步快速开始那篇文章

媒体相关

uni.chooseImage

从本地相册选择图片或使用相机拍照。微信小程序从基础库 2.21.0 开始, wx.chooseImage 停止维护,请使用 uni.chooseMedia 代替。

uni.chooseMedia({
  count: 9,
  mediaType: ['image','video'],
  sourceType: ['album', 'camera'],
  maxDuration: 30,
  camera: 'back',
  success(res) {
    console.log(res.tempFiles)
  }
})
<template>
    <view>测试页面</view>
    <button type="primary" @click="test()">选择图片</button>
</template>

<script setup>
import { ref } from 'vue';
import { onLoad } from '@dcloudio/uni-app';

const test = () => {
    // 小程序 基础库 2.21.0 以后使用上面的 uni.chooseMedia
    uni.chooseImage({
        count: 6, // 最多可以选择的图片张数,默认9
        sizeType: ['original', 'compressed'], // 可以指定是原图还是压缩图,默认二者都有
        sourceType: ['camera'], // album 从相册选图,camera 使用相机,默认二者都有。
        success: function (res) {
            console.log(JSON.stringify(res.tempFilePaths));
            // 预览图片
            uni.previewImage({
                urls: res.tempFilePaths,
                longPressActions: {
                        itemList: ['发送给朋友', '保存图片', '收藏'],
                        success: function (data) {
                                console.log('选中了第' + (data.tapIndex + 1) + '个按钮,第' + (data.index + 1) + '张图片');
                        },
                        fail: function (err) {
                                console.log(err.errMsg);
                        }
                }
            });
        }
    });
};

</script>

uni.saveImageToPhotosAlbum

保存图片到系统相册

  • 可以通过用户授权API来判断用户是否给应用授予相册的访问权限uniapp.dcloud.io/api/other/a…
  • H5没有API可触发保存到相册行为,下载图片时浏览器会询问图片存放地址。
  • 微信小程序在2023年10月17日之后,使用API需要配置隐私协议
uni.chooseImage({
    count: 1,
    sourceType: ['camera'],
    success: function (res) {
        uni.saveImageToPhotosAlbum({
            filePath: res.tempFilePaths[0],
            success: function () {
                    console.log('save success');
            }
        });
    }
});

wx.chooseMessageFile

从客户端会话选择文件,从微信聊天会话中选择文件。

这个只能在微信小程序(基础库2.5.0+)和qq小程序(基础库1.18.0+)使用其他平台不可以使用API使用文档

wx.chooseMessageFile({
  count: 10,
  type: 'image',
  success (res) {
    // tempFilePath可以作为img标签的src属性显示图片
    const tempFilePaths = res.tempFiles
  }
})

uni.getRecorderManager()

获取全局唯一的录音管理器 recorderManager

<template>
    <button @tap="startRecord">开始录音</button>
    <button @tap="endRecord">停止录音</button>
    <button @tap="playVoice">播放录音</button>
</template>

<script setup>
import { ref, onMounted } from 'vue';
import { onLoad } from '@dcloudio/uni-app';

const recorderManager = uni.getRecorderManager();
const innerAudioContext = uni.createInnerAudioContext();

innerAudioContext.autoplay = true;

// 使用ref定义响应式数据
const voicePath = ref('');

// 定义方法
const startRecord = () => {
    console.log('开始录音');
    recorderManager.start();
};

const endRecord = () => {
    console.log('录音结束');
    recorderManager.stop();
};

const playVoice = () => {
    console.log('播放录音');
    if (voicePath.value) {
        innerAudioContext.src = voicePath.value;
        innerAudioContext.play();
    }
};

onLoad((option) => {
    recorderManager.onStop(function (res) {
        console.log('recorder stop' + JSON.stringify(res));
        voicePath.value = res.tempFilePath;
    });
});
</script>

设备相关

uni.getSystemInfo

异步获取系统信息 (uni.getSystemInfoSync同步获取)

  • 屏幕高度 = 原生NavigationBar高度(含状态栏高度)+ 可使用窗口高度 + 原生TabBar高度
  • windowHeight不包含NavigationBar和TabBar的高度
  • Web端,windowTop等于NavigationBar高度,windowBottom等于TabBar高度
  • App端,windowTop等于透明状态NavigationBar高度,windowBottom等于透明状态TabBar高度
  • 高度相关信息,要放在 onReady 里获取。太早取不到
uni.getSystemInfo({
    success: function (res) {
       console.log(res);
    }
});

uni.getNetworkType

获取网络类型

uni.getNetworkType({
    success: function (res) {
       console.log(res.networkType);
    }
});

uni.makePhoneCall

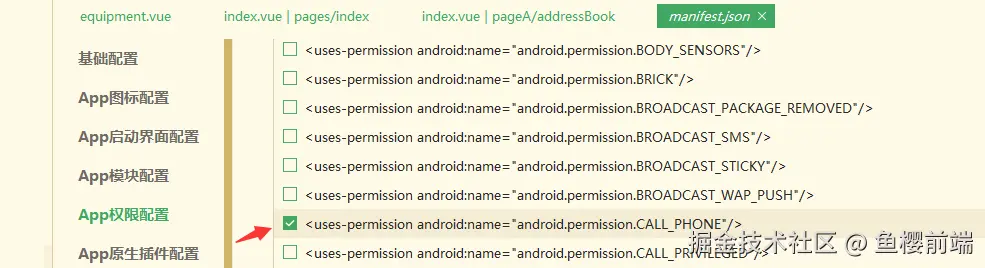

打电话 小程序直接调用 app如下


// ios和安卓不同情况, 需要注意:手机号要为字符串
cellPhone(phone) {
    const res = uni.getSystemInfoSync();
    // ios系统默认有个模态框
    if (res.platform == 'ios') {
        uni.makePhoneCall({
            phoneNumber: phone,
        })
    } else {
    // 安卓手机手动设置一个showActionSheet
        uni.showActionSheet({
            itemList: ['phone', '呼叫'],
            success: function(res) {
                if (res.tapIndex == 1) {
                    uni.makePhoneCall({
                        phoneNumber: phone,
                    })
                }
            }
        })
    }
}

uni.scanCode

调起客户端扫码界面,扫码成功后返回对应的结果。除h5不支持其他都支持

// 允许从相机和相册扫码
uni.scanCode({
    success: function (res) {
        console.log('条码类型:' + res.scanType);
        console.log('条码内容:' + res.result);
    }
});

// 只允许通过相机扫码
uni.scanCode({
    onlyFromCamera: true,
    success: function (res) {
        console.log('条码类型:' + res.scanType);
        console.log('条码内容:' + res.result);
    }
});

// 调起条码扫描
uni.scanCode({
    scanType: ['barCode'],
    success: function (res) {
        console.log('条码类型:' + res.scanType);
        console.log('条码内容:' + res.result);
    }
});

界面交互

uni.showToast

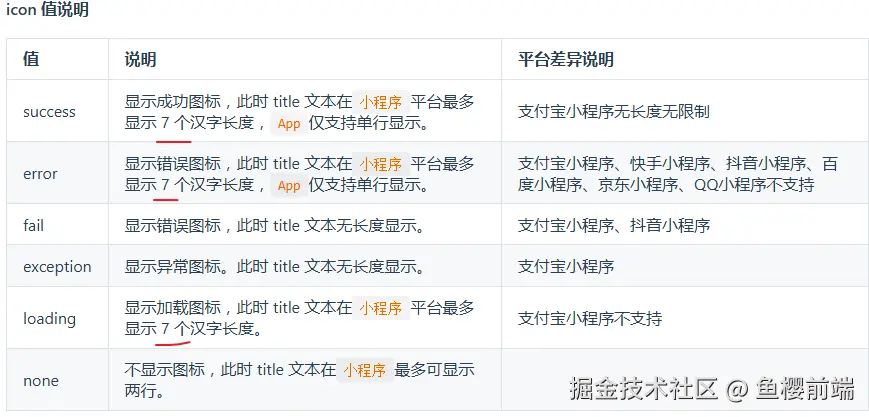

显示消息提示框


uni.showToast({
    // 长度显示规则上面表格
    title: '标题',
    duration: 2000
});

uni.setNavigationBarTitle

动态设置当前页面的标题。

  • 如果需要在页面进入时设置标题,可以在onReady内执行,以避免被框架内的修改所覆盖。如果必须在onShow内执行需要延迟一小段时间。
uni.setNavigationBarTitle({
    title: '首页111'
});

uni.setNavigationBarColor

设置页面导航条颜色。如果需要进入页面就设置颜色,请延迟执行,防止被框架内设置颜色逻辑覆盖

uni.setNavigationBarColor({
    frontColor: '#ffffff',
    backgroundColor: '#007aff'
});

uni.setTabBarItem

动态设置 tabBar 某一项的内容 (必须更换已有的)

uni.setTabBarItem({
    index: 1,
    text: '动态bar',
    iconPath: 'static/logo.png',
    selectedIconPath: 'static/logo.png'
});

uni.setTabBarStyle

动态设置 tabBar 的整体样式

uni.setTabBarStyle({
  color: '#FF0000',
  selectedColor: '#00FF00',
  backgroundColor: '#0000FF',
  borderStyle: 'white'
})

uni.hideTabBar

隐藏 tabBar 与之对应的 uni.showTabBar 显示 tabBar

uni.hideTabBar()

uni.setTabBarBadge

为 tabBar 某一项的右上角添加文本 图下效果,与之对应的 uni.removeTabBarBadge 移除 tabBar 某一项右上角的文本


uni.setTabBarBadge({
    // 下标
    index: 0,
    // 文案 显示的文本,不超过 3 个半角字符
    text: '1'
});

uni.showTabBarRedDot

显示 tabBar 某一项的右上角的红点,与之对应的 uni.hideTabBarRedDot 隐藏 tabBar 某一项的右上角的红点

uni.showTabBarRedDot({
    index: 0
});
  • tabbar是原生的,层级高于前端元素
  • uni-app插件市场有封装的前端tabbar,但性能不如原生tabbar
  • 如果想要一个中间带+号的tabbar,在HBuilderX中新建uni-app项目、选择 底部选项卡 模板
  • 以上大部分操作 tabbar 的 API 需要在 tabbar 渲染后才能使用,避免在 tabbar 未初始化前使用

uni.pageScrollTo

将页面滚动到目标位置。可以指定滚动到具体的scrollTop数值,也可以指定滚动到某个元素的位置

uni.pageScrollTo({
    scrollTop: 0,
    duration: 300
});
  1. app-uvue支持的选择器较少,不支持ID选择器,详见
  2. app-uvue的页面滚动,是由页面最外层的scroll-view模拟的,如果页面最外层不是scroll-view,无法使用本api。详见
  3. app-uvue的scroll-view滚动时,如需动画,则需要在scroll-view的属性中配置 scroll-with-animation="true"详见
  4. scroll-view的滚动,设置其scrollTop即可。详见

uni.onWindowResize

监听窗口尺寸变化事件

const windowResizeCallback = (res) => {
  console.log('变化后的窗口宽度=' + res.size.windowWidth)
  console.log('变化后的窗口高度=' + res.size.windowHeight)
}
uni.onWindowResize(windowResizeCallback)
  • 如App端设置软键盘弹出方式为adjustResize ,则在键盘弹出时,会触发此事件。
  • 横竖屏切换时,会触发此事件

uni.offWindowResize

取消监听窗口尺寸变化事件

// `CALLBACK`为调用`uni.onWindowResize`时传入的`CALLBACK`
uni.offWindowResize(windowResizeCallback)

onPullDownRefresh

在 js 中定义 onPullDownRefresh 处理函数(和onLoad等生命周期函数同级),监听该页面用户下拉刷新事件。

  • 需要在 pages.json 里,找到的当前页面的pages节点,并在 style 选项中开启 enablePullDownRefresh
  • 当处理完数据刷新后,uni.stopPullDownRefresh 可以停止当前页面的下拉刷新

uni.startPullDownRefresh

开始下拉刷新,调用后触发下拉刷新动画,效果与用户手动下拉刷新一致。

uni.stopPullDownRefresh

停止当前页面下拉刷新。

{

"pages": [
    {
        "path": "pages/index/index",
        "style": {
            "navigationBarTitleText": "uni-app",
            "enablePullDownRefresh": true
        }
    }
],
}

三个api都和下拉刷新相关

SelectorQuery

查询节点信息的对象

selectorQuery.in(component)

将选择器的选取范围更改为自定义组件 component 内,返回一个 SelectorQuery 对象实例。(初始时,选择器仅选取页面范围的节点,不会选取任何自定义组件中的节点)。

// options API 选项式 API
const query = uni.createSelectorQuery().in(this);
query
  .select("#id")
  .boundingClientRect((data) => {
    console.log("得到布局位置信息" + JSON.stringify(data));
    console.log("节点离页面顶部的距离为" + data.top);
  })
  .exec();

// Composition API 组合式 API
import { getCurrentInstance } from 'vue';
const instance = getCurrentInstance();

const query = uni.createSelectorQuery().in(instance.proxy);
query
  .select("#id")
  .boundingClientRect((data) => {
    console.log("得到布局位置信息" + JSON.stringify(data));
    console.log("节点离页面顶部的距离为" + data.top);
  })
  .exec();

selectorQuery.select(selector)

在当前页面下选择第一个匹配选择器 selector 的节点,返回一个 NodesRef 对象实例,可以用于获取节点信息。

selector 说明:

selector 类似于 CSS 的选择器,但仅支持下列语法。

  • ID 选择器:#the-id
  • class 选择器(可以连续指定多个):.a-class.another-class
  • 子元素选择器:.the-parent > .the-child
  • 后代选择器:.the-ancestor .the-descendant
  • 跨自定义组件的后代选择器:.the-ancestor >>> .the-descendant (H5 暂不支持)
  • 多选择器的并集:#a-node, .some-other-nodes

#selectorQuery.selectAll(selector)

在当前页面下选择匹配选择器 selector 的所有节点,返回一个 NodesRef 对象实例,可以用于获取节点信息。

#selectorQuery.selectViewport()

选择显示区域,可用于获取显示区域的尺寸、滚动位置等信息,返回一个 NodesRef 对象实例。

#selectorQuery.exec(callback)

执行所有的请求。请求结果按请求次序构成数组,在 callback 的第一个参数中返回。

nextTick(function callback)

在小程序自定义组件,如wxcomponents中使用。延迟一部分操作到下一个时间片再执行。(类似于 setTimeout) 。其他平台无此概念。

其他

uni.getAccountInfoSync

获取当前帐号信息,只兼容部分小程序 可以返回小程序的Appid 以及运行环境 (小程序 当前环境版本:develop开发版、trial体验版、release正式版、gray灰度版)

uni.getAccountInfoSync()

uni.navigateToMiniProgram

打开另一个小程序

uni.navigateToMiniProgram({
  // 要打开的小程序 appId
  appId: '',
  // 打开的页面路径,如果为空则打开首页
  path: 'pages/index/index?id=123',
  // 需要传递给目标小程序的数据,目标小程序可在 `App.vue` 的 `onLaunch`或`onShow` 中获取到这份数据
  extraData: {
    'data1': 'test'
  },
  success(res) {
    // 打开成功
  }
})

uni.navigateBackMiniProgram

跳转回上一个小程序,只有当另一个小程序跳转到当前小程序时才会能调用成功。

uni.navigateBackMiniProgram({
  extraData: {
    'data1': 'test'
  },
  success(res) {
    // 返回成功
  }
})

Tip

  • 将upx单位值转换成px。因upx(uni.upx2px())已废弃,推荐使用rpx。rpx无需特殊API可直接使用
  • nvue 暂不支持 uni.createSelectorQuery
  • 网络请求的 超时时间 可以统一在 manifest.json 中配置 networkTimeout
  • H5 端本地调试需注意跨域问题,参考:调试跨域问题解决方案
  • 注意小程序端不支持自动保持 cookie,服务器应避免验证 cookie。如果服务器无法修改,也可以使用一些模拟手段,比如这样的工具github.com/charleslo1/… 可以请求时带上 cookie 并将响应的 cookie 保存在本地。
  • H5端 cookie 受跨域限制(和平时开发网站时一样),旧版的 uni.request 未支持 withCredentials 配置,可以直接使用 xhr 对象或者其他类库。
  • 根据 W3C 规范,H5 端无法获取 response headerSet-Cookie、Set-Cookie2 这2个字段,对于跨域请求,允许获取的 response header 字段只限于“simple response header”“Access-Control-Expose-Headers”详情
  • uni-app 插件市场有flyio、axios等三方封装的拦截器可用
  • 使用一些比较小众的证书机构(如:CFCA OV OCA)签发的 ssl 证书在安卓设备请求会失败,因为这些机构的根证书不在系统内置根证书库,可以更换其他常见机构签发的证书(如:Let's Encrypt),或者配置 sslVerify 为 false 关闭 ssl 证书验证(不推荐)。
  • 离线打包不支持 sslVerify 配置
  • 单次网络请求数据量建议控制在50K以下(仅指json数据,不含图片),过多数据应分页获取,以提升应用体验
  • 在各个小程序平台运行时,网络相关的 API 在使用前需要配置域名白名单
  • App支持多文件上传,微信小程序只支持单文件上传,传多个文件需要反复调用本API。所以跨端的写法就是循环调用本API。
  • App平台打开微信小程序,使用plus.share的launchMiniProgram。注意uni-app不需要plus ready,将plus ready里的代码写到页面的onLoad生命周期即可。使用此功能需在manifest中配置微信分享SDK信息,打包后生效。
  • 各小程序平台对跳转到其他小程序有一些限制和规定,需要遵守,具体见各平台文档。
  • 不能在横屏下打开半屏小程序
