问题的产生:
在课堂上,老师提到了关于父元素高度塌陷的问题。现在我们来复习总结一下。
分析:

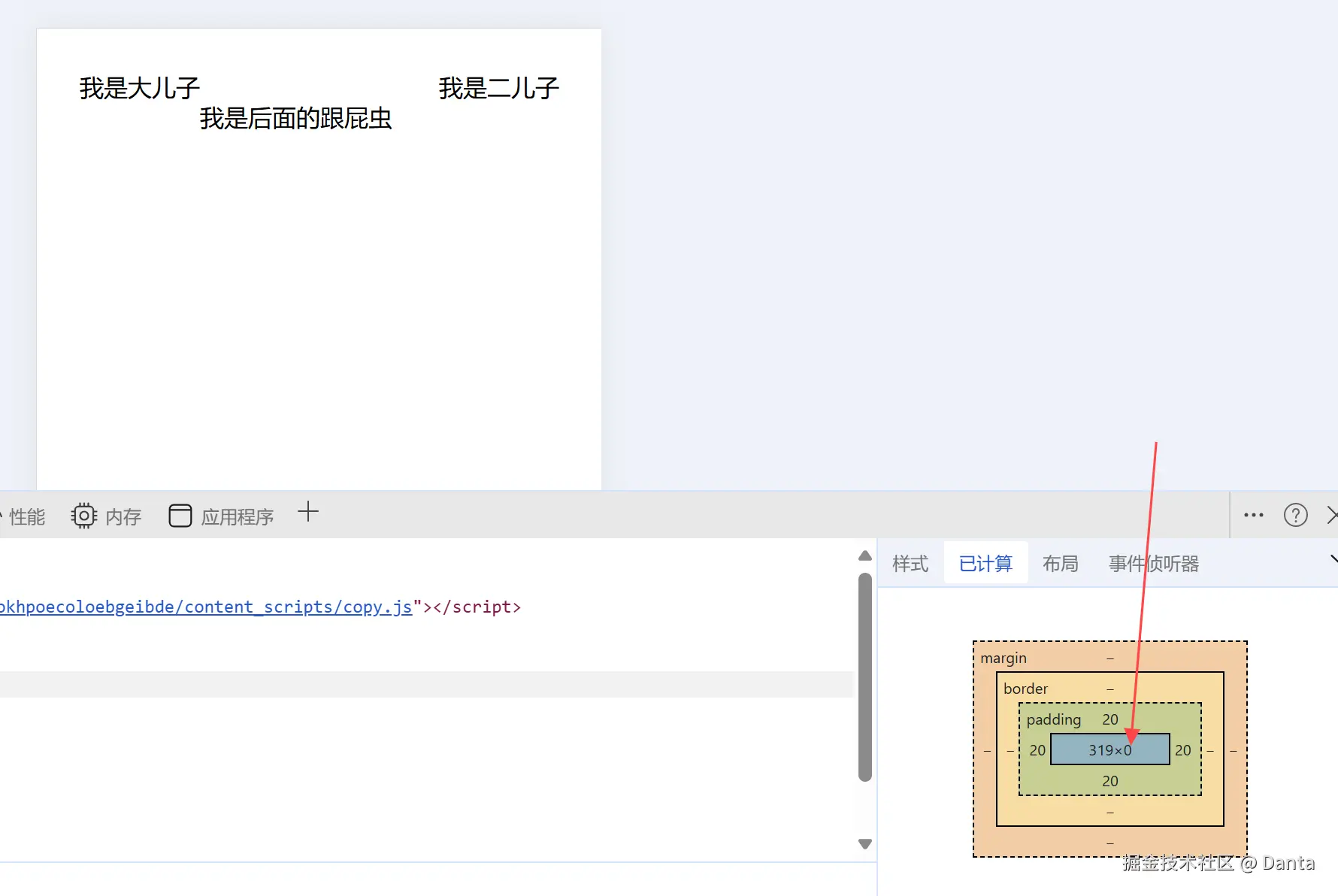

我们来看父元素高度为0时是如何产生的?
结果:
代码:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>BFC</title>
<style>
.father{
padding: 20px;
}
.son1{
float: left;
}
.son2{
float: right;
}
</style>
</head>
<body>
<div class="father">
<div class="son1">我是大儿子</div>
<div class="son2">我是二儿子</div>
</div>
<div>我是后面的跟屁虫</div>
</body>
</html>
原因:
- 子元素中的 “大儿子” ,“小儿子” 变成了浮动,脱离了文档流,导致父元素中高度塌陷,就会造成高度显示为0,
- 会导致后面文档流中的文字,形成环绕的效果,这就是为什么,‘跟屁虫’,没有在顶格的位置,而是到了中间偏右一点的位置。
如何解决呢?
这时候就要引出概念:
块级格式化上下文(Block Formatting Context,简称 BFC)是Web页面中一个独立的渲染区域,在这个区域内,元素按照特定规则进行布局,并且不会影响到该区域之外的元素。BFC的存在有助于解决一些常见的CSS布局问题,如浮动元素导致的父容器高度塌陷等。
BFC 的基本特性
- 内部盒子浮动和绝对定位的影响:在BFC中,浮动元素不会影响到外部的内容,而绝对定位元素则会相对于最近的非static(静态)定位祖先进行定位。

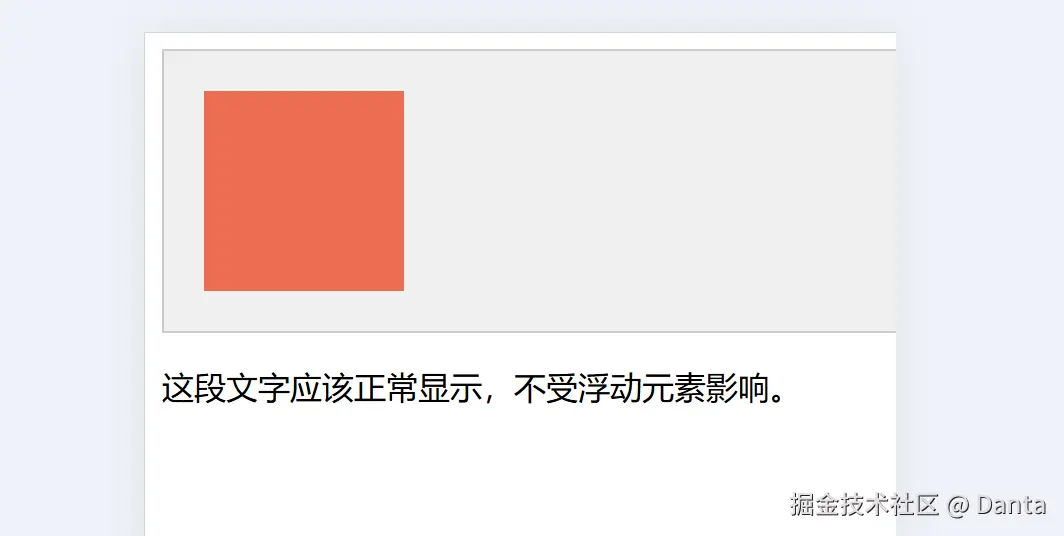

案例:
这个案例中,就不会出现围绕的效果了。<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>BFC - Floats</title>
<style>
.container {
background: #f0f0f0;
padding: 20px;
border: 1px solid #ccc;
}
.float-box {
float: left;
width: 100px;
height: 100px;
background: tomato;
}
.clearfix::after {
content: "";
display: table;
clear: both;
}
</style>
</head>
<body>
<div class="container clearfix">
<div class="float-box"></div>
</div>
<!-- 浮动元素不会影响到外面的内容 -->
<p>这段文字应该正常显示,不受浮动元素影响。</p>
</body>
</html>
- 外边距折叠:在一个BFC内,垂直相邻的两个块级元素的外边距会发生折叠,但在不同BFC之间的外边距不会发生折叠。
- 外边距折叠(Margin Collapse)是CSS布局中的一个特性,它发生在垂直方向上相邻的块级元素之间。当两个垂直方向上的外边距相遇时,它们不会简单地相加,而是合并为一个单一的外边距,其大小等于两个外边距中较大的那个。这种行为只在同一个BFC(Block Formatting Context)内发生。

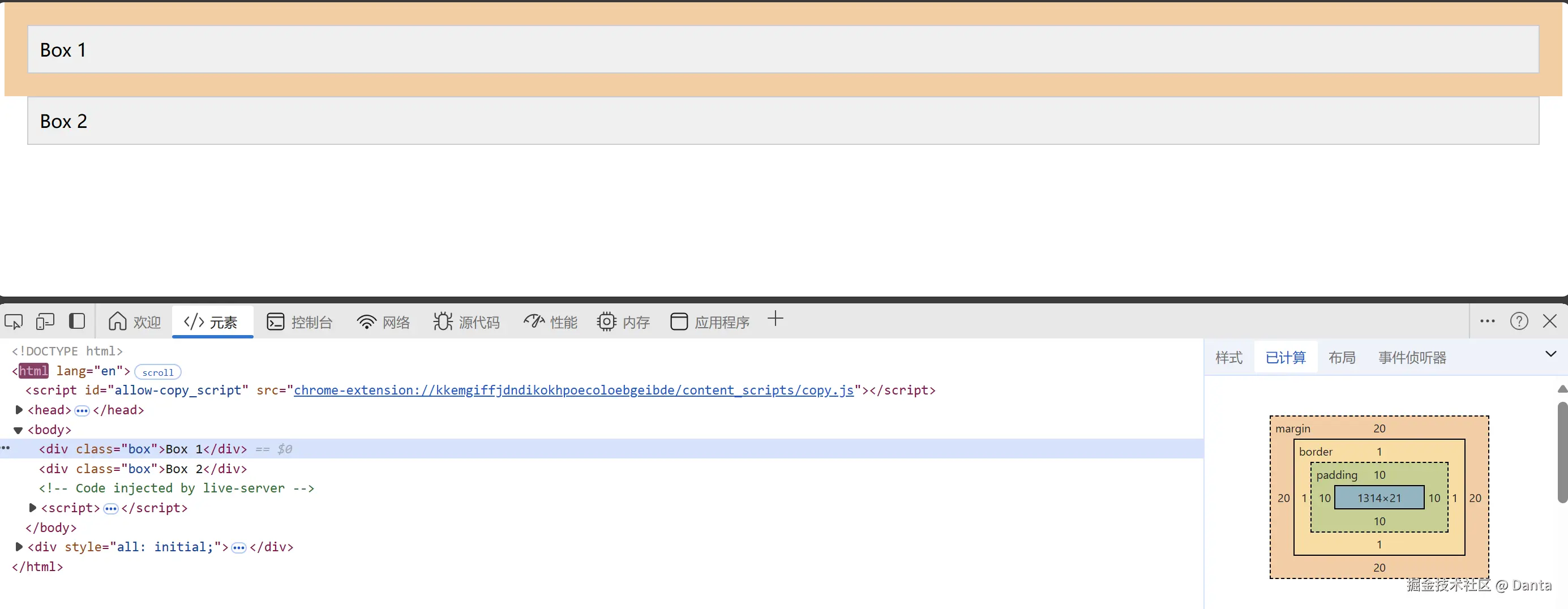

案例1:
在这个例子中,两个.box
元素之间的垂直外边距会发生折叠。虽然每个盒子都有20px
的上和下外边距,但实际显示出来的间隔只有20px
,而不是预期的40px
,这两个外边距发生了折叠。
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Margin Collapse Example</title>
<style>
.box {
margin: 20px;
padding: 10px;
background-color: #f0f0f0;
border: 1px solid #ccc;
}
</style>
</head>
<body>
<div class="box">Box 1</div>
<div class="box">Box 2</div>
</body>
</html>

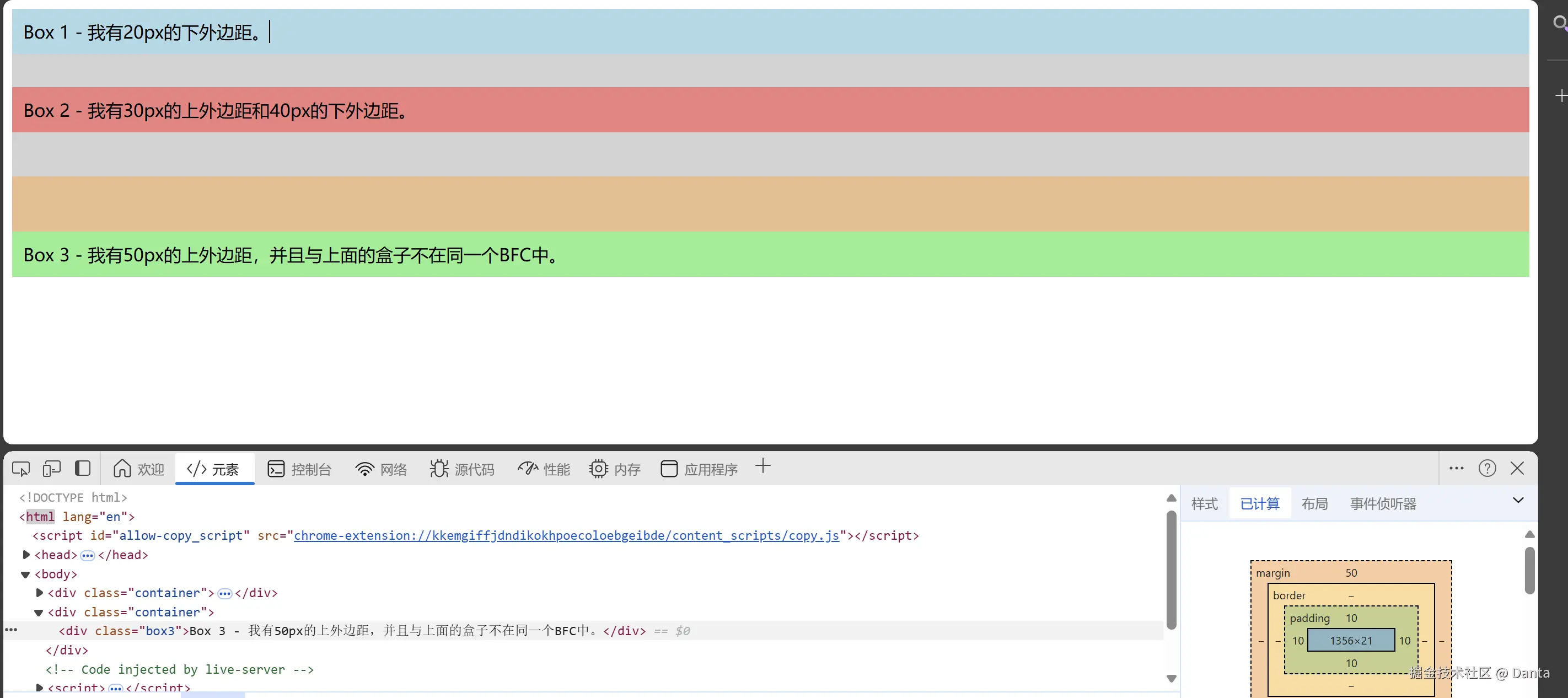

解决:
当把box1和box2放入一个bfc中,box3单独一个bfc时,就消除了外边距折叠。<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>BFC Margin Collapse Example</title>
<style>
.container {
background-color: lightgray;
/* 创建一个新的BFC */
overflow: hidden;
}
.box1 {
margin-bottom: 20px;
background-color: lightblue;
padding: 10px;
}
.box2 {
margin-top: 30px;
margin-bottom: 40px;
background-color: lightcoral;
padding: 10px;
}
.box3 {
margin-top: 50px;
background-color: lightgreen;
padding: 10px;
}
</style>
</head>
<body>
<div class="container">
<div class="box1">Box 1 - 我有20px的下外边距。</div>
<div class="box2">Box 2 - 我有30px的上外边距和40px的下外边距。</div>
</div>
<div class="container">
<div class="box3">Box 3 - 我有50px的上外边距,并且与上面的盒子不在同一个BFC中。</div>
</div>
</body>
</html>

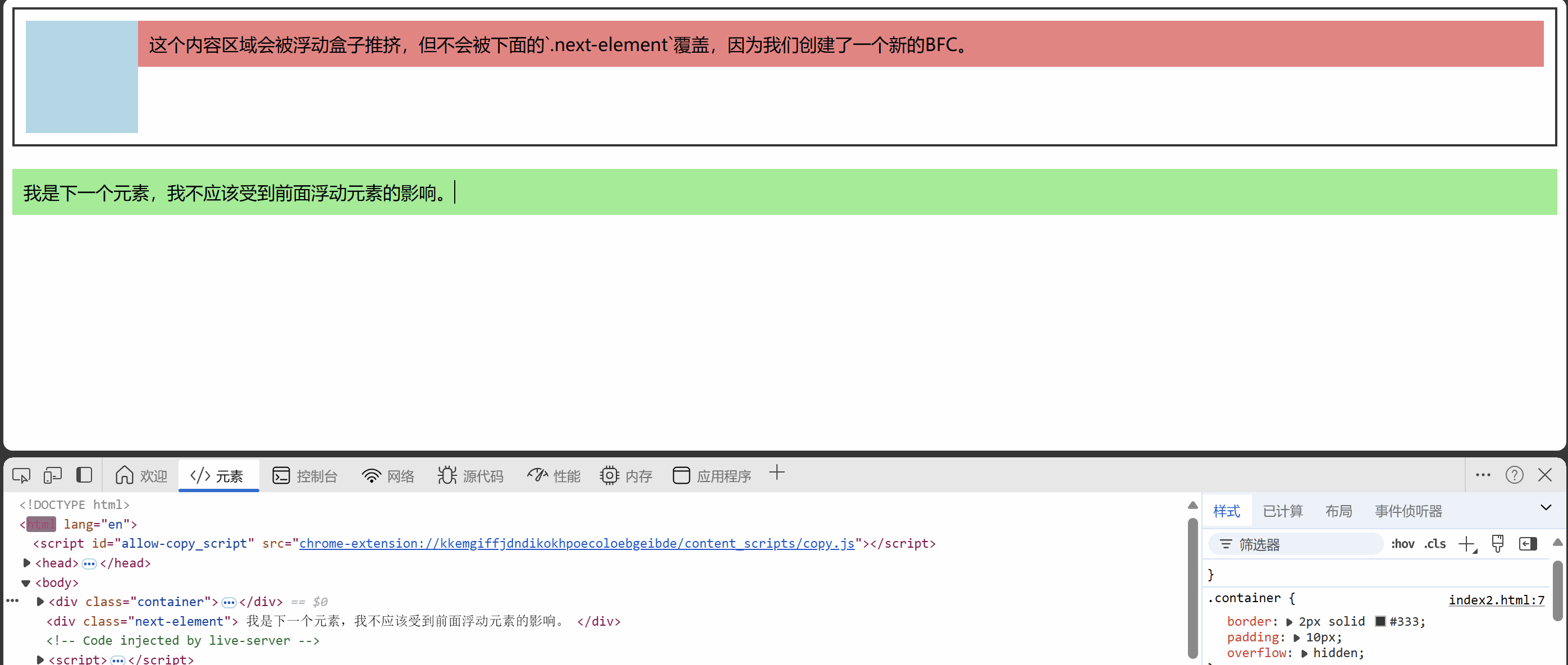

- 防止浮动干扰:创建了新的BFC的元素可以包含其内部的浮动元素,从而避免浮动元素对后续兄弟元素造成影响。
4. 计算宽度和高度:BFC中的元素根据其自身的宽度和高度属性以及内容来确定尺寸,而不受外部浮动元素的影响。
讲了那么多,大家还不知道怎么创建一个BFC吧?
创建 BFC 的方式
以下是一些可以触发创建新BFC的情况:
- 绝对或固定定位元素 (
position
为absolute
或fixed
) - 行内块元素 (
display
为inline-block
) - 表格单元格 (
display
为table-cell
) - 表格标题 (
display
为table-caption
) - 块级替换元素(如
<img>
、<video>
等) - 元素具有
overflow
值不为visible
(例如hidden
、auto
、scroll
) - 弹性盒模型元素 (
display: flex
或inline-flex
) - 网格布局元素 (
display: grid
或inline-grid
) - 使用
display: flow-root
- CSS 列布局 (
column-count
或column-width
不为auto
)
解决问题:

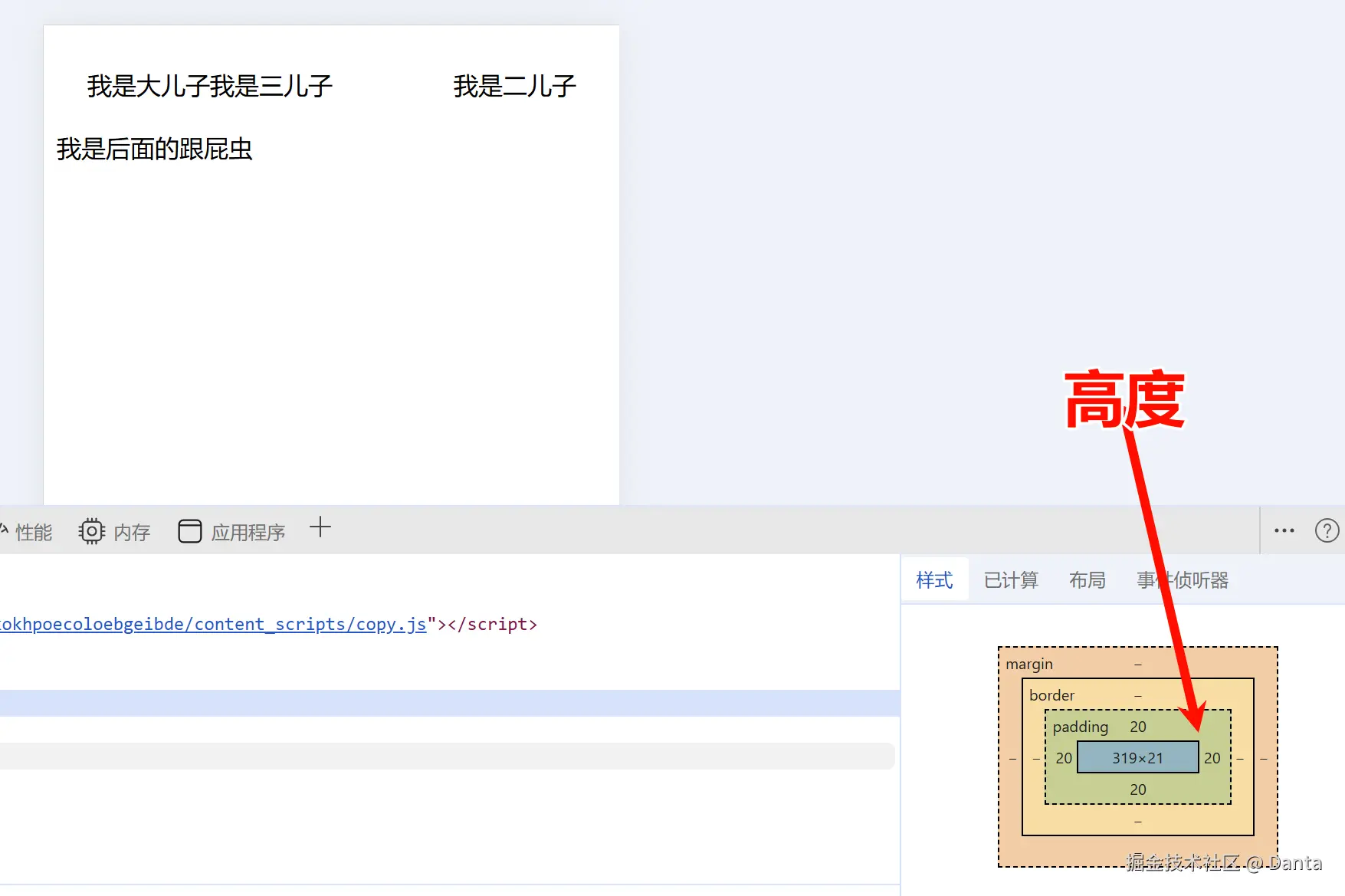

在了解完BFC后,面对我们开头的问题当然是迎刃而解了,我们只需要在.father
样式中加上 overflow:auto
,就创建了一个BFC了。
.father{
overflow: auto;
padding: 20px;
}
总结:
通过学的知识,再进行拓展,这样就能掌握更多的能力!
希望我的文章对你有帮助,如有问题,也请指出。
