原生微信小程序自定义tabBar,官方指导超简单!

18 阅读2分钟

在微信小程序中,可以通过实现自定义 tabBar 来满足复杂的布局需求。以下是实现步骤和具体方法:

一、配置 app.json

在项目的 app.json 中启用自定义 tabBar

"tabBar": {
    "custom": true,
    "color": "#7A7E83",
    "selectedColor": "#3cc51f",
    "borderStyle": "black",
    "backgroundColor": "#ffffff",
    "list": [
      {
        "pagePath": "index/index",
        "iconPath": "image/icon_component.png",
        "selectedIconPath": "image/icon_component_HL.png",
        "text": "组件"
      },
      {
        "pagePath": "index/index2",
        "iconPath": "image/icon_API.png",
        "selectedIconPath": "image/icon_API_HL.png",
        "text": "接口"
      }
    ]
  }

关键点:

  • "custom": true 表示启用自定义 tabBar。
  • list 中的 pagePath 必须与页面路径一致。

二、 创建自定义 tabBar 组件

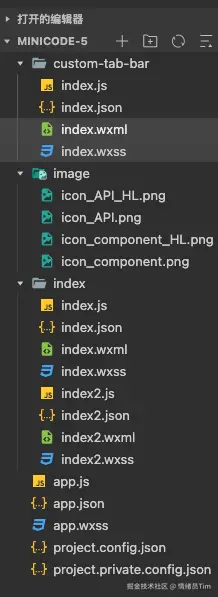

新建一个目录,例如 custom-tabbar,用于存放自定义 tabBar 的代码。

​编辑

custom-tab-bar
├── index.json
├── index.wxml
├── index.wxss
├── index.js

1.配置文件 index.json

{
  "component": true
}

2.模板文件 index.wxml

<!--miniprogram/custom-tab-bar/index.wxml-->
<view class="tab-bar">
  <view class="tab-bar-border"></view>
  <view wx:for="{{list}}" wx:key="index" class="tab-bar-item" data-path="{{item.pagePath}}" data-index="{{index}}" bindtap="switchTab">
    <image src="{{selected === index ? item.selectedIconPath : item.iconPath}}"></image>
    <view style="color: {{selected === index ? selectedColor : color}}">{{item.text}}</view>
  </view>
</view>

3.样式文件 index.wxss

.tab-bar {
  position: fixed;
  bottom: 0;
  left: 0;
  right: 0;
  height: 48px;
  background: white;
  display: flex;
  padding-bottom: env(safe-area-inset-bottom);
}

.tab-bar-border {
  background-color: rgba(0, 0, 0, 0.33);
  position: absolute;
  left: 0;
  top: 0;
  width: 100%;
  height: 1px;
  transform: scaleY(0.5);
}

.tab-bar-item {
  flex: 1;
  text-align: center;
  display: flex;
  justify-content: center;
  align-items: center;
  flex-direction: column;
}

.tab-bar-item image {
  width: 27px;
  height: 27px;
}

.tab-bar-item view {
  font-size: 10px;
}

4.脚本文件 index.js

Component({
  data: {
    selected: 0,
    color: "#7A7E83",
    selectedColor: "#3cc51f",
    list: [{
      pagePath: "/index/index",
      iconPath: "/image/icon_component.png",
      selectedIconPath: "/image/icon_component_HL.png",
      text: "组件"
    }, {
      pagePath: "/index/index2",
      iconPath: "/image/icon_API.png",
      selectedIconPath: "/image/icon_API_HL.png",
      text: "接口"
    }]
  },
  attached() {
  },
  methods: {
    switchTab(e) {
      const data = e.currentTarget.dataset
      const url = data.path
      wx.switchTab({url})
      this.setData({
        selected: data.index
      })
    }
  }
})

三、在页面中使用自定义 tabBar

为需要显示 tabBar 的页面添加以下内容:

1.页面 WXML 示例:

<view class="intro">组件</view>

2.页面 JSON 示例:

{
  "usingComponents": {}
}

3.页面 WXSS 示例:

.intro {
  margin: 30px;
  text-align: center;
}

4.页面 JS 示例:

Component({
  pageLifetimes: {
    show() {
      if (typeof this.getTabBar === 'function' &&
        this.getTabBar()) {
        this.getTabBar().setData({
          selected: 0
        })
      }
    }
  }
})

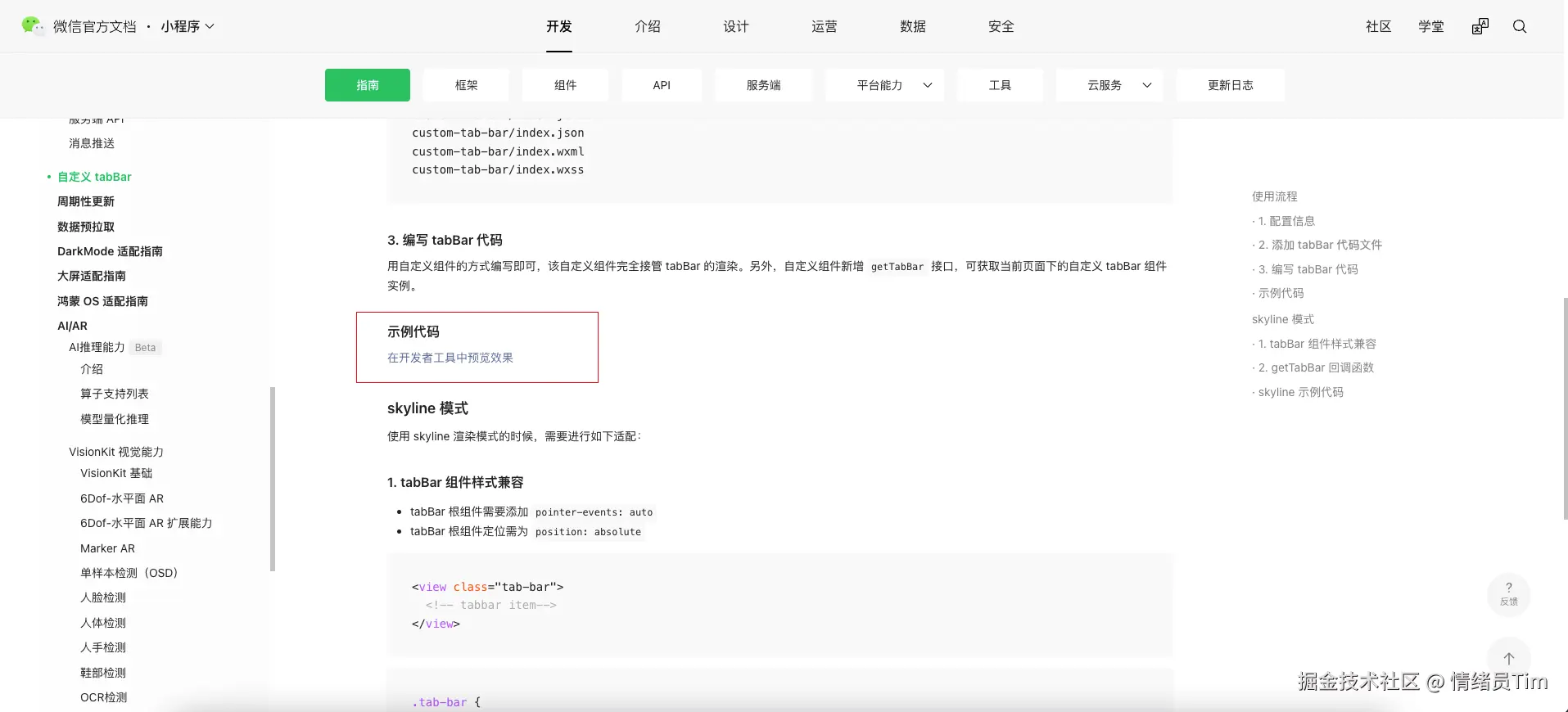

四、官方文档

例如上面操作还是不懂,可以直接去官方
自定义 tabBar | 微信开放文档

下载里面demo一探究竟!
