一、需求背景

先说下客户的需求，客户是一个中学理科教师，备课时经常需要在word或者ppt里输入一些数学公式。

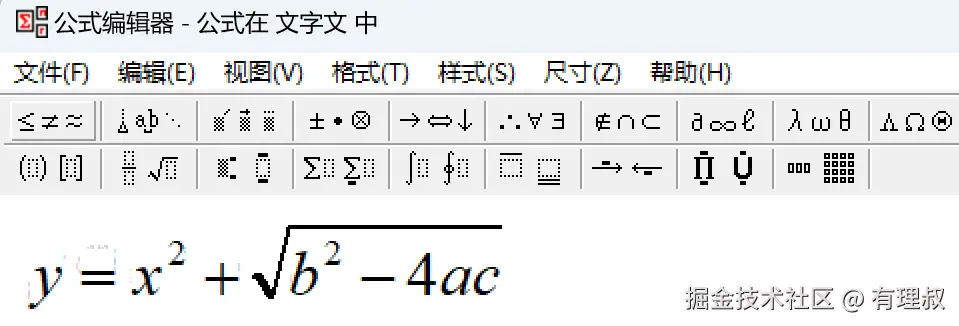

该客户的痛点是，如果使用word自带的公式输入器是比较费时的，尤其是复杂的公式，因为要寻找各种符号，如下图所示

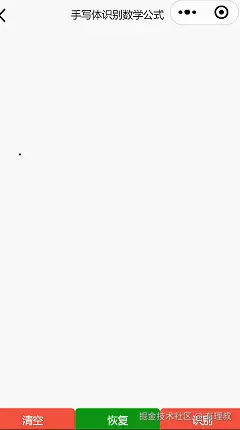

于是该教师想着现在的OCR技术这么先进，应该有更快的速度获取公式的办法，是的，没错。最省力的办法就是手写输入公式或者拍照，软件快速识别出来公式，把公式复制过来到word中。vue3和微信小程序的画布就能实现手写输入，本文就是实现uniapp的canvas实现画布输入手写的公式，然后把画好的图片发给后端识别，返回latex公式。效果如下图所示：


二、UI设计

从上往下由三部分组成

画布
操作按钮：清空、撤销、识别
识别结果

完整代码在最后

三、逻辑业务

1.页面初始化

获取画布上下文，并获取画布的长和宽，用于后期清空时重绘画布用到，关键代码如下：

// 生命周期钩子，相当于原来的onReady
onMounted(() => {
  ctx.value = uni.createCanvasContext('sign')
  ctx.value.setStrokeStyle(lineColor.value)
  ctx.value.setLineWidth(lineWidth.value)

  // 获取canvas的宽高
  const query = uni.createSelectorQuery().in(instance)
  query.select('#sign').boundingClientRect()
  query.exec((res) => {
    if (res && res.length) {
      width.value = res[0].width
      height.value = res[0].height
      background()
      save()
    }
  })
})
// 设置背景色方法，对应原来的background
const background = (color = '#f8f8f8') => {
  ctx.value.fillStyle = color
  ctx.value.fillRect(0, 0, width.value, height.value)
  ctx.value.draw()
  stack_file.value.splice(0, stack_file.value.length)
  formula_ketex.value.splice(0, formula_ketex.value.length)
}

其中background函数主要是绘制一个矩形，根据画布的长和宽并利用css控制其高度；save()函数用于保存当前的画布图片到栈内，便于实现撤销操作

.draw-page {
  height: 100vh;
  display: flex;
  flex-direction: column;
}

2.实现画布手写输入

主要依靠canvas的touchmove事件，实时绘制画笔在屏幕上移动的路径线段，关键代码如下：

// 触摸移动方法，对应原来的touchmove
const touchmove = (e) => {
  if (e.touches && e.touches.length) {
    const t = e.touches[0]
    pmouseX.value = mouseX.value
    pmouseY.value = mouseY.value
    mouseX.value = t.x
    mouseY.value = t.y
    draw()
  }
}
// 绘制方法，对应原来的draw
const draw = () => {
  ctx.value.moveTo(pmouseX.value, pmouseY.value)
  ctx.value.lineTo(mouseX.value, mouseY.value)
  ctx.value.stroke()
  ctx.value.draw(true)
}

3.撤销操作

其原理是当画笔结束绘制后，把当前画布里的图片保存到栈内，需要撤销时，从栈顶取出图片，重新绘制到画布里，即实现了撤销操作。关键代码如下： // 恢复操作


const undo = () => {
  if (stack_file.value.length > 0) {
    const lastSavedUrl = stack_file.value.pop() // 取出栈顶（上次保存的）元素
    const canvasWidth = width.value
    const canvasHeight = height.value
    // 设置图片绘制的起始坐标等，可按需调整，这里从坐标原点开始绘制覆盖整个canvas
    const x = 0
    const y = 0
    ctx.value.drawImage(lastSavedUrl, x, y, canvasWidth, canvasHeight)
    ctx.value.draw()
  }
}

4.识别公式

该部分的逻辑是把栈顶的图片取出来，发送给后端，以base64格式发送（这是后端的要求格式），后端返回latex公式，后端用python写的，这里就不展示了。有兴趣的留下邮箱。postFormulaOcrAPI(params)是后端接口的封装，关键代码如下：

// 发送图片给后台
const postImage = async () => {
  const params = {
    base64_str: base64_str.value,
  }
  console.log('params:', params)
  const res = await postFormulaOcrAPI(params)
  console.log('提交图片', res)
  if (res.code === 200) {
    uni.showToast({ icon: 'success', title: '识别成功' })
    formula_visible.value = true
    formula_result.value = res.data.results
    formula_ketex.value.push('$$' + formula_result.value + '$$')
  } else {
    uni.showToast({ icon: 'error', title: '识别错误' })
  }
}

5.下载word文件

当latex识别成功后，前端把latex作为参数发给后端，后端返回word文件，/questions/latex_2_word/是后端的接口，关键代码如下：


// 请求word文件
const postLatexToWord = () => {
  if (formula_result.value == ''){
    return 0
  }
  const params = {
    latex_str: formula_result.value,
  }
  uni.request({
    url: '/questions/latex_2_word/',
    method: 'POST',
    data: params,
    responseType: 'arraybuffer',
    success: (res) => {
      uni.hideLoading()
      console.log('服务器返回结果', res)
      if (res.statusCode === 200) {
        const fs = uni.getFileSystemManager()
        fs.writeFile({
          filePath: wx.env.USER_DATA_PATH + '/download.docx',
          data: res.data,
          encoding: 'binary',
          success(res) {
            uni.openDocument({
              showMenu: true,
              filePath: wx.env.USER_DATA_PATH + '/download.docx',
              success: function (res) {
                console.log('打开文档成功！')
              },
            })
          },
        })
      }
    },
    fail: (err) => {
      uni.hideLoading()
      console.log(err)
      uni.showToast({
        icon: 'none',
        mask: true,
        title: '失败请重新下载',
      })
    },
  })
}

完整代码

<template>
  <view class="draw-page">
    <view class="draw-content">
      <canvas
        style="width: 100%; height: 100%"
        ref="sign"
        canvas-id="sign"
        id="sign"
        disable-scroll
        @touchstart="touchstart"
        @touchmove="touchmove"
        @touchend="touchend"
      ></canvas>
    </view>
    <view class="actions">
      <button @click="background()" type="warn" size="mini">清空</button>
      <button @click="undo" type="primary" size="mini">恢复</button>
      <button @click="submit" type="warn" size="mini">识别</button>
    </view>
    <view class="formula" v-show="formula_visible">
      <input
        class="uni-input"
        ref="formula_result"
        :value="formula_result"
        placeholder="latex识别结果"
        style="width: 100%;"
        @input="inputLatex"
      />
      <MathCanvas :mathFormula="formula_ketex"></MathCanvas>
      <button @click="postLatexToWord" type="primary" size="mini">下载word</button>
    </view>
  </view>
</template>
<script setup>
import { onMounted, ref, getCurrentInstance, computed } from 'vue'
import { postFormulaOcrAPI } from '@/services/home'
import MathCanvas from '@/components/MathCanvas.vue'
// 定义响应式数据
const lineColor = ref('#000') // 线条颜色
const lineWidth = ref(2) // 线条宽度
const width = ref(0)
const height = ref(0)
const ctx = ref(null)
const mouseX = ref(0)
const mouseY = ref(0)
const pmouseX = ref(0)
const pmouseY = ref(0)
const instance = getCurrentInstance()
const stack_file = ref([])
const base64_str = ref('')
const formula_visible = ref(false)
const formula_result = ref('')

const formula_ketex = ref([])
// 输入latex，修改ketex的值动态修改公式
const inputLatex = (e) => {
  formula_result.value = e.detail.value
  console.log('formula_result', formula_result.value)
  formula_ketex.value[formula_ketex.value.length - 1] = '$$' + formula_result.value + '$$'
}
// 生命周期钩子，相当于原来的onReady
onMounted(() => {
  ctx.value = uni.createCanvasContext('sign')
  ctx.value.setStrokeStyle(lineColor.value)
  ctx.value.setLineWidth(lineWidth.value)

  // 获取canvas的宽高
  const query = uni.createSelectorQuery().in(instance)
  query.select('#sign').boundingClientRect()
  query.exec((res) => {
    if (res && res.length) {
      width.value = res[0].width
      height.value = res[0].height
      background()
      save()
    }
  })
})
// 提交给后台进行识别
const submit = () => {
  if (stack_file.value.length > 0) {
    formula_ketex.value = formula_ketex.value.splice(0, formula_ketex.value.length)
    const fileTempPath = stack_file.value[stack_file.value.length - 1]
    console.log('栈顶元素：', fileTempPath)
    uni.getFileSystemManager().readFile({
      filePath: fileTempPath,
      encoding: 'base64',
      success: (data) => {
        base64_str.value = data.data
        console.log('base64_str:', base64_str.value)
        postImage()
      },
      fail: (err) => {
        console.log('error:', err)
        return 0
      },
    })
  }
}
// 发送图片给后台
const postImage = async () => {
  const params = {
    base64_str: base64_str.value,
  }
  console.log('params:', params)
  const res = await postFormulaOcrAPI(params)
  console.log('提交图片', res)
  if (res.code === 200) {
    uni.showToast({ icon: 'success', title: '识别成功' })
    formula_visible.value = true
    formula_result.value = res.data.results
    formula_ketex.value.push('$$' + formula_result.value + '$$')
  } else {
    uni.showToast({ icon: 'error', title: '识别错误' })
  }
}
// 恢复操作
const undo = () => {
  if (stack_file.value.length > 0) {
    const lastSavedUrl = stack_file.value.pop() // 取出栈顶（上次保存的）元素
    const canvasWidth = width.value
    const canvasHeight = height.value
    // 设置图片绘制的起始坐标等，可按需调整，这里从坐标原点开始绘制覆盖整个canvas
    const x = 0
    const y = 0
    ctx.value.drawImage(lastSavedUrl, x, y, canvasWidth, canvasHeight)
    ctx.value.draw()
  }
}
// 保存方法，对应原来的save
const save = () => {
  uni.canvasToTempFilePath({
    canvasId: 'sign',
    success(res) {
      // h5 tempFilePath是base64
      const url = res.tempFilePath
      stack_file.value.push(url)
      // console.log(url)
    },
    fail(err) {
      console.error(err)
    },
  })
}

// 设置背景色方法，对应原来的background
const background = (color = '#f8f8f8') => {
  ctx.value.fillStyle = color
  ctx.value.fillRect(0, 0, width.value, height.value)
  ctx.value.draw()
  stack_file.value.splice(0, stack_file.value.length)
  formula_ketex.value.splice(0, formula_ketex.value.length)
}

// 触摸开始方法，对应原来的touchstart
const touchstart = (e) => {
  if (e.touches && e.touches.length) {
    const t = e.touches[0]
    mouseX.value = t.x
    mouseY.value = t.y
    pmouseX.value = mouseX.value
    pmouseY.value = mouseY.value
  }
}
// 触摸结束，当前画面保存到栈里面
const touchend = (e) => {
  // console.log(e)
  save()
}
// 触摸移动方法，对应原来的touchmove
const touchmove = (e) => {
  if (e.touches && e.touches.length) {
    const t = e.touches[0]
    pmouseX.value = mouseX.value
    pmouseY.value = mouseY.value
    mouseX.value = t.x
    mouseY.value = t.y
    draw()
  }
}
// 绘制方法，对应原来的draw
const draw = () => {
  ctx.value.moveTo(pmouseX.value, pmouseY.value)
  ctx.value.lineTo(mouseX.value, mouseY.value)
  ctx.value.stroke()
  ctx.value.draw(true)
}
// 请求word文件
const postLatexToWord = () => {
  if (formula_result.value == ''){
    return 0
  }
  const params = {
    latex_str: formula_result.value,
  }
  uni.request({
    url: '/questions/latex_2_word/',
    method: 'POST',
    data: params,
    responseType: 'arraybuffer',
    success: (res) => {
      uni.hideLoading()
      console.log('服务器返回结果', res)
      if (res.statusCode === 200) {
        const fs = uni.getFileSystemManager()
        fs.writeFile({
          filePath: wx.env.USER_DATA_PATH + '/download.docx',
          data: res.data,
          encoding: 'binary',
          success(res) {
            uni.openDocument({
              showMenu: true,
              filePath: wx.env.USER_DATA_PATH + '/download.docx',
              success: function (res) {
                console.log('打开文档成功！')
              },
            })
          },
        })
      }
    },
    fail: (err) => {
      uni.hideLoading()
      console.log(err)
      uni.showToast({
        icon: 'none',
        mask: true,
        title: '失败请重新下载',
      })
    },
  })
}
</script>
<style lang="scss">
.draw-page {
  height: 100vh;
  display: flex;
  flex-direction: column;
}
.draw-content {
  flex: 1;
}
.actions {
  display: flex;
  button {
    flex: 1;
  }
}
.formula {
  // height: 25vh;
  width: 100%;
  display: flex;
  flex-direction: column;
}
</style>
